used
used vacuum thermoforming machine from Illig in very good condition little used immediately ready for use Dimensions 6 by 5 meters incl. control cabinet and corresponding phereperie devices Pictures to follow
Vacuum forming machine for the production of PS, PVC, PET, blister, tray packaging. The thermoformer works separately forming and punching. The machine is in very good condition and was only used as a back-up machine for 16 years. It has been cleaned and extensively tested. so that it is immediately ready for use. Currently, a tool for trays in the size 125x176 mm is installed (forming tool 3-fold, negative, top), tool size approx. 188x408mm. We are also happy to put you in touch with a very good toolmaker who can produce format tools according to your wishes. Equipment of the machine: Moulding area 350 x 500 mm Film width max. 540 mm Moulded part height max. 100 mm positive - Top heating longitudinal row control - Underheating longitudinal row control - Strip steel cut heating - Forming station pneumatic, undertable as cooling plate - Needle chain transport with servo ...
M. No.: 322 Max. film width 700-800 mm Equipment / Additional information: -GREINER STACKING / Transfer device R3 (Ref. No.: 95002.24) // M. No.: 00020 // Age: 1998 Heating from above and below Material PS and PP were processed 450 Ps // 350 Pp The following tools were used on the machine: 8-way WZ-Ø95 and 15-way WZ-Ø73 and 15-way WZ-Ø86 Packaging was produced especially for the dairy industry. The cycles are 18-25 strokes - depending on the cup weight.
ILLIG SZS73 Counter Stacker, age 2007 Effective Working Area: 740 x 340 mm Max. Part Height: 150 mm Formed Part Stacking Length: 800 mm Siemens S7 PLC Controls Siemens SINAMICS Motor Drives Rittal Control Cabinet Cooling Unit with Temperature Display. This ILLIG SZS73 was working Inline with a Generation 3 ILLIG RDM70K Line. With Snap -Stacking Brush Stacking Cascade Stacking The Counter/ Stacker is in v. good production Condition, it is clean and in a very good Optical condition as well
Illig SK 74-C from a workshop for the disabled Year of construction 2006 Serial No.426-0172 JM80Q2 +2 pallets with approx. 38 rolls of film Dimensions in mm approx. 2200x1600x1600
ILLIG PLS75B Inline Counter/ Stacker, with Hole Punch Station, age 2006 used Inline with ILLIG RDM75K ! Max. Stacking Area: 750 x 350 mm Min Height of formed product: 25 mm Max. height of Formed Product: 150 mm Min. dia. of product : Ø 40 mm Max. dia. of Product: Ø 150 mm Max. length of Product Stack: 730 mm Output rate of Product Stacks: 1200 Stacks/ hr Rotating Head to neatly remove Products from the Thermoformer Mold Inline Hole Punch Station Inline Counter Stacker Station Compressed Air: 0.2 L at 6 bar, approximately Total Drive Rating: 19 kW Electrical specifications: 400 V, 3 phase, 50Hz (N/ PE) Cross delivery conveyor for counted cups. All Motors are Indramat Servo Motors Siemens SIMATIC TOUCH LED Operator Control Panel with Touch Pad Controls Siemens S7 PLC Controls Delivers Counted Cups/ Containers at Right Angles to machine direction New (Feb- ...
Illig RDM75K age 1998, refurbished in 2019, with Siemens S5 PLC Controls, used only for ca. 50,000 hrs ELAU B1 Display with Touchpad controls Thermoformer with auto-start facility Indramat Servomotor Indexing Max. material width 750 mm Max. Indexing length 480 mm Top & Lower heaters, total connected load top & bottom heaters 111.3 kW Auto Transport Rail Spreading for PP Sheet Sag Control Max. Forming Area 700 x 450 mm Hydraulic Cylinder Plug Assist with Bosch Rexroth Hydraulic Power Pack, completely Overhauled in 2019 Max. Part height 150 mm Max. Mold closing force 25,000 daN Auto Lubrication system Siemens S5 PLC Controls New original ILLIG/ RITTAL Control Cabinet Cooling System added in May-2023.
Technical specifications: Rated power, kW: 11,3 Mold area, mm: 475 x 250 Max. film width, mm: 495 Min. film width, mm: 150 Max. feed length, mm: 280 Min. feed length, mm: 50 Max. drawing depth/negative, mm: 100 Number of cycles/min.-max.: 48 Consumption of air/cycle at 6 bar: 100 Nl (net-pressurized air) Heat energy to be dissipated: with top heating ca. 10 260 KJ/h with top and bottom heating ca.: 17 715 KJ/h Special equipment: Hollow floor facility available Control cabinet: included
ILLIG STAL80 Trim Press, age 1988:- Technical data ILLIG STAL 80 : Punching table area max. 1000 x 510 mm Material width max. 800 mm Infeed length 20 - 400 mm Stroke height 200 mm Mold height 272 mm Part height (positive and negative) max. 100 mm Number of strokes (infinitely variable) 25 - 130 /min Trimmed Parts are stacked through the Punch Tool The Skeletal Waste is fed directly into the Grinder ILLIG RS75 Under the Trim Press Grinder, Motor 8.3 kW, age 1995
Unwind Stand Preheater ILLIG VHW 72/ 2 ILLIG RDM 70K (refurbished in 2003) Thermoformer with auto-start facility Indramat Servomotor Indexing Top & Lower heaters Auto Transport Rail Spreading for PP Sheet Sag Control Max. Forming Area 680 x 280 mm Pneumatic Plug Assist, Max. Part height 125 mm Control Cabinet with Optimised Schleicher (PLC) Controls Auto Lubrication Pump. Inline ILLIG ÜG70B Counter/ Stacker, with delivery conveyor Inline Grinder & Blower
Unwind Stand Preheater ILLIG VHW 72/ 2 ILLIG RDM 70K, age 1989 Thermoformer with auto-start facility SEW Eurodrive Servomotor Indexing Max. material width 730 mm Max. Indexing length 300 mm Top & Lower heaters, total connected load top & bottom heaters 74.2 kW Drive Motor 6.93 kW Auto Transport Rail Spreading for PP Sheet Sag Control Max. Forming Area 680 x 280 mm Hydraulic Plug Assist, Max. Part height 125 mm Hydraulic Power Pack Control Cabinet with Optimised Schleicher (PLC) Controls Encoder on Main Shaft Auto Lubrication Pump. Inline ILLIG UG70b Counter/ Stacker Delivery Conveyor for Counted/ Stacked Cups with Ejector Table
Used ILLIG RDK 54 Thermoforming Line, Age 1995 Unwind Stand Indramat Servomotor Indexing Max. Film width 610 mm max. Thickness range 0.18 to 2.5 mm. Hardened Transport Rails, Double Heating, Heating Load 41.0 kW. Heaters move forwards automatically with pneumatic control Sheet Sag Control Form Area 550 x 400 mm Forming & Punching in Mold with integrated Steel Rule Die. Positive Draw 20 mm, Negative Draw 20 to 40 mm Trimming Force 50kN. Top and Lower Platens Moved by separate Indramat Servomotors Heavy duty Toggles on both upper & Lower Platen Stacking/ Counting Station Waste Material Winder Inline ILLIG RS75b Grinder with Sound Proof Housing & Controls. Suitable for PS, OPS, PP, PE, PVC etc.
Unwind Stand Preheater ILLIG VHW 72/ 2 ILLIG RDM 70K Thermoformer with auto-start facility Indramat Servomotor Indexing Top & Lower heaters Auto Transport Rail Spreading for PP Sheet Sag Control Max. Forming Area 680 x 280 mm Pneumatic Plug Assist, Max. Part height 125 mm Control Cabinet with Optimised Schleicher (PLC) Controls Auto Lubrication Pump. Inline ILLIG ÜG70B Counter/ Stacker, with delivery conveyor Inline Grinder

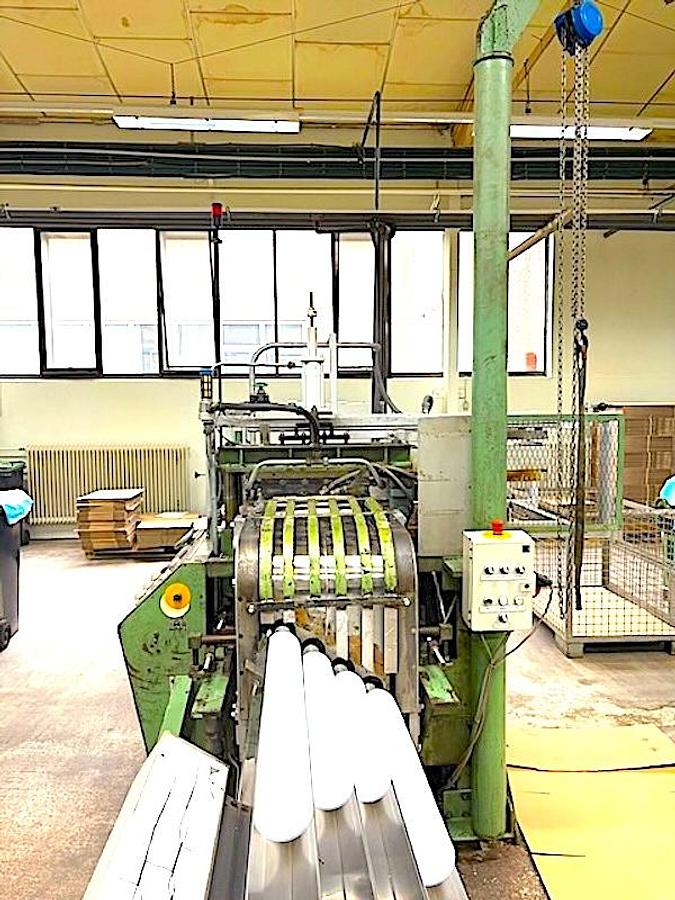

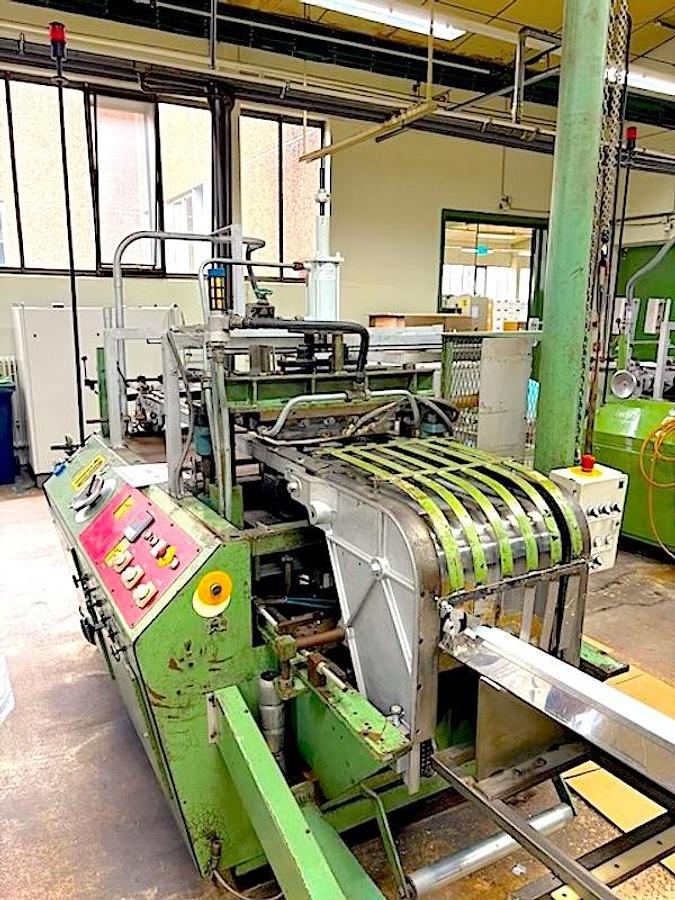

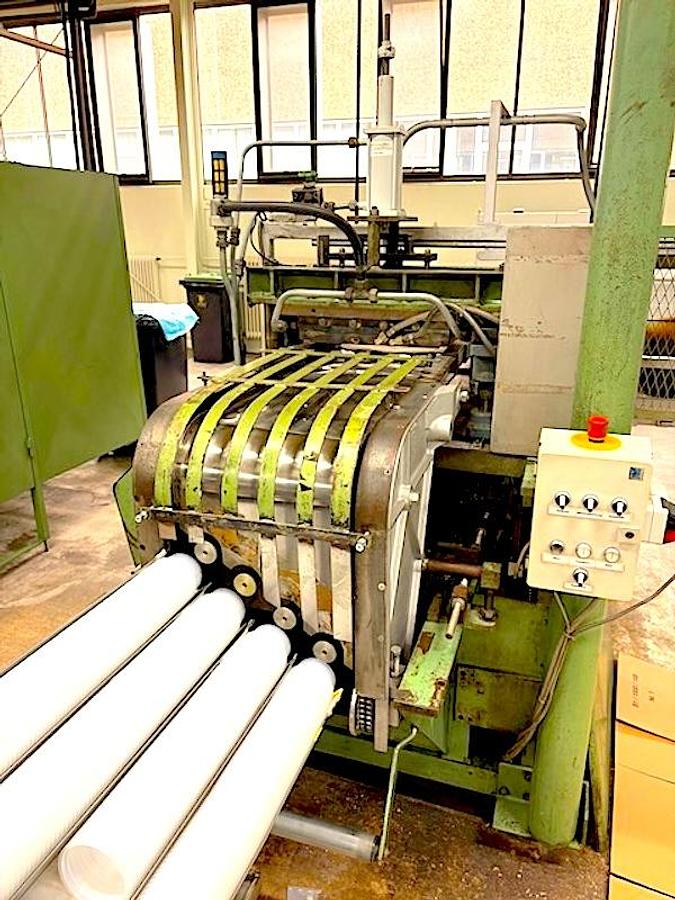

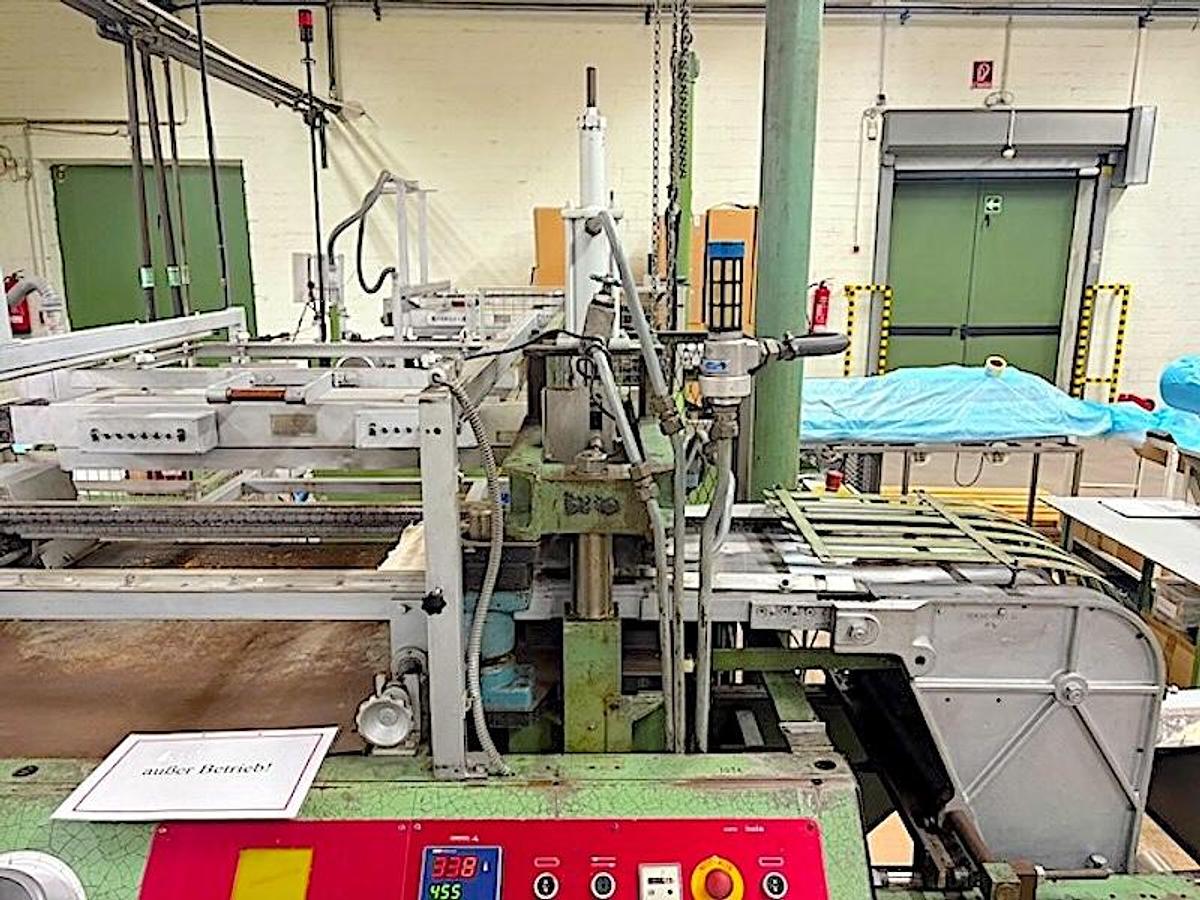

Used Illig RDM 37/ 10 with top heater, No Sheet Sag Control, Heater moved forward manually, Auto-unwind stand, mechanical indexing, Auto start mechanism, Pneumatic Plug assist, Form Area 475 x 250 mm, Max. Film width 495 mm, Max. Draw 100 mm, Age 1975, basic Machine, in production Condition, Please make an offer !
Offered is an ILLIG HSA 30 RD - high-performance continuous sealing machine for blister packaging: blister films: PVC, PET APET/PETG, PS, film thickness: 150µm-600µm, lid materials: heat-sealable cardboard, aluminum composite films, Tyvek, sealing area X/Y max. approx. 500mm/300mm, forming depth max. approx. 100mm, 8-18 cycles/minute. Inspection possible by arrangement.
ILLIG RDM70K Mold, dia. Ø70 mm, for PP Cups, 21 Cavities, age 1995, with 1 set of inserts and Stacker basket with Rods with Brushes.
ILLIG RDM70K Mold for Ø75 mm dia. PS Cups, 21-Cavities, with 1 set of inserts, no Stacking Basket, age 1995. missing engraved Cup bottom discs, as these are the intellectual property of the previous owner. Very sparingly used !
PET Coextrusion + Inline ILLIG RDKP72g Thermoforming Line, Age 2010, this equipment is suitable for PET, PP & PS Trays, Fruit & Vegetable baskets etc. :-, Inline S Plastic SRL PET Coextrusion line to produce pet sheet in-line with ILLIG RDKP72g 4-Station Thermoformer (.samplastco. hole punch station) Age 2010 :, Maximum output 680 kg/ hr, Maximum sheet width 800 mm, The line includes:, Electrical Control Panel, MSM Plastic Engineering Gravimetric Feeder, fed directly from the PET Dryer + additional Component for masterbatch or additive, Main extruder Model ED 100-40 dia. Ø100 mm, L/D 40, BP Plast BDO X2 100 Double plate hydraulic screen changer, MAAG Gear pump, Co-extruder Model E60-40 dia. Ø60 mm, L/D 40 with Gravimetric feeder, BP Plast Single plate hydraulic screen changer, MAAG Gear pump, 3- Layer (ABA) Melt Feed Adapter, Special extrusion die for PET, width 900 mm, 3-Roll Polished ...
Used ILLIG VHW 72/2 Preheater with 2 x electrically heated rolls. Width 720 mm. 380V 50 Hz 3 ph. Heating Capacity 30 kW. Motor 0.18 kW. Total Amps 48 A. Max. Temp. 130.
ILLIG RDM75K Thermoformer age 1998, refurbished in 2019 with Siemens S5 PLC Controls, used only for ca. 50,000 hrs, Consisting of:, ELAU B1 Display with Touchpad controls Thermoformer with auto-start facility Indramat Servomotor Indexing Max. material width 750 mm Max. Indexing length 480 mm Top & Lower heaters, total connected load top & bottom heaters 111.3 kW Auto Transport Rail Spreading for PP Sheet Sag Control Max. Forming Area 700 x 450 mm Hydraulic Cylinder Plug Assist with Bosch Rexroth Hydraulic Power Pack, completely Overhauled in 2019 Max. Part height 150 mm Max. Mold closing force 25,000 daN Auto Lubrication system Siemens S5 PLC Controls New original ILLIG/ RITTAL Control Cabinet Cooling System added in May-2023., No Tooling or Format Parts are included with the Line., Max Stacking Area: 750 x 350 mm, Min dia. of product: Ø 40 mm, Max dia. of Product: Ø 150 mm, Total Dri ...
A cylinder roll punching machine Adolf Illig is available. Pass-through width: approx. 850mm, pass-through height: approx. 120mm, roll diameter: approx. 190mm, table dimensions X/Y/Z: 2x approx. 1200mm/1200mm, working height: approx. 800mm, machine dimensions X/Y/Z: approx. 2700mm/1350mm/1550mm, weight: approx. 900kg. An on-site inspection is possible.
Used ILLIG STAL80 Trim Press, age 2004:-, Technical data ILLIG STAL 80 :, Punching table area max. 1000 x 510 mm, Material width max. 800 mm, Infeed length 20 - 400 mm, Stroke height 200 mm, Mold height 272 mm, Part height (positive and negative) max. 100 mm, Number of strokes (infinitely variable) 25 - 130 /min, Trimmed Parts are stacked through the Punch Tool, The Skeletal Waste is fed directly into the Grinder, Punching pressure 20 000 daN, Drive capacity 4.16 kW, Servomotor Indexing of sheet, Laser control Technology for v. low tolerances in the difference in the Hole Punch Position, ILLIG RS75 Under the Trim Press Grinder, Motor 8.3 kW, Condition: v.good, Condition: v.good
Age 1990, refurbished in 2003 Consisting of : With auto-start facility Unwind Stand Indramat Servomotor Indexing Max. material width 730 mm Max. Indexing length 300 mm Top & Lower heaters, total connected load top & bottom heaters 74.2 kW Drive Motor 6.93 kW Auto Transport Rail Spreading for PP Sheet Sag Control Max. Forming Area 680 x 280 mm Pneumatic Plug Assist, Max. Part height 125 mm Control Cabinet with Optimised Schleicher (PLC) Controls Auto Lubrication Pump Inline ILLIG UG70b Counter/ Stacker, with delivery conveyor Inline Grinder with Blower EXW our Warehouse Enger, Germany, max. mateerial width: 730 mm, max. Form Area: 680 x 280 mm, Infeed length: 300 mm, max. draw: 125 mm
Age 1988:- Technical data ILLIG STAL 80 The ILLIG STAL80 can work Inline with any Thermoformer, or it can be used Off-Line as a stand-alone Trim Press. In Stock at our Warehouse in Enger, Germany, Punching table area max: 1000 x 510 mm, Material width max: 800 mm, Infeed length: 20 – 400 mm, Stroke height: 200 mm, Mold height: 272 mm, Punching pressure: 20 000 daN, Drive capacity: 4.16 kW, Total length: 3950 mm, Total width: 2385 mm, Weight approx: 3600 Kg
Age 2007, Consisting of :-, Siemens S7 PLC Controls Indramat Servomotor Siemens SINAMICS Motor Drive Rittal Control Cabinet Cooling Unit with Temperature Display With Snap -Stacking Brush Stacking Cascade Stacking The Counter/ Stacker is in v. good production, This ILLIG SZS73 was working Inline with a Generation 3 ILLIG RDM70K Line., Effective Working Area: 740 x 340 mm, Max. Part Height: 150 mm, Formed Part Stacking Length: 800 mm
ILLIG PLS75b Inline Counter/ Stacker, with Hole Punch Station, age 2006, Max. Stacking Area: 750 x 350 mm, Min Height of formed product: 25 mm, Max. height of Formed Product: 150 mm, Min. dia. of product : Ø 40 mm, Max. dia. of Product: Ø 150 mm, Max. length of Product Stack: 730 mm, Output rate of Product Stacks: 1200 Stacks/ hr, Rotating Head to neatly remove Products from the Thermoformer Mold with integrated suction, Inline Hole Punch Station, Inline Counter Stacker Station, Compressed Air: 0.2 L at 6 bar, approximately, Total Drive Rating: 19 kW, Electrical specifications: 400 V, 3 phase, 50Hz (N/ PE), Cross delivery conveyor station for counted cups., All Motors are Indramat Servo Motors, Siemens SIMATIC TOUCH LED Operator Control Panel with Touch Pad Controls, Siemens S7 PLC Controls, Delivers Counted Cups/ Containers at Right Angles to machine direction, New original ILLIG Gea ...
Three Illig punching machines are available for the precise punching of thermoformed plastic parts from film material. Working width: approx. 900mm, working height: approx. 120mm, roller diameter: approx. 196mm, machine dimensions X/Y/Z: approx. 2500mm/1300mm/1600mm, weight: approx. 750kg. Including two hydraulic punching machines Wolf EHPT 6E and two manual swivel arm punching machines. On-site inspection is possible.
Age 1999, Consisting of:, Unwind Stand, Preheater ILLIG VWH72, Indramat Servomotor Indexing, Print Registering for Preprinted Film, Max. Film width 610 mm, Max. Thickness range 0.18 to 2.5 mm, Hardened Transport Rails, Double Heating, Heating Load 41.0 kW, Heaters move forwards automatically with pneumatic control, Sheet Sag Control, Form Area 550 x 400 mm, Forming & Punching in Mold with integrated Steel Rule Die, Positive Draw 20 mm, Negative Draw 20 to 40 mm, Trimming Force 50kN., Top and Lower Platens Moved by separate Indramat Servomotors, Heavy duty Toggles on both upper & Lower Platen, Stacking/ Counting Station, Waste Material Winder, Inline ILLIG RS75b Grinder with Blower, Suitable for PS, OPS, PP, PE, PVC etc., PLC: Siemens S5, PLC: Siemens S5, Max Film width: 610 mm, Form Area: 550 x 400 mm
Age 1989 Consisting of: Indramat Servomotor Indexing With auto-start facility SEW Eurodrive Servomotor Indexing Max. material width 730 mm Max. Indexing length 300 mm Top & Lower heaters, total connected load top & bottom heaters 74.2 kW Drive Motor 6.93 kW Auto Transport Rail Spreading for PP Sheet Sag Control Max. Forming Area 680 x 280 mm Hydraulic Plug Assist, Max. Part height 125 mm Bosch-Rexroth Hydraulic Power Pack Control Cabinet with Optimised Schleicher (PLC) Controls Encoder on Main Shaft Auto Lubrication Pump Inline ILLIG UG70b Counter/ Stacker, On Sale on a Special Price!, Film width: 700 mm, Form Area: 680 x 280 mm, Infeed length: 300 mm, max. draw: 125 mm
