5 HWACHEON cnc turning machines used machines

Inv. Num. : 8549 Type: Cutex-160B MC Producer: Hwacheon Created: 2017 Parameters: Control system: FANUC 0i-SERIES (TF) Max. turning diameter: 260 mm Maximum turning diameter over bed: 550 mm Maximum spindle speed: 4500 1/min Lathe chuck diameter: 200 mm Weight: 3280 kg

The machine is in good technical condition, testing possible after prior agreement. including a new chip remover

Inv. Num. : 9102 Type: Hi-TECH 230 BL YMC Producer: Hwacheon Created: 2019 Parameters: Control system: FANUC Hours: 6623 h Maximum turning length: 584 mm Maximum turning diameter: 400 mm Maximum turning diameter over bed: 750 mm Maximum spindle speed: 3500 1/min Weight: 6650 kg

Subject to changes and errors in technical data, and prior sale!

Subject to changes and errors in technical data, and prior sale!

CNC vertical machining center Type: Vesta-1000 Manufacturer: Hwacheon Year: 2016 Control: Fanuc Series 0i-MD X: 1000 mm Y: 550 mm Z: 500 mm Distance table-spindle: 130 – 630 mm Working surface: 1100 × 502 mm Table load capacity: 700 kg Spindle speed: 12000 rpm Rapid traverse (X / Y / Z) m/min 36 / 36 / 30 Working feed (X / Y / Z) mm/min 1 – 24,000 Feed motor (X / Y / Z) kW 1.8 / 1.8 / 3.0 Automatic Tool Changer Tool taper: BT40 Tool changer: 24 positions Cooling through the center of the tool 30 bar Power consumption: 30 kVA Coolant tank capacity: 380 l Chip conveyor 4th axis TSUDAKOMA Wireless workpiece probe + tool probe. Dimensions:3335 × 2200 x 2670 mm Weight: 6500 kg Machine in good condition, under power Find more here - / Contact us at -

turning diameter:420 turning length:1230 mm swing over bed:700 mm swing diameter over slide rest:550 mm centre distance:1390 mm y-axis:+/- 60 mm turning speeds:3500 1/min turret (x-stations):12 power capacity:22 / 18,5 kW :1 / 12 x BMT rapid traverse x + z axis:20 / 24 m/min :76 mm total power requirement:50 kVA weight:7,8 t dimensions of the machine ca.:4,10 x 2,05 x 2,21 m CNC lathe with Y-Axis and driven tools, C-axis, tool eye, hydraulic 3-chaw-juck D= 250 mm, reinforced pump 15 bar, pressure-compensated clamping cylinder , 2 step clamping pressure, prepared for steady (without steady), progr. tailstock (dragging device), live tool device (3,7 kW, 3.000 rpm), chipconveyor, 1 pcs. live tool included approx. 15.500 working hours

NEW JOB CENTER! 480 HOURS TO POWER ON! COURSE AXIS X MM 1,000 COURSE ASSE Y MM 550 COURSE ASSE Z MM 500 TAVOLA DIMENSIONS MM 1.100x502 TAVOLA PLAN: 130-630 MM MAXIMUM LOAD ALLOWED: 700 KG ATTACK: BT40 GIRI/MIN VELOCITY SPEED 12,000 TOOL WAREHOUSE: 24 FANUC CONTROL 0i-MF COMPLETE OF TAVOLA 4/5th ASSE LEHMANN SOO EDITION 3

turning diameter: 300 mm turning length: 300 mm control: Sinumerik 810D total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC control Sinumerik 810D 12-fold revolver bar loading device Breuning Irco Simag 42.1R (max. bar diameter 42mm) chip conveyor tail stock Technische Daten / technical details: Umlaufdurchmesser über Bett / rotary diameter over bed 550 mm max. Drehdurchmesser / max. turning diameter 300 mm max. Drehlänge / max. turning lenght 300 mm X-Weg / X-travel 170 mm Z-Weg / Z-travel 335 mm max. Stangendurchlass / max. bar diameter 45 mm Drehzahl / spindle speed 6000 UpM /rpm Werkzeugrevolver / turret head 12 fach /holes Eilgang X / rapid feed X 36 m/min Eilgang Z / rapid feed Z 36 m/min. Antriebsleistung / drive capacity 20 kW Gewicht der Maschine ca. / weight ca. 3500 kg Technische Daten, Zubehör und Beschreibu ...

turning diameter: 210 / 350 mm turning length: 400 mm control: Fanuc 0i-TC swing diameter: 500 mm travel -x axis: 195 mm travel -z axis: 430 mm spindle speed:: 3500 1/min bar diameter: 51 mm spindle bore: 75 mm C-Axis: 0,001 ° turret head: 12 Pos. taper in tailstock-quill: MK 4 tailstock travel: 100 mm diameter of quill: 80 mm rapid traverse X-axis: 30 m/min rapid traverse Z-axis: 30 m/min drive capacity - spindle motor: 11 / 15 kW voltage: 400 V total power requirement: 30 kVA weight of the machine ca.: 4,2 t dimensions of the machine ca.: 2,70 x 1,90 x 2,10 m chip conveyor: 2,80 x 0,60 x 1,30 m Transformer: 0,60 x 0,45 x 0,55 m - Serial-No.: M015356K2F - Machine ON: --- h - control: FANUC Oi-TC - Machine with C-axis and turret for driven tools (no driven tools in the accessories accessories available - Tool measuring arm - Parts collecting tray - Collet chuck device - 3-jaw chuck Ø ...

- Dataserver - AICC2 (200 blocks of read only) - S pindle cooling (oil cooler) - 30 ATCs - Chip conveyor - Travel (X x Y x Z): 1.000 x 550 x 500 mm - Number of tool stations: 30 - Working area (X x Y x Z): 1.100 x 500 mm - Max. spindle speed:

Vertical Machining Center HWACHEON Vesta-1000 10K Control: Heidenhain iTNC 620 Year of Make: 2014 Original pictures will follow. Travel: X-axis:1,000 mm Y-axis: 550 mm Z-axis: 500 mm Table size: 1,100 x 502 mm Table load: approx. 700 kg Recording: BT 40 Tool magazine: 30 compartment Spindle speed: 12,000 rpm Drive power:18.5 kW Equipment -Conveyor - Electronic handwheel - 4th axis

Control: Manufacture: FANUC 0i-MD x-travel: 1000 mm y-travel: 550 mm z-travel: 500 mm table surface area: 1100 x 500 mm spindle turning speed - stepless: 10000 U/min dimensions of the machine ca.: 3500 x 2200 x 2700 mmxmmxmm weight of the machine ca.: 6.5 t tool piece magazine with: 24 Plätzen The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 950 / 650 mm turning length: 2000 / 2500 mm control: HEIDENHAIN Manual Plus 3-jaw-chuck diameter: 800 mm turning speed range: 40 - 1000 U/min total power requirement: 35 kW weight of the machine ca.: 12 t dimensions of the machine ca.: 8 x 3 x 3,5 m 12 x station Turret Tailstock 2 x Chip Conveyors Price EXW 17036 Neubrandenburg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1000 mm y-travel: 550 mm z-travel: 500 mm CNC-control: Fanuc Oi-MD table-size: 1.100 x 500 mm max. table load: 700 kg spindle taper ISO: BT-40 spindle turning speed range: 12.000 U/min feed stepless: 24.000 mm/min rapid traverse: 36/36/30 m/min drive capacity - spindle motor: 15/11 kW tool change unit: 24 coolant: IKZ 20 bar chip conveyor: voltage: 400 V total power requirement: 30 kVA weight of the machine ca.: 6,5 t dimensions of the machine ca.: 3,35 x 2,20 x 2,67 m - Serial No..:M281361B5N D - NC-Indexing Device Manufacturer KITAGAWA, (Call by M-Command) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Inv. Num. : 8902 Type: Vesta 1000 12K Producer: Hwacheon Created: 2016 Parameters: Control System: FANUC Series Oi-MF Hours: 15976 h Work table length: 1100 mm Work table width: 502 mm Spindle drive power: 11 kW Maximum spindle speed: 12000 1/min X-axis travel: 1000 mm Y-axis travel: 550 mm Travel Z axis: 500 mm Cone: BT40 Max. tool length: 300 mm Max. tool weight: 8 kg Max. tool diameter: 80/150 mm Rapid traverse X/Y/Z: 36/36/30 m/min Machine height: 2670 mm Machine length: 3335 mm Machine width: 2200 mm Machine weight: 6500 kg Equipment: Tool probe Workpiece Probe 4th axis TSUDAKOMA

This HWACHEON VT550R was manufactured in 2008. It features a hydraulic chuck diameter of 500 mm, a maximum turning diameter of 650 mm, and a spindle speed up to 1,500 RPM. The machine includes a 12-position turret and a chip conveyor, ensuring efficient operation. Consider the opportunity to buy this HWACHEON VT550R turn-mill centre. Contact us for more information about this machine.

turning diameter: 280 mm turning length: 400 mm control: Fanuc 18 T spindle bore diameter: 51 mm number of controlled axis: 2 turning speed range: 0 - 4000 U/min rapid speed: 30 m/min number of tapers in turret head: 12 VDI 40 tail stock: Ja dimensions: 3,9 x 1,6 x 2,1 m weight: 4,0 t weight of the machine ca.: 3,9 t power requirement: 15 kW Used CNC- Lahte with box way, 2 axis - 3 jaw chuck Ø 200 mm - chip conveyor - oil dust collector The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Hwacheon, mod Sirius III - 1250, Table 1400 * 700, X 1100 mm, Y 700, Z 650, Cambio utensili / Toolchanger 30 pos, ISO 50, 8000 RPM max 30kW, CNC Fanuc 18iMB, Still under power on the shop floor

turning diameter: 400 mm turning length: 230 mm control: Fanuc total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Fanuc control at each spindle is a 3-jaw chuck mounted 2x 12-fold revolver chip conveyor coolant device Technische Daten: / technical details Schwingdurchmesser / rotary diameter 500 mm max. Drehdurchmesser / max. turning diameter 400 mm max. Drehlänge / max. turning length 230 mm X-Weg / X-travel 220 mm Z-Weg / Z-travel 230 mm max. Drehzahl der Spindeln / max. spindle speed of the spindles 2000 UpM /rpm Anzahl der Revolverplätze / number of tool places 2x 12 Eilgang x, z / rapid feed x, z 30, 30 m/min Antriebsleistung Spindeln / drive capacity spindles 18,5/15 kW Gewicht ca. / weight ca. 9400 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and descriptio ...

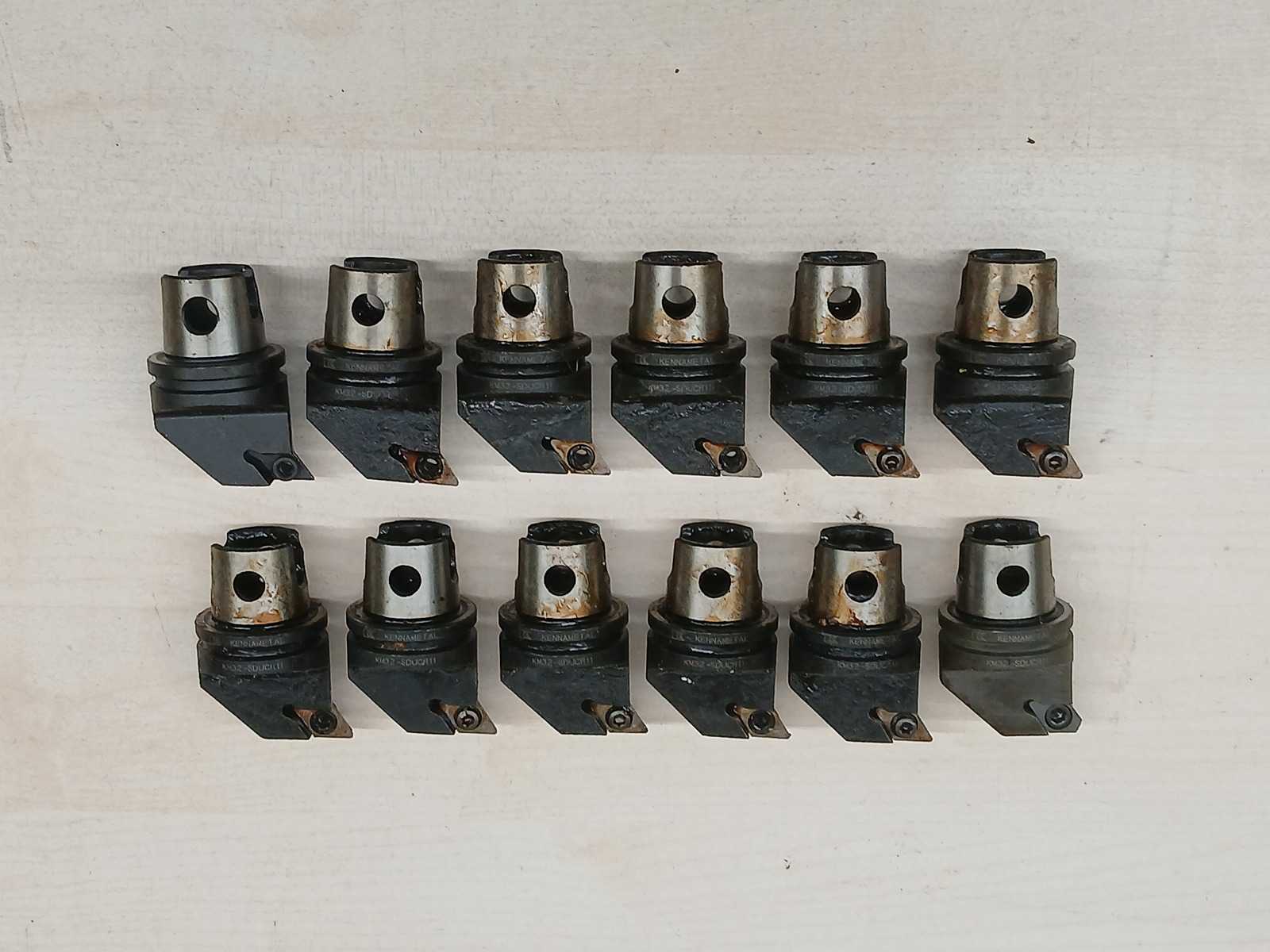

Lot of 12 Kennametal KM32 SDJCR-type quick-change turning tool holders.

Used industrial machine offered by IBEXTRA.

SMT Lathe 80001350 The machine was designed and manufactured to produce rotor shafts for power tools. The machine is designed and manufactured to perform the following operations automatically. - Load/unload parts automatically from/to tool carrier line with a pick-up & placement unit between the shaft ends. - Rotate ring seat + flat rotate commutator + rotate commutator. - Ring mounting - Commutator side - Ring mounting - Drive wheel side The machine has several production programs to produce different parts. Each program uniquely corresponds to a wave type Specifications Anchor wavelength from up to 92.5 - 163.1 mm Bearing pin diameter commutator side 8; 10; 12.5 mm Drive side 12; 8 mm Min. Available length bearing position 3.6 mm Package diameter 52; 55; 59 mm Ring dimensions Outer diameter 40 - 57.4 mm Inner diameter 37.4 - 56 mm Ring width 4 - 8 mm R ...

Automatic straightener, shaft straightener , MAE -25RH, 1996, used Manufacturer: Maschinen- & Apparatebau Götzen GmbH, Germany Connected load: 14.5kva , Dim.: 2.5 x 1.5 x 1.8m, Weight : 5000kg

Assorted lot of 12 Kennametal KM32 modular quick-change tool holders for CNC lathes.
