used HAUSER 3 smo

Description: Grinding diameter 220 mm Table surface 600 x 320 mm Projection 310 mm Angle range 12° Grinding carriage adjustment - vertical 110 mm Lifting speeds 0 - 6 m/min Grinding spindle speed up to 50,000 rpm Circumferential speed max. 35 m/sec Power consumption approx. 7 kVA Round table d = 300 mm Frequency converter LANDERT SGI x-motion: 400 mm, y-motion: 250 mm, table surface area l x w : 600x320 mm, workpiece height max.: 500 mm, total power requirement: 6 kW, weight approx.: 2,000 kg, Approx. Onsite Dimension. (l x w x h): 3,000 x 3,000 x 3,000 mm

2-axis digital display Travel X/Y/Z: 400/250/500 mm Optical rotary table D 300 mm + adapter plate D 400 mm Swivel rotary table D 200 mm Lots of accessories

Technical data 1 column execution Table length: 595 mm Table width: 320 mm Longitudinal travel (X-axis): 400 mm Transversal travel (y-axis): 250 mm Travel of the vertical slide: 500 mm Passage from grinding motor to table: 490 mm Distance from spindle-center to vertical slide: 310 mm Max. grinding diameter: 220 mm with display-plate: 280 mm Max. angle with taper grinding: up to: 12.0 ° Vertical travel of grinding spindle: stepless from: 1 mm up to: 110 mm Travel speeds: stepless up to: 6.0 m/min Planetary motion speeds: c axis stepless up to: 330 rpm Voltage 50 Hz 3x: 380 Volt Spindle motor: 7.50 HP Machine´s weight about: 2000 kg Overall dimensions machine: Length: 1500 mm Width: 1300 mm Height: 2200 mm Various accessories: Centering device Slot (key way) grinding device Rotary table diameter with electric motor 3-jaw chuck diameter Digital readout number of axis:: 2 Centering m ...

x-travel: 400 mm y-travel: 250 mm workpiece height: 500 mm grinding diameter max.: 220 mm table surface area: 600 x 320 mm throat: 310 mm range of angles: 12 grad grinding spindle slide - vertical movement: 110 mm stroke speeds: 0 - 6 m/min. grinding spindle speed: bis 50.000 U/min. peripheral speed: max. 35 m/sec capacity: ca. 7 kVA power capacity: 6 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 3 x 3 x 3 m Frequence converter make LANDERT, type SGU 160 - range : 150 - 1330 Hz, feed motion in the table The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

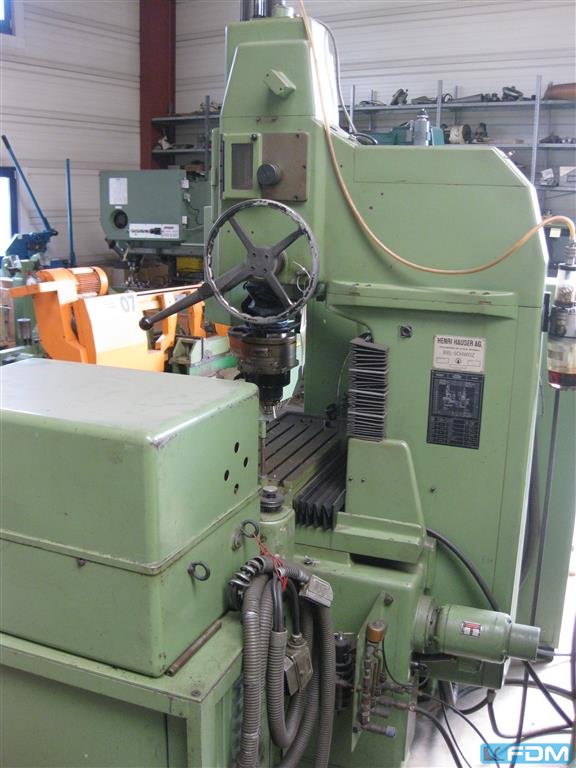

Code 9602 DESCRIPTION Vertical JIG Grinder Make HAUSER Modell 3 SMO Serial No. 257 Machine No. 1519-2564 Table surface 600 x 320 mm Table movement longitude (X) 400 mm Table movement cross (Y) 250 mm Max. grinding diameter Ø 190 mm Column-Spindle 300 mm Max. height under spindle 500 mm Vertical movement spindle 90 mm Vertical movement grindinghead 500 mm Max. speeds grindingspindle up to 80.000 omw./min Weight 2000 kg Total power 6,6 kW – 380 Volts Accessories Grinding spindles, etc. Condition Machine is in good condition
