HAMMEL vb used machines

Manufacturer: Hammel Model: NZS 1000 Year of Manufacture: 2012 Operating hours: approximately 3,000 hours Undercarriage: crawler chassis (tracked mobile) It has two built-in magnets Find more here - / Contact us at -

High-pressure pump - see pictures

High-pressure pump - see pictures

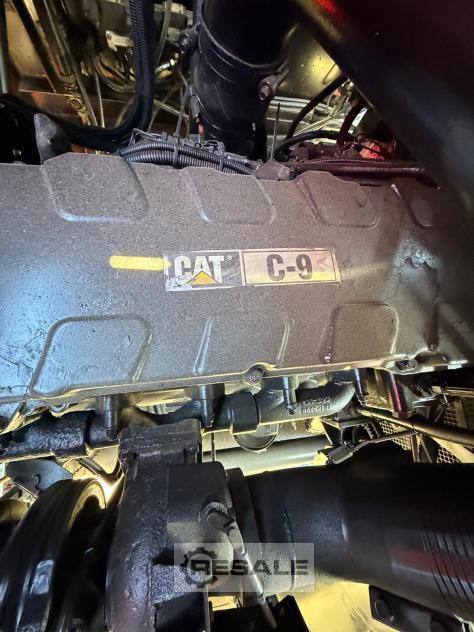

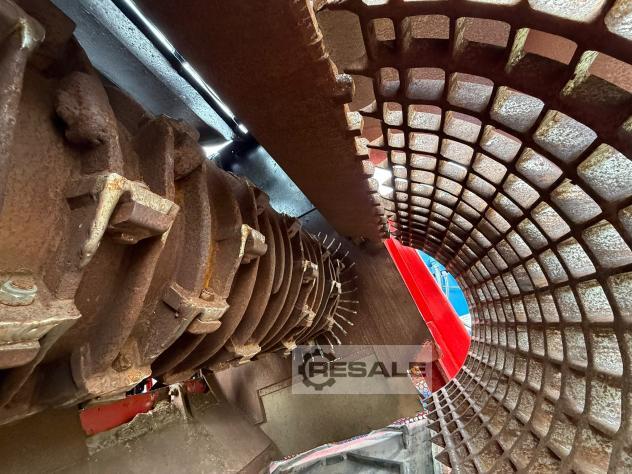

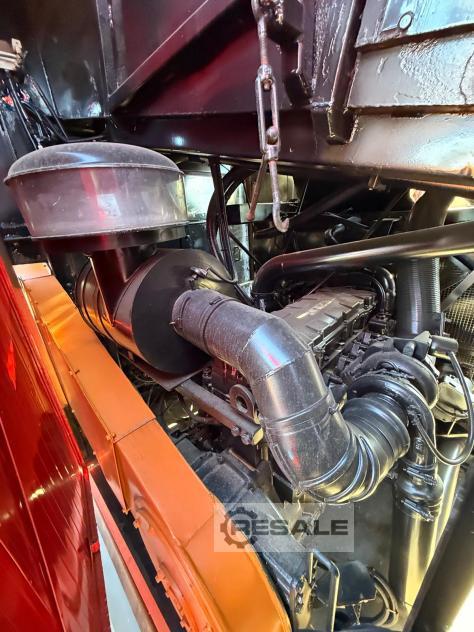

The Mutmel shredder VB 750 D is a hydraulic recycling machine with two slow running tool shafts. The material to be shredded is torn, broken and falls directly onto the discharge belt. Technical data: Basic frame: Hook lift frame Engine: CAT C-9 Power: 242KW/ 330 hp Course speed: approx. 700 min-1 Working speed: approx. 2100 min-1 Working width shafts: 1800 mm Speed of shafts approx.: 40 min-1 Belt width: stud belt 1400 mm Overband bagnet: hyd. Controlled Radio remote control: YES Dimensions:LxWxH 9710 (discharge bang folded out) x2700x2700 mm Total weight approx.: 21 t Test run/test run possible Intermediate sale Reservations

Dynajet 500 me , NEW, Operating pressure: 500 bar, Number of foerders: 15 l/min, Drive: electric 15 kW, 400 volts, Engine hours: approx: 1, Trolly, incl. zubehoer,

Operating pressure: 350 bar, Flow rate: 21 l/min, Engine: Vanguard 2-cylinder, 4-stroke gasoline engine Working hours: 2h

Operating pressure: 150 bar, Number of foerders: 42 l/min, Drive: electric 15 kW, 400 volts, Engine hours: approx: 1, Trolly, incl. zubehoer,

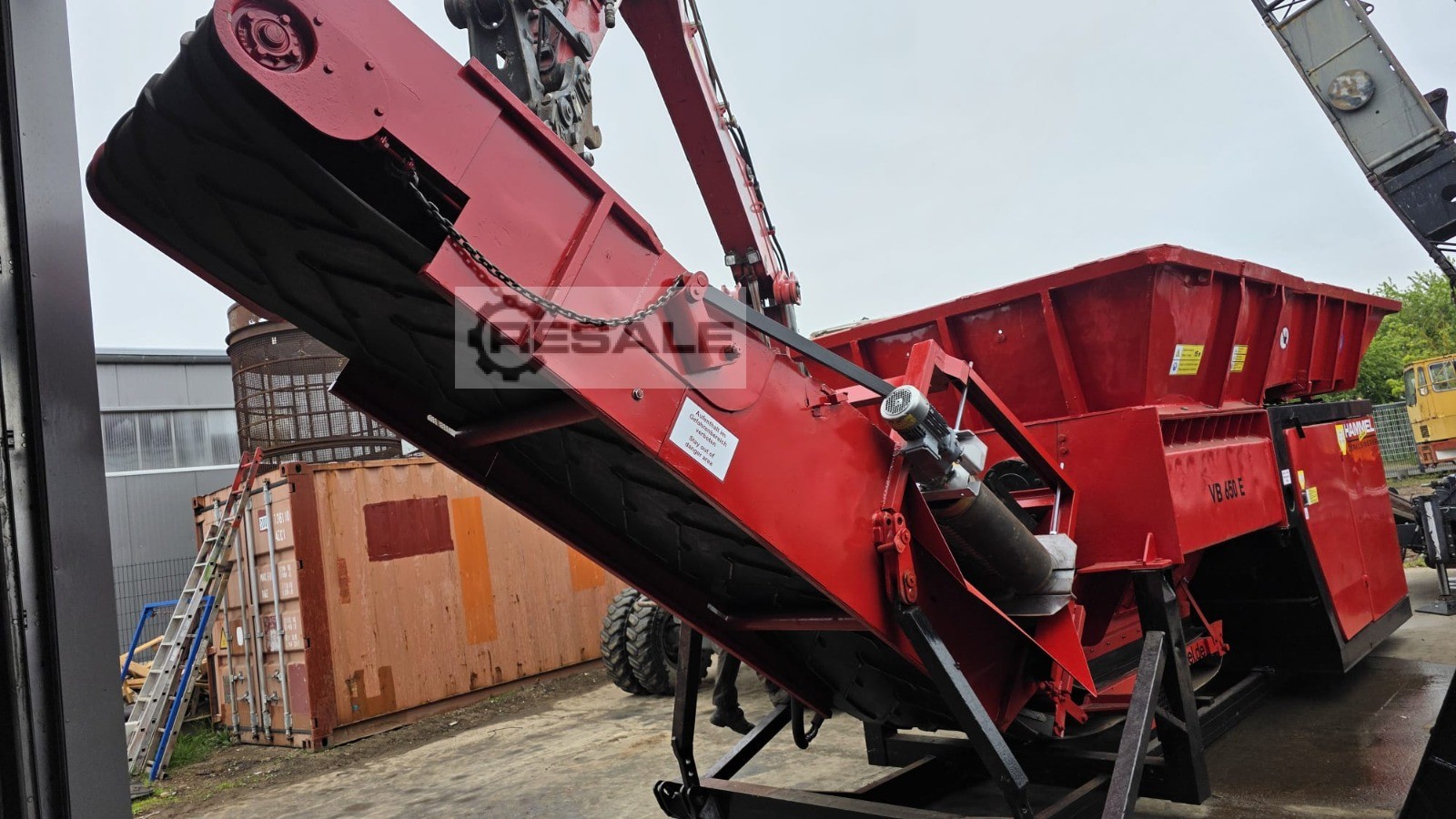

The Mutmel shredder VB 750 E is a hydraulic recycling machine with two slow running tool shafts. The material to be shredded is torn, broken and falls directly onto the discharge belt. Technical data: Basic frame: Hook lift frame Power: 2 x 110 kW Electric - Motors: 2 pieces -ESM Y2-315 S-2 Rotor diameter: approx. 670 mm Speed of shafts in automatic mode without material: approx. 40 min-1 Belt width: stud belt 1400 mm Radio remote control: Hetronic GA 609 Dimensions: LxWxH 9710 mm, discharge bang folded out) x2700x2700 mm Total weight approx.: 20 t Intermediate sale Reservations

Operating pressure: 1000 bar, Number of foerders: 17 l/min, Drive: electric 35 kW, 400 volts, 63 A, Engine hours: approx: 2 h, Trolly, incl. pistol, 10 m HD hose, 15° flat jet dues,

Stationary high-pressure pump unit Hammelmann HDP 77 on base frame. Similar/no Uraca, Woma, Kamat Pump type: HDP 77 Operating pressure: 490 bar Flow rate: 59 l/min. Drive speed: 1800 RPM Drive power: 65 kW with AC 55 kW 3 motor AH 250 M-4; 400V; 50 Hz Dimensions LxWxH: approx. 1665x1212x1641 mm Weight: approx. 1050 kg Built: 2008 Condition: in very good used condition. Includes complete documentation.

Stationary high-pressure pump unit Hammelmann HDP 122 on base frame without motor. Similar but no Kamat, Uraca, Woma. Pump type: HDP 112 Operating pressure: 530 bar Flow rate: 55 l / min. Drive speed: 1500 rpm. Drive power: 55 kW without engine, with pressure control valve, Bwfz23o8wi with safety valve, with oil cooling system. Dimensions LxWxH: approx. 2000x1000x1400 mm Weight: approx. 300 kg Year of construction: 1998 Condition: in good used condition.

Stationary high-pressure pump unit Hammelmann HDP 122 on base frame. Similar but no Kamat, Uraca, Woma. Pump type: HDP 122 Operating pressure: 440 bar Flow rate: 92 l/min. Drive speed: 1500 rpm. Drive power: 75 kW with AC motors ACM 208S 75 kW electric motor, IP55, with pressure control valve, with safety valve, with oil cooling system. Dimensions LxWxH: approx. 1,800x900x1,450 mm Weight: approx. 1,230 kg Year of construction: 2015 Condition: in very good used condition.

Stationary high-pressure pump unit Hammelmann HDP 142 on base frame. Similar but no Kamat, Uraca, Woma. Pump type: HDP 142 Operating pressure: 610 bar Flow rate: 78 l/min. Drive speed: 1500 rpm. Drive power: 86 kW with AC M 280 M-4/HE electric motor 90 kW, IP55, with pressure control valve, with safety valve, with oil cooling system. Dimensions LxWxH: approx. 1,700x850x1,450 mm Weight: approx. 1,200 kg Year of construction: 2018 Condition: after service by Hammelmann in October 2020 only a few weeks run and for more than a year out of operation. In very good used condition.

High Pressure unit Hammelmann HDP 504 Year of construction 2021 Operating pressure 2200 bar Flow rate 122 ltr Power 490 kW Operating hours 880 h engine CAT C 18, Level 5 TIER 4F Power 565 kW in Truck, Used Truck Scania 164 L V8, 480 YoM 2004 Power 353 kW 802,500 km

With magnet

Stationary high-pressure pump unit Hammelmann HDP 77 on base frame. Similar but no Kamat, Uraca, Woma. Pump Type: HDP 77 Operating pressure: 330 bar Flow rate: 59 l/min. Drive speed: 1500 rpm. Drive power: 37 kW with Siemens 1LA6223-4AA60 electric motor 45 kW with pressure regulating valve, Fzhoqck with safety valve, with oil cooling system. Dimensions LxWxH: approx. 1,450x750x1,150 mm Weight: approx. 600 kg Year of construction: 2019 Condition: In good used condition.

engine diesel engine Cummins F3.8 - Stage 5 power approx. 114 kW / 154 HP shafts with 9/9 discs with 6 knives per disc (reconditioned) track system with track protection pads hopper with vibro chute Permanent-Over Belt Magnet remote control weight approx. 11 t

HDP 143 1400 bar 53 litre per minute

Engine: diesel engine Cummins F3.8 - Stage 5 Power: approx. 114 kW / 154 hp Shafts: 7/7 discs with 8 knives per discs & breaker bar with combs Version: track system with hopper with vibro chute Permanent - OVERBAND Magnet remote control Weight: approx. 11 t

Year 2004 17000 hours Very good condition Find more here - / Contact us at -

For Sale: Hammelmann Aquajet 204 High-Pressure Pump Unit – Demo Model Model: Aquajet 204 Machine No.: C5.02204.1617 Year: 2025 Engine Power: 200 kW - 2150 RPM Pressure Rating: Up to 2800 bar - 40 l/min Plunger Diameter: 20 mm Oil Type: PAO ISO VG 320 Oil Quantity: 12.5 litres Condition: Demo model – very well maintained Current Hours: Approx. Less than 500 (still in use; hours may increase) Crankcase: Filled with high-quality synthetic oil (Shell Omala S4 GX 320) This unit is ideal for hydrodemolition, surface preparation, industrial cleaning, and other ultra-high-pressure applications. Still in operational use and available for inspection.

For Sale: Hammelmann Aquajet 204 High-Pressure Pump Unit – Demo Model Model: Aquajet 204 Machine No.: C5.02204.1617 Year: 2025 Engine Power: 200 kW - 2150 RPM Pressure Rating: Up to 2800 bar - 40 l/min Plunger Diameter: 20 mm Oil Type: PAO ISO VG 320 Oil Quantity: 12.5 litres Condition: Demo model – very well maintained Current Hours: Approx. 500 (still in use; hours may increase) Crankcase: Filled with high-quality synthetic oil (Shell Omala S4 GX 320) This unit is ideal for hydrodemolition, surface preparation, industrial cleaning, and other ultra-high-pressure applications. Still in operational use and available for inspection.

engine: diesel engine Cummins B6.7 - Stage 5 (AdBlue) power: approx. 209 kW / 280 hp shafts with 7/7 discs with 5 knives per discs & breaker bar with combs Mobile Hook Lift Frame wheel axle with drawbar hydraulic height adjustment for magnet hydraulic height adjustment for discharge belt water sprinkling system Monitoring Industry 4.0 weight: approx. 20 t

Manufacturing year : 1992/93 BAR: 1500 KW: 450 RPM: 305 l/min: 150

BAR: 1500 l/min: 71 KW: 230
