Model
(Manufacturer: FASTI)
used
sheet thickness: 1.25 mm steel Roller center distance: 63 mm
used
Specifications: - working width 2540 mm - max. cutting capacity St 40 4 mm - mot. Cutting angle adjustment - Cut gap. by scaled adjustment screws - Number of hydraulic holders 14 pcs - Mot. backgauge with positioning. 10 - 1000 mm - Stroke rate depending on cutting angle and cutting length 23 per min - Hydraulic drive 400 V / 7.5 kW - Table height 1030 mm - Space requirement approx. W 2500 x H 1630 x D 2150 mm - Weight approx. 3600 kg - with: - Sheet metal holding pneum. supported - front angle stop + support arms - Electronic cutting depth adjustment - Cut line lighting - E-foot switch
used
Key data: 2040 , 2
Motorized swivel bending machine Manufacturer Fasti Type 2095-20-2 Sheet power 2040 x 2 mm at 400 N/mm2 Digital display of the bending angle Foot pedal Notaus Power connection 400V
used
Maximum cutting length: 4000 mm Maximum sheet thickness: 4 mm steel Driven back gauge to 1000 mm Page fence and table extensions Cutting length limit Cutting edge lighting Protection fence, roll with safety switches Weight: 8500 kg
used
Max bending length: 1020 mm Max. sheet metal rod: 2 mm steel motor upper cheek adjustment via foot switch manual rear stop diverse bending rails
used
Working width: 2040mm, max. sheet thickness: 3mm.
used

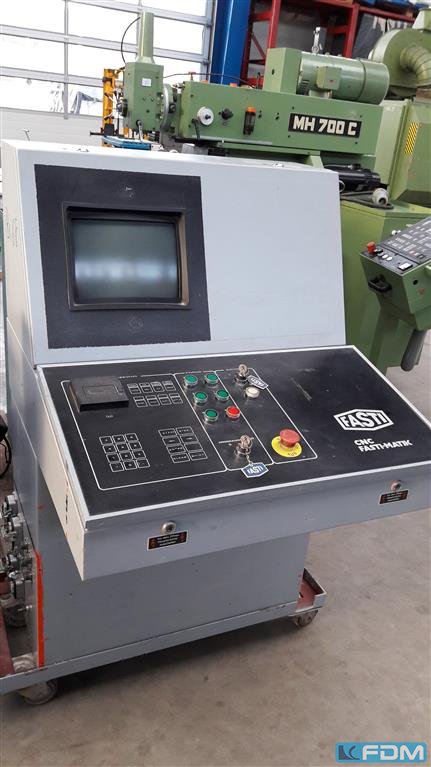

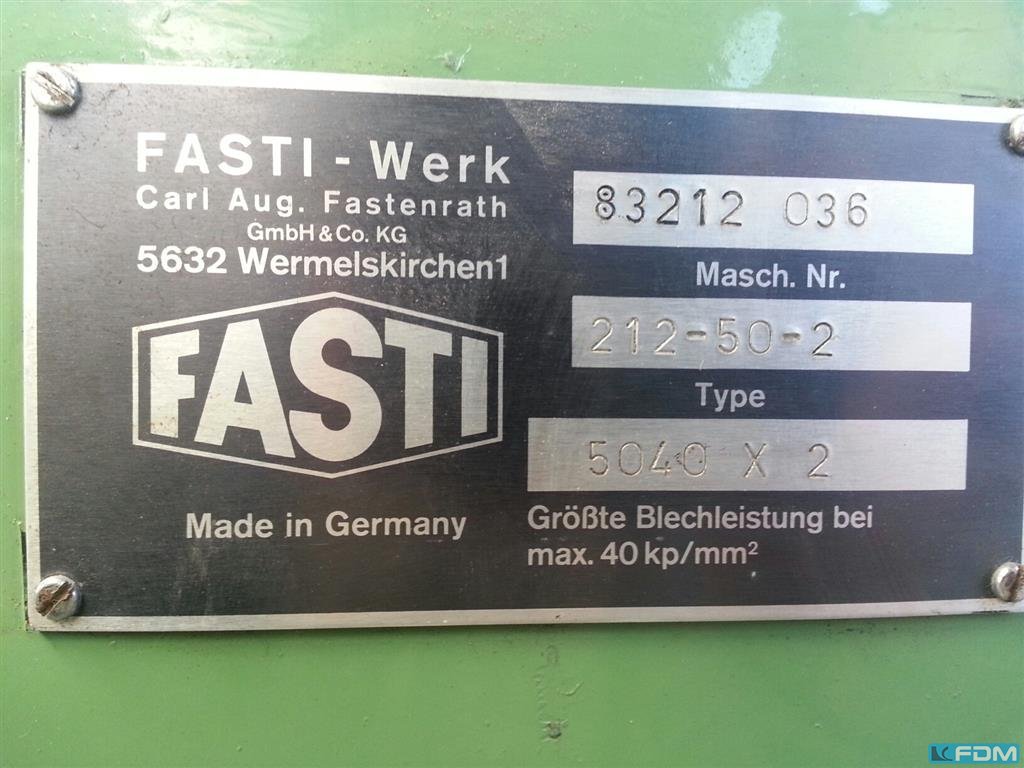

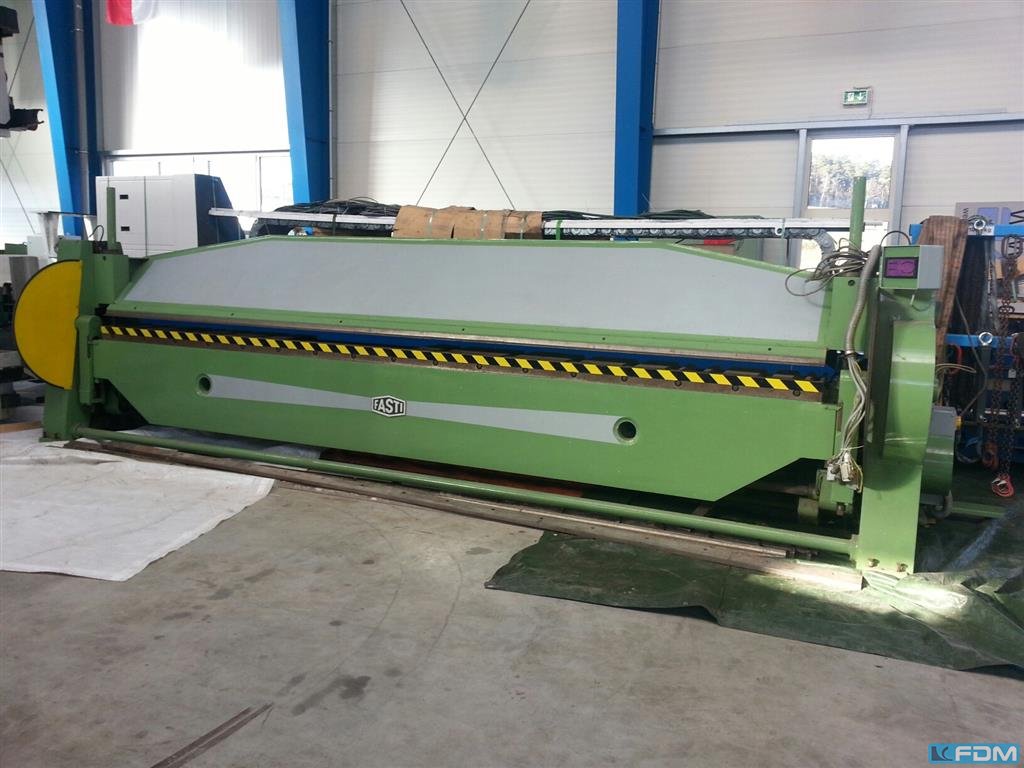

sheet width:5040 mm plate thickness:2 mm total power requirement:12 kW weight of the machine ca.:9,4 t dimensions of the machine ca.:6200× 1300 ×1900 mm working width:5000 mm control:Fasti Matik stroke of upper beam:500 mm adjustment of lower beam:u.Biegewange 80 mm control cabinet:1000 x 850 x1450 mm Documents:vorhanden
used
Description: Furnishing: - Digital display - Bending angle preselection Sheet width 2040 mm Sheet thickness 3.0 mm Stand width 2100 mm Bending angle max. 135 degrees Total power requirement 4.0 kW Machine weight approx. 2.2 t Dimensions L-W-H 23.1 x 1.0 x 1.7 m weight approx.: 2,200 kg, Approx. Onsite Dimension. (l x w x h): 3,100 x 1,000 x 1,700 mm
used
Description: Sheet width 2040 mm Sheet thickness 2.0 mm Stand width 2100 mm Bending angle max. 135 degrees Total power requirement 1.5 kW Machine weight approx. 1.7 t Dimensions L-W-H 2.9 x 1.0 x 1.7 m weight approx.: 1,700 kg, Approx. Onsite Dimension. (l x w x h): 2,900 x 1,000 x 1,700 mm
used
Description: Round bending machine - round roll manually - type 102/10/1.5 max. rolling length 1020mm max. sheet thickness 1.5 mm Roller diameter 65 mm Training machine is in used but very good condition. plate width: 1,020 mm, mat. thickness when pre-bending when rounding: 1,5 mm, number of rolls: 3, weight approx.: 190 kg, Approx. Onsite Dimension. (l x w x h): 1,200 x 450 x 1,100 mm
used
sheet width: 2040 mm plate thickness: 6,00 mm distance between columns: mm stroke: 300 mm total power requirement: kW weight of the machine ca.: 6,00 t dimensions of the machine ca.: 3,25 x 1,50 x 1,80 m - Sharp rail - Bending rail 35 mm - Bending angle adjustment conventionally via potentiometer - Rear sheet metal support arms - Technical documents The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
plate thickness: 3.0 mm throat: max. 500 mm work speed: 6.0 + 12.0 m/min distance: Walze 125 / 150 mm roll diameter: 125 mm voltage: 400 V total power requirement: 1.3 / 1.8 kW weight of the machine ca.: 1250 kg range L-W-H: 1200 x 800 x 1200 mm good condition () Furnishing: - heavy / robust beading machine - electric motor drive - Manual delivery of the top roller using a handwheel - pole-changing motor - 1x adjustable stop plate - 1x freely movable double foot switch - original instruction manual Machine link: http://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.php?machineno=1008 -9475037 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
sheet width: 1520 mm plate thickness: 4.50 mm thickness at Niro-steel: 2.25 mm distance between columns: 1600 mm stroke of upper beam: 360 mm work height max.: 900 mm adjustment: UW 100 mm total power requirement: 8.25 kW weight: 3000 kg range L-W-H: 2480 x 975 x 2080 mm Furnishing: - robust motorized folding machine 2x drive motors with 4.0 KW each - swiveling control panel, front right - Angle adjustment via electric. Potentiometers including digital actual values 1x coarse adjustment / 1x fine adjustment Adjustment 0.1 degrees - Manual & automatic mode selectable - Coding switch for opening width of the upper beam - 1x bending tool set - manual adjustment of the lower beam - 1x freely movable double foot switch - User manual (PDF) Machine link: http://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.php?machineno=1008 -9355099 Machine video: https://www.youtube.com/watch?v=hC_j3FqEE ...
used
sheet width - max.: 2035 mm plate thickness: 6.0 mm ST plate thickness: 4.0 mm VA plate thickness: 8.0 mm ALU number of strokes - loaded: 20 Hübe/min cutting angle: 1.7 ° work height max.: 900 mm Number of working hours: 1.450 h Control: LENORD total power requirement: 11.0 kW weight of the machine ca.: 4100 kg range L-W-H: 2416 x 2250 x 1760 mm Machine from prototype construction Machine with only approx. 1.450 operating hours () Furnishing: - electro-hydraulic guillotine shears - electro-motorized backgauge with NC control unit (Lenord + Bauer) - electrical cutting length limitation - manual cutting gap adjustment - 1x stable side stop, with scale and tilting cam - 2x front support arms - 1x freely movable foot switch - Operating instructions (PDF) + circuit diagram Special accessories included: - pneumatic sheet metal holding device for thin sheet metal cuts Machine link: http: ...
used
sheet width: 2040 mm plate thickness: 1,25 mm pre-bending: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Right and left rotation via foot switch 3-roller drive Safety cable switch Conical rounding possible The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
sheet width: 1040 mm plate thickness: 4,00 mm distance between columns: mm total power requirement: kW weight of the machine ca.: 1,60 t dimensions of the machine ca.: m Manual backgauge up to 550 mm Side stop and table extensions The rear area is protected by a protective fence with light barriers Knife sharpened Operating instructions available The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
sheet width: 1020 mm plate thickness: 1,25 mm pre-bending: 1 mm roll diameter: 55 mm weight of the machine ca.: 180 kg dimensions of the machine ca.: 1,5 x 0,5 m Manual plate bending machine with asymmetrical roller arrangement, rollers made of material 70 kg/mm² strength, adjustment of the lower rollers with eccentric infeed, rear roller with handwheel infinitely adjustable via worm gear, rear roller inclination for conical rounds, folding groove at the top and wire insert grooves at the bottom. Machine dealer with own stock of 1600 m². The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
pressure: 80.0 t chamfer lenght: 2550 mm distance between columns: 2060 mm ajustment speed: 90.0 mm/sec working feed: 10.0 mm/sec return speed: 90.0 mm/sec stroke: 140 mm work height max.: 930 mm dayligth: 375 mm Number of working hours: ca. 1.300 h total power requirement: 8.5 kW weight: 6300 kg range L-W-H: 2830 x 1900 x 2500 mm Machine from a vocational training center (Chamber of Crafts) good / well-maintained condition with only approx. 1.300 operating hours () Furnishing: - CNC electro-hydraulic press brake - DELEM CNC control - model DA 58 Swivel control panel, front left 2D graphical programming & product display Tool & program library - CNC axis control: Y1 - Y2 - X axis + motorized crowning - electro-motorized & controlled backgauge with 2x manually movable stop fingers (R+Z axis) - manual upper tool & lower tool clamping - split upper and lower tools - 2x stable, front ...
used
sheet width: 2540 mm plate thickness: 3,0 mm distance between columns: 2500 mm back stop - adjustable: 1000 mm upper clamping bar adjustment: 350 mm total power requirement: 4,62 kW dimensions: 3800 x 2300 x 1750 mm weight of the machine ca.: 3050 kg - lateral protective wall - 1x dual free-moving footswitch - 1x free moving footswitch - Electrically controlled back gauge with rear sheet metal support surface - with ball rollers - incl. new hydraulic pump (value approx. 4000€) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
NC controlled edge bending machine, manufactured by Fasti Germany type 212-20-6 - 2050 x 6 mm. Thickness of bent steel sheet (St40) 6 mm - Alu 8 mm, INOX 4 mm, bending length 2050 mm. Control of the bending angle and departures of the NC bumper. Manual and automatic operation mode. Setting the bending angle to max. 135 degrees. Electro-mechanical drive. Jaw opening 350 mm. 6 kW drive. Weight 4500 kg.
used
CNC controlled edge bending machine, prod. Fasti Germany type 212-30-4 - 3040 x 4 mm. Bending sheet thickness Steel(St40) 4 mm- Alu 8 mm, INOX 3 mm, bending length 3040 mm. Control of bending angle and bumper departures from CNC, programs. Setting the bending angle to max. 135 degrees. Hydraulic-mechanical drive. Jaw opening 350 mm. Drive 6 kW. Weight 4500 kg.
used
CNC-controlled edge bending machine, manufactured by Fasti Germany type 215-32-4 - 3240 x 4 mm. Thickness of bent steel sheet (St40) 4 mm - Alu 8 mm, INOX 3 mm, bending length 3040 mm. Control of bumper departures with CNC, programs. Setting the CNC bending angle and bending radius. Hydraulic drive. Jaw opening 350 mm. 6 kW drive. Weight 6000 kg. High sectional punches for channels. Documentation
used
Thickness of bent steel sheet (St40) 4 mm - Alu 8 mm, INOX 3 mm, bending length 3040 mm. Control of bumper departures with CNC, programs. Setting the CNC bending angle and bending radius. Hydraulic drive. Jaw opening 350 mm. 6 kW drive. Weight 6300 kg. High sectional punches for channels. Hydraulic punch mounting Documentation
used
sheet width: 1030 mm plate thickness: 2,50 mm distance between columns: mm total power requirement: kW weight of the machine ca.: 0,80 t dimensions of the machine ca.: m Manually adjustable back gauge up to 530 mm Cutting angle adjustment Side stop and table extension Knife sharpened The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
sheet width: 2540 mm plate thickness: 3.25 mm throat: 100 mm no. of strokes: 60.0 Hub/min back stop - adjustable: 530 mm voltage: 400 V engine output: 7.5 kW weight: 2450 kg range L-W-H: 3600 x 1000 x 1560 mm Furnishing: - robust electric motorized guillotine shears - stable, front support/work table - Front control panel - including emergency stop button - manual back gauge up to approx. 700 mm - adjustable by handwheel, with analogue mm scale display - 1x front side stops - 3x front support arms - manual cutting gap adjustment - Cut/lift confirmation by foot pedal - 1x freely movable foot switch - rear sheet metal slide - User manual (PDF) Machine link: http://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.php?machineno=1008 -9325320 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Guillotine shears, FASTI type 506-10-2,5 Masch. Nr. 96-506-018 Year of manufacture 1996 Cutting length 1030 mm Cutting thickness 2.5 mm Working height 850 mm Drive power 4 kW Mains connection 400 volts, 50 Hz. - mechanical sheet metal hold-down - electric foot switch - simple backgauge 550 mm with handwheel adjustment - 2 support arms 550 mm - angle stop right 750 mm - protective housing SICK behind the machine - control cabinet fixed to the machine space requirement L x W x H 2150 x 1650 x 1400 mm weight 650 kg good condition; used
used
sheet width: 2540 mm plate thickness: 2.50 mm distance between columns: 2600 mm daylight opening: OW 300 mm adjustment: UW 115 mm pivoting angle: 180 Grad work height max.: 910 mm back stop - adjustable: bis 690 mm voltage: 400 V total power requirement: 3.8 kW weight: 2250 kg range L-W-H: 3640 x 1750 x 1600 mm maintained condition () Furnishing: - robust electro-motive folding machine - Bending angle adjustment via electric potentiometer infinitely adjustable with digital value display - manual % automatic mode selectable - Electrical adjustment of the travel paths of the upper beam - manual lower beam adjustment up to 115 mm - 1x set of bending tools (installed / used condition) - freely movable double foot switch - manual material back gauge, adjustable at the back Adjustment range up to max. ~ 690 mm - User manual (PDF) Machine link: http://mhp.logotech.de/hpm/v7/Datenblatt/date ...
used
sheet width: 2040 mm plate thickness: 2.5 mm pre-bending: 2.0 mm diameter of upper rolls: 110 mm side roll diameter: 110 mm diameter of lower rolls: 110 mm speed: 6.0 m/min voltage: 400 V total power requirement: 1.5 kW weight of the machine ca.: 1250 kg range L-W-H: 3020 x 670 x 1010 mm Furnishing: - robust electro-mechanical three-roller drive - Driven by spur gear brake motor + countershaft - asymmetrical roller arrangement - electrical delivery of the rear roller with automatic electrical switch-off Setting min./max. travel distance possible - Rotatable control panel, front right - swing-out top roller, with folding bearing - Conical bending device - freely movable double foot switch Right/left rotation of the rollers - Manual delivery of the bottom roller using a handwheel with analogue position display - User manual (PDF) Machine link: http://mhp.logotech.de/hpm/v7/Datenblatt/ ...
used
sheet width: 2040 mm plate thickness: 3,0 mm daylight opening: mm distance between columns: 2100 mm work height max.: mm : max. 135 Grad total power requirement: 4,0 kW weight of the machine ca.: 2,2 t range L-W-H: 23,1 x 1,0 x 1,7 m Furnishing: - Bending angle preselection - Segmented tool - additional bending set - manual backgauge - Dokumentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
sheet width: 2040 mm plate thickness: 3,00 mm distance between columns: mm bending angle: 135 ° upper beam stroke: 350 mm engine output: 4 kW total power requirement: kW weight of the machine ca.: 2,50 t dimensions of the machine ca.: 3,20 X 1,60 X 0,90 m - with different OW rails, especially segmented tools - Footswitch - Manual operation Machine is repaired, checked, cleaned by a specialist and is then complete functioning. Test run is carried out. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
