used
number of controlled axis: 6 workpiece weight: . kg throat: . mm Control: System R-J Number of working hours: 38217 h total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used

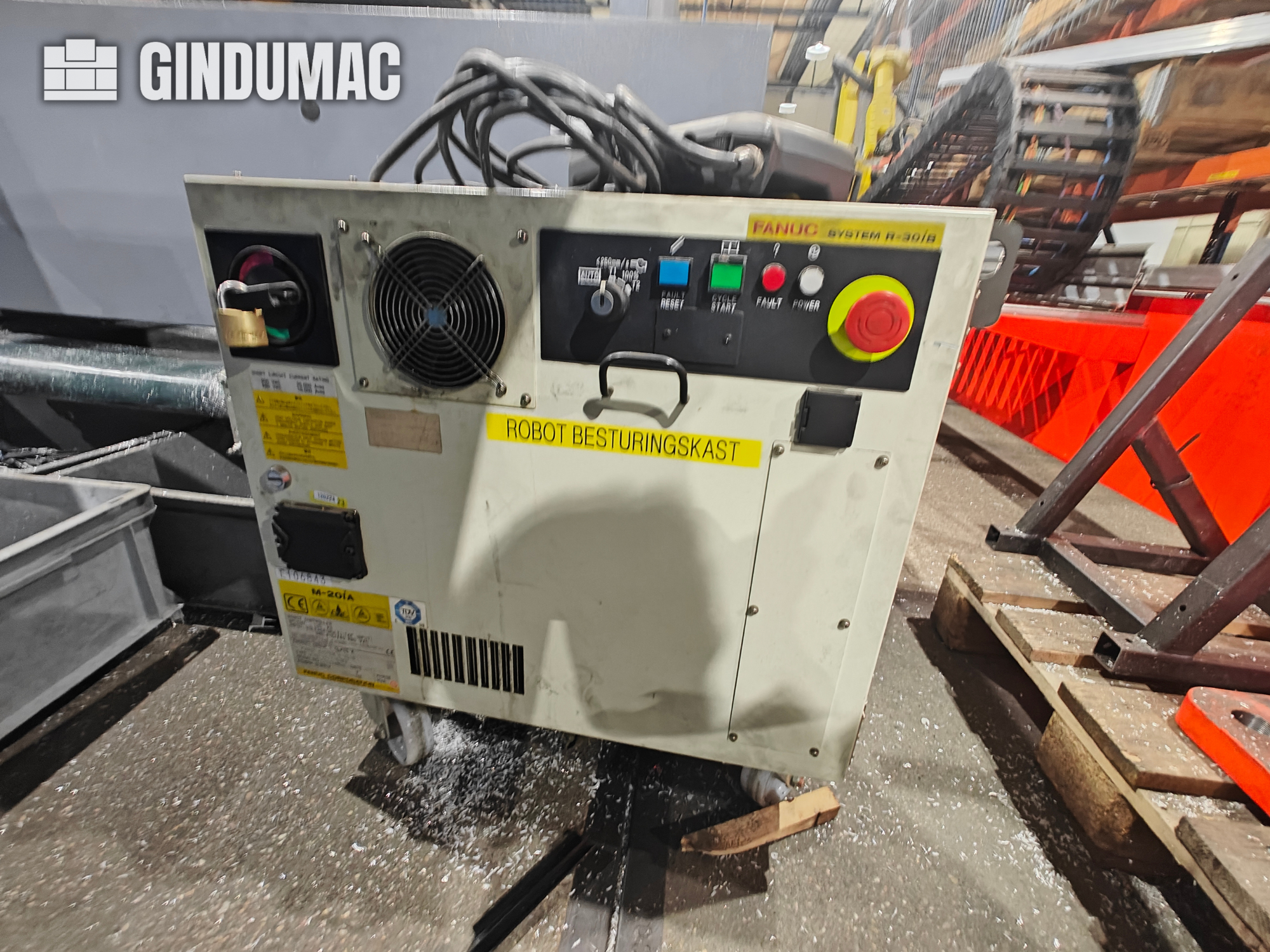

General: Year of construction 2005 Type Robot M-6iB Type A05-1215-B602
used
Control Fanuc Travels X / Y / Z: 520 x 370 x 410 mm Travels U / V: 120 x 120 mm cooling unit
used
Fanuc Robodrill a-T14 iB Vertical Machining Center Machine is in excellent condition
used
good condition inspection possible video available
used
This FANUC Robocut ALPHA-0B Erosion machine was manufactured in the year 1995. It is equipped with a Fanuc Series 16-W control unit and has 4 axis. The machine has a wire tension: 0-2500 g.
used
Fanuc Robodrill Alpha-T14ifb Tapping Machine 10000 rpm 5 inches diving head(Nikken) Machine is in good working condition
used
Machine Details Warehouse number 1105-03578 Machine Type Machining Center - Vertical StAMA ROBODRILL brand Type MC 010 Year of construction 1990 Control type CNC Storage location HAGUENAU Country of origin JAPAN Delivery time IMMEDIATELY Freight base from stock Technical details x-travel 500 mm y-travel 380 mm z-travel 300 mm Spindle holder ISO 30 sk sa Clamping surface 650 x 380 mm Tool magazine with 10 seats Tool change time 5 sec workpiece weight 200 kg Speeds - autom. switchable 60 - 8000 rpm Feed speed 1 - 4095 mm/min Feed force 400 kp (X, Y) Feed force 1000 kp (Z) Rapid traverse speed 36 m/min (X, Y) Rapid traverse speed 30 m/min (Z) Information Equipped with/ Equipped with: - FANUC 0 M Control - 10-fold tool changer SK 30 - Coolant system / cooling attachment - 4 T-slots / 4 T-slots TOOLS SK 30
used
Vertical machining center Fanuc Robodrill Alpha T21i EL Year 2007 CNC Fanuc 31i Tool holder BT 30 Spindle power 5.5 Kw Spindle RPM 24000 HSC (high speed) yes Number of tools 21 X 700 mm Y 400 mm Z 330 mm Rapids X Y Z 54 m / min Table dimensions 850 x 410 mm Fourth axis Kitagawa MOD. MR200 Flange diameter 200 mm Continuous rotation, 360000 positions Renishaw TS27R presetting DIMENSIONS AND WEIGHT Length 2115 mm Width 2027 mm Height 2336 mm Weight 2100 Kg Under power in our warehouse - test possible Mimu Machine Tools (Italy) Gussago BS Italy The machining center is a machine tool equipped with numerical control capable of performing multiple mechanical operations with a single set-up on multiple surfaces of the same work piece. It is generally equipped with several axles of motion and a automatic tool exchange system and sometimes multiple pallets, Spindle speed RPM: 24000
used
Robodrill MC 010 X-axis: 500 mm Y-axis: 380 mm Z-axis: 300 mm Admission in spindle (ISO): BT30 Control : Fanuc 16-M Toolchanger: yes Number of toolholders: 10 positions Number of rotations: 10 > 8000 rpm
used
x-travel: 700 mm y-travel: 400 mm z-travel: 330 mm Control: FANUC 31iB5 table-size: 850 x 410 mm : 21 fach turning speeds: 10.000 U/min Internal cooling system: 20 bar total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Ref. -No.: 10370 Manufacturer: FANUC Year of construction: 1997 Type of control: CNC Control: FANUC Series 16-M Storage location: Halberstadt Country of origin: Irland X-Travel: 500 mm Y-Travel: 380 mm Z-Travel: 300 mm Machine length: 1560 mm Machine width: 2060 mm Machine Height: 2218 mm Rotary Table (Lxw): 650 x 380 mm Table Load: 200 kg Max. Tool Weight: 2 kg Max. Tool Length: 120 - 200 mm Max. Tool Diameter: 65 mm Tool change time: 1 s Tool Taper: MAS BT30, MAS P30T-1 (45°) Numbers Of Tools In Magazin: 10 Tool changer: Revolvertyp (Spindel unabhängig vom Revolver) Turning Speed Range - Stepless: 1-15000 mm / min Rapid Traverse X-Axis: 48 m / min Rapid Travel Y-Axis: 48 m / min Rapid Traverse Z-Axis: 48 m / min Weight Of The Machine Ca.: 1,7 t Max spindle speed: 8000 minâ»Â¹ Positioning accuracy in one direction (*1): 0,006 / 300 mm Positioning repeatability (*2): +/- 0,00 ...
used
Key data: 500 mm, 400 mm, 330 mm
achine details Stock-No. 1105-03933 Type of machine Machining Center - Vertical Make FANUC-STAMA Type Robodrill T14 ifb Year of manufacture 2010 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Japan Delivery time by arrangement Freight basis EX WORK Technical details x-travel 500 mm y-travel 400 mm Z-Travel 330 mm table surface area 650 x400 mm turning speed range - milling 10000 rpm power capacity - milling spindle 7,5 kW tool taper BT 30 No. of tools in the magazine 14 pieces feed range 1-12000 mm/min rapid motion -longitudinal/cross/vertical 36 m/min total power requirement 10 kW Weight of the machine approx. 2200 kg dimensions of the machine approx. 2000x2400x2600 mm Additional information CNC FANUC 31 i MB 10000 rpm spindle
used
Key data: 320 mm, 220 mm, 180 mm
Inv. Num. : 6869 Type: Robocut 0iA Producer: FANUC Created: 2000 Parameters: Control system: FANUC Max. travel length of the X-axis: 320 mm Max. travel length of the Y-axis: 220 mm Max. travel length of the Z-axis: 180 mm Feed length in the U-axis ( -): 120 mm Feed length in the V-axis ( -): 120 mm Machine weight: 1200 kg
used
Key data: 370 mm, 270 mm, 254 mm
Machine Details Stock-No. 1105-03942 Type of machine Wire Eroding Machine Make FANUC Type Robocut Alpha oid Year of manufacture 2008 Type of control CNC Storage location FRANCE Country of origin JAPAN Delivery time to be agreed Freight basis ex site Price Technical details table length 700 mm table width 400 mm Control Fanuc 310 S WA X-Axis 520 mm y-axis 370 mm U-axis +/- 60 mm V-axis +/- 60 mm Conical angle (100mm) +/- 30° Z-Axis 410 mm max. workpiece sizes 600 x 420 mm max. workpiece height 400 mm max. workpiece weight 400 kg Rapid traverse 0.9 m/min interval size of the actuator 0,001 mm wire dia. 0.1 - 0.30 mm wire speed 0 - 15 m/min wire clamping 200 - 2.500 g total power requirement ~ 14 kVA weight of the machine approx. 2.5 t dimensions of the machine approx. 3.2 x 2.5 x 2.1 m Accessories Documents electr. Hand Wheel
used
Control Fanuc ... 31i - B5 Clamping table surface ... 850x410mm Axis X ... 700mm Axis Y ... 400mm Axis Z ... 330mm Spindle speed ... 0-24000/min. controlled axes ... 5 cooling ... 35bar Spindle mounting... BBT30. Rapid traverse ... 54m/min Main engine power ... 4.7/14.2kW Max. table load ... 300kg L x W x H ... 2100x2165x2800mm Machine weight ... 2300kg Magazine slots ... 21 + Robot FANUC LR Mate 200iD The machine is in good condition, possible to test under electricity.
used
BRAND: FANUC YEAR: 2021 MODEL: ROBOCUT C400IC PRODUCTION HOURS: 20 APPLICATION TYPE: EDM LOCATION: SLOVENIA MACHINE TYPE: EROSION MACHINE AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MACHINE WEIGHT: 2200 KG CONTROL UNIT BRAND: FANUC MOVEMENT X-AXIS MOVEMENT: 400 MM Y-AXIS MOVEMENT: 300 MM Z-AXIS MOVEMENT: 255 MM U/V MOVEMENT: 120 MM WORKPIECE WORKPIECE WEIGHT: 500 KG Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MEASURING BARS - AUTOMATIC FRONT DOORS
used
BRAND: FANUC YEAR: 1995 MODEL: ROBOCUT ALPHA- 0B APPLICATION TYPE: EDM LOCATION: SLOVENIA MACHINE TYPE: EROSION MACHINE AVAILABILITY: IMMEDIATELY Technical Information CONTROL UNIT BRAND: FANUC MODEL: SERIES 16-W MAIN DRIVE NUMBER OF AXIS: 4 MOVEMENT X-AXIS MOVEMENT: 160 MM Z-AXIS MOVEMENT: 150 MM U/V MOVEMENT: 30 MM WORKPIECE WORKPIECE DRM OVER BED: 650 MM WORKPIECE DRM OVER SUPPORT: 420 MM WORKPIECE DRM: 150 MM WORKPIECE WEIGHT: 250 KG TABLE OUTER LENGTH: 300 MM OUTER WIDTH: 200 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - WIRE TENSION: 0-2500 G - WIRE FEEDRATE: 1-10 M/MIN
used
FANUC Robodrill Alpha T14iB vertical machining center from the year 2000 currently working. It is equipped with a Fanuc 16i-M CNC control unit. The machine has a spindle speed of 15000 rpm. Machine weight: 2100 kg CNC
used
Fanuc Robocut alpha-C600ib EDM Wire Cutting Machine Machine is in very good condition Maximum workpiece dimensions [mm]: 1050 Ã 820 Ã 300 Maximum workpiece weight [kg] : 1000
used
Technical details: X-axis travel 400 mm Travel Y-axis 300 mm Z-axis travel 255 mm U/V axes ± 60 mm Max. workpiece weight 500 kg Standard wire 0.25 mm 5-axis controlled Universal clamping table 16 kg wire spool system wire guide 0.1 to 0.3 mm Accessories: - Generator a-i2300 - Start hole search function - Thermo compesation -and so on.
used
X,Y,Z Travel 700,400,330 mm Table size 850x410 mm Spindle speed 10000 rpm Number of tools 14 With 4th axis KITAGAWA rotary table Controller Fanuc 31i
used
X axis: 550 mm Y axis: 370 mm U axis: 120 mm V axis: 120 mm Z axis: 310 mm Fast forward (X, Y, Z / U, V): 900 mm / min / 450 mm / min Max work piece weight: 1000 kgs Power: 13 KVA Year 2002 Equipped with: Control: FANUC 180 iS-W Refrigerator: Yes
used
table length: - mm table width: - mm ampere: A total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Submerged Wire FANUC ROBOCUT Alpha 1-ib with auto wire thread, Information about technical data are not binding., Machine available subject to prior sale., X-y-z axes travel: 550x370x310 mm, U-v axes travel: 120x120 mm, Taper angle: ± 30°, Automatic wire threading and rethreading: yes, Maximum workpiece dimension: 1000x800x300 mm, Cnc: FANUC 180is - WB, Filter type: Cartridge, Weight: 3.000 Kg, Accessories: Chiller unit
