used
Description: serial number: 012001082671 control: FADAL travels: X-axis: 762 mm Y-axis: 406 mm Z-axis: 508 mm max. spindle speed: 10000 rpm max. workpiece weight: 900 kg tool holder: BT40 tool holder positions: 21 z-motion: 508 mm, max. workpiece weight between centers: 900 kg, x-motion: 762 mm, y-motion: 406 mm, control: Fadal, taper: BT40, toolchanger positions: 21, turning speed range: 10,000 rpm, weight approx.: 6,000 kg, Approx. Onsite Dimension. (l x w x h): 2,600 x 2,500 x 2,700 mm
used
The vertical milling center FADAL VMC 15XTL was manufactured in 2007 in the United States by the FADAL brand. The machining center is digitally controlled by Fadal. It has a table size of 870 x 400 mm. The milling machine is designed for processing materials weighing up to 340 kg. It is equipped with a magazine for 21 tools. The spindle speed of the machining center, on the other hand, reaches 7500 rpm. Technical parameters of the FADAL VMC 15XTL CNC milling machine - CNC control: Fadal - working table length: 400 mm - working table width: 870 mm - maximum table load (evenly distributed): 340 kg - number of tools in the magazine: 21 pcs. - spindle drive power: 5.6 kW - maximum rotary speed of the vertical spindle: 7500 1 / min. - minimum distance between the spindle and the table: 101.6 mm - maximum distance between the spindle and the table: 609.6 mm - travel length in th ...
used
The vertical milling center FADAL VMC 2216 FX was manufactured in 2007 by the FADAL concern in the USA. The machine is equipped with FANUC Oi-MC numerical control. The milling machine can process workpieces weighing up to 450 kilograms. Machine travels in the X, Y, Z axes are 550 mm, 400 mm and 500 mm, respectively. The spindle revolutions of the CNC milling machine reach 8000 rpm. The center has a warehouse for 21 tools. Perfect for working with single details as well as for larger-scale processing. Technical data of the FADAL VMC 2216 FX machining center - CNC control: FANUC Oi-MC - table length: 406 mm - table width: 990 mm - maximum weight of the workpiece: 450 kg - X axis travel: 550 mm - Y axis travel: 400 mm - Z axis travel: 500 mm - maximum spindle speed: 8000 rpm - tool magazine: 21 - handle: SK 40 - spindle motor power: 11.2 kW - power demand: 35 kVA - power o ...
used
Fadal VMC 6535 CNC Vertical Machining Center Machine is in good working condition Maximum spindle speed: 15.000 rpm X : 1700 mm Y : 890 mm Z : 1050 mm
used
FADAL 6030 cnc milling machine FADAL 6030 Fadal 6030
used
Vertical machining center year 1996 With optional 5th axis dividing head model TR65 X 1016mm Y 508 mm Z 711 mm
used
x-travel: 1016 mm y-travel: 508 mm z-travel: 508 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Fanuc Oi-MC CNC control electronical handwheel 21-fold tool changer coolant device chip tank Technische Daten / technical details: X-Weg / X-travel 1016 mm Y-Weg / Y-travel 508 mm Z-Weg / Z-travel 508 mm Spindelaufnahme / spindle taper SK40 Drehzahl / spindle speed 10000 UpM /rpm Eilgang / rapid feed 25 m/min Tischaufspannfläche / table clamping area 1219x508 mm Werkzeugwechselmagazinplätze / number of tool places in changer 21 Antriebsleistung Spindel / drive capacity spindle 11/17 kW Gewicht ca. / weight ca. 5000 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding. The data for this ad was created with ModulMWS - the ...
used
Equipped with the Fadal CNC 88HS control unit, this machine offers robust control with its user-friendly interface. It hosts a single spindle capable of speeds up to 10,000 rpm and generous X, Y, and Z travel distances of 2030 mm, 760 mm, and 760 mm respectively. The large table size of 2100 x 760 mm facilitates ample working space, while additional features like internal cooling and a chip conveyor augment its efficiency. 3-Axis vertical machining centres such as the FADAL VMC8030HT, manufactured in 1997, are designed to handle a range of machining tasks. Contact us for further details.
used
Table length: 750 mm Table width: 405 mm Longitudinal X: 508 mm Cross Y: 408 mm Vertical Z: 508 mm Positions ATC: 21 Positions APC: 0 CNC Brand: Fadal CNC Model: HS 88 MAKE Fadal USA TYPE VMC 15 XT YEAR 1996 SPECIFICATIONS X - Travel 508 mm Y - Travel 408 mm Z - Travel 508 mm bed / plano / portal / moving column VMC Controll FADAL HS 88 Table Length x Width 750 x 405 mm Table load in kG 900 Kg Spindle Taper Sk 40 kW power on spindle 7.5 kW Spindle speeds / ranges 7500 Rpm ATC tool changer 21 Number off controlled axis 3 DIMENSIONS Length 2800 mm Width 2200 mm Height 2700 mm ...
used
Table length: 1219 mm Table width: 508 mm Longitudinal X: 1016 mm Cross Y: 508 mm Vertical Z: 508 mm Positions ATC: 21 Positions APC: 0 CNC Brand: _Unknown / Other CNC Model: 88 HS MACH-id 3996 MAKE Fadal USA TYPE VMC 4020 HT YEAR 1995 SPECIFICATIONS X - Travel 1016 mm Y - Travel 508 mm Z - Travel 508 mm bed / plano / portal / moving column VMC Controll 88 HS Table Length x Width 1219 x 508 mm Table load in kG 1652 Kg Spindle Taper Bt 40 kW power on spindle 11.2 kW Spindle speeds / ranges 10.000 Rpm ATC tool changer 21 Number off controlled axi ...
used
Table length: 1000 mm Table width: 400 mm Longitudinal X: 762 mm Cross Y: 406 mm Vertical Z: 508 mm Positions ATC: 21 Positions APC: 0 CNC Brand: _Unknown / Other MAKE Fadal USA TYPE VMC 3016 YEAR 1999 SPECIFICATIONS X - Travel 762 mm Y - Travel 406 mm Z - Travel 508 mm Controll CNC 88 HS Table Length x Width 1000 x 400 mm Table load in kG 1240 Kg Spindle Taper Sk 40 kW power on spindle 7.5 kW Spindle speeds / ranges 10.000 Rpm ATC tool changer 21 Number off controlled axis 3 + 1 = 4e axis DIMENSIONS Length 2510 mm Width 2000 mm Height 2710 mm
used
Total working hours is 3,000.. oil scraper Washing Chip Conveyor
used
Table size: 1000 x 490 mm traverse path x/y/z: 800/510/500 mm spindle retainer: ISO 40 ISA kl. / gr. Table/spindle distance: 120/620 mm spindle speeds: 40-6000 rpm number of tool stations: 22 pieces feeds: x/y 1-3200 / z 1-2000 mm / min rapid traverse: x/y 1-3.2, z 1-2 m / min. Supply: 380 V, 19 kW space: 2850 x 2150 x 2600 mm weight: 3800 kg
used
x-travel: 450 mm y-travel: 400 mm z-travel: 400 mm control: Heidenhain TNC 310 distance spindle nose and table: min. 100 mm table height over floor: 810 mm table surface area: 400 x 900 mm no. of flutes: 5 je 14 mm work piece dimensions max.: 450 x 400 x 300 mm workpiece weight max.: 350 kg turning speeds:: 9000 U/min power requirement: 7,5 / 8,2 kW spindle cone: ISO 40 DIN 69871 spindle diameter in front bearing: 60 mm tool numbers: 12 diameter of tools max.: 80 mm tool length - max.: 200 mm weight of tools max.: 6 kg tool changing time: 4 sec feed range x y z: 1 - 20 000 mm/min. rapid motion -longitudinal/cross/vertical: 30 m/min operating pressure: 6 bar weight of the machine ca.: 3,46 t dimensions of the machine ca.: 2,14 x 1,58 x 2,61 m CE signed: Electric 400 Volt: Electr. hand wheel: HR 410 Heidenhain chip pan: Lighting og working area: - INDRAMAT axis drives in X, Y, Z and S ...
used
Machine Details Warehouse number 1105-03462 Machine Type Machining Center - Vertical HARTFORD brand Type VMC 1020 Year of construction 1999 Control type CNC Control FANUC OMD Storage location FRANCE Country of origin Taiwan Delivery time immediately Freight base EX WORK Technical details x-displacement 1020 mm y-way 510 mm z-path 510 mm Table clamping surface 1200 x 600 mm Speed range - milling 8000 rpm Control FANUC OMD Drive power - Milling spindle 11 kW Tool holder BT 40 Number of tool magazine slots 20 stations Feed range 1 - 10000 mm/min Rapid passages: 20 m/min Total power requirement 25 kW Machine weight approx. 5500 kg Space requirement approx. 2300x2200x2600 mm Accessories Full protection - fairing Complete machine documentation Information very nice MACHINE CONTROL FANUC O MD SPINDLE BT 40 8000 RPM All prices excl. VAT..
used
Machine Details Warehouse number 1105-03498 Machine Type Machining Center - Vertical HARTFORD brand Type VMC 1020 Year of construction 2001 Control type CNC Control heidenhein 410 Storage location HAGUENAU Country of origin Taiwan Delivery time immediately Freight base from stock HAGUENAU FRANCE Technical details x-travel 1020 mm y-travel 510 mm z-travel 510 mm Table clamping surface 1200 x 600 mm Speed range - milling 60 - 8000 rpm Control heidenhein 410 Drive power - Milling spindle 11 kW Tool holder BT 40 Number of tool magazine slots 20 stations Feed range 1 - 10000 mm/min Rapid traverses: 20 m/min Total power requirement 25 kW Machine weight approx. 5500 kg Space requirement approx. 2300x2200x2600 mm Information very nice MACHINE CONTROL heidenhain tnc 410
used
Hartford VMC-560 Vertical Machining Center Machine is in good working condition X: 580 mm Y : 450 mm Z : 480 mm
used
Hartford VMC-1270A Vertical Machining Center X : 1270 mm Y : 635 mm Z : 635 mm Machine is in good working condition All maintenance has been done
used
Machine Details Warehouse number 1105-03546 Machine Type Machining Center - Vertical HARTFORD brand Type VMC 1230 Year of construction 2000 Control type CNC Control FANUC 18 M Storage location HAGUENAU Country of origin Taiwan Delivery time immediately Freight base EX WORK Technical details x-travel 1230 mm y-travel 610 mm z-travel 610 mm Table clamping surface 1400 X 610 mm Speed range - milling 60 - 8000 rpm Control FANUC 18 M Drive power - Milling spindle 11 kW Tool holder BT 40 Number of tool magazine slots 30 stations Feed range 1 - 10000 mm/min Rapid traverses: 20 m/min Total power requirement 25 kW Machine weight approx. 9800 kg Space requirement approx. 3300x2700x2600 mm Accessories Full protection - fairing Complete machine documentation Central lubrication RS 232 - Data Interface Information very nice only working in aluminium CONTROL FAN ...
used
Machine Details Warehouse number 1105-03571 Machine Type Machining Center - Vertical HARTFORD brand Type VMC 1020 Year of construction 1999 Control type CNC Control FANUC OMD Storage location FRANCE Country of origin Taiwan Delivery time immediately Freight base EX WORK Technical details x-travel 1020 mm y-travel 510 mm z-travel 510 mm Table clamping surface 1200 x 600 mm Speed range - milling 8000 rpm Control FANUC OMD Drive power - Milling spindle 11 kW Tool holder BT 40 Number of tool magazine slots 24 stations Feed range 1 - 10000 mm/min Rapid traverses: 20 m/min Total power requirement 25 kW Machine weight approx. 5500 kg Space requirement approx. 2300x2200x2600 mm Accessories Full protection - fairing Complete machine documentation Information very nice MACHINE CONTROL FANUC O MD SPINDLE BT 40 8000 RPM
used
Control Heidenhain ... TNC 640 Clamping table surface ... 1200 x 500mm Axis X ... 1040mm Axis Y ... 540mm Axis Z ... 600mm Spindle speed ... 12000-_/min. controlled axes ... 3 cooling... 25bar SK 40 workpiece weight... 800kg Magazine slots ... 24 L x W x W ... 2900 x 2420 x 2840mm Machine weight... 6400kg The machine is in good condition, possible to test under power.
used

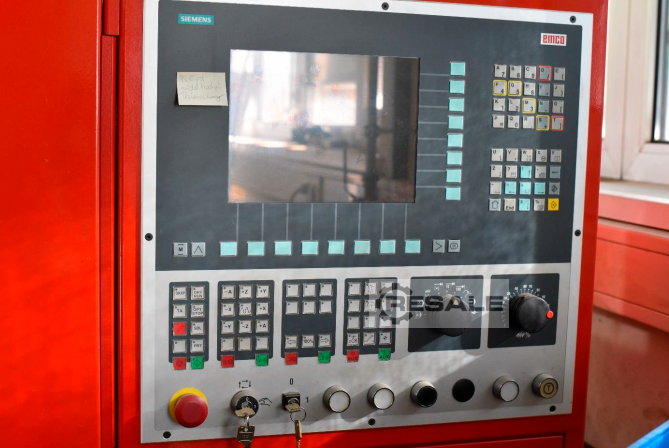

X-travel: 650mm, y-travel: 410mm, z-travel: 410mm, number of tool slots: 10, tool cone: SK 40, rapid traverse: 15m/min, clamping surface: 850x410mm, max. table load: 300kg, controls: SIEMENS Sinumerik 840D.
used
X-travel: 1300mm, y-travel: 710mm, z-travel: 710mm, table height: 710mm, table dimensions: 1500x660mm, table height: 880mm, max. workpiece weight: 1.2t, length: 3400mmm, width: 3240mm, height: 3000mm, weight: 5.5t, with tools, has been regularly serviced, on-site inspection is possible.
used
Machine Details Warehouse number 1105-03728 Machine Type Machining Center - Vertical Make YCM SUPERMAX Type VMC -85 A / FANUC 0M Year of construction 1998 Control type CNC Storage location HAGUENAU Country of origin Taiwan Delivery time immediately Freight base EX WORK Technical details x-travel 850 mm y-travel 440 mm z-travel 630 mm Table size 940 x 400 mm Spindle holder BT 40 Spindle speeds 45 - 8000 rpm Spindle drive motor 7.7 / 5.5 kW Tool changing device 22 times CNC control FANUC - 0M Operating voltage 380 V table load 250 kg Projection 380 mm Total power requirement 10 kVA Information - Control: FANUC OM - Coolant device
new
CNC control: Heidenhain TNC640, 19" touchscreen -Stainless steel cabin floor -Stainless steel cover under machine doors -Enclosure of the pumps -Chip rinsing system -Double arm tool changer with 30 places -Direct drive 15,000 rpm -complete coolant device (coolant nozzles distributed in a ring around the spindle) -Chip conveyor (screw) -Workspace lighting -3 colors signal light -Compressed air and coolant gun -Full fairing -Suit bolt ISO 7388/B Type B, 6 pcs. -Blow-out device (spindle) -Emergency off button and button, "Release tool" on the spindle -Portable electronic handwheel -Limit switch -Transport device (for crane transport) -User Manual -CE Declaration of Conformity Specifications: Workbench: Clamping surface: 800 x 550 mm T-Benefit: Number/ Width/ Distance: 5/18/100 mm workpiece weight: 700 kg Travel X-axis: 650 mm Y-axis: 600 mm Z-axis: 620 m ...
