zv used for sale

1 used shrink tunnel, made ZVT (now KHS), type ST/II-600DG. Built in 1995. With belt braiding tape (for untabivalent products such as PET bottles). Total length 6,000 mm. Passage 570 mm High x 400 mm wide. E-connection 415V (x5%) / 50 Hz. Top condition (belt recently renewed!). Operator side: right or left. (2 machines available).

Heating elements used in Kisters ZVT and ZEVA shrinktunnels. Various quantities and lengths (600, 700 and 1000 mm) and types (straight, bent, with and without wires) available: 240, 290 and 347 Volts, 2150, 3100 and 3500 Watts.

1 of used wrap-around /traypacker, make ZVT (KHS), type Innopack WP 030 VH. New 2000. Operating side; left. Capacity upto 30 cartons/trays per minute (depending on product and blank dimensions). Siemens S7 PLC with OP 17, Indramat Servos, Nordson hot-melt unit. Wired for 400V / 50 Hz. Used for packing various 330 ml upto 2.000 ml glass and PET bottles as 8/12/20/24 on tray or in full wrap-around cartons. Last used as tray-packer only. Various manuals available. Condition: good. Dismantled and available cleaned ex-warehouse The Netherlands.

Safety switch, safety switch, TZ -Type: AZ 16 ZVK-M16 -Protection class: IP 67 -Number: 34x available -Price: per piece -Dimensions: 90/51/H30 mm -Weight: 0.1 kg

1 of used film-only shrink wrapper, make ZVT (KHS), type SP030V, new 2000. Operating side: left. Capacity 30 cycles/minute nominal, 35 cpm in overspeed. Siemens S7 PLC. Indramat EcoDrive servo's. Used for PET bottles in clear and print-registered shrink-wrap film as: 500 ml, D 63.5 x H 230 mm, 3x2=6, dual-lane, 1.000 ml, D 80 x H 281 mm, 3x2=6, dual-lane, and 1.500 ml, D 89 x H 332 mm, 3x2=6, dual-lane. Future option (no parts supplied) was 2.000 ml, D 100 x H 349 mm, 3x2=6 and 2x2=4, dual-lane.

1 of used Kisters filmstation for potential use as training module. Ex a Kisters 197/100 D. Can be supplied with ancillaries such as vacuum fan, film-reel spindle and film brake, etc. Modules for various KHS/Kisters/ZVT machine types in stock!

Filter Manufacturer: Hunter Type: ZVA 01 ABTE

x-travel: 3.000 mm y-travel: 1.000 mm z-travel: 860 mm Control: Heidenhain iTNC-530 table-size: 3.600 x 1.050 mm T-slots: 7 x 18 T - slots distance: 125 mm distance table - lower edge spindle: 25-366 mm table weight: 4.200 Kg b-axis: +-105 ° c-axis: +-360 0 rapid travel x/y/z: 30.000 mm/min rotary table: Durchm. 1.000 mm max. turning diameter: 1.400 mm number of spindle speeds: 9.000 U/min/rpm tool taper: ISO-50 DIN 69871-AD spindle drive: 28,5 kW max. torque on the spindle: 240 Nm tool change unit: AITEK, 40 fach : 20 handwheel: Ink. Shuttle operation: Inkl Chip coveyor: Ink. Internal cooling system: 20 bar total power requirement: 65 kW weight of the machine ca.: 24,8 t dimensions of the machine ca.: 8.056 x 5.496 x 3.790 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

2013 Ibarmia ZVH 45/L1600 Extreme 4 axis vertical machining center Type: ZVH 45/L1600 Extreme Manufacturer: Ibarmia Year: 2013 Control: Fanuc X- 1600 mm Y- 800 mm Z- 900 mm Rotation angle +/-105° Maximum spindle speed 12000 rpm Number of tools in the magazine: 24 Work table dimensions: 2000 x 850 mm Included a wall that divides the table into two parts, so it is possible to machine separately in one part and clamp in the other part Machine in good condition, under power. Find more here - / Contact us at -

Technical data shown on picture.

General SKU316W650 LocationBarneveld MakeCoperion (type plate missing) TypeZVH-250.2-8SC Year of constructionUnknown Main Features MaterialStainless steel/chrome Motor0.55 KW Inlet diameter165 mm Specified Features - Rotating valve MaterialHard chrome, Stainless steel 1.4016, Stellite 1 Alloy Rotary valvecheck Rotor diameter200 mm Rotor width250 mm Number of locks:10 Lock sizes55x180x60 mm Capacityrotor ± 4,75 L Inlet165 mm Outlet50 mm Installation height360 mm With motor0,55 kW, 380/500 volt, 1400 rpm Rotor speed16,6 rpm Outside bearingscheck Information Mounted on framecheck Floorspace1,10 x 0,90 m Total height0,92 m Weight180 kg Technical specs Extra informationcapacity ± 4,7 m³/hRotating valvesCoperionRotary valves > Rotating valvesBrand > Coperion What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to ne ...

Stock number: 4022 CNC BED MILLING MACHINE Manufacturer: Ibarmia, Type: ZVH 58LL Machines NO.: 05525, Year of manufacture: 2005 Specifications: Table size 3600x1050 mm Longitudinal movement (X) 3000 mm Transverse movement (Z) 860 mm Vertical movement (Y) 1000 mm Spindle Taper SK50 ISO Spindle speeds 9000 rpm Spindle motor power 25 Kw Tool changer 30 stations Control Heidenhain TNC 530 Fabr. Controlled in 5 Axis Spindle Hours 12060 Hours Accessories: Cooling by spindle 24 bar Chip conveyance. Cooling water system. Electronic handwheel Cloth Probe System Rotary table. 800mm Table rotation (B) 0.001 degrees Very well preserved. Length: 8100mm, Height: 3800mm, Width: 5500mm, Weight: 25400 kg

Fabricante IBARMIA Modelo ZVH 58 / L3000 Año 2004 CNC Heidenhain iTNC-530 Mesa Superficie de la mesa 3.600 x 1.050 mm. Ranuras en T 7 x 18 H 18 Distancia entre ranuras en T 125 mm. Distancia entre nariz husillo y mesa 25-366 mm. Peso máximo admisible en mesa 4.200 kg Recorridos y avances Curso longitudinal (Eje X) 3.000 mm Curso transversal (Eje Y) 1.000 mm Curso vertical (Eje Z) 860 mm Rango cabezal basculante (Eje B) ± 105º Rango giro (Eje C) ± 360º Avance rápido (X, Y, Z) 30 m/min Avance máximo trabajo (X/Y/Z) 30 m/min Avance rápido eje B 170 rpm Mesa rotatoria integrada Ø mesa rotatoria 1.000 mm. Ø máximo de rotación 1.400 mm. Cabezal Revoluciones cabezal 9.000 mm/min Cono cabezal ISO-50 DIN 69871-AD Potencia motor principal 28,5 kW Par motor principal 240 Nm Cargador automático herramientas Fabricante AITEK Tipo cambio RANDOM Posicion ...

Key data: 2200 mm, 600 mm, 600 mm

Travelling column milling machine Manufacturer Ibarmia Type ZV40 Year of construction 2000 Control Heidenhain TNC 410 Table size 2600 x 650 permissible. Load 2300kg Travel X/YZ 2200/600/600 Tool holder SK40 24 Way Tool Changer max speed 8,000rpm Partition wall for pendulum operation Electronic Handwheel HR410 Chip conveyor Glass scales in all axes Guide of the Y-axis would have to be redone In 2018, the machine got a new guide in Z and X axis, and a new main spindle. Machine is fully functional except for the linear guide of the Y-axis. Machine has the following dimensions: L x W x H 4200 x 3000 x 3050, weight 12000kg. Without the vices in the photos.

with washer assembly diameter range 10 mm shaft length under head 100 mm max. thread length 65 mm output pieces/min 180

vibratory feeder diameter range 10 mm shaft length under head 100 mm max. thread length 65 mm output pieces/min 180

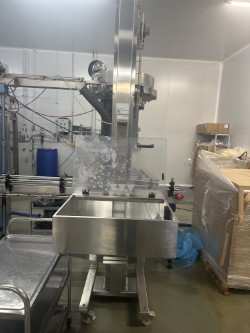

Overview  This cap feeding system consists of a vertical cap elevator, a centrifugal distributor, and a horizontal flat top air conveyor. The system was used for feeding 38 mm flat plastic caps in PET bottling applications. It has been dismantled, stored in a warehouse, and is immediately available. Technical data  Formats: Flat 38 mm plastic caps Dimensions: L 210 cm × W 75 cm × H 300 cm Power supply: 0.2 kW Application: PET bottles Scope of Delivery Vertical cap elevator | Marmoinox | AML-ZVE1 | 2016 Centrifugal distributor | Sacmi | - | 1997 Horizontal flat top air conveyor, 2 m | Sacmi | - | 1997

We have large stock of now OEM-obsolete used mechanical spare parts and electric / electronic parts for KHS, Kisters and ZVT tray- and shrinkpacking machines. Including AEG DPW 101/102, Kisters PC09 / Kisters PC20 / Kisters PC30 / Kisters PC40, and Indramat servo drives and controllers, Mayr Primo servo controllers. Details upon request. MAC 71C-0-JS-4-C/95-A-0/WI504LV/S001 MAC 71C-0-JS-4-C/95-A-0/WI504LX/S001 MAC 71C-0-JS-4-C/95-A-1/WI504LV/S001 MAC 71C-0-JS-4-C/95-A-1/WI504LX/S001 MAC112B-0-GD-4-C/180-A-0/WI504LV/S011 MAC112B-0-GD-4-C/180-A-0/WI504LX/S011 Mayr Primo 2 + am 1 type P22.004.0 Mayr Primo Compact type P21.004.0 TR Electronic AE100S / HE100S / CS100S Bosch Rexroth PPC controllers including PPC-R02.2N-N-NN-P2-NN-FW, PPC-R02.2N-N-V2-NN-NN-FW and PPC-R22.1. For most of these units we can also provide FW up- / down-load / copy service. (including on-site).

Included
