ziersch baltrusch used for sale

Grinding range: 400 x 200 mm Magnet table: 400 x 175 mm Height adjustment: 410 mm Grinding wheel dimensions: 225 x 25 x 50.8 mm Grinding wheel speed: 1420 / 2840 rpm. Equipped with: - Coolant device - Band filter - Hydraulic system - Operating instructions Country of origin: Germany Motor power: 1.5 kW Machine LxWxH: 2200 x 1500 x 2100 mm Machine Weight: 1100 kg

dimensions of the machine ca.:3,5 x 2,0 x 2,5 m

grinding length: 600 mm grinding width: 250 mm workpiece height: ca. 385 mm table surface area: 600 x 200 mm table speed -stepless-: 2 - 35 m/min table load capacity: max. 250 kg grinding wheel size: ø 225 x 25 mm grinding wheel hole diameter: 50,8 mm vertical feed autom.: 0,001 - 0,099 mm rapid traverse vertical: 600 mm/min cross feed of table continual: 10 - 1000 mm/min rapid traverse cross: 1000 mm/min total power requirement: 6 kVA dimensions of machine L x W x H: 2,65 x 1,70 x 2,28 m Accessories: DRO on Y-and Z-axis, magnetic plate 600 x 200 mm, grinding wheel with flange, wheel trueing attachment, wet grinding attachment with paper band filter The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table-size: Breite: 800 mm table-size: Tiefe: 350 mm workpiece height: mm Dimensions (L/W/H): 4600 x 3200 x 2500 mm weight of the machine ca.: 4,5 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length:1370 mm grinding width:560 mm workpiece height:800 mm total power requirement:50 kW dimensions of the machine ca.:9 m ABA Z&B 2000, profile grinding machine with swivel dresser Mounting fixtures: magnet, dividing head E-axis dresser B-axis dividing head

Key data: 400 mm, 200 mm

Ziersch & Baltrusch FS 2040 - Surface Grinding Machine - Magnetic clamping plate 400 x 175 mm -Hydraulic - Coolant device -Bandpass filter - Automatic transverse stroke not functional - Year of construction 1988 Specifications - Grinding area: 400 x 200 mm - Height adjustment: 410 mm - Magnetic table: 400 x 175 mm - Grinding wheels: 200 x 25 x 51 mm - Grinding wheel speed: 1420 / 2840 rpm - Motor power: 1.5 kW - Dimensions WxHxD: 1700 x 2100 x 1500 mm - Weight: approx. 1100 kg

Manufacturer: Ziersch Model: ZT 820 Year of Manufacture: 2008 Type of Machine: Grinding Machine Certification: CE Marked Find more here - / Contact us at -

Grinding area: 800 x 500 mm Travel X/Y: 1200 x 450 mm Max. workpiece height: 400 mm Grinding wheel dimensions: 400 x 50 x 127 mm Grinding spindle speed: 3600 min-1

grinding length: 400 mm grinding width: 200 mm magnetic plate size: 350 x 150 mm weight of the machine ca.: 1.15 t dimensions of the machine ca.: 2 x 1.6 x 2 m Balancing device integrated Magnetic plate 500x200mm www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC gantry grinding machine Ziersch Z1030 Control: Mitsubishi Touch Year of manufacture: 2018 Internal machine no. 64 Travels: Grinding area: 3,000 x 1,200 mm Transverse movement: 1,100 mm Longitudinal movement: 3,500 mm Distance table to spindle center: 1,050 mm Size of the magnetic clamping plate: 3,000 x 1,000 mm Feed longitudinal axis: 5,000 – 30,000 mm / min. Feed transverse axis: 0.01 – 5,000 mm / min. Vertical axis feed: 0.001 – 3,000 mm / min. Power grinding spindle motor: 22 kW Accessories: Belt filter system Electronic handwheel

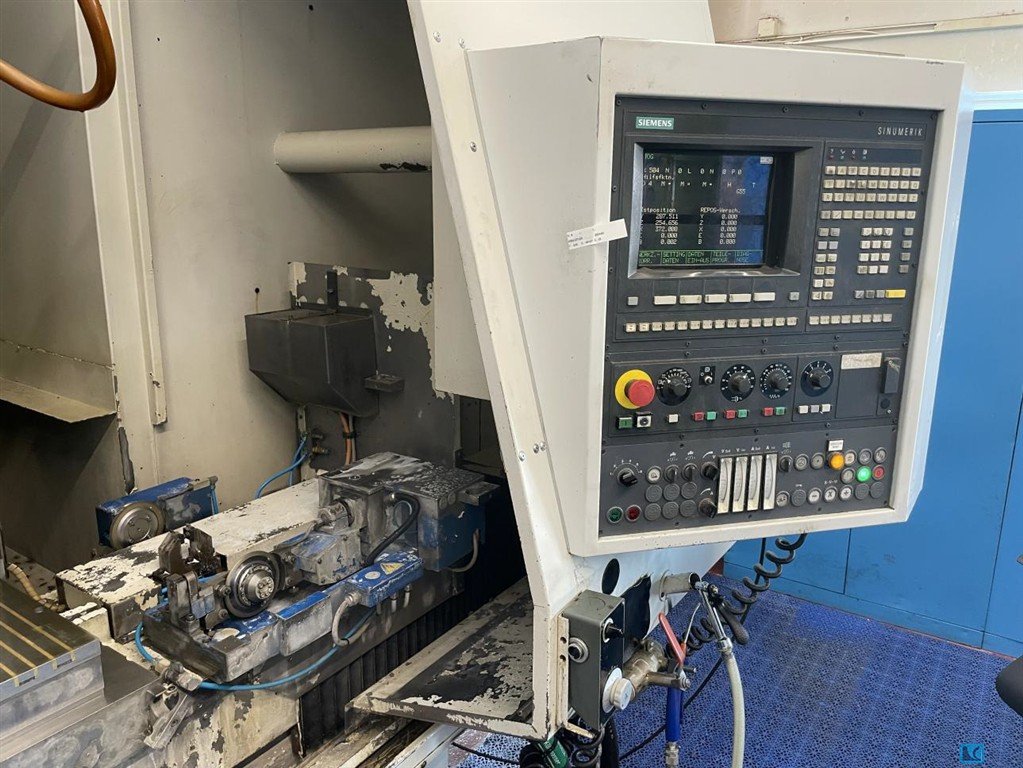

grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden

Center height 100 mm, center width 400 mm, max. grinding length 320 mm, max. weight between centers 20 kg, max. workpiece diameter 198 mm, power consumption 6 kW, speed tool headstock 90-900 1/min, bore diameter grinding wheel 127 mm, rotational speed grinding wheel 33 m/min, space requirement 2000x1800 mm, HEIDENHAIN control Auction-ID: A1-48659-6
