used
in 2005 refurbished Still in operation: Yes Available: immediately
used
in 2005 general overhauled Still in operation: Yes Available: sofort
Size: 920×1300 mm Equipments: Maximum sheet size 920×1300 mm, minimum size 560×1300 mm opening width within frame 920×1310 mm, maximum die size 910×1300 mm maximum die-cutting area 900×1300 mm, maximum gripping edge = 16 mm, minimum gripping edge = 8 mm maximum card thickness 3 mm (also with micro-flute and flute zero), maximum compressed air pressure 500 t, maximum stroke rate 5500/h infeed stack height 1100 mm, outfeed stack height 1100 mm, main motor power 18 kW, main motor power consumption 17 kW, speed 5500 strokes/h. Machine dimensions (L x W x H): 6835 mm x 3580 mm x 2690 mm. Total weight of the machine including the insert approx. 30 t, weight of the machine without the insert approx. 29 t

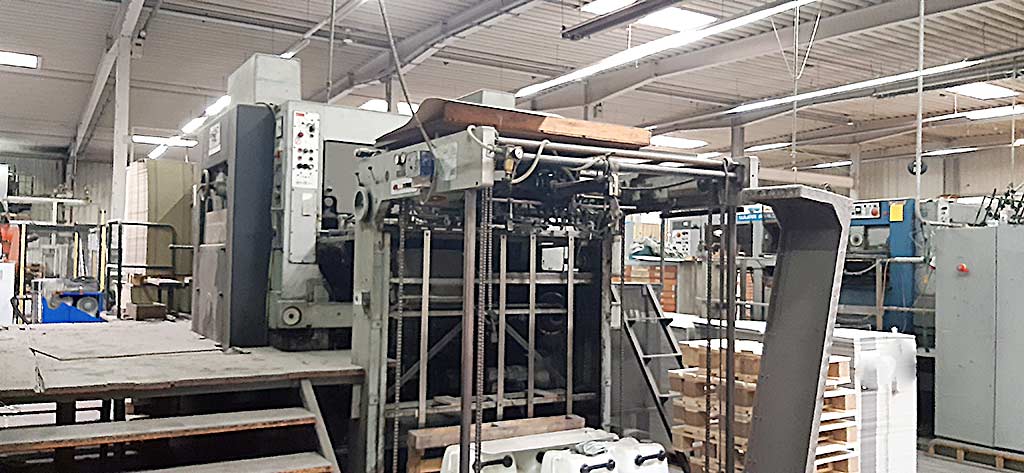

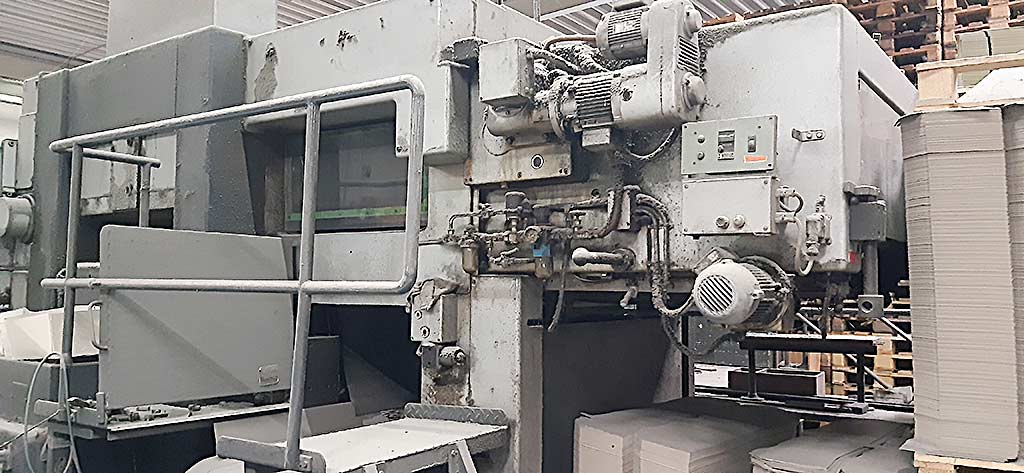

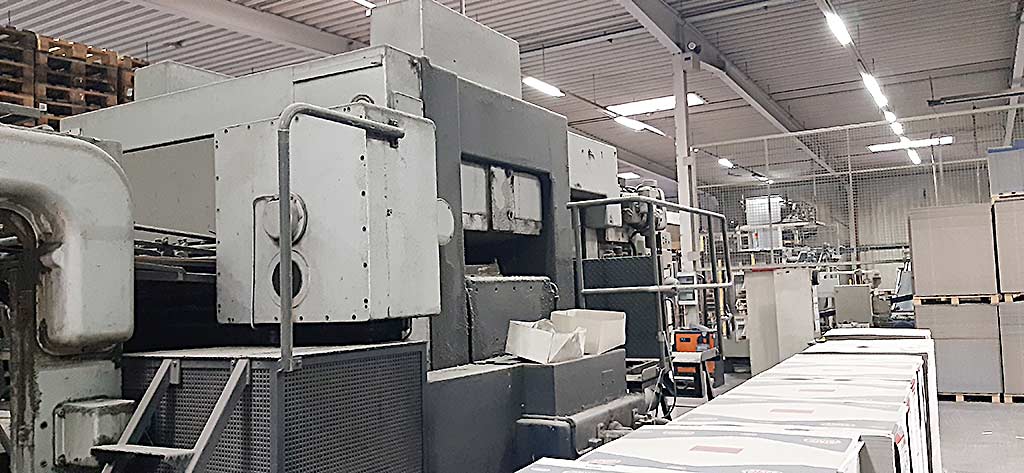

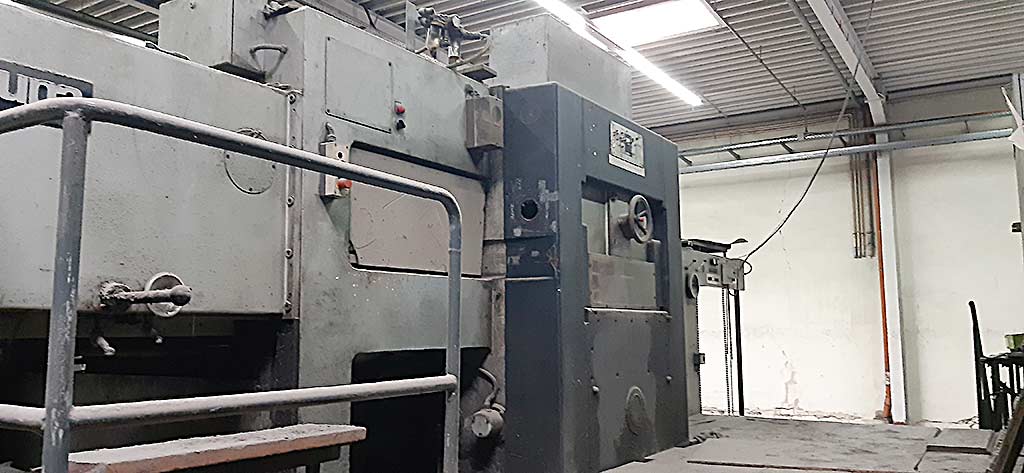

An automatic Wupa flatbed die-cutting and creasing machine (auto platen) is available. Material weight range: 100-1000g/m², min. sheet size X/Y: 420mm/600mm, max. sheet size X/Y: 800mm/1120mm, max. die-cutting size X/Y: 780mm/1100mm, max. die-cutting force: 240t, max. production speed: approx. 3000sheets/h. An on-site inspection is possible.
