worm grinding used for sale

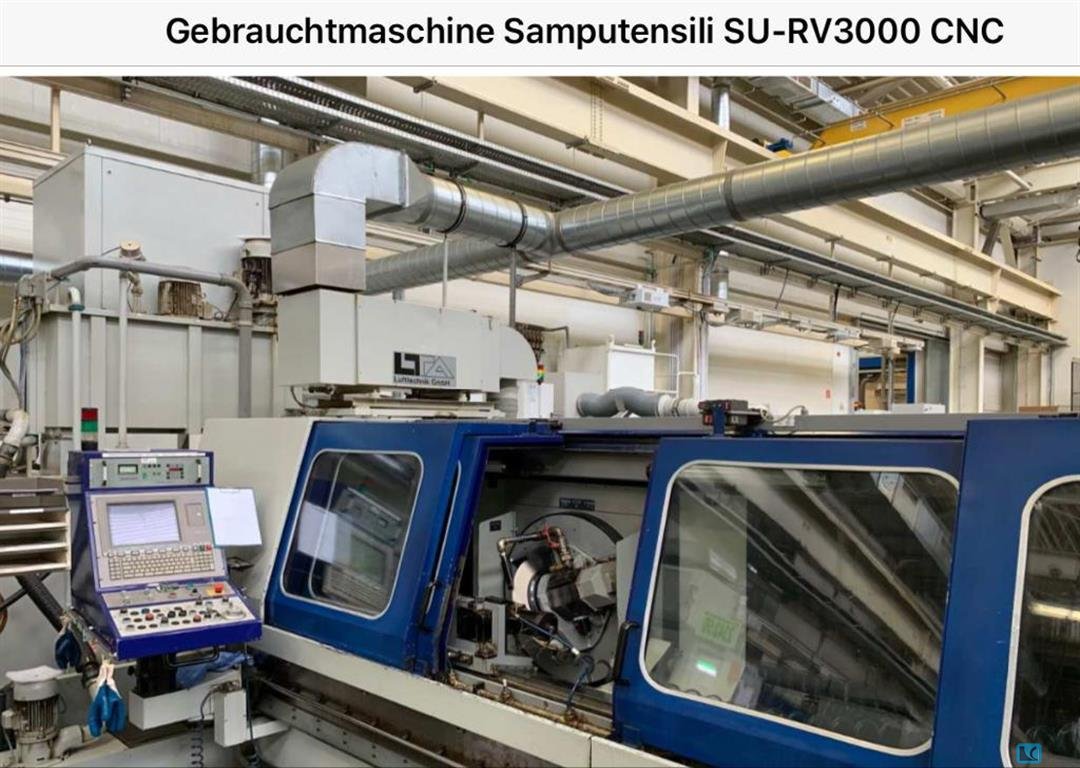

grinding diameter:250 mm grinding length:2710 mm max. module: min. module: total power requirement:45 kW weight of the machine ca.:15 t space required L x W X H:7,1 x 4,7 x2,7 m max. wheel dia.:450 mm Spindle drives Arena Siemens For Worm grinding we have not module, but pitch. Patch is freely programmable from 0.001 to big value i.e. 500mm

Workpiece diameter: 10-350mm, max. grinding length: 660mm, clamping length: 1055mm, max. module: 25mm, swivel angle: +/-60°, grinding wheel dimensions: 300-500x100mm, with Faudi cooling lubricant belt filter and Elbaron oil mist separator.

Key data: 400 mm, 3200 mm

THREAD GRINDER, MATRIX – 70 Make: Matrix Model: 70 Center distance: 4000 mm Max thread length: 3200 mm Max diameter of the workpiece: 394 mm Max diameter with the 508 mm grindstone: 150 mm Max diameter of the workpiece in the spindle: 508 mm Other Info: THE MACHINE IS IN EXCELLENT CONDITIONS AND COMPLETE IN ALL ITS PARTS and ACCESSORIES.

Eria Pompe Pacco Type: One 80-2/AA.T34 No.: 5930 Transmission: Spaggiari Transmissioni Type: RM 100/1 No.: 101730/99 Macdonald: Ercole Marelli Power: 9.2 kW Condition very good Dimensions: LWH = 2200 x 400 x 570 mm

Solid stainless steel case Transmission: Motovario speed controlled 190/1000 min-1 Type: TKR/100 Engine: Ercole Marelli Power: 7.5 kW, approx. 5 t / h 380 V good condition Dimensions: LWH = 2000 x 400 x 550 mm Weight: approx. 4100 kg

Type: NUP 60 Machine number.: 218338 Com.: 205639 Year of construction: 1990 with screw feeder and paddle mixers Stöber gear Type R76-1027-750-4 No.: 874256 Rpm: 136-680 RPM Drive motor: DIETZ No.: 3807028 403195 B5/300 Power: 7,5 kW Paddle mixer power: 1,5 kW Mixing trough attachment approximately 150 l stainless steel Dimensions: LWH = 2400x630x1150mm with switchgear Weight: 600 kg

Mixing hopper with 2 paddle mixers Feed screw down Pump speed control Type: NM045SP02512B Com.: 35300131 MaschNr.: 289249 Year of construction: 1997 Condition very good Pump motor Flender in ex e II Performance: 3.6 kW, 1440 min-1 Transmission Lenze speed controlled 1 Paddle mixer: speed controlled N1-n2 = 28-143 min-1 Browse gear : KW 1.35 in Exx 2. Paddle mixer: 120 min-1, 1.35 kW in Exx Dimensions: LWH = 2800x500x700mm Weight: 600 kg Mixing and pumping of viscous products with solids

Manufacturer: Allweiler Type: SEBP 200.1 E11 P01 No.: 7610156/2 Year of construction: 1998 N1-n2 = 50-155 min-1 Q = 10-60 l / min, 600-3600 l / h Drive North, speed control Motor North Power: 2kW in EEx e II Stator with traces of use Dimensions: LWH = 1400 x 200 x 600 mm Per Dukein outlet: Flange DN 80 Weight: approx. 80 kg

Make: Allweiler Type: SEBP 200.1 E11 P01 No.: 7610156/1 Year of construction: 1998 N1-n2 = 50-155 min-1 Q = 10-60 l / min, 600-3600 l / h Stöber gear, to regulate speed Type: R47-2092-200-4 Engine Siemens in EEx e II Power: 2 kW Damaged stator Dimensions: LWH = 1450 x 400 x 430 mm Weight: approx. 80 kg Productsas variable in-let Out: DN 80 flange

Ex Center screw pump stainless steel Manufacturer: CSF inox Stator: Diameter 120 mm Statorlänge: 240 mm Transmission: Motovario No.: 88232123 Type: MKM/4 / 50 40-210 min-1 Engine: ABB motors LKeistung: 4 kW 1000 kg / h Dimensions: LWH = 1800 x 400 x 500 mm Weight: 300 kg good condition

Ex Center screw pump stainless steel Manufacturer: CSF inox Statordurchmesser: 140 mm Statorlänge: 290 mm Transmission: Motovario (Italy) No.: 8816900 Type: TK 100 190-1000 min-1 Engine: Ercole Marelli (Italy) 380 V, 50 Hz, 7.5 kW Dimensions: LWH = 2300 x 460 x 600 mm Weight: approx. 400 kg Condition very good

Ex Center screw pump in stainless steel Manufacturer: CSF inox Transmission: Motovario (speed controlled) Type: TK 100 Engine: Leroy Somer 380 V, 50 Hz, power: 9kW n = 144 min-1 Stator diameter: 160 mm Stator length: 390 mm good condition Dimensions: LWH = 2600 x 450 x 600 mm Weight: approx. 500 kg

Ex Center screw pump stainless steel Manufacturer: CSF inox Transmission: Motovario Type: TK 100 N1-n2 = 190-1000 min-1 Motor: ASEA Power: 9 kW 380 V Stator diameter: 140 mm Stator length: 600 mm good condition Dimensions: LWH = 2500 x 460 x 660mm Weight: approx. 400 kg

Ex Center screw pump stainless steel Manufacturer: CSF inox Getirebe: Lenze Germany Type: 11.331.31.25.4 / 8829 N1-n2 = 107-556 min-1 No: 8/1206/519 Engine type: 180 M / 4 K2465 380 V, 50 Hz Power: 18.5 kW 1460 RPM Stator diameter: 170 mm Stator length: 790 mm Dimensions: LWH = 2900 x 460 x 1000 mm Weight: 600 kg

Cooling screw trough screw double-walled heated or coolable used Manufacturer: BARL Maschinenbau GmbH Type: KT0803F17T50 Built: 2015 Total dimensions of the trough screw approx. 9.5 x 1.3 x 1.6 m Trough length approx. 8000 mm Trough width outside approx. 450 mm Trough depth approx. 600 mm Conveyor length approx. 7000 mm partly double-walled and can be heated or cooled with water Steel screw with cooled shaft Spiral thickness approx. 8 mm Diameter approx. 400 mm Spiral height approx. 100 mm Slope approx. 160 mm Shaft approx. 200 mm geared motor 1.5 kW 6.8 rpm 220/380 V substructure Steel construction approx. 11 x 2.5 x 0.2 m Total dimensions: approx. 11 x 2.5 x 2 m Subject to changes and errors in the technical data, dates and prices as well as intermediate sale.

Worm gearbox with motor - FLENDER CEUA320 - see pictures

No.: 469544 Comm.: 63008879 Y.O.m.: 2014 Capacity: 3m3/h at 145 rpm 3.5m3/h at 177 rpm Pressure: 6 bar, Temp. 95°C LWH: 1500 x 200 x 300 mm Weight: approx. 80 kg on request with spare parts (rotor, stator, etc.)

Length approx. 4.5 m Diameter approx. 200 mm 2.2 kW drive

Pipe screw conveyor screw used inclined conveyors Changes can be made by our own special machine construction according to your wishes. Pipe diameter approx. 380 mm Pipe length approx. 6000 mm Inlet/outlet-diameter approx. 350 mm Screw and tube made of stainless steel Gearmotor Sew 1.1kW 10 rpm 380 V Total dimensions approx. 8000 x 600 x 1300 mm

Diameter: 0 mm Length: 0 mm Pitch: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Module max.: 1.25 mm External thread: diameter min.: 2.5 mm max. diameter: 13 mm Gewindelänge: 110 mm Workpiece length max.: 300 mm Werkzeugspindeldrehzahlen: stepless from: 4000 rpm up to: 6000 rpm Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.1 kW Machine´s weight about: 1500 kg Overall dimensions machine: Length: 1800 mm Width: 1400 mm Height: 2000 mm Various accessories: Lamp Status light

Dressing diameter:110 Planing width:9999 min. module:0,5 max. module:10 spindle turning speed range:2800 1/min pressure angle: 15 - 25 ° ° run-out tolerance:0,001 mm Weight:22 kg

Drive rotational speed: 1.9/min, torque: 2300Nm, Anschlussleistung: 1,1kW.

Digital height measuring and marking device with double column and handwheel adjustment Resolution 0.01 mm / 0.0005 inch 0 - 600mm Carbide tear tip The device comes from my private property, was used for private purposes. It is in a very good little-used condition. Original price today 605,00Euro net

Radicon worm gear Type : BU 12 Ratio : 30 : 1

worm gears, high-performance worm gears, gears ATLANTA 581 19 002 ( 58119002 ) i: 15 input speed: max. 1500 rpm drive: Shaft diameter : Ø 14 mm, length: 25 mm Flange diameter: Ø 95 / 100 x 100 mm bolt circle diameter: Ø 115 mm 4x threaded bore: M8 x 1,25, Depth: 20 mm output: Hollow shaft diameter: Ø 25 mm, length: 100 mm flange drive: 115 x 115 mm flange output: Ø 110 mm hole spacing (parallel to shaft): 80 mm hole spacing ( transverse to shaft ): 100 / 85 mm Tapped holes: M8 x 1.25, depth: 20 mm bolt circle diameter: Ø 182 mm 4x through hole: Ø 10.5 mm, with blind holes on both sides Ø 17.5 mm, depth: 16 mm New, with documents ! Dimensions: 222 x 100 x 160 mm

worm gears, high-performance worm gears, gears ATLANTA 58 43 909 ( 5843909 ) i: 9,25 input speed: max. 1500 rpm drive: Shaft diameter : Ø 24 mm, length: 30 mm Flange diameter: Ø 110 / 115 x 115 mm bolt circle diameter: Ø 130 mm 4x threaded bore: M8 x 1.25, Depth: 20 mm Output: Hollow shaft diameter: Ø 25 mm, length: 100 mm, groove width: 8 mm flange output: Ø 110 mm hole spacing (parallel to shaft): 80 mm hole spacing ( transverse to shaft ): 100 / 85 mm Threaded holes: M8 x 1,25, depth: 20 mm bolt circle diameter: Ø 182 mm 4x through bore: Ø 10.5 mm, with blind holes on both sides Ø 17.5 mm, depth: 16 mm New ! Dimensions: 238 x 116 x 174 mm

Worm gear VEB Getriebefabrik Coswig ASUG 05 U4-50X80 TGL 45341 i = 80 input speed max: 1500 rpm input power: 0.0.0 23 KW input: shaft diameter: Ø 19 mm, shaft length: 30 mm, groove width: 5 mm flange: 140 x 140 / Ø 110 mm bolt circle diameter: Ø 130 mm, 4x threaded hole: M8 x 1.25 output: hollow diameter: Ø 25 mm, shaft length: 112 mm, groove width: 8 mm 2x gear foot: 118 x 82 mm hole spacing: 110 / 60 mm 4x threaded hole: M8 x 1.25, depth: 20 mm material (housing): Cast iron used, tested ! Dimensions: 230 x 140 x 190 mm

worm gear ATEK S 100 40/1 i = 40 shaft Drive: Ø 30 mm shaft Output: Ø 48 mm used, tested ! Dimensions: 370 x 300 x 280 mm

Gearbox, worm gear ZAE MW 100 ( MW100 ) i = 3 shaft Drive: Ø 24 mm hollow shaft Output: Ø 22 mm flange Drive: Ø 200 mm New Dimensions: 200 x 190 x 200 mm

Worm gear F.V.; m. RCL12 i = 1 / 47 Hollow shaft (drive): Ø 38 mm Flange diameter (drive): Ø 3000 mm bolt circle diameter: Ø 265 mm, 4x bore: Ø 14 mm shaft ( output 1 ): Ø 45 mm, ( i = 1 ) hollow shaft ( output 2 ): Ø 70 mm, ( worm gear i = 47 ) Gear foot: 450 x 450 mm hole spacing: 390 mm, 4x bore: Ø 19 mm New ! Dimensions: 670 x 630 x 320 mm

Worm gear GETRIEBEBAU NORD GmbH & Co. KG SK1SI50 i = 20 input: hollow shaft diameter: Ø 14 mm, shaft length: 35 mm, groove width: 5 mm flange: Ø 105 / 70 mm bolt circle diameter: Ø 85 mm, 2x threaded hole: M6 x 1.0, 4x bore: Ø 7 mm output: Shaft diameter: Ø 20 mm, shaft length: 33 mm, groove width: 6 mm flange: 113 x 90 mm hole spacing: 90 / 70 mm, 4x threaded hole: M6 x 1.0 material (housing): cast iron New ! Dimensions: 180 x 125 x 140 mm

Worm gear TH. ZÜRRER AG Type 2/1KG i = 100 input: coupling for shaft diameter: Ø 24 mm, shaft length: 30 mm flange: Ø 105 / 60 mm bolt circle diameter: Ø 85 mm, 4x bore: Ø 7 mm output: shaft diameter: Ø 19 mm, shaft length: 38 mm, groove width: 6 mm flange: Ø 120 / 80 mm bolt circle diameter: Ø 100 mm, 4x bore: Ø 7 mm gear foot: 90 x 90 mm hole spacing: 68 / 70 mm, 4x threaded hole: M6 x 1.0, depth: 15 mm material (housing): Cast iron New ! Dimensions: 195 x 185 x 165 mm

worm gear ASUG 10U0 100 x 10 ( 10U0100x10 ) i = 10 input speed max: 1500 rpm input power: 4.37 KW shaft mount drive: 22 mm shaft mount output: 50 mm New ! Dimensions: 350 x 350 x 320 mm

Worm gear ASUG 10T6 63 x 30 ( 10T663x30 ) i = 30 input speed max: 1400 rpm input power: 0.92 KW shaft mount drive: 25 mm shaft mount output: 30 mm used, tested ! Dimensions: 310 x 260 x 250 mm

worm gear ASUG 16.179.105/2500/19 i = 250 / 2500 input speed max: 1000 / 100 rpm input power: 5 / 1.1 KW shaft mount drive: 30 / 34 mm shaft mount output: 130 mm New ! greased ! Dimensions: 1450 x 1250 x 560 mm

Gearbox, worm gear ZAE E 63 B 1300/45+6 ( E63B1300/45+6 ) i = 4,83 shaft Drive: Ø 18 mm hollow shaft Output: Ø 30 mm bolt circle Drive: Ø 70 mm bolt circle Output: Ø 130 mm New ! Dimensions: 196 x 120 x 190 mm

Gearbox, high-performance worm gear ATLANTA 58 43 150 ( 5843150 ) i = 50 shaft Drive: Ø 15mm hollow shaft Output: Ø 25 mm flange drive: 100 x 100 mm flange output: Ø 110 mm New ! Dimensions: 225 x 100 x 165 mm

Gearbox, high-performance worm gear ATLANTA 58 43 850 ( 5843850 ) i = 50 shaft Drive: Ø 15mm hollow shaft Output: Ø 25 mm flange drive: 115 x 115 mm flange output: Ø 110 mm New ! Dimensions: 240 x 115 x 172 mm

Worm gear Getriebefabrik Coswig, GFC 10T1-125 x 53 ( 10T1-125x53 ) TGL 17712 i = 53 input speed max: 1400 rpm input power: 1,18 KW shaft diameter drive: Ø 25 mm shaft diameter output: 40 mm used, tested ! Dimensions: 400 x 350 x 430 mm

worm gear with cooling VEB Getriebefabrik Coswig ASUG O2V2 80 x 63 TGL 45341 i = 63 input speed max: 1500 rpm input power: 1.06 KW shaft mount drive: 22 mm flange drive: Ø 200 mm shaft mount output: 35 mm New ! Dimensions: 380 x 230 x 260 mm

Gearbox, worm gear DAVID BROWN RADICON 8CAS287-50/1 R070347/80 translation: i = 50 translation Auxiliary drive: i = 1 shaft Drive: Ø 24 mm flange Drive: Ø 200 mm hollow shaft Output: Ø 30 mm shaft Auxiliary drive: Ø 22 mm used, tested ! Dimensions: 196 x 120 x 190 mm

worm gear cutter KLINGENBERG Type A 6517 C01S HF.9.432 bore Ø 32 mm New ! Dimensions: 70 x 70 x 60 mm

Worm gear W.W.; A.M. AR.070.A2.1 i = 63 shaft mount drive: 18 mm flange drive: Ø 200 mm shaft mount output: 28 mm flange output: Ø 117 mm material housing: aluminum used, tested ! Dimensions: 200 x 195 x 250 mm

worm gear cutter KLINGENBERG Type A 6519 C01S HF.9.432 bore Ø 32 mm New Dimensions: 70 x 70 x 60 mm

Worm wheel and gear set, edge grinder, edge grinder, grinder, drawer grinder -a set consisting of: 1 worm wheel and 1 gear wheel for the oscillation -is a: original husband spare part -for: husband edging machine -different form: single-thread or and two-thread available -Multiple sentences: available -Price: for 1 set -Weight per set: 1.4 kg

Meyer dosing screw with built-up suction filter in stainless steel, incl. side channel blower

There are various used pulping screws for sale If you are interested, please contact us to exchange technical details

Description: Worm milling head for Köpfer 140 + 135 No. 4003 Type 140 Speed ​​range 800 rpm Approx. Onsite Dimension. (l x w x h): 350 x 200 x 250 mm, weight approx.: 30 kg

GENERAL Project No.: 905610 Quantity: 1 pcs. Manufacturer: MÄGERLE Type: MGC Grinding Centre Control: Siemens 840 D solutionline Year of construction: 2020 Conservation status: Used machine Machine on approx. (hrs): 2.124 Program run approx. (hours): 155 Spindle on approx. (hrs): 214 DESCRIPTION GRINDING Travel in X 1300 mm Travel in Y 450 mm Travel in Z 350 mm Max. rapid traverse speed in X/Y/Z 20/10/10 m/min Max. distance table spindle center 850 mm Automatic balancing device Motor spindle Max. diameter x width x bore grinding wheel 500x160x203.2 mm Max. circumferential speed 63 m/s2 Max. speed 5000 1/min Max. power at ED 10-40/100% 50 kW Workpiece table with T-slots and 16-fold oil feed-through (shuttle table) 2x 760×325 mm Clamping hydraulics Hydrostatic guidance Forming roll dresser MT 200 D200 B167 OTHER EQUIPMENT Splash guard cladding wit ...
