wmw press used for sale

Crimping tool, cable lug crimping tool, mechanical crimping tool -for: large cable lugs, hoses -up to: 60 mm² -Number: 7x hand press jaws available Price: per piece -Dimensions: 650/220/H45 mm -Weight: 8 kg

end mill, end mill, milling cutter -Outer diameter: 200/H60 mm -Teeth: 12 -Quantity: 1 available Price: per piece -Weight: 9 kg

Collet sleeves, collet, tool holder, tool holder, milling chuck, milling tool, collets -Collet chuck holders: Ø 1x12/2x18/2x20 mm -Price/Sale: complete -Weight: 1 kg

Bezel, stick, lynette -Max. Passage: Ø 65 mm -Tip height: 83 mm -Edition: gray cast iron -technical drawing with the photos -Dimensions: 250/280/H65 mm -Weight: 6 kg

faceplate diameter: 1000 mm turning diameter over slide rest: mm turning length: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Various milling heads for milling machines and gear cutting machines, hobbing machines

various machine tables, angle tables, universal tables, clamping cubes, cube tables

Various fixed steady rests for lathes up to center height approx. 600 mm

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm spindle taper: MT:5 table surface area:750 x 1380 mm surface area:1450 x 920 mm total power requirement:5 kW weight of the machine ca.:3000 kg dimensions of the machine ca.:2060× 930 × 2760 mm

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm spindle taper: MT:5 table surface area:750 x 1380 mm surface area:1450 x 920 mm total power requirement:5 kW weight of the machine ca.:3000 kg dimensions of the machine ca.:2060× 930 × 2760 mm

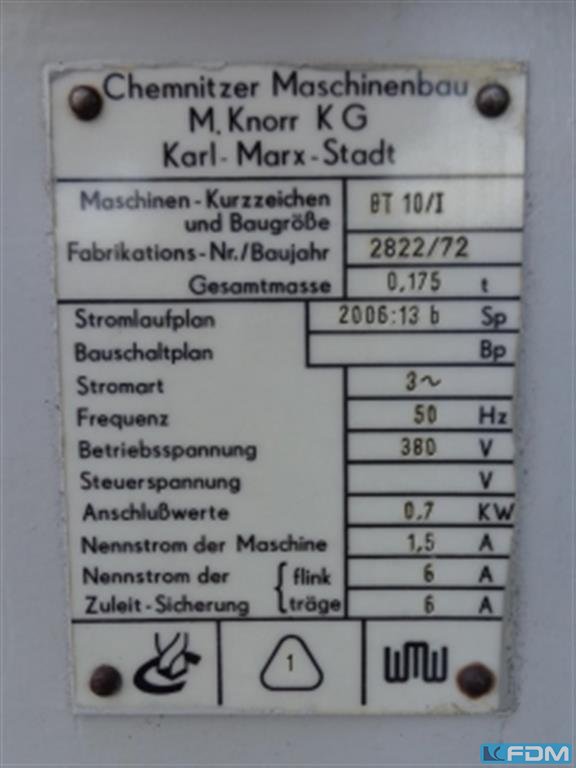

bore capacity in steel (diameter):10 mm throat:210 mm bore stroke:100 mm total power requirement:0,7 kW weight of the machine ca.:302 kg dimensions of the machine ca.: 620 x 800 x 1950 mm Table dimensions:350 x 250 mm spindle speeds::250, 355, 710, 1000, 1400, 2000, 2500 U/min

bore capacity in steel (diameter):50 mm total power requirement:7,8 kW weight of the machine ca.:1720 kg dimensions of the machine ca.:1200 x 770 x 2700 mm number of spindle speeds:45 - 1000 mm surface area:630 x 500 mm

bore capacity in steel (diameter):50 mm total power requirement:7,8 kW weight of the machine ca.:1720 kg dimensions of the machine ca.:1200 x 770 x 2700 mm number of spindle speeds:45 - 1000 mm surface area:630 x 500 mm

control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden

groove width:1,5 , 12, 14 mm total power requirement:380V, 50Hz, 32A, 15 kW weight of the machine ca.:5,6 t dimensions of the machine ca.:4000 x 750 x 1300 mm

diameter:315 mm Speed:max. 2400 min. -1 weight of the machine ca.:25 kg

total power requirement:12 kW weight of the machine ca.:4,6 t

grinding length:600 mm grinding width:200 mm total power requirement:5 kW weight of the machine ca.:1,4 t dimensions of the machine ca.:3 x 3 m

Offer 24178 Specifications: - Center height 250 mm - Center width 2000 mm - larger circulation – Ø over bed 490 mm - via flat sleds approx. 300 mm - Spindle bore 72 mm - Pick-up cone of the tailstock quill MK 5 - Travel of the tailstock quill 260 mm - Spindle speeds 25 - 1160 rpm -Feeds - Travel of the cross slide 200 mm - Travel of the upper slide 115 mm - Drive 380 V / 5.5 kW - with: - Tailstock, 3-jaw lining, bezel - Steel holder, moving center punch, - Chip tray - Space requirement approx. W 3500 x H 1500 x D 1300 mm - Weight approx. 3000 kg

faceplate diameter: 3500 mm swing diameter: 4000 mm turning height: 3150 mm slide adjustment: 1700 mm table load: 25 t turning speeds: U/min Feed: mm/U digital readout: Heidenhain Rest: 2 Side head: total power requirement: 90 kW weight of the machine ca.: 95 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

faceplate diameter: 5300 mm swing diameter: 6300 mm turning height: 2800 mm slide adjustment: 1700 mm table load: 50 t turning speeds: 0,3-14 U/min Feed: 0,056-10 mm/U digital readout: Sony Rest: 2 Side head: chip conveyor: total power requirement: 120 kW weight of the machine ca.: 187 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Twist drill WMW Ø 68 mm x 335 mm HSS total length: 335 mm spiral length: 130 mm Morse taper shank: MK5 used ! Dimensions: 335 x 70 x 70 mm

Vertical Clamp Set, Vertical Toggle Clamp WMW A63 TGL 34181 Height under clamping arm: 63 mm Clamping arm length: 125 mm Clamping arm opening angle: max. 105 ° Vertical clamp set consists of 5 vertical clamps ! New !' Dimensions(per clamp): 200 x 60 x 280 mm Dimensions: 300 x 180 x 280 mm

Twist drill WMW Ø 52 mm x 415 mm HSS Use: N Vapor coated Total length: 415 mm Spiral length: 220 mm Morse taper shank: MK5 New ! Dimensions: 440 x 55 x 55 mm

Twist drill WMW Ø 54 mm x 415 mm HSS Usage: N Vapor coated Total length: 415 mm Spiral length: 220 mm Morse taper shank: MK5 New ! Dimensions: 440 x 60 x 60 mm

Twist Drill Bit WMW Ø 56 mm x 415 mm HSS Use: N Vapor Coated Overall Length: 415mm Spiral Length: 220mm Morse Taper Shank: MK5 New ! Dimensions: 440 x 60 x 60 mm

Twist Drill WMW / WERKÖ Ø 59 mm x 430 mm HSS Usage: N Vapor Coated Total Length: 430 mm Spiral Length: 240 mm Morse Taper Shank: MK5 New ! Dimensions: 450 x 70 x 70 mm

Twist drill WMW / WERKÖ ( WMW/WERKÖ ) Ø 60 mm x 430 mm HSS Usage: N Vapor coated Overall length: 430 mm Spiral length: 240 mm Morse taper shank: MK5 New ! Dimensions: 450 x 70 x 70 mm

Twist drill WMW / WERKÖ ( WMW/WERKÖ) Ø 61 mm x 430 mm HSS Usage: N Vapor coated Overall length: 430 mm Spiral length: 240 mm Morse taper shank: MK5 New ! Dimensions: 450 x 70 x 70 mm

Twist drill WMW Ø 69 mm x 425 mm HSS Overall length: 425 mm spiral length: 230 mm Morse taper shank: MK5 used, tested ! Dimensions: 430 x 70 x 70 mm

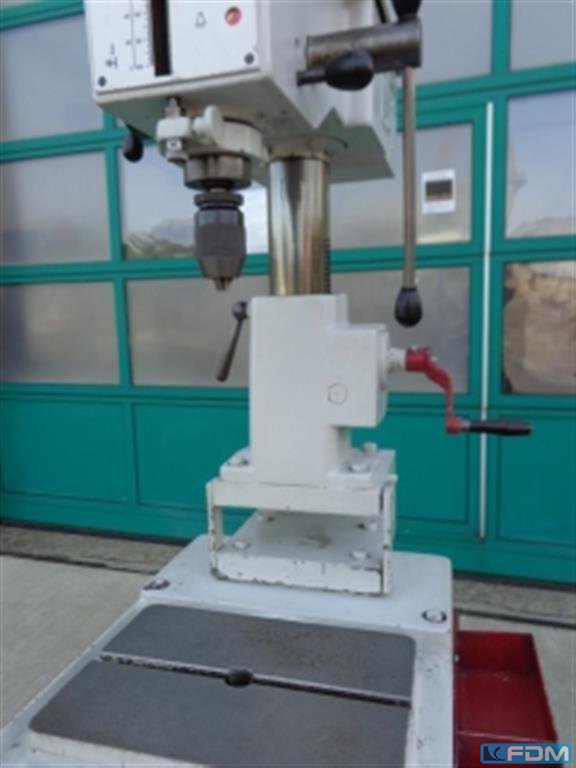

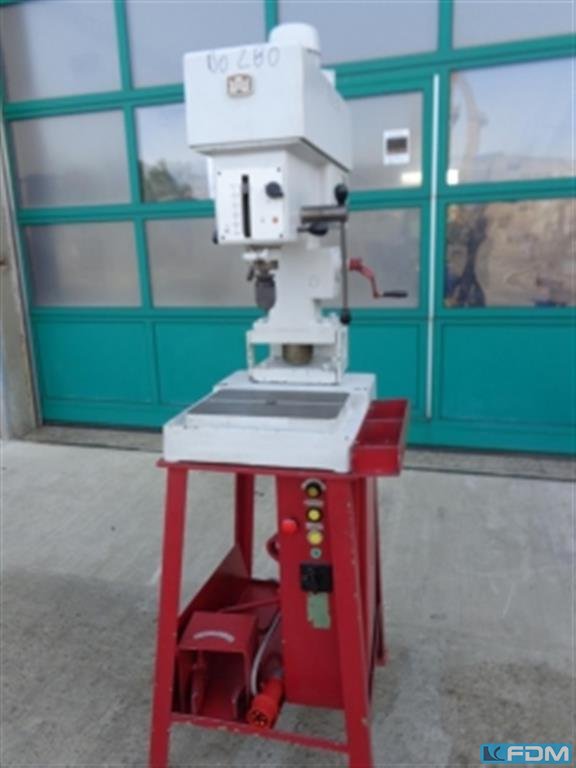

Bench drill WMW BT10/1 Drilling capacity: 10 mm projection: 210 mm Distance table to drill chuck: 210 - 400 mm table: 350 x 250 mm spindle speed: 250, 355, 710, 1000, 1400, 2000, 2500 rpm spindle stroke: 100 mm with footswitch for right and counterclockwise rotation ! Engine Power: 0.7 kW 380 V used, tested ! Dimensions: 620 x 800 x 1950 mm

Bench drill WMW BT2 projection: 210 mm Distance table to drill chuck: 110 - 260 mm Table: 340 x 280 mm spindle speed: 355, 710, 1400, 2800 rpm spindle stroke: 80 mm spindle mount: MK2 with footswitch for right and counterclockwise rotation ! engine power: 1.1 kW 380 V On steel table used, tested ! Very good condition ! Dimensions: 530 x 650 x 1850 mm

Machine control, control unit, control electronics WMW RBT400 20 plug-ins with 4 relays 2 plug-ins with 2 relays spare part for Hohenstein RBT400 ! used, tested ! Dimensions: 550 x 340 x 240 mm

Rectifier module, 3-phase WMW 6x SY180/2 ( 6xSY180/2 ) Input: Ue max. 200 V 3AC Output: same as Ue, max. 200 V DC max. 30 A Spare part for Hohenstein RBT400 ! used, suitable transformer EL1186 !' Dimensions: 160 x 150 x 145 mm

Engraving machine WMW FG 200 x 400 table size: 400 x 200 mm workpiece height max.: 300 mm stencil table: 380 x 380 mm x travel: 500 mm y travel: 250 mm z travel: 325 mm Speed range: 2500 to 20000 rpm 0.25 kW 380 V with various stencils ! Dimensions: 1000 x 1200 x 1500 mm

Hydraulic cylinder, double-acting WMW Hydraulic cylinder for UPW 63 ( UPW63 ) Piston diameter: Ø 140 mm Rod diameter: Ø 56 / 120 mm stroke: 56 mm Shaft diameter: Ø 22 mm Spare part for WMW UPW 63 ! New !' Dimensions: 420 x 184 x 184 mm

Hydraulic cylinder, single-acting, spring return WMW Hydraulic cylinder for UPW 63 Piston diameter: Ø 140 mm Rod diameter: Ø 55 / 80 mm stroke: approx. 17 mm Spare part for WMW UPW 63 ! New ! Dimensions: 294 x 184 x 184 mm

Clamping cylinder, hydraulic cylinder, double-acting WMW, HOHENSTEIN stroke: 150 mm rod diameter: Ø 56 mm e.g. as a spare part for Hohenstein RBT400 ! used ! Dimensions: 360 x 135 x 130 mm

Machine vise WMW SX200 200 mm jaw width: 200 mm jaw height: 63 mm span: 0 - 300 mm used, tested ! Dimensions: 705 x 200 x 150 mm

Dividing head with 4 jaw chucks WMW TU 100 ( TU100 ) Ø 160 DH 160 x 4-III max 2500 rpm used, tested ! Dimensions 440 x 300 x 360 mm

Dividing head WMW TU 100 ( TU100 ) used, tested ! Dimensions 440 x 400 x 230 mm

Clamping drive, clamping force generator pneumatic WMW / VORRICHTUNGSBAU HOHENSTEIN B 720 x 106 TGL 30-7608 40 New ! Dimensions: 360 x 200 x 120 mm

Clamping drive, clamping force generator electric WMW EDU I80 M TGL 0-5471 Bj: 1981 torque adjustable in 8 steps from 20 - 120 Nm 80 rpm 220 / 380 V motor: 0.0.220 Vbr /br /motor: 0.0.20 55 kW for other clamping drives see MMZ159, MMZ739 ! New !' Dimensions: 280 x 130 x 170 mm

Machine vise WMW jaw width: 160 mm span: 130 mm Dimensions: 460 x 160 x 120 mm

Clamping Actuator, Clamping Force Generator electric WMW EDU I80 TGL 0-5471 Year: 1982 Torque adjustable in 8 steps from 20 - 120 Nm 80 rpm 220 / 380 V 0,0,0 55 kW for other tensioning drives see MMZ158, MMZ739 ! New !", Dimensions: 280 x 130 x 170 mm

Round Sectioning Table, Rotary Table WMW (SEMPUCO Greiz) RmM 315 - 3007 Ø 315 mm Table height: 155 mm Groove size: 14 / 24 mm Dimensions: 625 x 490 x 155 mm

Clamping drive, clamping force generator, electric, with reversing switch WMW EDU I80 F Speed: 80 rpm Torque ( adjustable in 8 steps ): 20 - 120 Nm Motor: KMR 71 K 4 E 0,0,0 55 kW 1380 rpm 220 / 380 V 3AC hollow shaft: spline hub profile 4 x 18 x 22 x 6 ( TGL 0-5471 ) Bolt circle diameter: Ø 90 mm, 4x threaded hole M8 x 1,25 with direction of rotation switch ! used, tested ! Dimensions: 280 x 130 x 190 mm
