wmw press used for sale

Extension / distance slide center to frame: 320 mm Sheet thickness / sheet thickness: 3.2 mm Cutting surface / cutting capacity: 1600 mmx2 Distance table pestle/ distance table slide: 417 mm Stroke adjustment / adjustment of stroke: 16...125 mm Stroke number/ number of strokes: 45 / min Pestle adjustable/adjustment of slide: 80 mm Table size / surface of bed: 800 x 630 mm Bumper size / surface of ram: 500 x 400 mm Slope of the stand / inclination of coulmn: 25 Power of main motor power: 4 kW Weight: 2.5 Specification: C-frame punching press, used

Hand spindle press, used Balancier, used Type: PSHZ 25/I Pressing force / rated pressure: 25 t Stroke/ stroke: 250 mm Table size/ table size: 400x 500 mm Stössel/ ram: 200 x 500 mm Table opening / hole in table: 140 mm Weight: 0.9t

Pressing force 1000 kN Table size 750 x 560 mm, diarrhoea opening 100 mm Installation height 800 mm, stroke 500 mm Projection 360 mm Bear size 530x400 mm, 2 T-slots Ram speed: down 200 mm/sec, up 400 mm/sec Connection load approx. 21 kW Incl. Feeder WE16 for 160 mm bandwidth Coil tray and straightening unit Fabr. OFFICE; Type CA200/R40-7, YOC 1994 Reel, loop control Two-hand operation Manuals

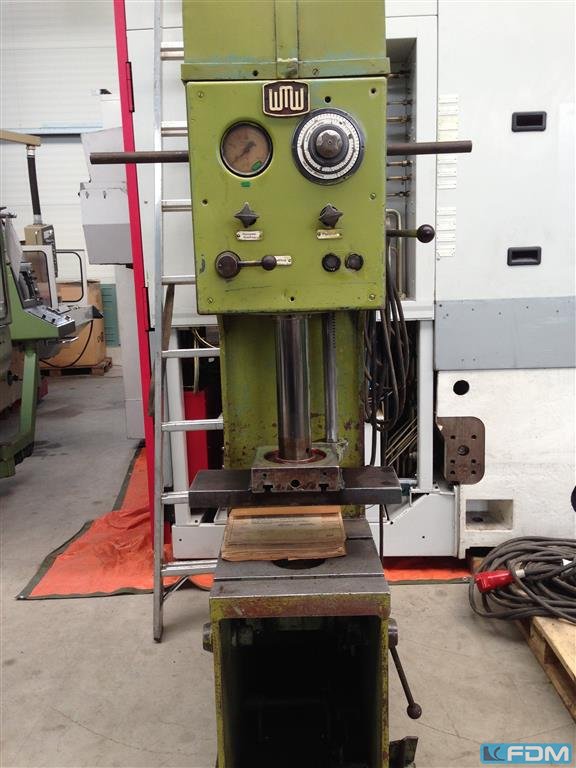

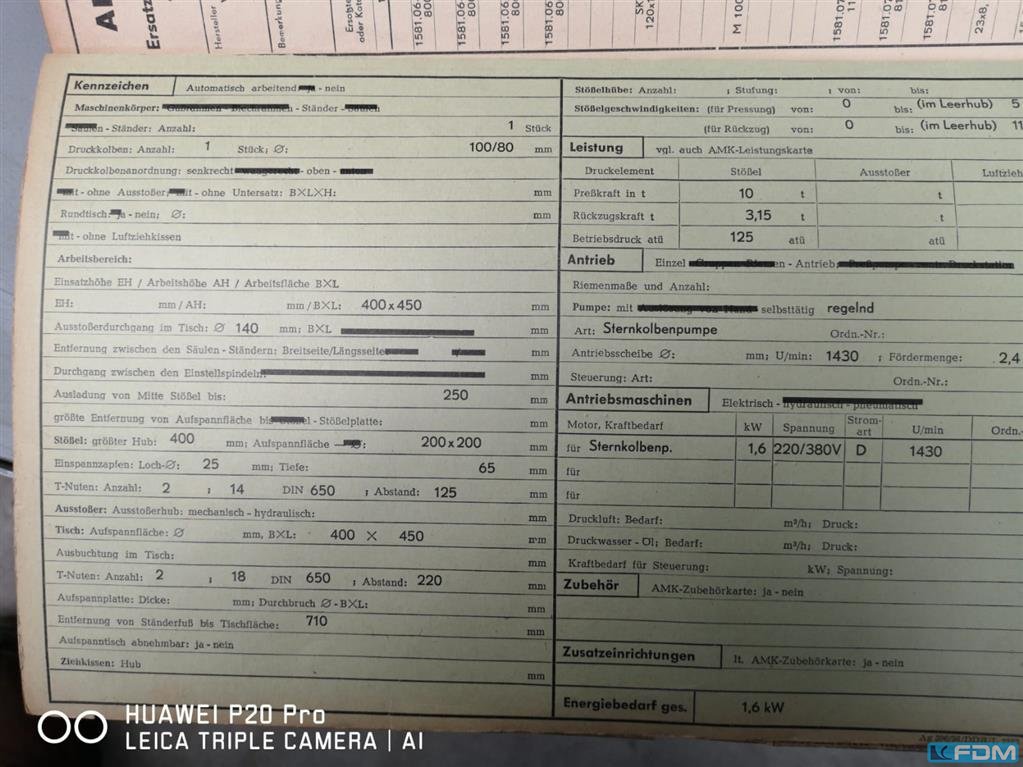

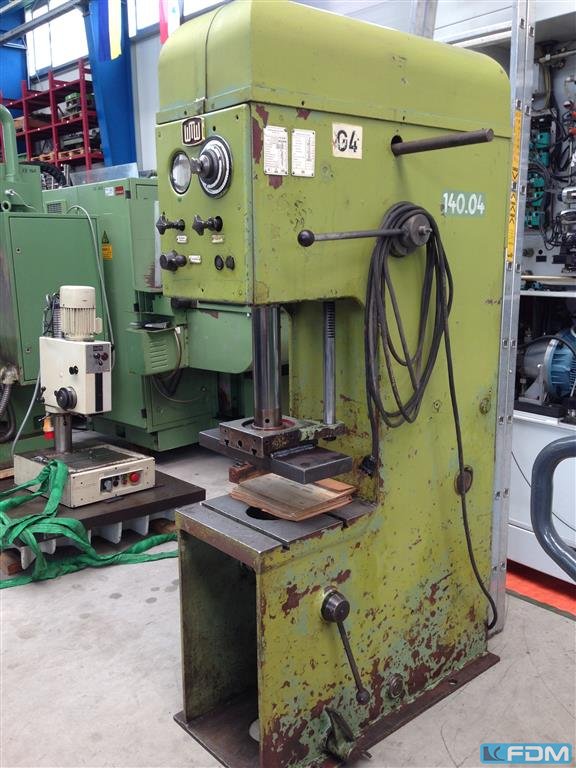

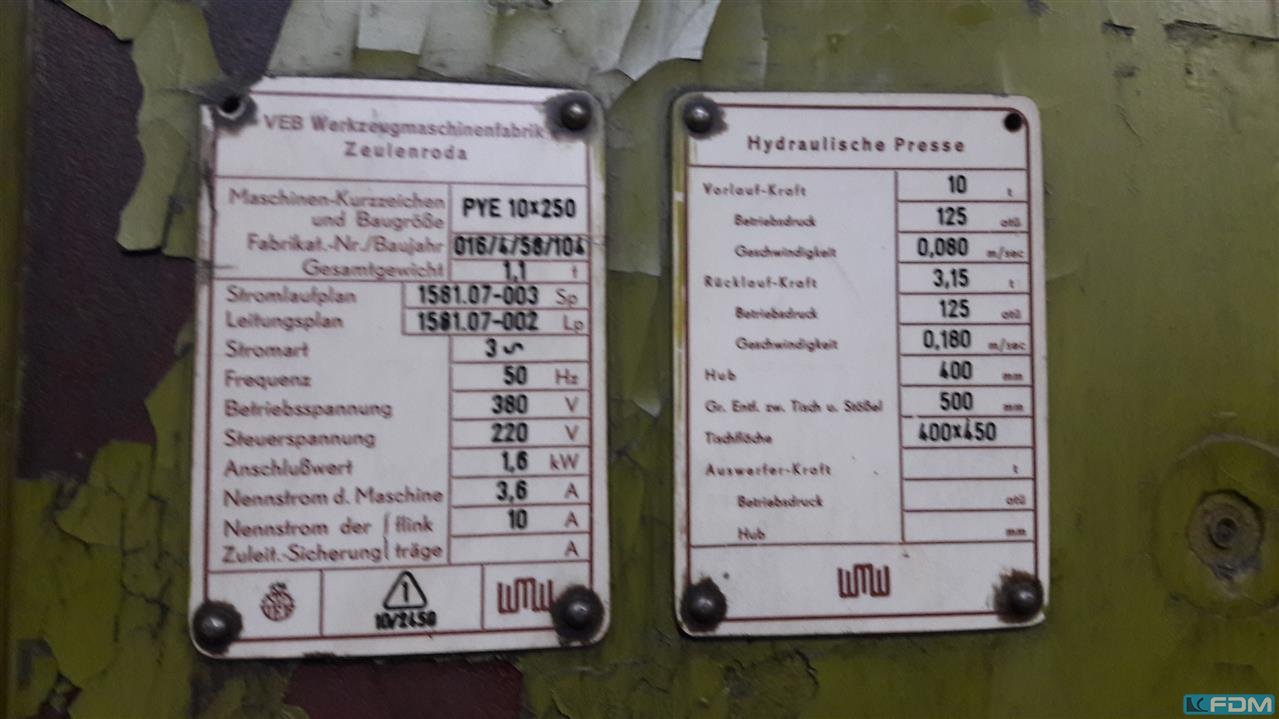

pressure:10 t stroke:400 mm total power requirement:1,6 kW weight of the machine ca.:1,1 t dimensions of the machine ca.:1100 x650 x 2050 mm dayligth:500 mm table-size:400 x 450 mm Documents:vorhanden

Hand press pliers WMW Type: PZ 60.1-U with replaceable press jaws for Al and Cu conductors Dimensions: 640 x 220 x 50 mm

WMW - VEB PEEV 40/11 Capacity: 40 ton Weight: 2400 kg

Pressing force: 63t, operating pressure: 160bar, pressing speed downwards/upwards: 200mm/400mm/s, ram stroke: 500mm, throat depth: 360mm, max. ram table distance: 800mm, weight: approx. 4200kg. On-site inspection is possible.

Pressing force: 10MP, stroke rate: 120/min, ram stroke adjustment: 5mm-55mm, bar length: 40mm, weight: approx. 1200kg.

Single-column eccentric press AMBOLD type PEEV 25.2Masch. No. 11734 / 02 Year of construction 2002Compressive force 25 ton. Projection 200 mmTable area 520 x 400 mmPlunger area 155 x 155 mmHole in table 185 x 155 mmStroke adjustment 4-80 mmPlunger adjustment 40 mmInstallation height max. 270 (largest stroke in UT, table below)Clamping pin hole 32 mmTable height adjustment approx. 150 mmPlunger strokes 160 strokes/min. Motor power 2.2 kWNet connection 400 volts, 50 Hz pneumatic clutch-brake combination

pressure: 250 t throat: 400 mm stroke: 30...140 mm table-size: 1000 x 750 mm hole in the table: 360 x 400 mm ram surface: 630 x 500 mm ram adjustment: 110 mm total power requirement: 18 kW weight of the machine ca.: 16 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Baler  Manufacturer: WMW AG  MY 2019  Type DIXI 40 SLk

An old WMW single-column eccentric press is available. Pressing force: 25Mp, torque: 25kpm, shear area: 630mm², max. sheet thickness: 3.2mm, working capacity: 50kpm, pass-through sheet thickness: 1.6mm, working capacity: 25kpm, ram stroke: 5mm-60mm, max. table-to-ram distance: 400mm, stroke rate: 112 strokes/min, machine weight: approx. 1300kg. An on-site inspection is possible.

Eccentric press PEE I 250, in working conditon.

WMW PYE 250 ton Capacity: 250 ton Depth of throat -- ramcentre: 360 mm Max ram adjustement: 500 mm Drawning speed: 200 mm/sec Returning speed: 110 mm/sec Distance between table - ram: 1000 mm Ram area (L x D): 900 x 630 mm Eletric motor (power): 20,5 kW Weight: 8,2 ton

Crimping pliers, crimping pliers, cable lug pliers, mechanical crimping pliers, pressing jaws, pressing tool for cable end sleeves, wire end sleeves, cable lugs, hand crimping pliers, sleeve pliers, clamp sleeve pliers -Manufacturer: WMW, hand crimping pliers type PH 2.5C -Crimping: of cable lugs and cable connectors -Pressing force: 25.0 N -Pressing stroke: 15 mm -Transport case: incl. accessories, see photo -Quantity: 1x crimping pliers available -Price: per piece -Dimensions of pliers: 600/180/H25 mm -Total weight: 3.2 kg

Radial drilling machine, used radial drilling m/c, used Type: BR 56 x 1600 Manufacturer/ make: WMW Year built/ year of make: 1965 Extension/ length of arm: 300...1600 mm Ma. Drilling radius / max. drill. Radius: 1800 mm Drilling capacity at boring: 56 mm ( St 60 ) Drilling capacity at boring: 80 mm ( GGL 20 ) Thread cutting/ thread cutting: max. 65 mm ( St 36 ) 76 mm ( GGL 20 ) Drilling depth/ drilling depth: 400 mm Tool holder / taper in spindle: MK 5 Removal spindle head to base plate/ distance Spindle head to base: max. 1600 mm Base plate/ base: 1700 x 1000 mm Speed range/ range of speeds: 14..1800 rpm Feed: 0.0315 .. 1.6 mm/U// mm per round Connection value: 7.13kW Weight: about 4.5 t

Technical data: 2000 overtaken Turning diameter over bed: 1350 mm Turning diameter via slide: 1250 mm Sheet: 1350 mm Clamping on the flat disc: 300-900 mm Turning length: 5000/6000 mm

Technical data: Completely overhauled in 2001 Circulation diameter over bed: 1000 mm Diameter in recess: 1120 mm Circulation diameter over bed slide: 690 mm max. height above floor: 1110 mm max. height above bed: 460 mm Bed width: 800 mm Width of recess in front of the plan disc: 550 mm

We can offer several thread rolling machines with cylindrical dies, any size.

Various sub-equipment from a training workshop, to hand over individually, e.g. lid sub-device with upper beam and counter holder, Universal part apparatus with initial division Walter UTA150E with counter holder and rotary chuck 3 partial discs with parts see above, Part apparatus Walter can be swivelled without initial division. Furthermore Luenetten standing and running, on request please Specify the tip height and distance mid prism to mid plan area. Rest according to photo. Other sub-equipment susengar, Direct division Indirect division, various large sum. Please ask Sub-discs for UTA 150 E 22 24 29 36 37 49 57 63 16 30 33 36 39 51 57 63 16 27 30 33 41 47 53 61 Special price

Universal tool-feeding machine, used universal milling machine, used Type FU 250 x 1000/2 Fabr. WMW Auerbach Built: 1988 Table size/ table: 1130 x 255 mm Laengsmotion/ longit. move: X 690 mm Horizontal movement/ horiz. Move: Y 190 mm Vertical movement/ Vert. move : Z 360 mm Tool holder/taper: ISO 40 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 56 - 2800 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t Specification: Vertical head,shock head

see picture for data. Table hoehen-adjustable. mass approx.: 1.55 x 0.8 x 2.1 m high

3-spindle line boring machine

CNC vertical jig boring machine WMW MIKROMAT Type BKoZ 900x1400/5NC Travel X 1120 mm Travel Y 710 mm Spindle travel Z 315 mm Travel W 630 mm Numerical Command CNC NUM 1060 Spindle Ø 125 mm Cone SA40 Rotation from 36 to 2240 RPM Table size 1400 x 900 mm Distance between colums 1080 mm Maxi distance spindle nose/table from 0 to 900 mm max Maxi eligible load on table 1000 kg max Separate electrical panel Machine renewed in 2000 with CN NUM1060 Voltage 380 V Dimensions (L x W x H) 4000 x 2460 x 3030 mm Weight approx. 9 T MACHINE IN OUR STOCK IN FRANCE.

Vertical -consol milling machine, used    Vertical -milling machine, used Make/make: WMW HECKERT Type/ model: FQS 400 Year built: 1978 Control type / control: conventional   x-way: 1190 mm   y-way: 530 mm z-way: 540 mm Table size/ table: 1600 x 400 mm Spindle power/ spindle power: 11kW Tool holder/tool taper: ISO 50 Speeds/ speeds: 28 - 1400 rpm Feeds: 16- 800 mm/min Total power requirement: 21 kW Machine weight: 4.8 t

lechrichter, used,       sheet leveller, used,   Type: UBR 10 x 2000 /1-16 Manufacturer / make: WMW Gotha max. sheet width: 2000 mm max. sheet thickness ( St 50): 10 mm    min. sheet thickness / min. sheethickness: 3 mm   Number of straightening rollers: 13 rollers / rollers Directionroller Diameter/diameter of     straihgtening rollers: 145 mm Directional speed / speed of straightening: 16 m / min Bale length / convexity length of rollers: 2330 mm Center distance of directional rollers/ distance b/n rollers centers: 150 mm Support roller diameter / diameter of bottom rollers: 290 mm Number of bottom rollers 21/24 Number of supports (top/bottom): 3 /3 Lifting speed of the traverse / speed   ...

[ 5000 characters max., no information about the advertiser ] Brand:MODUL Model:ZFWZ 2000/3 Type:Gear Hobbers Year:1981 Location:Czech Republic Specification: Max diameter of gear without tailstock 2100 mm Max diameter of gear with tailstock 1450 mm Max face of gear 1060mm Max module with hobbing head 22 Max/ Min center distance 1240/150 mm Min number of teeth 10 Max pressure angel 45 deg Table dia / number of slots 1800 mm/12 Bore in table / length 600/800 mm Max dia of hob / length 300/330 mm Max weight of workpiece 15000 kg Accessories: Standard milling head Tailstock (no clamping) Set of gear supports (shoes) Set of arbors Set of change gears

Universal tool milling machine, used universal milling machine, used Type FU 315 - V/2 Fabr. WMW Heckert Built: 1979 Table size/ table: 1250 x 315 mm Laengsmotion/ longit. move: X: 850 mm Horizontal movement/ horiz. Move: Y: 270 mm Vertical movement/ Vert. move : Z 355 mm Tool holder/taper: ISO 50 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 28 - 1400 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t

Extension 1600 mm

Clamping angle with T-slots Size 1600x1250x1000 mm and 1250x1000x750 mm

various wedge shoes, set-up elements, machine feets
