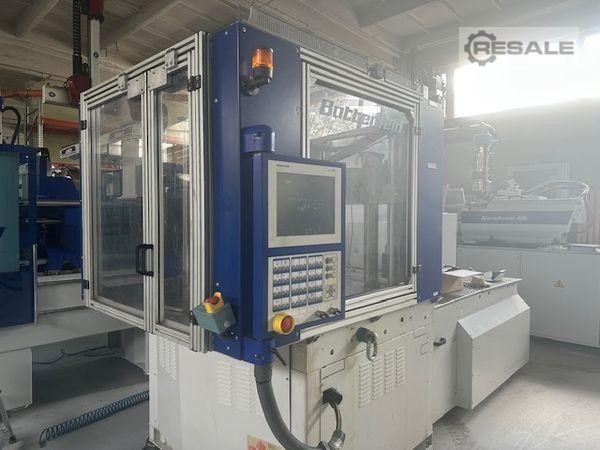

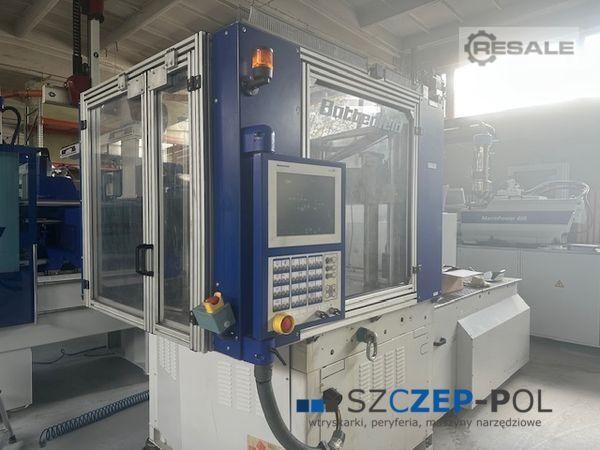

Wittmann Battenfeld VM 150/525 R1280 Servo Power / Vertical Injection
Molding Machine with the Rotary Molding Machine
Year of Make: 2015
Injection unit:
Screw diameter: 35 mm
Injection weight: 175.6 g
Spray pressure: 2743 bar
Dosing volume: 193 cc
Clamping unit:
Clamping force: 150 t
Spar spacing: 0x0 mm
Size of the clamping plates: 1280 mm
Ejector: hydraulic
Clamping unit: hydraulic
Control: UNILOG B6
Additional equipment:
Vertical Injection Molding Machine with the Rotary Molding Machine
Hybrid machine: high-speed, energy-saving and very quiet
Air Valve x 5
Hydraulic core pull x 1
Control with hot runners x 12
Injection unit is wear-resistant and resistant to corrosion
Rotary table diameter: 1500 mm
Rotary table driven by a servo motor, controlled S51231703 by an
inverter
Metrics:
Weight: 11300 kg
Length/Width/Height: 3.83x1.50x4.07 m
All offered machines are started by our service technicians before
they are sold.
It is possible to receive a video of the technical tests of the
selected machine or to participate in live technical tests at our
company in Łódź.
Price: On request
Poland
91212 Lodz
