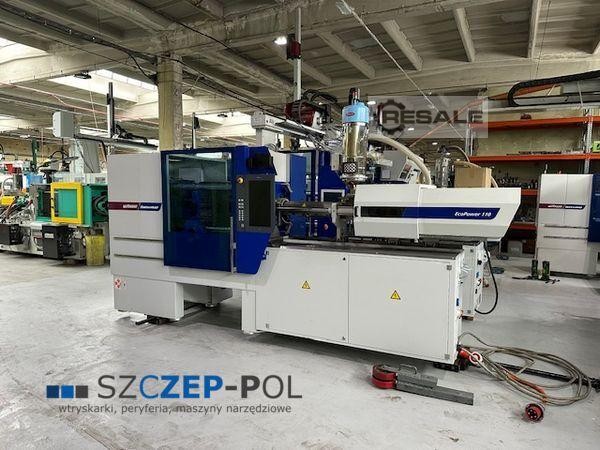

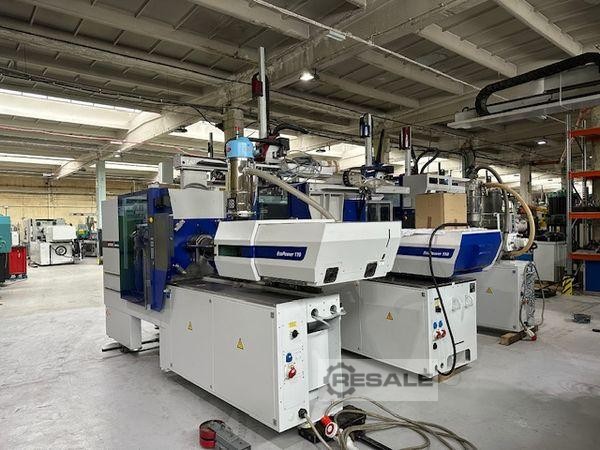

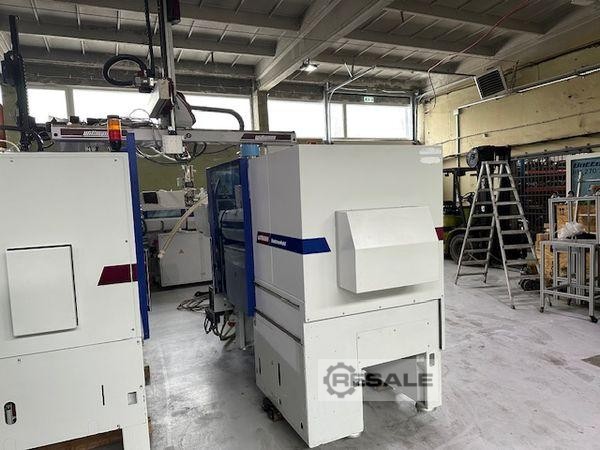

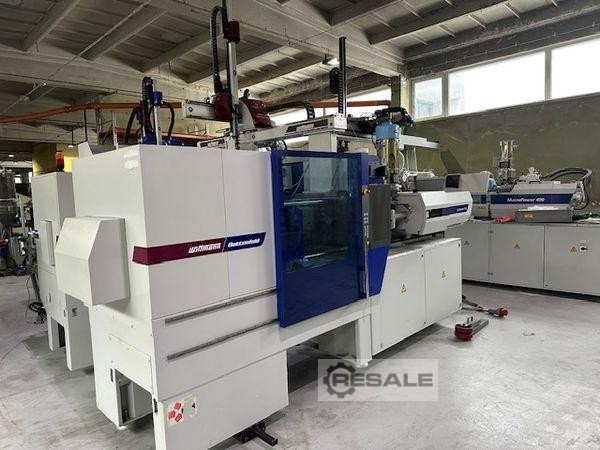

Wittmann Battenfeld EcoPower 110/350 with the Wittmann W818 robot /
Electric machine / Operating hours: approx. 16,000 in automatic
mode
Year of Make: 2017
Injection unit:
Screw diameter: 35 mm
Injection weight: 153.8 g
Spray pressure: 2083 bar
Dosing volume: 169 ccm
Clamping unit:
Clamping force: 110 t
Handlebar spacing: 470x420 mm
Size of the clamping plates: 680x660 mm
Ejector: electric
Clamping unit: toggle lever
Control:UNILOG B8 - Touch Screen
Additional equipment:
Perfect technical condition
Electric machine: high-speed, energy-saving and very quiet
Operating hours: approx. 16,000 in automatic mode
Euromap 67
Robot interface
Control with air valve
Hydraulic core pull x 1
Control with hot runners
Injection unit is wear-resistant and resistant to corrosion
Central lubrication
Automatic tool height adjustment
Parallel movements
The machine was serviced in Germany
Robot Wittmann W818
Year of Make: 2015
4-axis robot: 3 axes are driven by servo motors (electric); Axis C -
pneumatic
Traversing in axes: X-420, Y-1200, Z-2000
Touch control panel
The S51231703 safety package for robots
Robot with adapter, conveyor belt and protective housing
Purchase of the robot and the conveyor belt at an additional cost
Metrics:
Weight: 4800 kg
Length/Width/Height: 4.91x1.42x2.10 m
All offered machines are started by our service technicians before
they are sold.
It is possible to receive a video of the technical tests of the
selected machine or to participate in live technical tests at our
company in Łódź.
Price: On request
Poland
91212 Lodz
