Prepared for CNC control Siemens 840 DSL Precision turntable make EIMELDINGEN with aerostatic axial bearings Specifications Table diameter 5,600 mm Total height approx. 1,230 mm Centering bore Ø 250H7X 25 mm Permissible transport load 30,000 kg Holding torque of the table clamping 2,400 daNm Table speed 0.002 – 2 min Net weight approx. 30,000 kg Operating voltage 380 V, 50 Hz. 3 phases Control voltage 24V Positioning accuracy (without control errors) ± 1" Plan accuracy 0.02 mm Axial running accuracy 0.01 mm Concentricity deviation of the centering bore 0.01 mm Resolution of the displacement measuring systems 0.0001°

Rotary table disc conveyor 1700-1600-Ø1500 with ejector 1330-100 RA2025 Technical data rotary table: Length table: 1700 mm width table: 1600 mm diameter turntable: 1500 mm Overall height: 100 mm Adjusted table height: 790 mm, can be moved down to 590 mm Electrical data SEW motor: 380-415 V, 0,37 kW Electrical data drum motor: 24V Technical data diverter: Length/ belt length: 1330 mm belt width: 100 mm overall height: 840 mm Electrical data: 380-415 V, 0,25 kW Included in delivery: Turntable with feet Side guide Ejector with stand Optional: Light barriers 24V power supply for drum motor control cabinet/control Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany Features: Electric data: 0,25 kW, 0,37 kW, 24 V, 380-415 Rotating plate diameter: 1500 Overall length in mm: 1700 Nominal / outside width in mm: 1600 Conveying length in mm: 1330 Belt width ...

Consisting of a total of 7 chairs Auction-ID: A1-49790-1594

Auction-ID: A1-49790-1608

With steel framework, table top thickness 50mm. Auction-ID: A1-49790-1249

Rail guide table, linear unit BAHR EL60 stroke approx. 960 mm table: 152 x 67 mm used, tested ! Dimensions: 1250 x 170 x 80 mm

Auction-ID: A1-49790-1590

General Description CNC jumbo glass cutting table manufactured by Bottero S.p.A. , model 543LMT-J . Designed for automatic scoring and cutting of large-format flat glass sheets for insulating glass, architectural glass and other flat glass processing applications. The machine features a CNC-controlled bridge and air flotation table for high-precision glass cutting. Technical Details Manufacturer: Bottero S.p.A. Model: 543LMT-J Machine type: CNC jumbo glass cutting table Year: 2007 Machine No.: E446N82 Power supply: 400 V, 3-phase, 50 Hz Rated current: 23.3 A Short-circuit current (Isc): 10 kA CNC bridge cutting system Automatic cutting head Air flotation cutting table Linear guide system Cable chain Operator console with industrial PC Electrical control cabinet Roller loading section Condition Good used industrial condition. The machine appears complete with CNC  ...

Key data: 600 mm, 200 mm

Machine : Rigid angle tables for milling machines Make : EMCO unused – slight traces of storage Clamping surface : 600x200mm, 4 T-slots 12mm, spacing 45mm Vertical: Hole spacing: 90mm/390mm, for T-slot 12mm Dimensions: Length : 60cm ; Width : 20 ; Height : 18cm; Weight: 44 kg PRICE : € 480,- Even larger MAHO or lids, ... Mounting plates: A - Length : 240mm ; Width : 120mm ; Height : 35; 3 T-slots 11mm spacing 45mm, (1x) PRICE : € 100,- B - Length : 420mm ; Width : 125mm ; Height : 46; 2 T-slots 11mm Distance 90mm (4x) PRICE : € 100,- C - Length : 520mm ; Width : 180mm ; Height : 56; 3 T-slots 12mm Distance 45mm (1x) PRICE : € 150,- D - Length : 600mm (660); Width : 180mm ; Height : 75; 2 T-slots 12mm Distance 90mm (3x) PRICE : € 180,-

Rotary table, rotatable and swivelling WMW Ø 450 mm swivel 360° x 90° groove width: 14 / 25 mm Foot size: 400 x 500 mm used ! Dimensions: 860 x 800 x 400 mm

Rail guide table, linear unit with drive REXROTH THK LM GUIDE ACTUATOR KR stroke approx. 500 mm table: 105 x 55 mm top table: 90 x 80 x 35 mm Drive: REXROTH INDRAMAT MKD041B-144-KG0-KN New !' Dimensions: 1010 x 120 x 90 mm

Rotary table DSZ MKA 250 Ø 250 mm table height: 115 mm groove width: 14 / 20 mm Dimensions: 340 x 410 x 150 mm

Welding table, straightening table, straightening plate, work table, clamping table measuring table FEINMESSZEUGFABRIK SUHL measuring range: 160 mm projection: 100 mm working surface: Ø 100 mm working height: 125 mm solid design, with dial gauge ! used, tested !' Dimensions: 210 x 270 x 420 mm

Measuring table, measuring plate with measuring column and dial gauge holder PAGUS measuring range: 180 mm working surface: 125 x 125 mm working height: 54 mm projection: 140 mm in wooden box New ! still preserved ! Dimensions: 310 x 250 x 160 mm

Machine vise STANKO / BZSP (Made in USSR) jaw width: 300 mm span: 20 - 275 mm on rotary table with graduation solid design ! Dimensions: 550 x 370 x 225 mm

Welding table, straightening table, straightening plate, work table, clamping table measuring table FEINMESSZEUGFABRIK SUHL measuring range: 160 mm projection: 100 mm working surface: Ø 100 mm working height: 125 mm solid design ! with dial gauge and second work surface ! used, tested ! Dimensions: 210 x 270 x 420 mm

Welding table, straightening table, straightening plate, work table, clamping table measuring table FEINMESSZEUGFABRIK SUHL measuring range: 160 mm projection: 100 mm working surface: Ø 100 mm working height: 125 mm solid design, with dial gauge ! used, tested ! Dimensions: 210 x 270 x 420 mm

Welding table, straightening table, straightening plate, work table, clamping table measuring table FEINMESSZEUGFABRIK SUHL measuring range: 160 mm projection: 100 mm working surface: Ø 100 mm working height: 125 mm solid design !' with dial gauge and lighting ! used, tested !' Dimensions: 210 x 270 x 420 mm

Magnetic clamping table, electric ELECTROMAGNET ELSTERWERDA C400 TGL10272 Outer diameter: Ø 400 mm Power consumption: 125 W Operating voltage: 115 V DC Current consumption: 1,15 A Flange diameter: Ø 250 mm Bolt circle diameter: Ø 315 mm 4x Threaded hole: M12 x 1.75, Depth: 15 mm used, tested ! Dimensions: 400 x 400 x 90 mm

Rotary table with 4 jaw chucks PAGUS diameter: Ø 160 mm table height: 160 mm lathe chuck 360° rotatable ( manual, without gearbox ) with 15° detent ( small lever ) two levers for clamping the lathe chuck used, tested ! Dimensions: 390 x 330 x 160 mm

Machine vise PAGUS jaw width: 125 mm jaw height: 50 mm span: 0...110 mm rotatable on rotary table with graduation 360° dimensions: 350 x 200 x 140 mm

Tilting table, clamping table PAGUS Clamping surface: 285 x 260 mm 90° Tiltable 360° rotatable 3 grooves Groove width: 14 / 25 mm Dimensions: 370 x 300 x 175 mm

Centering vise PAGUS jaw height: 50 mm span: 0...95 mm on table with graduation 360° rotatable Dimensions: 330 x 255 x 160 mm

Round Sectioning Table, Rotary Table WMW (SEMPUCO Greiz) RmM 315 - 3007 Ø 315 mm Table height: 155 mm Groove size: 14 / 24 mm Dimensions: 625 x 490 x 155 mm

Machine vise PAGUS jaw width: 110 mm jaw height: 35 mm span: 0...80 mm on rotary table with graduation 360° rotatable Dimensions: 330 x 255 x 120 mm

With steel framework, table top thickness 50mm. Auction-ID: A1-49818-1249

Machine vise PAGUS jaw width: 125 mm jaw height: 40 mm span: 80 mm on graduation table 360° rotatable 90° tiltable Dimensions: 320 x 250 x 185 mm

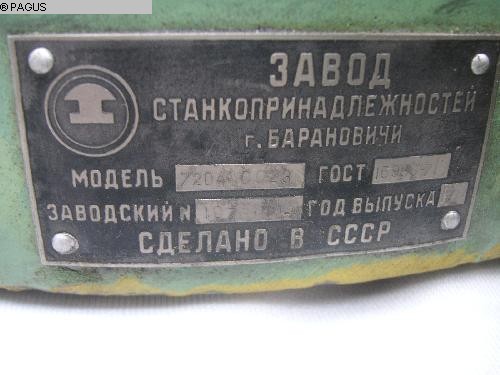

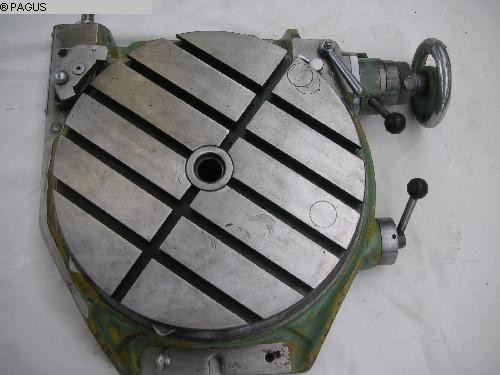

Rotary table STANKO 720440023 Ø 400 mm Table height: 160 mm used, tested ! Dimensions: 500 x 600 x 160 mm

Machine vise PAGUS jaw width: 160 mm jaw height: 50 mm span: 0...320 mm (3 stages: 120, 220, 320 mm) pneumatic clamping force reinforcement ! on rotary table with graduation 360° rotatable Dimensions: 550 x 350 x 170 mm

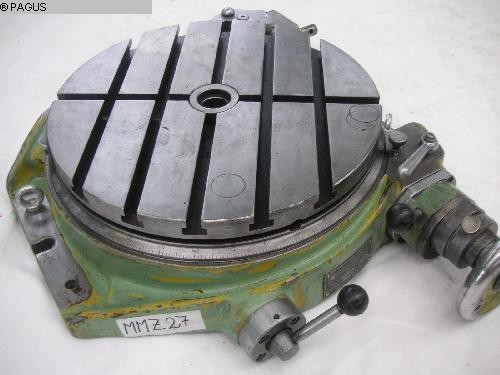

Rotary table PAGUS Ø 300mm used, tested ! Dimensions: 60 x 60 x 25 cm

Machine vise STANKO / BZSP (Made in USSR) Model: 7200-0221 jaw width: 200 mm jaw height: 65 mm Span: 0...260 mm on rotary table with graduation 360° rotatable solid design !' Dimensions: 600 x 370 x 185 mm

Machine table PAGUS base plate 250 x 270 mm table: 260 x 100 mm Fahrberich 100 mm Dimensions: 530 x 400 x 170 mm

Clamping table PAGUS Clamping surface: 800 x 800 mm 8 grooves Groove width: 18 x 31 mm Center groove: 28 x 9 mm Bore: 32 mm 32 mm deep (not rotatable, counterpart missing) used, tested ! Dimensions: 800 x 800 x 220 mm

Machine table PAGUS base plate 320 x 250 mm table: 310 x 100 mm Fahrberich 150 mm Crank foldable Dimensions: 700 x 400 x 170 mm

Machine table PAGUS base plate 260 x 210 mm table: 220 (410) x 200 mm travel area: 200 mm with scaling ! Dimensions: 540 x 260 x 115 mm

Tilting table, clamping table PAGUS clamping surface: 460 x 315 mm approx. 45° tiltable Dimensions: 460 x 380 x 100 mm

Clamping table, clamping plate, machine table SCHAUBLIN clamping table 1100 x 250 mm groove width: 24 / 14 mm spare part for milling machine Schaublin 53 ! Dimensions: 1100 x 280 x 100 mm

Universal clamping table, swivel, tilt and swivel table PAGUS clamping surface: 700 x 240 mm 5 grooves groove width: 12 / 20 mm can be rotated horizontally to the right and left 40 degrees can be tilted 30 degrees to the right and left 40 degrees Dimensions: 800 x 300 x 250 mm

Clamping table, machine table PAGUS Clamping surface: 1000 x 800 mm groove width: 22 / 39 mm with clamping claws ! Dimensions: 1160 x 970 x 505 mm

Universal clamping table, tilting and swivel table, height-adjustable PAGUS clamping surface: 570 x 460 mm 3 grooves groove width: 14 / 24 mm swivel 45° used, tested ! Dimensions: 660 x 460 x 280 mm

Circular Divide Table, Round Table, Rotary Table RECORD Ø 300 mm Table height: 122 mm Groove width: 16 / 27 mm used, tested ! Dimensions: 500 x 470 x 160 mm

Auction-ID: A1-43333-142

Auction-ID: A1-49818-1595

Centering Vise, Centric Clamp PAGUS Jaw Width: 100 mm Jaw Height: 55 mm Wingspan e: 0...70 mm can be rotated on carriage with millimeter scale - 70 - + 70 mm on a rotary table with graduation: - 90° - + 90° 360° rotatable ! used, tested ! Dimensions: 270 x 270 x 140 mm

Centering vise, centrifugal clamp PAGUS jaw width: 200 mm jaw height: 50 mm span: 0...200 mm on rotary table with graduation 360° rotatable used, tested ! Dimensions: 500 x 300 x 180 mm

Machine vise PAGUS jaw width: 125 mm jaw height: 40 mm span: 0 mm... 80 mm on table with graduation 360° rotatable 90° tiltable used, tested ! Dimensions: 320 x 250 x 190 mm

Clamping table, clamping plate, machine table STANKO clamping table 1100 x 250 mm groove width: 25 / 14 mm groove depth: 25 mm spare part for milling machine STANKO 6N81G ! used, tested ! Dimensions: 1100 x 280 x 100 mm

Machine vise with table RÖHM jaw width: 125 mm jaw height: 45 mm span: 12 mm... 210 mm pneumatic clamping force amplifier ! with turntable, 360° rotatable used ! Dimensions: 440 x 300 x 145 mm

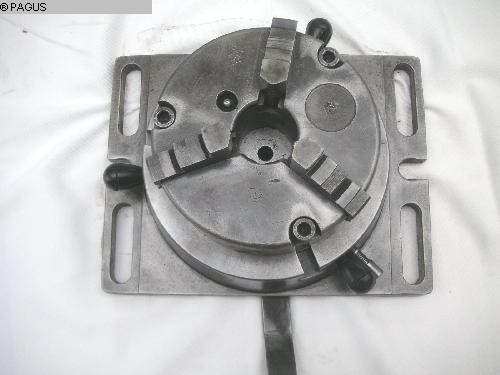

Rotary table for lathe chuck PAGUS diameter lathe chuck: max. Ø 200 mm bolt circle lathe chuck: 140 - 180 mm flange: Ø 130 mm table height: 70 mm 360° rotatable base plate: 290 x 220 mm used, tested ! Dimensions: 350 x 300 x 80 mm

Tilting table, clamping table PAGUS Clamping surface: 200 x 150 mm Working height at 0° Tipping angle: 110 mm Tipping angle: -30°... 0°...+60° 3 grooves groove width: 16 / 24 mm groove depth: 21 mm used, tested ! Dimensions: 200 x 230 x 110 mm
