Tenoning spindle: 1 St.
Number of milling agregates: 4
St.
Spindle diameter: 50 mm

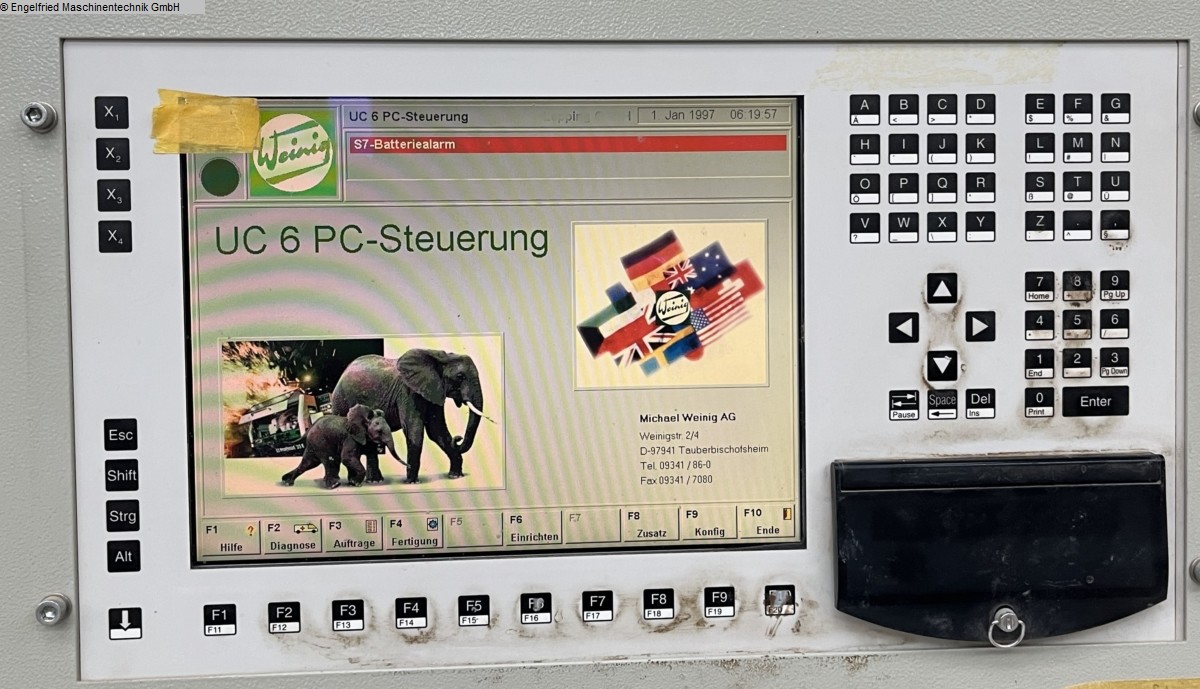

Control: Weinig PC-Nexus
#
7015 Weinig Unicontrol 6 with NC
spindles
-----------------------------------------
Machine
available for inspection while still in operation until September
2026
Summary of technical data
(please inquire about any
additional accessories included)
Item 1: Cross-cut
saw
----------------------------
> Electronic cross-cut saw,
horizontally continuously adjustable
> Number of tools: 1
unit
> Spindle speed: 2,800 rpm
> Spindle diameter: 40
mm
> Max. tool diameter: 400 mm
> Motor power: 3.0 kW
>
Laser alignment light for identifying the cut position
> NC length
stop mounted on the slotting table included,
positioning of the
cross-cut saw integrated into the control system. > Length 3500
mm
Item 2: Tenoning and slotting
spindle
----------------------------
> Number of tools:
variable, infinitely adjustable via NC axis
> Tool clamping
length: 320 mm
> Vertical spindle stroke: variable, infinitely
adjustable 254 mm via NC axis
> Spindle speed: 3500 rpm
>
Spindle diameter: 50 mm
> Max. tool diameter: 320 mm
> Motor
power: 11 kW
Item 3: 1st profiling spindle (climb-cut and
conventional-cut capable)
----------------------------
>
Position: vertical right
> Number of tools: 1 pc.
> Tool
clamping length: 120 mm
> Spindle speed: 6000 rpm
> Spindle
diameter: 50 mm
> Max. tool cutting circle: 232 mm
> Motor
power: 7.5 kW
Item 4: 2nd profiling
spindle
----------------------------
> Position: vertical
right
> Number of tools: variable, infinitely adjustable via NC
axis
> Tool clamping length: 320 mm
> Vertical spindle stroke:
variable, infinitely adjustable 254 mm via NC axis
> Spindle
speed: 6000 rpm
> Spindle diameter: 50 mm
> Max. tool cutting
circle: 232 mm
> Motor power: 11 kW
Item 5: Horizontal
profile milling unit (top)
----------------------------
>
Clamping length: 40 mm
> Spindle diameter: 40 mm
> Motor
power: 3.0 kW
> Speed: 5,850 rpm
> Max. tool cutting circle:
130 mm
> Axial adjustment range: 2 positions
> Radial
adjustment range: 2 positions
Item 6: 3. Profiling spindle
(hardware groove spindle)
----------------------------
>
Position: vertical, right
> Tool clamping length: 160 mm
>
Axial adjustment range: 3 positions
> Radial adjustment range: 2
positions
> Spindle speed: 5,850 rpm
> Spindle diameter: 40
mm
> Max. tool cutting circle: 210 mm
> Motor power: 3.0
kW
Additional features
----------------------------
>
Network-ready (online capability)
> Rebating unit for tear-free
rebating
> Double-part processing package

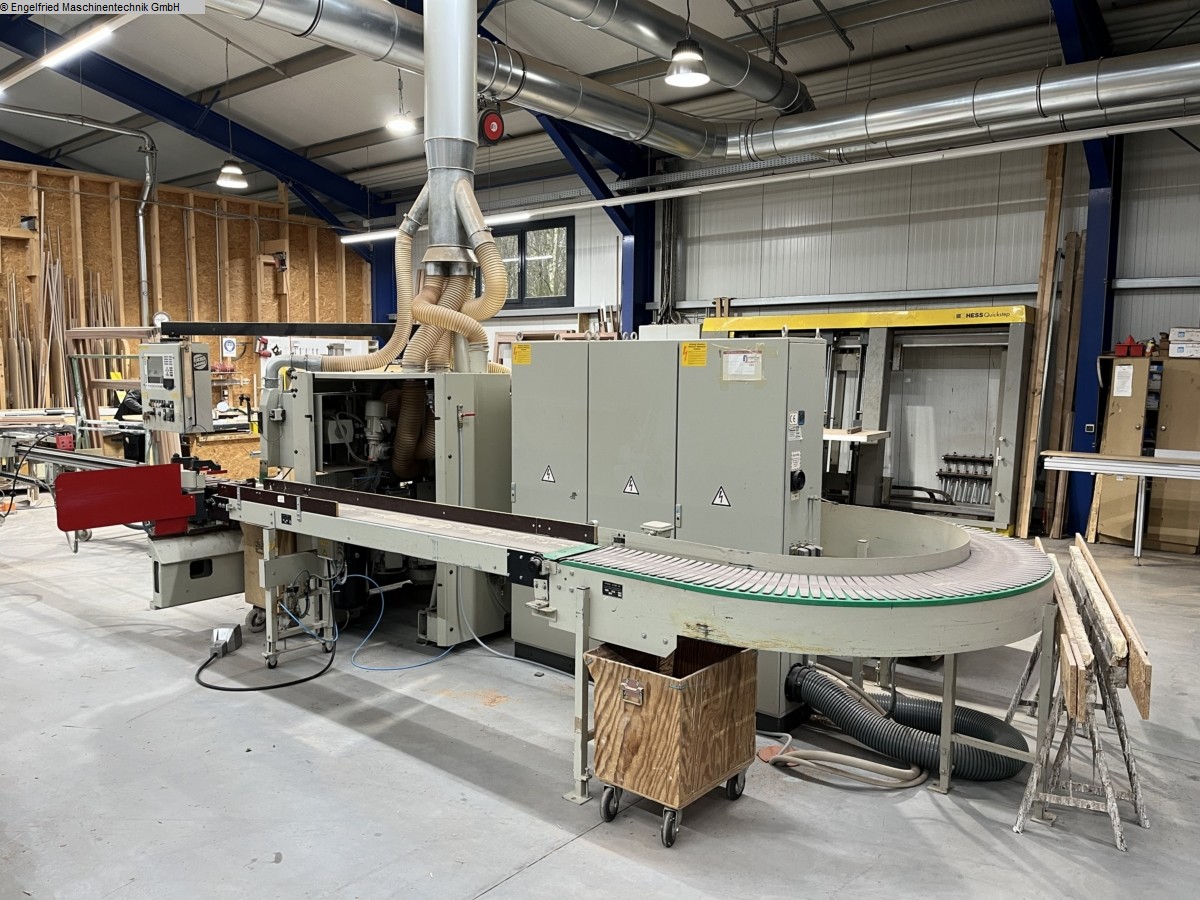

> Return conveyor
system for one-man operation: slat conveyor
> Screen-based control
system
> Angled window processing unit
> Electronic angle
display for angled windows
> Industrial PC, PC control/NEXUS
>
Excluding machining
tools
----------------------------
Price of the
above-mentioned machine available on
request!
----------------------------
Optional extra: EUR
6,500.00
Note regarding used tools:
We currently have used
Gold series tools in stock (Stock No. #2790)
Window tools (Gold
series) for IV78 Wood and IV78 Wood/Aluminum
Previously used on a
Weinig Unicontrol 10, a jointing cutter is additionally
required
for use on a Unicontrol 6.
Tool set for fixed-stroke or CNC
spindle machines (80 mm and 95 mm stroke),
(Tool set prepared for
IV92 where technically feasible)
Wood-aluminum tool set for
fixed-stroke machines (80 mm and 95 mm stroke) – supplementary
tools
1 set of Stehle IV68 Wood tools also
included
Excluding glazing bead separation tools for
planer
Tools sold in the condition, scope, and with the
accessories currently
available in our stock. Note regarding
window cross-sections, tool drawings,
and tooling system
lists:
Engelfried accepts no liability for ensuring that the tools
actually present
correspond to the systems listed and
illustrated.
----------------------------
If the
technical specifications of this machine do not meet your
expectations,
please contact us. Our experienced team will be
happy to assist you
with any necessary modifications or with
finding a machine that
meets your
requirements!
(Technical data provided by the
manufacturer – subject to change/no
guarantee!)
