universal tool used for sale

chamfer lenght: Gesamt ca. 1750 mm Packing: ca. 1900 x 200 mm Shipping weight: 550 kg 7-piece bending tool Individual lengths approx. 100 / 155 / 180 / 245 / 255 / 300/ 510 Profile approx. 20 x 20 mm Height approx. 145 ( 165 ) mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

DECKEL FP 2 Tool Milling Machine Machine Details: Manufacturer: Lid Type: FP 2 Year of construction: approx. 1978 Condition: very good, technically tested and partially overhauled Availability: available on order The Deckel FP 2 is considered the reference among universal milling machines – robust, precise and reliable. Specifications: Travel: X-axis: approx. 400 mm Y-axis: approx. 200 mm Z-axis: approx. 400 mm Spindle: Speed range: approx. 40–2000 rpm Tool holder: ISO 40 Drive power: approx. 2.2 kW Tool clamping: manual Feeds: 8–400 mm/min Rapid traverses: approx. 1.5 m/min Digital display: 3-axis SINO Dimensions (LxWxH): approx. 2000 x 1500 x 1800 mm Weight: approx. 800 kg Equipment & Accessories: Vertical & horizontal milling equipment Drill quill 3-axis digital display SINO Coolant Setup Work light C ...

x-travel: 400 mm y-travel: 350 mm z-travel: 400 mm turning speed range: 1 - 4000 U/min spindle taper ISO: 40 table surface area: 650 350 mm Control: Heidenhain TNC 124 total power requirement: 3 kW weight of the machine ca.: 1,2 t dimensions of the machine ca.: 2 2 2 m Equipment: Electronic handwheel Tool cabinet The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

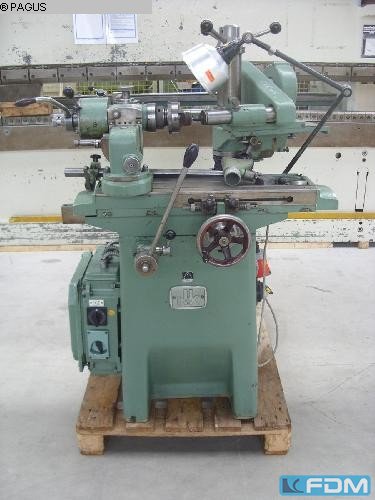

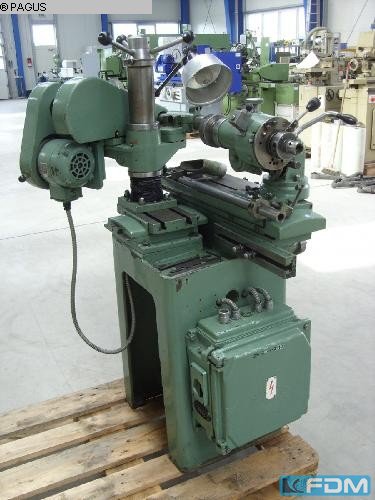

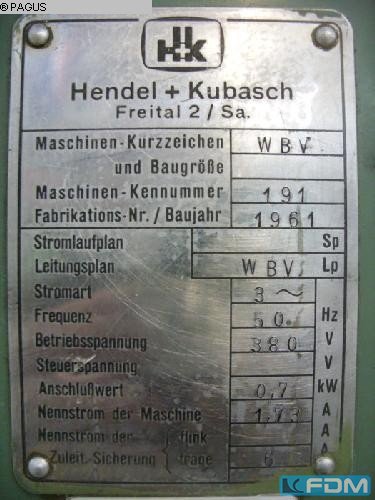

max. grinding diameter:50 mm grinding length:250 mm workpiece length:300 mm total power requirement:0,7 kW weight of the machine ca.:330 kg dimensions of the machine ca.:1000 x 1000 x 1400 mm

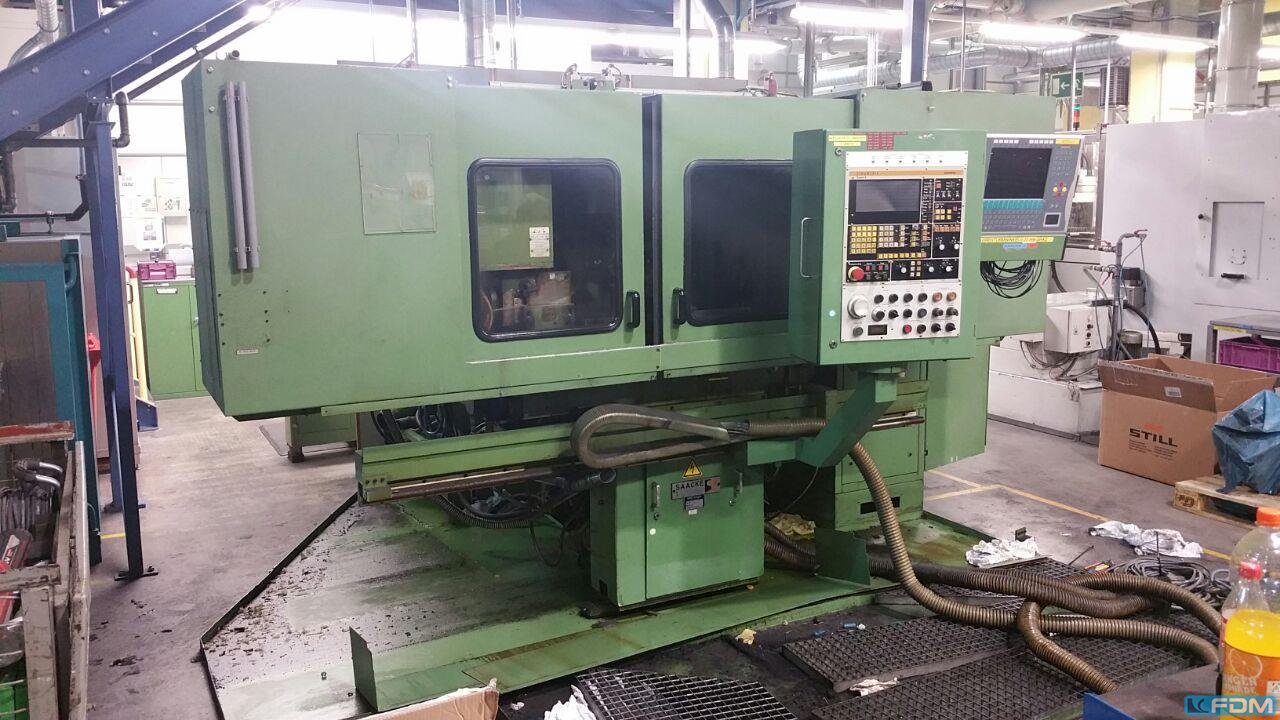

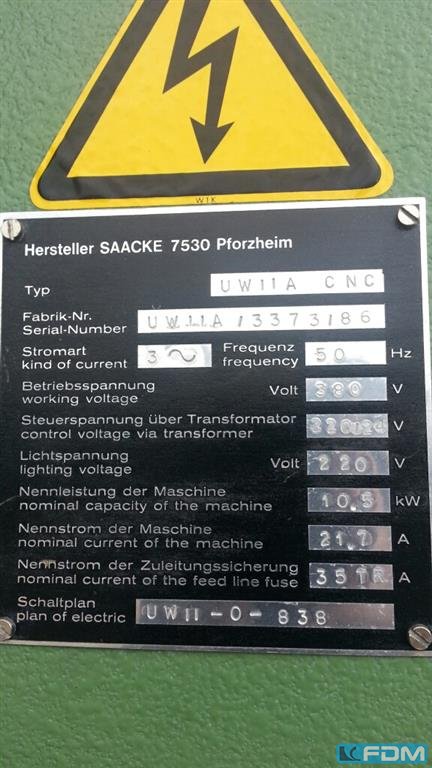

total power requirement:10,5 kW weight of the machine ca.:4800 kg dimensions of the machine ca.:3000 x 2100 x 2000 mm centre distance:1200 mm Height of centres:200 mm grinding-table stroke max.:X -Achse 1000 mm table-size:2060 x350 mm z-axis:Querhub 250 mm Feed speed:0,005 - 5 m/min. grinding head - swivable:360 ° taper ISO:50 control:Sinumerik System 8 Documents:vorhanden

pitch taper:50 Aufnahme Detailed price on request depense on version and nos. ca. 500 - 1500 EUR + VAT /piece Diverse toolholders matching SCHIESS-VTL´s with SK 50 taper and T-slot clamping design! Diverse fixed boring bars in different dia. and length. Diverse boring bar adapter plates to adapt different boring bars. Diverse normal toolholders for toolshank 40 mm in version left or right

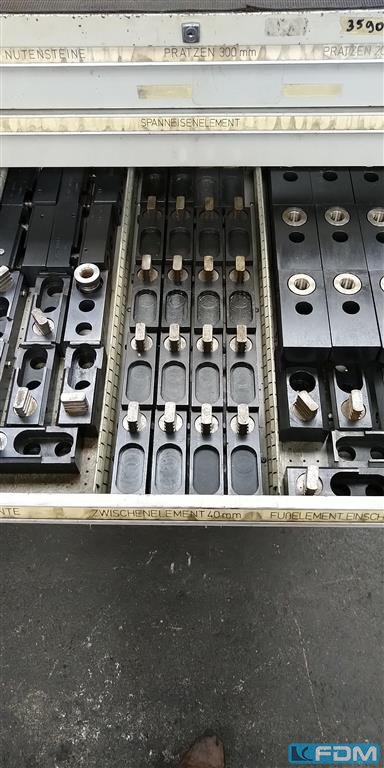

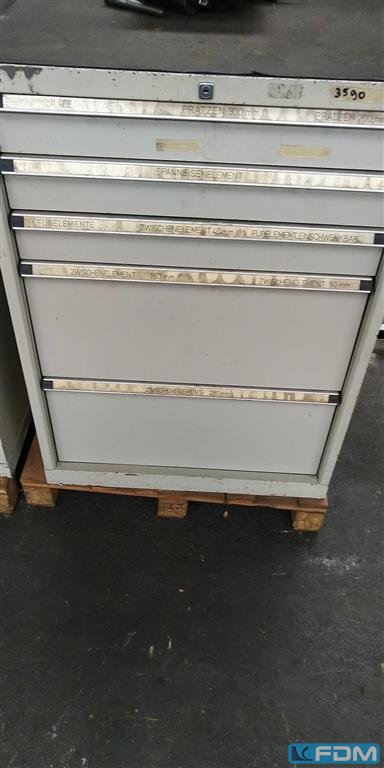

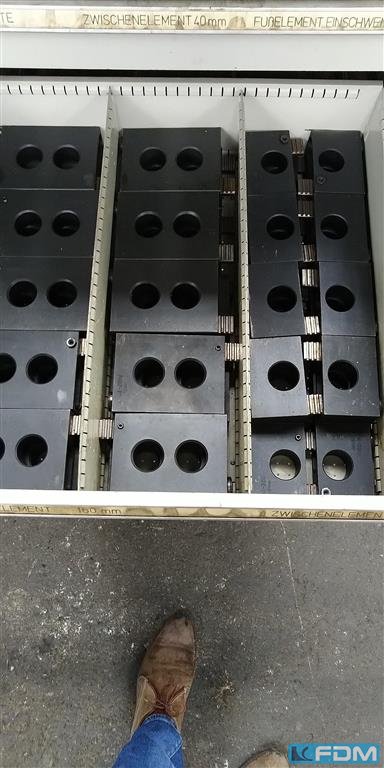

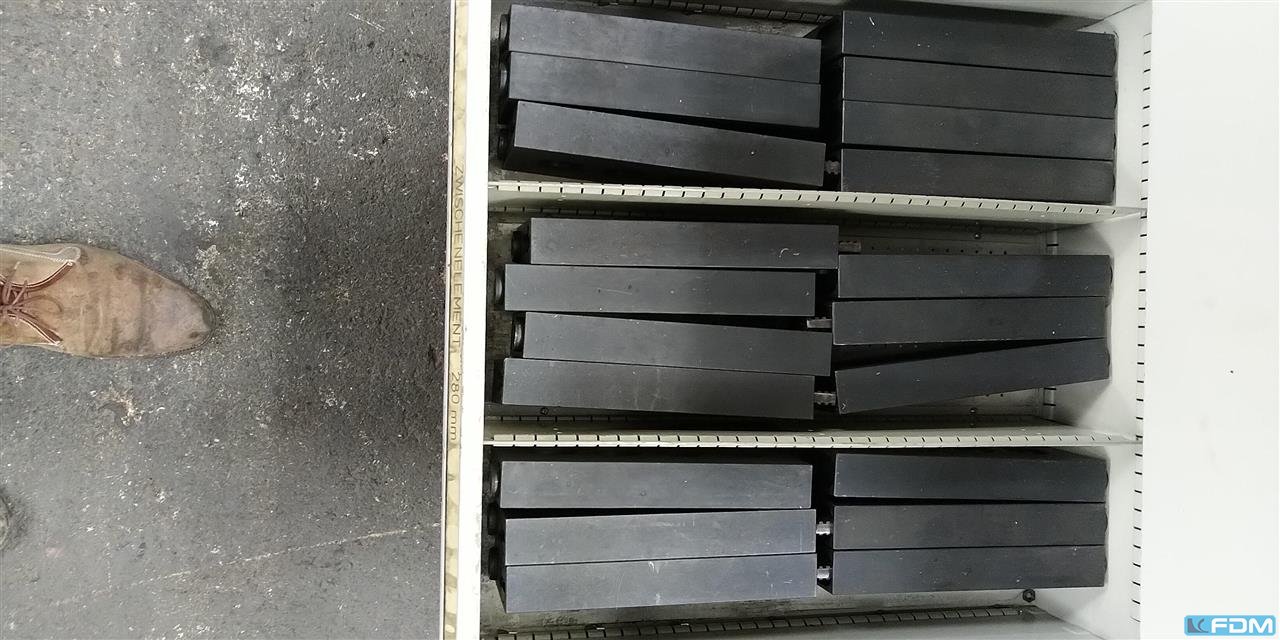

length:1000 mm width:800 mm height:1050 mm weight:200 kg Schubladenschrank mit 5 Auszügen Mit AMF Spannsystem Elementen

length:720 mm width:780 mm height:1050 mm Weight:150 kg Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

steel cabinet with diverse SK 40 toolholders Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

Article: profile turning trip dog Manufacturer: Schütte Many different sizes for Schütte profile turning attachment 68AE Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

pickoff with shaft for Schutte multi spindle automatic lathe SF67, used pickoff C26GF pickoff shaft C26GF9S1 gear WG-67S Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: draw bar Manufacturer: Schütte For multi spindle automatic lathes of different sizes Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

A CNC universal tool milling machine Hermle is available. Travel X/Y/Z: 700mm/550mm/500mm, table dimensions X/Y: 1000mm/500mm, quill stroke: 100mm, tool holder: SK40, spindle speed: 3150rpm, feed rate: 2m/min, rapid traverse: 5m/min, max. workpiece weight: 400kg. Machine dimensions X/Y/Z: approx. 3900mm/3300mm/2100mm, weight: approx. 3300kg, control: Heidenhain TNC 150. An on-site inspection is possible.

Article: quadrant lever Manufacturer: Schütte For multi spindle automatic lathes of different sizes Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

An electrically operated lifting and transport trolley Serapid with rigid push chain is available. Loading position min./max.: 520mm/2820mm, max. trolley load: 10000kg, max. lifting speed under load: 50mm/s, chain stroke: 2240mm, chain travel speed: 57mm/s, pushing force: 30kN, chain type: 60S, trolley speed: 2.7km/h, ground clearance: 30mm. Machine dimensions X/Y/Z: approx. 3450mm/1700mm/2100mm, weight: approx. 4500kg. Documentation available. An on-site inspection is possible.

Article: feed lever Manufacturer: Schütte For multi spindle automatic lathes of different sizes Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: push rod Manufacturer: Schütte For multi spindle automatic lathes of different sizes Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: push lever Manufacturer: Schütte For multi spindle automatic lathes of different sizes Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

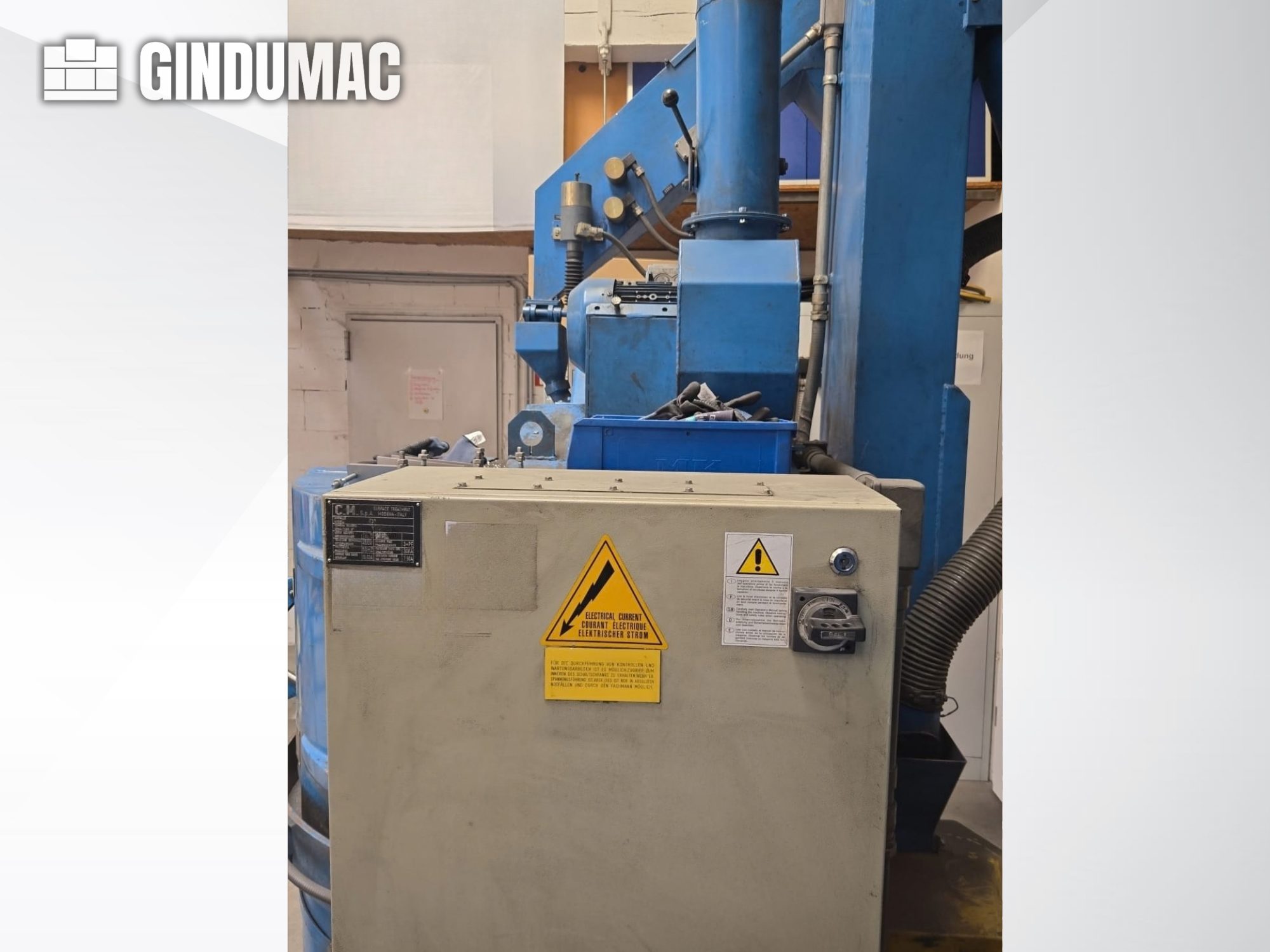

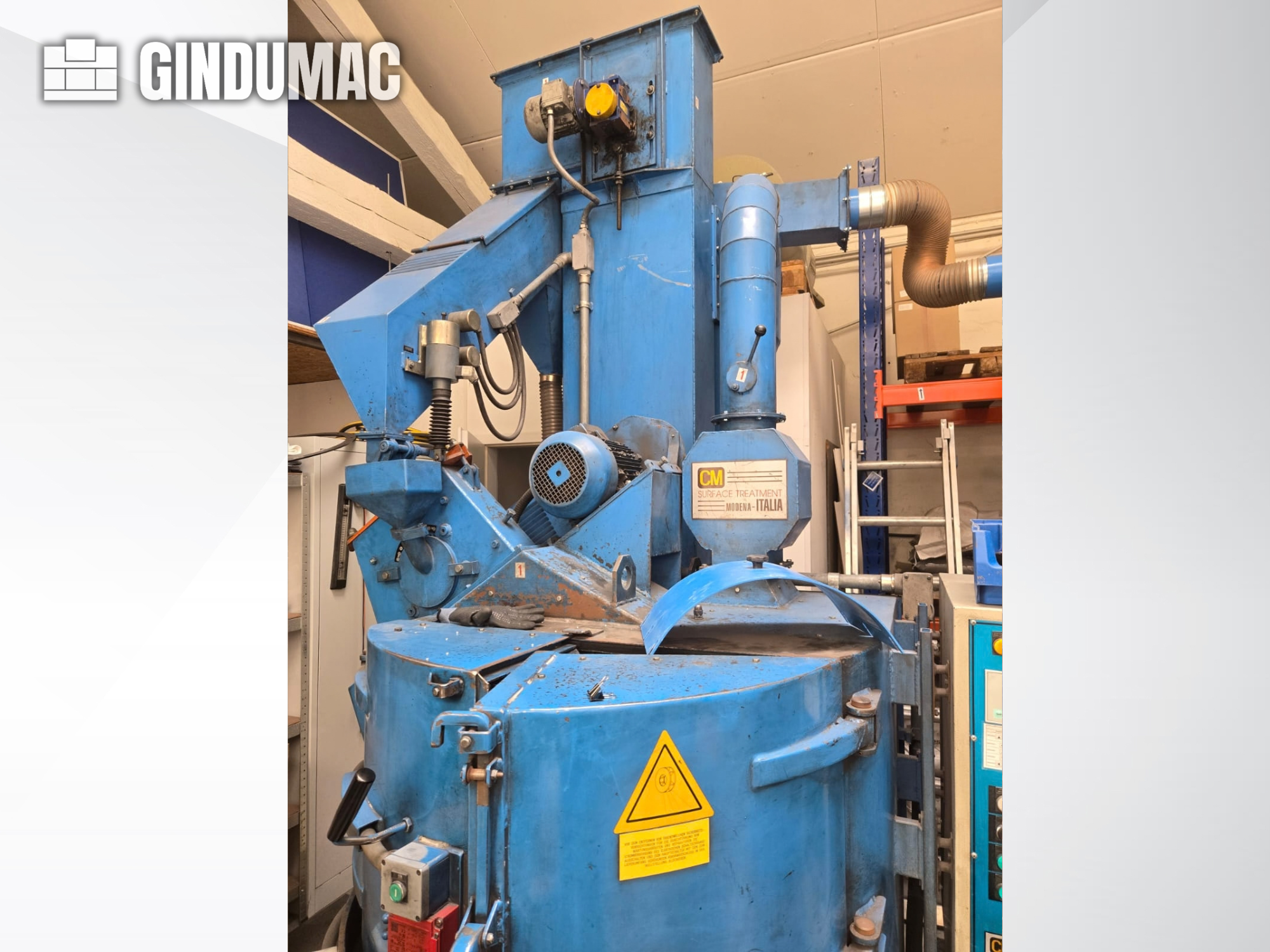

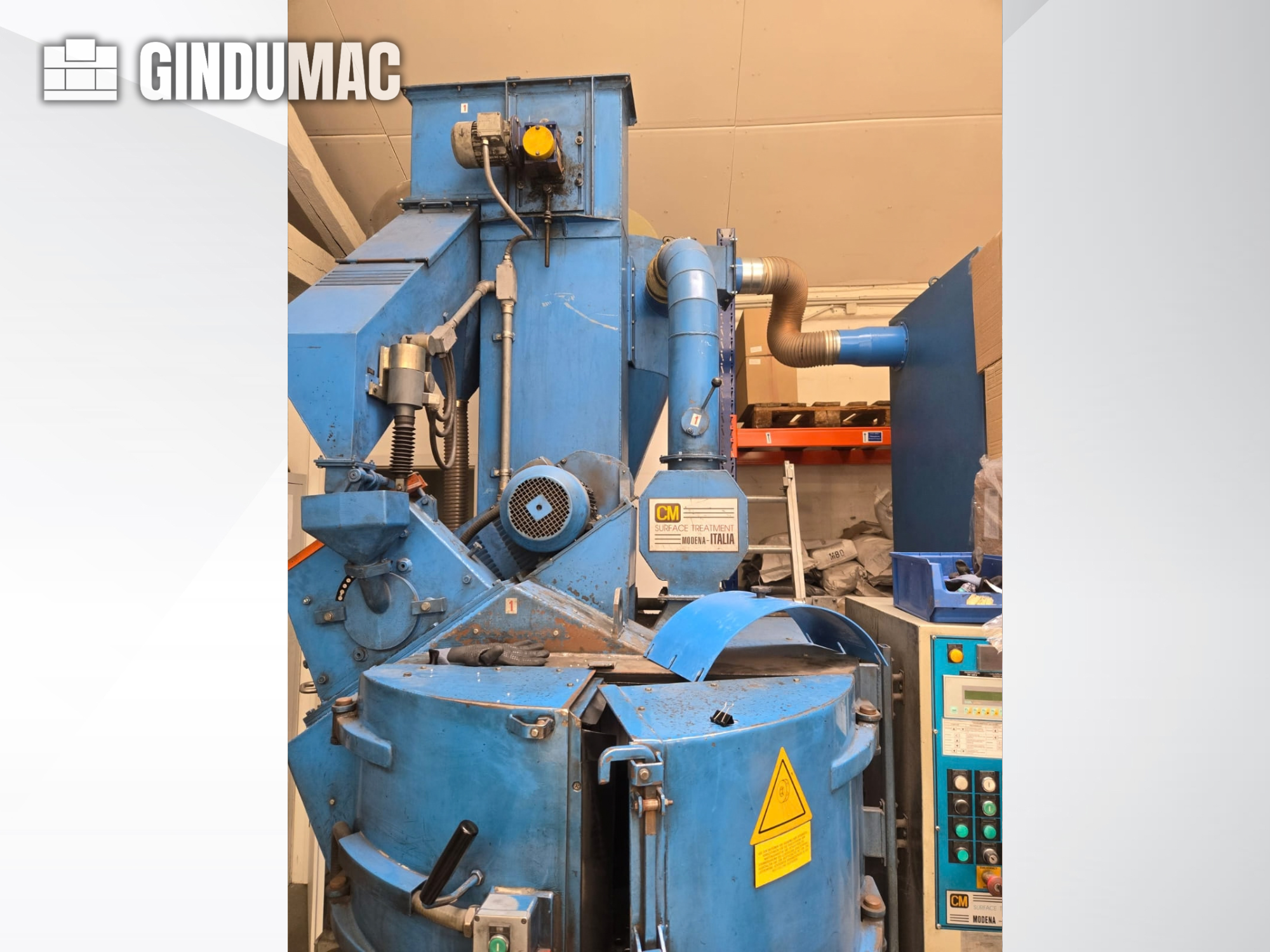

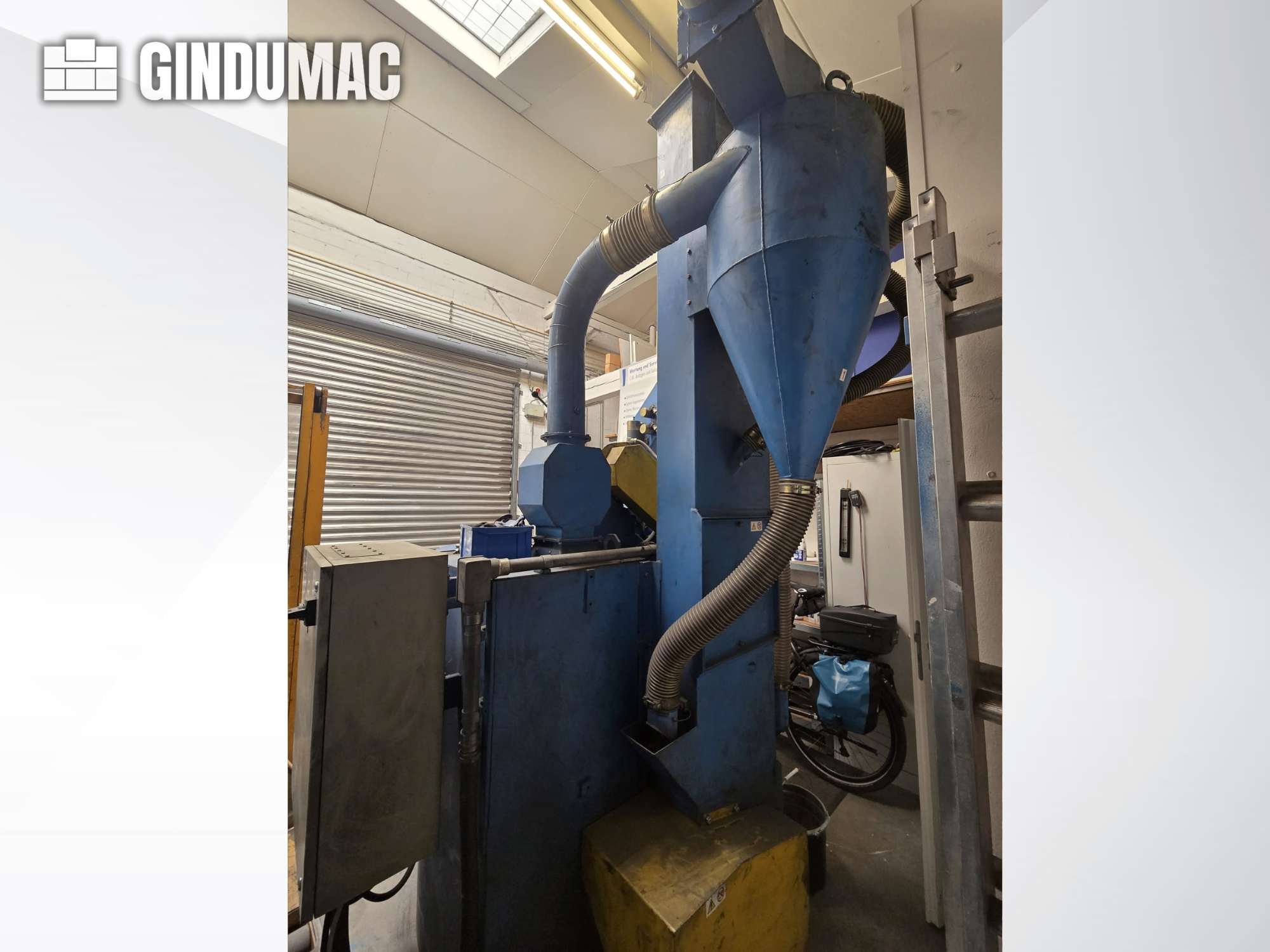

Rotary table wheel blast machine manufactured in 2006. This C.M. T-10 features a turntable diameter of 1,000 mm and a usable height in the workspace of 450 mm. It has a maximum permissible table load of 900 kg and operates with a blast wheel power of 5.5 kW. If you are looking to get high-quality blasting capabilities, consider the C.M. T-10 machine we have for sale. Contact us for further details.

Control: FANUC Travel distance: X= 500, Y= 350 Z= 300 mm Max. table load: 350 kg Dimensions: 3500 x 2400 x 2400 mm Weight: 3,000 kg

SPECIFICATIONS: Machinable tool: max. 230 mm Tool length: max. 240 mm Installed power: 1.1 kW EQUIPMENT: Replacement Grinding Wheels

A sharpening machine / regrinding machine is offered. Viewing possible by arrangement.

A bench grinding machine is available. Grinding wheel dimensions X/Y/Z: 125mm/20mm/20mm, speed: 3420rpm, travel X/Y/Z: 130mm/80mm/65mm, clamping angle range: -10°/25°. Machine dimensions X/Y/Z: approx. 400mm/510mm/360mm, weight: 75kg. Including accessories, three grinding wheels and transport box. Documentation available. An on-site inspection is possible.

Travel X/Y/Z: 620mm/420mm/400mm, C-axis: 360°, workpiece clamping plate X/Y: 1000mm/600mm, working tank dimensions X/Y: 1070mm/670mm, max. liquid height: 400mm, max. table load: 1500kg, max. electrode weight: 50kg/250kg, pulse generator: EroForm 60A, filling volume: approx. 1200l, tool changer: disc changer, tool positions: 20. Machine dimensions X/Y/Z: approx. 2450mm/2550mm/2450mm, weight: approx. 4500kg, control: EXMF 10, generator hours: approx. 19300h. Documentation available. An on site inspection is possible.

length: 560 mm width: 700 mm height: 720 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

length: 560 mm width: 730 mm height: 760 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

length: 720 mm width: 730 mm height: 1150 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 25434 Specifications: - Working range of the axes - X (longitudinal) / Y (transverse) / Z (vertical) 750 / 380 / 380 mm - Table dimensions 1300 x 300 mm - Tool holder ISO 40 - Quill stroke 140 mm - Distance vertical spindle – table 20 - 540 mm - Working spindle speeds 80 - 3800 rpm - Feed X – Y and Z axis - Rapid traverse 1400 mm/min - Swivelling vertical milling head 45° left + right - Swivel upper arm 360 ° - Coolant device - Drive 400 V / 5.0 kW - Space requirement approx. W 2000 x H 2500 x D 2100 mm - Weight approx. 2200 kg - Separate workbench / tool cabinet with various accessories

Offer 25434 Specifications: - Working range of the axes - X (longitudinal) / Y (transverse) / Z (vertical) 750 / 380 / 380 mm - Table dimensions 1300 x 300 mm - Tool holder ISO 40 - Quill stroke 140 mm - Distance vertical spindle – table 20 - 540 mm - Working spindle speeds 80 - 3800 rpm - Feed X – Y and Z axis - Rapid traverse 1400 mm/min - Swivelling vertical milling head 45° left + right - Swivel upper arm 360 ° - Coolant device - Drive 400 V / 5.0 kW - Space requirement approx. W 2000 x H 2500 x D 2100 mm - Weight approx. 2200 kg - Separate workbench / tool cabinet with various accessories

diameter - cutter special: 30 mm draw-in arbor diameter: 40 mm clamping height: 310 mm circle diameter: 80-300 mm weight: 30 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A cassette set of bending tools for FASTI MAK

Key data: 600 mm, 400 mm, 350 mm

For sale Sodick CNC wire EDM machine type ALC 600G. Used CNC wire EDM machine with minimal soot traces. Type ALC600G Premium • With linear motors in X, Y, U and V directions • With Smart Pulse (SP) CNC generator • High-speed wire feeder unit • Smart Linear • Automatic wire feeder in 9 seconds • Triple filtration system •Jumbo 20kg wire roll feeder is standard • Smart control with 19" TFT multi touch screen Technical data machine: Travel X-Y axis: 600 x 400 mm Travel U-V axis: 150 x 150 mm Travel Z-axis: 350 mm Max. workpiece dimensions: 800 x 570 x 310 mm (in a water bath) 800 x 570 x 340 mm (coaxial flushing) Working tank dimensions: 1050 x 710 mm Max. workpiece weight: 1000 kg Distance between floor and top of the table: 995 mm Controlled axes: 5 (X, Y, Z, U, V) Max. positioning speed m/min: 2.0 Wire diameter ø: 0.1–0.3 mm (optionally 0 ...

Tool Milling Machine Cover FP4MK 2203 Travel XYZ: 500-400-400 mm Spindle mount: ISO 40 Spindle speeds: 50-2500 Universal Rotary Table 2038 incl. Angle Counter VRZ560 Active Digital Display 3 Axes Heidenhain TNC113 Hydraulic drawbar for DIN 2080 Quill with 90 mm stroke Coolant system Incl. vice Weight approx. 1700 kg Year of construction approx. 1992

Spindle-to-table distance min./max.: 81mm/481mm, counter support spindle center distance: 195mm, spindle head swivel: 360°, milling spindle diameter: 70mm, spindle adjustment: 100mm, headstock adjustment: 300mm, table dimensions X/Y: 480mm/820mm, travel X/Y/Z: 500mm/200mm/400mm, max. workpiece length: 400mm, spindle speed: 1600rpm, feed X/Y: 500mm/min, feed Z: 250mm/min, spindle head swivel: +/-30°, machine dimensions X/Y/Z: approx. 1600mm/2550mm/1700mm, weight: approx. 2300kg. The machine was electrically tested at the end of 2025 and a defect of the emergency stop switch was discovered. Documentation available. On-site inspection is possible.

: mit Zubehör serial number: 71309 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 25434 Technical data: - Working range of the axes - X (longitudinal) / Y (transverse) / Z (vertical) 750 / 380 / 380 mm - Table dimensions 1300 x 300 mm - Tool holder ISO 40 - Autom. Quill feed - Quill stroke - Wind cutting device 140 mm - Distance vertical spindle – table 20 - 540 mm - Working spindle speeds 80 - 3800 rpm - Feed X – Y and Z axis - Rapid traverse 1400 mm/min - Swivelling vertical milling head 45° left + right - Swivel upper arm 360 ° - Coolant device - Drive 400 V / 5.0 kW - Space requirement approx. W 2000 x H 2500 x D 2100 mm - Weight approx. 2200 kg - Separate workbench / tool cabinet with various accessories

This DEPO HF milling machine was made in the year 2012 and has 7 axis. The Stable 7-axis machine is specially developed for the manufacture of tools, molds and matrices.

This Other FSW head was manufactured in 2023. Designed to integrate seamlessly with milling machines, it features friction welding technology. Ideal for enhancing your milling setup with advanced welding capabilities. Contact us for more information.

: 600 mm : 500 mm : 400 mm : 1000x500 mm : 1200x250 mm : 40-3200 U/min : DIN 2080 ISO 40 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 600 mm : 500 mm : 400 mm : 1000x500 mm : 1200x250 mm : 40-3200 U/min : DIN 2080 ISO 40 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 300 mm y-travel: 300 mm z-travel: 400 mm CNC-control: DIALOG 11 spindle taper ISO: 40 spindle turning speed range: 31 - 5.000 U/min table-size: 620 x 390 mm table load: 250 kg power capacity: 5,5 kW feeds -stepless-: 2 - 6.000 mm/min quill stroke: 80 mm coolant: voltage: 380 V total power requirement: 11,0 kVA weight of the machine ca.: 1,65 t dimensions of the machine ca.: 1,85 x 1,90 x 1,80 m electric cabinet: 1,35 x 0,70 x 1,70 m - Serial-No.: 2836-0175 - control: DIALOG 11 - electrical hand wheel - horizontal milling spindle - coolant equipment The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer: DMG Model: ECO 210 Year of Manufacture: 2007 Electrical Data: Voltage: 230 V Frequency: 50 Hz Power Consumption: Max. 650 VA Find more here - .ucymachines/ Contact us at - sales@ucymachines

: 600 mm : 500 mm : 400 mm : 1000x500 mm : 1200x250 mm : 40-3200 U/min : DIN 2080 ISO 40 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

range L-W-H: 960 x 460 x 860 mm weight: 75 kg : 7 St. Tool Trolley – 8 Drawers – Partially Equipped (6 Drawers) High-quality workshop trolley with 8 ball-bearing drawers, 6 of which are fully equipped with tools. The trolley is lockable and equipped with 4 sturdy casters (2 swivel, 2 lockable) for comfortable and safe operation. A robust polypropylene worktop completes the set. Features & Quality: – Ball-bearing, extendable drawers – Central locking mechanism / lockable – 4 casters (2 swivel, 2 lockable) – Tools made of chrome vanadium steel – Tools neatly stored in foam inserts Drawer 1 Ratchet and socket sets 1/4, 3/8, and 1/2, including ratchets, universal joints, extensions, and short and long sockets (approx. 4–30 mm). Drawer 2 Extensive ratchet accessories: Torx (with/without bore), Allen, slotted, Phillips (PH/PZ), spline, Ribe, and five-point – for 1/4, 3/8, ...

Key data: 1770 A, 1220 , 70

The OPS INGERSOLL EDM machine GANTRY 1200 HSJ / 64 bit, built in 2006, has been comprehensively and professionally overhauled in our company and is in very good condition, both technically and visually. In the course of the overhaul, more than 70% of the machine was dismantled. All relevant wear parts have been carefully checked. The following overhaul work was carried out on the above-mentioned machine: Replacement of ball screw and ball bearings of the X, Y and Z axis. Replacement of all (4) ball screws of the tank drive. Inspection and test of the C-axis for tightness and accuracy Geometric verification of all axes according to OPS INGERSOLL protocol. Basic cleaning of the complete machine base. Cleaning of the complete working tank including replacement of the felt scrapers. Complete painting of the machine. Overhaul of the dielectric pumps. Replacemen ...

Key data: 750 mm, 650 mm, 60 A

Refurbished OPS Ingersoll Gantry 500 Eagle die-sinking EDM machine – technically and visually in top condition The machine has been comprehensively and professionally overhauled in our company and is in very good condition, both technically and visually. In the course of the overhaul, more than 70% of the machine was dismantled. All relevant wear parts were carefully checked and replaced if necessary, including ball rollers and drive spindles. This was followed by a complete geometric measurement, alignment and additional control using a laser measuring system. The machine bed and the entire base were thoroughly cleaned. All pumps were disassembled, cleaned and overhauled. All hoses, including hydraulic and compressed air hoses, have been completely renewed. In addition, the machine has been completely repainted and also presents itself visually in a very neat condition.  ...

This M-PULSE 2k6e was manufactured in 2020. It features a modular controlling system, high-quality European components, and is designed for optimal integration into production lines or as a standalone solution. Safety is prioritized with triple redundant voltage measurement and internal safety discharge mechanisms. Energy capacity is 6060 Ws with a maximum voltage of 2000V. Contact us for more information about this machine.

This Emmegi VEGAMATIC was manufactured in 2008. It is an automatic cutting centre for aluminium profiles, featuring a feeder travel of 7395 mm and feed speed up to 60 m/min. The blade rotation angle ranges from -45° to +45°, with a standard blade diameter of 500 mm. Ideal for precise large-scale cutting tasks. Contact us for more information about this machine.

This COMCO CTR201-2 was manufactured in 2022. It features 1,264 machine hours and comes with a variety of options including a magnifier MB4320-1, abrasive hose MB1233-25, and replacement HEPA filter assembly CTR280-1. Additional parts include conductive nozzles and a 100 Micron Wheat Starch supply. Contact us for more information.

This OTEC DF10 was manufactured in 2016. It features a stainless steel process container and jog mode for easy workpiece changes. Includes additional storage for workpieces and holders, accommodating up to 10 holders. Equipped with water cooling DF-7 and a cooling compressor, its suitable for ambient temperatures between 10-40°C. Ideal for efficient media mixing and tool handling. Reach out for more information.
