turret used for sale

Turret Handler Ismeca Semiconductor NX16 Specifications: Supplier name: Ismeca Malaysia Construction year: 2011 Accessories: AssLabeling Laser A000 966 Find more here - / Contact us at -

CCM turret bearing / Slewing bearing Drawing: 190.40.4140.000.41.1502 Dimensions / Dimensions: 4405 / 3886 x 222 mm

CNC Lathe - twin turret - subspindle Y axis NAKAMURA WTS150, CNC Fanuc, Series 16i-T, Spindle - Subspindle, 3x turrets, live tools + 2 Y axis (milling), 2x C-axis, Conveyor, LNS bar loader (short bars) Mimu machine tools Italy

The machine is ideal for short lengths (30, 50 or 100m) either in full width, or you can also divide into different widths, from a maximum of 1600 mm. Thanks to the 4 take-up shafts, the machinist is able to unload and position a new sleeve while the machine is still winding. This brings an enormous amount of extra power at the end of the day, as there are only short downtimes. The machine is still in daily use and sample materials can be tested daily. We would then disassemble the machine, pack it and put it on a stable pallet. 20ft containers can be loaded via the ramp.

OMEGA SR 330 mm ABG TR2/4 TURRET REWINDER Age: 10/ 1998, Serial Number: 10980110 Web width: 330mm Max roll diameter with 4 rewind shafts: 260mm Max roll diameter with 2 rewind shafts: 355mm Counter: Feet, Labels or Meters Control panel with tension control, temperature control, glue timer and programming Auto roll eject

Disc turret Sauter, mounting 30 mm, diameter outside approx. 340 mm - see pictures

Year built 2004 OTHER TECHNICAL DATA POWER OF ROTATING TOOLS 4 Kw MACHINE EQUIPMENT Tool holder set supplied DIMENSIONS AND WEIGHT Length 3000 mm Width 2500 mm Height 2010 mm Weight 6700 Kg

INDEX GSC 65 CNC Lathe YOM 1997, installed 1998 Turning diameter in chuck 250 mm Swing Ø above bed, max. 300 mm Turning length 400 mm Control: Index C 200-8 (Sinumerik 880) Axes X/Z/C Travel of Slides: Turret 1- X / Z travel 163 / 550 mm Turret 2- X / Z travel140 / 250 Spindle bore, approx. 65 mm Tool holder bore 30 mm Spindle speeds 25 - 5000 rpm Feed range 0 - 15000 rpm Spindle drive 0.5 - 40 kW Total electrical load 60 kW - 380 V - 50 Hz Weight, approx. 8,500 kg Accessories & Spare parts -SIEMENS CNC Continuous Path Control, Model 880 (INDEX C 200-8). Changed monitor. -Hydraulic high-power chuck ROHM HS 200/3 -Tailstock -Turrets: 3 -Rotation tools in Turret 1- 2, in Turret 2- 3. -Milling spindle- tool in Turret 2 -Tool stations: 8 / 12 / 8 + 28 tools in magazine -Coolant device with chip conveyor. -A lot of spares and accessories

Tool Revolver 8-speed Mazak Quick Turn 10N Machine used, good condition from assembly of a MAZAK Quick Turn 10N CNC lathe My. 1985 satted with 8 tool-places Turret 290 mm Space requirement LxWxH: 580 x 460 x 380 mm Price is understood plus VAT freely loaded warehouse Casting - shipping possible after arrangement and assumption of costs Changes / errors in the technical data as well as intermediate sale reserved Seller Offer No. resale 8904

The LVD EHT DELTA 1250 RS TK turret punching machine was built in 1999. It is equipped with a MNC 32000 CNC control. The punching machine has a maximum pressure of 20 tons and allows the processing of a sheet with dimensions of 1250×1250 mm and a thickness of 4.5 / 6 mm. The machine performs a maximum of 650 beats per minute. The press is equipped with a hydraulic system, a turret with four stations (A, B, C, D) and a clearance adjustment sensor G8823142. Technical parameters: – CNC control: MNC 32000 – maximum pressing force: 20 tons – sheet dimensions X x Y: 1250 x 1250 mm – sheet thickness: 4.5 / 6 mm – maximum number of strokes: 650 1 / min – rated number of strokes: 300 1 / min – oil tank: 200 L – total power: 18.7 kW – engine: 11 kW – voltage: 400 V – weight: 17 tons Hydraulic System – Thick Turret: – instrumentation: station A, B, C, D  ...

CNC turret lathe Okuma LB15 at call The OKUMA LB 15 CNC lathe has been professionally serviced regularly since its purchase and is in perfect technical condition. It has a hydraulic chuck with a diameter of 250 mm and a turret holder for 12 tools. The turning spindle rotates at a speed of 70-3800 rpm and has a diameter of 75 mm. Technical specifications of the CNC lathe OKUMA LB-15 – CNC control: OSP 5000L-G CNC system (German) – Data transmission: RS232 – Tool turret: 12-position type BOLT ON – Slain chuck: 250 mm – Spindle: 70-3800 rpm (11 kW, 30 min; 7.5 kW – continuous operation) – non-continuous spindle – Diameter of the spindle bore: fi 75 mm (at a depth of 70 mm, measured from the front of the lathe chuck and without jaws) – Diameter of the spindle bore: fi 28 mm (at a depth of 200 mm, measured from the front of the lathe chuck and without jaw ...

Turret Lathe Linen Leromat 36 Year of construction unfortunately unknown. Lathe is fully functional.

• Original (OEM) Kilian die disc/turret with slideways for Kilian Synthesis 500, Generation 1 • Tool type EU-D • Punch diam. 25.4 mm, die diam. 38.1 mm • Keyed upper and lower punches • Transport trolley • Unused, like new

Auction-ID: A1-45188-18

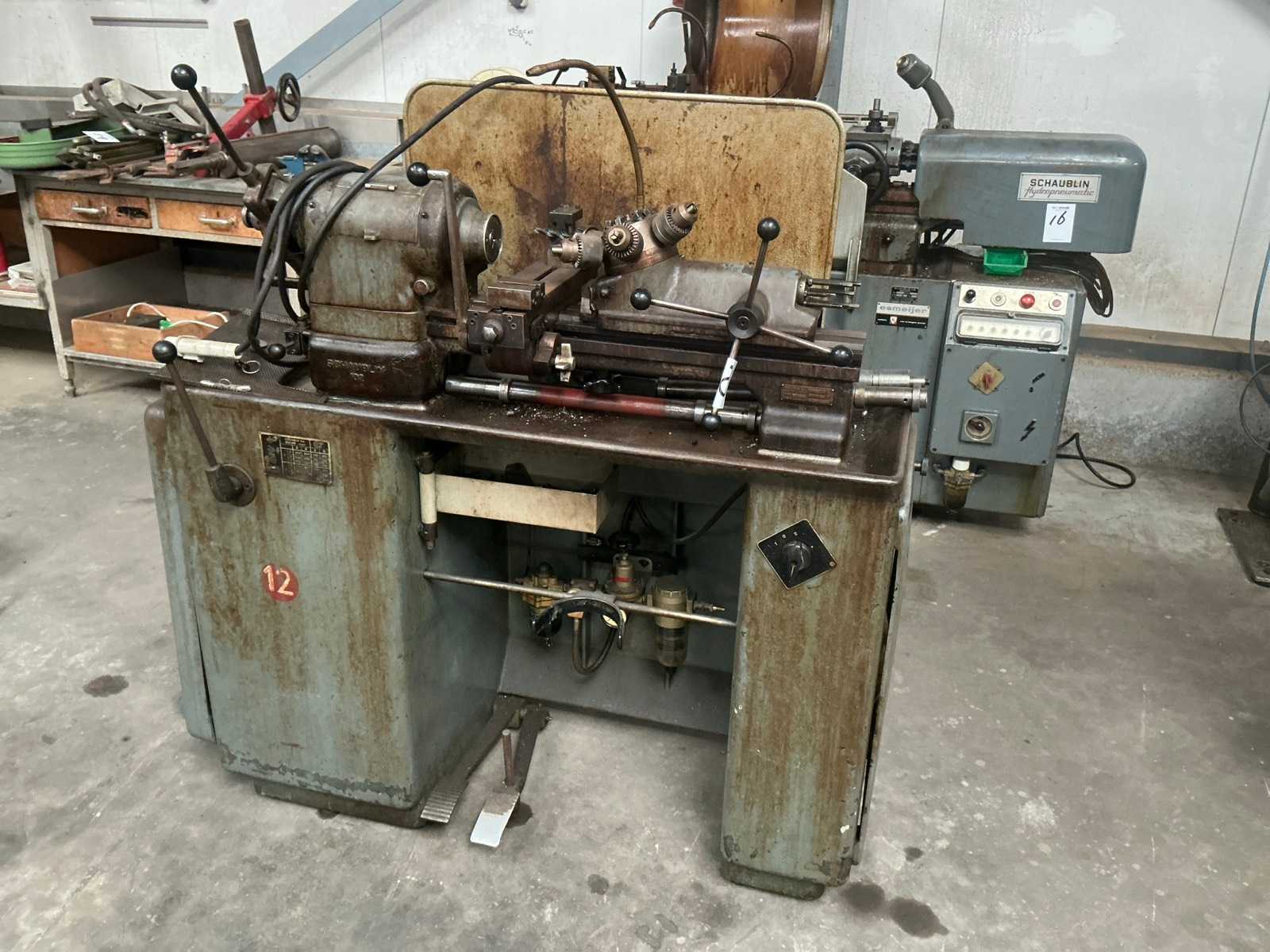

Specifications: Bed length: 900 mm Headstock - turret distance: 300 mm Tip height: 102 mm Number of seats in the turret: 6 Diameter of the holes: 20 mm Collets Opening: 22 mm Connection: 380 V Spindle speeds: 840 - 3000 rpm. with accessories Dimensions: (LxWxH): 900x1300x1310 mm Weight incl. pallet: approx. 650

A CNC-controlled REM vertical lathe is available. Working diameter: 2500mm-7000mm, working height: 1000mm, control: Siemens 840D. Including driven tools. On-site inspection is possible.

Turret milling machine DYNAMILL B-4V - capacity 900x380x600 mm, Digital read-out system, Information about technical data are not binding., Machine available subject to prior sale., Working table size: 1270x254 mm, Longitudinal travel x axis: 900 mm, Cross travel y axis: 380 mm, Vertical travel z axis: 406 mm, Spindle taper: 40 ISO, Spindle speed: 40- 3800 rpm, Number of spindle speeds: Stepless, Spindle motor power: 3,7 Kw, Quill spindle travel: 127mm, Number of working feeds: stepless by DC motor, Weight: 2.000 Kg, Accessories: DRO, coolant.

I am selling this machine, powered, in very good condition, can be tested. Extensive accessories. A video of the machine can be sent via WhatsApp. Swing diameter above the bed . 1050 mm. Distance between centers . 6000 mm. Turning diameter over support . 940 mm. Machine dimensions L x W x H . 88600x1600x1700 mm. Machine weight . 10,200 kg

This Durma TPL93 turret punch press was manufactured in 2019. Its a robust choice for precision punching operations. Consider the opportunity to buy this Durma TPL93 turret punch press. Contact us for more information.

This 3-axis BOSCHERT Compact 1250 Rota was manufactured in 2013. It features a working area of 1270 × 2000 mm and handles sheet thickness up to 6 mm. Equipped with a rotational tool changer, it offers versatile punching options and a user-friendly CNC control. Its compact design saves space while ensuring robust and durable construction. Ideal for batch and small to medium production runs. Contact us for more information about this machine.

Dispositif à tronçonner pour broche Schaublin 102 - Type F. Etat neuf, jamais utilisé, avec des traces de stockage. Für Spindel Schaublin 102 - Typ F. Zustand: neu, nie gebraucht, mit Lagerspuren.

This 4-axis AMADA EMZ3612M2 was manufactured in 2016, featuring a high-speed servo-electric turret punch press with twin AC servo direct drive. It boasts a 33-ton press capacity and an AMNC-F / AMNC-4ie CNC system for enhanced control. The machine handles sheet formats up to 3050x1525 mm and includes a King turret with up to 58 stations. Energy efficiency is optimized with AC servo drives. If you are looking to get high-quality punching capabilities consider the AMADA EMZ3612M2 machine we have for sale. Contact us for more information.

This BOSCHERT Compact 750 Punching machine was manufactured in 2018. It has a table size of 750 mm (X-axis) and 2000 mm (Y-axis) and a punching depth of 750 mm with a maximum punching diameter of 105 mm. This punching machine is equipped with a punching force of up to 40 tons. Maximum cutting thickness for normal steel is at 6mm. It is build in a C-frame construction with appropriate oversizing. The cantilever structure allows for machining of parts larger than the machining space.

EMAG VL5i Vertical Lathe (2013) Max. chuck diameter: 250 mm Max. circumferential diameter: 270 mm Max. workpiece diameter: 220 mm Max. workpiece height: 175 mm X-axis travel: 660 mm Travel Z-axis: 300 mm Rapid traverse X: 60 m/min Rapid traverse Z: 30 m/min 12-cavity turret with VDI-40 tool holder Driven tools up to 6,000 rpm Power driven tools: 8.5 kW Main spindle power: 18 / 27 kW Torque main spindle: 200 / 300 Nm Chip conveyor available Emulsion mist extraction available Control Siemens 840D SL Machine in production Operating hours: 44,500 h Auction-ID: A7-45256-2

A vertical large-format carousel turning machine TOS is available. Turning diameter cross rail support/side support: 1150mm/1000mm, max. workpiece weight: 3000kg, max. workpiece height: 900mm, travel X/Y/Z: 500mm/500mm/750mm, rotary table diameter: 1000mm, max. rotary table torque: approx. 8800Nm. Machine dimensions X/Y/Z: approx. 4100mm/3400mm/3100mm, weight: approx. 13500kg. Documentation available. An on-site inspection is possible.

faceplate diameter:4000 mm swing diameter:4300 mm turning height:2500 mm max. workpiece weight:63 t total power requirement:125 kW weight of the machine ca.:134 t dimensions:6100x10400x8400 mm Used Vertical Turret Lathe with 2 plungers and CNC Siemens 840 table is hydrostatically. Machine equipped with a grinding head. CNC was overhauled in 2000.

This Finn-Power LP 8 turret punch press was manufactured in 2008. It features a maximum punching force of 30 tons and a punching working area of 1500 × 3000 mm. The machine includes a threading/tapping unit capable of mounting 6 taps up to M8 and a versatile tool turret. Consider the opportunity to buy this Finn-Power LP 8 turret punch press. Contact us for further details.

faceplate diameter:800 mm power requirement:110 kW weight of the machine ca.:37.000 / total 52.000 t transport measurements machine:5,07 x 2,98 x 3,90 m clamping diameter:800 mm :Ø 800 x 720 mm Tool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis

1 x Schaublin 102 spindle for push clamps type F38, incomplete for spare parts 1 x Schaublin nut for F38 spindle nose, in good used condition. 1 x 8 F38 Clamps Diameter:14 - 15 -16 -17 - 18 -20 - 31 - 30. In very good condition, a new clamp (diameter 15), one used (diameter 16), one with traces of storage (diameter 18). 1 x Spindel Schaublin 102, für Druckspannzangen F38, unvollständig, für Ersatzteile. 1 x Mutter für Druckspannzangen Schaublin F38. 1 x 8 Druckspannzangen F38. Durchmesser: 14 - 15 -16 -17 - 18 -20 - 31 - 30. Durchmesser 15 mm ist neu ungebraucht, Durchmesser 16 mm sehr gebraucht, Durchmesser 18 mm mit Lagerspuren.

faceplate diameter:1600 mm power requirement:80 kW weight of the machine ca.:25 t dimensions of the machine ca.:4,4 x 4,62 m max. workpiece diameter:2000 mm max. diameter of face turning:1800 mm tool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1500 mm main drive:80 kW faceplate speeds from - to:1 - 365 U/min milling motor:37 kW ram head dimension:240 x 240 mm max. ram stroke:1250 mm total power requirement:133 kVA weight of the machine ca.:50 t dimensions of the machine ca.:11 x 5 x 6,4 m Machine was overhauled in 2008 by OEM New control CNC SIEMENS 840 D automatic tool changer 72-pcs C-axis with driven tools Angle-, straight tool holders with CAPTO holder Coolant device Chipconveyour

2-axis CNC lathe with HAAS CNC Manufacturer: HAAS Model: HL-2 Year: 1997 Serial Number: 61212 Max turning diameter: 508 mm Max turning length: 610 mm Spindle Bore: 76.2 mm Max spindle speed: 3750 rpm Turret: 10 positions CNC Control: HAAS CNC Power supply: 360 / 480 V – 3 phases – 50/60 Hz Dimensions approx. (L x W x H): 3200 x 1778 x 1778 mm Weight approx.: 4082 kg Auction-ID: A1-44765-263

faceplate diameter:2000 mm swing diameter:2130 mm turning height:1400 mm ram stroke range:1000 mm workpiece weight:10 t faceplate turning speed range:1 -200 U/min main drive:60 kW total power requirement:95 kW weight of the machine ca.:24 t dimensions of the machine ca.:6,0 x 4,0 x 5,6 m with CNC SIEMENS 840 D C-axis driven tooling 15/22 kW automatic toolchnager 16-pockets through spindle coolant splash guarding and chip conveyor

faceplate diameter:1800 mm swing diameter:2000 mm turning height:1170 mm z-axis:1000 mm cross rail adjustment - vertical:800 mm faceplate speeds::2,5 - 280 workpiece weight:12 t feeds:1 - 6000 mm/min max. torque on the faceplate:50000 Nm total power requirement:85 kW weight of the machine ca.:41 t dimensions of the machine ca.:5,6 x 4,8 x 4,6 m Machine retrofit and overhould in 2005 with SIEMENS 840 D powerline control - 6 jaw hydraulic power chuck - tool changer for 12 tools - chip conveyor, coolant attachment, splash housing - various tool holders

Capabilities: Maximum turning diameter: 420 mm (standard 290 mm) Maximum turning length (Z-axis): 635 mm Bar passage: 65 mm Spindle Bore: 79 mm Spindle: Rotational speed: 25 to 5,000 rpm Power: 21 kW (100%) / 28 kW (40%) 3-jaw hydraulic chuck (Ø approx. 200–250 mm) Turret & tooling: Sauter Turret VDI 30 (DIN 69880) Capacity: 12 stations Motorized substations C-axis (pin indexing) CNC Control: Heidenhain Turn Plus Electrical data: Power supply: 400 V / 3~ / 50 Hz Installed effective power: 44 kVA Current rating: 64 A Protection: 80 A Auxiliary voltage: 230 V Control voltage: 24 V DC Auction-ID: A1-44765-262

faceplate diameter:1000 mm swing diameter:1600 mm turning height:1200 mm main drive:75 kW faceplate speeds from - to:7 - 800 U/min milling motor:25 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 mm ram head dimension:240 x 240 mm weight of the machine ca.:40 to dimensions of the machine ca.:9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1270 mm main drive:80 kW faceplate speeds from - to:1 - 355 U/min max. workpiece weight:6.000 kg milling motor:37 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 (8 x 100 mm) mm ram head dimension:240 x 240 mm max. ram stroke:1250 mm weight of the machine ca.:50 to total power requirement:133 kVA dimensions of the machine ca.:11 x 5 x 6,4 m Machine general overhould in 2008 and equiped with CNC SIEMENS 840 D control - tool changer for 72 tools - C-axis, live tooling - angular- and straight tool holder head with CAPTO taper - Transmit function - complete splash housing - coolant device, chip conveyor - diverse accessories

faceplate diameter:4000 mm swing diameter:4300 mm turning height:330 mm faceplate turning speed range:1 - 92 U/min workpiece weight:18 t feeds:1 - 4000 mm/min main drive motor:55 kW total power requirement:85 kVA weight of the machine ca.:64 t dimensions of the machine ca.:90, x 7,2 x 5,5 m with CNC SIEMENS 840 D for 4 axis 2 Vertical Supports tool Basic holder chip conveyor

faceplate diameter:4770 mm swing diameter:7000 mm turning height:1000 mm slide stroke:1000 mm workpiece weight max.:100000 kg faceplate turning speed range:2 - 20 U/min feed speeds:1 - 10000 mm/min rapid traverse:10 m/min ram head dimension:250 x 250 mm main drive:100 kW total power requirement:200 kW with CNC SIEMENS 840 D 2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpm Chip conveyor and coolant attachment

faceplate diameter:2500 mm swing diameter:2500 mm swing diameter:2500 mm turning height:2500 mm turning speed range - faceplate:1,8 - 140 U/min workpiece weight max.:15.000 kg feeds: 0,03 - 6,3 mm/U rapid speed:2 m/min cross rail adjustment:2150 mm max. ram stroke:1500 mm power capacity:55 kW weight of the machine ca.:32 t dimensions of the machine ca.:4,1 x 7,6 x 6,0 m 1 turret head 1 RAM head

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

faceplate diameter:5000 mm swing diameter:6100 mm turning height:2400 mm ram stroke each side:1490 mm ram head dimension:340 x 340 mm max. workpiece weight:100.000 kg total power requirement:100 kW weight of the machine ca.:155 t faceplate turning speed range:0,4 - 50 U/min with 2 x 2 axes CNC SIEMENS 840 D

Overview The Zalkin screw capper top is made of stainless steel and has 22 capping heads. The running direction is from left to right (clockwise). It comes with an electronic height adjustment. 28 mm aluminum closures have been processed. The maximum output is 36,000 bottles per hour. Tech Specs: Pitch circle diameter 731.11 mm Number of closing elements 22 Pitch 104,4mm Running direction left-right (clockwise) Material: SST Electronic height adjustment Closures: 28mm aluminum closures Accesories: Six new closing elements Closure sorting unit Spare parts lists and technical documentation
