Key data: 370 mm, 650 mm, 3500 1/min
Machine Details Stock-No. 1105-04067 Type of machine CNC Lathe Make DAEWOO Type PUMA 250 B Year of manufacture 1998 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Corea Delivery time to be agreed Freight basis ex Site Technical details turning diameter 370 mm turning length 648 mm control Fanuc 18 t bar diameter 77 mm swing dia. 570 mm swing diameter over cross slide guide 255 mm max. turning diameter 255 mm drive capacity - spindle motor 18.5/22 kW turning speeds 3500 rpm Turret (X-Stations) 10 pos. JAPAN rapid traverse X-axis 24 m/min total power requirement 32 kW weight of the machine approx. 6 t dimensions of the machine approx. 3.43 X 1.85 X 2 m Additional information GOOD MACHINE WITH CNC FANUC 21 IT 3 JAW CHUCK DIA 250 MM SCHIP CONVoYEUR TOOL SETTER COOLANT INTERLOKED GUARDS
Platform diameter 2,800 mm Max turnerable diameter 3,200 mm Maximum height of the workpiece 1,600 mm Weight allowed above platform 16,000 kg Main engine power platform 55 kW Spindle RPM 1.25-63 Spindle No. Crossbar stroke 1,240 mm Horizontal head stroke 1,720 mm Vertical head stroke 1,200 mm Total machine weight 43 ton
Ø max. of the piece: 2200 mm Ø clamping of the table: 2000 mm Maximum load on the table: 12000 kg Maximum height of the piece: 1200 mm RAM Stroke (Z): 720 mm Main engine power: 55 kW
platform diameter: 1450 mm (HYDRAULIC - hydraulic spindle) maximum diameter of the piece: 1650 mm maximum height of the piece under the crossbar: 1200 mm - under tool holder: 1000 mm maximum workpiece weight: 11000 Kg mobile crossbar running on the plinth: 900 mm fast movement speed: 400 mm/min. slow displacement speed: 100 mm/min positioning accuracy on the base: +/- 0.1/100 mm main drive engine power: 60 KW platform advancement range: 2-280 rot/min number steps speed change box 3 work support stroke (X-axis): 1542 mm vertical stroke work support sled (Z-axis): 1200 mm sled section: 250x250 mm Milling shaft cone: ISO 50 milling engine power: 22 KW milling shaft speed range: 20-2000 rot/min X-Z axis work feed range: 1-4000 rot/min fast forward: 6000 rot/min C axis feed (slow-regimo milling rotation): 1-360 °/min X, Z, C: 45 N ...
Table diameter: 1,200 mm Maximum turnerable diameter: 1,350 mm Spindle power: 47.7 Kw Maximum turnable height: 950 mm Table capacity: 6 ton Table rotation speed: 2.22 ÷ 200 rpm Vertical RAM wagon stroke: 1,000 mm Vertical turret wagon stroke: 760 mm Tilt vertical wagons: 35 ° Total weight: 16 ton CNC FAGOR 8055 Year 1979 REVISED IN 2009
:::TECHNICAL SPECIFICATIONS::: CNC Model: Mazatrol Spindle nose: ASA 6 Spindle power: 22Kw Number of main spindle speeds: 5000 Turning Diameter: 540mm Self-centering diameter: 210mm Bar Passage: 51mm Turning length: 1018mm Number of tools: 40 Spindle power: 7.5Kw Number of spindle speeds: 6000 X-axis travel: 530mm Y-axis travel: +- 70mm Z-axis travel: 1065mm Adjustable B-axis travel: 1065° Fast feeds for linear axes X Y Z: 30m/min Tailstock: yes Steerer stroke: 140mm Chip conveyor: belt Presetting: yes :::D DIMENSIONS AND WEIGHT::: Length: 3500mm Width: 2100mm Height: 2500mm Weight: 5700Kg
Table diameter 1450mm Maximum working diameter 1600mm Maximum height under the crossbar 1000mm Two balanced RAM Quota viewers Machine working in good condition Machine weight 18 ton This morando vertical lathe is in excellent condition and ready to be installed.
Spindle diameter 2,000 mm Turnerable diameter 2,000 mm MACHINE IN MECHANICAL/ELECTRIC RETROFIT PHASE
BIGLIA SMART TURN B1200 CNC automatic lathe was built in 2008 in Italy by OFFICINE E. BIGLIA & C. S.p.A. The machine, dedicated to the precise, multi-axis machining of workpieces with a maximum diameter of 580 mm, was created as an effective answer to the daily challenges of modern business. For this purpose, it features modern components with excellent technical characteristics inside a large work space, such as two spindles (main spindle and sub-spindle) and a 40-position tool magazine. The high-speed operation of the tool magazine further significantly speeds up production time and reduces machine downtime to a minimum. The SMART TURN B1200 S CNC turning center is offered with a wide range of equipment, including a bar feeder, Y-axis and FANUC intelligent CNC control. The total weight of the machine is 7000 kg. Technical specifications of the BIGLIA SMART TURN B1200 CNC lathe Gene ...
GILDEMEISTER TWIN 65 CNC automatic lathe was built in 2005 in Germany by GILDEMEISTER Drehmaschinen GmbH. The machine is used for precise, multi-axis machining of workpieces with complex geometries. To increase overall production efficiency, a combination of two spindles and two 12-position turrets with excellent technical specifications are used inside the large working area. Both spindles feature a C-axis with a high indexing accuracy of ± 0.002 mm, which facilitates complex machining operations that require precise positioning of the workpiece. All this is complemented by an intelligent SIEMENS CNC control with an intuitive interface. The GILDEMEISTER CNC turning center weighs 10000 kg. Technical specifications of the GILDEMEISTER TWIN 65 CNC lathe General data - number of axes: 8 (X1, X2, X3, Y1, B, Z1, Z2, Z3) - feed in the X1/X2/X3 axis: 300/180/175 mm - feed in the Y1/B ax ...
CN FAGOR 8055-T Machine equipped with quota viewers, turret 2nd pentagonal wagon Spindle diameter 2,000 mm Maximum turntable height 1,310 mm RAM stroke 1,000 mm Maximum diameter 2,200 mm Spindle Max Speed 150 rpm Nr. 3 wagons type 1 RAM 1 turret 1 side Main engine power 52 kW
Maximum turnerable diameter 1200 mm Maximum permissible diameter 1250 mm Spindle engine power (S1/S6) 55 / 66 Kw Spindle maximum laps 1200 rpm ASA 15" Spindle Attachment Fast speeds 12 m/min X-axis stroke 750 mm Z-axis stroke 750 mm Rated engine torque 20 (X)-20 (Z) Nm Peak engine torque 80(X)-80(Z) Nm Nominal thrust force 1200(X) -120 (Z) N Screw pitch 10 (X) -10 (Z) mm Tools 24 Crown HIRT tool attachment Maximum weight per cell 15 kg Tool change cycle time 10 seconds Maximum weight on tool change ~ 250 Average tool weight ~ 10 Maximum milling tool diameter 150 mm Maximum tool length 350 mm Siemens Sinumerik Control
Ø plateau: 1250 mm Top speed: 500 rpm - 2 ranges Ø false plateau: 1450 mm Maximum piece: 1550 mm Maximum height of the piece: 1200 mm RAM stroke: 800 mm Crossbar stroke: 850 mm Tool warehouse: 10 ATC CNC Siemens 810 D

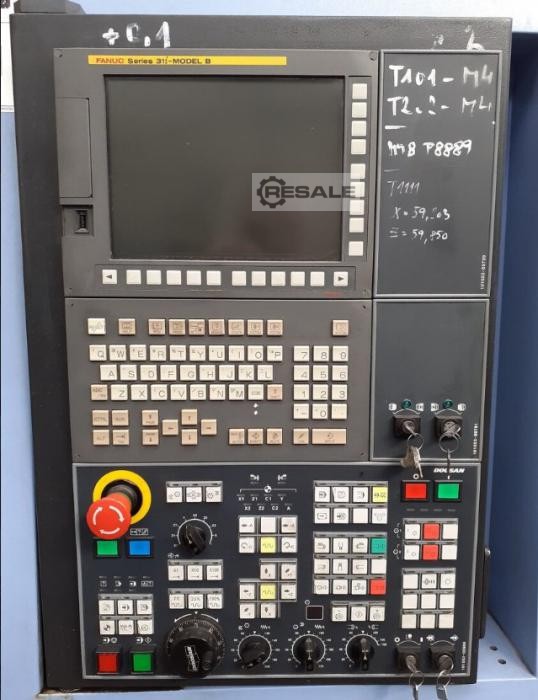

The machine is in good technical condition, a test run is possible by prior arrangement. Hours: 8,981 Upper driven tool turrets with Y-axis, lower driven turret, double slide with two spindles. Control: FANUC 31i-B. Max. circumferential diameter above the bed: 300 mm Max. circumferential diameter over the support: 230 mm Max. turning diameter above the bed with upper turret: 230 mm Max. turning diameter above the bed with lower turret: 230 mm Max. turning length: 600 mm Max. distance between the ends of the right and left spindle: 980 mm Milling area outside the axis of rotation due to Y-axis: 100 mm (+/- 50 mm) Max. rod diameter (left spindle): 65 mm Max. rod diameter (right spindle): 65 mm Max. permissible workpiece weight without sub-spindle (incl. chuck weight = 23 kg): 12 kg Total weight: 7,800 kg Accessories: SS 2500 bar feeder, length 200–1 ...
Ø board: 1250 mm Maximum turnerable: 1500 mm Useful height: 1355 mm Vertical crossbar stroke: 800 mm Ram vertical stroke: 1000 mm Toolholder number: 15 Table pruned: 12000 kg CNC Tesla NS 642 C Fast: 8 m/min Power: 40 kW Weight: 27.2 ton

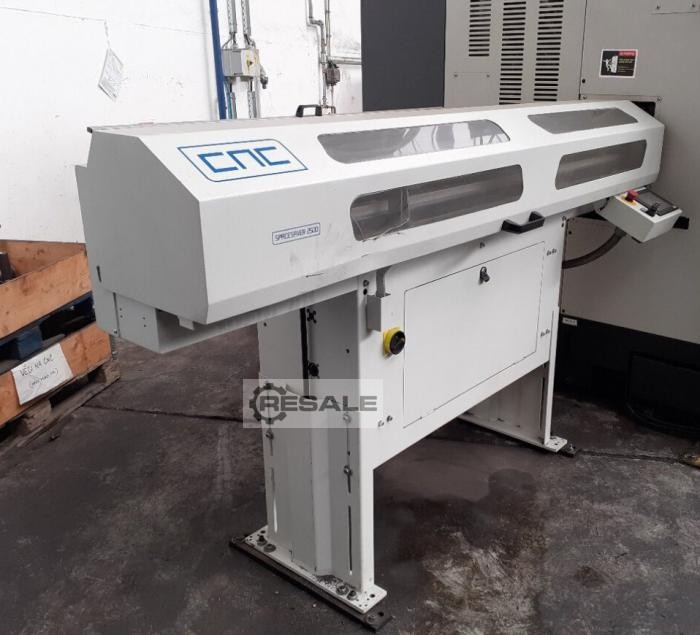

The machine is in good technical condition, a test run is possible by prior arrangement. (spindle 32 mm) + Mitsubishi E60 control. Bar feeder included – for bars up to 3000 mm! Max. turning diameter: 60 mm Max. turning length: 120 mm Circulation diameter over cross slide: 120 mm X-axis: 170 mm Z-axis: 170 mm Spindle bore: 34 mm Max. bar diameter when using the loader: 32 mm Spindle holder: diameter 85 mm Spindle motor: 3.7 kW Spindle speed: 100–5,000 rpm Rapid traverse (X and Z axis): 15 m/min Min. program input: 0.001 mm Max. tool diameter: 16 mm Machine dimensions (L x W x H): 1200 x 1000 x 1500 mm
Ø board: 1,800 mm Maximum working ø: 2,000 mm Max. Turning height: 1,250 mm Max. weight on the table: 15 tons X-axis: 2700 mm Z-axis: 1200 mm Axis C 360 ° Table speed: 3 - 300 rpm Board engine: 60 kw RAM: 250 x 300 mm Work progress: 0 - 2000 mm/min. Nc: FANUC 15 T SERIES ATC: 50 ISO 50 tools Total weight: 58 ton
The machine is in good technical condition, an inspection by prior arrangement is possible. Max. turning diameter: 465 mm Max. circumferential diameter: 680 mm Max. rotation diameter via cross slide: 465 mm Max. width of the cross-section: 315 mm Travel in X/Z: 300/1050 mm 315mm 3-Jaw Hydraulic Chuck Max. spindle speed: 3250 rpm Spindle bore: 76 mm Spindle drive power (40%/100% ED): 33/22 kW Max. spindle torque (40%/100% ED): 630/420 Nm Max. speed driven tools: 4000 rpm Programmable tailstock, tool measurement, chip conveyor S/No. 8045000336E (2011) Installed power: 50 kVA Power supply: 400 V; 50/60 Hz Dimensions (L x W x H): 5250 x 2300 x 2000 mm Machine weight: 8000 kg
CNC controller: Mitsubishi M-720BM (MAPPS 2) Capacity X-axis travel mm: 260 Z-axis travel mm: 520 C-axis: 360º (0.001°) Turning length mm: 515 Max. turning diameter mm: ø: Ø356 Upper turret Tool holder: 12 Main spindle Speed spindle rpm: 5000 Drive power spindle kW: 15/11 Spindle bore mm: 73 Manufacturer: KITAGAWA Counter spindle Counter spindle travel mm: 525 Equipment Chip conveyor Signal lamp Tool measuring arm Workarea light Working time hours Under power: 7.456 Cutting Time: 5.423 Basic machine dimensions / weight Length mm: 3.495 Width mm: 2.050 Height mm: 2.230 Weight kg: 5.800
Code 71139 DESCRIPTION CNC Center lathe with 2 axis Make P B R Model T 30 SNC x 1500 S/N 30 H / 87 Year 1996 Control Siemens Sinumerik 805 Distance between centers 1500 mm Max. swing 630 mm Max. swing over slide 330 mm Spindle bore 105 mm Spindle speed in 2 ranges stepless ( in program ) 7 – 310 / 44 - 2000 rpm Motor power 15 kW Connected load 33 KVA Machine weight 5500 kg Accessories 8 ATC Duplomatic toolholder R 10 Hydraulic 3 chuck Ø 315 mm 1 fixed steady with 320 mm bore 1 open steady cooling equipment Condition Machine is in good condition
Code 81176 DESCRIPTION CNC Center lathe with 2 axis Make P B R Model T 30 SNC x 3000 S/N 30 – S / 80 Year 1995 Control Heidenhain Manual Plus ( 1998 ) Distance between centers 3000 mm Max. swing 630 mm Max. swing over slide 330 mm Spindle bore 105 mm Spindle speed in 2 ranges stepless ( in program ) 7 – 310 / 44 - 2000 rpm Motor power 15 kW Connected load 33 KVA Machine weight 6000 kg Accessories 3 chuck of 315 mm 1 fixed steady 1 open steady cooling equipment Condition Machine is in good condition

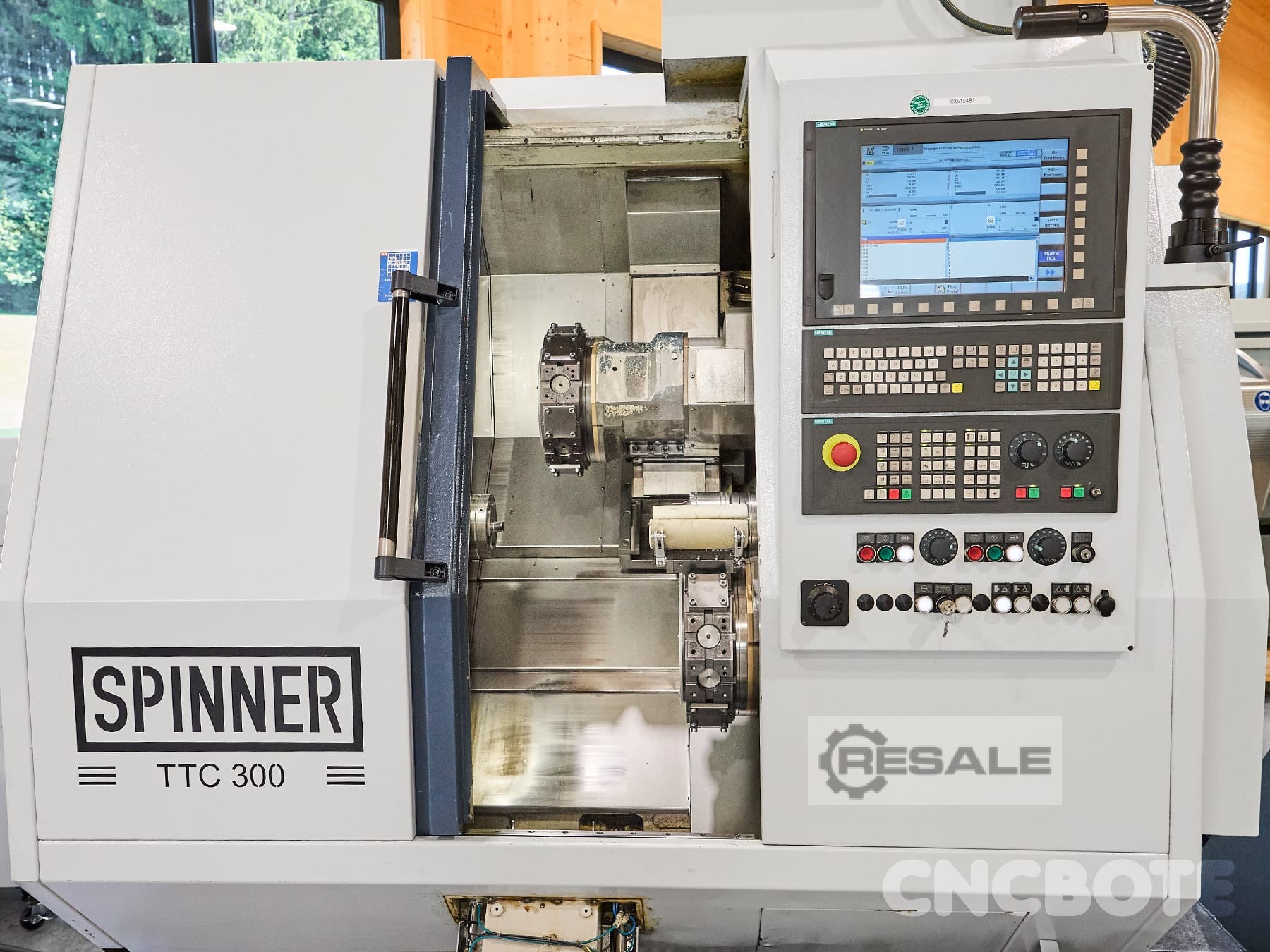

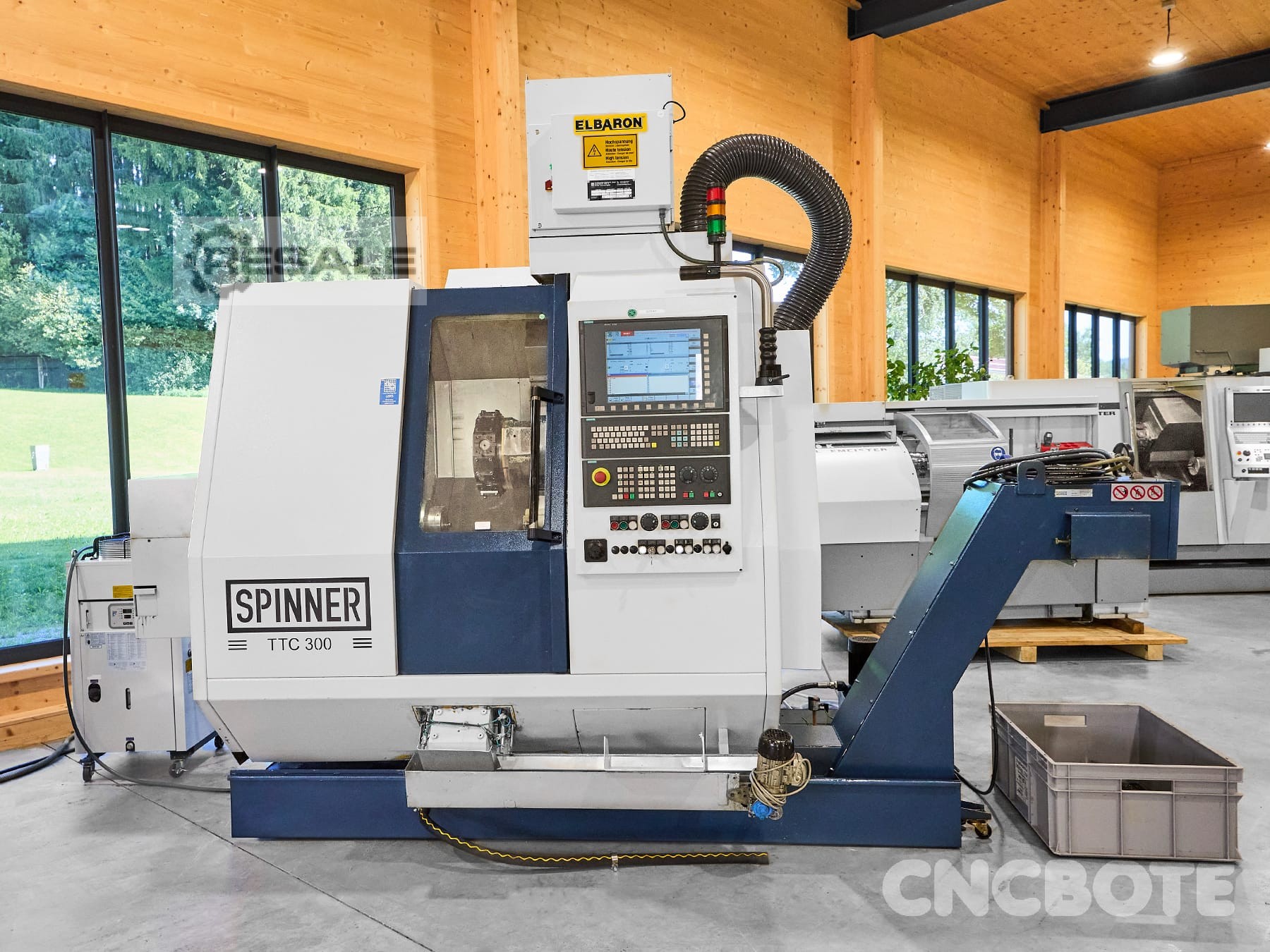

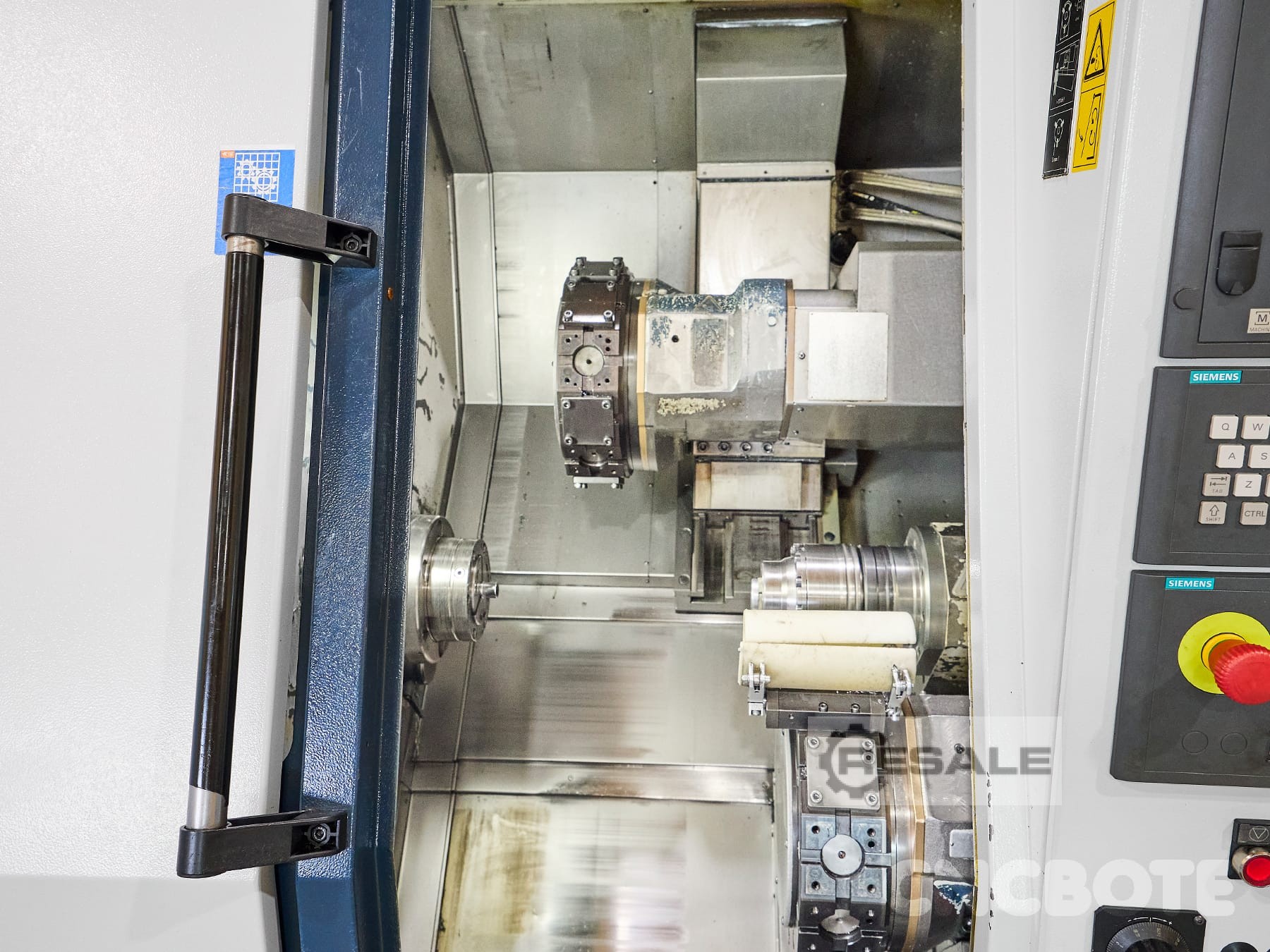

General Manufacturer: Spinner Type: TTC300 65SMMCY Control: Siemens 840D SL ShopTurn Year of Make: 2015 Travel X1 / X2 / Z / Y: 180 / 110 / 450 / +40-40 mm Rapid traverse X1 / X2 / Z / Y: 15 / 15 / 15 / 24 m/min Turning Spindle 1 Speed: 4,000 rpm Chuck size: 250 mm Spindle passage: 52 mm Spindle power S1 / S6: 21 / 27 kW Torque S1 / S6: 201 / 258 Nm Turning spindle 2 Speed: 7,000 rpm Chuck size: 130 mm Spindle power S1 / S3: 6 / 8.5 kW Torque S1 / S3: 49 / 68 Nm Revolver Number of tools: 12 + 12 (BMT45) Rotating Tools: 12+12 (BMT45) Speed: 6,000 rpm Power S1 / S3: 2.3 / 3.5 kW Torque S1 / S3: 7 / 11 Nm Dimensions and weight Dimensions: 2,700 mm x 1,900 mm x 2,165 mm Weight: 5,100 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: IKZ 50 bar with belt filter system Parts Conveyor Belt w ...
to turn the cans by 180° for example before and after the pasteurizer/can warmer/can coding suitable for all can types: Standard, Sleek, Slim
The machine is in good technical condition, after prior agreement possible to test. Control system – Siemens Including filtration. Bed inclination Bed material Number of guides 45 cast iron 3 (4 with Y-axis option) WORKING SPACE (V1- V4) Swing diameter over bed inch 19.69 Swing diameter over cross slide inch 11.42 Largest turning diameter inch 7.87 200 ч Distance between centers inch 30.71 Largest turning length inch 19.69 15.82 20 Max. weight of flying unsupported part of workpiece lb 35 Max. distance of center of gravity of flying unsupported part of workpiece inch 165 from spindle face Max. workpiece weight clamped between centers lb 100 X-axis travel length inches 7.48 Y-axis travel length (OР.) inches 3.14 (+/- 1.57) Z1-axis travel length inches Z3-axis travel length inches Spindle axis height above floor inches 20.67 21.65 39.26 (38.77+1.18) MAIN SPINDLE Spindle face (flat face ...
CNC controller: SIEMENS SINUMERIK 840D-ERGOLINE Capacity X-axis travel mm: 725 Y-axis travel mm: ± 50 Z-axis travel mm: 300 Turning length mm: 160 Max. turning diameter mm: ø: 250 Swing over bed mm: ø: 320 Tool magazine Magazine places: 16 Tool holder: VDI-30 Tool length max. mm: 390 Tool diameter max. mm: 140 Lower turret Number of tool slots St .: 12 Speed driven tools RPM: 4.000 Drive power driven tools kW: 11,7 Milling function: Yes Main spindle Speed spindle rpm: 5.000 Drive power spindle kW: 11,7 (40% ED) Maximun torque Nm: 280 / 360 (100% / 40% ED) Coolant system Tank capacity liter: 980 L High-pressure bar: 8 / 20 Equipment Chip conveyor CE conformity Coolant gun Air blast / coolant switch-over Internal coolant supply Paper band filter Automatic workpiece magazine loader - 16 positions x ø 220 Working time hours ...
Description Sell used DMG NEF400 V3 5th Generation ISM 2-Axis Universal Lathe with C-Axis. Travel: X: 255mm Z: 800mm Lsbh Dtw Ujurtmre Hjrt Turning diameter over bed: 385mm Vibration diameter: 350mm Turning Length: 650mm Equipment: Main spindle as integrated spindle motor Speed: Max. 4500rpm Drive power: 8.0/11.5kW (100/40% ED) 12-speed disc turret VDI30 with 6 driven positions C-axis and spindle brake (Hydr.) Automatic tailstock, MK4 mount, travel: 680mm CNC control Siemens 840D Solutionline with ERGOline Control, Sinumerik Operate and ShopTurn 3G Linux operating system Technology cycle for the application of an alternating speed for vibration-critical clamping Tool measuring device can be used manually in the working area Hydraulic Coolant spray gun Mechanical Oil Mist Separator Reinforced Coolant Pump 12bar ...
Used lathe from Wagner Wagner WDE 500 Lathe, cycle-controlled Only approx. 1700 operating hours Turning diameter 500 mm Turning length 1500 mm Control Siemens 802 C Circumferential diameter over bed carriage 280 mm Spindle bore diameter 82 mm Number of Controlled Axes 2 Speed range 20- 3000 rpm Rapid traverse speed 5 m/min Number of receptacles in the turret 1 Multifix "C" Tailstock Yes MK 5 Drive power 7.5 kW Machine weight approx. 3.0 t Dimensions L x W x H 3.3 x 1.7 x 1.7 m Cycle-controlled CNC lathe in good condition. Accessories: - Coolant device - Basic holder - 3- Jaw chuck - various PARAT tool holders
Key data: 320 mm, 500 mm, 3800 1/min
OKUMA Genos L 3000-e / 2021 Circumferential diameter max. 390 mm Turning diameter 300 mm Turning length 500 mm X - Axis 235 mm Z - axis 520 mm Y - Axis 100 (+50 / -50) mm C - Axis 360 / 0.001 ° Main spindle: Bar passage 70 (80) mm Speed range 38 - 3800 rpm Spindle motor 22 KW Torque 412 Nm Sub-spindle: Bar Passage 43 (53) mm Speed range 6000 rpm Spindle motor 7.5 KW Torque 47.7 Nm Tool turret: Number of applicants WZ im Revolver 12 Speed range 45 - 6000 rpm Drive 5.5 KW Torque 31.3 Nm Machine weight approx. 5500 kg CNC OKUMA OSP P300LA-e Electr. Handwheel Software: Automatic main spindle interpolation Software: Screw Line Interpolation Software: Eccentric milling Software: Tool height correction in Y-axis Software: Synchronized tapping with applied tapping Tools Software: ADVANCED ONE-TOUCH-IGF with autom. Work plan creation OSP-P300LA-e TE ...
DATASHEET – RAMO TN20 CNC LATHE Manufacturer: RAMO Industrie SA Model: TN20 Numerical control: NUM 1060 (Telemechanical) Type: Inclined Bench CNC Lathe Condition: Good general condition, visible machine under power ⚙️ TECHNICAL SPECIFICATIONS Power supply: 3 × 400 V – 50 Hz Current rating: 63 A Control voltage: 110 V ~ Signaling voltage: 110 V ~ Lighting voltage: 220 V ~ Clutch voltage: 24 V = MECHANICAL CAPACITIES (TN20 standard) Turning diameter above the bed: 420 mm Turning diameter above carriage: 250 mm Length between toes: 500 mm Z-axis travel: 500 mm X-axis travel: 200 mm Spindle passage: Ø 40 mm Spindle speed: 30 to 4000 rpm Spindle Cone: Camlock D1-4 Spindle motor power: 7.5 kW Fast feeds: 10 m/min (X and Z axis) Tool Turret: 8 automatic positions DIMENSIONS AND WEIGHT Dimensions (W × D × H): app ...
weight max.: 5 t workpiece diameter: 100-2500 mm gear diameter: 250 mm gear width: 140 mm total power requirement: 0,8 kW weight of the machine ca.: 0,8 t dimensions of the machine ca.: 2,0 x 1,4 x 1,0 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Key data: 420 mm, 650 mm
Machine Type: CNC Lathe Manufacturer: Okuma Type: LB400M-1SC Year of Make: 2000 Commissioning: 2001 Control: OSP-U100L Spindle hours: 14502 hrs Delivery time: in stock Machinery - Interior extraction from Hengst Filtration (built in 2023) - Touchsetter, tool measurement - C-axis (main spindle) - Tool breakage and wear monitoring - 3-jaw chuck, Kitagawa B210, Ø250 - Tailstock available - Coolant supply, also available through the tool - Dialogue programming IGF - Chip conveyor (scraper) Technical details - Max. turning length: 650 mm - Max. turning diameter: 420 mm - X-axis travel: 300 mm - Travel Z-axis: 675 mm - Travel C-axis: 360° - Chuck passage: 72 mm - Spindle passage: 95 mm - Clamping cylinder passage: 95 mm - Tool holder: VDI 40 - Tool stations: Stations 12 - Spindle speed: 2800 rpm - Main spindle power: 22/30 kW - M-spindle ...
Key data: 370 mm, 600 mm
Machine Type: CNC Lathe Manufacturer: Okuma Type: LU300-2ST Year of Make: 2005 Control: OSP-E100L Delivery time: in stock Machinery Parts conveyor belt and parts collection tray – workpiece chute with removal conveyor belt incl. electrical kit 2 disc turret with VDI40 (12 + 8 stations) Power clamping cylinder for hollow chips – Hole in the drawbar 52mm Extension Kit "D" – Kit one touch IGF-D Open/close chuck while the spindle is running via M-Code Reinforced coolant pump 8 bar Coolant on A and B turrets can be switched via M function Interface for connecting rod feed Chip conveyor Technical details Swing diameter over bed: 530mm Swing diameter over slide: 380mm Distance between the tips: 600mm Max. turning diameter: 370mm Max. turning length: 600mm Travel X-axis: upper 260mm ...
Key data: 340 mm, 1000 mm
Machine Type: CNC Lathe Manufacturer: Okuma Type: LU15-M Year of Make: 2000 Control: OSP-U100L Country of origin: Japan Delivery time: in stock Long turning length-1000 mm Towable Tailstock – Automatic G152 Partial hollow clamping device The lathe is in very good condition. The basic and additional equipment makes it possible to process long turning lengths of up to 1000 mm with this used machine. Effective productions continue to be achieved thanks to the towable tailstock – automatic, the tool breakage/wear control, the partial hollow clamping device, the K-pump and the dialogue programming (IGF). An optimal machine for economical and reliable production. The machine is user-friendly and can be integrated into production immediately. Machinery Spindle motor VAC built 22/15 kW Long turning length – 1000 mm towable tailstock – automatic G152 3-jaw chuck Forka ...

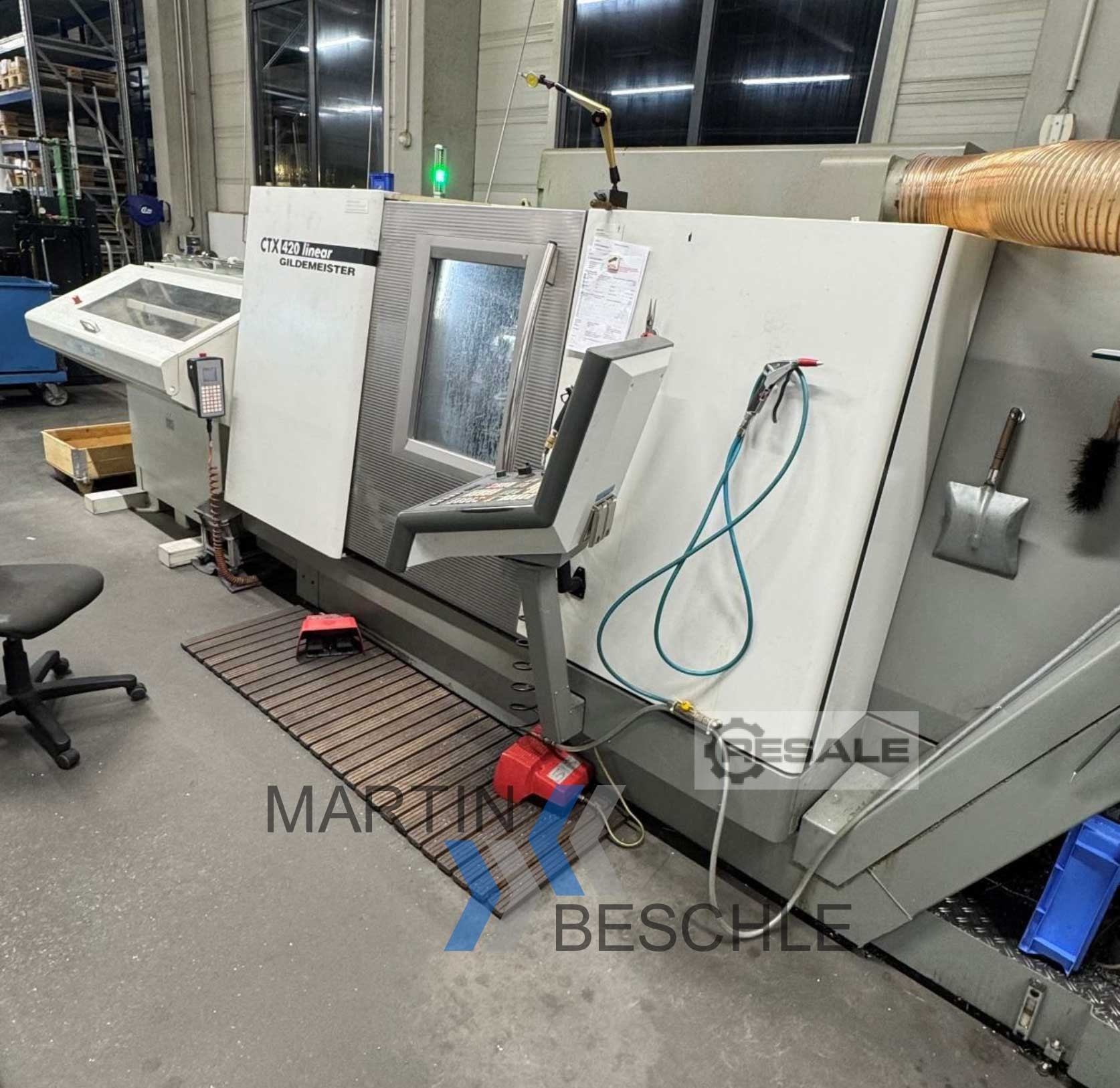

CNC lathe GILDEMEISTER CTX 420 linear With Siemens 840 D powerline controller Year of Make: 2006 Max. rotatable diameter: 324 mm Max. rotatable length: 600 mm Max. circumferential diameter: 680 mm Spindle bore: 79 mm Max. spindle speed: 4500 rpm With the following accessories: Slide protection with interior lighting 12-speed turret with 12 driven stations Y axis , C axis Tool measuring device Parts collection facility 3 jaw chuck hydraulic 0 210 mm with foot switch Hydraulic Collet Chuck Hainbuch IRCO Breuning RBK 10012 Bar Feeder Signal lamp Tailstock with quill Conveyor Oil mist extraction Coolant system with IKZ and belt filter system Operating instructions
diameter: 260 mm tool adaptor: 40 SK : S 20 x 2 für DECKEL Slide cross: 48 mm Weight: 5 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
General Manufacturer: Stama Type: MT 733 two Year of Make: 2020 Control: Siemens Sinumerik 840D SL Travel: X 615 mm Y 290 mm Z 500 mm Rapid traverse: 65 m/min Feed: x 4,000 N / Y 4,000 N / Z 8,000 N Main spindle unit Speed: 12,500 rpm Tool holder: HSK-T63 Pull-in force: 18 kN Spindle bearing diameter: 80 mm Tool magazine Number of available magazine slots: 64 Tool diameter max. when fully equipped: 78 mm Tool diameter max. with free secondary positions: 140 mm Tool length: max. 300 mm Tool holder: HSK-A/T63 Tool weight: max. 10 kg Total chain load: max. 115 kg Rotary swivel unit Swivel angle: +30 to -180° Swivel axis repeatability: ±1" Swivel axis speed: max. 61 1/min Clamping torque tangential swivel axis: 3,000 Nm Clamping torque tangential counter bearing: 1,800 Nm Condition Condition: Used Functional: tested and fully functional
Heid S-200 CNC Lathe Manufacturer: Heid Type: S 200 Machine Type: CNC Lathe Tailstock travel: 175 mm Tailstock quill holder: Morse cone: 4 MK Quill stroke: 140 mm Quill diameter: 95 mm Pressure capacity: 17 kN Connection 50 Hz 3x: 380 Volts Total power requirement: 65 kVA Spindle speeds: Infinitely variable from 0 rpm to: 4000 rpm Spindle bore: 77 mm Tool shank cross-section: 25x25 mm Turning diameter above the bed: 420 mm Turning diameter maximum: 250 mm Turret slide: Longitudinal travel (Z-axis): 1150 mm Flat travel (X-axis): 230 mm More items - new and used - can be found in our shop! International shipping costs on request!
CNC automatic lathe Traub TNL 32-7 • Version TNL32/TNL32K alternating mode • Control TX8i-s • Main spindle passage 32 mm, with C-axis • Counter spindle incl. partial hollow stress • Revolver top X/Y/Z/H axis: 10 shots dual drive • Revolver bottom X/Y/Z/H axis: 9 shots total drive; Counter spindle sep. Drive • RAPP 8-fold; Total drive 3 tools IK • Workpiece deflection unit with linear gripper • Coolant supply 3 bar • Coolant supply 8 bar • Hinge belt chip conveyor, discharge height 1000mm • Glass scale X-axis turret top/bottom • Compact belt filter for cooling lubricant: filter fineness approx. 30-40 μm • Bar loading magazine FMB LSK 38, for rods 3.2 m (original price at that time 340.000,- €uro)
brand: CKD BLANSKO Model: SKHK 50 plateau diameter: 4770 mm maximum diameter: 5200 mm ram stroke: 2000 mm maximum height: 3000 mm capacity: 50 ton. Plateau revolutions: 1 range: 0.4-12/ 2 range: 1.6-50
MORI SEIKI NT6600 CNC INTEGRATED MILL TURN CENTER WITH LIVE MILLING MAXIMUM SWING OVER BED: 42" MAXIMUM WORK PIECE DIAMETER: 42" MAXIMUM WORK PIECE LENGTH: 239" MAXIMUM BAR DIAMETER: 6.4" SPINDLE BORE: 7" X AXIS TRAVEL: 41" Y AXIS TRAVEL: 26" Z AXIS TRAVEL: 242" B AXIS: +/- 120 DEG. MAIN SPINDLE SPEED: 1500 RPM MAIN SPINDLE MOTOR: 40 HP MILLING SPINDLE SPEED: 8000 RPM MILLING SPINDLE MOTOR: 40 HP ELECTRICS: 220V/3P/60Hz/216A OAD (APPROXIMATE): 490" X 182" X 169" HIGH WEIGHT (APPROXIMATE): 120,560 LBS. EQUIPPED WITH: C AXIS YAXIS B AXIS LIVE TOOLING/MILLING 20" CHUCK FS-31iA5 CNC CONTROL 140 POSITION AUTOMATIC TOOL CHANGER PROGRAMMABLE TAILSTOCK COOLANT THROUGH SPINDLE (HIGH PRESSURE) CHIP CONVEYOR Additional Control Options: Automatic Power Shut-Off MAPPS 4 System Part Program Storage: 8mb Stored Programs: 1000 Remote Communication Function ATA Flash M ...

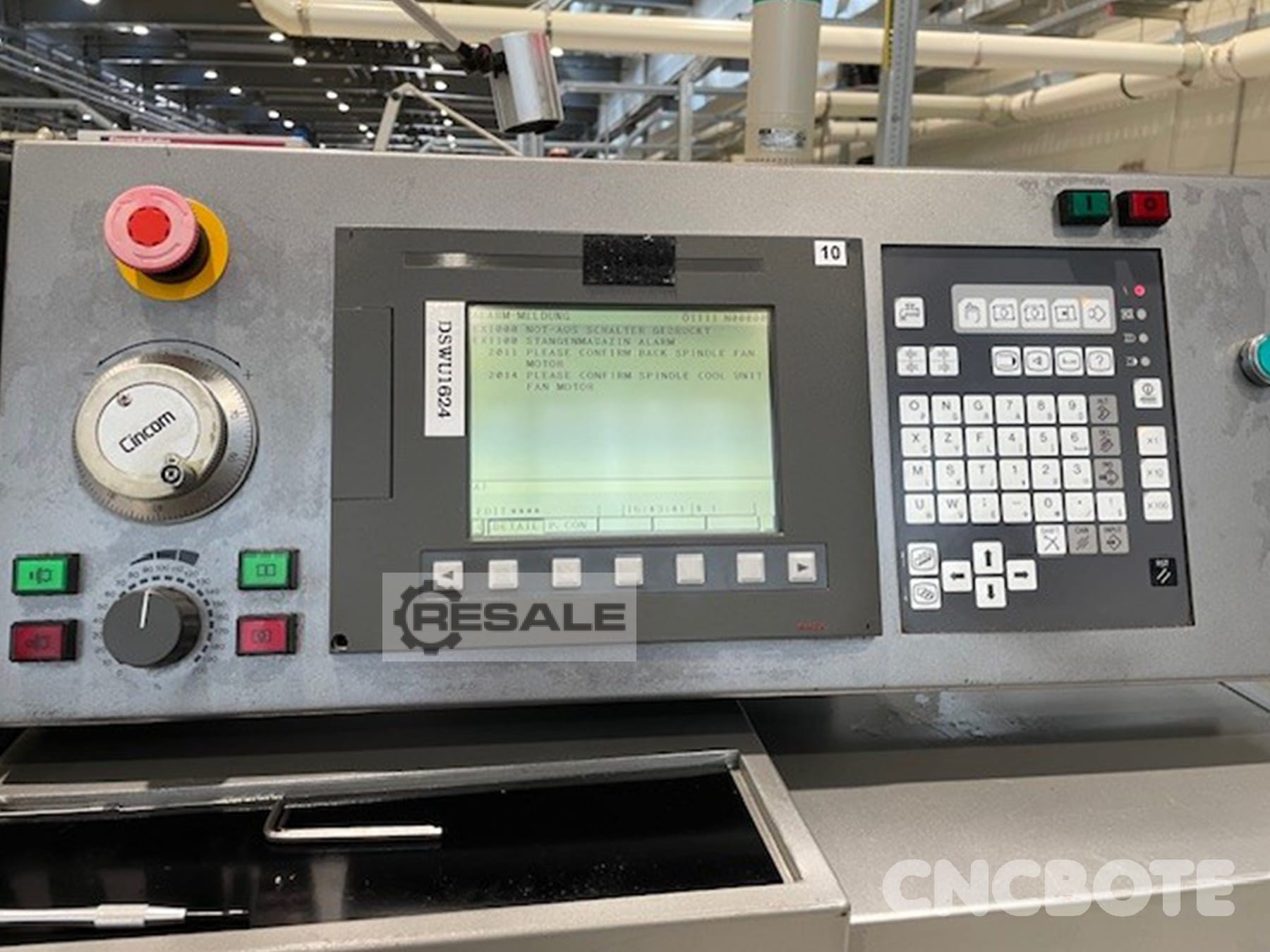

General Manufacturer: Citizen Type: Cincom K 12 E Year of Make: 2007 Control: Citizen Cincom Number of axles: 7 Outer diameter: 12 mm Turning length: 200 mm Thread diameter: 8 m Spindle Passage: 20 mm Spindle Speed: 200 – 10,000 t/min Tapping diameter: 5 m Sub-spindle Speed: 0 – 10,000 t/min Workpiece length for counter-machining: 80 mm Tool Carrier Number of driven tools: 4 Speed of the driven tools: 6,000 t/min Drive Connection 50 Hz 3x: 400 Volts Spindle motor: 3.7 kW Dimensions and weight Dimensions: 2,020 mm x 1,070 mm x 1,680 mm Weight: approx. 2,250 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Bar Feeder Iemca Genius 118 32U High frequency spindle 80,000 rpm
MEXPOL TUB 830 C CNC lathe was built in 2007 in Germany by MEXPOL Werkzeugmaschinen GmbH. The machine, with its extensive machining capabilities, is an excellent choice for both unit and series production. Workpieces with a maximum diameter of 830 mm are machined inside a large workspace by means of components characterised by the best technical parameters. In order to achieve excellent feed dynamics and repeatability, the X and Z axes are driven by powerful drives of the renowned SIEMENS company. The rigid design of the TUB 830 C x 2250, in turn, eliminates any vibration and oscillation, guaranteeing maximum process stability during even the most intense challenges. The MEXPOL TUB 830C CNC lathe is offered with a wide range of equipment, including an advanced SIEMENS CNC control and a MULTIFIX toolpost. The total weight of the machine is 4930 kg. Technical specifications of the MEXPO ...
Machine Details Warehouse number 1105-03604 Machine type CNC lathe GILDEMEISTER/gratziano brand Type GP 50 Year of construction 2000 Control type CNC Control FANUC 18 I Storage location FRANCE Country of origin Germany Delivery time by arrangement Freight base from location Technical details Rod diameter 50 mm Chuck diameter 150 mm Turning length 500 mm Speed 6000/5000 rpm Indexing per C-axis, 0.001° degrees Tapping spindle yes/yes Rod diameter 50 mm Speed 5000 rpm Indexing per C-axis, 0.001° degrees Turret head (x-fold) 2x 12-speed VDI 30 Driven tool stations 2x 12 Control FANUC 18 I Coolant emulsion Total power requirement 45 kW Machine weight approx. 6 t Space requirement approx. 4.8 x 2.2 x 2 (+Irco) m Chip conveyor Bürener Maschinenfabrik Addition Energized and ready to demonstrate ya Accessories Tool holder 10 rigid, 3 driven pieces / off Part ...
The machine is in good technical condition, after prior agreement it is possible to test it. Max. turning diameter over the bed 450 mm Max. machining diameter 320 mm Max. machining length 500 mm Distance between centers approx. 640 mm X-axis travel 160 mm Z-axis travel 540 mm Spindle bore diameter 65 mm Spindle taper CM4 Max. spindle speed 4,000 rpm Main motor power approx. 15 kW Turret head 8–12 tools Tool clamping type VDI Control system FANUC 18T (most common) Tailstock Usually no Bar feeder No Machine dimensions (L × W × H) approx. 3,650 × 1,200 × 1,980 mm Weight approx. 4,800 kg Power supply 400 V / 50 Hz
CNC lathe WIA L 200 SY Manufacturer: Hyundai YEAR: 2014 Control Fanuc ... Fanuc 31i Turning diameter ... 550mm Rotation length... 530mm Axis Y ... +-40mm Counter spindle Spindle bore... 70mm Tool turret... 12 L x W x H ... 3045 x 1707 x 2021mm Machine weight ... 4600kg The machine is in good condition, possible to test under power.
Machine Details Stock-No. 1105-03607 Type of machine CNC Turning and Milling Center Make MORI SEIKI Type SL 150 SMC Year of manufacture 1997 Type of control CNC Storage location FRANCE Country of origin Japan Delivery time immediately Freight basis ex stock Technical details turning diameter 420 mm turning length 560 mm control fanuc 16 T swing dia. 455 mm rapid power traverse in X-and Z direction 18/24 m/min Travel x/z 220 / 520 mm bar material dia. 45 mm spindle drive 11 / 7.5 kW Spindle RPM 50 - 5000 U/min Spindle Torque 143 Nm spindle nose JIS A2-5 Turret positions 12 supspindel wiht 3 jaw chuck sup spindle Travel 450 mm total power requirement 25 kW Additional information WHIT FANUC 16 T CONTROL SUP SPINDLE C AXIS LIVE TOOLS X 5 PARTS CATCHER COLLECT CUCK OFF MAIN SPINDLE AND 3 JAW CHUCK OFF SUP SPINDLE - coolant equipment SHIP CONVEYOR
The machine is in good technical condition, after prior agreement it is possible to test it. Maximum turning diameter: 400 mm Maximum revolving diameter: 760 mm Maximum machining length: 680 mm Maximum spindle passage: 75 mm Travels in the X/Z/Y axes: 250/750/+-50 mm Rapid traverses X/Z/Y: 30/30/12 m/min Machine weight: 6000 kg Machine dimensions: 3230 × 2100 × 2252 mm Fanuc drive performance parameters: Spindle motor power: 15 / 18.5 kW Maximum spindle speed (2 speeds): 0–875 / 0–3500 rpm⁻ Turret power for driven holders: 3.7 / 5.5 kW (30 min) Maximum speed of driven holders: 6000 rpm Servo motor power for X/Z/Y axes: 2.7 / 2.7 / 2.7 kW Cooling pump motor power: 0.5 kW Maximum torque on the MK spindle: 527 / 757 (30 min) N m Maximum torque of driven holders: 35 N m (15 min, 1500 rpm) Recommended clamping pressure range for clamping: 0.35 MPa – 3 MPa
General: Year of construction 2003 Switch-on hours 33,321 h Working hours 10,144 h Control Siemens 840D ShopTurn Travel X 400 mm Z 400 mm Rapid traverse 12 mm/min Spindle: Spindle speed 8,000 rpm Rod passage 32 mm Turning diameter 120 mm Revolver: Number of stations 16-fold Number of driven tools 8 Tool holder VDI16 Dimensions and weight: Dimensions 2.500 x 1.400 x 1.700 mm Weight approx. 2,300 kg Other equipment and included accessories: Tailstock programmable Electronic handwheel Oil mist extraction Preparation for bar loaders
