turning center used for sale

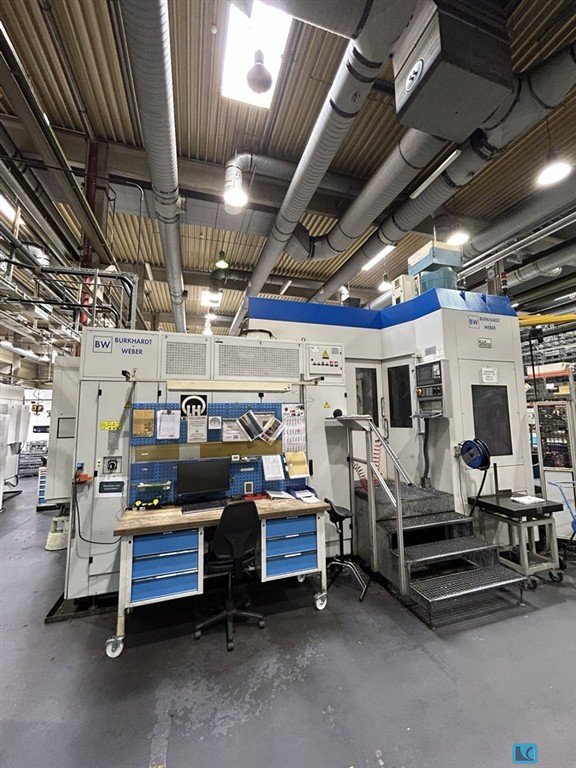

max. workpiece diameter:29 mm min. workpiece diameter:26 mm workpiece length:66 mm the system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mm Changing parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mm Total length will probably be almost 400 mm possible with a few conversions. Also dependent on tool lengths, machining lengths on the component, etc. Workpiece: Piston pin Drawing number: WHT 000 718, WHT 000 718 A Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65 Length: 66 or 65 mm Material: 17Cr3 Quantity: xxx parts / year Cycle time: 5 sec. However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing th ...

Technical data Manufacturer: CHEVALIER Model: FALCON-2033VMC Machine Type: Vertical CNC Machining Center Table size: 1000 × 450 mm Max. table load: 500 kg Travel (X/Y/Z): 650 / 500 / 500 mm Spindle mount: #40 Speed range: 60 – 6000 rpm⁻¹ Spindle motor: 7.5 kW Rapid traverse: 15 / 15 / 12 m/min Positioning accuracy: ±0.005 mm Repeatability: ±0.003 mm Tool changer: 20 places Max. tool weight: 7 kg Dimensions set-up: 2740 × 2508 × 2755 mm Machine weight: approx. 4500 kg Configuration Tool magazine: 20-fold carousel Coolant pump: integrated Compressed air requirement: 5 kg/cm², 200 l/min Power requirement: 15 kVA (optional 20 kVA) Auction-ID: A7-46453-10

Serial Number: SH501AG0061 Power: 22 kW Type: CNC Horizontal Machining Center with Pallet Changer (2 Pallets) Routes: X 800 mm, Y 700 mm, Z 700 mm Pallet size: 500 x 500 mm Maximum load per pallet: 500 kg The 4th axis continuously Spindle speed: up to 12000 rpm Tool Holder Cone: MORE BT-40 Tool Capacity: 40 Fast Feed: 50000 mm/min Voltage: 200 V Description: Machine suitable for high-precision machining with automatic tool changer and pallet system Manufactured in: Japan Auction-ID: A7-46053-13

The machine is in good technical condition, after prior agreement it is possible to test it. CONTROL SYSTEM Control language - completely in Czech 3D simulation - yes Programming type - Dialogue and NC TABLE Table dimensions - 1,270 x 610 mm T-slots - 5 x 18 mm Max. table load - 1,350 kg Distance between the spindle face and the table - 150 - 760 mm TRAVELS X-axis - 1,070 mm Y-axis - 610 mm Z-axis - 610 mm SPINDLE Max. spindle speed - 12,000 rpm Spindle taper - SK40 TOOL MAGAZINE Number of tools - 24 Max. tool diameter - 80 mm Max. tool weight - 7 kg

The machine is in good technical condition, after prior agreement it is possible to test it. 0 Baumuller ball screws, spindle diameter 60 mm, SK 40, power 5.5kw/11 kW, torque 100Nm. Rotary tool changer 12. 3 axes and 4th axis only control board without 4th axis table..

x-travel:630 mm y-travel:630 mm z-travel:500 mm number of spindle speeds:0 - 15000 spindle motor:32 kW size of pallet:500 x 500 mm b-axis:36000 x 0,001 ° no. of workpieces in the magazine:61 Stück tool taper:HSK 63 weight of the machine ca.:15 t Single-Spindle Mechanical processing cylinder head VR6

x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:20 t dimensions of the machine ca.:6,80 x 3,0 x 3,20 m Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to

x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:15,2 t Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to

spindle speed::max. 12000 tool taper:HSK 80 . b-axis:360 x 0,001 ° worktool support (A-axis):+40 / -95 ° weight of the machine ca.:25 500 Kgs. x-travel:800 mm y-travel:700 mm z-travel:630 mm dimensions of the machine ca.:6200 x 3000 x 3200 mm pallet size::500 x 500 mm no. of tools in the magazine:61 Nos. Weight approx.:23,5 t Horizontal Machining Center with CNC Control System SIEMENS 840 C in well maintained condition. Single spindle

Control Mitsubishi 64S Travel Distances X/Y/Z 600 x 400 x 460 mm Table size 700 x 410 mm Table load 250 kg Spindle speed 12,000 min-1 Tool magazine for 24 Wkz. BT 40 IKZ 20 bar Suction Chip conveyor

x-travel:800 mm y-travel:950 mm z-travel:1020 mm weight of the machine ca.:17 t dimensions of the machine ca.:6 x 3 x 3,2 m Diameter of the table:770 mm max. table load:800 kg tool taper:HSK-A63 max. tool length:465 mm no. of tools in magazin:60 spindle turning speed range:12.000 U/min feed power:8 kN kp power capacity:25/35 kW 5 axis G550-1024 HSK A-63 Grob (Bezeichnung G550-1024) 1 spindle Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:780 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:10 t Number of axles:5 St. spindle turning speed range:20-12.000 U/min numbers of tools in magazin:30 tool taper:SK 40 surface area:500 x 630 mm Round Table B-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

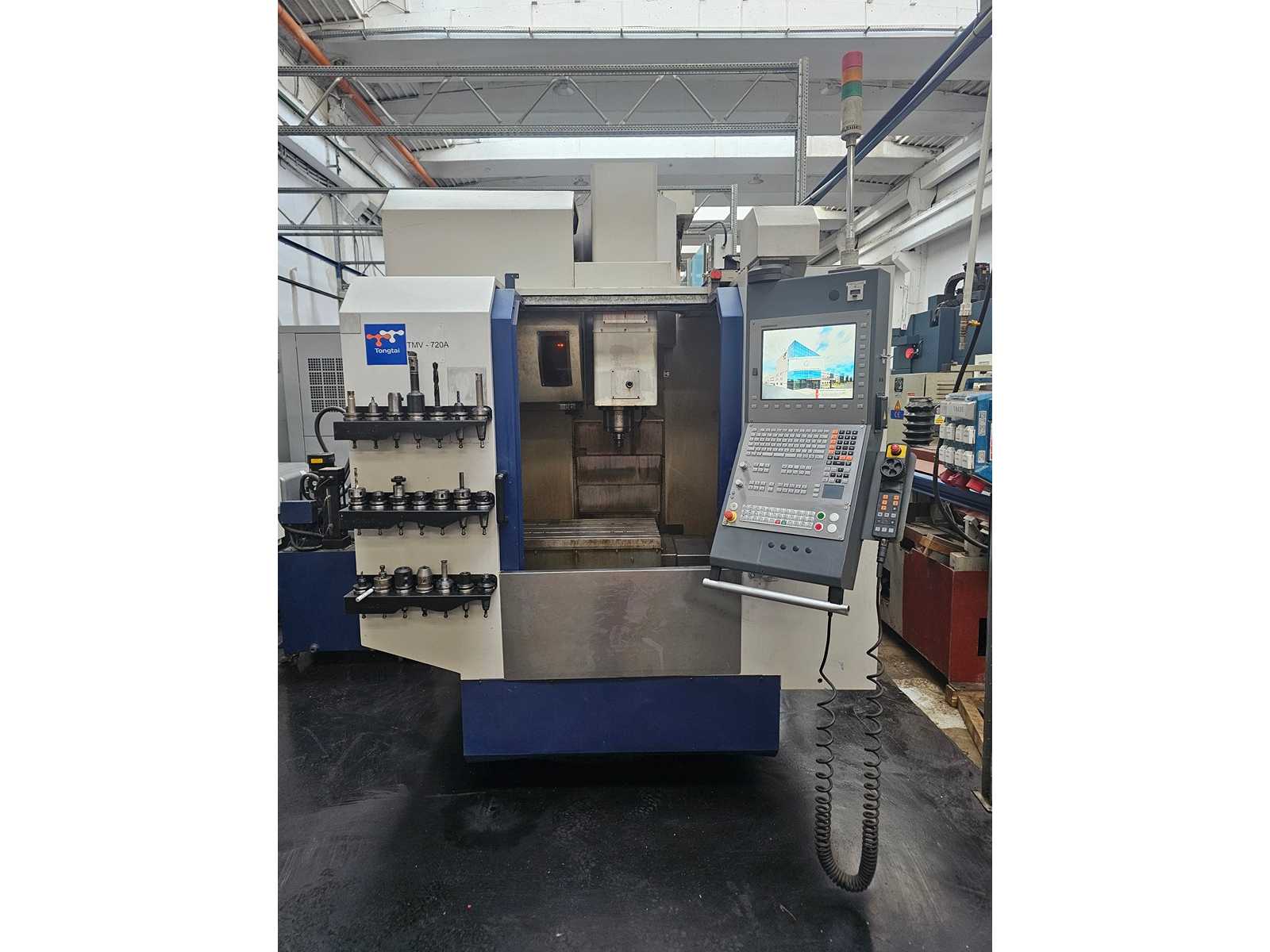

Machine type: CNC Vertical Machining Center Manufacturer: Tongtai Model: TMV-720A Control: Heidenhain CNC control Year: n/a Serial number: n/a Working hours: n/a Table size: approx. 900 x 400 mm Spindle: Vertical spindle Tool holder: SK40 (visual assumption) Tool changer: Yes, side-mounted tool rack Number of tool holders: approx. 20+ pcs included Coolant system: Yes, internal coolant nozzles Chip management: Chip conveyor installed Coolant unit: External filtration unit (Granch Filtration) Control panel: Heidenhain with manual pulse generator (MPG) Emergency stop: Yes Status light: Yes Accessories: Tool holders, coolant system, filtration unit Remarks: Machine in used condition, signs of wear and coolant residues visible. Control boots and initializes. Includes multiple tool holders and external coolant filtration system. Own mass: approx. 5 ...

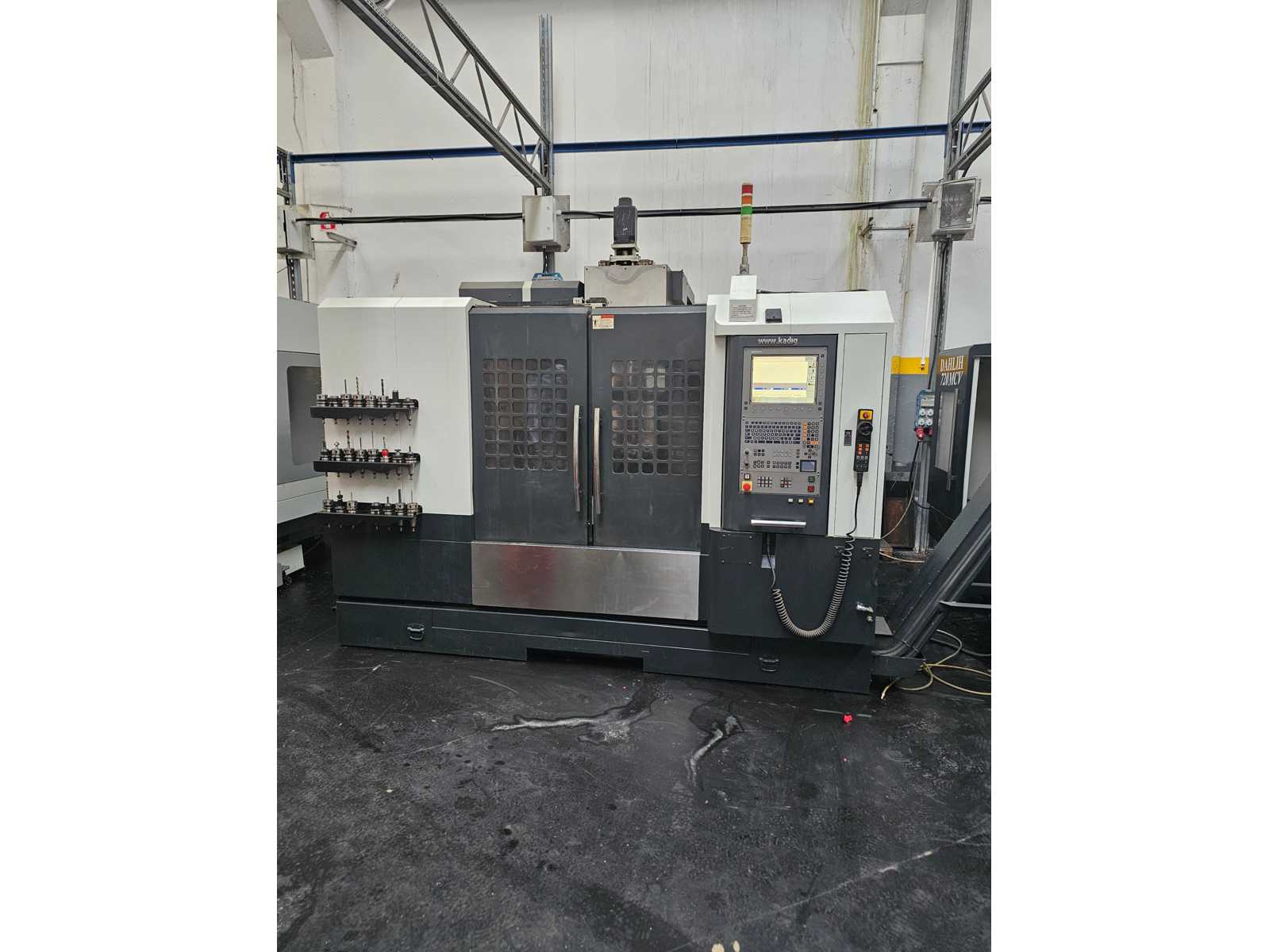

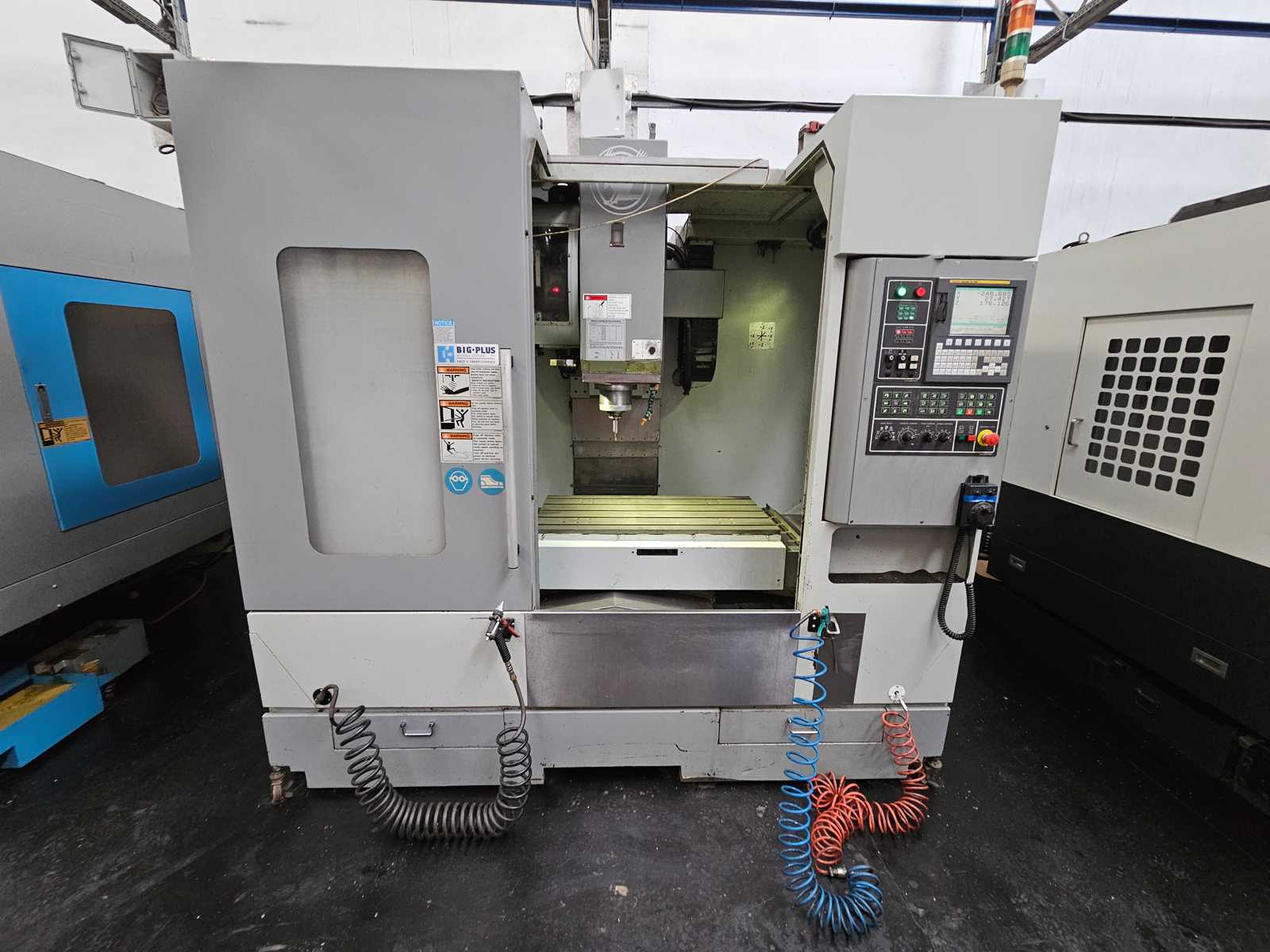

Make: Big-Plus (Taiwan) Type: CNC Vertical Machining Center Model: 850 VMC Serial number: BM110CE01 Control: FANUC Series 0i-MD Technical data: - X / Y / Z travel: approx. 850 mm / 500 mm / 500 mm - Table size: approx. 1000 x 500 mm - Spindle speed: 10,000 rpm - Main voltage: 415 V AC - Power requirement: 20 kVA - Air required: approx. 6–8 kg/cm² Equipment: - Vertical spindle (Big-Plus spindle system) - Tool changer (carousel type) - Coolant system - Enclosed working area with sliding door - Manual pulse generator (handwheel) Control panel: - FANUC interface with display and full keyboard - Feed / rapid / spindle override controls - Emergency stop and cycle controls Condition: Used Auction-ID: A7-45993-49

x-travel:700 mm y-travel:630 mm z-travel:700 mm weight of the machine ca.:15 t dimensions of the machine ca.:4,20 x 2,90 x 2,90 m pallet size::500 x 500 mm tool taper:SK 40 Tool taper:HSK-A 63 turning speed range:10.000 U/min

x-travel:2000 mm y-travel:1600 mm z-travel:1140 mm b-axis:0.0001° x 360° ° number of pallets:4 table surface area:1000 x 1450 mm max. table load:6.000 kg turning speed range:4 - 10000 U/min power capacity at 100 % load:40 kW kW tool taper:HSK100 DIN69893A machine weight ab.:63.000 kg space required L x W X H:12320 x 11000 x 4700 mm incl. 50 x HSK100 tool tapers

Make: Dahlih Type: Vertical Machining Center (VMC) Model: DL-MCV1200 Year: 2010 Control: Heidenhain CNC control Technical data: - X-axis travel: approx. 1,200 mm - Y-axis travel: approx. 600 mm - Z-axis travel: approx. 600 mm - Table size: approx. 1,300 x 600 mm - Spindle speed: up to approx. 8,000–10,000 rpm (typical for model) - Power: 12 kVA (according to plate) Equipment: - Fully enclosed machining cabin with double doors - Heidenhain control panel with screen & keyboard - Electronic handwheel - Tool holders rack (side mounted) - Chip conveyor - Coolant system - Working light Application: - CNC milling and machining of metal components - Toolmaking and precision part production Condition: Used Auction-ID: A7-45993-42

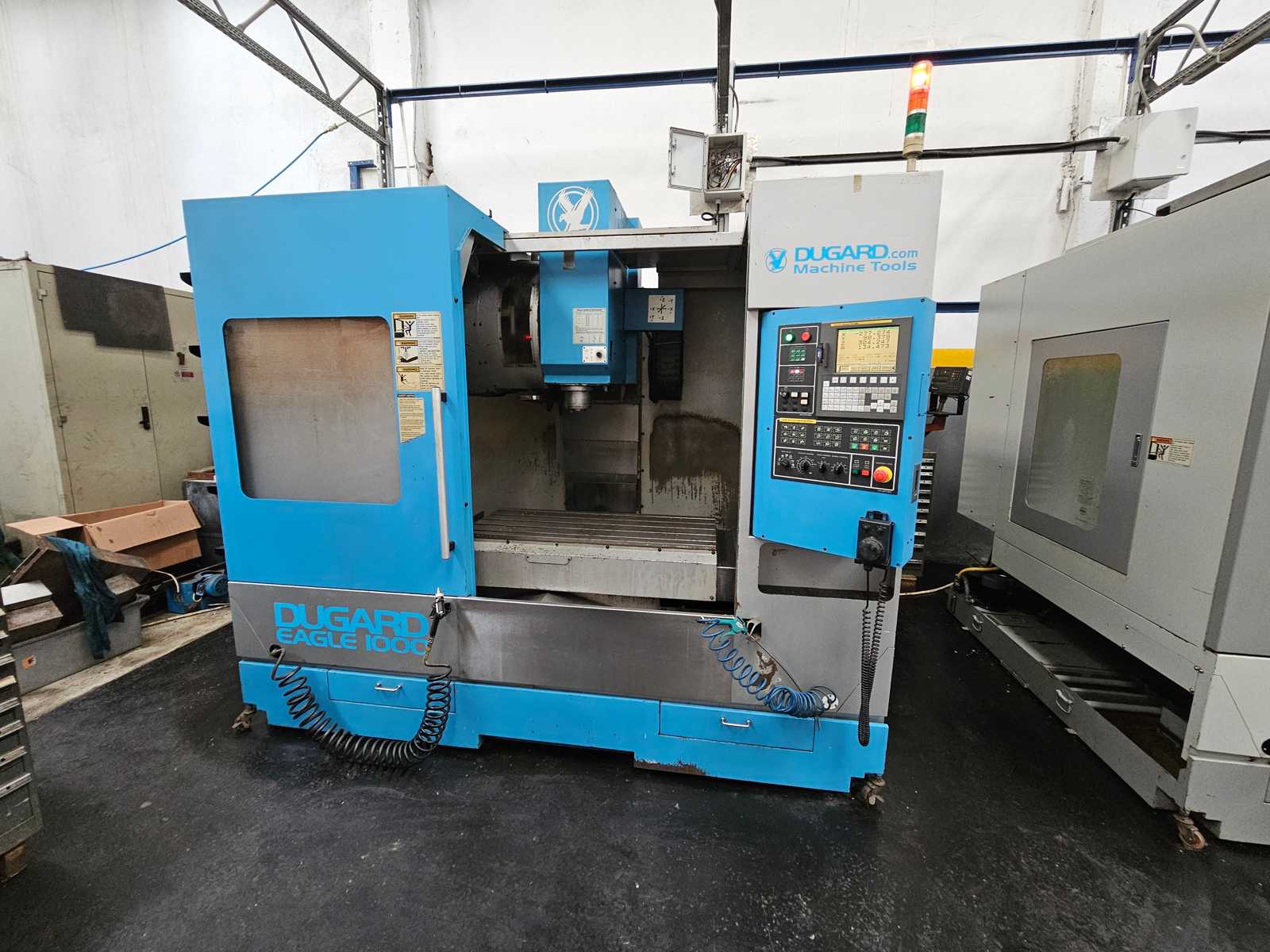

Make: Dugard Type: CNC Vertical Machining Center Model: Eagle 1000 VMC Serial number: MC97BF06 Control: FANUC Series 0i-MC Technical data: - X / Y / Z travel: approx. 1000 mm / 500 mm / 500 mm (typical for model class) - Spindle speed: 8000 rpm - Main voltage: 415 V AC - Power requirement: 20 kVA - Air required: 5–6 kg/cm² Equipment: - Vertical spindle - Tool holders included (side mounted rack) - Coolant system - Manual pulse generator (handwheel) - Enclosed working area with sliding door Control panel: - Full FANUC keyboard and display - Feed / rapid / spindle override controls - Emergency stop and cycle controls Condition: Used Auction-ID: A7-45993-48

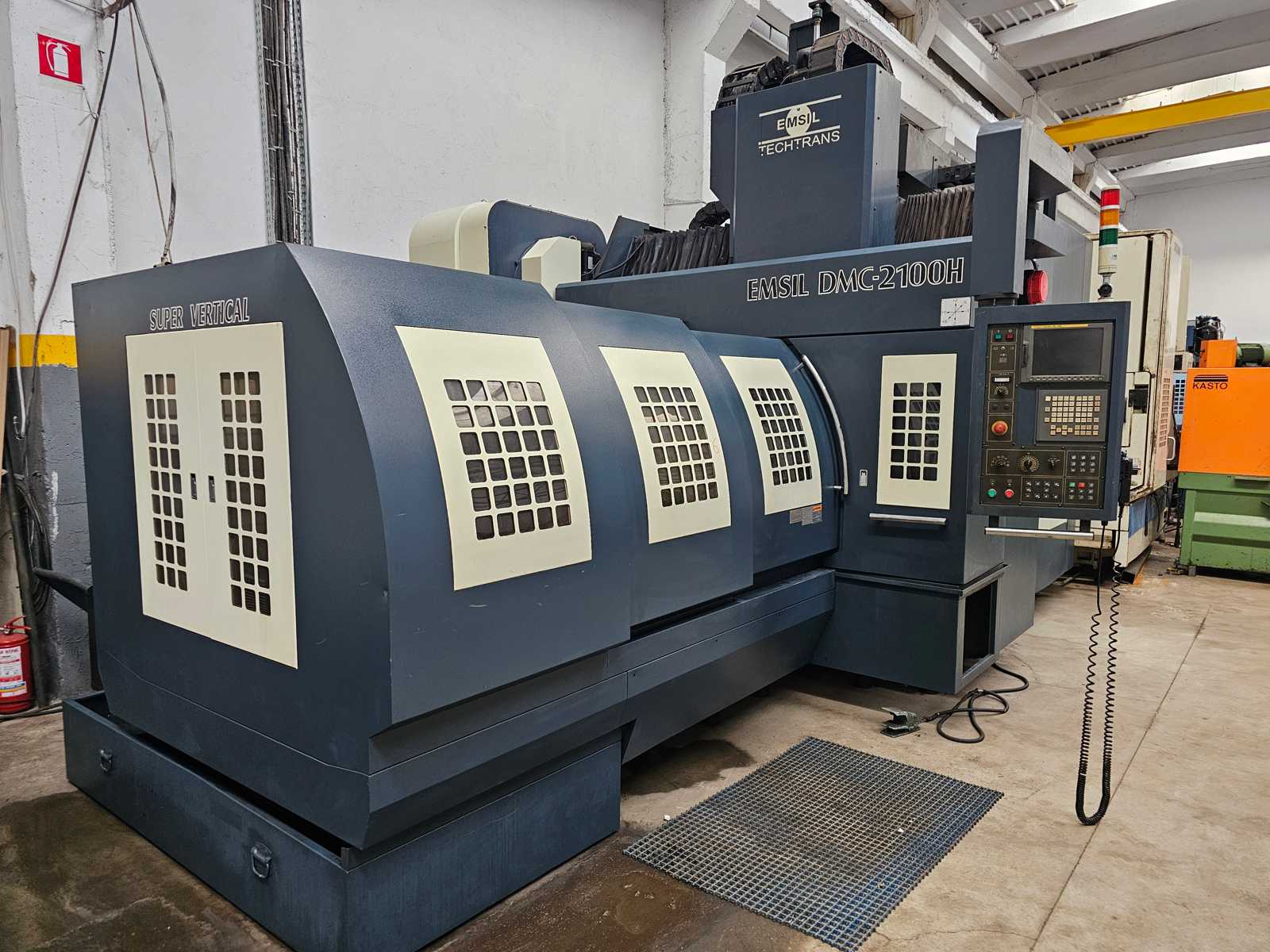

Type: CNC Vertical Machining Center Brand: EMSIL Techtrans Model: DMC2100H Control: FANUC Series 18i-MB Machine Type: Super Vertical Machining Center Axes: 3-axis (X / Y / Z) Equipment: - Enclosed working area with sliding doors - Large T-slot worktable - Automatic tool interface (tool holder included) - CNC control panel with screen and full keypad - Emergency stop - Coolant system with adjustable nozzles - Electrical cabinet integrated - Status signal tower (stack light) Displayed Data (at time of inspection): Run time: approx. 19,568 h Part count: 84,933 Condition: Used Remarks: Alarm displayed (pressure low); machine not tested; sold as seen Auction-ID: A7-45993-78

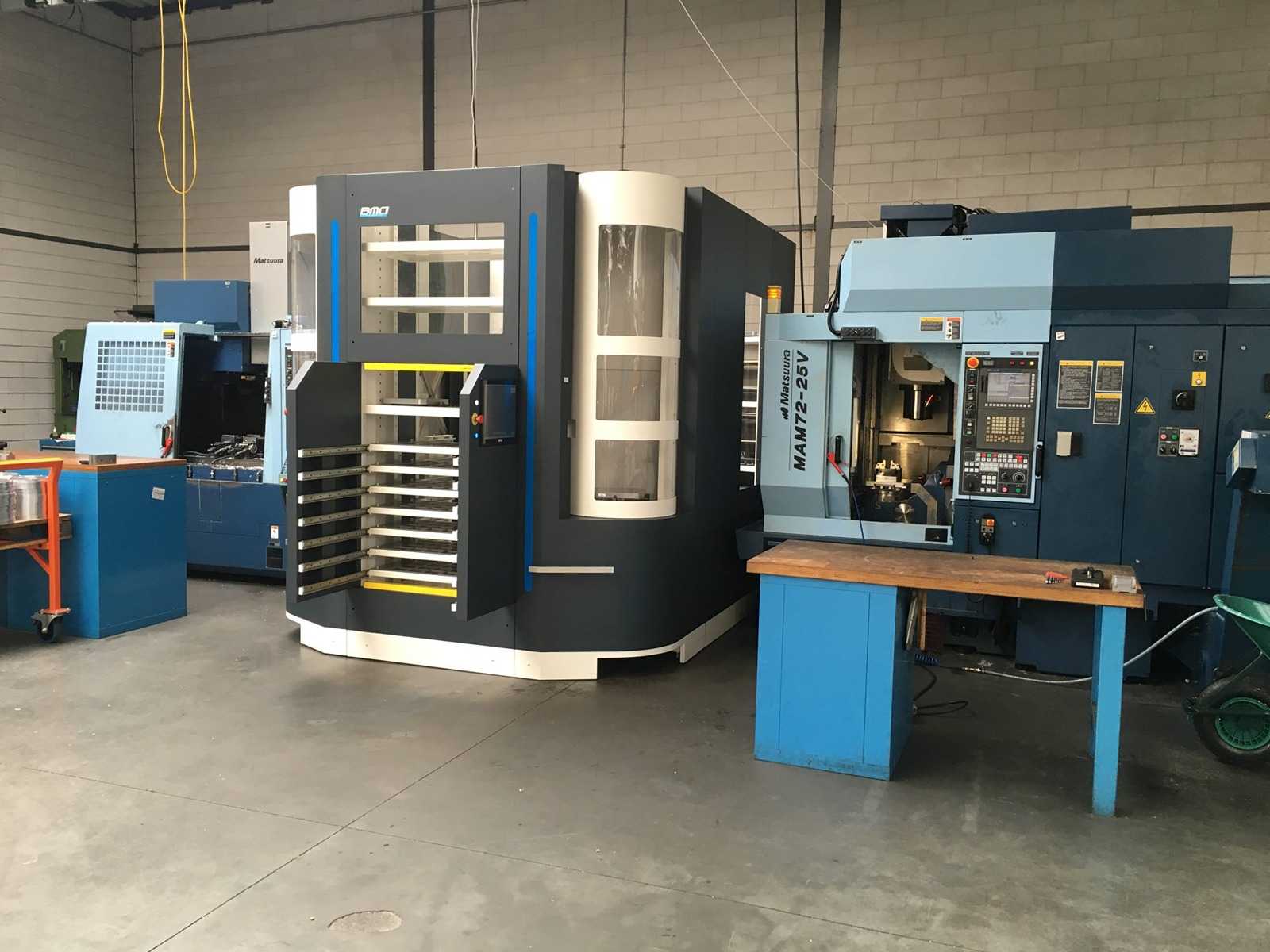

Matsuura MAM72-25V 5-axle Tool holder: BT 40 JIS B 6339 (MAS 403 BT) - [ISO 7388-2] Possibility for 180 tools, comes without tool(holders) Steering system: Fanuc Series 30i Year of construction: 2004 In combination with BMO: including 0-point tensioning system with 1 pneumatic Schunk clamp Power on: 99,802 hours Run time: 53,875 hours Cutting time: 27,631 hours Diameter ø250 Spindle : 12,000 rpm Internal cooling from the spindle Includes Renishaw probe (type: OMP60) BMO Titanium 50 Automation Robot: Yaskawa DX200 Year of construction 2016 The BMO leaves with 1 zero point clamping system and 1 long clamp Dimensions BMO 2600 x 4700 x 2700 mm. including PC10 automation that has not been used. Auction-ID: A1-41995-140

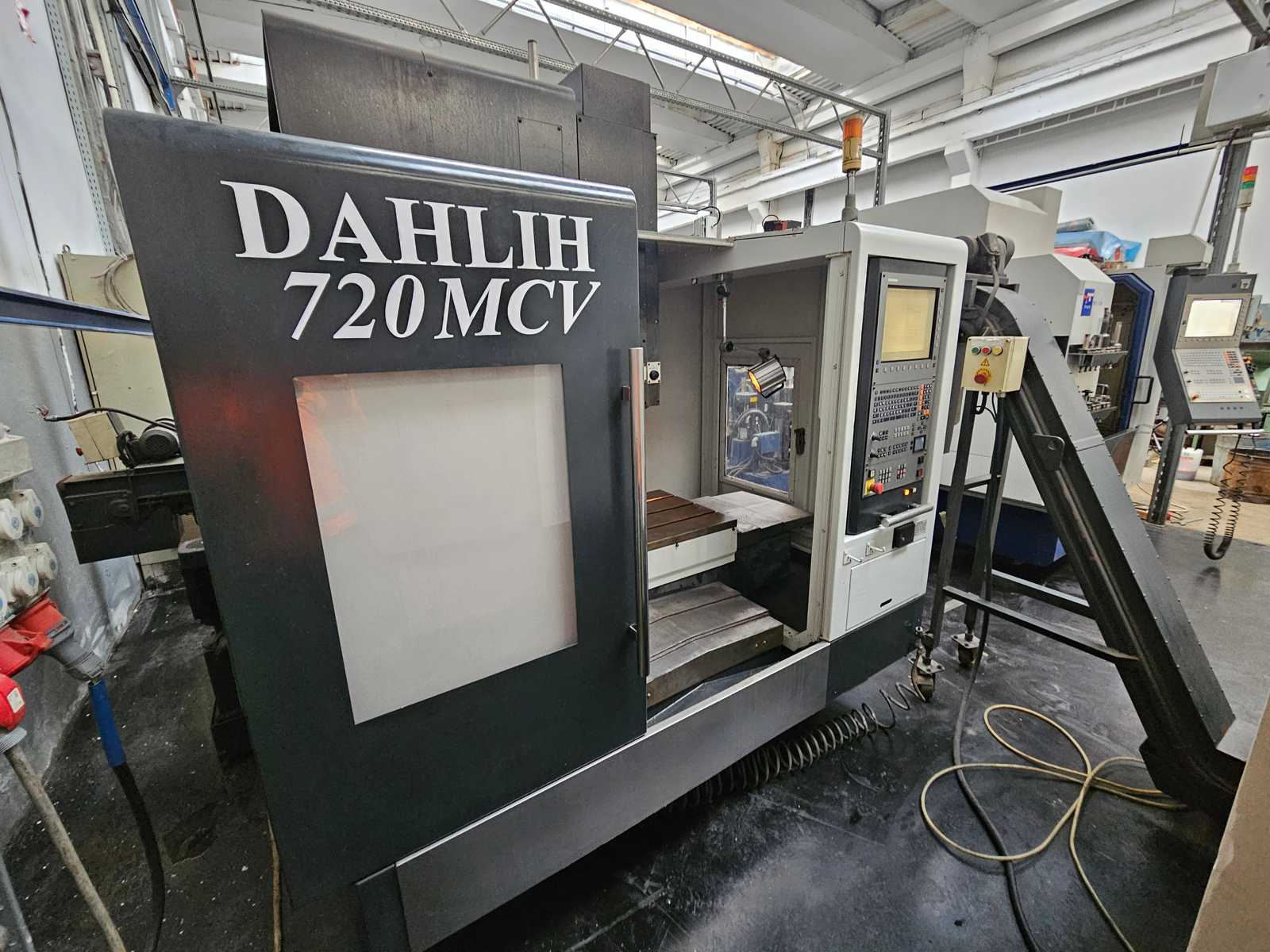

Make: Dahlih Type: Vertical Machining Center (VMC) Model: DL-MCV720 (720MCV) Year: 2006 Control: Heidenhain CNC control Technical data: - X-axis travel: approx. 720 mm - Y-axis travel: approx. 400 mm - Z-axis travel: approx. 450 mm - Table size: approx. 900 x 400 mm - Spindle speed: up to 15,000 rpm (according to plate) Equipment: - Enclosed working area with sliding door - CNC control panel with keyboard & display - Coolant system - Chip conveyor - Work light Application: - CNC milling operations for metal parts - Precision machining in toolmaking and production Condition: Used Auction-ID: A7-45993-41

x-travel:450 mm y-travel:450 mm z-travel:450 mm weight of the machine ca.:14 t size of pallet:320 x 320 mm number of spindles:2 Double spindle 4-axis machining center Horizontal 4 machine plates Renishaw probe Control Siemens Sinumerik 840D Working space (X / Y / Z): 450x450x450 mm Load pallet / table max .: 300 kg Acceleration: 10 m / s² Rapid traverse: 60 m / min Pallet size: 320 x 320 mm Chip-to-chip time: 2.6 s Workpiece height max .: 700 mm Tool holder: HSK 63 Tool places: 2x 60 Tool spindle: 10,000 rpm, 95 Nm Speed increase to 18,000 rpm Infrared receiver for probe, Make Renishaw Vaf72a0p Tool magazine with 60 places Control panel on the workstation Control panel on the tool installation site Workpiece positioning stations can be rotated manually with hydraulic workpiece clamping 60 bar Pneumatic support control on the workstation Automatic swing gate Extended coolant layer 70 ba ...

turning diameter over bed:350 mm turning diameter over slide rest:240 mm turning length:800 mm Spindle RPM:40 - 2000 in 8 Stufen 1/min total power requirement:3 kW Spindle bore:26 mm tailstock quill taper MT:MK 2 dimensions of the machine ca.:1,5 x 1,0 x 1,6 m weight of the machine ca.:1,9 t Very well maintened center lathe with accessories - 3-jaw, 4-jaw chuck - tailstock with center - 1 boring head - RAPID quick tool change device with 3 holder - saddle mounted steady rest - collant device - set of collets appr. 75% size B 32

turning diameter over bed:500 mm turning diameter over slide rest:310 mm turning length:1500 mm spindle turning speed range:7 - 710 U/min feed range:5,6 - 224 mm/min total power requirement:15 kW weight of the machine ca.:3,7 t dimensions of the machine ca.:2,9 x 1,4 x 1,6 m Machine with 2-axis digital readout - MULTIFIX quick tool change device - 3-jaw chuck

x-travel:800/945 mm y-travel:800 mm z-travel:600 mm spindle motor:27 kW spindle turning speed range:10 - 8000 U/min spindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kg table clamping surface::800 630 mm total power requirement:55 kW weight of the machine ca.:16 t Machine with Heidenhain iTNC 530 CNC control for 5 axis - pendulum operation with turn- swivil table left and fixed table right - tool changer for 30 tools - coolant device, chip conveyor - complete splash housing

turning diameter over bed:1000 mm turning diameter over slide rest:750 mm turning length:3000 mm weight of the machine ca.:12 t dimensions of the machine ca.:6x2,5x1,8 m spindle bore:110 mm turning speed range:900 U/min Year:1986 Equipment: - Coolant device - 1 static steady rest - 1 rotating steady rest - Faceplate 1.000 mm - Digital display - Rapid traverse

x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min

x-travel:635 mm y-travel:510 mm z-travel:460 mm turning speed range:20 - 10.000 U/min tool taper:SK 40 table clamping surface LxW:790 x 560 mm Machine with glass scales Full safety cabin with sliding doors + interior lighting Height-adjustable machine shoes 3 pcs.

x-travel:1.100 mm y-travel:900 mm z-travel:1.250 mm tool length:750 mm rapid traverse in x-y-z axis:60 feeding capacity X Axis:17.000 daN feed capacity Z - max.:17.000 N spindle taper:SK50 max. workpiece weight:1500 kg revolutions per minute:10.000 U/min pallet table size:630 x 630 mm tool magazin::165x (bis D=125mm), 21x (bis D=225mm), 8x (bis D=350mm total power requirement:37 kW

x-travel:1.250 mm y-travel:880 mm z-travel:800 mm spindle turning speed range:1 - 10.000 U/min high speed spindle taper ISO:50 table-size:1.250 x 1.000 mm max. workpiece weight: 2.000 kg feed speeds infinitely variable:1 - 30.000 mm/min rapid traverse speed:40 m/min weight of the machine ca.:16 t dimensions of the machine ca.:7,2 x 4,4 x 2,9 m

turning diameter over bed:570 mm turning diameter over slide rest:365 mm turning length:2.000 mm feed per revolution:0,06 - 58/ 0,03 -28 mm spindle turning speed range:11,2 - 2.240 U/min spindle bore:62 mm spindle head:8 nach DIN 55022 total power requirement:15 kW dimensions of the machine ca.:4,5 x 1,5 x 1,4 m weight of the machine ca.:4,8 t

distance spindle /table:min /max 190 / 570 mm distance spindle /table:190 - 570 mm surface area:650 x 300 mm Boring power:in GG 20 40 mm bore capacity in steel:ST 60 32 mm turning speed range::50 - 5000 UpM total power requirement:2,2 kW threading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kg table load:max. 150 kg table height:770 mm traversing speed:max X-, Y- u. W-Achse 5 m/min max. traversing speed:Z-Achse 3 m/min w-axis:380 mm workpiece height max.:495 mm tool changing time:ca. 3 sec x-travel:450 mm y-travel:300 mm z-travel:180 mm workpiece weight:1,5 kg

x-travel:800 mm y-travel:690 mm z-travel:630 mm total power requirement:76 kW weight of the machine ca.:25,5 t b-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kg spindle turning speed range:15000 U/min Boring power:30 mm plate size:630 x 630 mm Dimension:6000 x 2900 x 2400 mm spindle taper::HSK 63 Documents:vorhanden

x-travel:550 mm y-travel:300 mm z-travel:425 mm CNC-control:Sinumerik table-size:950 x 350 mm max. table load:500 kg spindle taper ISO:30 spindle turning speed range:20 - 10500 U/min spindle drive motor:5,5 kW tool change unit:12 Pos. coolant:inkl. voltage:380 V tool adaptor:Steilkegel 40 groove width:32/28 mm no. of flutes:3 rapid speed:40.000 mm/min total power requirement:15 kVA weight of the machine ca.:3,3 t chip conveyor:inkl. dimensions of the machine ca.:2000x 3000 x2500 mm Documents:vorhanden - Serial Number: 186 - 78 - Control: FANUC O-M - with various tool holders - coolant equipment

x-travel:850 mm y-travel:500 mm z-travel:610 mm rotary table::400 mm spindle turning speed range:12.000 1/min drive capacity - spindle motor:17/10 kW control:HEIDENHAIN iTNC 530 Tool changer:40- fach spindle taper ISO:SK 40 weight of the machine ca.:7,7 t total power requirement:28,5 kW dimensions of the machine ca.:3 x 2.70 x 3,2 m 5-axis simultaneously universal-machining center, NC-rotary-swivelling table dia. 400mm, 3D infrared touchprobe, el. handwheel, chipconveyor, airblast through spindle, internal coolant supply 40bar, flushgun, direct measuring system, approx. 38.000h "machine on", approx. 14.500h "spindle on"

x-travel:600 mm y-travel:410 mm z-travel:520 mm tool change unit:16 turning speeds:8000 1/min control:SIEMENS 810 shopmill table surface area:840 x 420 mm rapid traverse X- and Y-axis:36 m/min rapid traverse Z-axis:20 m/min taper ISO:SK 40 spindle drive:15 kW weight of the machine ca.:2,5 t space requirements approx. LxWxH:2,2 x 2,3 x 2,3 m vertical machining center, el. handwheel, no chipconveyor, known defect: control starts not 100% special price

x-travel:1270 mm y-travel:660 mm z-travel:610 mm table surface area:1500 x 660 mm table load:1,3 t control:ULTIMAX 4 turning speeds:10000 1/min spindle:15 kW Tool bore:SK 40 rapid traverse:X/Y/Z 30/30/20 m/min tool change unit:24 Pos. total power requirement:30 kVA weight of the machine ca.:9,5 t dimensions of the machine ca.:4,8 x 4,56 x 2,95 m vertical machining center, el. handwheel, chipconveyor,

x-travel:1.500 mm y-travel:700 mm z-travel:610 mm control:HEIDENHAIN iTNC 530 table-size:1.400 x 700 mm tool taper:SK 40 numbers of positions in the tool changer:48 fach spindle turning speed - stepless:15000 1/min rapid traverse:36 m/min table load capacity:700 kg spindle drive:25 kW total power requirement:30 kVA weight of the machine ca.:9,1 t dimensions of the machine ca.:3,7 x 2,65 x 2,9 m vertical machining center, 20 bar internal coolant supply with paper filter, 3D-touchprobe, chipconveyor, el. handwheel meter readings: approx. 43.600 h "machine on", approx. 20.000 h "spindle on",

x-travel:1250 mm y-travel:880 mm z-travel:800 mm control: Heidenhain TNC 430 tool change unit:60 Pos. Tool bore:SK 50 turning speeds:8000 1/min size of pallet:1000 x 800 mm total power requirement:56 kVA weight of the machine ca.:14,3 t dimensions of the machine ca.:5,5 x 3 x 3,1 m 5-axis machine with controlled universal milling head (B-axis), 2-palett changer incl. 2 palets, 1000 x 800 mm Production package: - internal coolant supply 40 bar with 900l coolant box (2,25 x 1.3 x 2,2m / 950kg), - chipconveyor (4,85 x 1,2 x 1,75m / 600kg), - ROTOCLEAR, - 3D touchprobe RENISHAW MP 10 - 60 pos. ATC SK 50 - el. handwheel - mech. tool-breakage control, accessories (SK 50 toolholders approx. 100.200 h "machine on", approx. 52.200 h "spindle on", last spindle change in 2020

x-travel:700 mm y-travel:700 mm z-travel:700 mm turning speeds:18.000 1/min max. torque on the spindle:110 / 84 Nm tool taper:SK 40 control:HEIDENHAIN iTNC 530 tool change unit:180 fach size of pallet:500 x 500 mm mm max. workpiece weight:600 kg spindle:34 / 28 kW rapid traverse:60 m/min total power requirement:68 kVA weight of the machine ca.:10,5 t dimensions of the machine ca.:9,5 x 7,5 x 3,4 m dimensions for transport:4,3 x 2,4 x 2,6 m horizontal machining center with linear drives,, NC-roundtable, pallet pool RS 10 for totally 12 pallets, monitor for workpiece setting-up device, high pressure coolant through spindle 40bar, internal air blast supply, mode 4, hydraulic clamping 2/4 for workpiece setting-up device and working table, BLUM laser, oilmist suction, 3D touch probe TS 649, tool-breackage control, mechanical, SDS spindle diagnosis system, flush gun, el. handwheel, chipconveyo ...

x-travel:800 mm y-travel:800 mm z-travel:800 mm turning speeds:12.000 1/min tool taper:SK 50 control:SIEMENS 840D shopmill tool change unit:240 fach size of pallet:630 x 630mm mm spindle:52 kW / 430Nm total power requirement:87 kVA weight of the machine ca.:15 t dimensions for transport:4,6 x 2,95 x 2,7 m horizontal machining center, NC-round-table pallet-changer (2 pallets), Internal Coolant Supply 40 bar, prepared for Infrared Touch Probe Renishaw MP 10 without probe, tool-breakage control (mech.), MQL, airblast through spindle, oilmist suction, TRANSMIT funbction, accuracy package, mode 4, glass window right door, incl. FASTEMS FPC 1000 pallet pool for 14 pallets, incl. setting up station, control, and 10 pallets approx. 98.500 h main switch on apprax. 45.500 Spindle hours

x-travel:800 mm y-travel:950 mm z-travel:1020 mm control:HEIDENHAIN iTNC 530 table load capacity:800 kg tool taper:HSK 63 turning speeds:16.000 1/min spindle:35 / 25 kW table-size:770 mm max. torque on the spindle:160 / 223 Nm tool change unit:120 (2x60) Pos. weight of the machine ca.:20 t dimensions of the machine ca.:3,3 x 6,15 x 3,2 m 5-axis simultaneously machining center with controlled swivel-rotary table (A/B-axis), milling head horizontal, internal coolant device (10-80bar), oilmist-suction, electromech. tool-length measuring device GROB, chipconveyor, 3D touch probe, KINEMATICOPT, BLUM laser, el. handwheel, hour meter: approx. 82.000 h "machine on", approx. 48.800 h "spindle on"

x-travel:500 mm y-travel:400 mm z-travel:330 mm control:FANUC 31i B5 tool change unit:21 fach rapid traverse in x-y-z axis:54 m/min taper ISO:BT 30 turning speed range::10.000 1 / min spindle drive:11 / 3,7 kW max. table load:300 kg surface area:600x 400 mm Dimensions (L/W/H):1,6 x 2,1 x 2,25 m rapid traverse:48 m/min total power requirement:11 kVA weight of the machine ca.:2,1 t vertical CNC-milling-drilling machining center, Infrared Touch probe, el. handwheel, autom. door on right side, no internal Coolant Supply, Approx. 65.500 hours "machine on", approx. 8.200 hours "machine run"

x-travel:1.250 mm y-travel:710 mm z-travel:710 mm table surface area:1500 x 800 mm table load capacity:800 kg turning speeds:12000 1/min spindle drive:15 / 10 kW control:MILLPLUS iT HEIDENHAIN spindle taper:SK 40 tool change unit:60 Pos. capacity:44 kVA weight of the machine ca.:10,5 t dimensions of the machine ca.:3,5 x 2,65 x 2,65 m 5 axis simultaneously machining center, B-axis (-120° / +30°), NC-rotary-table integrated in rigid table, direct measuring system, 3D probe infrared, HEIDENHAIN TS 640, internal coolant supply 40 bar, 600l, flushgun, chipconveyor, mode 4, 3D quickset software (no hardware), Higher noise in rush on X-axis and roundtable approx. 48.500 hours "machine on" / approx. 18.000 hours "spindle on"

x-travel:800 mm y-travel:800 mm z-travel:800 mm turning speeds:35-10.000 1/min spindle:37 / 30 kW max. torque on the spindle:525 / 206 Nm Tool bore:BT 50 rapid traverse:60 m/min tool change unit:160 Pos. size of pallet:500 X 500 mm control:MAZATROL 640M Nexus c-axis:0,001° x 360.000 workpiece weight:1.000 kg workpiece height max.:1.000 mm interference area:900 mm 2 pcs. horizontal machining centers (HCN 6000 + HCN 6000-II, 2008), interlinked with pallet pool (16 pallets) MAZAK FMS, 2 pallet changer, chipconveyor, coolant device with internal coolant supply, accessories for both machines: 18 pallets, approx. 300pcs. toolholders, miscellaneous devices for workpiece-clamping...

x-travel:800 mm y-travel:800 mm z-travel:800 mm turning speeds:35-10.000 1/min spindle:37 / 30 kW max. torque on the spindle:525 / 206 Nm Tool bore:BT 50 rapid traverse:60 m/min tool change unit:160 Pos. size of pallet:500 X 500 mm control:MAZATROL 640M Nexus c-axis:0,001° x 360.000 workpiece weight:1.000 kg workpiece height max.:1.000 mm interference area:900 mm 2 pcs. horizontal machining centers (HCN 6000-II + HCN 6000, 2005), interlinked with pallet pool (16 pallets) MAZAK FMS, 2 pallet changer, chipconveyor, coolant device with internal coolant supply,

x-travel:410 mm y-travel:610 mm z-travel:500 mm turning speeds:15000 1/min tool adaptor:SK 40 control:iTNC 530 HEIDENHAIN smart NC table::320 x 320 mm table load:100 kg tool change unit:48 Pos. total power requirement:35 kVA weight of the machine ca.:7,4 t dimensions of the machine ca.:4,15 x 3,8 x 3,28 m 5-axis simultaneously machining center, NC-round-swivelling table, C-axis 360°, B-axis +30/-120°, chipconveyor, 3D touchprobe, internal coolant supply 20bar, el. handwheel, kinematicsopt, meter readings: approx. 9.600h "machine on", approx.3.500h "spindle on"

x-travel:2300 mm y-travel:1200 mm z-travel:600 mm turning speeds:30-10.000 1/min max. torque on the spindle:254 / 159 Nm control:HEIDENHAIN TNC 430 tool taper:SK 40 tool change unit:60 Pos. spindle:40 / 25 kW fixed working table:surface area:1.100 x 1.100 mm rotary table:1.100 x 1.100 mm rapid traverse:30 m/min total power requirement:69 kVA weight of the machine ca.:20 t universal machining center with indexing head (2,5°), NC-rotary table, max. table load 1.500kg, internal coolant supply 30 bar, paper filter, el. handwheel, chipconveyor, automatic doors, flush gun, no touch probe available, approx. 81.400 h main swich on approx. 72.200 h control on approx. 26.700 h program running on machine under power , for functional testing

x-travel:1000 mm y-travel:610 mm z-travel:600 mm table-size:1150 x 600 mm table load capacity:1000 kg rapid traverse X- and Y-axis:24 m/min rapid traverse Z-axis:24 m/min spindle taper::SK 40 spindle turning speed range:10.000 1/min spindle drive:15/22,5 kW tool change unit:30 Pos. CNC-control:SIEMENS 828D operate shopmill distance spindle nose and table:110 / 710 mm weight of the machine ca.:7 t dimensions of the machine ca.:3,2 x 2,2 x 2,7 m vertical machining center, - internal coolant supply 30 bar - chipconveyor - cartridge filter - flat tracks - el. handwheel - prepared for 4th axis - 3D touchprobe RENISHAW OMP 60 - indirect measuring system - accessories (approx. 30 pcs. SK 40 toolholders incl. 2 racks, chip tray) approx. 6.000h "spindle on"

x-travel:800 mm y-travel:700 mm z-travel:600 mm table load capacity:800 kg control:SIEMENS 840D shopmill turning speeds:12.000 1/min tool adaptor:HSK 63 rapid traverse:50 m/min tool change unit:30 Pos. electr. connected load with add. coolant:56 kVA weight of the machine ca.:9,5 t transport measurements machine:4 x 2,5 x 2,75 m 5 Axis simultaneously machining center, Baxis (NC-head) and NC- rotary-swivelling-table dia 900/630mm, internal cooling device 40 bar, 600l prepared for 3D-touchprobe HEIDENHAIN TS 641 (without touchprobe), prepared for el. handwheel (without handwheel), mode 4, approx. 85.000 h mainswich ON , approx. 55.000 h Spindle ON (last spindle change in nJuly 2021 at approx. 50.000h)
