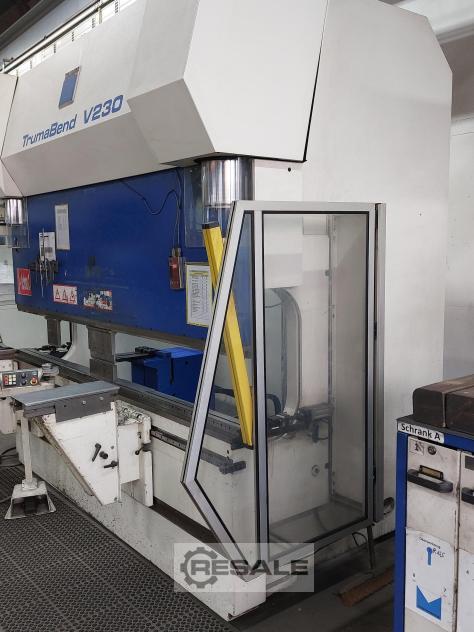

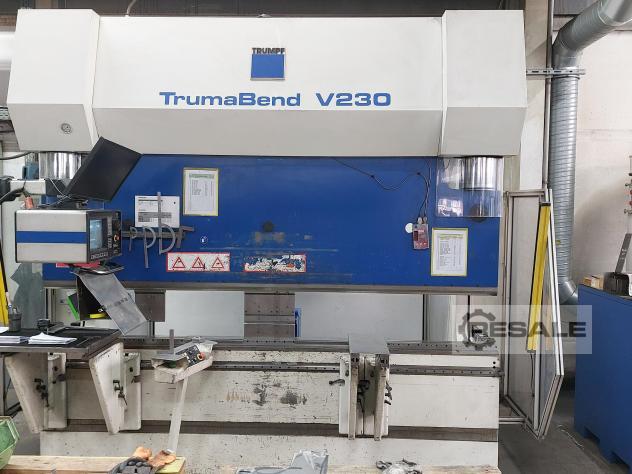

Bending Presses TRUMPF TRUMABEND V230

Press brake
Manufacturer: Trumpf
Type: TRUMABEND V230
Year of Make: 2000
Overhaul: 2010

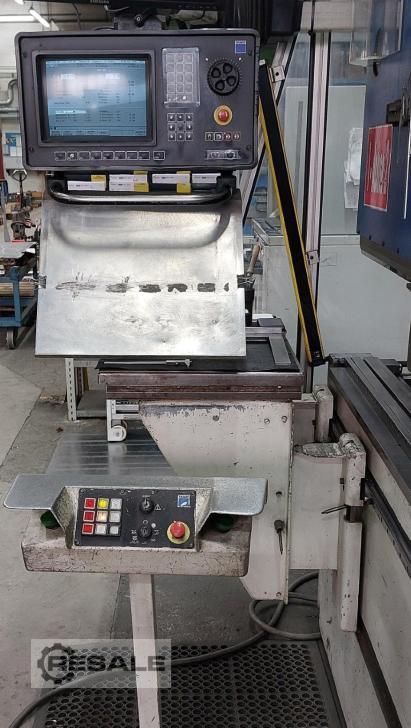

CNC control: Delem DA 65 graphics
Year of Make: 2000

Pressing force max.: 230 to.
Max. working range: 3,060 mm

C-stand projection: 410 mm
Max. installation height: 535 mm
Stroke bending beam max. : 365 mm
Sheet thickness max. approx.: 12 mm

Travel back gauge: 600 mm
Passage between the uprights: 2,690 mm
Weight: 18.210 kg

Space requirement: 3,660 x 2,120 x 3,095 mm

Basic equipment :
Two-cylinder Y1/Y2 upper drive concept
Version Y1/Y2
Electro-hydraulic plunger drive in proportional valve technology
Pushrod travel measuring system with spring compensation via glass scales
Modern block hydraulics
Spherical suspension and inclined position of the pressure beam
2-axis backgauge system (R, X - CNC)
New, secure finger adjustment from the front
2 pieces of self-centering stop fingers
Programmatic Lower Tool Shift M62388 (I-Axis)
for 2 M62388 positions
Protective concealment
Oil cooler
CE mark
Including additional facilities and options :
CNC crowning
4 support brackets
Hydraulic upper tool holder Modufix
Hydraulic lower tool holder for single V-dies
Preparation of ACB angle sensors
6-axis backgauge system
Safety device with light curtain

Additional control panel
Network Card
Robot interface
Instruction Manuals

seller offer No. resale M2153
