Bending Presses TRUMPF Trumabend V130 x 3000

Defective Hydr. CNC - Press Brake
Lg.Nr. 25514

Technical data:

- Max. working length 3060 mm
- Column passage 2690 mm
- Max. pressing force 1300 kN
- Max. distance table / plunger 535 mm
- Stand projection 410 mm
- Plunger stroke 215 mm
- Lifting speeds
- Downward speed idle max. 200 mm/sec
- Upward speed 135 mm/sec
- Downward pressing speed 1 to 11 mm/sec
- Total drive power 18 kW
- Pneumatic connection 6 bar
- Space requirement approx. W 3800 x H 2700 x D 2400 mm
- Weight approx. 11500 kg
- with:
- With 6-axis CNC control DELEM
- Two-hand control panel with foot switch
- crowning device

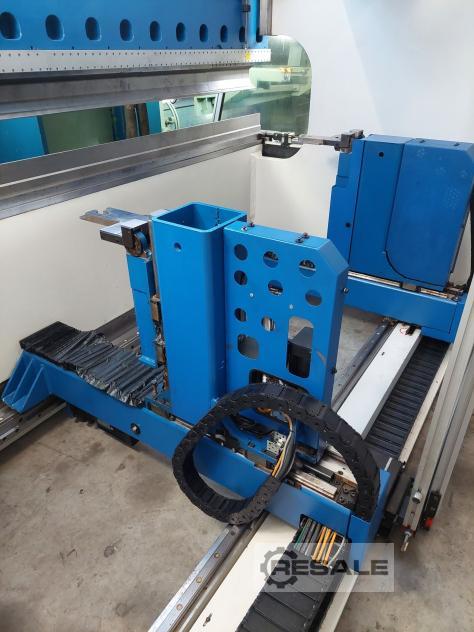

- Controlled backgauge with height adjustment 5 - 860 mm
- Hydr. Upper + Lower - Tool Clamping
- Die table displacement pneumatically supported

Machine does not drive reverence because 2 axles right in the back gauge
are without function, control module may be defective.
seller offer No. resale Lg.Nr. 25514
