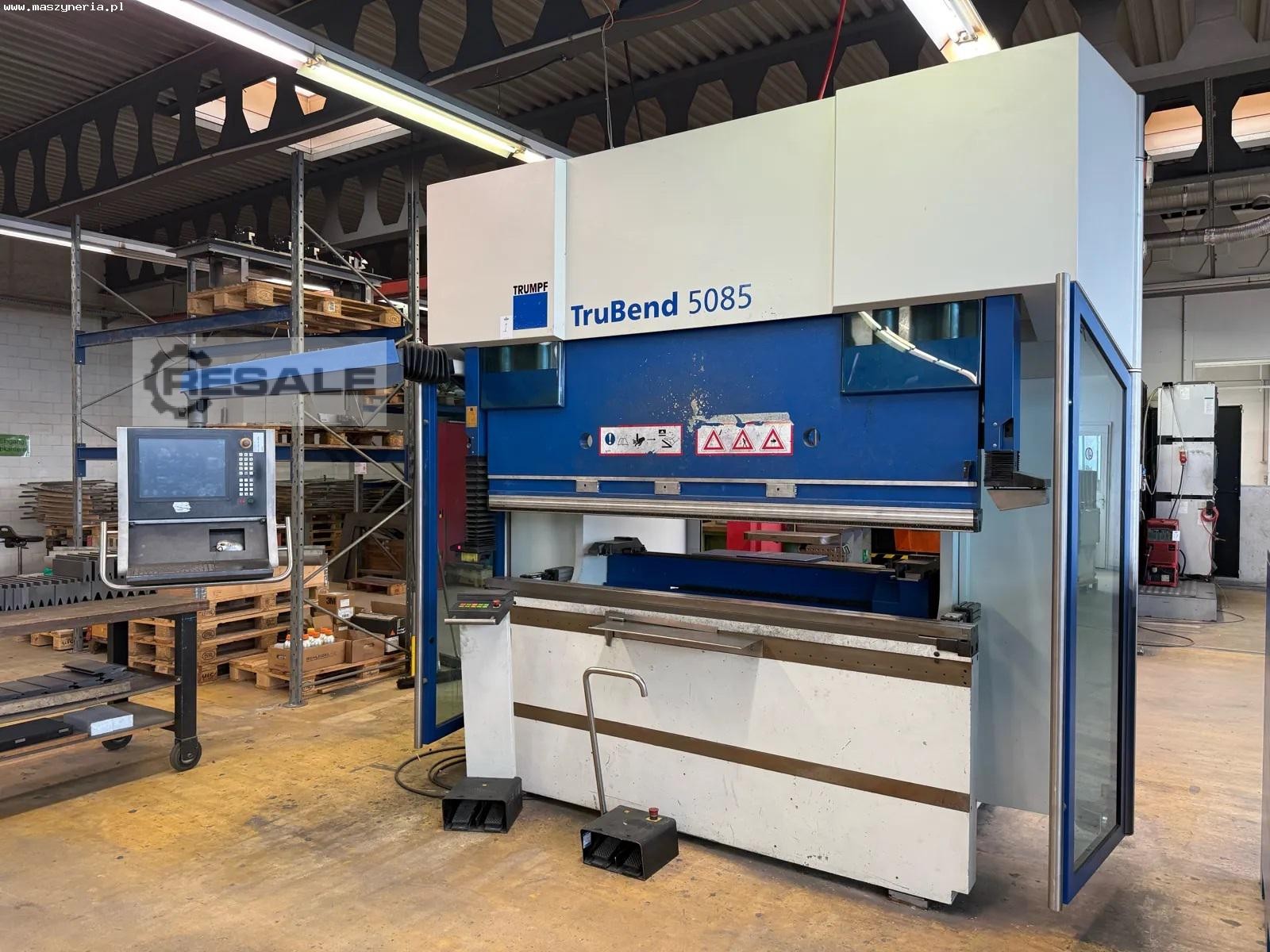

CNC Pressbrakes TRUMPF TruBend 5085

TRUMPF TruBend 5085 CNC hydraulic press brake was built in 2008 in Austria by TRUMPF Maschinen Austria GmbH & Co. KG. The machine, designed for the precise bending of sheet metal, is ideal for industrial plants that place emphasis on high repeatability and accuracy of manufactured parts. The combination of high press force of 85 tonnes with an extremely stable design ensures the best bending results, even during the most intensive use.

The TRUMPF TruBend 5085 features a range of solutions designed to enhance user comfort and safety. It is operated via a convenient foot switch control and an advanced CNC controller with an intuitive interface and access to many useful functions. The LAZERSAFE system ensures safety in the work area by monitoring the bending zone in real time. If an operator or an obstacle is detected, the system immediately stops slider movement, minimising the risk of accidents during operation. The TruBend 5085 CNC press brake weighs 7800 kg.

Technical specifications of the TRUMPF TruBend 5085 press brake
- CNC controller
- maximum press force: 85 t (850 kN)
- slider stroke: 445 mm
- stopping time: 95 ms
- stopping distance (at 220 mm/s): 10 mm
- stopping distance (at 160 mm/s): 8,5 mm
- minimum safety distance: 190 mm

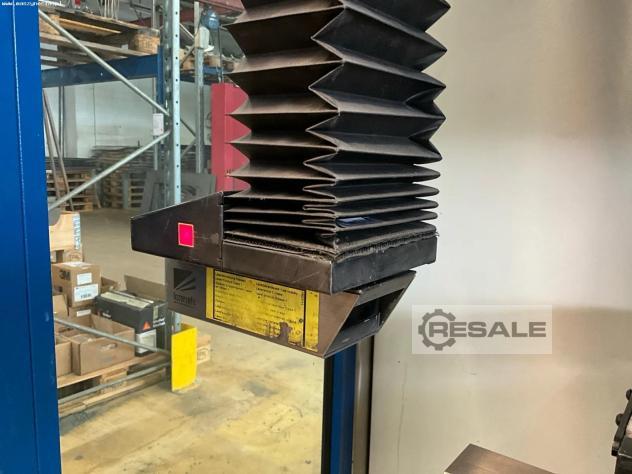

- laser safety system: LAZERSAFE

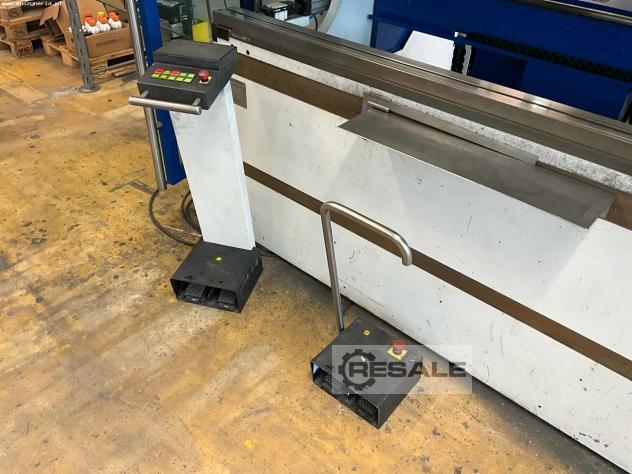

- foot switch control
- side covers
- technical documentation
- maximum operating pressure: 300 bar
- compressed air connection: 6 bar
- connected load: 17 kVA
- control voltage: 24 V
- power supply: 3x 400 V; 50 Hz
- weight of the TRUMPF TruBend machine: 7800 kg
seller offer No. resale 169875751
