tool grinding machine used for sale

Working parameters: Universal manual grinding machine on a rack for tool sharpening. Equipment included: longitudinal table with T-slots, swivelling tool head, spindle/grinding wheel with protective housing, manual adjustments via handwheels, visible dial dial and pneumatic device. Notes: Industrial cast iron construction. Auction-ID: A1-50714-4302

Suitable for unmanned grinding or re-serration and chamfering of HSS and segment sawblades as well as solid carbide saws with ceramic saws and for deep grinding with CBN or diamond grinding wheels., Accessories:, Total enclosure including 400 L coolant system with tank and fine filter,, Device for automatic chamfering of regularly spaced saw blades,, Device for automatic grinding of chip breaker grooves,, Program for standard curved and pointed teeth,, Special program for grinding saws with variable tooth pitch,, CAD program for creating 250 custom tooth shapes,, Automatic saw blade diameter adjustment,, Automatic fire extinguishing system including explosion vent and pressure switch,, Laser measuring system for automatic measurement of saw blade diameter,, Automatic central lubrication,, Oil drip tray,, 2 saw blade holders,, 2 centering rings,, Machine light,, Electrostatic mist extract ...

grinding diameter: 350 mm grinding length: 1000 mm centre height: 175 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Sehr gut erhaltene Kel-Vista Steuerung FANUC 21i Maschine erhält Wartung und Geometrie nach Kellenberger Messprotokoll. -B-Achse automatisch 2,5° -T1 Schleifscheibendurchmesser 400mm -T2 Schleifscheibendurchmesser 300mm -T3 Innenschleifeinrichtung riemengetrieben -Reitstock mit Mikroverstellung -pneumatische Entlastung Obertisch -Sinuslineal -Aktive Längspositionierung Kel-Pos -GAP Anschnitt Sensor -Messsteuerung Movomatic -Papierbandfilter The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 600 mm grinding width: 375 mm workpiece height: 325 mm grinding height: 325 mm table load: max. 300 kg table longitudinal travel: max. 650 mm table speeds: 1 - 30 m/min grinding spindle speed: 1440 / 2900 U/min grinding wheel size: 300 x 50 x 76,2 mm grinding spindle drive: 3,7 / 4,7 kW vertical feed grinding spindle max.: 180 mm/min. cross travel: 350 mm cross adjustment: 1 - 40 mm rapid traverse cross: 1200 mm/min total power requirement: 9 kW weight of the machine ca.: 3,3 t dimensions of machine L x W x H: 2,75 x 2,10 x 2,05 m - with autom. positioning - Accessories: magnetic plate 600 x 350 mm, grinding wheel with flange, wheel trueing attachment, DRO on Y-and Z-axis, 1 grinding wheel and various flanges separate, balancing scale, wet grinding attachment The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter:600 mm grinding length:3000 mm centre height:300 mm weight of the machine ca.:11,8 t dimensions of the machine ca.:7100x2300 mm spindle turning speed range:14 - 220 U/min grinding wheel diameter:650 mm grinding wheel flange for width 25-40 mm:3 Stk. open tailstocks:3 Stk. chuck:Ø310 mm fixed steady:320 mm Distance between center: 3000 mm. Height of centres: 300 mm. Spindle speed: (n°12) 14 - 220 Rpm Max grinding diameter: 600 mm. Stroke the wheelhead:(rapid) 50 mm. Stroke the wheelhead:(rapid+ micrometrical): 1 5 500 m mmm. . Max grinding wheel diameter: 650 mm. Max tilt table: 3° 30' Total absorbed power: 27,7 Hp Dimension: 7100x2300 mm. Weight approx: 11800 Kg.

workpiece diameter:5-125 mm grinding depth:50-1000 mm clamping length:1000 mm total power requirement:1.9 KVA weight of the machine ca.:630 kg max. workpiece weight:100 kg Center Hole Grinding Machine. Workpiece must be rotated by machine during grinding

grinding length:600 mm grinding width:300 mm total power requirement:7,5 kW number of spindle speeds:0-3000 grinding wheel motor:7,5 kW grinding wheel diameter:300 mm dimensions of grinding wheel:76 x 20 mm ABA magnetic table flat grinding machine

drill diameter:5,,,,40 mm drilling length:600 mm lip angle:90-150 ° total power requirement:4,5 kW weight of the machine ca.:0,8 t dimensions of the machine ca.:2-2-2 m CNC programmable according to ISO Point angle 90-140 degrees, disc stroke x 80mm y 80mm grinding wheel 6mm to 150mm ceramic or CBN speed 2500 to 6000 rpm Grinding options - 3 facets 6 surface grinding (Renault patent) - conical surface grinding with cross-section correction / point thinning / cross point. / Type 2/1 Avyac grind / 4 faces gr. Cross for deep drill

grinding diameter:280/320 mm grinding length:750 mm centre height:170 mm weight of the machine ca.:22,5 t dimensions of the machine ca.:4,7 x 3,65 x 3,0 m Junker Jumat 6S 18-20S-18 has 2 internal and 1 external spindle.

grinding length:600 mm centre height:180 mm swing dia.:360 mm workpiece weight:80 kg max. dia. of grinding wheel:500 mm grinding wheel width:80 mm grinding wheel hole diameter:203,2 mm peripheral speed:45 m/sec There is also a 3200 liter coolant tank including cooling unit + fire extinguishing system.

max. wheel diameter:260 mm gear width:320 mm max. module:5 weight of the machine ca.:21 t dimensions of the machine ca.:8,71 x 5,97 x 3,49 m no. of teeth:1...999 max. helix angle:+45/-45 ° pitch min.:0,1 mm pitch max.:1000 mm X-axis:345 mm y-axis:250 mm Z-axis:320 mm b-axis:360 ° c-axis:360 ° Coolant is not available. It was central and there is only a booster pump without filtering. For loading system there is a 2-axes robot with workpiece conveyor.

internal diameter:140 mm total power requirement:5,5 kW weight of the machine ca.:1,8 t dimensions of the machine ca.:2,8 x 2,5 m max. workpiece weight:15 kg clamping dia. max.:140 mm clamping length:250 mm max. bore diameter to be ground:0,8-90 mm min./max. hole to grind:160 mm centre height:90 mm workpiece spindle stepless:112-1000 U/min

max. wheel diameter:210 mm total power requirement:60 kW weight of the machine ca.:8 t dimensions of the machine ca.:2,85 x 2,60 x 1,80 m grinding slide feed:700 mm grinding slide feeds:1-15.000 m/min max. workpiece weight:150 kg centre height:260 mm grinding wheel diameter:240 mm

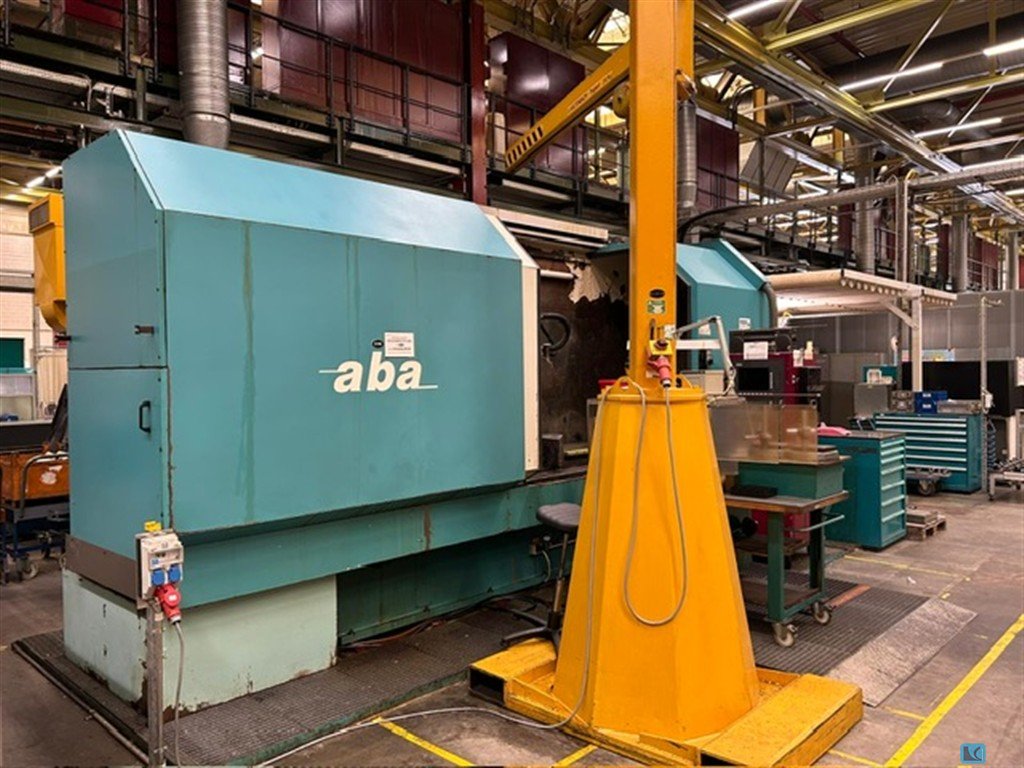

grinding length:1370 mm grinding width:560 mm workpiece height:800 mm total power requirement:50 kW dimensions of the machine ca.:9 m ABA Z&B 2000, profile grinding machine with swivel dresser Mounting fixtures: magnet, dividing head E-axis dresser B-axis dividing head

max. module:7 weight of the machine ca.:5 t worm grinding diameter:280-350 mm width of grinding worm:84-104 mm min. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mm max. workpiece weight:60 kg without filter

grinding length:1500 mm centre height:325 mm weight of the machine ca.:12 t Karstens EMAG H310 Universal Grinding Machine Year of manufacture: 2004 Center distance: 1500 mm Center height: 325 mm Reinforced workpiece spindle, load capacity up to 250 kg Driven C-axis for polygon, thread, and eccentric grinding. 3 individually mounted grinding spindles. Siemens 840D control system

max. module:7 weight of the machine ca.:5 t worm grinding diameter:280-350 mm width of grinding worm:84-104 mm min. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mm max. workpiece weight:60 kg with Turbo Separator, loading unit, latest-generation balancing and dressing unit and various accessories

max. wheel diameter:180 mm max. module:5 min. module:1 weight of the machine ca.:14 t dimensions of the machine ca.:4,5 x 2,84 x 2,8 m min. number of teeth:7 toolpiece turning speed range:4000-10000 U/min tool length:210 mm With tail stock No dressing device Only CBN

adjustment drive of the grinding spind.slide:0,0025 - 0,05 mm total power requirement:100 kW adjustment of grinding head slide:150 mm weight of the machine ca.:17 t grinding spindle drive:2 x 37 kW grinding width:30-150 mm peripheral speed:34 m/sec workpiece speeds:60 - 300 mm/Sek. grinding height:70 mm grinding wheel diameter:750 mm grinding tools:750 x 75 x 350 mm grinding wheel turning speeds:870 U/Min. max. workpiece diameter:250 mm

grinding height:-- mm grinding width:220 mm grinding wheel diameter:762 mm total power requirement:90 kW weight of the machine ca.:13 t grinding spindle 1 drive::37 kW grinding spindle 2 drive::37 kW Grinding machine for pre-grinding the connecting rod With 2 replacement spindle motors

grinding length:450 mm grinding width:250 mm workpiece height:280 mm Table area:760 x 250 mm grinding spindle drive:2,5 kW grinding wheel dia. x width:250x 25 mm grinding spindle speed:1430/2900 U/min way of grinding spindle saddle, vertical:400 mm total power requirement:4,5 kW weight of the machine ca.:1,8 t dimensions of the machine ca.:1,8 x 1,4 x 2,0 m Machine equiped with magnetic plate - dresser

grinding length:450 mm grinding width:250 mm workpiece height:280 mm Table area:760 x 250 mm grinding spindle drive:2,5 kW grinding wheel dia. x width:250x 25 mm grinding spindle speed:1430/2900 U/min way of grinding spindle saddle, vertical:400 mm total power requirement:4,5 kW weight of the machine ca.:1,8 t dimensions of the machine ca.:1,8 x 1,4 x 2,0 m Machine equiped with magnetic plate - dresser

workpiece length:350 mm work piece width:150 mm diameter:Tellerradius 200 mm tool taper:M32 x 1,5 spindle diameter:32 mm grinding width:max.450 mm turning speeds:3385 U/min work table::Höhe 1000 mm workpiece height max.:100 mm total power requirement:1,1 kW weight of the machine ca.:300 kg dimensions of the machine ca.:700 x 800 x 1170 mm

table diameter:520 x 22 mm table - swivable:45 Grad total power requirement:1,6 kW weight of the machine ca.:130 kg dimensions of the machine ca.:520 x 520 x 1200 mm mit Schleifzylinder Zubehör: 4 ( Aluzylinder) Werkzeuge zur Aufnahme von Schleifmitteln Ø 50, 70 , 90, 120 mm x 223 mm neuer Motor

grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden

grinding length:1250 mm grinding width:400 mm workpiece height:550 mm workpiece weight:750 kg table-size:1720 x 400 mm magnetic clamping plate:1250 x 400 mm dist. center of grinding spindle - table:750 mm turning speed range - grinding wheel:3000 U/min Length movement of the table:1300 mm grinding wheel size:Ø 400 x 50 x 127 mm switchgear cabinet:inkl. hydraulic power unit:inkl. coolant:inkl. voltage:380 V table load:max. 1100 total power requirement:13,8 kW weight of the machine ca.:6000 kg dimensions of the machine ca.:5000 x 3400 x 2400 mm Documents:inkl.

internal diameter:315 mm grinding depth:315 mm swing diameter:420 mm number of spindle speeds:32 - 360 U-min wheel box:-drehzahl 100 - 8000 U/min face diameter:500 mm total power requirement:12 kW weight of the machine ca.:5900 kg dimensions of the machine ca.:3400 x 1750 x 2000 mm

grinding length:1000 mm grinding width:250 mm workpiece height:400 mm total power requirement:12 kW weight of the machine ca.:3,8 t dimensions of the machine ca.:3.300 x 1.800 x 2.300 mm hydraulic power unit:400 x1000 x 1500 mm control cabinet:2 Stück, 1000 x 1400 x 1500 mm

grinding length:150 mm total power requirement:3 x 380 /220 V weight of the machine ca.:2100 kg dimensions of the machine ca.:1200 x 1700 x 2000 mm grinding wheel diameter:280 - 350 mm grinding wheel width max.:20 mm workpiece diameter:65 - 120 mm workpiece turning speeds:1,5 -20 U/min Documents:vorhanden

x-travel:400 mm y-travel:250 mm workpiece height:500 mm grinding diameter:220 mm table surface area:600 x 320 mm throat:310 mm range of angles:12 ° grinding wheel stroke - vertical:110 mm stroke speeds:0 - 6 m/min grinding spindle speed:bis 50000 U/min peripheral speed:max. 35 m/sec capacity:ca. 7 kVA power capacity:6 kW weight of the machine ca.:2 t dimensions of the machine ca.:3 x 3 x 3 m rotary table d = 300 mm frequency changer Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

grinding diameter:600 mm grinding length:3000 mm centre height:315 mm workpiece weight max.:3000 kg work piece spindle speed:8 - 120 U/min grinding wheel motor:25 kW grinding wheel speed:45 m/sec grinding wheel width x diameter:750 x 80 mm table speeds:30 - 4500 mm/min feeds of grinding head:0 - 5 mm/min table swivelabel +/-:7,5 ° total power requirement:55 kVA weight of the machine ca.:18 t dimensions of the machine ca.:11,5 x 4 x 2,2 m - Internal grinding device - taper grinding up to 10,1° based on diameter - automatic grinding cycle - grinding wheels and flanges - dressing device - coolant attachment - dust exhauster, various steady rests

grinding length:600 mm grinding width:300 mm workpiece height:450 mm total power requirement:8 kW weight of the machine ca.:2,2 t dimensions of the machine ca.:2,8 x 3,0 x 2,0 m grinding spindle speed:1440 / 2905 U/min with magnetic plate 600 x 200 mm autom. vertical feed coolant attachment Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

grinding diameter:380 mm grinding length:1000 mm centre height:180 mm grinding wheel diameter:400 mm max. workpiece weight between centres:250 kg total power requirement:10 kW weight of the machine ca.:4,1 t dimensions of the machine ca.:3 x 2 x 1,6 m with internal grinding attachment with fixed and swivelling headstock with coolant tank

grinding diameter:300 mm grinding length:600 mm centre height:190 mm z-axis:865 mm x-axis:250 mm clamping length:1000 mm peripheral speed:45 m/sec grinding slide swivable +/-:8 ° grinding wheel width x diameter:80 x 508 mm work piece spindle speed:1 - 800 U/min weight of the machine ca.:5 t Machine with SIemens 840 C control - coolant device - Marposs measuring device

grinding length:1250 mm grinding width:600 mm workpiece height:730 mm table surface area:1720 x 500 mm headstock: dist. table - spindle center:900 mm max. longitudinal movement:X-1450 feed range:10 - 20.000 mm/min vertical movement:Y-730 mm feed range:0,2 - 3.000 mm/min cross travel:Z-550 mm feed range:5 - 5.000 mm/min power capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/min cutting speed:max. 80 m/sec. weight of the machine ca.:11 t with CNC SIEMENS 840 C auto. dynamic balncing system integrated in the grinding conus profile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpm two magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

Table clamping surface: 630 ø mm traverse path x: 600 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: hand 80 mm spindle retainer: ISO 40 spindle speeds: 20-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse rate: 4 m / min. Connection: 380V kW space: 2000 + 850 x 2000 x 2000 mm weight: 3300 kg

Control cabinet for roller conveyor used from stock All prices are from Station World and the dismantling and all follow-up costs are to be made by the buyer. VAT is not included in the prices. The contractual agreements for the individual offers must be agreed separately and only apply after the contract has been legally signed. Mistake reserved. All technical details; Measurements, etc., are approximate information and are non-binding for the provider. The technical data are manufacturer or operator information and therefore non-binding for us. Used material is sold to the exclusion of any warranty. We do not accept any liability for used material. Warranty exchange and return are excluded. Customer protection is agreed between the parties. The entire process of dismantling and loading as well as transport is carried out at the buyer's own expense and at the buyer's own ...

Transmission belts, drive belt, flat belt, leather belt, belt, transmission belt FROM leather, fabric, rubber, plastic direct from the manufacturer! All dimensions and qualities according to your possible! We customize for you and look forward to your inquiry!

Number of boring units // Diameter boring units (mm) 9x 3.0 5x 3.5 1x 4.0 3x 4.5 6x 5.0 9x 5.5 31x 6.0 2x 6.5 19x 7.0 18x 8.0 1x 8.5 9x 9.0 5x 10.0 9x 11.0 2x 13.0 3x 14.0 1x 15.0 1x 16.0 2x 18.0 1x 19.0

Convolute (excerpt) from different tools - see picture

HITACHI WIRE EDM MACHINE MODEL MS 250 H-CUT 8Q X-AXIS STROKE: 1030 MM Y-AXIS STROKE: 810 MM Z-AXIS STROKE: 530 MM

Table surface: 300 x 1300 mm Table movement x: 950 mm Table movement y: 220 mm Table movement z: 400 mm Spindle intake: MK 5 Spindle speeds: 25-1200 rpm Prests lengthwise & across: 7.5-635 mm/min Presens vertical: 3-250 mm/min Electr. Connection: 380 V, 7.5 kW Space requirement: 1670 x 1500 x 1750 mm Weight: 2600 kg

Technical data: Fixed angular table: Fixed angular table clamping area: 800 x 400 mm Max table load: 200 kg Working spindle: Tool holder horizontally and vertically: ISO 40 Power of the main drive motor / 100% ED: 2.2 kW Vertical milling head: Speed range, tiered: (12) 50 - 2000 rpm Drill pinole, stroke: 100 mm Swivel range: +/- 90° Travel: X-axis automatic/man.: 385/400 mm Y-axis automatic/man.: 185/200 mm Z-axis automatic/man.: 365/380 mm Feeds: Feed range: 0-650 mm/min Number of feeds: infinitely adjustable Rapid response: 1000 mm/min Characteristics: - Machine accuracy according to DIN 8615 - 3-axis digital displays FAGOR® Innova (option) - Spindle run max. 0.005 mm, incl. test protocol according to DIN 8615 (rolling bearing SKF®/NSK®) - Vertical milling head can be swivelled out for horizontal milling (without d ...

Table clamping area: 560 x 240 mm x-way: 300 mm y-way: 275 mm z-way: 200 mm Spindle holder: ISO 40 Spindle speeds: 40 - 2000 rpm Operating voltage: 380 V Total power requirement: 1.5 kW Space requirement: 1200 x 1100 x 1700 mm Weight: approx. 750 kg

Travel x 350 mm y 250 mm z 220 mm Water bath machine Automatic wire threading Glass scales x / y incl. box for large coils incl. cooler incl. functional guarantee

Bending tool, die, upper knife, upper tool, straight tool, die tool, seam closing tool -Tool: for folding machine RAS Typ 74.30 -Dimensions: see the drawing in the photos -Distance recess rail: center center 650 mm -Dimension: 3060/28/H121 mm -Weight: 65kg

Key data: 500 , 350 , 300

Travel X 500 / Y 350 / Z 300, Water bath machine, automatic wire threading, incl. 20 KG option incl. cooler

Wire EDM machine SODICK A 600 manufactured in 1997. Technical parameters of the SODICK A 600 EDM machine: - table travel (X axis): 600 mm - table travel (Y axis): 400 mm - Z axis travel: 270 mm - maximum dimensions of the processed part (width x depth x height): 800 x 550 x 260 mm - maximum weight of the workpiece: 900 - auxiliary table travel (U axis x V axis): 70 x 70 mm - wire diameter: 0.1 ~ 0.3 mm - maximum wire speed: 250 mm / sec. - wire tension: 0.2 ~ 2.8 kgf - cutting inclination at an angle: + -15 degrees per 100 mm of thickness - height from the floor to the surface of the working table: 1000 mm - machine tool dimensions (width x depth x height): 2188 x 2645 x 2100 mm - machine tool weight: 3700 kg

Table clamping area: 350 x 700 mm x-path: 500 mm y-way: 320 mm z-way: 400 mm Spindle holder: SK 40 Spindle speeds: 30 - 2500 rpm Operating voltage: 380 V Total power requirement: 2.2 kW Space requirement: 1500 x 1500 x 1800 mm Weight: approx. 1700 kg

Model MC-800VF WITH 4 TH AND 5 TH AXIS FIRST TIME IN USE FROM 1996 Brand MATSUURA Type Vertical Machining Centers Control CNC (Yasnac i80 CNC control) Table 1200mm x 400mm Power 15 hp RPM 12000 rpm ATC 30 Taper BT40 Axis 3+2 Weight APROX 7000 KG TRAVELS: X = 800mm, Y = 440mm, Z = 485mm mfg MATSUURA mpn MC-800VF Matsuura MC-800VF WITH 4 TH 5 TH AXIS MACHINE WAS WORKING IN ROLLS ROYCE FROM A NEW AND IS GREAT MANTAINED HAS NEW BATTERIES, BACKUP MADE.
