Premix Beverage Mixer TMCI Padovan 120 hl/h
This top condition Premix beverage mixer is manufactured in 2016 by
TMCI Padovan. It is designed to produce carbonated soft drinks,
non-carbonated soft drinks, sparkling water and de-aerated water by
de-aerating water and mixing it with syrup and CO2 in accordance with
selected recipes. Complete mixer is built as a compact monoblock
configuration, and it is equipped with CIP function.
As optional device, this mixed has a plate heat exchanger cooling
ready mixed product from +25°C to + 5°C before carbonization for
more accurate CO2 content. Both syrup and CO2 mixing flows are

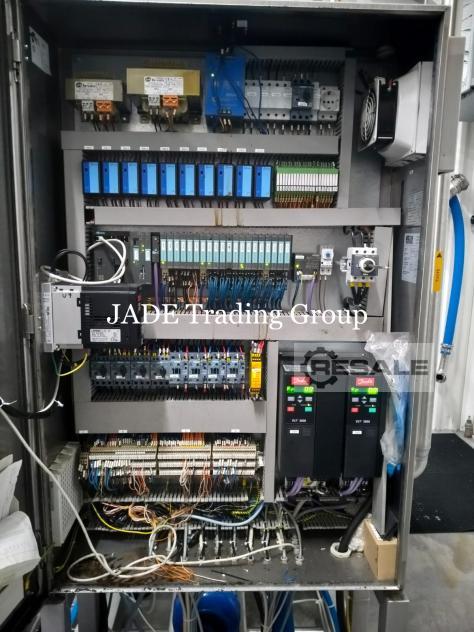

controlled with magnetic flow metering valves. Process is controlled

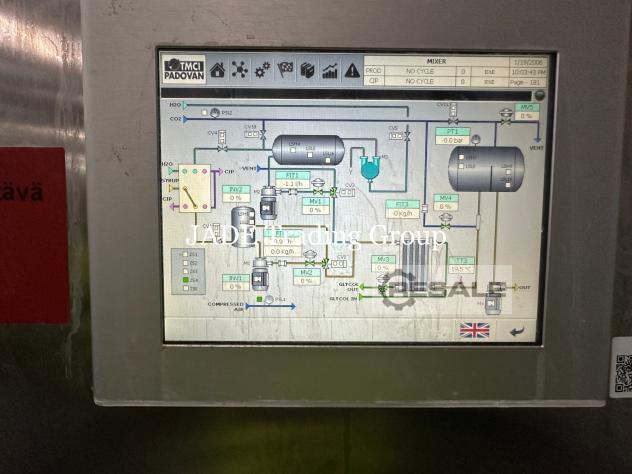

with Siemens control system with 10” touch screen monitor, which has
interface with filler and CIP. Mixer has CE Certificate.
Technical Characteristics
Manufacturer TMCI Padovan
Manufacturing year 2016
Operating hours approx. 30’000
Product capacity 12000 litres/h
Products Soft drinks
Water syrup mixing ratio 1/3 – 1-5
Water inlet temperature 25°C (+/-2°C)
Water inlet flow 10286 – 8000 kg/h
Syrup inlet temperature 25°C (+/-2°C)
Syrup (60o Bx) 1714 – 4000 kg/h
Total installed power 17 kW / 400V / 50Hz
Air demand 2’000 NL/H
Cooling consumption 240.000 Kcal/h
Coolant temperature 1°C
Coolant flow-rate 30 m³/h
