thread rolling used for sale

Thread rolling tool, threaded roller set, thread rollers, thread rollers Manufacturer: IKON Thread designation: M14, Right Roller outer diameter: 166 mm Roll width: 160 mm Bore diameter: 70 mm Suitable for spindle diameter: 69.85 mm Reground good condition We have over 100 different rolling tools from different manufacturers in stock: PROFIROLL, PEE-WEE, IKON , EMUGE, MAPAL, GROB, GEMA, HSV and others suitable for thread rolling machine, cold rolling machine, thread rolling machine, profile rolling machine manufacturer PEEWEE, Profiroll, SENY, GROB, Wanderer etc.; used

Thread gauge ring set, 4 pcs. threaded good gauge rings, left-hand thread PAGUS M 6 - M 12 M 6: Ø 32 x 7 mm M 8: Ø 30 x 8 mm M 10: Ø 32 x 10 mm M 12: Ø 38 x 13 mm used, tested ! Dimensions (set): 40 x 40 x 40 mm

Fliss bohrer and thread rolling NC machine. Machine was rebuilded in 2019, complete Hardwere, and pneumatic components, and part from electric. Machine can be used for serial tube production, can be aded Robot for manipulating. Machine will be able to connect with a handling robot for fast delivery and high productiion.

Thread rolling machine, segment thread rolling machine, cold forming machine, knurling machine, thread rolling machine -Manufacturer: WMW thread rolling machine type UPW25X100Rm -Drive: 7.5 kW 955 rpm -Speed: 450 - 2025 rpm -Rolling force continuously adjustable: from 0 to 25 tons -built-in thread roller: pitch 1.5 mm -Dimensions: 1570/1510/H1800 mm -Weight: 3500 kg

Thread rolling machine make FETTE type R 40Fabr. -No: 818 built in 1980Technical specifications:Metric thread rolling range: 12 - 39 mmThread rolling range inch: 7/16 - 1 1/2 large rollable thread length: 500 mmSpindle passage: 46 mm6 spindle speeds: 250 - 2000 rpm.Gr. clamping diameter of the vice: 70 mmClamping stroke: 40 mmInfinitely variable feed rate: 600 - 3500 mm / minRapid forward / rapid return: 9 m / minTotal power requirement: 18 kWDimensions L x W x H: 1830 x 900 x 1145 mmWeight approx: 1000 kgWith- Hydraulic unit for clamping and feeding- cooling device- separate control cabinet- Thread rolling head FETTE type FU 34/1used, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your  ...

AUTOMATIC THREAD ROLLING MACHINE, Flat die thread rolling machine, segment thread rolling machine, cold forming machine, knurling machine -Manufacturer: EWM, Flat Die Thread Rolling Machine knurling machine -Type: unfortunately without type designation -Drive: 4.6/5.8 kW 1435/2890 rpm -Belt drive: 3-way adjustable -Knurl plate: RAA 1.0 -Central lubrication: -Dimension: 1680/920/H1440 mm -Weight: 1308 kg

UPW 25x100 Thread rolling machine Available 2 machines. Pressure 25TONS Max. Workpiece Diameter 100mm Min. Workpiece Diameter 10mm Thread Length at Plunge Operation 180mm Thread Length at Continuous Operation 2000mm/80mm Distance Of Roll Spindles 150/325mm Length Of Roll Spindle Fixtures 180mm Dia. Of Rolling Tool 230mm Roll Spindle Turning Speed Range 20-90 U/Min Shaft Dia 63mm Weight 3,25 tons

CNC Thread Rolling Machine - Thread Rolling Machine Thommen PR17 CNC 2 wheels Rotation speed of the rollers electronically controlled Position and speed are managed electronically Spindle diameter 54 mm 2 pairs of columns (closed and open) The machine is in our warehouse in Gussago BS, energized Test run possible Mimu Machine Tools

ORT 3RP48 CN CNC / PLC thread rolling machine, scaffolding sleeves threading, shelves studs threading electronic overhaul / retrofit Under power in our warehouse in Gussago BS. Test run possible Mimu Machine Tools Thread rolling is a metal forging process that forms threads into the mirror image of a roller die., Power (Ton): 48, Number of rollers: 3

CNC Thread rolling and gear burnishing machine ESCOFIER P440 CN CNC Siemens New 2004 - like new 2-roll 2 moving heads 4000 daN rolling pressure workpiece diameter: 100mm max. tool diameter: 180-245mm Swiveling: +/-6°, forward speed: 0.1-20mm/s, reverse speed: 0.1-30mm/s motor power: 8.6kW New: 2004 Condition: like new

Thread rolling machine make JW FRÖHLICH type GWZ 24/140Machine -No: 241401016 Year 1984Thread rolling performance: M8 - M24Shaft length: 230 mmNumber of cycles: 20 / min.Operating pressure: 130 barDrive power: 18.5 kWWith- FeedsusedPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

CNC Thread rolling and gear burnishing machine, ESCOFIER P440 CN, CNC Siemens, New 2004 - like new, 2-roll, 2 moving heads, 4000 daN rolling pressure, workpiece diameter: 100mm max., tool diameter: 180-245mm, Swivelling: +/-6°,, forward speed: 0.1-20mm/s, reverse speed: 0.1-30mm/s, motor power: 8.6kW, New: 2004, Condition: like new, under power in our warehouse, Mimu Machine Tools (Italy)

3 rolls thread rolling machine diameter range 25-100 mm Forging power 24 to thread length plunge method oo max. pitch 8 mm

3 rolls thread rolling machine diameter range 3-36 mm Forging power 10 to thread length plunge method 60 mm through method oo roller width 50-78 mm roller length 60 mm roller bore 28 mm

We can offer several thread rolling machines with cylindrical dies, any size.

YEAR 2013 THREAD ROLLING MACHINE EXCELLENT CONDITION

ORT 3RP48 CN CNC / PLC thread rolling machine scaffolding sleeves threading, shelves studs threading electronic overhaul/retrofit Under power in our warehouse in Gussago BS. Test run possible Mimu Machine Tools

Magnaghi T12, 2-roll thread rolling machine, new electrics, new auto plunge, This machine can be inspected in our warehouse. Mimu Machine Tools (Italy)

pressure: 0,1- 12 t max. workpiece diameter: 2- 50 mm threading length: 2000 mm stroke: 0- 15 mm pitch max.: 3 mm tool diameter: 200 mm roll spindle turning speed range: 20- 90 U/min weight of the machine ca.: 1,7 t dimensions: 1,4 x 1,1 x 1,4 m used thread rolling machine in good condition - well equipped The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Makes: Hilgeland / EW Menn / Ingramatic Diameter ranges 1mm - 20mm

Various threaded rollers

Power: 0 t Thread diameter maximum: 0 mm Thread diameter minimum: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Min. diameter threaded: 2 mm Max. diameter threaded: 48 mm Gewindelänge: 130 mm Min. pitch: 0.4 mm Max. pitch: 4 mm Min. roll die diameter: 100 mm Max. roll die diameter: 148 mm Roll bore diameter: 54 mm Roller pressure infinitely adjustable: 17 to Roll axis swivel for thru-feed: 8 ° Roll and pause time infinitely variable: 1 - 30 sec Shaft distance: min.: 120 mm max: 200 mm Feeds: stepless up to: 1.4 mm/s Roll speeds: stepless up to: 280 rpm Voltage 50 Hz 3x: 380 Volt Motor power: 5.5 kW Machine´s weight about: 2141 kg Weight total installation approx.: 2401 kg Overall dimensions machine: Length: 1250 mm Width: 1200 mm Height: 1260 mm Space requirement of the electrical box: 800 x 500 mm Various accessories: Set of thread rolls

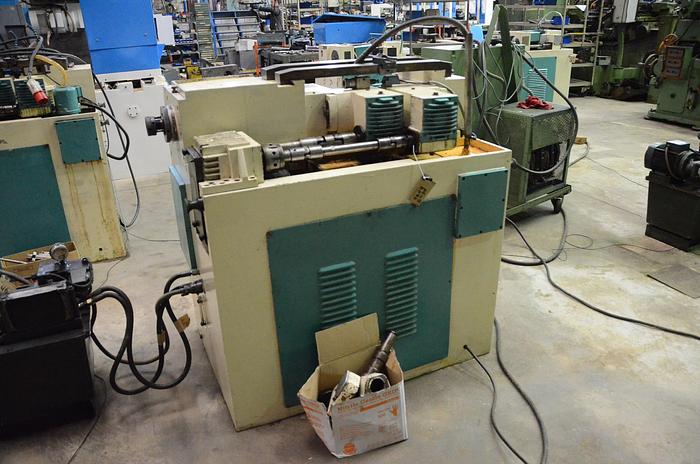

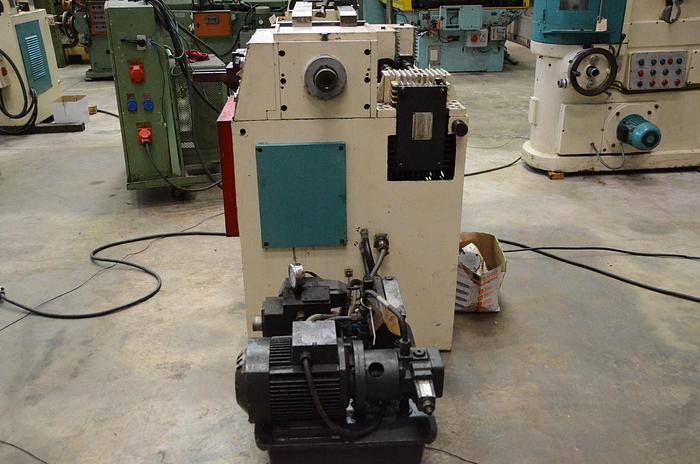

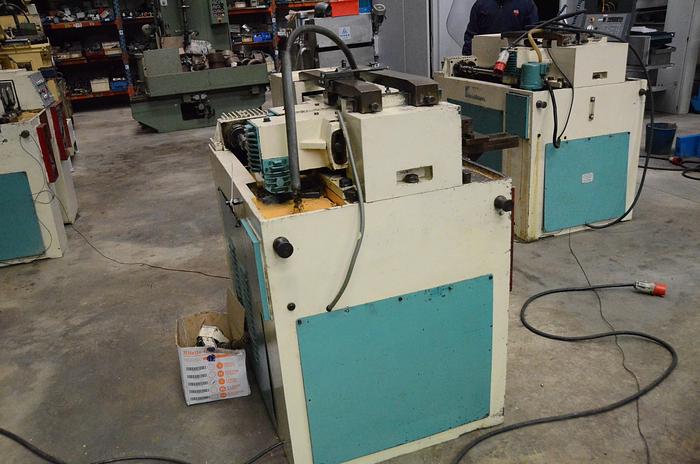

Power: 12 t Thread diameter maximum: 50 mm Thread diameter minimum: 3 mm MACH-id   5405 MAKE       SENY - Japan TYPE         H-50-D YOP           90 er SPECIFICATIONS Miniumum pressure       0,5 T Maximum pressure         12,5 T Max. workpiece      50 Ø Min. workpiece        3 Ø Min. Threading lenght      130 mm Max. Threading length      170 mm Shaft Ø    54 mm Power      5 kW DIMENSIONS Length        1500 mm Width          1400 mm Height          1500 mm 1 set M4 x 0,7 x Ø 150 1 set M5 x 0,8 x Ø 150 1 set M6 x 1,0 x Ø 150 1 set M8 x 1,25 x Ø 150 1 set M8  ...

diameter range 6-12 mm shaft length under head 8-75 mm max. thread length 75 mm output pieces/min 1000

vibratory feeder diameter range 4-12 mm shaft length under head 150 mm max. thread length 105 mm output pieces/min 80-260

tube feeder for studs and headless parts diameter range 6-12mm shaft length under head 95 mm max. thread length 90 mm output pieces/min 55

vibratory feeder diameter range 8-16 mm shaft length under head 150 mm max. thread length 83 mm output pieces/min 120

Power: 0 t Thread diameter maximum: 0 mm Thread diameter minimum: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Min. diameter threaded: 2 mm Max. diameter threaded: 48 mm Max. rolling force: 12 to Shaft diameter: 54 mm Voltage 50 Hz 3x: 400 Volt Connection power: 14 kW Machine´s weight about: 2400 kg Overall dimensions machine: Length: 1850 mm Width: 1250 mm Height: 2000 mm

Technical data Min. diameter threaded: 27 mm Max. diameter threaded: 90 mm Min. pitch: 1 mm Max. pitch: 6 mm Max. infeed length: 68 mm Max. roll die diameter: 150 mm Roll die width: 35,70 mm Max. rolling force: 17 to Roll axis swivel for thru-feed: 3 ° Shaft diameter: 54 mm Roll speeds: from: 150 rpm up to: 500 rpm Voltage 50 Hz 3x: 400 Volt Motor power: 7.5 kW Machine´s weight about: 2420 kg Overall dimensions machine: Length: 2200 mm Width: 1900 mm Height: 2000 mm

Technical data Min. diameter threaded: 10 mm Max. diameter threaded: 75 mm Min. pitch: 1 mm Max. pitch: 10 mm Max. infeed length: 148 mm Max. roll die diameter: 200 mm Roll die width: 35,70,100,150 mm Max. rolling force: 60 to Roll axis swivel for thru-feed: +6/-6 ° Shaft distance: min.: 195 mm max: 275 mm Shaft diameter: 70 mm Roll speeds: from: 20 rpm up to: 50 rpm Voltage 50 Hz 3x: 400 Volt Motor power: 18.75 kW Machine´s weight about: 4700 kg Overall dimensions machine: Length: 2450 mm Width: 2300 mm Height: 2250 mm

Technical data Min. diameter threaded: 8 mm Max. diameter threaded: 50 mm Min. pitch: 1.0 mm Max. pitch: 6.35 mm Max. roll die diameter: 178 mm Roll die width: 35 -150 mm Max. rolling force: 40 to Shaft distance: min.: 170 mm max: 230 mm Shaft diameter: 70 mm Roll speeds: from: 20 rpm up to: 60 rpm Voltage 50 Hz 3x: 380 Volt Motor power: 11/3.65 kW Machine´s weight about: 2750 kg Overall dimensions machine: Length: 2000 mm Width: 1450 mm Height: 1800 mm Various accessories: Set of thread rolls Lamp Set of service tools Foot pedal

Technical data Min. diameter threaded: 6 mm Max. diameter threaded: 30 mm Min. pitch: 1.0 mm Max. pitch: 3.5 mm Max. roll die diameter: 148 mm Roll die width: 35 - 70 mm Max. rolling force: 17 to Shaft distance: min.: 130 mm max: 175 mm Shaft diameter: 54 mm Roll speeds: from: 20 rpm up to: 60 rpm Voltage 50 Hz 3x: 380 Volt Motor power: 3.65/2.19 kW Machine´s weight about: 1220 kg Overall dimensions machine: Length: 1600 mm Width: 1200 mm Height: 1340 mm Various accessories: Set of thread rolls Lamp Set of service tools

Technical data Min. diameter threaded: 6 mm Max. diameter threaded: 30 mm Min. pitch: 1.0 mm Max. pitch: 3.5 mm Max. roll die diameter: 148 mm Roll die width: 35 - 70 mm Max. rolling force: 17 to Shaft distance: min.: 130 mm max: 175 mm Shaft diameter: 54 mm Roll speeds: from: 20 rpm up to: 60 rpm Voltage 50 Hz 3x: 380 Volt Motor power: 3.65/2.19 kW Machine´s weight about: 1220 kg Overall dimensions machine: Length: 1600 mm Width: 1200 mm Height: 1340 mm Various accessories: Set of thread rolls Lamp Set of service tools

Technical data Min. diameter threaded: 4 mm Max. diameter threaded: 20 mm Min. pitch: 0.5 mm Max. pitch: 2.5 mm Max. roll die diameter: 118 mm Roll die width: 50 mm Shaft distance: min.: 100 mm max: 135 mm Shaft diameter: 40 mm Roll speeds: up to: 80 rpm Voltage 50 Hz 3x: 380 Volt Motor power: 2 kW Machine´s weight about: 750 kg Overall dimensions machine: Length: 1170 mm Width: 740 mm Height: 1050 mm Various accessories: Set of thread rolls Lamp Set of service tools

vibratory feeder diameter range 3-8 mm shaft length under head 80 mm max. thread length 58 mm output - pieces/min 250-480

rotary drum feed diameter range 1,6-4 mm shaft length under head 50 mm max. thread length 30 mm output pieces/min 300-750

Inv. Num. : 5148 Type: URWA 250 Producer: Profiroll Created: 2004 Parameters: Rolling force: 800 kN Max. workpiece diameter: 250 mm Workpiece width: 80 mm Spindle diameter: 110 mm Spindle speed: 100-800 1/min Mandrel diameter: 45-100 mm Length: 2400 mm Width: 2400 mm Height: 2400 mm Weight: 4900 kg

MAX CAPASITY 20 T

diameter range 4-12 mm shaft length under head 150 mm max. thread length 130 mm output pieces/min 85-220

vibratory feeder diameter range 2-8mm shaft length under head 80 mm max. thread length 50 mm output pieces/min 1200

vibratory feeder diameter range 3-8 mm shaft length under head 80 mm max. thread length 55 mm output pieces/min 300

vibratory feeder diameter range 2,5-6 mm shaft length under head 80 mm max. thread length 40 mm output pieces/min 600

Description: With accessories as shown in the pictures Diameter of the rolling element at the top: approx. 100 mm Diameter of the rolling element at the bottom: approx. 50 mm Approx. Onsite Dimension. (l x w x h): 1,200 x 800 x 1,200 mm, weight approx.: 700 kg

diameter range 12 mm shaft length under head 180 mm max. thread length 80 mm output pieces/min 100-330

diameter range 2,5-6 mm shaft length under head 80 mm max. thread length 40 mm output pieces/min 600

Description: Including extensive stock of thread rolls Approx. Onsite Dimension. (l x w x h): 2,800 x 1,100 x 1,900 mm, weight approx.: 1,900 kg

Feed infinitely variable: 0.5-6mm/s, max. rollable workpiece diameter: 110mm, rolling time infinitely variable: 0.1-99.9s, max. thread length in recess: 180mm, pause time infinitely variable: 0.1-99.9s, max. thread length in throughfeed: 5000mm, rolling spindle speed infinitely variable: 20-80/min, max. pitch of thread to be rolled: 6mm, diameter of rolling spindles: 69.85mm, max. pitch for serrations: 2mm, pitch for serrations: 2mm, mounting length of the rolling spindles: 180mm (up to 70kg/mm² strength of the material to be rolled), width of the feather key in the rolling spindle: 12.7mm, height of the feather key over the rolling spindle: 2.5mm, rolling spindle distance: 130-270mm, stroke of the rolling spindle carriage: 30mm, max. diameter of rolling tools: 218mm, swivel angle of rolling spindles: +/-10°, machine bed height: 850mm, rolling spindle height above machine bed: 200mm, h ...

- for Walterwerk Kiel Jupiter baking oven - for different angles and cone lengths

Brands E.W. Menn / Ingramatic / P&E / Hilgeland Diameter ranges from 1 mm - 20 mm
