tapping center used for sale

as good as new H & G

Offer 25118 Specifications: - Tapping capacity approx. M 3 - M 8 - Working range ( swivel radius ) approx. 1800 mm - Multi-position head - Speeds: 8 - 700 rpm - Quick-change tool mount size 1 dia.19 - Pneumatic connection 6 - 8 bar - Table base H 900 mm - Space requirement approx. W 1000 x H 2000 x D 1000 mm - Weight approx. 100 kg

thread dia.: 12 mm : 375 U/min. working area: 180 - 2000 mm engine output: 0,7 kW weight: 28 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

thread dia.: M6 - M30 mm : 58 - 205 U/min. working area: 320 - 1500 mm engine output: 0,85 kW weight: 36 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

thread dia.: M3 - M12 mm : 400 U/min. : 25 Nm air pressure: 6 - 8 bar working area: Radius 1000 mm weight of the machine ca.: 12 kg Demonstration machine! Pneumatically driven tapping machine for M3 - M12 thread with: - stable and flexible working arm. - 6 pcs. Quick-change chuck with slip clutch. Documentation in English optional: - Clamping table with T-slots clamping surface 900 x 600mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

thread dia.: M3 - M16 mm : max. 187 U/min. working area: 180 - 1000 mm engine output: 0,7 kW weight: 22 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

thread dia.: M3 - M12 mm : 400 U/min. : 28 Nm air pressure: 6 - 8 bar working area: 150 - 1900 mm weight of the machine ca.: 12 kg Pneumatic Tapping Machines for M3 - M12 thread, angle adjustable. 6 pcs. Keyless chuck with clutch. optional: Working table with T-slots: 750x600x650mm 990x700x800mm or. Magnetic base. Available up to max. M16, M22 and M33. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Table, Drilling and Tapping Machine FLOTT Type TBZ 15 GLFabr. No. 32177027 year of construction 1986Drilling capacity 15 mmSpindle mount MK2Throat depth 195 mmPine stroke 80 mmTable size 275 x 200 mmColumn diameter 70 mmSpindle speed 80 - 4500 rpm. 18 stepsMotor power 0.55 + 0.75 kWNet connection 380 volts, 50 Hz- 6 belt steps from the motor and 2 belt stages to the drilling spindle 2 motor speeds- 3 pieces guide cartridges 0.7mm + 0.8mm and 28G available- Drill head height adjustment via crank with rack on the

Table, Drilling and Tapping Machine IXION Type BT 15 GLMasch. No. Year of construction approx. 1975Drilling capacity 15 mmSpindle holder Cone holder B 16Threading from M 2.5 to M10Throat depth 200 mmPine stroke 90 mmTable size 285 x 220 mmColumn diameter 75 mmSpindle speed 320 - 1600 rpm. 4 stagesMotor power 0.55 kWNet connection 380 volts, 50 Hz- Spindle speed via 4 V-belt steps- equipped with FAHRION GH 10 tapping chuck- with guide cartridge for the thread pitch, operation without

thread dia.: 20 M turning speeds: 400 U/min thread: M 4 - M 20 M working area: 1900 Rmax. working range: 200 Rmin. Description: The AT models have a radius of up to 1900 mm and their construction a flexible workspace. For professional use. Easy to mount on a worktop. Furnishing: - including 7 thread cutting inserts • M3 20111812 DIN 371 19 • M6 20111823 DIN 371 31 • M8 20111824 DIN 371 31 • M10 20111826 DIN 371 31 • M12 20111827 DIN 376 31 • M16 20111829 DIN 376 31 • M20 20111831 DIN 376 31 - Control valve with lubrication - Including air motor - Adapter connection size 2 - The cutting head can be pivoted vertically downwards by 90 ° - The cutting head is pivoted and rotatable through 360 ° - Operating instructions in German without the perforated table as per Fig. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Demonstration machine as good as new! hydraulic tapping machine with parallel arm Model: RHR24 (M3-M24) Standard - Ball bearing wear-free parallel arm, radius: 1800mm - Hydraulic system 400 V / 3Ph (mounted in the lower box) - Digital speed display and digital depth control, duty cycle of your choice - Manual: Direction of rotation right/left by means of press studs - Automatic: digital input of depth, at the set depth the direction of rotation is automatically reversed - Wide speed range, working and return speed Separately electronically adjustable (by means of frequency converter) - Clamping table 800 x 600 mm with T-slots - Micro spray system for tool lubrication (integrated in the machine head) - Lower box - Quick-change mount for Bilz thread holders, among others

Demonstration machines as good as new: Standard - Ball-bearing wear-free parallel arm, radius: 1270 mm or 1800 mm - Connection 230 V / 1Ph - Speed infinitely adjustable - Digital speed display and digital depth control, duty cycle of your choice • Manual: Direction of rotation right/left by means of press studs • Automatic: at the set depth, the direction of rotation is automatically reversed • Memory for 5 depth programs/edits, incl. piece counter (see page 2) - Lubrication system for tapping (only with 2 articulated arms(1800)) - Quick-change mount for Bilz thread holders, among others - M models are designed with a multi-position head All D+ models are equipped with digital depth control - Digital speed display - Manual work cycle: Direction of rotation right/left by means of push buttons - Automatic work cycle: • Digital input of slope and depth, at the s ...

Drive motor: 400 V, 0.55 kW, 2,800 rpm. Thread diameter range: M 1 - M 6 Spindle stroke: max. 15 mm Output: max. 120 rpm

Cutting range: M3-M10 in Steel M3-M16 in cast iron M3-M18 in light metal and brass Spindle speeds: 120-240-180-360-300-600 rpm incl. 1 piece of new tap chuck Everything works smoothly and well

Hagen & Göbel HG22EB Tapping Machine -Type HG22EB -Brand Hagen & Göbel -Speed range 180-1120 rpm -Table dimensions approx. 600x500mm Dimensions: LxWxH 1.1x0.7x2.0 meters / Weight 1000Kg

Hagen & Göbel HC22E Tapping Machine - Product type HC22E -Brand Hagen & Göbel -Speed range 56-355 rpm -Table dimensions approx. 600x500mm -Year of construction 1988 Dimensions: LxWxH 1.1x0.7x2.0 meters / Weight 1000Kg

Thread cutting chuck, thread chuck, tapping chuck, milling tool, thread cutting attachment, two-jaw thread cutting chuck -Manufacturer: Bahmüller, thread cutting chuck with keyless chuck -Type: 18.6012 - Bahmüller SK40x36 A 125 -Chuck: Albrecht 1/8-5/8 / 3-16 mm -Dimensions: Ø 63 x 350 mm -Weight: 4.4 kg

380V 16 A Length 0.67 m Width 0.96 m Height 1.50 m Table

Including pallet box Auction-ID: A1-46698-158

Table dimensions: 200 x 200 mm Reference: Hüpometall - Lot 20 Auction-ID: A7-46763-100

380 V 16 A Collet holder d 6 Length 70 cm Width 30 cm Height 60 cm Color: Green

380 V 16 A Collet mount, nut is missing. Length 40 cm Width 30 cm Height 50 cm Color: Gray

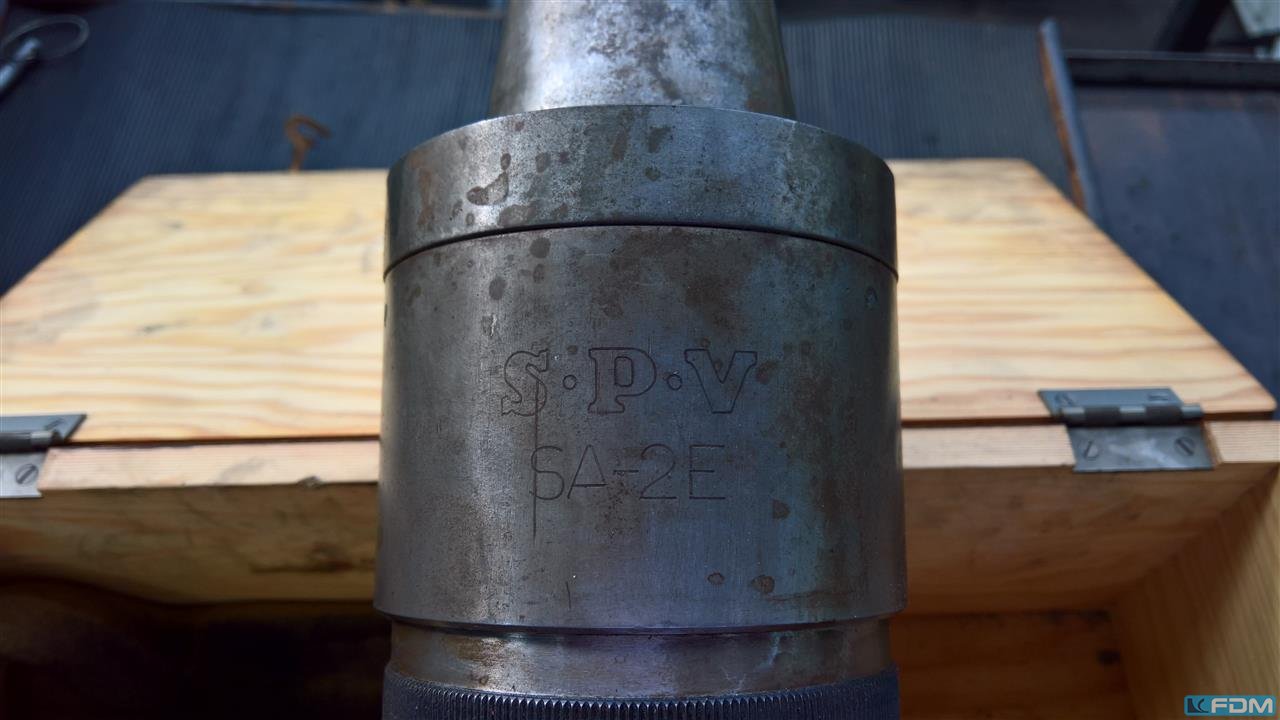

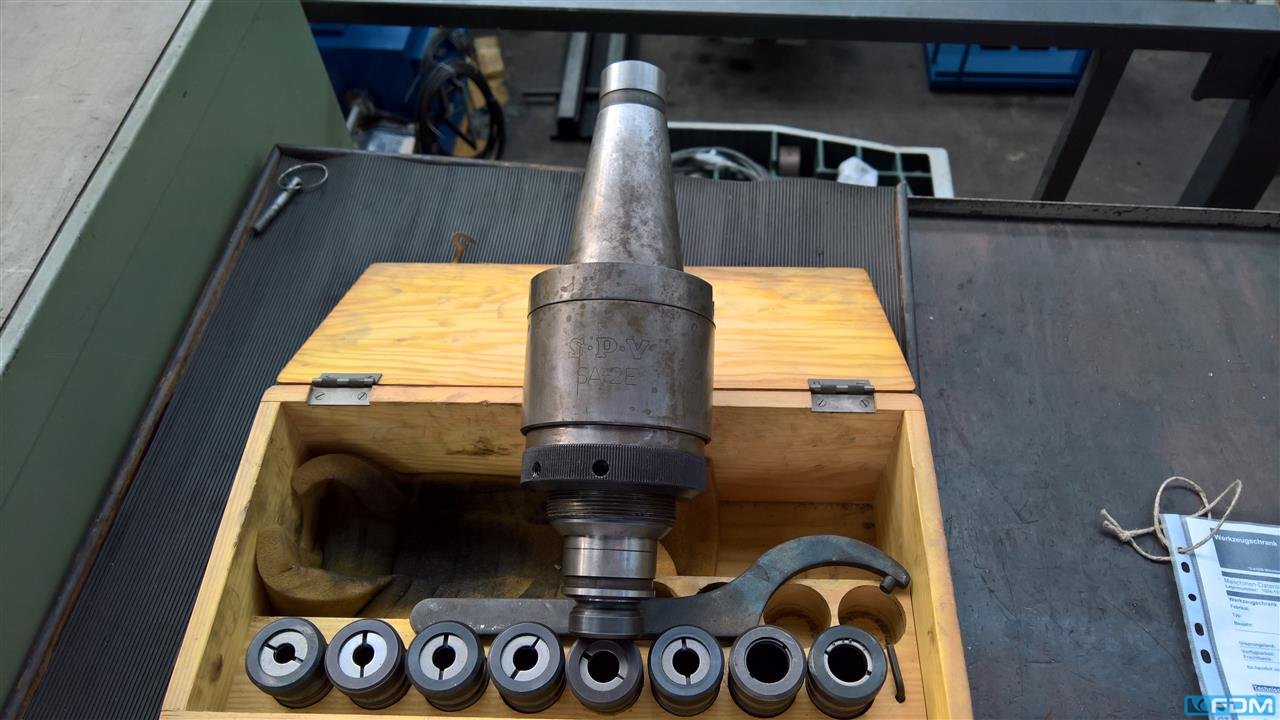

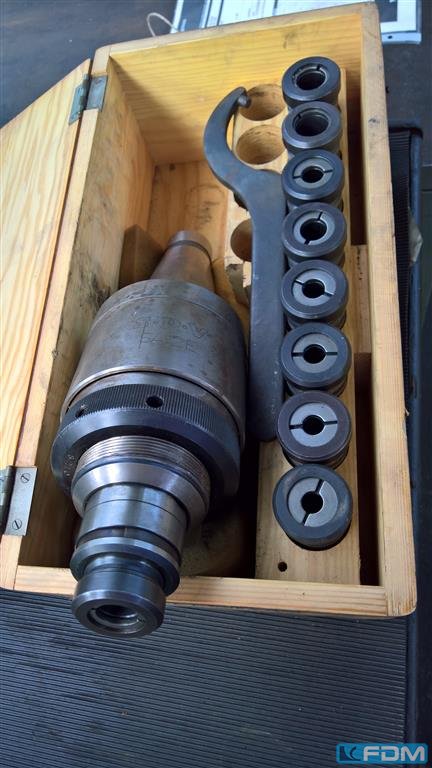

Thread capacity:14-30 Taper: 50 weight:20 kg Tapping device SPV for max. M 30 taps, packed in box with misc. tool holders spindle taper ISO 50 Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

The machine is technical and geometrically in a very good state. it was till 2years in use an application and any time inbetrieb are taken. Grter draggable Durchme?er 60 mm the smallest tench-cash Durchme?er 0.5 mm Schleifscheiben-Durchme?er 356 mm Schleifdcheiben width 150 mms control disc-Durchme?er 254 mms control discs width 150 mms Drehzahl-Schleifscheibe 1,780 revo impulse achievement main engine 7 kW speed-control disc 20-250 revos weight 2,900 kg Platzbetarf 8 m²

Pallet Pool PS8

Type SX1325AP-2128 Axis: Useful working area axis X-Y-Z 2070-2800-100 mm Pieces clearance in Z 100 mm Max. traveling speed 70 m/min Max. working speed 30 m/min Working table: Phenolic multifunction Nr. of stops standard 10 (4X-6Y) Vacuum pump 45,5 kW(50/60 Hz), air cooled Electrospindle: Standard power (S6) 9,5 kW, ISO30 Max. speed 24 000 rpm Tool changer: ATC carousel for 12 positions Lubrication: Automatic centralized lubrication Installation: Installed power 22-33 kW Compressed air cosumption 450 NL/min Extraction air consumption 3000 m3/h Extraction air speed 25 m/sec Suction hood diameter 2x150 mm Weight 3500 kg Video abcs://youtu.be/2q3wHCalvSg

Table clamping surface: 2 x 350 x 300 mm traverse path x/y/z: 700/300/250 mm spindle retainer: BT 30 ISA kl. / gr. Table/spindle distance: 450 mm spindle speeds: 6-6000 rpm number of tool stations: 10 pieces feeds: 5-10000 mm / min rapid traverse: x & y/z 25/20 m / min spindle drive: 3,1/4,1 kW Electr. Supply: 400 V kW weight: 2600 kg

Swing: 530mm. Swing over carriage: 320mm. Distance between centers: 2000mm. Spindle: 60mm. Equipped with chuck. Equipped with DRO Fagor. Motor power: 10cv.

Weight: approx.4500 KG mash. No.: 6517991 General/technical data: Vertical CNC machining center in a very good, almost new condition, first-hand with very little operating hours. Travel: X= 670 Y=450 Z=470 mm Rapid response: in X and Y = 24m/min, in Z =20m/min Spindle motor: 10 KW Spindle speed: from 50 to 4,500 rpm Spindle cone: SK 40 Control: Siemens 810 M GA 2 Dimensions clamping table: 900 x 420mm max table load: 300 kg Distance spindle head to top of the table: 630mm spindle center to stand face: 470mm Tool slots in the magazine: 24 pieces DIN ISO 40 max. tool diameter: 110mm to 125mm tool length 100mm to 280mm tool length Beuvvquh2i Dimensions of the machine approx.: 2200 x 3000 x 2950 mm (without operator, service and chip conveyor environment) Accessories/ Optional equipment: â?¢ external coolant system with 2 pumps â?¢ Chip conveyor with ...

Rebuilt lathe. Distance between centers: 750mm. Swing over bed: 500mm. Swing over carriage: 220mm. Spindle nose: 40,5mm. Motor power: 10cv. Equipped with universal chuck of 250mm. CE Protections in chuck and carriage and CE european certificate for second hand machines. Optional: Steady rest. Optional: CE back guard. Optional: DRO Fagor or Heidenhain.

New lathe. Distance between centers: 1500mm. Swing: 510mm. Swing over carriage: 320mm. Swing over gap: 760mm. Spindle hole: 80mm. CE protections and certificate. Equipped with chuck and steady rest.

Rebuilt lathe. Distance between centers: 1000mm. Swing over bed: 500mm. Swing over carriage: 220mm. Motor power: 10cv. Spindle nose: 40,5mm. CE protections in chuck and carriage and CE european certificate for second hand machines. Equipped with universal chuck of 250mm. Optional: Steady rest. Optional: CE back guard. Optional: DRO Fagor or Heidenhain.

5 axis machininng center (milling/turning from bar) multitasking Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 ? 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min ...

Rebuilt lathe. Distance between centers: 1500mm. Swing over bed: 500mm. Swing over carriage: 220mm. Motor power: 10cv. Spindle nose: 40,5mm. CE protections in chuck and carriage and CE european certificate for second hand machines. Equipped with universal chuck of 250mm and steady rest. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Distance between centers: 4500mm. Swing: 825mm. Swing over carriage: 600mm. Swing over gap: 1250mm. Spindle: 80mm. 16 speeds (9-500rpm) Equipped with chuck of 500mm. Equipped with conical device.

ertikal machining center, used, from location vertical machining center, used, Model/ model: VS 500 SPEED Fabr./ make: NORTE Year built/ year: 1999 Control/ control: SIEMENS 840D x-Way /x-travel 2000 mm y-way / y-travel 500 mm z-way / z-travel 500 mm Feed: 1 - 8000 mm/min Table size / table-size 2120 x 550 mm Table load / table load 2000 kp Rapid gear X-axis / rapid traverse X-axis 40 m/min Rapid gear Z-axis/ rapid traverse Z-axis 20 m/min Tool holder / tool taper HSK 63 A Spindle speeds - infinitely variable/ spindle turning speed 0 - 15000 rpm Spindle drive/spindle motor 20 kW Spindle bearing diameter / spindle bearing diam. 70 mm Position accuracy / position accuracy: 0.020 mm Control SIEMENS 840D Tool diameter: 63 / 126 mm Tool Magazine: Chain Magazine/ toolpiece magazine: 40 pieces Total power requirementm.65 kVA Machine w ...

Rebuilt lathe. Swing over bed: 575mm. Swing over carriage: 300mm. Distance between centers: 1000mm. Motor power: 12,5cv. Spindle nose: 51mm. Equipped with universal chuck of 250mm. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: Steady rest. Optional: CE back guard

The milling center DUGARD EAGLE 660 was produced in 2005. The vertical machining center has a reconditioned spindle with a tool haul change - a rod, springs and a gripper. Technical parameters of the CNC milling machine: - CNC controller: SIEMENS SINUMERIK 810D ShopMill - workpiece probe - tool probe Worktable : - table dimensions: 810 x 510 mm - maximum table load: 500 kg - T-slot, quantity: 5 mm - T-slot, size: 18 mm - T-slot, spacing: 100 mm Processing field: - X axis travels: 660 mm - Y axis travels: 530 mm - Z axis travel: 510 mm - distance of the spindle tip to the axis of the table: 150 ~ 660 mm - distance of the spindle axis to the column: 585 mm Spindle: - spindle taper: ISO 40 - constant spindle power: 11 kW - spindle power 30 min. : 15 kW - spindle speed range: 80 ~ 8000 rpm. Rapid feeds: - X axis travel: 30 m / min. - Y axis travel: 30 m / mi ...

Rebuilt lathe. Distance between centers: 1500mm. Swing over bed: 575mm. Swing over carriage: 300mm. Motor power: 12,5cv. Spindle nose: 51mm. CE protections in chuck and carriage and CE european certificate for second hand machines. Equipped with universal chuck of 250mm and steady rest. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

2 pallets, 108 wkzg., BJ 1988, interior cooling, with PS8, various clamping means - see pictures

The vertical milling center FADAL VMC 2216 FX was manufactured in 2007 by the FADAL concern in the USA. The machine is equipped with FANUC Oi-MC numerical control. The milling machine can process workpieces weighing up to 450 kilograms. Machine travels in the X, Y, Z axes are 550 mm, 400 mm and 500 mm, respectively. The spindle revolutions of the CNC milling machine reach 8000 rpm. The center has a warehouse for 21 tools. Perfect for working with single details as well as for larger-scale processing. Technical data of the FADAL VMC 2216 FX machining center - CNC control: FANUC Oi-MC - table length: 406 mm - table width: 990 mm - maximum weight of the workpiece: 450 kg - X axis travel: 550 mm - Y axis travel: 400 mm - Z axis travel: 500 mm - maximum spindle speed: 8000 rpm - tool magazine: 21 - handle: SK 40 - spindle motor power: 11.2 kW - power demand: 35 kVA - power o ...

The vertical milling center FADAL VMC 15XTL was manufactured in 2007 in the United States by the FADAL brand. The machining center is digitally controlled by Fadal. It has a table size of 870 x 400 mm. The milling machine is designed for processing materials weighing up to 340 kg. It is equipped with a magazine for 21 tools. The spindle speed of the machining center, on the other hand, reaches 7500 rpm. Technical parameters of the FADAL VMC 15XTL CNC milling machine - CNC control: Fadal - working table length: 400 mm - working table width: 870 mm - maximum table load (evenly distributed): 340 kg - number of tools in the magazine: 21 pcs. - spindle drive power: 5.6 kW - maximum rotary speed of the vertical spindle: 7500 1 / min. - minimum distance between the spindle and the table: 101.6 mm - maximum distance between the spindle and the table: 609.6 mm - travel length in th ...

Rebuilt lathe. Swing over bed: 575mm. Swing over carriage: 300mm. Distance between centers: 2000mm. Spindle nose: 51mm. Motor power: 12,5cv. Equipped with universal chuck of 250mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

CNC multi-tasking lathe NAKAMURA SUPER NTX-S Reference No.: 18038 Mfg. year 2007 S/No. V300901 FANUC 16i-TB Luckbei-dialog system supercap Maximum turning diameter -Upper turret 390 mm -Lower turret 300 mm Maximum turning length 1,100 mm Max cash working capacity 65 mm Milling spindle AC 18.5/11 kW Milling spindle maximum speed 12,000 rpm Capto C6 Servo controlled B-axis, 230° Y-axis 160 mm ATC with 40 tools Main and sub spindle AC 22/18.5 kW Main and sub spindle maximum speed 4.500 rpm 12/24-station turret, all stations for driven tools Maximum speed of driven tools 3,600 rpm 2 off. 3-jawchuck 210 mm, SCHUNK Coolant tank 250 liters High pressure pumps Swarf conveyor 1 set of toolholders for lower turret -static 9, 3-driven weight 19,000 kg CE-mark

MORI SEIKI SH-500/40 Horizontal Machining Center was built in Japan in 1999 by MORI SEIKI CO., LTD. The machine is equipped with a numerical control type MORI SEIKI MSC-502. The milling machine has a table size of 500 x 500 mm and processes workpieces weighing up to 500 kg. The travel range of its X, Y, Z axes is 630 x 600 x 650 mm, respectively. The machine spindle rotates at 12,000 revolutions per minute. The milling machine is equipped with a magazine for forty tools with a maximum tool diameter of 150 mm, length 360 mm and a weight of 12 kg. The milling center is offered at a price with different types of holders. Technical parameters of the MORI SEIKI SH-500/40 CNC milling machine - CNC control: MORI SEIKI MSC-502 Travel range: - X axis (table travel length): 630 mm - Y axis (vertical movement of the spindle head): 600 mm - Z axis (cross table movement): 650 mm - distan ...

Rebuilt lathe. Swing over bed: 575mm. Swing over carriage: 300mm. Distance between centers: 3000mm. Spindle nose: 51mm. Motor power: 12,5cv. Equipped with universal chuck of 250mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

MODEL: VERSAMATIC 400 TYPE: TV-MO SERIAL NUMBER: VS4 166 YEAR OF BUILD: 1995 CNC: HEIDENHAIN

FMS SYSTEM: Machining Cell consisting of: Two 5-Axis machining Centres 8-Pool Pallet System(1250 x 1250mm x 3.000kg) Pallet Storage System X= 3.000 mm, Y= 2.000H/1.720V, Z= 2.000mm; A= 175°, B=0,001°; 640 Pos. ATC ; Spindle Taper HSK-A100; Spindle n= 3.000; Motor 50kW; Feeds: X,Y= 40m/min, Z= 30m/min Siemens 840D, Chip-conveyor; Serial No. 1450-03 and 1451-3, both from 2003 FR: À VENDRE MAINTENANTFMS SYSTEME ; 8 Pos. Piscine à palettes (1250 x 1250mm x3.000kg). 2x MCM Jet Five Mirror 5 axes CENTRE D'USINAGE/BEARBEITUNGSZENTREN/MACHINE CENTERS, X= 3.000, Y= 2.000H/1.720V, Z= 2.000mm ; A= 175°, B=0,001° ; 640 Pos. ATC ; Cône de broche HSK-A100 ; Broche n= 3.000 ; Moteur 50kW ; Alimentation : X,Y= 40m/min, Z= 30m/minSiemens 840D, convoyeur à copeaux ; numéros de série 1450-03 et 1451-3, à partir de 2003

Rebuilt lathe. Swing over bed: 725mm. Swing over carriage: 400mm. Distance between centers: 1500mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 315mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.
