tapping center used for sale

Internal threading machine Hagen & Goebel type HG 124 Masch. No. 4112 Year of construction approx. 1980 Cutting capacity M 3 to M 18 in brass M 3 to M 10 in steel projection 250 mm Table size 345 x 245 mm Spindle speed 200 - 1000 rpm. Motor power 0.55 / 1.0 kW Mains connection 380 volts, 50 Hz - 6 speed levels via belt change (3 steps via belt + 2 engine speeds) - Table height adjustment with rack via hand crank on the round column - without guide cartridge - Drill chuck 1 to 13 mm- Tool holder 25 mm cylindrical shaft holder Space requirement L x W x H 900 x 500 x 1800 mm Weight 260 kg good condition; used

Electric cutter, thread cutting machine for external threads REMS type Amigo 2 Tapping caliper for pipe threads as a set of 6 pieces of cutting clamps Article number: 540000 Year of manufacture approx. 2000 Cutting capacity 1/8 to 2 Pipe outer diameter 6?30 mm Speed approx. 30 to 18 rpm. Motor power 1700 Watt Mains connection 230 volts, 50 Hz - clockwise, anticlockwise - 6 pieces Thread cutting heads 1/2 / 3/4 / 1 / 1 1/4 / 1 1/2 / 2 - 1 piece Clamping spindle with toggle metal box for storage - Operating instructions - only used 2-3 times Space requirements Box L x W x H 780 x 280 x 150 mm Weight Complete set with box 23 kg very good condition, as good as new; used

Brother Speedio S500X2 Tapping Center Total working hour : 3.404 ( April 2023) All maintenance has been done regularly by authorized service Machine is like new condition Brother control unit

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: MAZATROL CAM M-2 Technical data Table length: 1240 mm Table width: 550 mm Longitudinal travel (X-axis): 1000 mm Transversal travel (y axis): 500 mm Vertical travel (z axis): 660 mm Table load max.: 800 kg Taper in spindle: 40 ISO Spindle speeds: stepless vertical from: 28 rpm up to: 4000 rpm Tool changer: number of tools: 30 Tool diameter: 100 mm Diameter with free adjacent pockets: 130 mm Max. tool-weight: 7 kg Voltage 50 Hz 3x: 380 Volt Milling spindle motor: 5.5 kW Machine´s weight about: 6500 kg Overall dimensions machine: Length: 3000 mm Width: 2920 mm Height: 3200 mm Various accessories: Full splash cabin Coolant system Tool changer: (number of tools): 30

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: MAHO CNC 432 Technical data Rotary table:diameter: 400 mm Longitudinal travel (X-axis): 400 mm cross travel (Z-axis): 350 mm vertical travel (Y-axis): 375 mm Table load max.: 160 kg Taper in spindle: 40 ISO Spindle speeds: stepless horizontal from: 20 rpm up to: 3150 rpm vertical from: 20 rpm up to: 3150 rpm Voltage 50 Hz 3x: 380 Volt Total power required: 9 kVA Machine´s weight about: 1600 kg Overall dimensions machine: Length: 1600 mm Width: 2200 mm Height: 1670 mm

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: MAHO 432 Operating hours: 7002 Technical data Table length: 900 mm Table width: 600 mm Longitudinal travel (X-axis): 800 mm cross travel (Z-axis): 550 mm vertical travel (Y-axis): 500 mm Table load max.: 450 kg Taper in spindle: 40 ISO Spindle speeds: stepless horizontal from: 20 rpm up to: 5000 rpm vertical from: 20 rpm up to: 5000 rpm Feeds: stepless longitudinal from: 1 mm/min up to: 4000 mm/min transversal from: 1 mm/min up to: 4000 mm/min vertical from: 1 mm/min up to: 4000 mm/min Rapid traverse:: 6 m/min Voltage 50 Hz 3x: 380 Volt Milling spindle motor: 10 kW Machine´s weight about: 5000 kg Overall dimensions machine: Length: 3000 mm Width: 2200 mm Height: 2100 mm Various accessories: Vice: width: 125 mm In ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: PROTO TRAK A.G.E. 3 Technical data Number of axis total: 3 Table length: 1270 mm Table width: 320 mm Longitudinal travel (X-axis): 750 mm Transversal travel (y axis): 400 mm Vertical travel (z axis): 610 mm Table load max.: 600 kg Distance from vertical spindle to table: 610 mm Distance from spindle axis to slide ways: 480 mm Taper in spindle: 40 ISO Spindle speeds: number (steps): 2 from: 5 rpm up to: 3600 rpm Swivel range Vertical milling head: -90 / +90 ° Feeds (X, Y, Z): 5 - 3800 mm/min Vertical quill travel: 120 mm Quill feed speed: 0.04 / 0.08 / 0.15 mm/r Drill capacity in steel: 35 mm Threat cutting in steel M: 36 Milling capacity in steel: 80 - 150 cm3/min Boringout: 120 mm Voltage 50 Hz 3x: 415 Volt Milling ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: GE FANUC 0i - MD 7 512 kB / Touch screen Technical data Table length: 300 mm Table width: 260 mm Longitudinal travel (X-axis): 150 mm Transversal travel (y axis): 225+50 ATC mm Vertical travel (z axis): 200 mm Table load max.: 80 kg Distance from vertical spindle to table: 140 ~ 340 mm Taper in spindle: HSK-E32 Spindle speeds: stepless vertical from: 100 rpm up to: 30000 rpm Tool changer: number of tools: 17 Rapid traverse:: 30 m/min Milling spindle motor: 3.0 / 4.5 kW Total power required: 12 kVA Machine´s weight about: 2000 kg Overall dimensions machine: Length: 1750 mm Width: 600 mm Height: 1800 mm Various accessories: Handwheel electroinic Full splash cabin Coolant system: 120 ltr. Tool changer: (number of tools): ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: PHILIPS 132 Technical data Table length: 740 mm Table width: 440 mm Longitudinal travel (X-axis): 500 mm Cross travel (z-axis): 300 mm vertical travel (Y-axis): 400 mm Taper in spindle: 40 ISO Spindle speeds: stepless horizontal from: 63 rpm up to: 4000 rpm vertical from: 63 rpm up to: 4000 rpm Feeds: stepless longitudinal from: 1.0 mm/min up to: 3000 mm/min transversal from: 1.0 mm/min up to: 3000 mm/min vertical from: 1.0 mm/min up to: 3000 mm/min Rapid traverse: long.: 5 m/min Rapid traverse: transversal: 5 m/min Rapid traverse: vertical: 5 m/min Voltage 50 Hz 3x: 380 Volt Spindle motor: 5 HP Machine´s weight about: 1700 kg Overall dimensions machine: Length: 1800 mm Width: 2200 mm Height: 1900 mm Various acc ...

Control: HEIDENHAIN TNC 360 Technical data Table length: 900 mm Table width: 530 mm Longitudinal travel (X-axis): 560 mm Transversal travel (y axis): 500 mm Vertical travel (z axis): 400 mm Spindle speeds: stepless horizontal from: 5 rpm up to: 5000 rpm vertical from: 5 rpm up to: 5000 rpm Spindle nose: ISO: SK 40 DIN 69871 Feeds: longitudinal from: 1 mm/min up to: 8000 mm/min transversal from: 1 mm/min up to: 8000 mm/min vertical from: 1 mm/min up to: 8000 mm/min Rapid traverse:: 10 m/min Voltage 50 Hz 3x: 380 Volt Machine´s weight about: 3350 kg Overall dimensions machine: Length: 3930 (2625) mm Width: 2650 mm Height: 2140 mm Various accessories: Electronic hand held control Coolant system

Control: HEIDENHAIN TNC 426 Operating hours: 45357 Technical data Table length: 1200 mm Table width: 600 mm Longitudinal travel (X-axis): 710 mm Transversal travel (y axis): 630 mm Vertical travel (z axis): 500 mm Spindle speeds: up to: 6300 (42´000) rpm Tool changer: number of tools: 20 Feeds: longitudinal from: 0 mm/min up to: 15000 mm/min transversal from: 0 mm/min up to: 15000 mm/min vertical from: 0 mm/min Milling spindle motor: 11 kW Machine´s weight about: 4690 kg Overall dimensions machine: Length: 4700 mm Width: 2100 mm Height: 2700 mm Various accessories: Rigide table High frequency spindle: 42000 rpm Manufacturer: FISCHER Set of toolholders Oil mist extractor: FIBARON

Control: HEIDENHAIN TNC 355 Technical data Number of axis total: 3 Table length: 1200 mm Table width: 600 mm Number of T-channels: 9 T-channel width: 14H7 mm Table load max.: 700 kg Longitudinal travel (X-axis): 710 mm Transversal travel (y axis): 630 mm Vertical travel (z axis): 500 mm Distance from vertical spindle to table: 65 - 565 mm Spindle speeds: stepless from: 10 rpm up to: 6300 rpm Tool changer: number of tools: 40 Spindle nose: ISO: 40 Feeds (X, Y, Z): 2 - 4000 mm/min Feeds: Rapid traverse: long.: 10 m/min Rapid traverse: transversal: 10 m/min Rapid traverse: vertical: 8 m/min Stroke of horizontal spindle: 100 mm Voltage 50 Hz 3x: 380 Volt Milling spindle motor: 15 kW Machine´s weight about: 7000 kg Overall dimensions machine: Length: 3500 mm Width: 2400 mm Height: 2400 mm Various accessories: Rigide table Electronic hand held control Hydraulic work-piece clamping Full ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: HEIDENHAIN 407 / 415 Technical data Table length: 850 mm Table width: 440 mm Number of T-channels: 6 T-channel width: 14H7 mm Distance of the T-slots: 63 mm Longitudinal travel (X-axis): 600 mm Transversal travel (y axis): 450 mm Vertical travel (z axis): 400 mm c axis resolution max.: 0.001 ° Table load max.: 500 kg Taper in spindle: 40 ISO Spindle speeds: stepless from: 20 rpm up to: 4500 rpm Spindle nose SK: 40 Feeds (X, Y, Z): 1 - 10000 mm/min Feeds: stepless Rapid traverse:: 10 m/min Vertical quill travel: 75 mm Voltage 50 Hz 3x: 380 Volt Milling spindle motor: 8 kW Total power required: 15 kW Machine´s weight about: 2700 kg Overall dimensions machine: Length: 3100 mm Width: 2850 mm Height: 1930 mm Various  ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: FANUC Series 18i-MB Technical data Number of axis total: 3 Table length: 1700 mm Table width: 810 mm Number of T-channels: 5 T-channel width: 22 mm Distance of the T-slots: 160 mm Longitudinal travel (X-axis): 1600 mm Transversal travel (y axis): 815 mm Vertical travel (z axis): 815 mm Distance from vertical spindle to table: 1035 mm Spindle speeds: number (steps) from: 30 rpm up to: 4500 rpm Tool magazine number of tools: 32 Spindle nose: ISO: 50 Tool diameter: 110 mm Tool lenght: 350 mm Max. tool-weight: 15 kg Feeds (X, Y, Z): 1 - 10000 mm/min Rapid traverse:: 15 m/min Milling spindle motor: 18.5 kW Machine´s weight about: 13300 kg Overall dimensions machine: Length: 4488 mm Width: 3448 mm Height: 3250 mm Various acce ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: FANUC Series 0i-MD Operating hours: 12673 Technical data Number of axis total: 3 Table length: 2200 mm Table width: 1650 mm Number of T-channels: 9 T-channel width: 22 mm Distance of the T-slots: 170 mm Table load max.: 8500 kg Longitudinal travel (X-axis): 1950 mm Transversal travel (y axis): 2200 mm Vertical travel (z axis): 900 mm Distance from vertical spindle to table: 940 mm Spindle speeds: stepless from: 30 rpm up to: 4500 rpm Tool changer: number of tools: 32 Spindle nose: ISO: 50 Tool diameter: 110 mm Tool lenght: 350 mm Max. tool-weight: 20 kg Feeds (X, Y, Z): 1 - 10000 mm/min Rapid traverse: long.: 10 m/min Rapid traverse: transversal: 12 m/min Rapid traverse: vertical: 12 m/min Voltage 50 Hz 3x: 400 Volt ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: FANUC Series 18i-MB Operating hours: 20000 Technical data Number of axis total: 3 Table length: 3200 mm Table width: 1650 mm Number of T-channels: 9 T-channel width: 22 mm Distance of the T-slots: 170 mm Table load max.: 8500 kg Longitudinal travel (X-axis): 1950 mm Transversal travel (y axis): 3200 mm Vertical travel (z axis): 900 mm Distance from vertical spindle to table: 940 mm Spindle speeds: stepless from: 30 rpm up to: 4500 rpm Tool changer: number of tools: 32 Spindle nose: ISO: 50 Tool diameter: 110 mm Tool lenght: 350 mm Max. tool-weight: 20 kg Feeds (X, Y, Z): 1 - 10000 mm/min Rapid traverse: long.: 10 m/min Rapid traverse: transversal: 12 m/min Rapid traverse: vertical: 12 m/min Voltage 50 Hz 3x: 400 Vol ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: FANUC Series 0i-MD Operating hours: 15000 Technical data Number of axis total: 3 Table length: 3200 mm Table width: 1650 mm Number of T-channels: 9 T-channel width: 22 mm Distance of the T-slots: 170 mm Table load max.: 8000 kg Longitudinal travel (X-axis): 3200 mm Transversal travel (y axis): 2000 mm Vertical travel (z axis): 900 mm Distance from vertical spindle to table: 940 mm Spindle speeds: stepless from: 30 rpm up to: 8000 rpm Tool changer: number of tools: 32 Spindle nose: ISO: 50 Tool diameter: 125 mm Tool lenght: 350 mm Max. tool-weight: 18 kg Feeds (X, Y, Z): 1 - 10000 mm/min Rapid traverse: long.: 10 m/min Rapid traverse: transversal: 12 m/min Rapid traverse: vertical: 12 m/min Voltage 50 Hz 3x: 400 Volt ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: HEIDENHAIN TNC 320 Technical data Number of axis total: 4 Table length: 650 mm Table width: 350 mm Number of T-channels: 5 T-channel width: 14H7 mm Distance of the T-slots: 63 mm Table load max.: 250 kg Longitudinal travel (X-axis): 400 mm Transversal travel (y axis): 350 mm Vertical travel (z axis): 400 mm Table load max.: 250 kg Spindle speeds: stepless from: 5 rpm up to: 4500 rpm Swivel range Vertical milling head: +/-90 ° Spindle nose SK: 40 DIN69871 Feeds (X, Y, Z): 2 - 4000 mm/min Rapid traverse: long.: 5 m/min Rapid traverse: transversal: 5 m/min Rapid traverse: vertical: 4 m/min Vertical quill travel: 60 mm Voltage 50 Hz 3x: 400 Volt Milling spindle motor: 5.5 kW Total power required: 15 kVA Machine´s w ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: HEIDENHAIN TNC 425 Technical data Number of axis total: 3 Table length: 900 mm Table width: 530 mm Number of T-channels: 8 T-channel width: 14H7 mm Distance of the T-slots: 63 mm Table load max.: 400 kg Longitudinal travel (X-axis): 600 mm Transversal travel (y axis): 600 mm Vertical travel (z axis): 450 mm Spindle speeds: stepless from: 10 rpm up to: 6300 rpm Tool changer: number of tools: 22 with double gripper Spindle nose SK: 40 DIN 69871 Pull-Studs: DIN 69872 B Tool diameter: 80 mm Diameter with free adjacent pockets: 130 mm Tool lenght: 300 mm Max. tool-weight: 8 kg Time of tool changing: 5-15 sec Feeds: stepless longitudinal from: 2 mm/min up to: 10000 mm/min transversal from: 2 mm/min up to: 10000 mm/min verti ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Technical data Spindle speeds: up to: 15000 rpm Machine´s weight about: 300 kg Overall dimensions machine: Length: 800 mm Width: 700 mm Height: 1700 mm Various accessories: Lamp

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: HEIDENHAIN 530M Technical data Number of axis total: 5 Table length: 920 mm Table width: 380 mm Longitudinal travel (X-axis): 505 mm Transversal travel (y axis): 355 mm Vertical travel (z axis): 610 mm Table load max.: 250 kg Spindle speeds: stepless from: 50 rpm up to: 30000 rpm Tool changer: Tool magazine number of tools: 28 Spindle nose: HSK: E50 Feeds (X, Y, Z): 1 - 20000 mm/min Voltage 50 Hz 3x: 400 Volt Total power required: 22 kVA Machine´s weight about: 3750 kg Overall dimensions machine: Length: 2500 mm Width: 2000 mm Height: 2565 mm Various accessories: Dividing attachment 4th and 5th axis: ATS 160 Centre height: 160 mm Electronic hand held control 3D touch probe Renishaw: MP40 Laser tool setting system Se ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: HEIDENHAIN TNC 124 Technical data Number of axis total: 3 Table length: 800 mm Table width: 425 mm Longitudinal travel (X-axis): 600 mm Transversal travel (y axis): 400 mm Vertical travel (z axis): 400 mm Table load max.: 250 kg Distance from vertical spindle to table: 560 mm Taper in spindle:: 40 SK Spindle speeds: stepless horizontal from: 5 rpm up to: 5000 rpm vertical from from: 5 rpm up to: 5000 rpm Swivel range Vertical milling head: +/- 90 ° Feeds: stepless longitudinal from: 0 mm/min up to: 2000 mm/min transversal from: 0 mm/min up to: 2000 mm/min vertical from: 0 mm/min up to: 2000 mm/min Rapid traverse: long.: 10 m/min Rapid traverse: transversal: 10 m/min Rapid traverse: vertical: 7.5 m/min Vertical quill ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: ELEXA E-132 Technical data Number of axis total: 3 Table length: 1250 mm Table width: 400 mm Longitudinal travel (X-axis): 1100 mm Transversal travel (y axis): 440 mm Vertical travel (z axis): 420 mm Table load max.: 2500 kg

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: HEIDENHAIN TNC 124 Technical data Number of axis total: 3 Table length: 800 mm Table width: 425 mm Longitudinal travel (X-axis): 600 mm Transversal travel (y axis): 400 mm Vertical travel (z axis): 400 mm Table load max.: 250 kg Distance from vertical spindle to table: 560 mm Taper in spindle:: 40 SK Spindle speeds: stepless horizontal from: 5 rpm up to: 5000 rpm vertical from from: 5 rpm up to: 5000 rpm Swivel range Vertical milling head: +/- 90 ° Feeds: stepless longitudinal from: 0 mm/min up to: 2000 mm/min transversal from: 0 mm/min up to: 2000 mm/min vertical from: 0 mm/min up to: 2000 mm/min Rapid traverse: long.: 10 m/min Rapid traverse: transversal: 10 m/min Rapid traverse: vertical: 7.5 m/min Vertical quill ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Technical data Table length: 1000 mm Table width: 500 mm Longitudinal travel (X-axis): 800 mm Transversal travel (y axis): 500 mm Vertical travel (z axis): 460 mm Table load max.: 500 kg Distance from vertical spindle to table: 559 mm Taper in spindle: 40/M16 ISO Spindle speeds: number (steps): 21 horizontal from: 31.5 rpm up to: 3150 rpm vertical from: 31.5 rpm up to: 3150 rpm Feeds: stepless longitudinal from: 1 mm/min up to: 3000 mm/min transversal from: 1 mm/min up to: 3000 mm/min vertical from: 1 mm/min up to: 3000 mm/min Rapid traverse: long.: 6 m/min Rapid traverse: transversal: 6 m/min Rapid traverse: vertical: 4 m/min Vertical quill travel: 110 mm Voltage 50 Hz 3x: 380 Volt Spindle motor: 10.8 HP Machine´s weigh ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: GE FANUC Series 20-F Operating hours: 3430 Technical data Table length: 800 mm Table width: 300 mm Longitudinal travel (X-axis): 400 mm Transversal travel (y axis): 300 mm Vertical travel (z axis): 360 mm Taper in spindle: 30 ISO Spindle speeds: stepless vertical from: 0 rpm up to: 6000 rpm Voltage 50 Hz 3x: 380 Volt Spindle motor: 5.0 HP Total power required: 15 kW Overall dimensions machine: Various accessories: Dividing attachment: W 20 with teilstock Electronic hand held control Full splash cabin Set of cutter arbors Coolant system Automatic central lubrication Tool cabinet Interface serial port RS 232

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Technical data Table length: 300 mm Table width: 260 mm Longitudinal travel (X-axis): 150 mm Transversal travel (y axis): 225+50 ATC mm Vertical travel (z axis): 200 mm Table load max.: 80 kg Distance from vertical spindle to table: 140 ~ 340 mm Taper in spindle: HSK-E32 Spindle speeds: stepless vertical from: 100 rpm up to: 30000 rpm Tool changer: number of tools: 17 Rapid traverse:: 30 m/min Milling spindle motor: 3.0 / 4.5 kW Total power required: 12 kVA Machine´s weight about: 2000 kg Overall dimensions machine: Length: 1750 mm Width: 600 mm Height: 1800 mm Various accessories: Handwheel electroinic Full splash cabin Coolant system: 120 ltr. Tool changer: (number of tools): 17 Automatic setting tool: BLUM Z-Pico Interface: ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: REALMECA Technical data Table length: 500 mm Table width: 300 mm Longitudinal travel (X-axis): 320 mm Transversal travel (y axis): 260 mm Vertical travel (z axis): 340 mm Spindle speeds: stepless vertical from: 100 rpm up to: 6000 rpm Tool changer: number of tools: 12 Spindle nose: ISO: 30 Tool diameter: 70 mm Tool lenght: 120 mm Feeds: stepless longitudinal from: 0 mm/min up to: 5000 mm/min transversal from: 0 mm/min up to: 5000 mm/min vertical from: 0 mm/min up to: 5000 mm/min Rapid traverse:: 5 m/min Voltage 50 Hz 3x: 400 Volt Total power required: 14 kVA Machine´s weight about: 2380 kg Overall dimensions machine: Length: 2270 mm Width: 1440 mm Height: 2380 mm Various accessories: Set of toolholders: ISO 30

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: DECKEL DIALOG 3 Technical data Table length: 632 mm Table width: 277 mm Longitudinal travel (X-axis): 300 mm Transversal travel (y axis): 220 mm Vertical travel (z axis): 400 mm Table load max.: 400 kg Distance from vertical spindle to table: 93 - 525 mm Distance from spindle axis Spindle speeds: number (steps): 21 vertical from: 31.5 rpm up to: 3150 rpm Feeds: stepless longitudinal from: 2 mm/min up to: 2000 mm/min transversal from: 2 mm/min up to: 2000 mm/min vertical from: 2 mm/min up to: 2000 mm/min Rapid traverse:: 4 m/min Vertical quill travel: 60 mm Stroke of horizontal spindle: 65 mm Voltage 50 Hz 3x: 380 Volt Milling spindle motor: 1.6 / 2 kW Machine´s weight about: 1215 kg Overall dimensions machine: Len ...

Portable pipe amp; bolt threading machine Pipe capacity 1/8 to 2 " Bolt capacity 1/4 - 2 "

Portable pipe amp; bolt threading machine Pipe threads 1/4–4" = 16–63 mm Bolt threads 14–60 mm = 1/2–2" Also capable of threading plastic covered pipes

X-travel: 300mm, y-travel: 220mm, z-travel: 200mm, max. rotational speed: 6000/min, table dimensions: 500x220mm, connected load: 6kVA, weight: 1.3t, operational hours counter: 6807h, including various tool cones.

X-travel: 500mm, y-travel: 400mm, z-travel: 300mm, table dimensions: 600x320mm, connected load: 15.9-30.8kVA, length: 1624mm, width: 2829mm, height: 2608mm, weight: 2.4t, with documentation, without robot.

Threaded drill M1 - M10 Motor 0, 22 + 032 kW Engine rpm 1420/ 2770 Spindle RPM 480-580 Weight 100 kg

TABLE FUR THREAD CUTTING MACHINE -Afmeting 900 x 600 mm Bdfeulsvlq DUTCHMACH Metal working machinery ENSCHEDE - NETHERLANDS (3 km from the German border)

metric thread: M 8 - M 52 pipe thread: 1/4 - 4 "spindle speeds: 15, 27 and 48 rpm operating voltage: 220V dimensions: 1050 x 650 x 1180 mm

TAIPU THREAD CUTTING MACHINE TYPE TP 915-12 P -Capacity M2-M12 -Pneumatic -915 mm working area -AufnahmeÃ? 19 mm -Speed 350 RPM -Without clamping table PRICE is plus VAT DUTCHMACH Metal working machinery ENSCHEDE - NETHERLANDS (3 km from the German border)

TAIPU THREAD CUTTING MACHINE TYPE TP 1800-16 P -Capacity M2-M16 -Pneumatic -Work area 1800 mm -AufnahmeÃ? 19 mm -Speed 350 RPM -Without clamping table PRICE is plus VAT DUTCHMACH Metal working machinery ENSCHEDE - NETHERLANDS (3 km from the German border)

BLUETECH GEWINDESCHNEIDMASCHINE TYP BHK03 â Capacity M5-M36 â Hydraulic â Plant area 2050 mm â Kop is draaibaar â Snelwisselopname â Traploos instincatable tapsnelheid â Traploo's instalable terugloop snelheid â Digital toerental uitlezing â Inclusief 12 tappotjes â Zware werktafel met T-sleuven â Smeersysteem met manuele of automatic functie â Noodstop â Documentatie â 400V DUTCHMACH Metal processing machines ENSCHEDE-NIEDERLANDE (3 km from the German border)

Technical data: - Threaded drilling capacity approx. M 3 - M 16 - Speed range up to 500 rpm - Working range ( swivel radius ) 2500 mm - Tool quick change holder size 2 diameter 31 - various inserts for tool quick-change recording - Table area with 5 T-slots 2050 x 900 mm . Table height 910 mm - Machine vice with jaw width 200 mm - 3 jaw chuck 250 mm - Pneumatic connection with pressure reducer - mobile base - Space requirement approx. W 2400 x H 2000 x D 1000 mm - Weight approx. 1100 kg

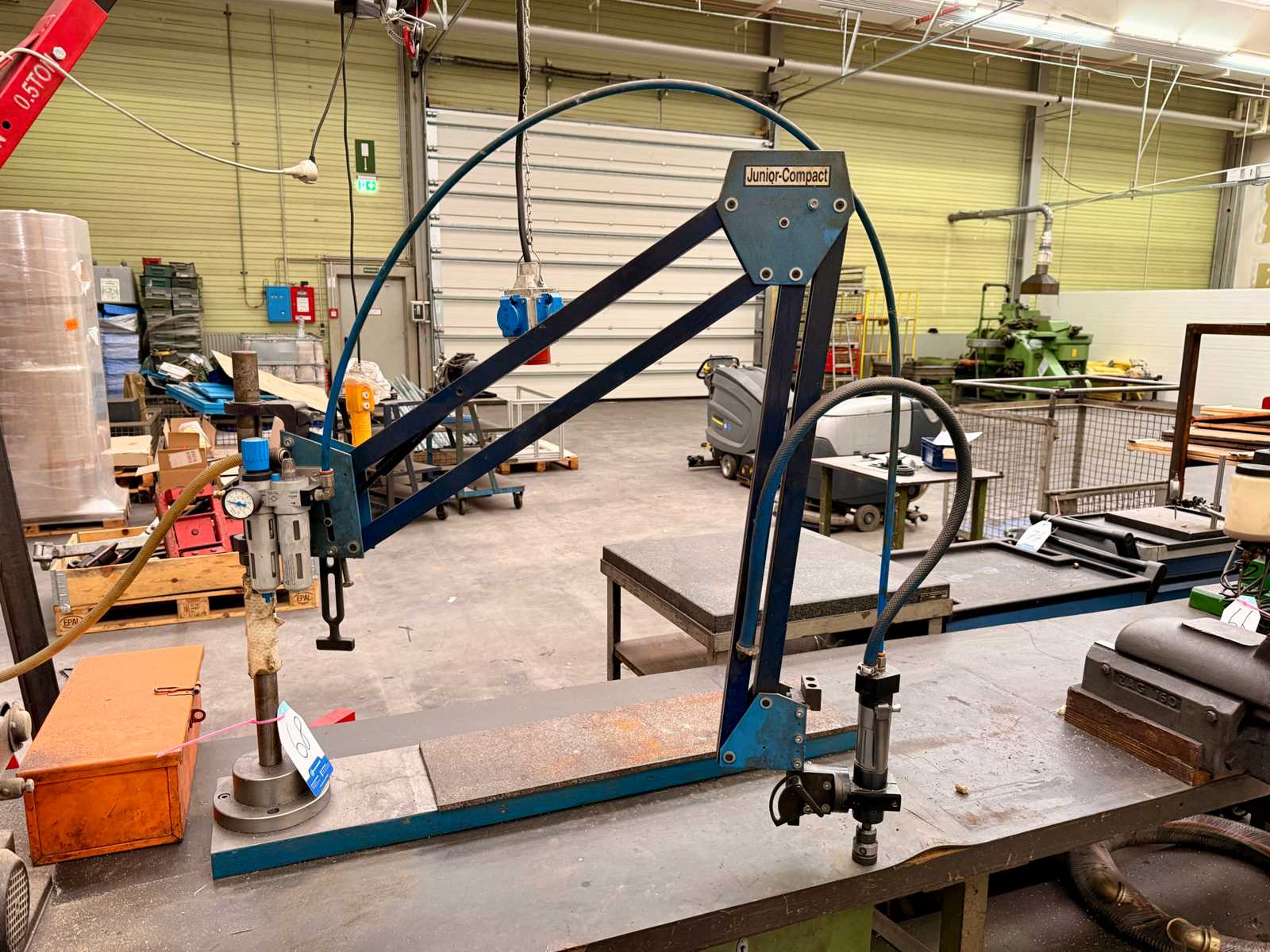

specifications: - Threaded drilling capacity approx. M 3 - M 12 - Unloading up to approx. 500mm - Stroke to approx. 600mm - Speeds approx. 80 - 1000 rpm - 2 St. spring pulls / balancers - Pneumatic connection 6 - 8 bar - mobile underframe - Space required approx. W 1000 x H 2000 x D 800 mm - Weight approx. 80 kg

thread dia.: M3 - M12 mm : 400 U/min. : 25 Nm air pressure: 6 - 8 bar working area: Radius 1000 mm weight of the machine ca.: 12 kg Demonstration machine! Pneumatically driven tapping machine for M3 - M12 thread with: - stable and flexible working arm. - 6 pcs. Quick-change chuck with slip clutch. Documentation in English optional: - Clamping table with T-slots clamping surface 900 x 600mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

thread dia.: M3 - M12 mm : 400 U/min. : 28 Nm air pressure: 6 - 8 bar working area: 150 - 1900 mm weight of the machine ca.: 12 kg Pneumatic Tapping Machines for M3 - M12 thread, angle adjustable. 6 pcs. Keyless chuck with clutch. optional: Working table with T-slots: 750x600x650mm 990x700x800mm or. Magnetic base. Available up to max. M16, M22 and M33. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

thread dia.: M3 - M16 mm : max. 187 U/min. working area: 180 - 1000 mm engine output: 0,7 kW weight: 22 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

thread dia.: 12 mm : 375 U/min. working area: 180 - 2000 mm engine output: 0,7 kW weight: 28 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

thread dia.: M20 - M52 mm : 38 / 136 U/min. working area: 320 - 1500 mm engine output: 1,3 kW weight: 42 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

thread dia.: M6 - M30 mm : 58 - 205 U/min. working area: 320 - 1500 mm engine output: 0,85 kW weight: 36 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tapping capacity: 0 mm Drilling capacity: 0 mm Throat: 0 mm Tapping depth: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Max.cutting capacity in steel: 6 M (Metric) Max.cutting cap. in cast-iron: 8 M (Metric) Spindle stroke: 40 mm Spindle speeds: number (steps): 4 from: 600 rpm up to: 1800 rpm Depth of throat: 100 mm Table length: 180 mm Table width: 180 mm Max. distance spindle to table: 215 mm Voltage 50 Hz 3x: 380 Volt Spindle motor: 0.50 kW Overall dimensions machine: Length: 700 mm Width: 250 mm Height: 500 mm

Technical data Tapping from: 3 M (Metric) up to: 16 M (Metric) Spindle speeds: from: 50 rpm up to: 200 rpm Voltage 50 Hz 3x: 380 Volt Machine´s weight about: 150 kg

Technical data Tapping from: 5 M (Metric) up to: 35 M (Metric) Inner taper type: 3-TC1433 Spindle speeds: from: 50 rpm up to: 200 rpm Table length: 750 mm Table width: 620 mm Cutting speed: 50 - 2000 m/min Hydraulic Pressure: 150 kg Voltage 50 Hz 3x: 380 Volt Motor output: 5 HP Machine´s weight about: 450 kg Overall dimensions machine: Length: 1000 mm Width: 700 mm Height: 2000 mm Various accessories: Set of quick change inserts
