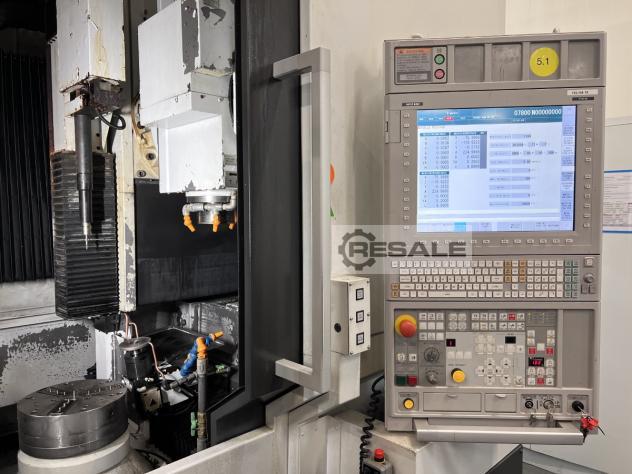

Control Other MAPPS IVB
Grinding length [mm] 150
Specifications:
Grinding ø (max.) 350 mm
Grinding length (max.) 150 mm
Grinding wheels-ø 25-180 mm
Swivel range grinding headstock (max.) 230°

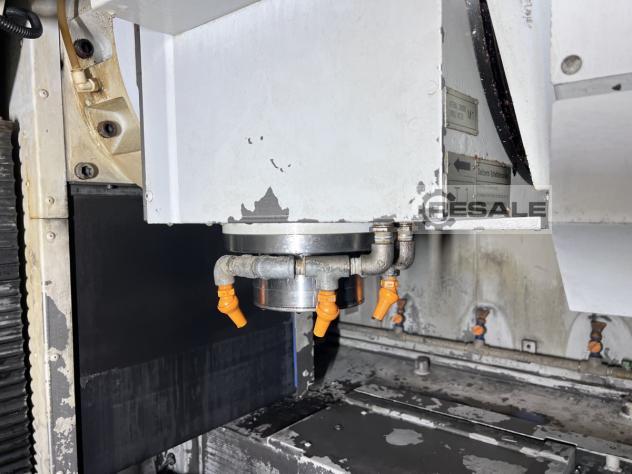

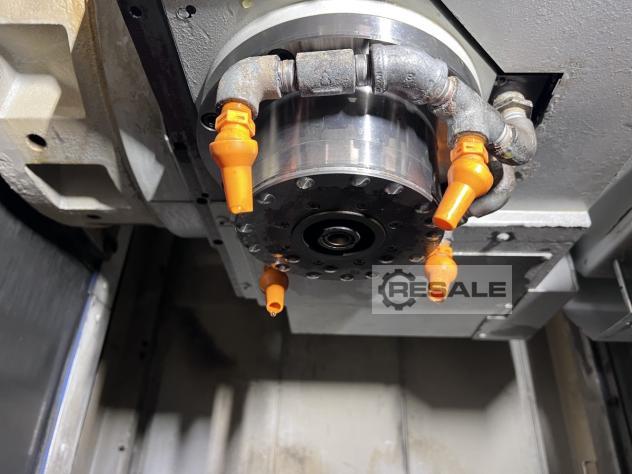

Grinding spindle:
Technology internal grinding spindle
Speed range 3-20,000 rpm
Power (max.) 11 kW
Grinding wheel holder HSK-A63
Drilling spindle:
Drilling spindle technology
Speed range 1,500-3,500 rpm
Power (max.) 7.5 kW
Tool holder HSK-A63

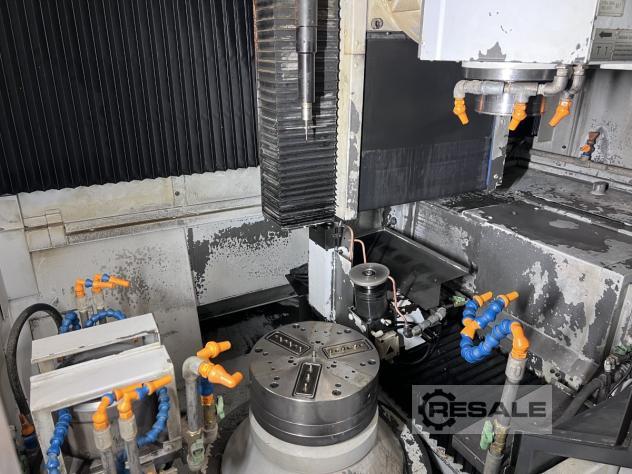

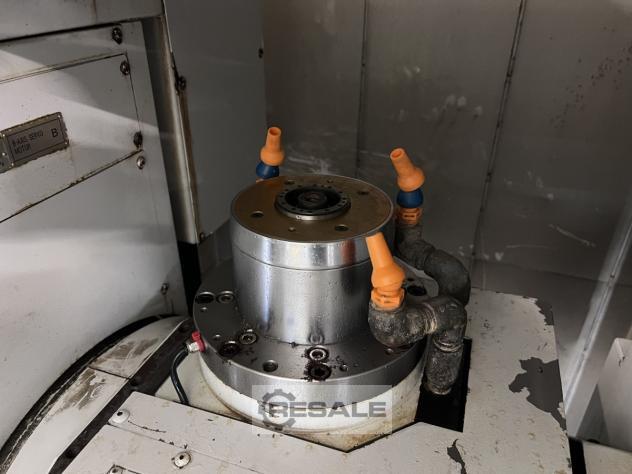

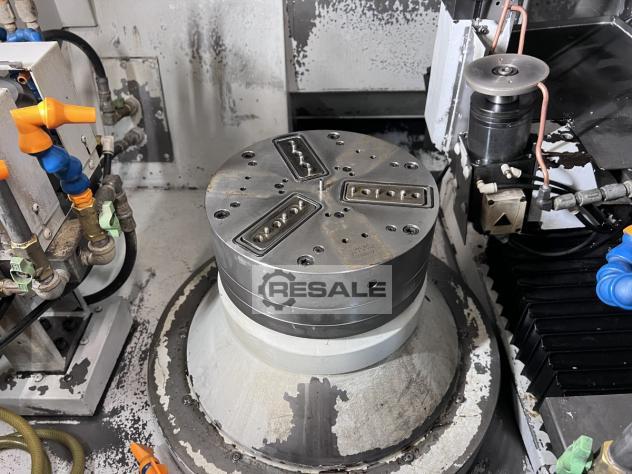

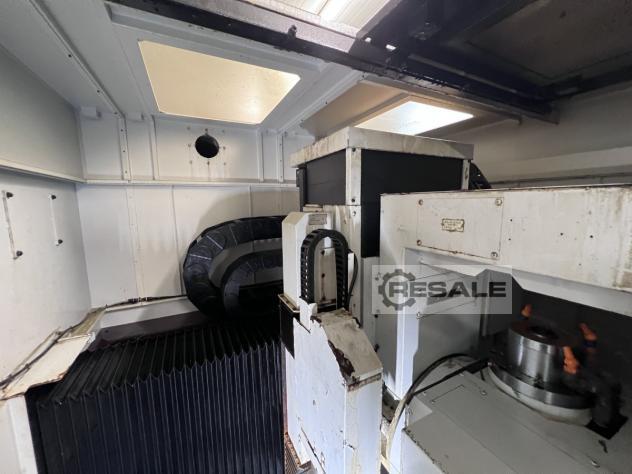

Workpiece spindle:
Technology Direct Drive
Clamping surface ø265 mm
Table load (max.) 200 kg
Workpiece Clamping Pneumatic Chuck
General:
Travel in X/Z 965/532 mm
Rapid traverse in X/Z 24/20 m/mim
Equipment/accessories:
Direct displacement measuring system (glass scale) in X/Y
Chip Management Magnetic Belt Conveyor
Coolant management coolant system with paper belt filter and
temperature control
Workpiece G51229481 Measurement Probe, Renishaw MP 250 with
Calibration Station
Tool magazine 8 stations (4 stations each for grinding and drilling
tools)
Dresser Drawer + Einkorn Diamond (Marposs)
Setup operation Electronic handwheel

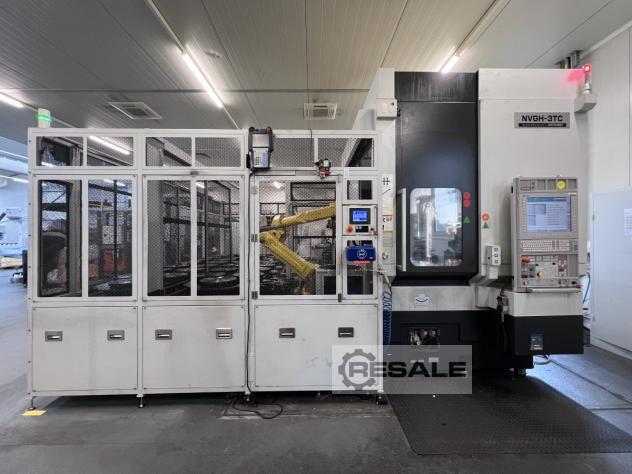

Automation Fanuc robot M-20iA with Stocker (30 stations ø329 mm)
Loop Mist Separation Akamatsu HVS-100-CE 044
Further equipment Spindle cooler, transformer
