swarf used for sale

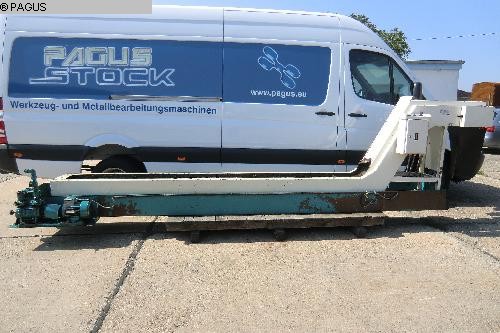

Conveyor length: 0 mm Belt width: 0 mm Drop height: 0 mm

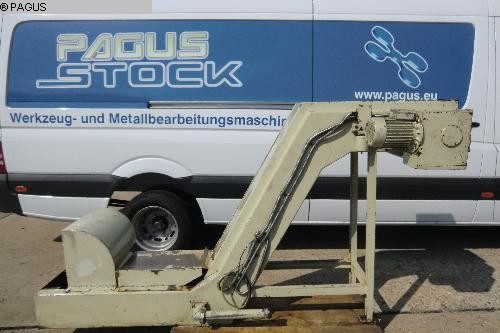

Conveyor length: 0 mm Belt width: 0 mm Drop height: 0 mm

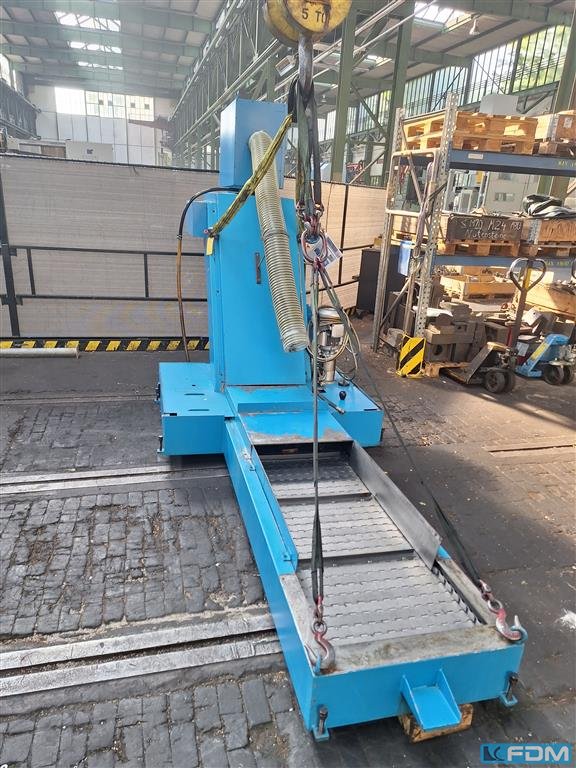

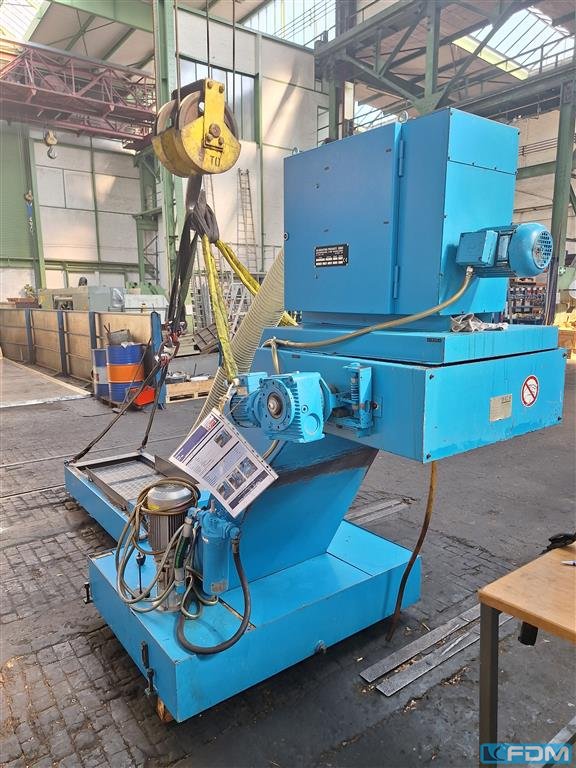

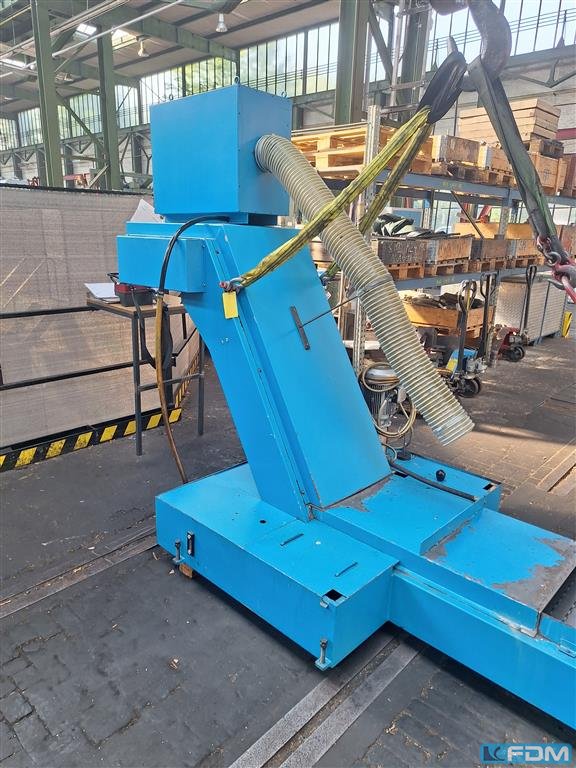

length in total:3000 mm weight of the machine ca.:600 kg dimensions of the machine ca.:5150 x 900 x 1250 mm

weight of the machine ca.:340 kg dimensions of the machine ca.:2470 x 700 x 1300 mm

GeneralHSC-Precision Centre - Active chiller for main spindle and linear drives - Active chiller for electrical cabinet - Direct absolute measuring system with air purge - scraper-type chip-conveyor and bed-flushing; Control: 3D-control Heidenhain iTNC 530 HSCI Technical DataSpindle taperHSK-A 63 Feed rate longitudinal/transverse/vertical1-90000/1-90000/1-90000 mm/minRapid traverse longitudinal/transverse/vertical90/90/90 m/minWorking area 1Longitudinal750 mmCross600 mmVertical560 mmTool changerApplicationVertical Type of magazineWheel Type of gripperPick up Number of tools30 Floor space/WeightDimensions (L x W x H)6,65 x 7,6 x 3,18 mWeight approx.12000 KgSplash guard equipment/cabinSplash guard equipment/cabin with illumination and sliding doors on operators side and front sideMotor spindle with HSK-A 63Drive power (100% DC) 25 kWDrive power (40% DC) 35 kWSpeed range - 18.000 rpmSpindle ...

GeneralHSC-Precision Centre - Active chiller for main spindle and linear drives - Active chiller for electrical cabinet - Direct absolute measuring system with air purge - scraper-type chip-conveyor and bed-flushing; Control: 3D-control Siemens 840D sl Operate Technical DataSpindle taperHSK-A 63 Feed rate longitudinal/transverse/vertical1-90000/1-90000/1-90000 mm/minRapid traverse longitudinal/transverse/vertical90/90/90 m/minWorking area 1Longitudinal750 mmCross600 mmVertical560 mmTool changerApplicationVertical Type of magazineWheel Type of gripperPick up Number of tools30 Floor space/WeightDimensions (L x W x H)6,65 x 7,6 x 3,18 mWeight approx.12000 KgSplash guard equipment/cabinSplash guard equipment/cabin with illumination and sliding doors on operators side and front sideHSC75 linear 5-Axis SpecificationHSC 75 linear 5-Axis Specification clamping area Ø 750 mm, Ø 29.52 inch Tilti ...

GeneralTravelling column machine; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal3000 mmCross1100 mmVertical1050 mmFeed drives:Feed rate X / Y / Z80000/80000/80000 mm/minRapid feed X / Y / Z80/80/80 m/minNC-swivel head (B-axis)Controlled NC-swivel milling head (B-axis) with clamping in position. Continuously positioning NC swivel milling head with integrated motor spindle for 4/5 axes positioning and simultaneous machining. Swivel torque: 3,300 / 2,300 Nm // 2,433 / 1,696 ftDynamic package for DMF 300|11 linearDynamic package for DMF 300|11 linear Linear motor X-axis with 80 m/min // 262.48 ft/min Rapid speed XYZ 80 m/min // 262.48 ft/min Acceleration XYZ 8 m/s² // 26.25 ft/s² Active cooling for Linear motorPackage Mill / Turn 12,000 rpm, HSK-A100Package Mill / Turn, 12,000 rpm HSK-A100 (Only available for Siemens 840D solutionline) NC-Mill-Turn-table d 1,050 mm  ...

GeneralUniversal Milling Machine Stealth Design; Control: CELOS with Siemens Sinumerik ONE Working area 1Longitudinal550 mmCross450 mmVertical420 mmTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minIntegrated motor spindle speedMASTER®Drive power (100% DC) 25 kWDrive power (40% DC) 35 kWTorque (100% DC) 86 NmTorque (40% DC) 130 NmSpeed range - 20000 rpmSpindle taper HSK-A 63 DIN 69893Clamping System HSK-A 63NC swivel rotary tableSwivel Rotary Table for simultaneous machining Clamping surface dia. 505 x 500mm / 19.9 x 19.6 in swivel range -35 to +110°, rotary axis 360° including direct measuring system for B- and C-axis and working plane transformationClamping pneumatic, two circuitsClamping pneumatics, 2 clamping circuits for standard machineTool clamping for HSK-A63Tool clamping HSK-A63 accordi ...

cutting diameter: 570 mm saw band length: 7250 x 41 mm cutting width: 1,3 mm capacity 90 degrees: square: 550 x 550 mm capacity 90 degrees: flat: 550 x 700 mm total power requirement: 4 kW weight of the machine ca.: 6050 kg required space: 2600 x 1300 x 3700 m The KLS 550 x 700 is a semi-automatic and column guided horizontal bandsaw. Standard specifications - Swarf Brush - Hydraulic Blade Guide - Hydraulic Vice - Hydraulic Blade Tension - Blade Breakage Switch - Stop System - Automatic Ball Screw Lubrication - Led Lighting - Swarf Conveyor - Swarf Carrying - 1400 mm Feeding Drive - Double Roller Table - Material End Detector - Program Saving System - USB Connection Output - PLC Control & Touch Screen - Inverter Optional specifications - Laser Line - Lubrication Mist - V Shape Vice - Extra Double Roller Table - Upper Clamp System - Curve Cutting Detecting Sensor The pictures are for o ...

cutting diameter: 650 mm saw band length: 8200 x 54 mm cutting width: 1,6 mm Capacity 90° - rectangle: 650 x 850 mm Capacity 90° - square: 650 x 650 mm total power requirement: 5,5 kW / 2775 Nm weight of the machine ca.: 6400 kg dimensions of the machine ca.: 2700 x 1500 x 4100 mm The KLS 650 x 850 is a semi-automatic and column guided horizontal bandsaw. Standard specifications - Swarf Brush - Hydraulic Blade Guide - Hydraulic Vice - Hydraulic Blade Tension - Blade Breakage Switch - Stop System - Automatic Ball Screw Lubrication - Led Lighting - Swarf Conveyor - Swarf Carrying - 1400 mm Feeding Drive - Double Roller Table - Material End Detector - Program Saving System - USB Connection Output - PLC Control & Touch Screen - Inverter Optional specifications - Laser Line - Lubrication Mist - V Shape Vice - Extra Double Roller Table - Upper Clamp System - Curve Cutting Detecting Sensor  ...

GeneralUniversal machining centre New DMG MORI Design; Control: CELOS with Heidenhain TNC 640 Working area 1Longitudinal400 mmCross400 mmVertical375 mmTechnical DataFeed rate longitudinal/transverse/vertical50000/50000/50000 mm/minRapid traverse longitudinal/transverse/vertical50/50/50 m/minTool changerType of magazineChain Type of gripperDouble gripper Number of tools60 Max. tool weight6 KgMax. tool length300 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets130 mmFloor space/WeightWeight approx.6800 KgDimensions (L x W x H)6,21 x 6,58 x 2,69 (6,21 x 7,38 x 2,69) mSpindle speed 28.000 rpm HSK-A63Spindle speed 20 up to 28.000 U/min Motor spindle with shaft cooling power 30/20 kW // 40.23hp/ 26.82 hp (40/100% DC) torque 40/27 Nm (40/100% DC) tool clamping HSK 63 according to DIN69893 (different from standard)Chain-type tool magazine 60 po ...

GeneralHigh dynamic Vertical Drill-Tap centre with best milling performance; Control: 3D-control Siemens 840D sl Operate Working area 1Longitudinal700 mmCross420 mmVertical380 mmTechnical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minMain driveDrive power (100% DC) 6 kWDrive power (40% DC) 8,5 kWTorque (100% DC) 41 NmSpindle taper BT 30Speed range 20 - 15000 rpmTorque (40% DC) 48 NmClamping System ISO 7388-3 - JD30ToolchangertoolchangerType of magazine DiskNumber of tools 25Integrated swivel rotary table simultaneousIntegated swivel rotary table 5-Axis simultaneous mode! Torque drives incl. direct measuring in A- and C-Axis Swivel range A-Axis -120 / + 100 degrees Max. load C-axis 100kg Table diameter C-Axis d290mm Rotary joint, 4-channels Inclusive Software packageProduction package band filter ICS 40ba ...

GeneralUniversal Milling Machine; Control: CELOS with Heidenhain TNC 640 Working area 1Longitudinal650 mmCross520 mmVertical475 mmFloor space/WeightDimensions (L x W x H)2,85 x 2,35 x 2,75 mWeight approx.7500 KgTechnical DataType of main driveAC Drive power (100% DC)30 kWDrive power (40% DC)46 kWSpeed range20 - 15000 rpmSpindle taperHSK-A 63 Clamping SystemHSK-A 63 Feed rate longitudinal/transverse/vertical-42000/-42000/-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minSpindle speed 15,000 rpm, 200NmMotor spindle speedMASTER® HSK-A63 Spindle speed 20 - 15,000 min-1 Output 46 kW / 30 kW (62 hp / 40 hp) Torque 200 Nm / 130 Nm (148 ft lbs / 96 ft lbs) (40 / 100 % duty cycle)NC swivel rotary tableSwivel Rotary Table for simultaneous machining Clamping surface dia. 630 x 500mm / 24.8 x 19.6 in swivel range -35 to +110°, rotary axis 360° including direct measuring sy ...

GeneralUniversal Milling Machine; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal650 mmCross520 mmVertical475 mmTechnical DataType of main driveAC Drive power (100% DC)16 kWDrive power (40% DC)21 kWSpeed range20 - 15000 rpmSpindle taperSK40 Tool holder DIN ISO 7388-1-A Clamping SystemDIN ISO 7388-3-A, AD Feed rate longitudinal/transverse/vertical-42000/-42000/-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minFloor space/WeightDimensions (L x W x H)2,85 x 2,35 x 2,75 mWeight approx.7500 KgDirect measuring systemDirect path measuring systemSpindle speed 15,000 rpmMotor spindle speedMASTER® HSK-A63 Spindle speed 20 - 15,000 min-1 Output 21 kW / 16 kW (28 hp / 21.5 hp) Torque 111 Nm / 85 Nm (82 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)NC swivel rotary tableSwivel Rotary Table for simultaneous machining Clamping surface dia. 630 x 500mm / 24.8 ...

cutting diameter: 660 mm saw band length: 9000 x 54 mm cutting width: 1,6 mm Capacity 90° - round: 660 mm Capacity 90° - square: 650 x 650 mm Capacity 90° - rectangle: 650 x 1080 mm Capacity 45° - round: 660 mm Capacity 45° - square: 650 x 650 mm Capacity 45° - rectangle: 650 x 670 mm Capacity 30° - round: 410 mm Capacity 30° - square: 410 x 410 mm Capacity 30° - rectangle: 650 x 410 mm total power requirement: 5,5 kW / 2775 Nm weight of the machine ca.: 7100 kg dimensions of the machine ca.: 2500 x 2200 x 4500 kg The KSY 2DT 650 is a semi-automatic and column-guided horizontal bandsaw. The machine also has a driven roller table, which is 2 metres long on the front has a spray mist has a spray mist cooling system. Equipped with a linear guided saw blade, the KSY 2DT 650 can perform precise and fast Mitre cuts. Standard Specifications - Swarf Brush - Hydraulic Blade Guide - Hydr ...

GeneralUniversal Milling Machine; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal650 mmCross520 mmVertical475 mmFloor space/WeightDimensions (L x W x H)2,85 x 2,35 x 2,75 mWeight approx.7500 KgTechnical DataType of main driveAC Drive power (100% DC)25 kWDrive power (40% DC)35 kWSpeed range20-20000 rpmSpindle taperHSK-63A DIN 69893 Clamping SystemDIN ISO 7388-3-A, AD Feed rate longitudinal/transverse/vertical-42000/-42000/-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minDirect measuring systemDirect path measuring systemSpindle speed 20.000 rpmMotor spindle speedMASTER® HSK-A63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)NC swivel rotary tableSwivel Rotary Table for simultaneous machining Clamping surface dia. 630 x 500mm / 24.8 x 19.6 in swivel ra ...

Working area 1Longitudinal500 mmCross450 mmVertical400 mmGeneralUniversal milling machine, with compound Guideway construction New DMG MORI Design; Control: CELOS with Siemens 840D sl Operate Technical DataType of main driveAC Drive power (40% DC)20,3 kWDrive power (100% DC)14,5 kWSpeed range20 - 14000 rpmSpindle taperSK 40 DIN 69871 Feed rate longitudinal/transverse/vertical-30000/-30000/-30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minMiscellaneousClamping SystemDIN 69872 Floor space/WeightDimensions (L x W x H)4,15 x 3,98 x 2,75 mWeight approx.4500 KgSwivel Rotary Table, simultaneousSwivel Rotary Table for simultaneous machining swivel range -5 to +110°, rotary axis 360° including direct measuring system for B- and C-axis and working plane transformation Not available with NC-Divider EA 410!Table surface 630 x 500 mmCentre bore 30H6 mmMaximum load (table cen ...

GeneralUniversal milling machine, with compound Guideway construction; Control: CELOS with Siemens 840D sl Operate Working area 1Cross450 mmLongitudinal500 mmVertical400 mmTechnical DataType of main driveAC Drive power (100% DC)25 kWDrive power (40% DC)35 kWSpeed range20-18000 rpmSpindle taperHSK-A 63 Clamping SystemHSK-A 63 Feed rate longitudinal/transverse/vertical-30000/-30000/-30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minFloor space/WeightDimensions (L x W x H)4,15 x 3,98 x 2,75 mWeight approx.4500 KgSwivel Rotary Table, simultaneousSwivel Rotary Table for simultaneous machining swivel range -5 to +110°, rotary axis 360° including direct measuring system for B- and C-axis and working plane transformation Not available with NC-Divider EA 410!Table surface 630 x 500 mmDistance between T-Slots 63 mmNumber of Slots 7Slot width 14 mmMaximum load (table centre ...

RAFAMET KCI 320/400N CNC vertical turret lathe manufactured in 2011 in Poland, can perform complex production programmes on large-size workpieces, thanks to one turning head and three milling heads set at different angles. The machine, with its compact frame structure made of high-quality grey cast iron, is distinguished by its high geometric stability, high rigidity and excellent vibration damping. The CNC vertical turret lathe KCI 320/400N performs precision turning, milling, drilling and boring of cylindrical, conical and curved surfaces with the aid of the applied heads. One of them is a special milling head (offset), used to perform drilling and milling operations with the position of the tool axis offset from the spindle axis in a direction parallel to the slide travel plane. On the other hand, the turning head allows to mount CAPTO turning tools in horizontal and vertical socke ...

Chiron FZ18W rotopallet 1999 CNC Siemens 840D X 630 Y 400 Z 425 tables (2) 850x450mm 20 tools ISO 40 / 7100 RPM / 18kW / 140 Nm 40m/min HAWE hydraulics automatic doors swarf conveyor machine can be inspected under power in our warhouse 6 ton 3,6 x 2,25 x 2,85

CNC multi-tasking lathe NAKAMURA SUPER NTX-S Reference No.: 18038 Mfg. year 2007 S/No. V300901 FANUC 16i-TB Luckbei-dialog system supercap Maximum turning diameter -Upper turret 390 mm -Lower turret 300 mm Maximum turning length 1,100 mm Max cash working capacity 65 mm Milling spindle AC 18.5/11 kW Milling spindle maximum speed 12,000 rpm Capto C6 Servo controlled B-axis, 230° Y-axis 160 mm ATC with 40 tools Main and sub spindle AC 22/18.5 kW Main and sub spindle maximum speed 4.500 rpm 12/24-station turret, all stations for driven tools Maximum speed of driven tools 3,600 rpm 2 off. 3-jawchuck 210 mm, SCHUNK Coolant tank 250 liters High pressure pumps Swarf conveyor 1 set of toolholders for lower turret -static 9, 3-driven weight 19,000 kg CE-mark

FZ15KS HIGH SPEED 4 axis vertical machining center X: 550mm Y: 400mm Z: 360mm 4th axis original Peiseler CNC Siemens 840D Table surface 1050 x 450mm Toolchanger 48 posts ISO 40 Spindle speeds up to 12000 1/min with 4th axis Renishaw broken tool detector Coolant through spindle swarf conveyor Can be inspected under power in our warehouse. Mimu machine tools (Italy)

Chiron FZ18W Magnum rotopallet 1999 CNC Siemens 840D X 630 Y 400 Z 425 tables (2) 850x450mm 20 tools ISO 40 / 18kW / 140 Nm 40m/min HAWE hydraulics automatic doors swarf conveyor 6 ton 3,6 x 2,25 x 2,85 machine can be inspected under power in our warehouse Mimu Machine Tools (Italy)

Machine Details Warehouse number 1105-03576 Machine type CNC lathe - inclined bed machine LeadWELL brand Type T 6 L Year of construction 2011 Control type CNC Control FANUC O ITB Storage location HAGUENAU Country of origin Japan Delivery time by appointment Freight base EX WORK Technical details Turning diameter 210 mm Turning length 400 mm Control FANUC OI TC Travel - x 125 mm Travel - z1 460 mm Rod passage: 50 mm Number of revolvers: 1 piece Number of tools in revolver 1 12 pieces Speed range main spindle: 5000 rpm Drive power 7.5 kW Spindle nose A2-5 Feed range 1 - 15000 mm/min Rapid traverses 25 m/min Information CNC CONTROL FANUC OI TC 12 COMPARTMENT TURRET CHUCK + TAILSTOCK+ SWARF CONVOYER

5 axis machininng center (milling/turning from bar) multitasking Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 ? 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min ...

5 axis machininng center (milling/turning from bar) multitasking Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 ? 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min ...

Chiron FZ18W rotopallet 1999 CNC Siemens 840D X 630 Y 400 Z 425 tables (2) 850x450mm 20 tools ISO 40 / 7100 RPM / 18kW / 140 Nm 40m/min HAWE hydraulics automatic doors swarf conveyor machine can be inspected under power in our warhouse 6 ton 3,6 x 2,25 x 2,85

60P Hi-Dyn 5 Axis CNC Machining Centre (2005) - Heidenhain Heros iTNC530 Control, - CAT40 Taper, - 630mm Diameter Table, - 60 Tool ATC, - Swarf Conveyor, - Coolant Filtration. S/No. 1116-000201-3 - - include CAT 40 Tooling suitable for Deckel Maho with Universal 3D Tester. - Aditional table with holders - 26 tools holder included AND 3d PROBE - HIGH PRESSURE 40 BAR COOLING TROUGH SPINDLE - COOLING TROUGH SPINDLE - NEW CHILLER IN 2021 - NEW HARD DISCS IN 2021 DECEMBER SPINDLE HOURS: 21400 MOST OF TIME MACHINE CUT FIBERGLASS AND PLASTIC, ALU and a bit mild steel. For customer we organize free loading . Transport we organize as well with an separated offer.

Twin pallet vertical machining center CHIRON FZ15KW Highspeed Spindle 12000 RPM Rapids asse Z 60m/min 2005 Pallet 2 x 660 x 400 mm X 550 Y 400 Z 360 coolant through spindle 48 tools HSK63 swarf conveyor CNC Siemens 840D This Machine can be inspected and tested under power in our warehouse in Gussago BS Italy

: 6,0 m3/min rated current: 9 A total power requirement: 2,5 kW weight of the machine ca.: t dimensions of the machine ca.: m swarf cleaner The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Machine Details Stock-No. 1105-03781 Type of machine CNC Lathe - Inclined Bed Type Make MAZAK Type sqt 30 Year of manufacture 1998 Type of control CNC Storage location FRANCE Country of origin Japan Delivery time on request Freight basis ex location Technical details turning diameter 560 mm turning length 10000 mm control MAZATROL T PLUS greates pass round over bed 560 mm swing diameter over slide rest 400 mm spindle cone A 2-8 Spindle bore 77 mm Spindle motor 22 kW turning speeds 3500 rpm total power requirement 35 kW weight of the machine approx. 6 t Additional information WITH turret Swarf Conveyor Tool Eye Parts Catcher

x-travel: 800 mm y-travel: 500 mm z-travel: 600 mm control: FANUC 15 M turning speeds: 6000 U/min 0: 7,5/5,5 kW rapid traverse: 24 m/min total power requirement: kW weight of the machine ca.: 9 t dimensions of the machine ca.: 3,5x3,0x2,8 m double table: tool probe: swarf conveyor: The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

cutting diameter: 800 mm saw band length: 9600 mm cutting width: 1300 mm capacity 90 degrees: square: 800 x 800 mm : 1300 x 750 mm : 800 mm : 770 mm Capacity 45° rectangular: 570 x 750 mm capacity 60 degrees: round: 570 mm capacity 60 degrees: square: 770 x 770 mm capacity 60 degrees: flat: 570 x 750 mm : 800 mm : 770 mm : 1070 x 750 mm table height: 880 mm speeds steplessly adjustable: 20 - 100 m/min total power requirement: 12,42 kW weight of the machine ca.: 6,7 t dimensions of the machine ca.: 5,05 x 2,2 x 2,9 m Product Description PRODUCT DESCRIPTION Two way powered mitre with NC angle setting Features ?Powered mitre setting with NC control ?Mitre cuts to +/-60 deg with +/-0.1 deg tolerance ?5-deg inclined blade for optimum cutting performance ?Hydraulic blade tensioning ?Blade deviation control with auto shut off ?Cutting feed & pressure regulation ?Material height sensor with rap ...

Machine Details Stock-No. 1105-03882 Type of machine CNC Lathe - Inclined Bed Type Make ERNAULT TOYODA Type HES 52 Year of manufacture 1987 Type of control CNC Storage location FRANCE Country of origin france Delivery time immediately Freight basis EX WORK Technical details turning diameter 650 mm turning length 1100 mm control FANUC 10 T swing over bed 650 mm Spindle Bore 80 mm spindle turning speed range 7 - 4000 rpm transmission ratio 3 Rapid Traverse 12 m/min main drive 37 kW total power requirement 47 kW Weight of the machine approx. 12 t dimensions of the machine ca. 5 x 2.4 x 2. m Additional information 2-axes CNC-control FANUC 10 T 1 x 12-station turret VDI 50 programmable tailstock 3-jaw power chuck diameter 450 mm swarf conveyor

cutting diameter: 90° / 810 mm saw band length: 8200 mm cutting width: 850 mm : 810 x 810 mm : 850 x 810 mm : 480 mm : 480 x 480 mm Capacity 45° rectangular: 480 x 810 mm table height: 585 mm cutting speed: 20 - 100 m/min dimensions of saw-band: 8200 x 41 x 1,3 mm speeds steplessly adjustable: 20 - 100 m/min total power requirement: 5,5 kW weight of the machine ca.: 3,8 t dimensions of the machine ca.: 3,9 x 1,2 x 2,35 m Horizontal band saw. The bow is made of heavy steel and the two pillars constitute a strong and rigid saw frame. This ensures high accuracy when cutting. The machines are fitted with an integrated coolant pump that supplies oolant to both guide assemblies. Blade guides with rollers and carbide pads provide precise support for the blade. The machines switch off automatically at the end of the cutting proces and the saw arm is lifted hydraulically. ?inverter ?hydromechan ...

cutting diameter: 560 mm saw band length: 6000 mm cutting width: 750 mm table height: 590 mm : 560 mm Capacity 90° rectangular: 410 x 560 mm : 410 mm : 410 mm Capacity 45° rectangular: 410 x 560 mm speeds steplessly adjustable: 20 - 100 m/min dimensions of saw-band: 6000 x 41 x 1,3 mm total power requirement: 5,22 kW weight of the machine ca.: 2,045 t dimensions of the machine ca.: 3,4 x 1,0 x 2,05 m Horizontal band saw. The bow is made of heavy steel and the two pillars constitute a strong and rigid saw frame. This ensures high accuracy when cutting. The machines are fitted with an integrated coolant pump that supplies oolant to both guide assemblies. Blade guides with rollers and carbide pads provide precise support for the blade. The machines switch off automatically at the end of the cutting proces and the saw arm is lifted hydraulically. ?inverter ?hydromechanic blade tension ?swa ...

x-travel: 880 mm y-travel: 630 mm z-travel: 630 mm control: TNC 426/430 Heidenhain Main spindle:: turning speed range - main spindle: 20 - 18.000 min/-1 power capacity - main spindel: 15 / 10 kW max. Torque: 130 Nm tool taper: SK 40 swivellable: work table:: table surface area: 1.250 x 700 mm max. table load: ca. 1.000 kg tool magazin:: number of toolpositions: 32 (2x 16) pos. tool taper: SK 40 max. tool diameter: 80 / 130 mm max. tool-dia with free toolbox: 160 mm max. tool length: 315 mm max. tool weight: 8,0 kg feeds:: feed speeds: 1 - 15.000 mm/min rapid traverse: 30 m/min total power requirement: 60 kW weight of the machine ca.: 8,0 t dimensions of the machine ca.: 4,0 x 4,0 x 2,7 m Documents: swarf management system: Coolantsystem: elektr. hand wheel: spindle oil cooler: tool monitoring: CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 T - Swivel-Milling-Head The  ...

TIMESAVERS 41 SERIE 1350 WRD deburring machine was manufactured in 2004 in the Netherlands. The wide belt deburring machine is used in both small and large production facilities for precision smoothing of sharp edges and finishing work. The machine provides high performance and reliability throughout its service life. The surface machining of workpieces made from e.g. steel, aluminium and titanium is performed wet by a grinding system comprising a reliable abrasive belt and brush unit. The workpiece is dried at the end of the machining process so that the parts leaving the machine are dry and free of contamination. The deburring machine has an integrated paper belt filter into which the used coolant is transferred at the end of the process in order to separate the swarf and allow the coolant to be reused. Technical specifications of the TIMESAVERS 41 SERIE 1350 WRD deburring machin ...

GeneralPrecision centre - Linear drive package - Active cooling for spindle, linear drives and electrical cabinet - Frame temperatur control - Direct measuring system - Chiptray, coolant/airblast changing - Full cabin including 2nd door; Control: 3D-control Siemens 840D sl Operate Technical DataSpindle taperHSK-A 63 Feed rate longitudinal/transverse/vertical1-80000/1-80000/1-80000 mm/minRapid traverse longitudinal/transverse/vertical80/80/80 m/minWorking area 1Longitudinal650 mmCross600 mmVertical380 mmTool changerType of magazineChain Type of gripperDouble gripper Number of tools120 Floor space/WeightDimensions (L x W x H)7,28 x 6,63 x 3 mWeight approx.9600 KgRigid tableRigid table clamping area 850 x 600 mm // 33,46 x 23,62 inch loading weight max. 700 kg // 1543,23 lbsSpindle speed up to 28,000rpm Shaft CoolingSpindle speed 20 up to 28,000 rpm within shaft cooling inclusive MPC Machi ...

GeneralPrecision centre - Linear drive package - Active cooling for spindle, linear drives and electrical cabinet - Frame temperatur control - Direct measuring system - Chiptray, coolant/airblast changing - Full cabin including 2nd door; Control: 3D-control Siemens 840D sl Operate Technical DataSpindle taperHSK-A 63 Feed rate longitudinal/transverse/vertical1-80000/1-80000/1-80000 mm/minRapid traverse longitudinal/transverse/vertical80/80/80 m/minWorking area 1Longitudinal650 mmCross600 mmVertical380 mmTool changerType of magazineChain Type of gripperDouble gripper Number of tools120 Floor space/WeightDimensions (L x W x H)7,28 x 6,63 x 3 mWeight approx.9600 KgRigid tableRigid table clamping area 850 x 600 mm // 33,46 x 23,62 inch loading weight max. 700 kg // 1543,23 lbsSpindle speed up to 28,000rpm Shaft CoolingSpindle speed 20 up to 28,000 rpm within shaft cooling inclusive MPC Machi ...

cutting diameter: 460 mm saw band length: 5200 mm cutting width: 650 mm : 460 mm Capacity 90° rectangular: 650 x 460 mm : 380 mm : 380 x 380 mm Capacity 45° rectangular: 380 x 460 mm speeds steplessly adjustable: 20 - 100 m/min dimensions of saw-band: 5200 x 41 x 1,3 mm table height: 590 mm total power requirement: 4,67 kW weight of the machine ca.: 1,52 t dimensions of the machine ca.: 3100 x 1000 x 1800 m Horizontal band saw. The bow is made of heavy steel and the two pillars constitute a strong and rigid saw frame. This ensures high accuracy when cutting. The machines are fitted with an integrated coolant pump that supplies oolant to both guide assemblies. Blade guides with rollers and carbide pads provide precise support for the blade. The machines switch off automatically at the end of the cutting proces and the saw arm is lifted hydraulically. inverter hydromechanic blade tension ...

cutting diameter: 810 mm saw band length: 8400 mm cutting width: 910 mm capacity 90 degrees: square: 770 x 770 mm : 910 x 750 mm : 600 mm : 600 mm Capacity 45° rectangular: 760 x 600 mm capacity 60 degrees: round: 360 mm capacity 60 degrees: square: 360 mm capacity 60 degrees: flat: 750 x 360 mm : 760 mm : 740 mm : 750 x 740 mm speeds steplessly adjustable: 20 - 100 m/min table height: 725 mm dimensions of saw-band: 8400 x 41 x 1,3 mm total power requirement: 5,62 kW weight of the machine ca.: 4,05 t dimensions of the machine ca.: 4,02 x 1,6 x 2,45 m Product Description PRODUCT DESCRIPTION Two way powered mitre with NC angle setting Features ?Powered mitre setting with NC control ?Mitre cuts to +/-60 deg with +/-0.1 deg tolerance ?5-deg inclined blade for optimum cutting performance ?Hydraulic blade tensioning ?Blade deviation control with auto shut off ?Cutting feed & pressure regulati ...

cutting diameter: 540 mm saw band length: 6000 mm cutting width: 750 mm table height: 695 mm cutting speed: 20 - 100 m/min : 540 mm : 540 x 540 mm Capacity 90° rectangular: 750 x 540 mm : 540 mm : 540 mm : 600 x 540 mm : 510 mm : 450 mm Capacity 45° rectangular: 450 x 540 mm capacity 60 degrees: round: 270 mm capacity 60 degrees: square: 250 mm capacity 60 degrees: flat: 250 x 540 mm total power requirement: 4 kW weight of the machine ca.: 2,45 t dimensions of the machine ca.: 3,0 x 1,3 x 2,13 m Horizontal band saw. The bow is made of heavy steel and the two pillars constitute a strong and rigid saw frame. This ensures high accuracy when cutting. The machines are fitted with an integrated coolant pump that supplies oolant to both guide assemblies. Blade guides with rollers and carbide pads provide precise support for the blade. The machines switch off automatically at the end of the cu ...

5 axis machininng center (milling/turning from bar), Under power in our warehouse, MAKE CHIRON, MODEL MILL 800 5 axis, CNC Fanuc 18iMBS (5 simoultaneous axis 1), X, Y, Z (mm) 800 – 500 - 550, Rapids (Highspeed) 60 m/min, Swivelling head CNC controlled (B axis) +/- 100°, Turning spindle Peiseler, Milling spindle 12.000 giri / 140 Nm (v nota 2), Tools 65, Tool type HSK-A 63 DIN 69893, Tool-change time 1,5 sec (v nota 3), Table 1400x500, Max table load 1200 kgs, Coolant through spindle 70 bar (see note 4), CNC controlled clamping/rotating unit for 6th face machining (v. nota 5), Pressurised linear encoders, Swarf conveyor, Renishaw-ready, Y.O.M. 2006, Weight 7500 kgs, Turning package, Max dia 65mm, RPM: 15 / 4500, Max 42,5 KW / 90 Nm., Hydraulic clamping 800 Nm., Bar loader ILS-RBK- 10012 65, Diameters min/max 5/65 mm L= 600-1200 mm, Highspeed (2), 60m/min., Spindle 20-12.000 min.â ...

Machining center Victor Taichung VC-205 Fanuc (A3738) Make: Victor Taichung Model: VC-205 CNC: Fanuc YEAR 2016 X-AXIS TRAVEL 2050 mm Y-AXIS TRAVEL 550 mm Z-AXIS TRAVEL 560 mm DISTANCE SPINDLE NOSE-TABLE 180-740 mm DISTANCE COLUMN-SPINDLE AXIS 638 mm RAPID FEEDS X-Y-Z 30 m/min SPINDLE 12000 rpm; 15-18,5 kW; BT-40 TABLE SIZE 2500 x 550 mm MAX ADMITTED LOAD 1200 Kg HIGH PRESSURE COOLANT 20 Bar TOOL MAGAZINE CHAIN-TYPE ; 40 POS MAX TOOL DIAMETER 80 mm MAX TOOL LENGHT 350 mm MAX TOOL WEIGHT 8 Kg CONTROL UNIT FANUC 0i-MF WEIGHT 9050 Kg OVERALL DIMENSIONS 5300 x 3430 x 3045 mm ACCESSORIES SWARF CONVEYOR ; ETHERNET PORT ; USB PORT ; PORTABLE HANDWHEEL NOTE PENDULUM MACHINING WITH CENTRAL SPLASH GUARD AND SIDE WINDOW; POWER-ON HOURS 7900.

Turning diameter: 400 mm Turning length: 400 mm Turret positions: 12 CNC Brand: Okuma CNC Model: OSP 700 L Make Okuma LB 10 II Type LB 10 II CNC Lathe Year new 1997 Okuma lb 10 II cnc OSP 700 L - 2 Axis lathe Centre height (mm) Swing = 400 Center distance (mm) L = 400 mm Spindle bore Bore = 50 CNC OSP 700 L - 2 Axis Speeds up to 5.600 Rpm Turret 12 positions Swarf conveyor

Machining center FAGIMA FA 1250 BIG Make: FAGIMA Model: FA 1250 BIG YEAR 2010 X-AXIS TRAVEL 1250 mm Y-AXIS TRAVEL 700 mm Z-AXIS TRAVEL 620 mm DISTANCE SPINDLE NOSE-TABLE 100 mm RAPID FEEDS X-Y-Z 40 – 36 – 28 m/min SPINDLE 10000 rpm; 22-35 kW; ISO 40 – DIN TABLE SIZE 600 x 1500 mm MAX ADMITTED LOAD 1400 Kg TOOL MAGAZINE CHAIN-TYPE ; 24 POS MAX TOOL DIAMETER 80 (125) mm MAX TOOL LENGHT 300 mm MAX TOOL WEIGHT 8 Kg CONTROL UNIT HEIDENHAIN iTNC 530 WEIGHT 8500 Kg OVERALL DIMENSIONS 2370 x 3350 x 3180 mm ACCESSORIES SWARF CONVEYOR ; PORTABLE HANDWHEEL

Vertical machining center Victor Taichung P136 Fanuc Make: Victor Taichung Model: P136 CNC: Fanuc X-AXIS TRAVEL 1360 mm Y-AXIS TRAVEL 700 mm Z-AXIS TRAVEL 700 mm DISTANCE SPINDLE NOSE-TABLE 100-800 mm DISTANCE COLUMN-SPINDLE AXIS 792 mm RAPID FEEDS X-Y-Z 32 – 32 – 32 m/min SPINDLE 15000 rpm; 11-15 kW; BBT-40 TABLE SIZE 1400 x 700 mm MAX ADMITTED LOAD 1000 Kg HIGH PRESSURE COOLANT 20 Bar TOOL MAGAZINE CHAIN-TYPE ; 30 POS MAX TOOL DIAMETER 75 (150) mm MAX TOOL LENGHT 300 mm MAX TOOL WEIGHT 7 Kg CONTROL UNIT FANUC 0i-MF WEIGHT 9500 Kg OVERALL DIMENSIONS 4670 x 2985 x 3105 mm ACCESSORIES SWARF CONVEYOR ; PORTABLE HANDWHEEL

Vertical machining center ARES SEIKI S6040 with roto pallet Make: ARES SEIKI Model: S6040 YEAR 2019 X-AXIS TRAVEL 600 mm Y-AXIS TRAVEL 400 mm Z-AXIS TRAVEL 500 mm DISTANCE SPINDLE NOSE-TABLE 180-680 mm RAPID FEEDS X-Y-Z 36 – 36 – 48 m/min SPINDLE 12000 rpm; 5,5-7,5 kW; ISO 40 – DIN PALLET N.2 ; 700X400 mm MAX ADMITTED LOAD 250 Kg TOOL MAGAZINE CHAIN-TYPE ; 24 POS CONTROL UNIT MITSUBISHI M80 WEIGHT 6600 Kg OVERALL DIMENSIONS 3660 x 2585 x 2780 mm ACCESSORIES HIGH PRESSURE COOLANT ; SWARF CONVEYOR ; PAPER FILTER ; PORTABLE HANDWHEEL ; ETHERNET PORT ; RS 232 SERIAL PORT NOTE MACCHINA COMPLETA DI N.13 CONI PORTAPINZA; N.1 CONO PORTAFRESA; N.1 TASTATORE 3d.

HAMUEL HSTM 1500 Used 5-axis vertical machining center Make: HAMUEL Model: HSTM 1500 YEAR 2009 X-AXIS TRAVEL 1930 mm Y-AXIS TRAVEL 400 mm Z-AXIS TRAVEL 570 mm RAPID FEEDS X-Y-Z 40 – 40 – 40 m/min SPINDLE 16000 rpm; 54 kW; 136 Nm; HSK 63 B-AXIS ±95 ° MAX ADMITTED LOAD 200 Kg TOOL MAGAZINE CHAIN-TYPE ; 24 POS CONTROL UNIT SIEMENS 840 D WORKING HOURS 9800 WEIGHT 25000 Kg OVERALL DIMENSIONS 6400 x 2800 x 3000 mm ACCESSORIES SWARF CONVEYOR ; PAPER FILTER ; USB PORT ; RENISHAW TOUCH PROBE NOTE MAX PIECE DIMENSIONS: 1750X360 mm; MAX ADMITTED LOAD: 200 Kg; A/C AXIS CONTINUOUS POSITIONER; POSITIONERS: 180 rpm
