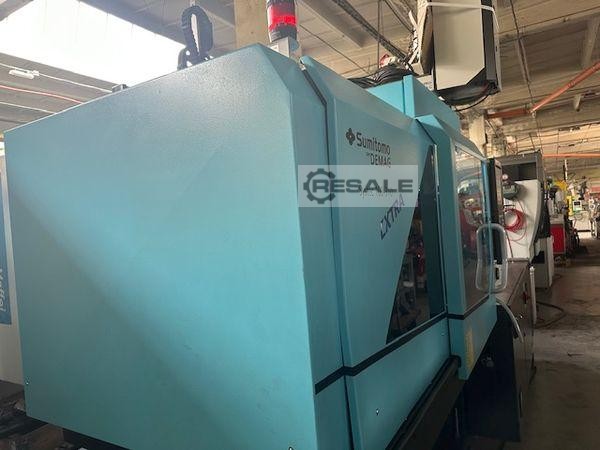

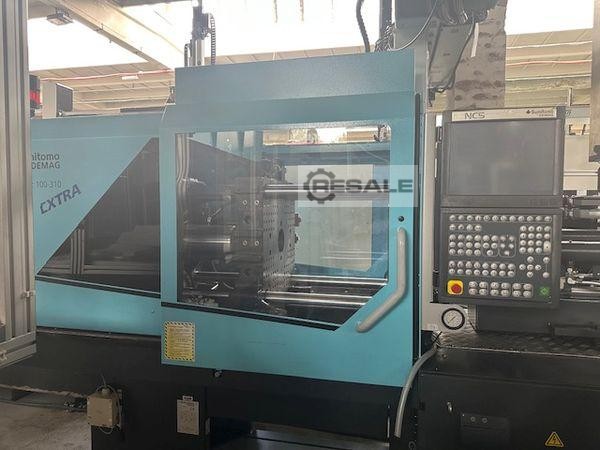

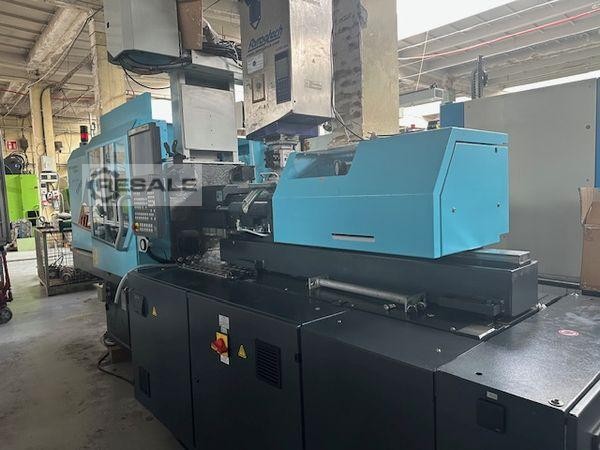

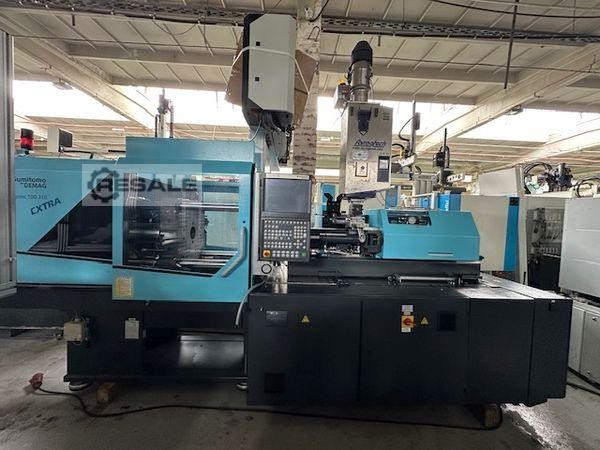

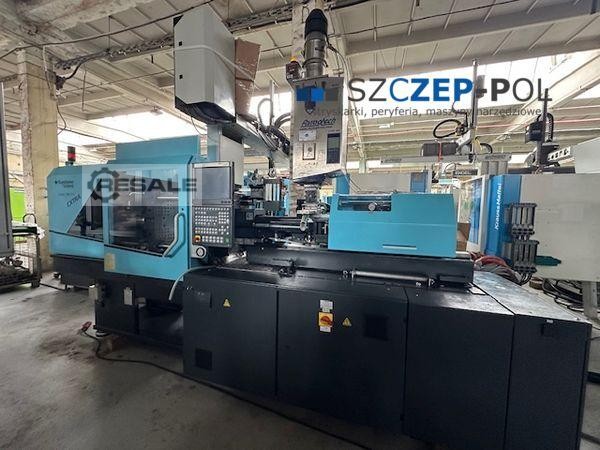

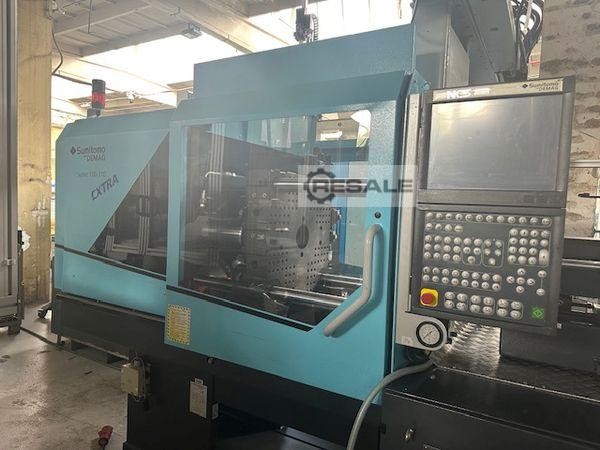

Injection molding machines SUMITOMO DEMAG Systec 100/420-310

Clamping force: 1000 kN Sumitomo Demag Systec 100/420-310 with the Sepro SR SDR11 S3 TRANS robot / hybrid machine
Year of Make: 2013

Injection unit:
Screw diameter: 35 mm
Injection weight: 149 g
Spray pressure: 2024 bar
Dosing volume: 168 ccm

Clamping unit:
Clamping force: 100 t
Spar spacing: 420x420 mm
Size of the clamping plates: 600x600 mm
Ejector: hydraulic
Clamping unit: hydraulic

Control: NC5

Additional equipment:
Hybrid machine: high-speed, energy-saving and very quiet
Operating hours: approx. 38,000 h in automatic mode
Robot interface
Air Valve x 2
Hydraulic core pull x 1
Hardened injection unit - Bimetal
Main motor of the machine - Servo motor driven by inverter - Energy saving
Built-in printer
Machine has been regularly serviced by the authorized service Sumitomo Demag
Robot Sepro SR SDR11 S3 TRANS
Year of Make: 2013
5-axis robot: 3 axes are driven by servo motors (electric); Axes A and C (rotation) - pneumatic
Touch control panel
The safety S51231703 package for robots
Robot S51231703 with adapter, protective housing
Purchase of the robot at an additional cost

Metrics:
Weight: 4400 kg
Length/Width/Height: 4.20x1.40x2.00 m

All offered machines are started by our service technicians before they are sold.
It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
seller offer No. resale 168403248
