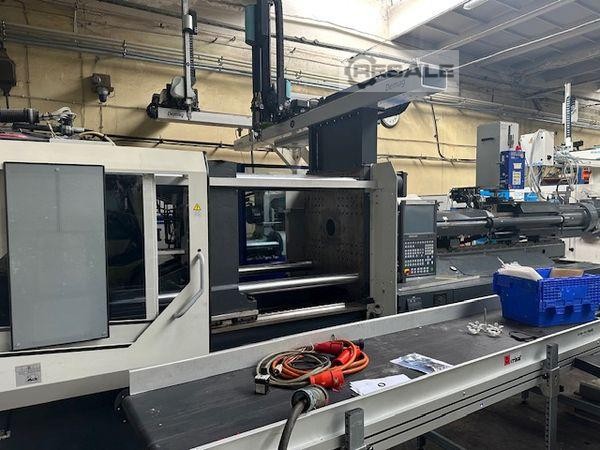

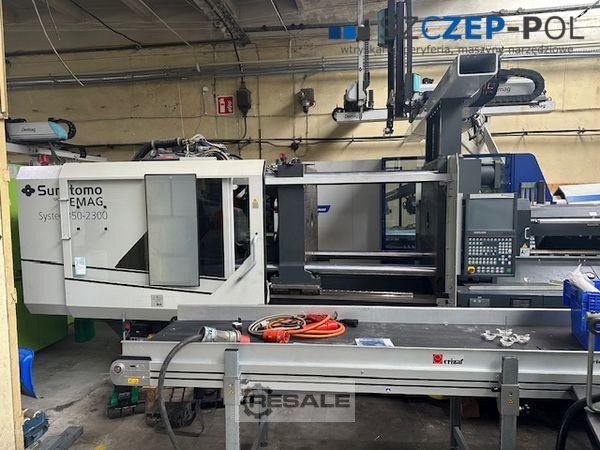

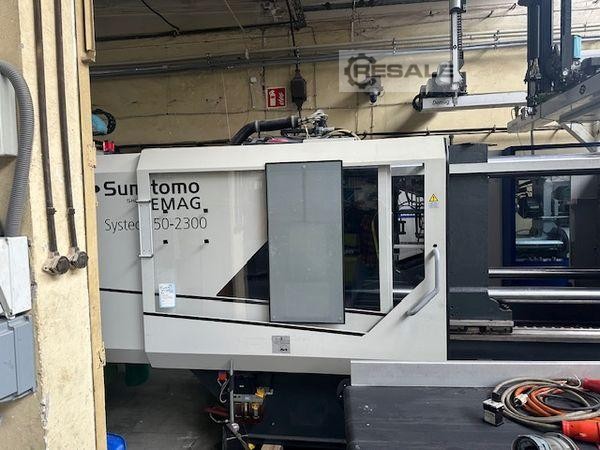

Sumitomo Demag Systec 350/720-2300 / Production line with the
Wittmann-Demag DR833 robot
Year of Make: 2012

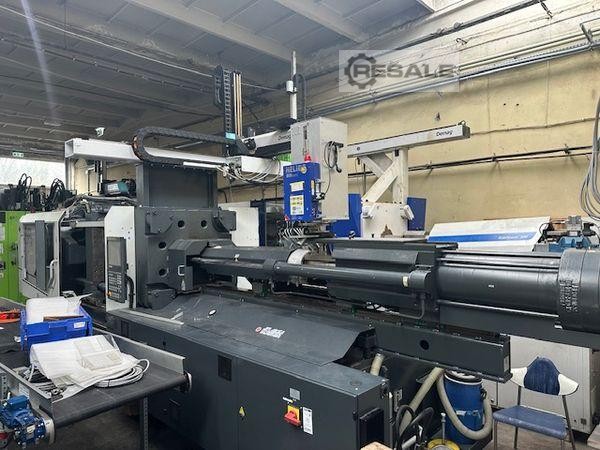

Injection unit:
Screw diameter: 70 mm
Injection weight: 1103 g
Spray pressure: 1877 bar
Dosing volume: 1212 ccm

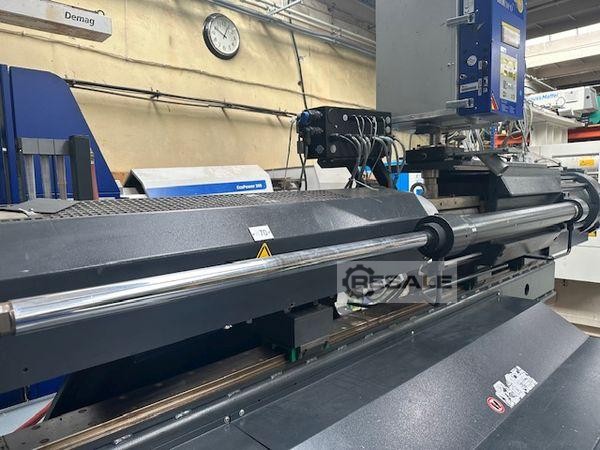

Clamping unit:
Clamping force: 350 t
Tiebar spacing: 720x720 mm
Size of the clamping plates: 1040x1060 mm
Ejector: hydraulic
Clamping unit: toggle lever

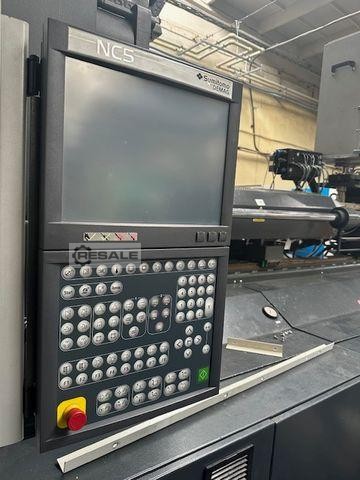

Control: NC5
Additional equipment:
Euromap 67
Robot interface
Air Valve x 5
Hydraulic core pull controlled with proportional valve x 1
Control with hot runners x 5
Hardened injection unit - Bimetal
Moog proportional valve on the injection unit – precise injection
Parallel movements
Central lubrication
3 hydraulic pumps with variable power
Built-in printer
Machine has been regularly serviced by the authorized service Sumitomo
Demag

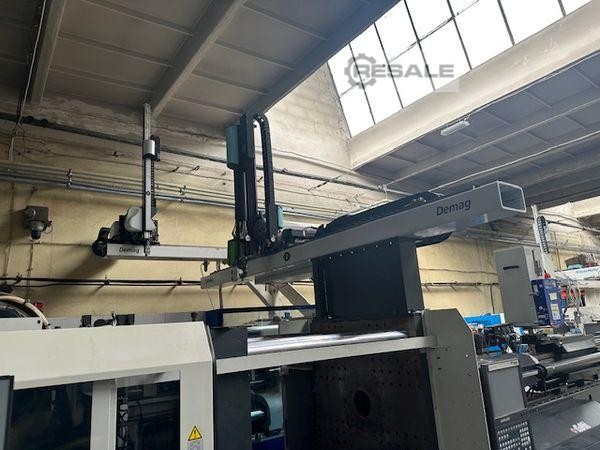

Robot Wittmann-Demag DR833
Year of Make: 2011
4-axis robot: 3 axes are driven by servo motors (electric),
Y-telescopic; Axes C-pneumatic, movement A
Travel in axes: X-900, Y-1600, Z-3000
Touch control panel
The safety S51231703 package for robots
Robot with adapter, conveyor belt and protective housing
Purchase of the robot and the conveyor belt at an additional cost
Metrics:
Weight: 15750 kg
Length/Width/Height: 8.26x2.01x2.27 m
All offered machines are started by our service technicians before
they are sold.
It is possible to receive a video of the technical tests of the
selected machine or to participate in live technical tests at our
company in Łódź.
Price: On request
