Universal Round Grinding Machines STUDER S33

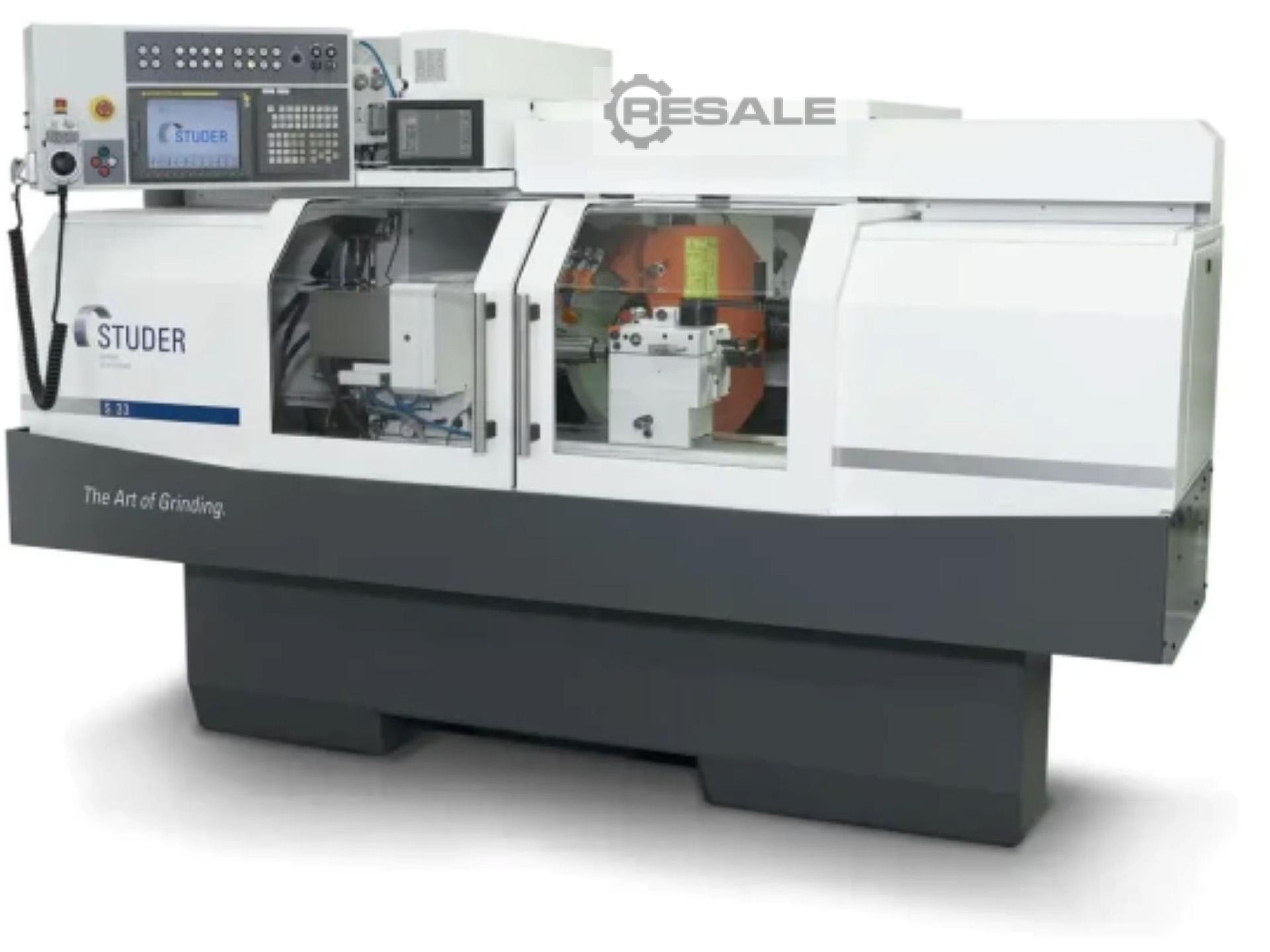

CNC cylindrical grinding machine STUDER S33

TECHNICAL FEATURES:

Year: 2008
NC Type: FANUC 21i-TB
Software version installed: StuderGrind
Distance between points: 650 [mm]
Peak height: 175
X-axis travel: 285 [mm]
Minimum speed. X-axis stroke: 0.001 [mm/min]
Maximum speed X-axis travel: 5000 [mm/min]
X-axis resolution: 0.0001 [mm]
Z-axis travel: 800 [mm]
Minimum speed. Z-axis travel: 0.001 [mm/min]
Maximum speed Z-axis stroke: 10000 [mm/min]
Z-axis resolution: 0.0001 [mm]
B-axis angular travel: -15 [°] / +195 [°]
B-axis indexing accuracy: Hirth 1 [°]
Coin Holder Spindle Nose: MT5
Minimum speed. Coin Holder: 1 [RPM]
Maximum speed Workpiece Spindle: 1500 [RPM]
Maximum weight Permissible headstock workpiece holder between points : 80 [Kg]
Tailstock Cone: MT3
Tailstock sleeve stroke: 35 [mm]
Diameter of tailstock: 50 [mm]
Tailstock fine adjustment: +/- 40 [mm]
Supply voltage: 400 [V]
Installed power: 20 [kVA]
Weight: 4000 [Kg]

EQUIPMENT INCLUDED:

x1 Mechanical Grinding Spindle Inter. Type 102560B - Speed: 60,000 [rpm]
x1 hydraulically foldable dressing device
x1 Fixed table-mounted plating unit
x1 Dressing unit by diamond profile wheel
x1 3-jaw chuck Ø170 [mm] - CM5
x1 4-jaw chuck Ø170 [mm] - CM5
x1 magnetic chuck Ø170 [mm] - CM5
x1 2-point support bezel
x1 Pneumatic tailstock lift
x1 Pneumatic K51249644 False Table Lift
x1 K51249644 automatic B-axis - Hirth 1 teeth [°]
x1 C-axis for thread and shape grinding
x1 MOVOMATIC C25 workpiece probe
x1 contact control unit DITTEL SENSITRON 6
x1 Semi-Automatic Wheel Balancing Device MPM Type BMT100M
x1 TECHNOLOGIES ARO paper filtration unit type 5491.246A01
x1 AIR-FRESH SERVICE oil mist suction unit type FMN-V12
x1 Validation Pedal
x1 Electric Cabinet Air Conditioner
x4 Exter Wheel Holder Flanges.
x1 Lifting Machine Kit
x1 Axle flange for machine transport
x1 set of user manuals (French, English and German)

More information on request.
seller offer No. resale 90177
