straightening used for sale

flying shears diameter range 8-16 mm cutting length 520-6000 mm speed - meters/min 25-75 diameter range 8-14 mm

Straightening and welded plate cast steel-grey cast iron heavily ribbedheavyheavy straightening plateLength 1600 mmWidth 1000 mmThickness 210 mmPanel thickness approx. 32 mm throughoutTable height / working height 565 mm- very stable steel table substructure (self-made)- plate with substructure can be moved by pallet truckWeight 740 kggood condition; used

diameter range 4-10 mm cutting length 3000 mm speed - meters/min 130

Straightening and welding plate Cast steel-Grey cast iron heavily ribbedCast plate, heavy straightening plateLength 1500 mmWidth 1000 mmThickness 100 mmPanel thickness approx. 37 mm continuousTable height 860 mm- Table base made of steel (self-made)Weight 640 kgGood condition; used

diameter range 5-13 mm cutting length 2000 mm speed - meters/min 21 - 90

Straightening and welded plate cast steel-grey cast iron heavily ribbedheavyheavy straightening plateLength 2000 mmWidth 1500 mmThickness 125 mmBoard thickness approx. 40 mm continuousTable height 880 mm- Table base made of steel (self-made)Weight 1700 kgGood condition; used

diameter range 7-14 mm cutting length 3000 mm speed - meters/min 90

material width: 0400 mm coil weight: 1,50 t material thickness: mm nomb. of straightening rolls: 9 diam. of the rolls ca.: 30 mm range of expansion ca.: 460 - 530 mm coil outside - diam. ca.: 1500 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

diameter range 3-10 mm cutting length 2000 mm speed - meters/min 120

A Wafios wire straightening and cutting machine with a straightening attachment of 1000mm is available. Wire diameter range: 1.5mm-7mm, cutting length range: 20mm-3000mm, straightening rotor speed: 6800rpm, pitch: 71/69, cutting stroke: 270/min, machine dimensions X/Y/Z: approx. 3300mm/1200mm/1800mm, weight: approx. 1400kg. An on-site inspection is possible.

diameter range 3-10 mm cutting length 2000 mm speed - meters/min 22-71

diameter range 3-10 mm cutting length 1000 mm speed - meters/min 22-71

diameter range 1-8 mm cutting length 3000 mm speed - meters/min 13-56

wire diameter range 1,5-7,0mm cutting length 3000 mm speed - meters/min 5-120

double wire processing diameter range 0,8-2 mm cutting length 1000 mm speed - meters/min 80

diameter range 3-10 mm cutting length 10-200 mm

diameter range 3-10 mm cutting length 10-130 mm

diameter range 0,2-1,3 mm speed - meters/min 15

wire dia.: 5 - 17 mm wire length: max. 5.000 mm straightening feed: stufenlos bis ca. 60 m/min : 11 kW, 380 V, 50 Hz : 45 kW, 1480 U/min, 380 V, 50 Hz total wight: ca. 15 t : Typ DZA/20 f. 1000kg Coil Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Kieserling WRUW1 bar straightener for 5 -30mm bar diameters. Speed 40m/min. New set of spare straightening rolls

A custom-built slitting and straightening machine Grossmann/BFW for aluminum strip is available. Strip width: 35mm, Straightening unit: multi-roll, Knife type: rotary knives, Strip guidance: roller guidance, Tension control: KTC800A. Documentation available. An on-site inspection is possible.

pressure: 160 t stroke: 400 mm table-size: 1150 x 350 mm diameter of piston: 300 / 185 mm throat: 225 mm speed of pressing: 166 mm/sec pre-running speed: 75 mm/sec return speed: 208 mm/sec total power requirement: 14 kW weight of the machine ca.: 8,5 t dimensions of the machine ca.: m Press force: 160 t Stroke: 400 mm Table size: 1,150 × 350 mm Cylinder diameter: 300 / 185 mm Throat depth: 225 mm Pressing speed: 6 – 16 mm/s Rapid approach speed: 75 mm/s Return speed: 208 mm/s Total power requirement: 14 kW Machine weight: approx. 8.5 t Pressing speed: 6 – 16 mm/s Rapid approach speed: 75 mm/s Return speed: 208 mm/s Installation distance between ram pressure pad and crosshead pressure pads: 320 mm Distance between pressure pads on ram and table: 50 – 888 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

length: 4000 mm width: 2000 mm weight of the machine ca.: 8,5 t height: 400 mm Price 1,000 euros per square meter The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

band width: 850 mm total power requirement: 3,8 kW 5 to. Schleicher reel - max load: 5 to - Belt width: 1500 mm - Belt thickness: 1 mm - Year of construction: 23/04/92 - Voltage: 24/380 V 50 Hz - Power: 3,8 KW Including: Coil lifter, feed unit, control panel, hydraulic unit, control cabinet The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

length: 1200 mm width: 1000 mm table height: 850 mm weight of the machine ca.: 1,2 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1250 mm plate thickness: 15 mm number of rolls: 21 Stück roll diameter: 80 mm band speed: 12 m/min straightening cross-section: 5700 mm² Control: total power requirement: 60 kW The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

LORENZ ist eine Bandhaspel und Richtmaschine mit hoher Präzision, großer Genauigkeit und Zuverlässigkeit. Kapazitäten: Innen-Ø 460–520 mm, Außen-Ø bis 1900 mm; Coilgewicht max. 7500 kg; Bandbreite max. 620 mm; Blechstärke 1–7 mm. Technische Daten: 9 Richtrollen, Rollendurchmesser 50 mm. Erreicht enge Toleranzen; typische Einsatzbereiche: Automotive, Werkzeugmaschinen, Luftfahrt, Medizintechnik. Technische Daten ohne Gewähr

KOHLER 10.120 B ist ein Bandrichtgerät mit hoher Präzision, großer Genauigkeit und Zuverlässigkeit. Ausgerüstet mit 19 Richtrollen Ø 18 mm, richtet Bänder bis 2 mm Dicke. Anschluss 3x380 V 50 Hz, Hauptantrieb 1 kW; Abmessungen L 800 x B 700 x H 1400 mm. Zubehör nicht angegeben. Entwickelt für enge Toleranzen; Einsatzbereiche: Automobil, Maschinenbau und Metallverarbeitung Technische Daten ohne Gewähr

RM 3020.4 ist eine Band-Richtmaschine, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Arbeitskapazitäten: 9 Richtrollen, Walzendurchmesser 30 mm, Bandbreite max. 200 mm, Banddicke 0,5–4 mm, Vorschub/Antrieb 40–56 m/min. Hauptdaten: Anschluss 50 Hz, 3x 380 V. Ermöglicht enge Toleranzen; typische Einsatzfelder: Automobil, Elektromechanik, Maschinenbau, Luftfahrt und Medizintechnik Technische Daten ohne Gewähr

\" Technical details Manufacturer: ALMAR Model: GAL-002 (model designation appears from nameplate) Type: Rail-mounted wire feeding and positioning machine Configuration: - Motorized positioning carriage - Rack-and-pinion rail drive system - Linear guide rails - Wire feeding rollers - Guide roller assemblies - Multiple articulated support arms - Wire support and positioning cradles - Wire coil pay-off station - Electrical control cabinet - Automated wire transport system Application: - Wire mesh production - Cross-wire feeding and positioning - Reinforcement mesh manufacturing - Automated wire handling - Wire transport to welding stations - Industrial mesh production systems Function: - Automatic wire positioning - Controlled wire feeding - Rail-guided transport of wire handling assemblies - Integration with mesh welding production lines Construction: - Heavy-d ...

material width: 650 mm coil weight: 15 t material thickness: 16 mm The year of construction is estimated, the system is as good as new The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1.250 mm plate thickness: 1,0 mm cutting speed: 10 m/min blade shaft - diameter: 70 mm Working width: 1,250 mm Sheet thickness, steel: max. 0.8 mm with 3 pairs of knives Sheet thickness, copper: max. 1.0 mm with 3 pairs of knives Knife shaft: Ø 70 mm Number of knife pairs: 3 Cutting / feed speed: approx. 10 m/min Power supply: 380 V Equipment: Manual longitudinal and cross-cutting line for sheet metal strips with rubber transport rollers. Knife shaft Ø 70 mm 3 pairs of knives Length measuring device with measuring scale Automatic and manual operation Brake motor Manual rotary shear for cross-cutting The RULI 120 / SBVA is a longitudinal and cross-cutting line designed for processing sheet metal strips. The machine enables longitudinal slitting and cutting to length and is particularly suitable for processing thin sheet metal. The sheet material is fed to the knife shaft vi ...

Equipped with: movable aiming tower, height-adjustable pull points, swivel wheels, capacity 10Ton. Auction-ID: A1-41279-20

Key data: 25 t

Automatic straightener, shaft straightener , MAE -25RH, 1996, used Manufacturer: Maschinen- & Apparatebau Götzen GmbH, Germany Connected load: 14.5kva , Dim.: 2.5 x 1.5 x 1.8m, Weight : 5000kg

Machine number: H85-1461 Operating voltage: 380 V Frequency: 50 Hz Directing force: 1600 kN Straightening stroke: 160 mm Drive power: 22 kW Ram speed: from 62 mm/s Ram speed: 162 mm/s Radius standard: 400 mm Table dimensions: approx. 8500 x 440 mm incl. extensive item Suitable accessories such as various inserts and pressing tool Operating hours read: 4043 Auction-ID: A7-49089-245

pressure: 400 t distance between columns: 600 mm stroke: 600 mm table-size: 3000 x 1500 mm travel x / y: 2200 x 900 mm working feed: 7 mm/sec tank capacity: 66 l working pressure: 30-250 bar total power requirement: 18,5 kW weight of the machine ca.: 25 t dimensions of the machine ca.: 3500 x 3500 x 3700 m 2. STANDARD EQUIPMENT FRAME - Welded steel frame - Frame and plates are precision-milled using a CNC milling machine - Chrome-plated cylinder - Worktop with threaded holes HYDRAULICS - Bosch Rexroth hydraulic pump - Hydrapack or Badestons hydraulic directional control valve - Hydraulic block in accordance with EN standards - 1000-liter hydraulic oil tank - Pressure adjustment via pressure transmitter/regulator ELECTRICS - Control cabinet in accordance with EN standards - All cables are labeled and clearly arranged - All electrical components are from Siemens CONTROL PANEL - Stroke cont ...

sheet width:2000 mm plate thickness:1.8 mm Controls:SIEMENS S7 PRESS DESIGN:. - frame design : H-frame :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - height above floor level:375 mm RAM:. - ram force:800 to - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):3100 mm - Free passage between side columns (width):2560 mm - Free passage between side columns (height):1500 mm DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diamet ...

band width:1050 mm plate thickness:8 mm number of rolls:8 DECOILER:. - design : single coil :. - sheet width max:1050 mm - sheet width (min):150 mm - max. weight of coil:22 to - max. diameter of coil:2000 mm - min. internal diameter of coil:570 mm FEEDERS:. - feeder: type : roll feeder :. - sheet width max:1050 mm - sheet thickness max:150 mm LEVELER UNIT:. - sheet width max:1050 mm - sheet width (min):150 mm - sheet thickness max:8 mm - sheet thickness (min):2.5 mm - number of leveler rolls:8 - diameter of leveler rolls:96 mm - distance between leveler rolls:104 mm - diameter of feed rolls:160 mm - feed velocity min.:2 m/min - feed velocity max.:43.5 m/min ELECTRICAL SPECIFICATIONS:. - mains voltage:400 V - mains frequency:50 Hz Technical description : Sheet metal unrolling and straightening system for thick sheet metal up to 8 mm, consisting of: - LAWECO COIL LOA ...

band width:2000 mm plate thickness:1.8 mm number of rolls:13 Controls:SIEMENS DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diameter of coil:2000 mm - min. internal diameter of coil:610 mm FEEDERS:. - sheet width max:2000 mm - sheet thickness max:2 mm - feeding step max.:4000 mm LEVELER UNIT:. - sheet width max:2000 mm - sheet width (min):400 mm - sheet thickness max:1.8 mm - sheet thickness (min):0.6 mm - number of leveler rolls:13 - diameter of leveler rolls:50 mm

material width:180 mm coil weight:0,75 t material thickness:2,0 - 6,0 mm coil external diameter:400 - 1250 mm no. of straightening rolls:5 number of draw-in rolls:2 band speed:20 m/min power requirement:4,0 kW weight:2,8 t dimensions (WxDxH):1,4 x 2,45 x 1,85 m snubber roll:pneumatic

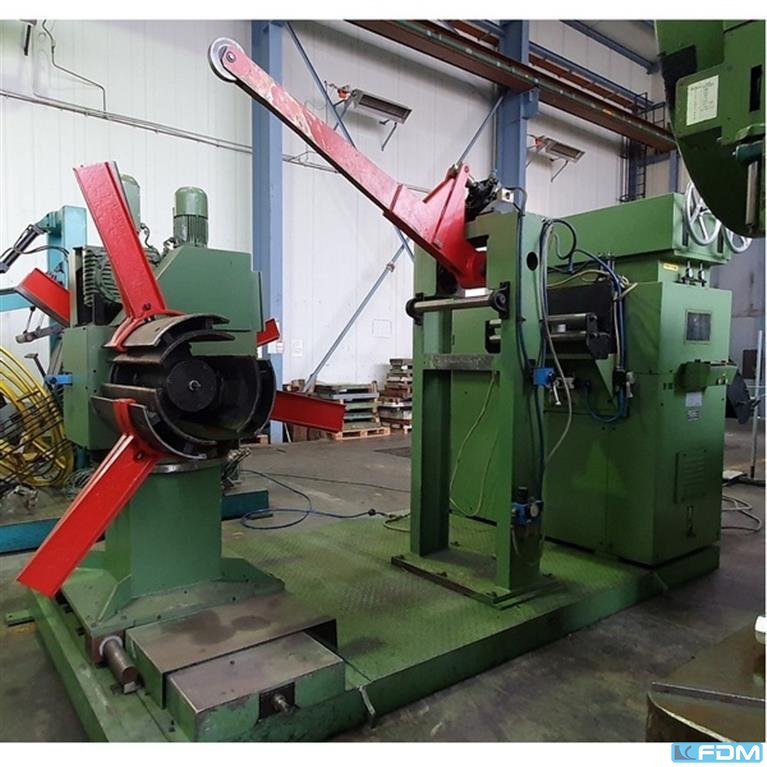

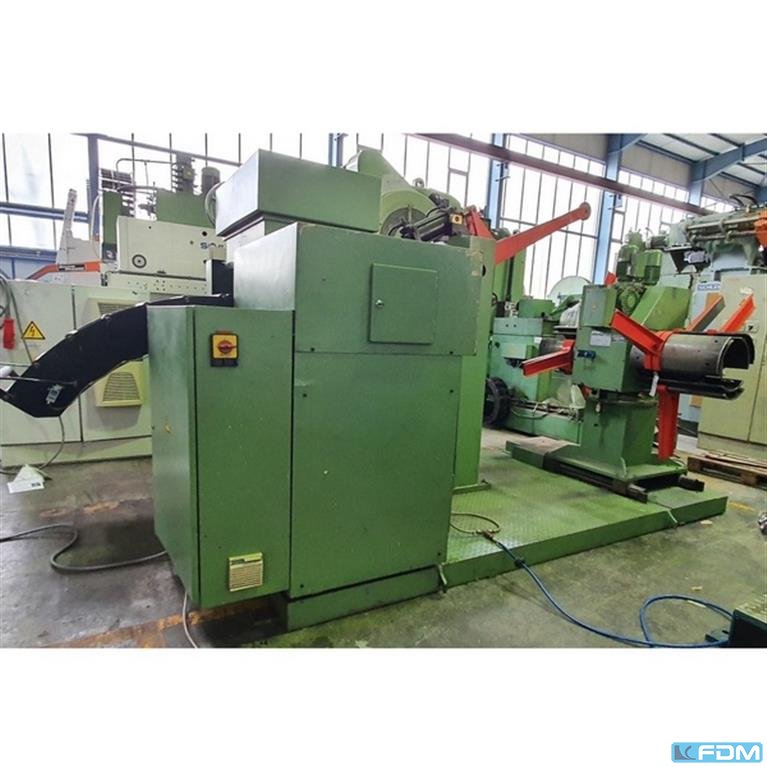

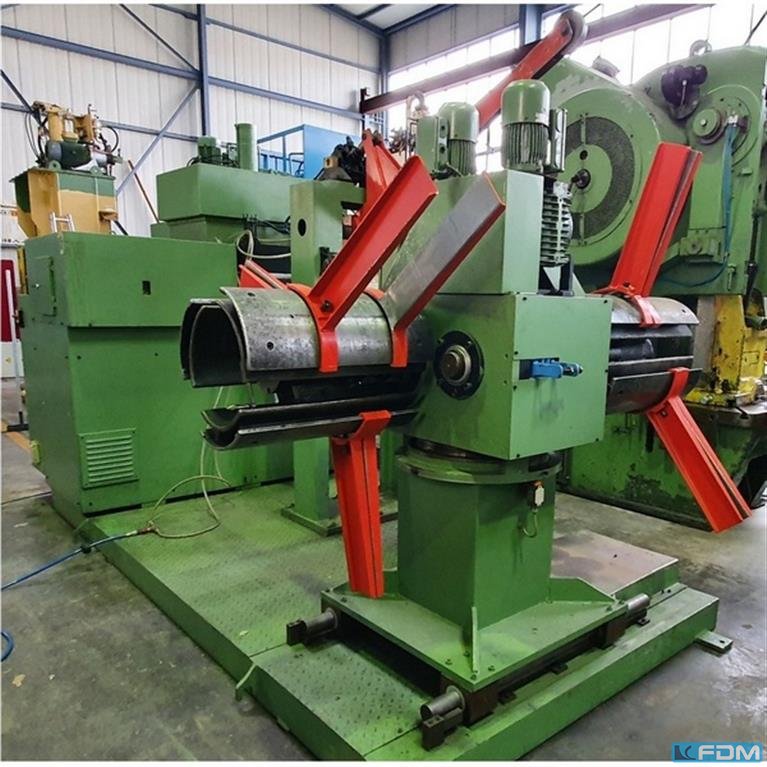

material width:500 mm coil weight:2 x 2,0 t material thickness:1,0 - 6,0 mm coil internal diameter:350 - 420 mm coil external diameter:1600 mm no. of straightening rolls:9 straightening roll diameter:50 mm number of draw-in rolls:2 speed:0 - 40 m/min material thickness at 500 mm material width:3,5 mm power requirement:17,5 kW Dimensions (WxDxH):2,3 x 4,2 x 2,4 m straightening machine:RM 5050.4/9 double decoiler:AH 2000/2/M snubber roll:pneumatic interchangeable jaws:130 mm expansion of the inner diameter

material width:800 mm coil weight:12,0 t coil internal diameter:470 - 520 mm coil external diameter:1500 mm material thickness:0,4 - 2,5 mm no. of straightening rolls:8 straightening roll diameter:53 mm number of draw-in rolls:2 inlet roll diameter:160 mm speed:35 m/min material thickness at 150 mm material width:2,5 mm material thickness at 650 mm material width:1,5 mm material thickness at 800 mm material width:1,0 mm straightening machine:RM 8-53/160-800 decoiler:HE 200-1000

material width:250 mm coil weight:2,5 t coil internal diameter:430 - 520 mm coil external diameter:1650 mm material thickness:0,5-6 mm no. of straightening rolls:7 straightening roll diameter:60 mm number of draw-in rolls:2 weight straightener:1,2 t weight decoiler:1,4 t dimensions straightener (WxDxH):1,2 x 1,2 x 2,0 m dimensions decoiler (WxDxH):1,8 x 1,8 x 2,3 m expansion:hydraulic

material width:450 mm material thickness:1,0 - 14,0 mm coil weight:10,0 t coil internal diameter:470 - 520 mm coil external diameter:1100 - 2000 mm no. of straightening rolls:12 straightening roll diameter:2x70 / 2x96 / 8x127 mm number of draw-in rolls:2 inlet roll diameter:160 mm min. material width:100 mm speed:15 m/min power requirement:75,0 kW weight of decoiler:6,4 t weight of straightening machine:12,8 t dimensions decoiler (WxDxH):3,1 x 1,4 x 3,7 mm dimensions straightener (WxDxH):2,5 x 3,4 x 2,7 mm straightening machine:RMS-Vario-12-70/96/127-0450 infinitely variable drive:insert drive upper straightening part:hydraulic liftable loop bridge:hydraulic driven threading wedge:hydraulic decoiler:HES 12-650 infinitely variable drive:insert drive lag brake:pneumatic snubber roll:hydraulic; motoric driven expansion:hydraulic coil lifting device:hydraulic cropping shears:HS-150-0450

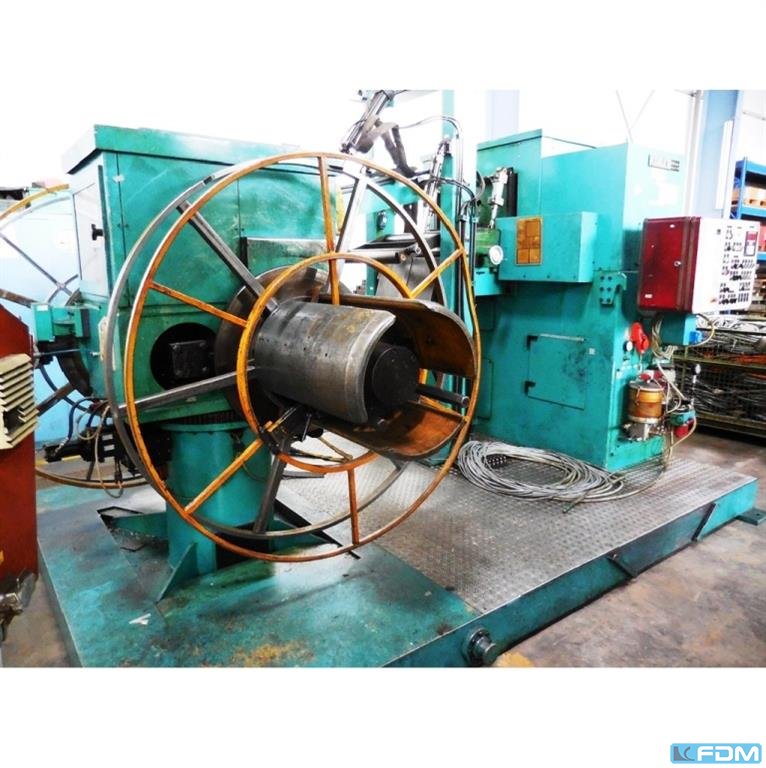

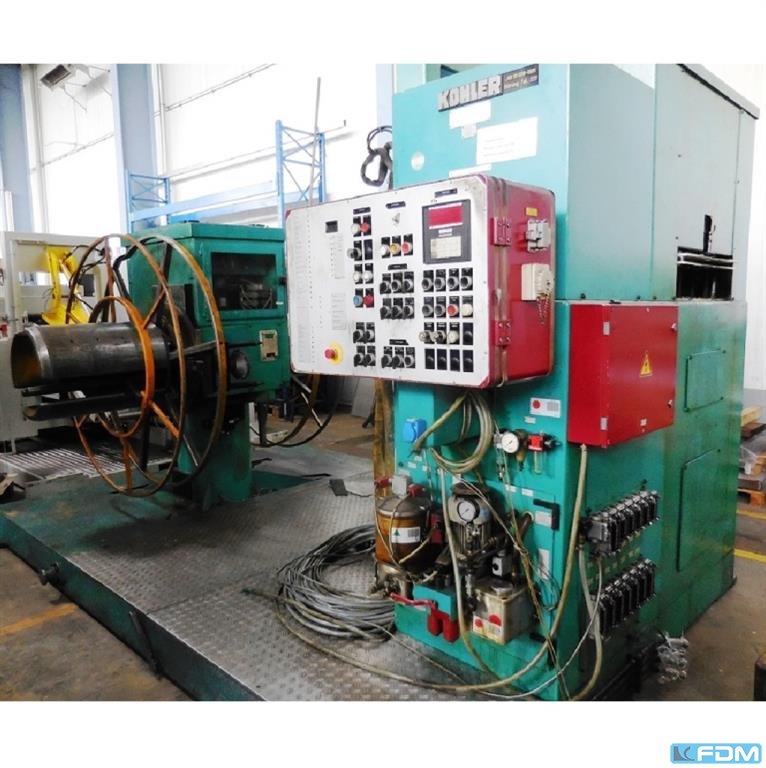

material width coil line:600 mm coil weight in kg:2 x 3000 kg coil internal diameter:460 - 630 mm coil external diameter:1500 mm material thickness coil line:0,5 - 3,0 mm Number of Straightening rolls:9 roll diameter:30 mm material cross-cut:1200 mm² weight:9,5 t Dimensions (WxDxH):4,3 x 2,6 x 2,6 m straightening machine:30.600/9 double decoiler:Kohler, 3000.2 ausiliary drive:hydraulic lag brake:pneumatic expansion:hydraulic snubber roll:hydraulic; motoric driven
