steam generator used for sale

Double line for washing and disinfection - STEAM The lines consist of a tipper, inspection tables, washing machines and receiving tables. Water tanks 2x 500L Productivity: 50-1200kg/h

Steam generator, steam boiler, boiler stove used Manufacturer Gebr. Weißbach GmbH Year of construction 1993 Ab. Steam generation 1700 kg / h Ab. Pressure 6 bar Water capacity 3795 l zul Vorlauftemp. 165°C zul heat output 1.1 MW Dimensions: 4000 x 1900 x 2400 mm Changes and errors in the technical data, information and prices as well as prior sale reserved.

SUMAB is currently offering a horizontal steam generator. Technical details: Capacity 1500 kg/h, allows you to produce steam in a short period of time. Pre-installed accessories are ready to run. A two part platform for easy assembly on site. Includes: water softening device, condensate tank, cavitation preventing pump, by-pass group with float trap, all fittings and piping connections.

215 MW Toshiba Inlet Steam Turbine & Generator (Unused and well maintained) New in 2008, this Power Plant has never been used and is available for immediate inspection and delivery. Never having been used, the Plant has no wear whatsoever. The Steam Turbine: Extraction & condensing, Inlet pressure: 104 bar, Output: 215MW Extractions: MP2: 22 bar, MPI: 10 bar, LP: 4.5 bar, Feed Water: 0.4 bar Minimum load: • No extractions, Only bleeds, Steam flow: 45 kg/s Maximum load: Steam flow: 270 kg/s The turbine is a Single Flow Extraction Condensing type. Steam initially enters the steam inlet flange near the end of the high pressure section and flows through the turbine stages toward the generator end of the unit. After passing through the turbine stages, the steam is exhausted to condenser. The exhaust hood is keyed to the foundation plates at a point near its center  ...

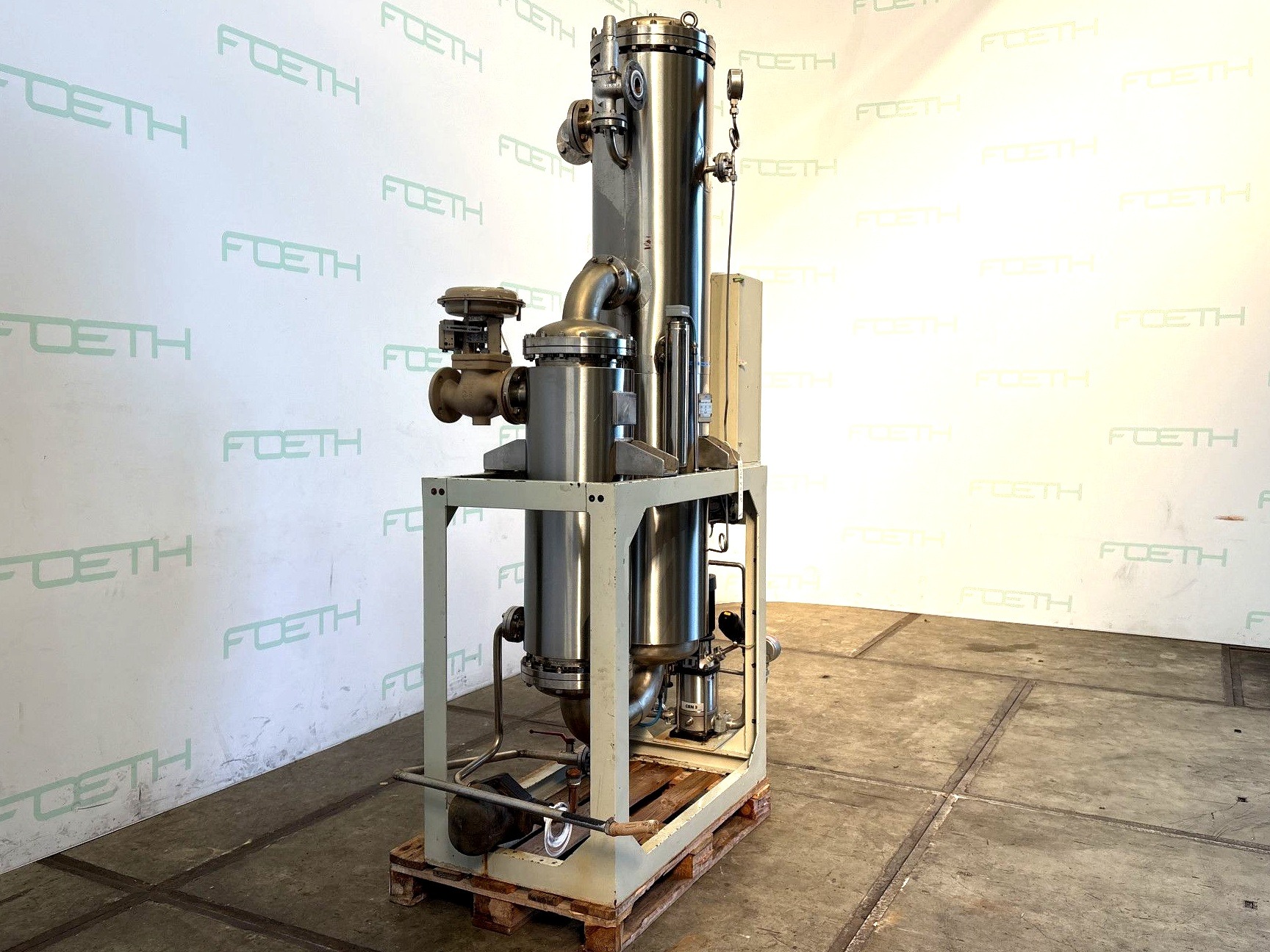

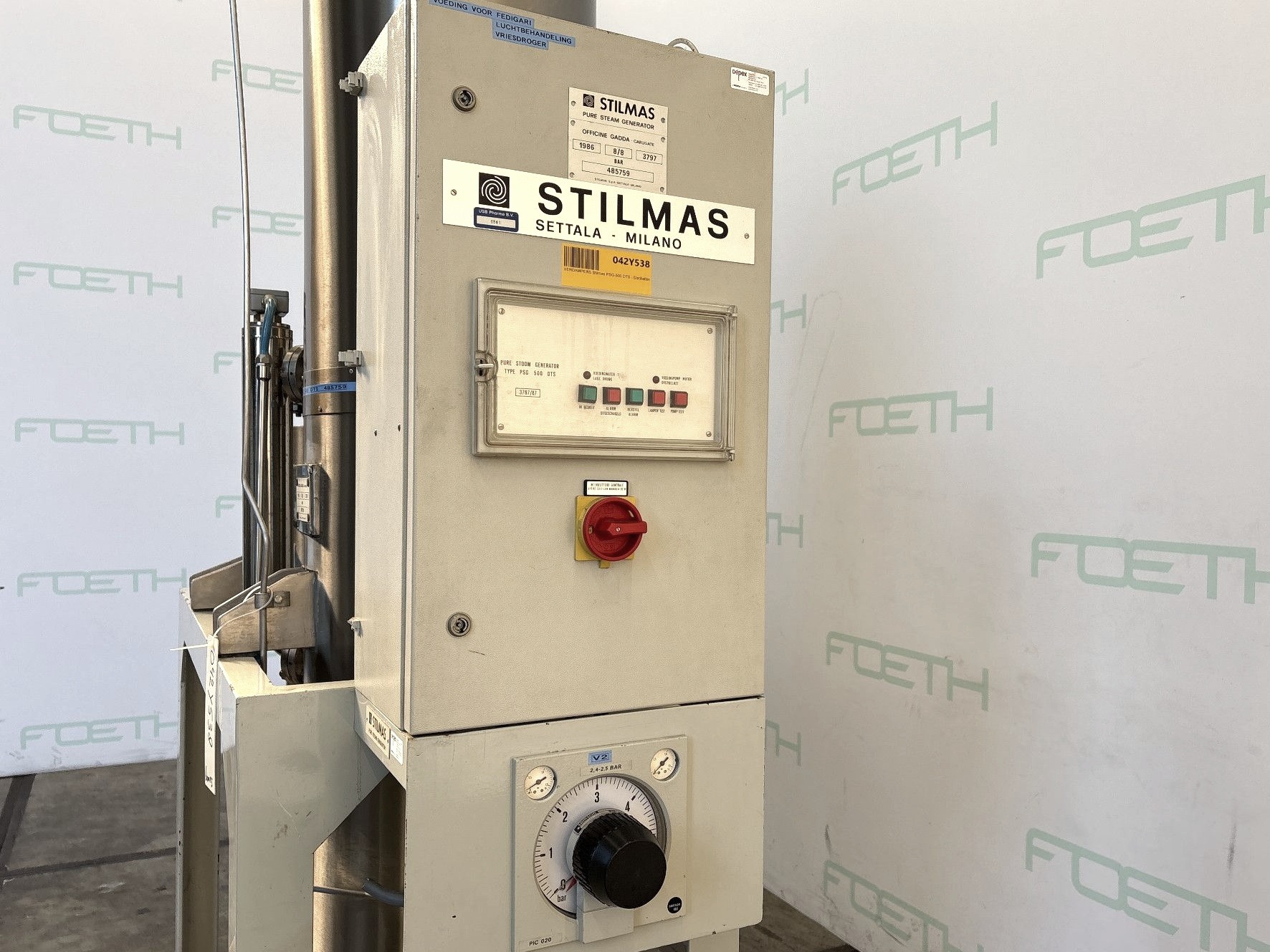

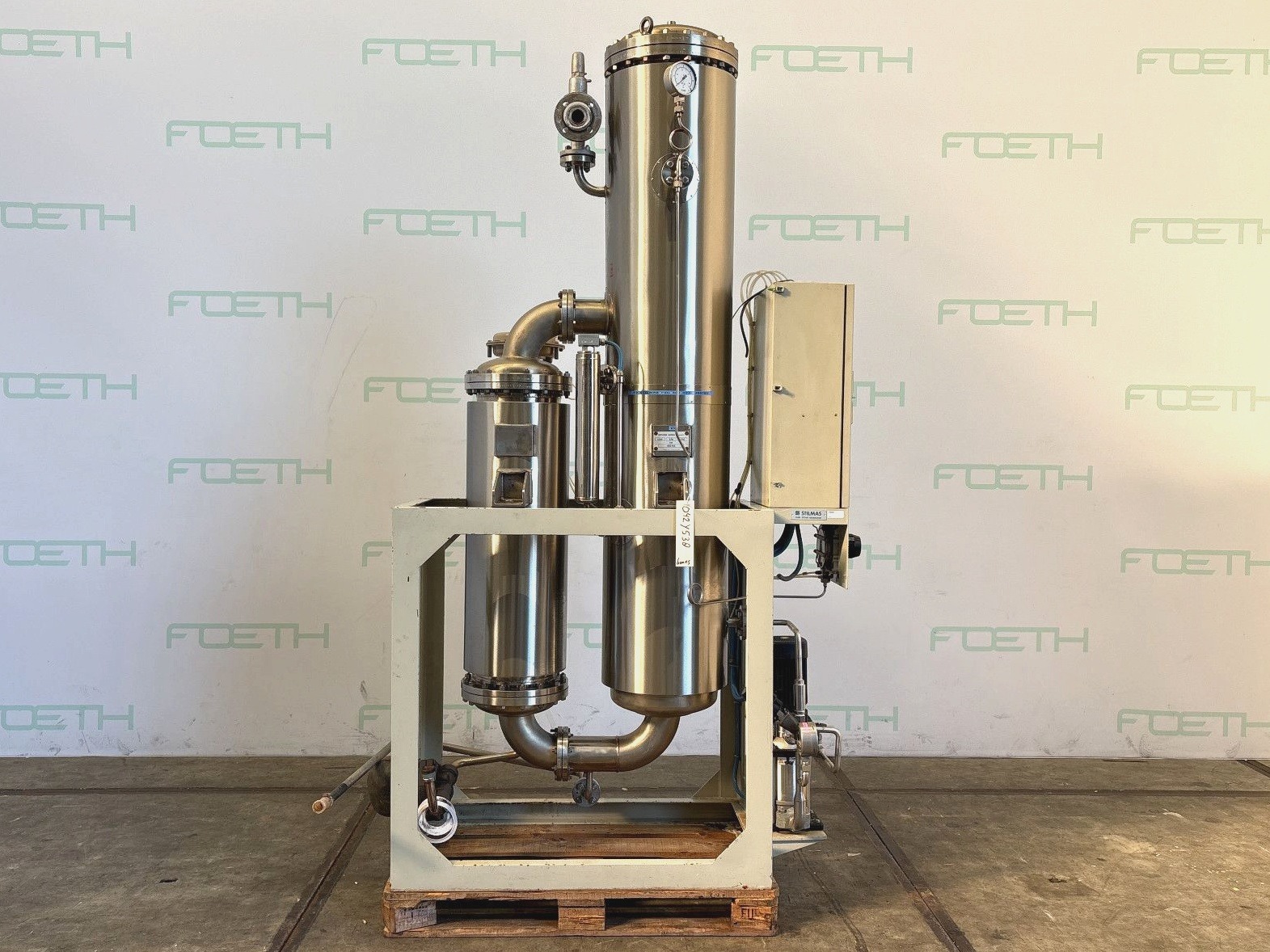

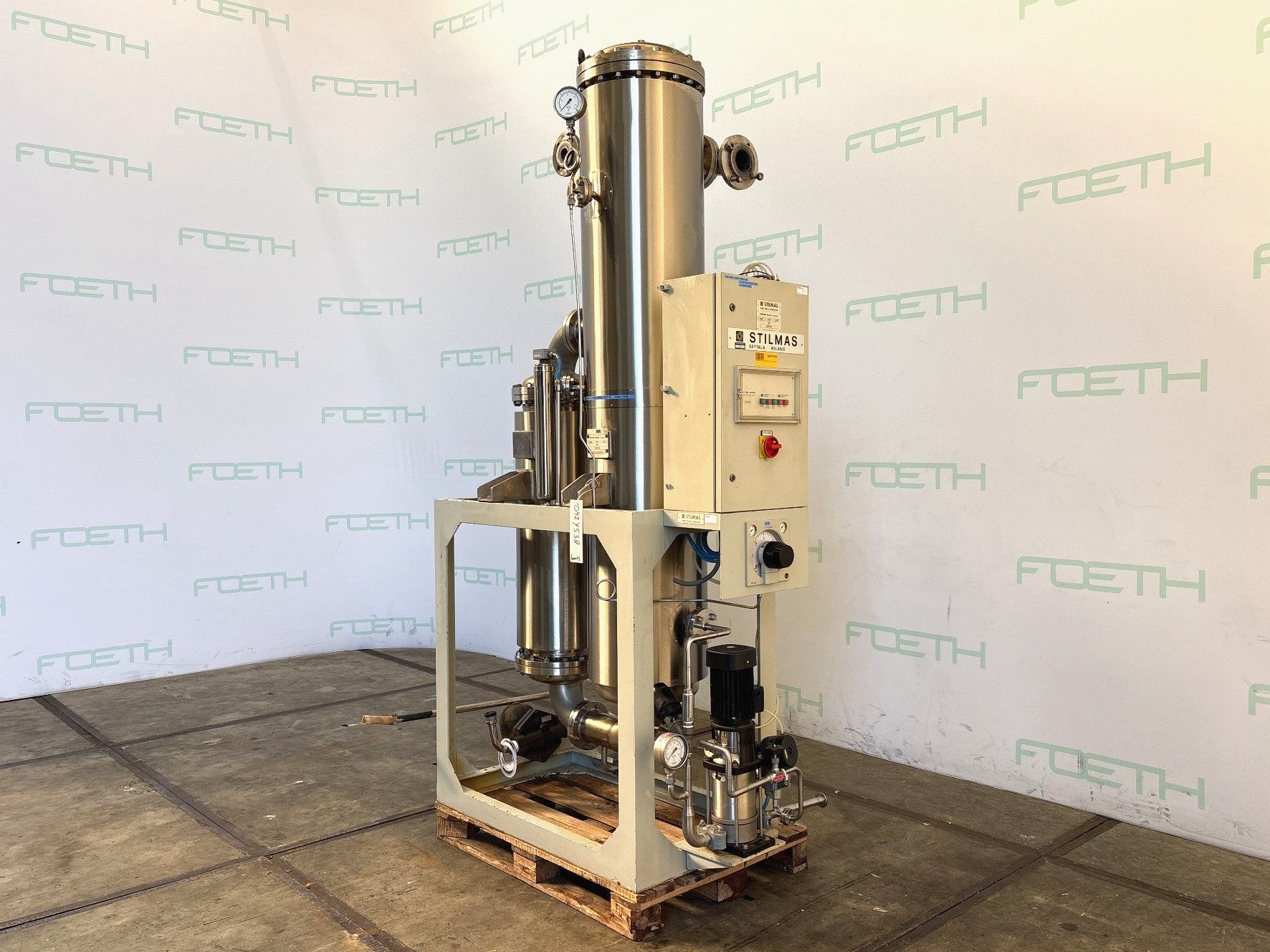

STILMAS pure steam generator - type PSG 3OO DTS - produce saturated dry pyrogen-free pure Steam by using industrial steam as heating fluid. Pure steam DN 50 PN 16 Sampling discharge: ½” Triclamp Industrial steam DN 40 PN 16 Condensate discharge: DN 25 PN 16 Cooling water outlet: ½” Triclamp Safety valve: DN 40 PN 16 Cooling water inlet: ½” gas M. Electric line 380 V/50 Hz Compressed air 6 bar Main components: A) E 020 DOUBLE TUBE SHEET EXCHANGER - Construction in AISI 316 - ISPESL tested - Design pressure: shell side 10 bar – tube side 6 bar B) ER 020 EVAPORATION CHAMBER AISI 316 L construction ISPESL tested - Design pressure: 6 bar C) SUPPORT FRAME Painted carbon steel construction D) FEEDWATER PUMP P 020 AISI 316 stainless steel construction Type GRUNDFOS CRN 2 – 70 ( See Annex n° 24) E) SAFETY VALVE PSV 020 - SN - AISI 316 STAINLESS STEEL CO ...

Overview  The steam generator was built in 2015 by the American manufacturer Clayton. The machine was recently dismantled by a specialist company. Technical specifications  Net output: 589 kW Equivalent steam production max.: 790 kg/h  Water content in operation: 130 liters  Regulated gas pressure minimum: 25 mbarG Maximum gas pressure: 200 mbarG Consumption at full load: 62.9 Nm³/ h  Burner regulation (2-stage): 0-50-100 %  Steam quality: > 99.5  Combustion efficiency (100% stage): 92%  Combustion efficiency (50% stage): 94  Generator dimensions (LxWxH): 2,030 x 1,300 x 1,835/ 2,200 mm  Dry weight: 1,215/ 1,285 kg  Pump dimensions (LxWxH): 1,350 x 680 x 1,025 mm Weight of water pump: 325 kg  Installed electrical power: 4kW Accessories  Back pressure regulator DN40  Vertical atmospheric deaerator + chemical dosing pump  Water softener  Chemical tank 60L + alarm + drip t ...

Steam generator,Tøma,theoretical cap. 90 kg steam/h

Flow steam generator with 23,1 kw/h Capacity: 35 kg/h steam Strom / Volt: 400 capacity / hour ca.: 35 customs no.: 84022000 More then 300 machines new and second hand on our seema .de

Flow steam generator 16,5 kw; capacity: 25 kg/h steam Number available (price per tank): 2 Strom / Volt: 400 capacity / hour ca.: 25 customs no.: 84022000 More then 300 machines new and second hand on our seema .de

Steam generator,Dampheks 1 DH type 1A 39,39 kW.

Steam generator,stainless steel,Maxi 60 Combi,electric heated,max 120 kW.

Pharma pure steam generator. Volume 35 / 284 l. Temperature: 184° / 165° C. The system is equipped with a control panel SIEMENS (Simatic). Inc. spare parts (filter etc.).

Caldaie GV steam generator. Dimensions: 1600x800x1730 mm

2 Gebr. Steam generator ----------------------------------------- Manufacturer : JUMAG Type : DG560 Capacity : 560 kg/h Thermal power max : 400 kW Operating pressure : 13 bar Test pressure : 23 bar Water content approx. : 75 ltr CE mark : CE 0036 Year of manufacture : 2013 equipped with Weishaupt gas burner WG40N/1-A Ausf. ZM-LN 55- 550 kW, Nox-Cl. 3, Gas control system, Control cabinet with touch control, mounted on the boiler body. without Eco, without automatic blowdown

1 used high-speed steam generator -------------------------------------------------- Manufacturer : CERTUSS Type : Junior 200 Capacity : 200 kg/h Heat output max : 145 kW Operating overpressure : 10 bar Water content approx. : 21,1 l Year of construction : 2011 CE mark : 0035 equipped with Certuss gas burner, gas control system, Control cabinet, mounted on the boiler body, feed water pump and the existing coarse and fine fittings.

1. General specification -Maker MES (Mitsui Engineering & Shipbuilding Co., Ltd.) Japan -Mfg. data 2014 -Running time Zero hoursP 2. Steam turbine specification -Maker MES (Mitsui Engineering & Shipbuilding Co., Ltd.) Japan -Turbine type CD30.46 -Steam in let pressure 70barG -Steam inlet temperature 490℃ -No.1 Extraction steam P & T 31.5barG & 388.5℃ -No.2 Extraction steam P & T 5.5barG & 223.3℃ -Nor. Exhaust pressure 0.11barA -Turbine speed 3,600 rpm -Rated output 97,500 kw -Weight 132 ton -Number of stages 16 -Number of 1 stage nozzle arcs 4 -Steam inlet flange ASME1500#RJ12” x 2 -No.1 extraction steam flange ASME 600#RF 16” -No.2 extraction steam flange ASME 150#RF 32” -Steam exhaust flange ø3,600(inner dia.) 3. Synchronous generator -Standard IE60034-1(2010), IEC60034-3(2007) -Location Indoor -Cooling system Totally enclosed type with top-moun ...

1. Qty. 1 Second-hand steamer generator – boiler 1 Mfc.: VKW Type: Three-pass boiler Built: 1965 Steam capacity: 8 t/h 2. Qty. 1 Second-hand steamer generator – boiler 3 Mfc.: VKW Type: Unduced-draught boiler Built: 1959 Steam capacity: 20 t/h 3. Qty. 1 Second-hand steamer generator – boiler 4 Mfc.: Wehrle Type: Unduced-draught boiler Built: 1974 Steam capacity: 45 t/h 4. Qty. 1 Second-hand turbine Mfc.: Hamburger Turbinenfabrik Generator power: 3 MW Pressure: 59 bar 5. Qty. 5 Second-hand drying cylinders Built: 1959/1960 Dia.: 1500 mm Length: 2850 mm

1 Gebr. High-speed steam generators ---------------------------------------- Manufacturer : LOOS, Gunzenhausen Type : DF 400 Capacity : 350 kg/h Nominal heat output : 233 kW Operating pressure max. : 31 bar Previously operated with : 11,8 / 13 bar Water content approx. : 39 l Year of manufacture : 2008 CE mark : 0036 equipped with Weishaupt gas burner type WG 30N / 1-C, ZM-LN version, gas control system, 15-500 mbar, Feed water pump, control cabinet, mounted on the boiler body and the existing coarse and fine fittings. Steam dryer LOOS Type SDM, capacity 6 l, operating pressure 31 bar, test pressure 56 bar, max. temp. 200 °C, year of construction 2008 LOOS feedwater module mounted on frame, capacity 500 l, with control cabinet, Dosing vessel, sample water sampling cooler, booster pump Dimensions: 1700 mm x 1000 mm x 1950 mm

Ultrapure steam generators Manufacturer Stilmas Type PSG 50 /DTS Ultrapure steam quantity 0-max. 50 kg/h at ultrapure steam pressure 3 bar or ultrapure steam quantity 0-max. 100 kg/h at ultrapure steam pressure 1 bar

1 Gebr. High-speed steam generators ----------------------------------------- Manufacturer : CERTUSS Type : Junior/ Universal 300TC Capacity : 300 kg/h Heat output max : 218 kW Operating overpressure : 10 bar Previously operated with : 8 bar Test pressure : 57 bar Water content approx. : 32,3 ltr CE mark : CE 0035 Year of construction : 2017 equipped with Certuss gas burner, gas control system, Control cabinet with touch control, mounted on the boiler body, and the existing coarse and fine fittings With Gebr. Feedwater module, mounted on base frame, composed of: Control cabinet, VA feed water tank, Speck feed water pump, Dosing tank, Waste water tank

Output: 1.5t steam/h, max. nominal power: 1093kW/h, gas pressure: 50mbar, fuel: natural gas, including water container, two pumps, safety devices and steam dryer.

Power: 365-946kW, capacity: 141l, max. operating temperature: 184°C.

Steam output: 600kg/h, pressure volume: 42.9l, with oil tank and water softening system, an inspection is possible.

1 Gebr. High-speed steam generators ---------------------------------------- Manufacturer : LOOS, Gunzenhausen Type : DF 500 Capacity : 500 kg/h Thermal power : 334 kW Operating pressure max. : 18 bar Water content approx. : 43 l Year of manufacture : 1996 equipped with Weishaupt gas burner, gas control system, Control cabinet, mounted on the boiler body, feed water pump and the existing coarse and fine fittings.

1 Gebr. High-speed steam generators ---------------------------------------- Manufacturer : LOOS, Gunzenhausen Type : DF 600 Capacity : 600 kg/h Thermal power : 400 kW Operating pressure max. : 13 bar Water content approx. : 43 l Year of manufacture : 2001 Year of manufacture heating coil : 2010 equipped with Weishaupt oil burner WL40 Z-A, Power 145-570 kW, oil flow rate 12-48 kg/h, Control cabinet, mounted on the boiler body, feed water pump and the existing coarse and fine fittings.

2 Gebr. High-speed steam generators ---------------------------------------- Manufacturer : LOOS, Gunzenhausen Type : DF 1000 Capacity : 1,000 kg/h Ab. Operating pressure : 31 bar Test pressure : 56 bar Water content approx. : 110 l Heating surface : 21,9 m² Year of manufacture : 2007 CE mark : 0036 equipped with Weishaupt combi burner gas & oil, Type WM-GL 10/3-A, Ausf. ZM-T, 110-1,000 kW, Oil flow rate 20-84 kg/h, gas control system, feed water pump, Control cabinet, mounted on the boiler body and the existing coarse and fine fittings.

1 Gebr. High-speed steam generators ----------------------------------------- Manufacturer : CERTUSS Type : Universal Capacity : 1,000 kg/h Thermal power max : 728 kW Operating pressure : 16 bar Test pressure : 57 bar CE mark : CE 0035 Year of manufacture : 2009 Year of manufacture heating coil : 2020 equipped with Certuss oil burner, control cabinet, mounted on the boiler body, feed water pump and the existing coarse and fine fittings. TÜV test with 57 bar on 06.12.2022.

1 Gebr. High-speed steam generators ---------------------------------------- Manufacturer : LOOS, Gunzenhausen Type : DF 1000 Capacity : 1,000 kg/h Ab. Operating pressure : 13 bar Water content approx. : 110 l Heating surface : 21,9 m² Year of manufacture : 1992 equipped with Weishaupt gas burner, Gas control system, feed water pump, Control cabinet, mounted on the boiler body and the existing coarse and fine fittings.

2 Gebr. High-speed steam generators ----------------------------------------- Manufacturer : CERTUSS Type : Universal Capacity : 1,300 kg/h Thermal power max : 947 kW Operating pressure : 10 bar Test pressure : 57 bar Water content approx. : 155.7 l Heating surface : 23,7 m² CE mark : CE 0035 Year of manufacture : 2004 Year of manufacture heating coil : 2013/ 2021 equipped with Certuss oil burner, oil flow rate 40 – 80 kg/h Control cabinet, mounted on the boiler body, feed water pump and the existing coarse and fine fittings

1 Gebr. High-speed steam generators ----------------------------------------- Manufacturer : CERTUSS Type : Universal Capacity : 1,800 kg/h Heat output max : 1.311 kW Operating pressure : 16 bar Test pressure : 57 bar Water content approx. : 218 ltr Heating surface : 23,7 m² CE mark : CE 0035 Year of manufacture : 2006 equipped with Certuss gas burner, gas control system, control cabinet, mounted on the boiler body, and the existing coarse and fine fittings

1 Gebr. High-speed steam generators ---------------------------------------- Manufacturer : LOOS, Gunzenhausen Type : DF 300 Capacity : 300 kg/h Heat output : 200 kW Operating overpressure : 31 bar Previously operated with : 13 bar Test pressure : 56 bar Water content approx. : 39 l Year of construction : 2008 CE mark : 0036 equipped with Weishaupt gas burner WG30N / 1-C, ZM-LN, 40-350 kW, control cabinet, mounted on boiler body and the existing coarse and fine fittings.

Durchlaufdämpfer mit 13,2 kw Leistung: 20 kg/h Dampf Strom / Volt: 400 max Bar: 2,5 Leistung pro Stunde: 20 More then 300 machines new and second hand on our seema .de

Steam turbine MAN MARC 4 - 17.650 kW Turbine set includes: steam turbine, generator, generator cooler and an oil skid. Offer directly from the owner. Technical specifications: Designation Unit Normal Max Manufacturer: MAN Turbo AG Type: MARC 4 - B02 Power kW: 17.650 Rated speed 1/min: 8120 Quick closing speed 1/min: 8650 Main steam pressure bar: 74 Main steam temperature: C 447 Fresh steam quantity t/h: 140 Tap steam pressure 1 bar: 31.8 m Tap Steam Temp.1  C 336 Tap steam pressure 2 bar: 25.2 Tap steam temp.2  C 307 Outlet pressure bar 7,5 abs/6,5 guage Evaporation temperature: C 182 C 3 Synchron Generator (incl. cooler) Producer: Ellin Motoren Model: HTM-110 Z04 Building Year: 2007 22800 kVA 10500 V+- 5% 50 HZ Directly from the owner. Please contact us for more details.

Turbine Operating Hours of Turbine: 30.000h Back-pressure turbine Manufacturer: Fa. KKK First Start-up: 2002 Type: CFR5 G6a Power Max: 2500 kW Operational efficiency: 2200 kW, Revolution number: 23000 U /min, Live steam pressure: 65 bar, Live steam pressure temperature: 480 °C, Evaporation pressure: 1-17 bar, Investments in the year 2002 , Entire steam transforming station from 63 bar to 2,5 bar in the year 2002 renewed, El. Generator Fa. Leroy Somer, el. Power 2 MW, 525 V, 2488 kVA, renewed, Entire measuring -, governing and control of the turbine renewed, Steam turbine renewed with Energy Production Installed boiler efficiency: Boiler I , Hard coal, Steam generation: 20 t/h, 63 bar, 495 °C Boiler II , Hard coalr Steam generation: 13 t/h, 34 bar, 425 °C Boiler III: , Combination burner for oil and gas, Steam generation: 20 t/h, 17 bar, 285 °C General overha ...

Turbine Turbine operating hours: 30,000h Backpressure turbine Manufacturer: Kkk First start-up: 2002 Type: CFR5 G6a Power max: 2500 kW Operating efficiency: 2200 kW, Number of revolutions: 23000 rpm, Live steam pressure: 65 bar, Live steam pressure temperature: 480 C, Evaporation pressure: 1-17 bar, Investments in 2002 , Entire steam transformation station renewed from 63 bar to 2.5 bar in 2002, El. Generator Fa. Leroy Somer, el. Power 2 MW, 525 V, 2488 kVA, renewed, complete measurement, control and control of the turbine renewed, steam turbine renewed with energy production General overhaul of the entire plant from 2002 to 2004, steam generator renewed, automatic corder and ash removal system renewed, water treatment plant renewed, complete instrumentation renewed, flue gas cleaning plant Lurgie renewed from 1991 - 2001 Mistakes excepted!

Hobart 305 GTP Dry Steam Fast Cooker Gentle, healthy cooking: steaming, steaming or blanching 3 different pressure levels 0 / 0.5 / 1 bar for individual adaptation to the food Extremely short cooking times Individual temperature program as standard: 50° - 99°C Electronically controlled program sequences Compact tabletop unit with built-in steam generator 1 cooking chamber for 3 x 1/1 GN up to max. 65 mm deep or 2 x 1/1 GN up to max. 100 mm depth or 1 x 1/1 GN up to max. 200 mm depth Multi-setting, the connection value can be reduced to 18.2 kW with hot water connection (power then approx. 550 servings/h) Automatic defrosting Water level controller with display Fully electronic control for time input Self-diagnosis with fault display Chamber pressure is displayed digitally Evaporation destruction with built-in wras condensation Automatic boiler emptying with drain pump a ...

The steam humidifier Defensor Mk5 is a pressure steam generator. It works on the principle of resistance heating. It is designed to directly (with ventilation) and indirect (corded steam distribution) humidifying of the air in conjunction with ventilation systems and air conditioning. Parameter Air Fan: Voltage: 200-240 V 50/60 Hz power consumption = U: P 26 W = maximum steam output: 16.0 kg / h Parameter MK5 Visual VE 8: 400V/3/50-60Hz, 6.1 kW

Air humidifier, humidifir, humidificateur, hymidificador, steam cylinder -Manufacturer: HygroMatik, steam cylinder for steam humidifier / steam generator ovp -Type: CY17 DN40/DN12 complete -Dimensions cardboard: 280/280/H550 mm -Weight: 4.6 kg

1 x Steam turbine generator 3817 KW KKK Siemens CFR5 G6b 5,000 KWe x 1,500 rpm 50 Hz 6,300 V for sale in operational condition Turbine Manufacturer KKK Siemens Model CFR5 G6b Steam pressure fresh [bar] 64 Dampfdr. Ed. [bar] 8.5 Generator Manufacturer INDAR Model BZK-710-S/A-4 P Generator [KW] 5.000 Turn around. [per min] 1,500 Frequency [per sec] 50 Voltage [V] 6,300 Current [A] 458 Scope of delivery: The system has been completely dismantled and is complete including the control system. Technical documentation: available Spare parts / tools: not available The plant was dismantled in working order. Last major overhaul: unknown Sales are "as is" or after prior inspection by a company engaged by us on request

2-doors steam sterilizer for the sterilisation of solid, porous and liquid goods. Chamber size approx. 960 x 1030 x 1100 mm (depth). Chamber volume: 1250 liter. PLC SIEMENS, type S7-300 (MP 377), electric steam generator (type ELD-H905).

This combi steamer from the premium manufacturer Rational is a CombiMaster® Plus with 20 x 1/1 Gastronorm inserts in electric design. Please note that this device is in extremely well-maintained condition. The device has undergone an extensive inspection in our in-house workshop and is fully functional. The RRP. for this combi steamer is € 18,920 net. The price quoted is net plus 19% VAT. Service: We would be happy to put you in touch with a certified Rational customer service throughout Germany. Are you looking for a specific type of Rational device? Ask us, we have access to an extensive range of used and new goods. We will be happy to advise you on all types of devices, whether SCC, CM, CMP, VCC, iVario, iCombi Classic and Pro. This device is the optimal choice if you are looking for a classic combi steamer that you want to operate manually. Our used equipment s ...

This combi steamer from the manufacturer Rational is a CombiMaster® Plus with 20 x 2/1 Gastronorm inserts in electric version from 2012. The combi steamer is the XXL version and offers space for 20x 2/1GN or 40x 1/1GN The device has been tested in our in-house workshop and is fully functional. The RRP. for this combi steamer is € 27,110 net. Service: We would be happy to put you in touch with a certified Rational customer service throughout Germany Are you looking for a specific type of Rational device? Ask us, we have access to an extensive range of used and new goods. We will be happy to advise you on all types of devices, whether SCC, CM, CMP, VCC, iVario, iCombi Classic and Pro. This device is the optimal choice if you are looking for a classic combi steamer that you want to operate manually. Our used equipment service for you: •6 months warranty on all electri ...

Graham Z3271 Steam tunnel Stainless frame and stainless mesh belt 3000mm x 380mm belt Variable speed With Hydromatik steam generator

This is a CM (P) 61 combi steamer from the premium manufacturer Rational, in electric version, built in 2019. The device has undergone an extensive inspection in our in-house workshop and is fully functional. The undercarriage shown is not part of the offer, but can be purchased for an additional charge. The price quoted is net plus 19% VAT. Service: We would be happy to put you in touch with a certified Rational customer service throughout Germany. Are you looking for a specific type of Rational device? Ask us, we have access to an extensive range of used and new goods. We will be happy to advise you on all types of devices, whether SCC, CM, CMP, VCC, iVario, iCombi Classic and Pro. This device is the optimal choice if you are looking for a classic combi steamer that you want to operate manually. Our used equipment service for you: •6-month warranty on electrica ...

This combi steamer from the manufacturer Rational is a CombiMaster® Plus with 10 x 1/1 Gastronorm inserts in gas version, built in 2012. The device is tested, overhauled and fully functional in our in-house workshop. The RRP. for the device is € 11,950 net The price quoted is net plus 19% VAT. This device is the optimal choice if you are looking for a classic combi steamer that you want to operate manually. Service: We would be happy to put you in touch with a certified Rational customer service throughout Germany. Our used equipment service for you: • 6 months warranty on all electrical parts • High-quality branded appliances at fair prices • Professional Overhaul / Inspection & Professional Cleaning • Tested & fully functional - or money back • Shipping or pick-up can be flexibly selected • Expert advice - before and after the purchase • Provision ...

This combi steamer from the manufacturer Rational is a CombiMaster® Plus with 20 x 2/1 Gastronorm inserts in electric design. The combi steamer is the XXL version and offers space for 20x 2/1GN or 40x 1/1GN The device has been tested in our in-house workshop and is fully functional. Availability from week 8 The RRP. for this combi steamer is € 27,110 net. The price quoted is net plus 19% VAT. Service: We would be happy to put you in touch with a certified Rational customer service throughout Germany Are you looking for a specific type of Rational device? Ask us, we have access to an extensive range of used and new goods. We will be happy to advise you on all types of devices, whether SCC, CM, CMP, VCC, iVario, iCombi Classic and Pro. This device is the optimal choice if you are looking for a classic combi steamer that you want to operate manually. Our used equipment se ...

The iCombi Pro is the latest combi steamer from RATIONAL. The iCombi Pro 20-1/1 Electric model with 20 shelves GN 1/1 New is easy to use, even for unskilled personnel, as you can achieve outstanding food quality without the need for supervision. The super-fast intermediate and self-cleaning keep your device squeaky clean. It is a young used combi steamer from 01/2023. The RRP is € 25,520 net Availability: available directly from stock in week 09/2024 The indicated price is gross incl. 19% VAT. Service: We would be happy to provide you with a certified Rational customer service from master craftsmen, within a radius of approx. 100 kilometres from our location (postal code: 35418) Are you looking for a specific type of Rational device? Ask us, we have access to an extensive range of used and new goods. We will be happy to advise you on all types of devices, whether S ...

The iCombi Pro is the latest combi steamer from RATIONAL. The iCombi Pro 10-1/1 Electric model with 10 shelves GN 1/1 is easy to use, even for unskilled personnel, as you can achieve outstanding food quality without the need for supervision. The device has been tested in our in-house specialist workshop and is fully functional. The undercarriage shown is not part of the offer, but can be purchased for an additional charge. The RRP. amounts to 15.090 € net The price quoted is net plus 19% VAT. Service: We would be happy to put you in touch with a certified Rational customer service throughout Germany. Our equipment service for you: •6 months warranty on all electrical parts • High-quality branded appliances at fair prices • Professional and competent advice - before and after the purchase •Free shipping within Germany (excl. islands/mountain stations) • Pr ...

in stainless steel sliders, t-pieces, flanges, etc. Price piece: from EUR 80,00 Pipes available approx. 800m Price /m: from 40,00 by DN 50 - DN 120 various steam control valves Price piece: from EUR 180,00

Wolf cooking kettle with mixing work steam-heated approx. 800 to 900 litres of volume outlet DN 100 at the side
