Flat slider for drilling rig for mounting in the drilling spindle Tool holder SK50
Key data: 50 mm, 2000 1/min
Solid bench boring mill of the brand Stanko-Import, model 2H125 Stanko import Type: 2H125 Year of construction approx. 1975 massive rod drill with MK4 mount in good condition. Dimensions: L860 x W850 x H2400 Weight approx.: 1050 kg Motor 2,2Kw 380V Drilling depth gauge Automatic threading (RE-LI)up to M24 Drehz. 45 -2000 in 12 stages Feed 0.1-1.6 / Umdr.in 9 levels Projection 200mm Adjustment ranges: quill stroke 280mm Drill head 170mm Table 270mm, 400x400 The machine can be viewed at any time. On-site loading can be easily carried out with a forklift. Transport possible throughout Germany via freight forwarder.
Single column - eccentric press, STANKO, K 1430 A - 100t BJ. 1985 Tech. Condition very good, - pressure: 100 t -Projection: 320 mm -Stroke: 10-130 mm -Mounting height: 400 mm -Table size: 850 x 560 mm x 100 mm -Tappet adjustment: 100 mm -Stroke: 50-53 / per min. -Machine weight: 8800 kg -Dimensions (W x D x H): 1.60 x 1.85 x 2.9 m Camshaft gear ROSS/Herion Herion valve Auxiliary brake DESCH Lutex ZB 200 Two hand release -transverse eccentric shaft and pneumatically actuated clutch / brake Komi nation -suitable for inlays in two-hand operation -secure setting -Single stroke, continuous stroke MOT testing in 04/2016
Max. diameter of initial blank: 30 mm Blank length: -Min.: 120 mm -Max.: 300 mm Max. diameter of upset flange: 60 mm Upset slide nominal force: 2500 kN Max. force on clamping slide with dies closed: 2500 kN Stroke: -Movable die: 100 mm -Upset slide (full): 220 mm -Die closing: 140 mm Slide strokes per minute: 45 Machine overall dimensions: -Length: 6050 mm -Width: 4600 mm -Height: 2260 mm Machine weight: 24680 kg
STANKOIMPORT 5822M thread grinding machine was manufactured in the USSR. The machine is used for the process of grinding threads to give them the correct dimensions and roughness. During this process, a grinding wheel with a diameter of 400 mm is used to remove a small allowance from the workpiece, forming the thread shape on it. The grinding machine processes threads with a maximum diameter of 200 mm, a length of 500 mm and a weight of up to 30 kg. Depending on the choiceed disc, the diameter of the workpiece can be from 3 to 150 mm (grinding with a single-coil disc) or from 10 to 120 mm (grinding with a multi-coil disc). The total weight of the grinding machine is approximately 5 tons. Technical data of the STANKOIMPORT 5822M thread grinding machine - maximum workpiece diameter: 200 mm - diameter of the workpiece grinded with single-coil disc: 3-150 mm - diameter of the workpi ...
grinding diameter: 610 mm grinding length: 3000 mm centre height: mm total power requirement: 30 kW weight of the machine ca.: t dimensions of the machine ca.: m Stocknumber 1310015 Type of machine Cylindric grinder Make STANKO Type 3M193/149 Build in 1988 Max. grinding diameter 610 Max. grinding length 3000 Grinding wheel diameter 700 Grinding wheel widht 75 Total Power (KW) 30 Additional information Incl. 2 staedys The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Gear hobbing machine 53A50H, STANKO, with change gears
Sell a well-preserved triple honing machine from Stanko. The machine was in use until it was dismantled. The dimensions of the machine are LXWXH 800mm x 1100mm x 1650mm. The weight is 800kg. The dimensions of the control cabinet are LxWxH 350mm x 950mm x 1550mm. The weight is approx. 150kg. If you have any questions, just get in touch. The machine can be viewed by prior appointment. Shipping, on 2 pallets, is no problem. Please inquire about shipping costs with zip code. Furthermore, the machine can be delivered and unloaded in the immediate vicinity with its own crane truck and against assumption of costs. On-site loading is no problem and free of charge. The sale is without warranty and guarantee. The return is excluded. All information without guarantee.
Electronic Components Drilling Rig StankoImport Stanko-Import 2A622/1600 Electronic components from a Stanko Import drilling rig How 3-pulse thyristor amplifier Bosch Siemens Sikostart Bosch PC200 ZE with Bosch Eprom Bosch PC200 E24V Input Bosch PC200 AR/2A Output Bosch PC200 NT5V Gvvrsw Murrelektronik Type NLS 100-220/24 Uprim 110/220 Upc 24V= Mat.Nr. 031447-102401 Mat.Nr. 031447-102303
Spare parts for table drilling rig SVO / Stankoimport / Gertner, Fuhrmeister & CO Such as. complete drilling spindle SK50 (Please note the attached pdf-file with a drawing of the spindle) Ball roller spindles from the three axes Electric motors, feed motor 3x, main spindle motor complete control Siemens or control cabinet Control panel with digital device Glass mass Removable flat disc diameter 360mm Radial movement of the support of the flat disc 100mm Transformer / Transformer Angular drill head Sub-apparatus Spindle diameter 110 mm Tool holder ISO 50 Technical data of the original machine Travel laengs approx. 1,000 mm Cross-travel approx. 1,600 mm Vertical travel 1,000mm Laeng movement of the extendable spindle 710mm Speed range 10-1.250 rpm Main engine 11kw Speeds 10 - 1,250 rpm in 22 gear stages Extensive machine documentation including user manual ...
Spare parts for Tischbohrwerk VO / Stankoimport / Gertner, Fuhrmeister & CO E.g. complete spindle SK50 Ball screw spindles from the three axes Electric motors, 3 x feed motor, spindle motor complete control Siemens or control cabinet Control Panel with digital device Glass scales Detachable faceplate diameter 360 mm Radial movement of the faceplate-support 100 mm Converter / transformer Angle drilling head Dividing head Spindle diameter ø 110 mm tool holder ISO 50 Technical data of the original machine Travel along approx. 1.000 mm cross travel approx. 1.600 mm of vertical stroke 1,000 mm Longitudinal movement of retractable spindle 710 mm Speed range 10-1,250 RPM Main engine 11kw Speeds 10-1,250 RPM in 22 gear stages Extensive documentation of machine including operating instructions, description, electrical documentation, etc. More photos on request
Capacity, ton 800 Movable die stroke, mm 180 Max. upsetting ram stroke, mm 380 Upsetting ram workstore, mm 250 Upsetting ram return stroke with closed dies, mm 130 Distance bentween upsetting ram and dies stroke forward, mm 140 Number of ram strokes per minute 35 Die dimensions, mm 590 x 220 x 660 Electric motor power, kW 40 Dimensions: mm 6300 x 3900 x 2850 Weight: kg app. 80800
Max. diameter of initial blank: 30 mm Blank length: -Min.: 120 mm -Max.: 300 mm Max. diameter of upset flange: 60 mm Upset slide nominal force: 2500 kN Max. force on clamping slide with dies closed: 2500 kN Stroke: -Movable die: 100 mm -Upset slide (full): 220 mm -Die closing: 140 mm Slide strokes per minute: 45 Machine overall dimensions: -Length: 6050 mm -Width: 4600 mm -Height: 2260 mm Machine weight: 24680 kg
- The largest diameter of the workpiece, mm 90 - The maximum diameter of the planted flange, mm 120 - Rated force of the landing slide, kN 6300 - The force perceived by the clamping slide with closed dies, kN 6300 - stroke of the landing slider, mm 350 - The stroke of the landing slide after closing the dies, mm 230 - The frequency of continuous idle slider per minute, not less than 42 - Power of the electric motor 45 - Dimensions, mm length 4835 width 3450 height 2880
Semi-automatic machine Workpiece diameter 40-400 mm Max. workpiece length 2000 mm Spindle rotation frequency 16-1460 rpm Workpiece spindle speed 3-180 rpm Max. diameter of grinding: -In steady rest 120 mm -Without steady rest 360 mm Max. grinding length 1800 mm Height of centers above the table- 210 mm Max. work-piece weight- 1000 kg Grinding wheel dia min/max 500-750 mm Max. length of table travel- 1800 mm Spindle taper- Morze 6 Motor power: 13 kW Periodical feed of grinding headstock: -Max.: 0,030±0,0025 mm -Min.: 0,0025±0,0006 mm Max. axial travel of grinding headstock spindle: ±2,5 mm
Gear slotting 5140, Russia production, with change gears
faceplate diameter: 1130 mm swing diameter: 1500 mm turning height: 1100 mm faceplate diameter: mm swing diameter: mm total power requirement: 30 kW weight of the machine ca.: t dimensions of the machine ca.: m Brand: STANKO TYPEL 1512 Build in: 1977 with pneumatick 3-jaw stuck 1130 mm max. turning diameter 1500 mm max. turning height 1100 mm Motor 30 KW The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Dreh-Øüber Bett: 400 mm Dreh-Øüber Support: 220 mm turning length: 1000 mm spindle turning speed range: 12,5 - 2000 U/min spindle taper: Bajonett 55022 spindle bore: 47 mm feeds - longitudinal: 0,07 - 4,16 mm/U feeds - cross: 0.035 - 2,08 mm/U thread - mm pitch: 0,87 - 192 mm thread - inch: 2 - 24 Gang/ inch. rapid travel - longitudinal/face: 3,4 / 1,7 m/min spindle drive: 11 kW power capacity: 13 kW weight of the machine ca.: 2,8 t dimensions of the machine ca.: 2,8 x 1,2 x 1,5 m • 3-jaw chuck Ø 250 mm, 4-jaw chuck 200 mm, • 2-axis- digital display, ANILAM WIZARD LATHE - refinished in 1992, The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Nominal weight of the falling parts: 750 kg Max. number of blows per minute: 105 Kinetic energy: 1900 kg Distance from an axis of the slider up to bed: 750 mm Cylinder diameter: 600 mm Diameter of the plunger: 630 mm Max. headstock travel: 835 mm Dimensions: -Left-to-right: 3940 mm -Front-to-back: 1430 mm Height above floor level: 3260 mm Weight: -With an anvil-block: 25600 kg -Without an anvil-block: 16600 kg
Spline shaft milling machine STANKO 5350 without change gears.
model is 5B 150P - table diameter is 800mm - max stroke is 160mm - control is Omron NS12 - logic equipment and sensors: Omron CS1 series CPU control cards Electric drawings and safety and instructions for use are updated at 2004 same as the modernisation
Various fixed steady rests for lathes up to center height approx. 600 mm

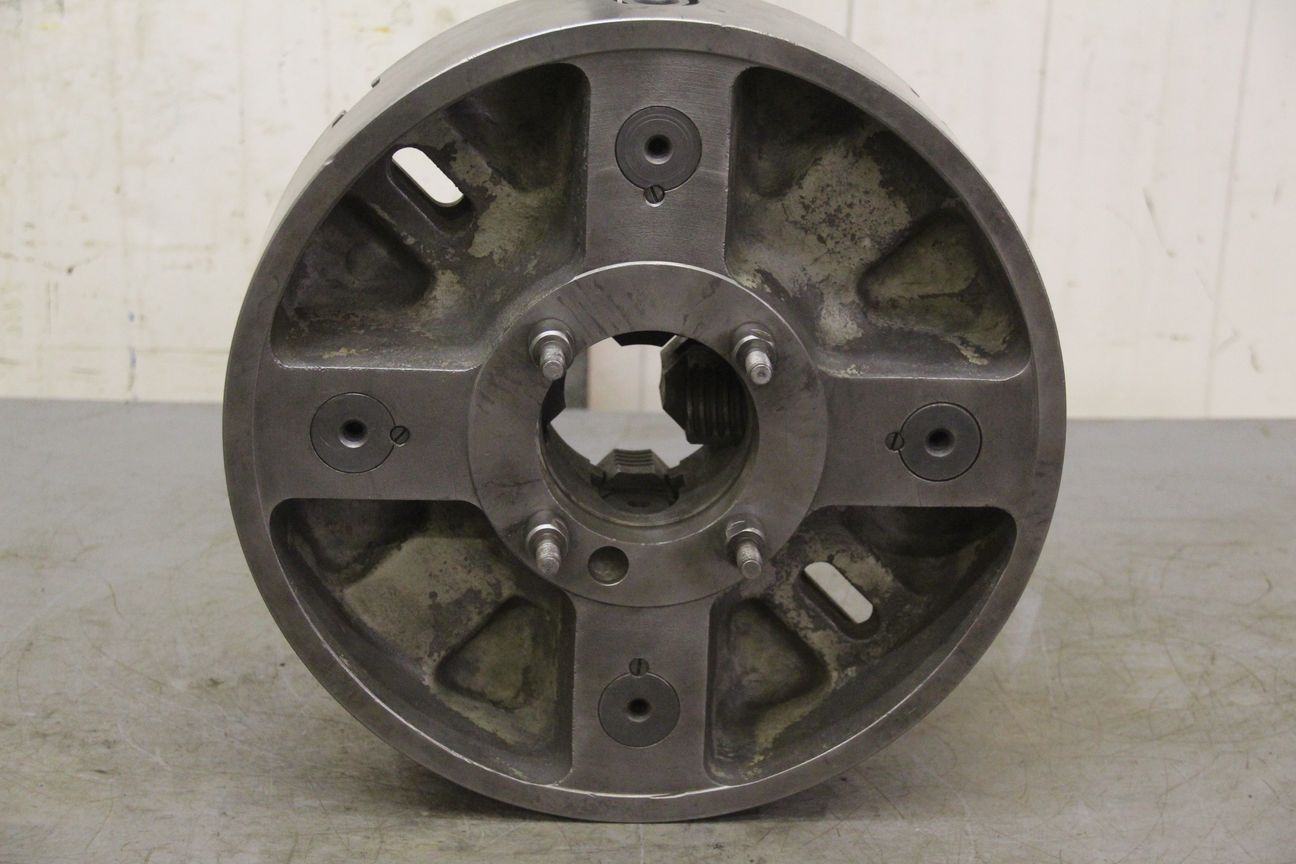

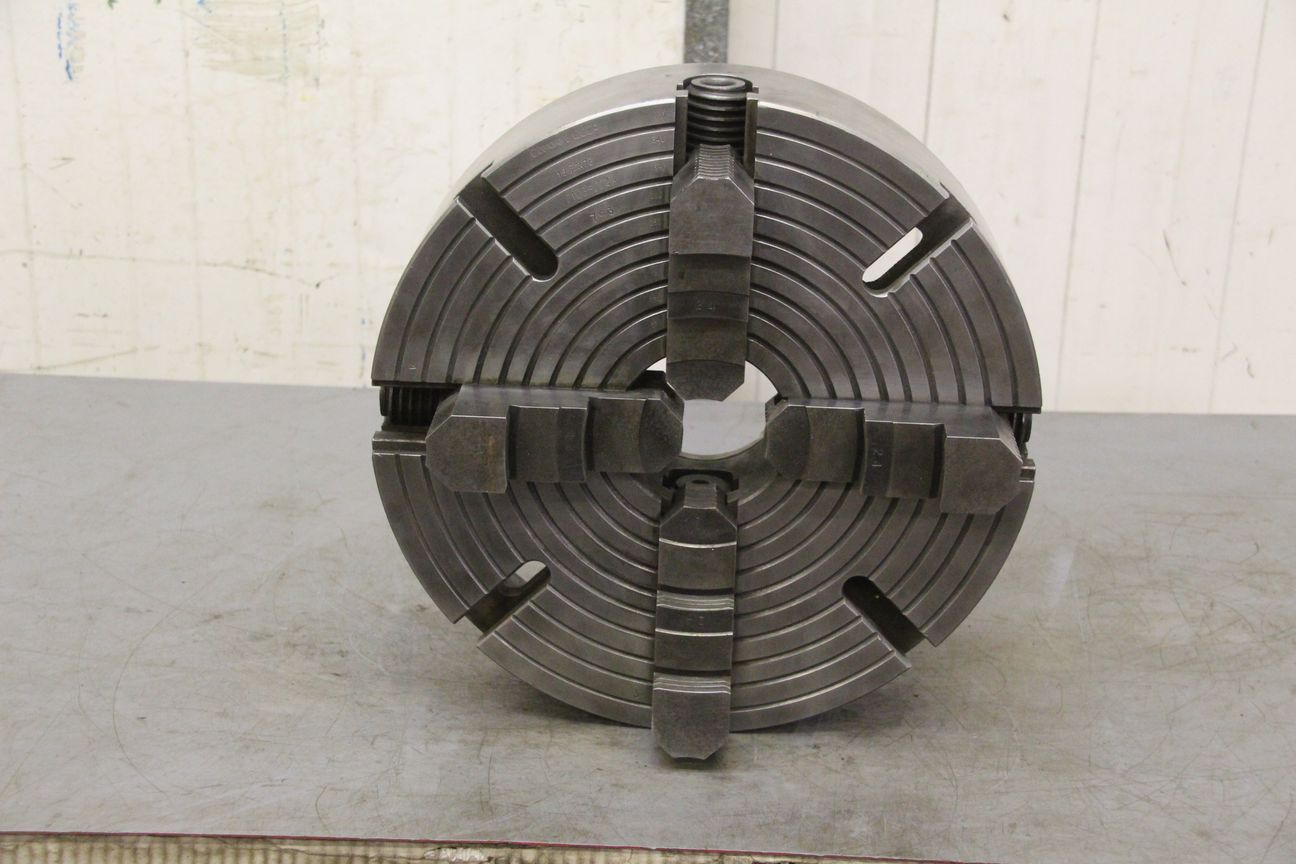

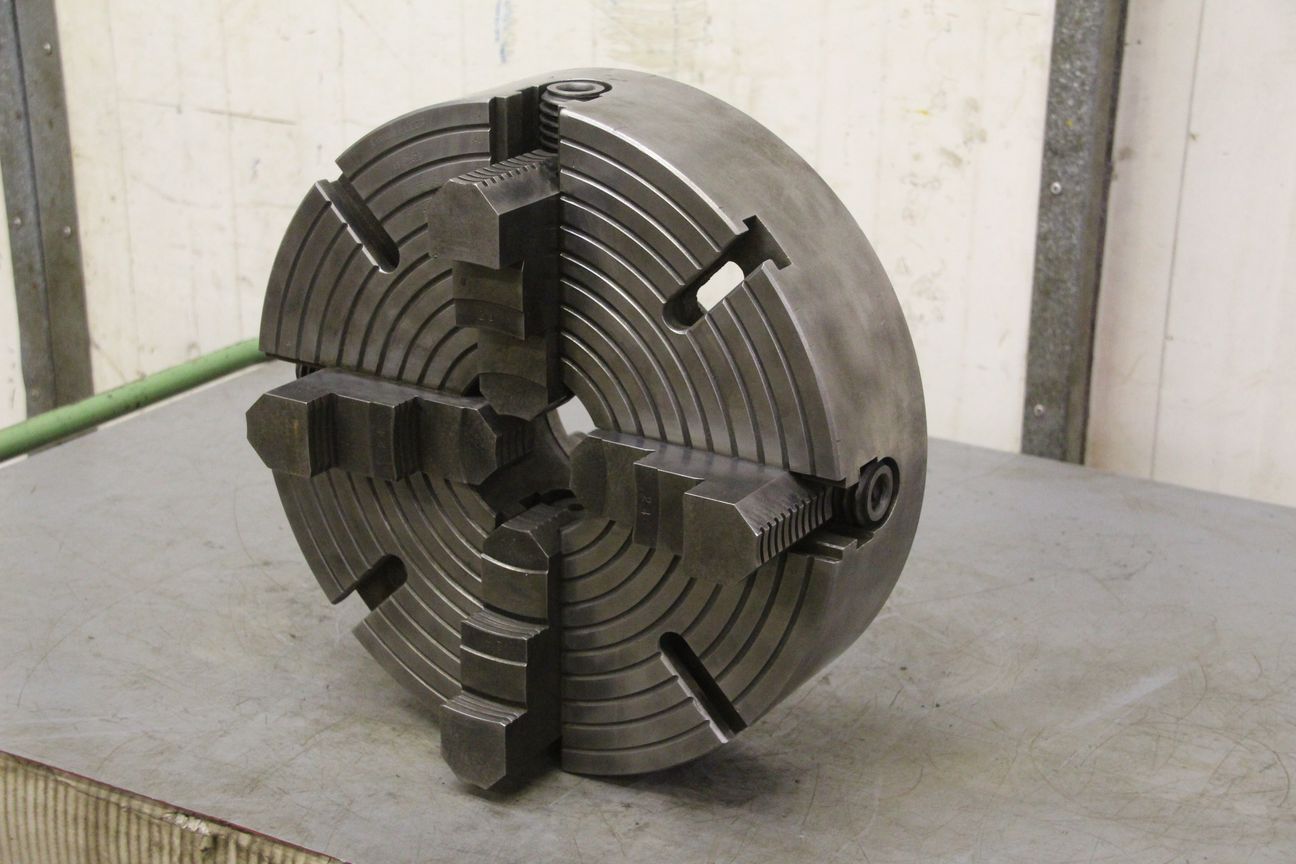

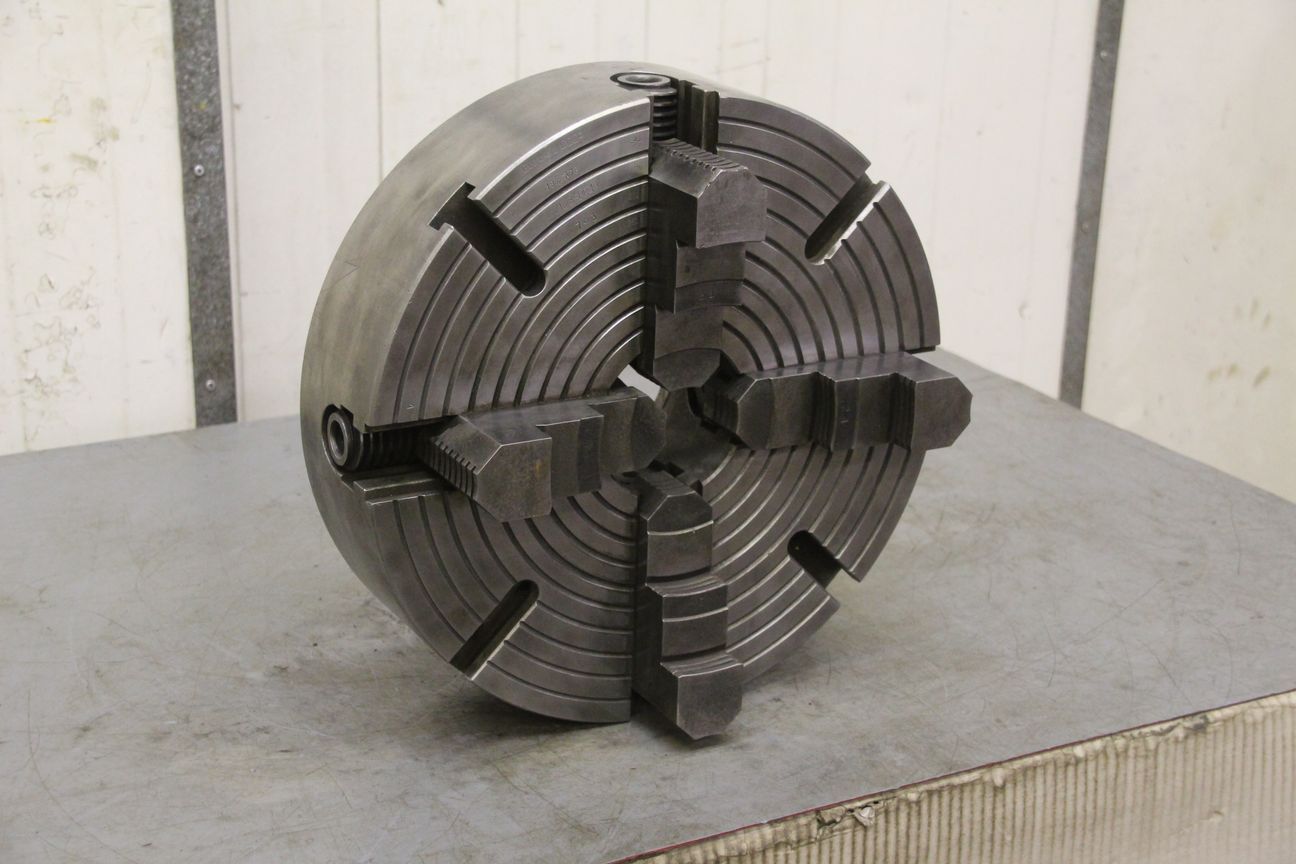

Face plate, face plate chuck, four-jaw chuck -Chuck size: Ø 400 mm -Taper holder short taper: 6 -Weight: 66.5 kg

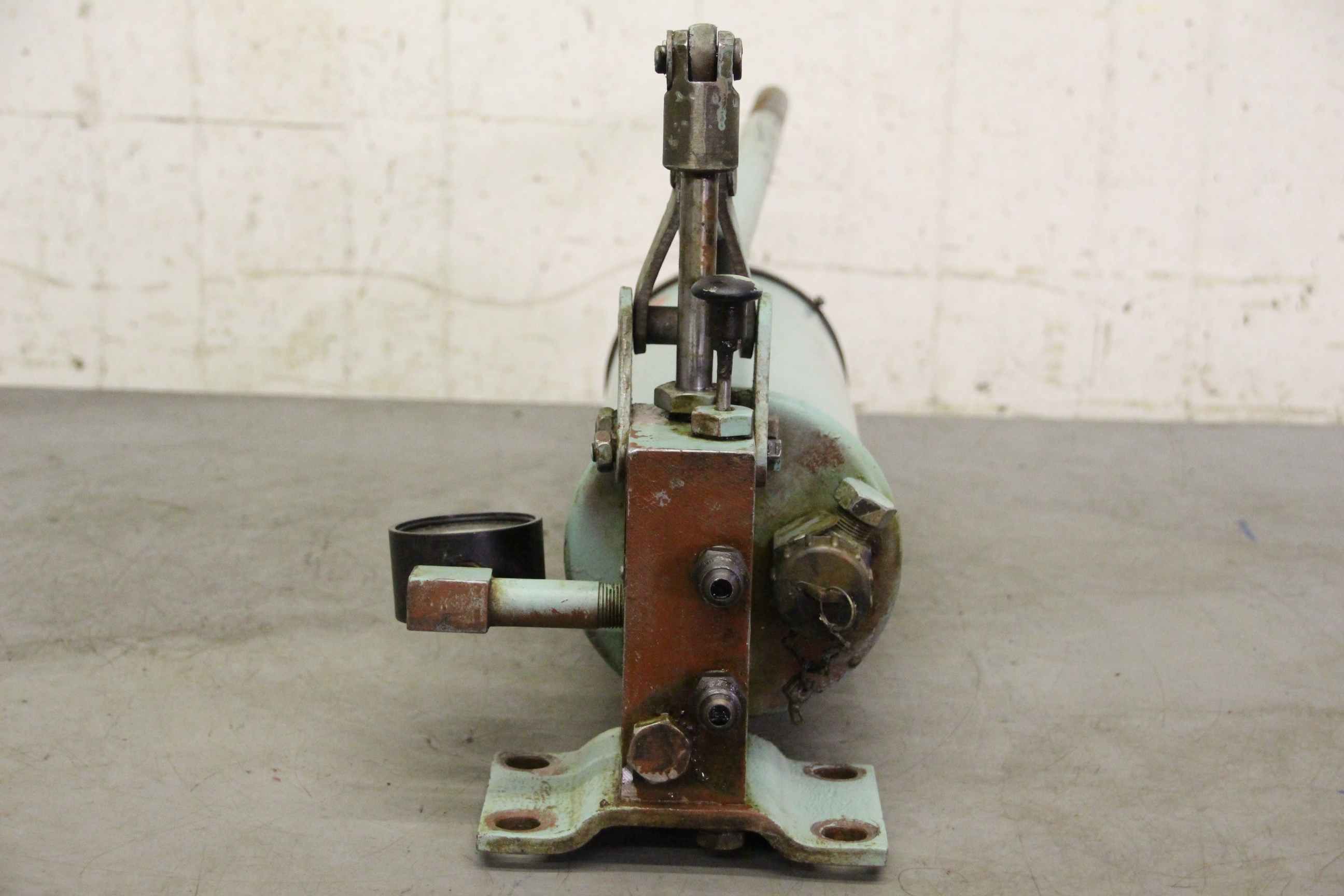

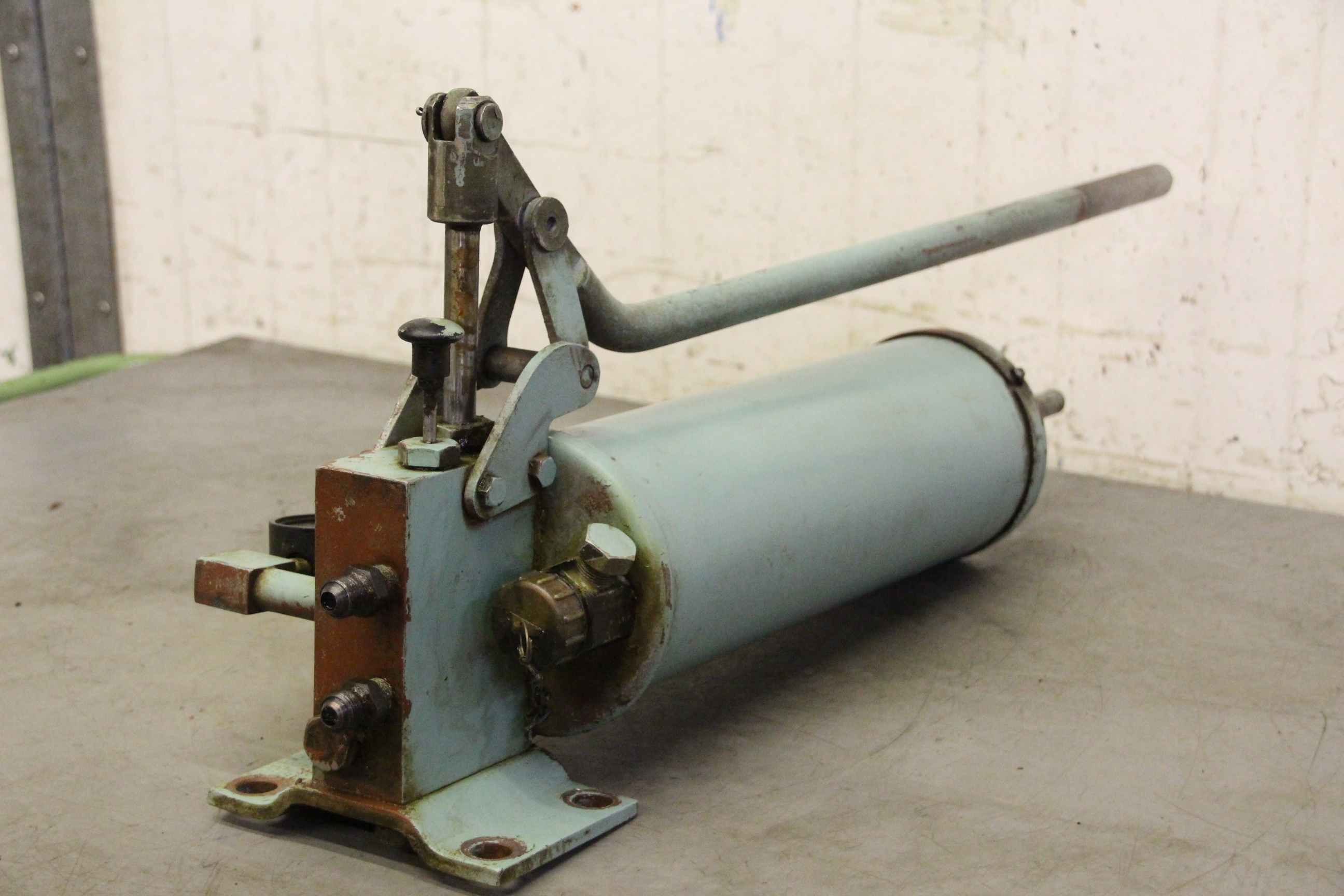

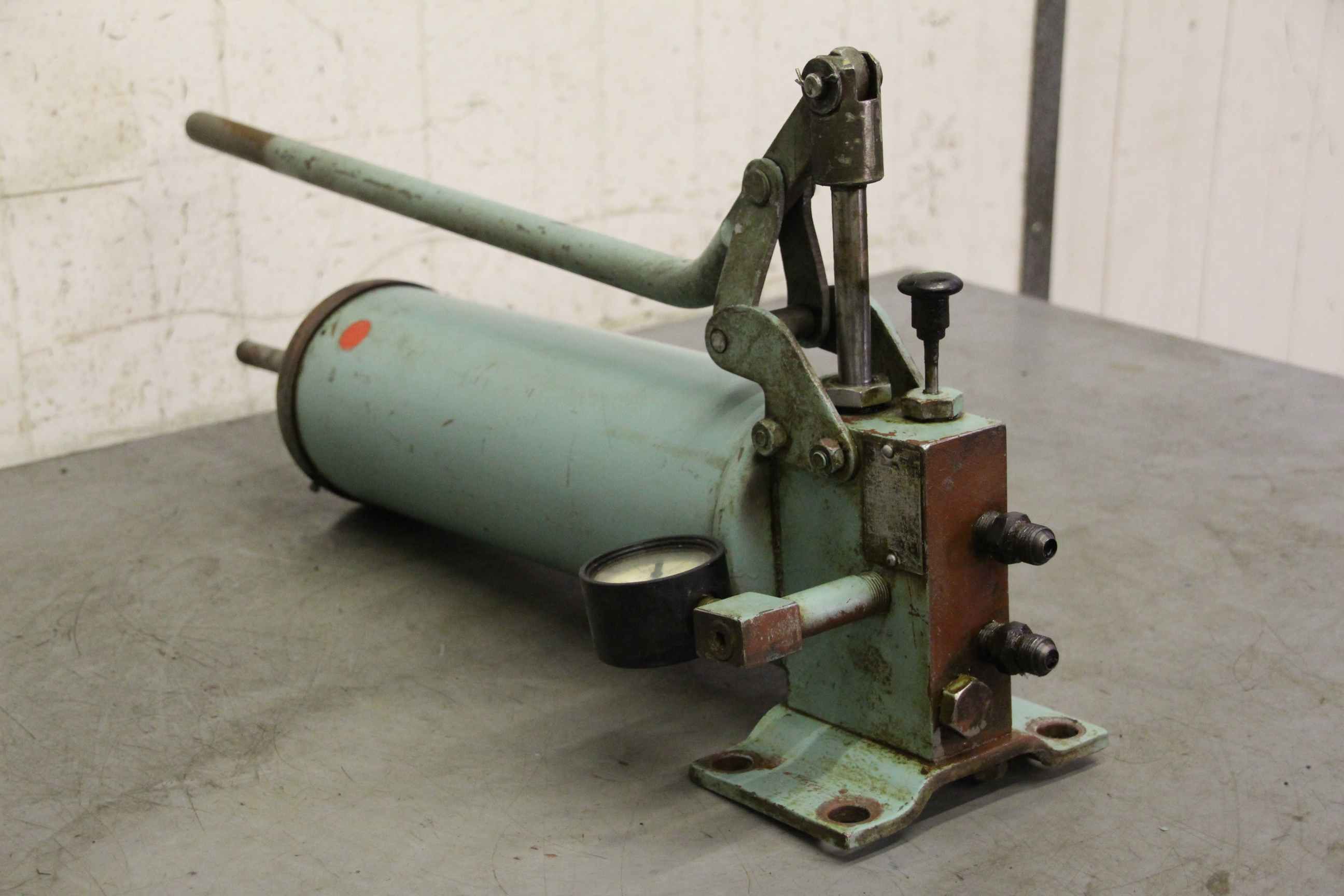

Central lubrication, oil circulation system, single-line pump, central lubrication unit, grease lubrication pump -Grease lubrication pump: hand-operated, made from Stankoimport 3218 guillotine shears -Dimensions: 725/200 / H310 mm -Weight: 11 kg
STANKO 2N636GF1 Horizontal boring mill MITSUBISHI controler, new 2013 Spindle 125 mm Table 1600 x 1800 mm Max. horizontal (axial) movement of the spindle (Z') - 1000 mm Max. vertical movement of the headstock (Y)- 1400 mm Max. longitudinal movement of table (Z, W) - 1600 mm Max. lateral movement of table (X) - 1400 mm The largest mass of the processed product - 8 tons Spindle speed - 8 ... 1250 rpm Spindle Drive Electric Motor - 20 kW The weight of the machine is full - 34.6 tons

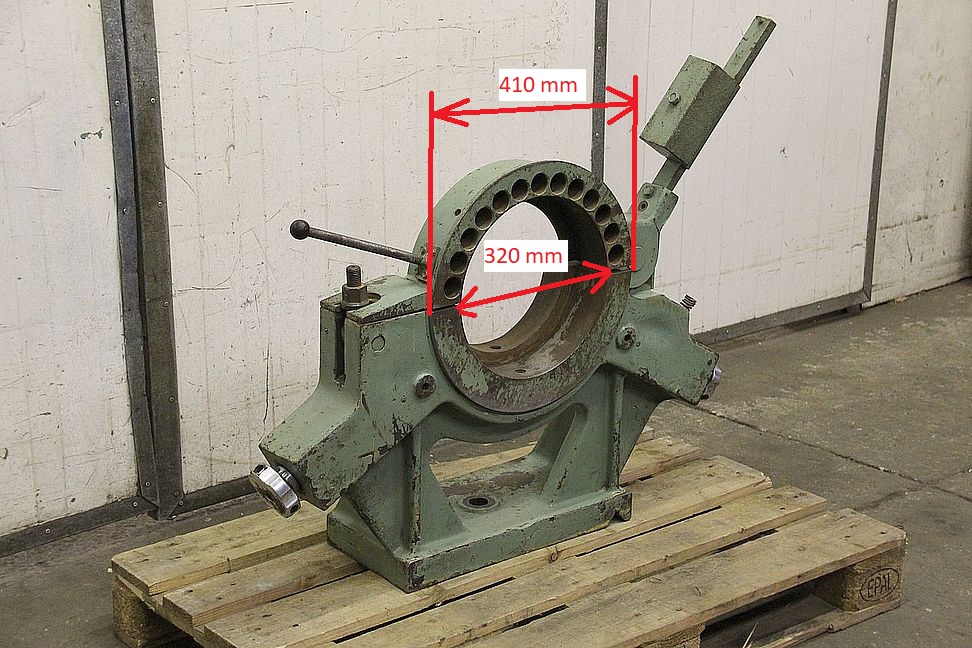

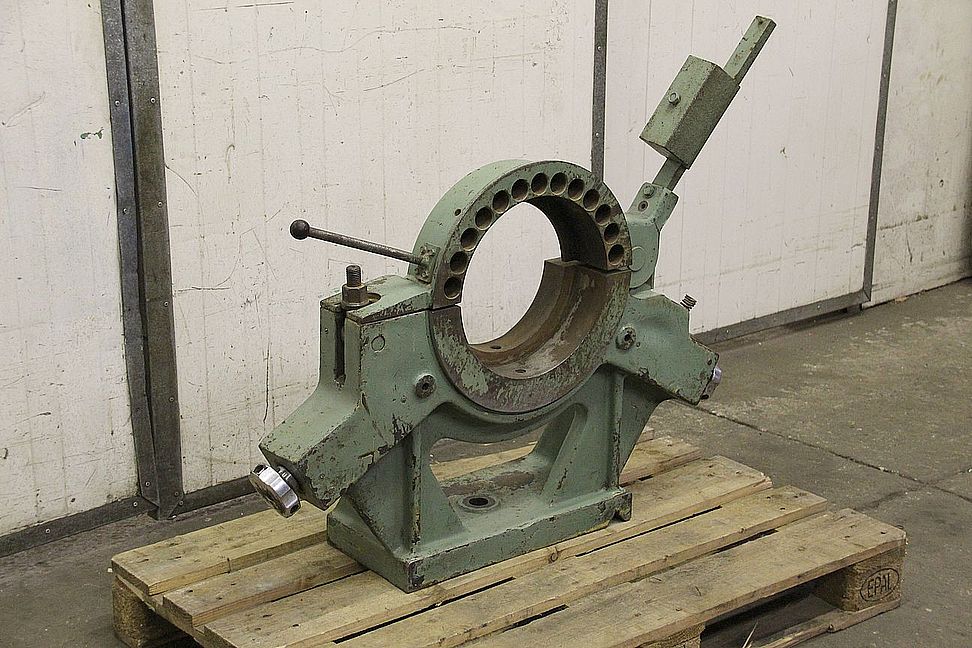

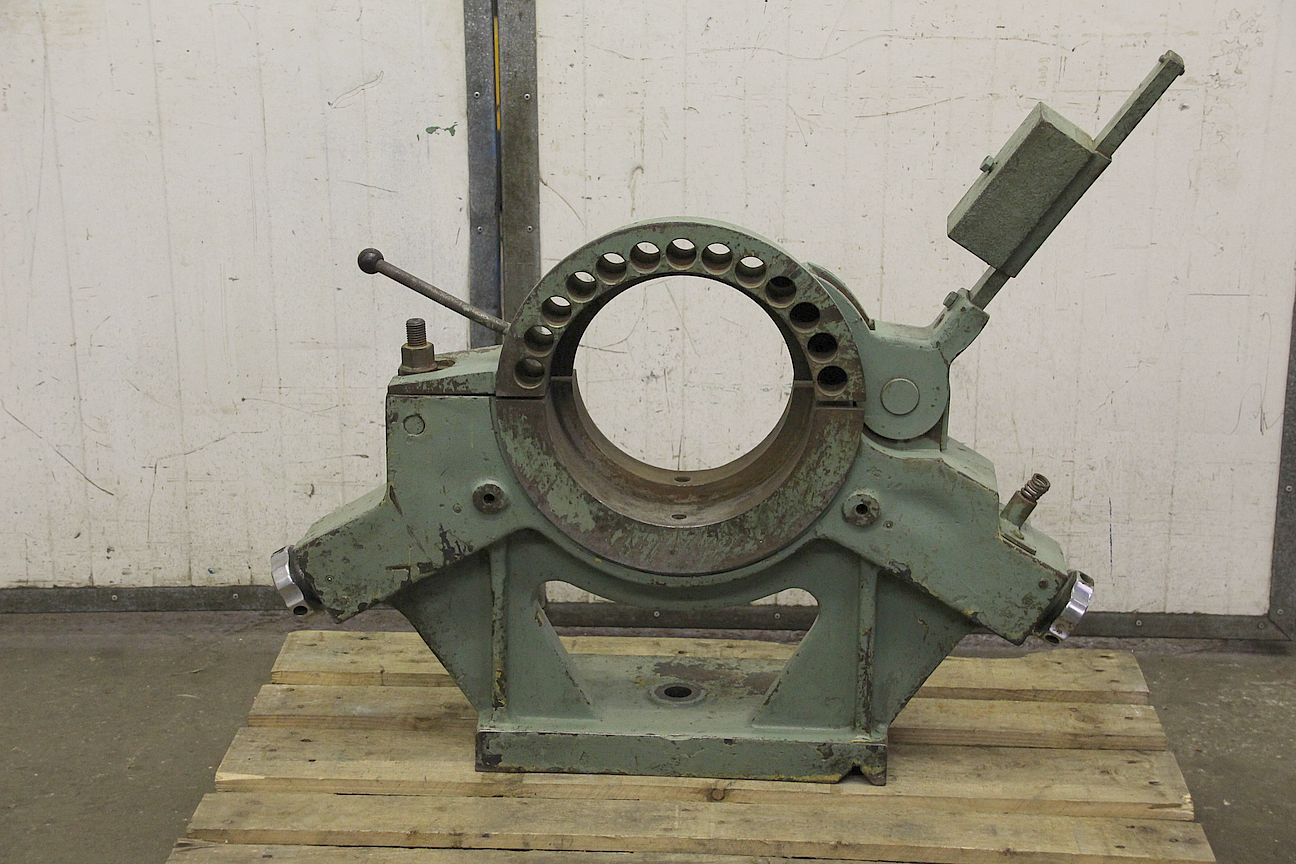

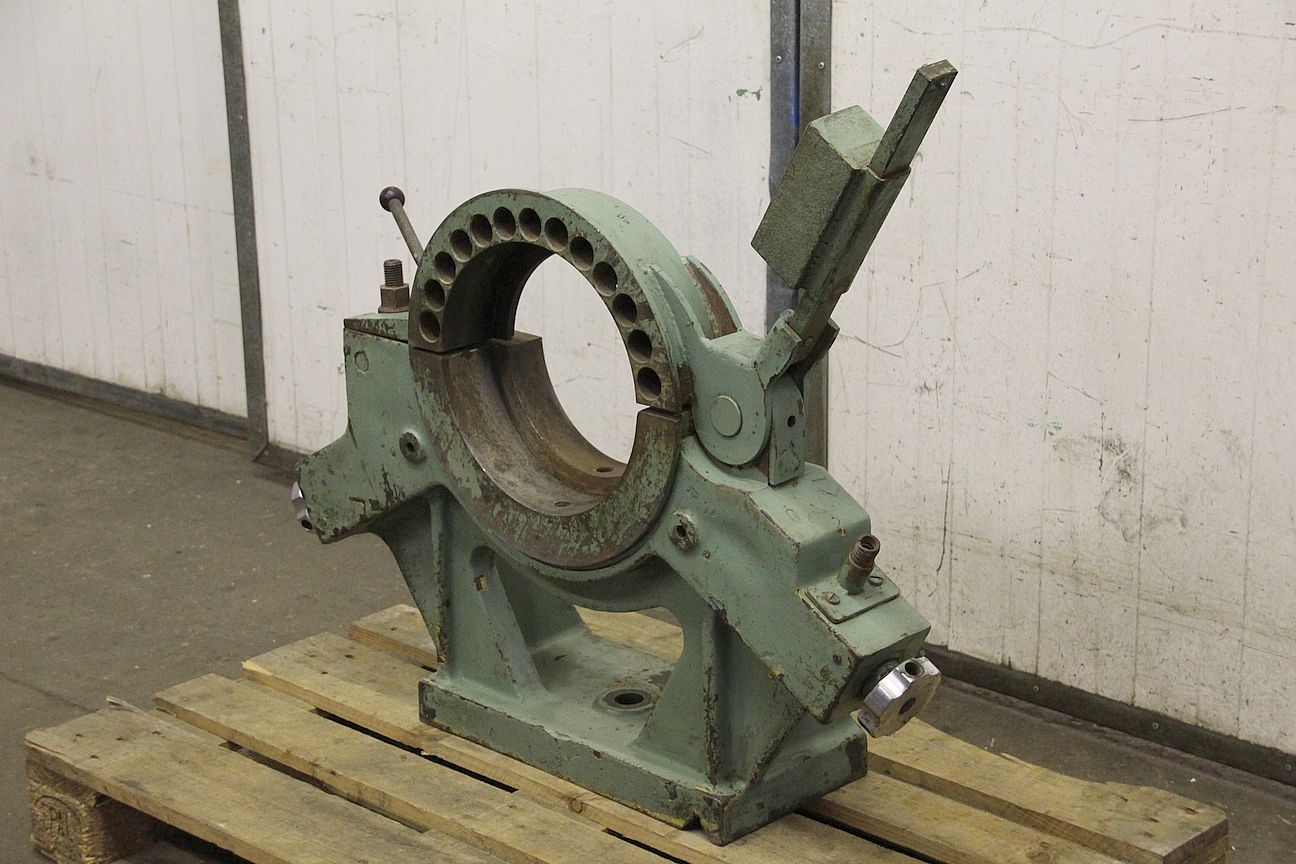

Bezel, steady rest, lynette -max passage. Ø: 320mm (410mm) -Center height: 500 mm -Drawing: with the photos -Dimensions: 1000/270/H900 mm -Weight: 216 kg
Clamping table, clamping angle, T-slot table, rotary table, milling machine table -Table surface: 500 x 200 mm -4x T slots: 14 mm -Clamping angle: rotatable, swiveling, tiltable -Foot recording: mm -Dimensions: 500/300/H210 mm -Weight: 50.5 kg
Max. diameter of initial blank: 30 mm Blank length: -Min.: 120 mm -Max.: 300 mm Max. diameter of upset flange: 60 mm Upset slide nominal force: 2500 kN Max. force on clamping slide with dies closed: 2500 kN Stroke: -Movable die: 100 mm -Upset slide (full): 220 mm -Die closing: 140 mm Slide strokes per minute: 45 Machine overall dimensions: -Length: 6050 mm -Width: 4600 mm -Height: 2260 mm Machine weight: 24680 kg
Electric motor, three-phase motor -Power: 0.55 kW -Speed: 1370 rpm -Shaft: Ø 19 mm -Construction: B3 -Protection class: IP 44 -Dimensions: 290/150/H190 mm -Weight: 10.3 kg
