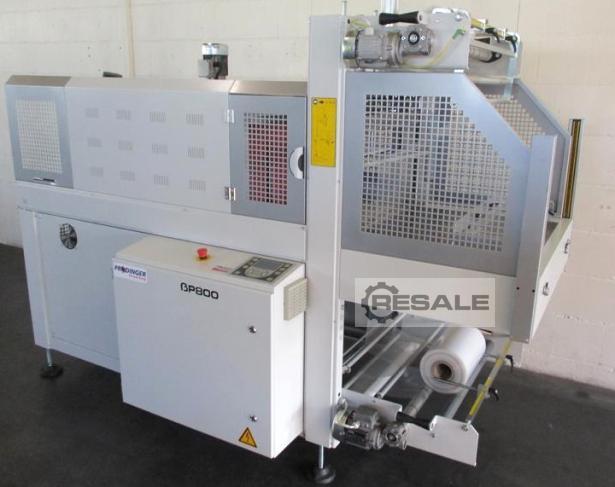

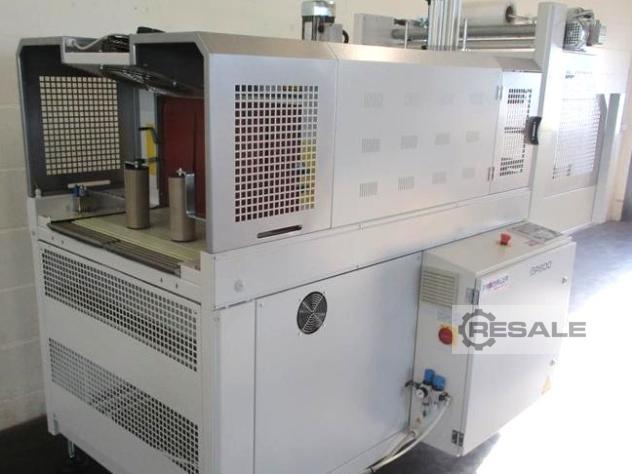

Automatic Bundle Packing Machine
Professional automatic packaging line from a renowned European
manufacturer. Suitable for packaging food, technical articles,
printing and paper products, household goods and toys as well as
textiles, for example. The machine can be used in various industries,
such as beverages, food, chemicals, wine and spirits, cosmetics,
detergents, wood, textiles and graphics. It can pack various products
such as glass and PET bottles, cans, cartons, trays, jars, cartons of
various sizes.
The film sealing machine has several monitoring sensors, light
barriers or photocells to control the automatic process. User-friendly

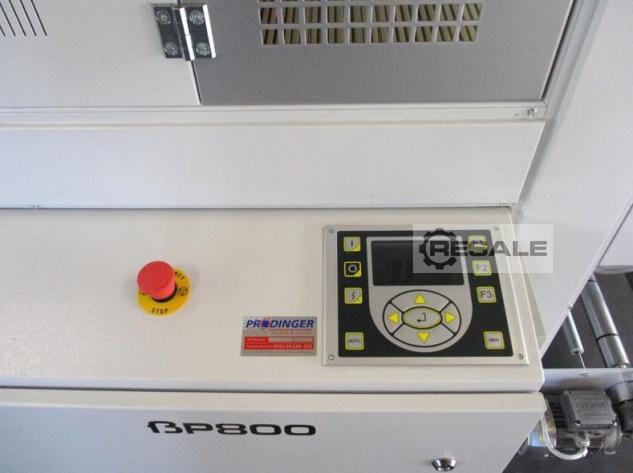

LCD control display with extensive functions and setting options such
as automatic and set-up mode, 20 memory slots for different pack
formats, piece counters, packaging performance calculation and
communication functions.
Technical data:
-Maximum product dimensions: width up to 760 mm x height up to 380
mm
-Suitable for LD-PE film from approx. 20 to 100μm thickness
-Maximum film roll width: 750 mm flat film
-Packaging capacity up to 10 pieces per minute
-Working height approx. 940 to 1100 mm
-Motorized film unwinding of the bottom and top film
-Transport rods made of heat-resistant fiberglass rods
-The frequency-controlled tunnel belt is adjustable in speed
-Adjustable air flows in the tunnel
-Cooling fan at the outlet of the shrink tunnel
-Rotating rollers for centering the packaged products at the outlet of
the machine
-Low energy consumption
-Connection voltage: 3 x 400 V / 50 Hz / 3 phases
-Machine dimensions approx. L 2.6 x W 1.3 x H 2.1 to 2.2 m
