vert. Internal broaching machine maximum tractive force: 10T Max stroke: 1000 mm Max cutting speed: 10.9 m / min Max reverse speed: 27.5 m / min Clamping surface: 400 x 400 mm Room set: 3 piece
Slotting machine vice, vice for slotting machine -Span width: 110 mm -Jaws: 225 x 45 mm -Dimensions: 270/330/H155 mm -Weight: 20 kg/piece
SH75 max. wheel diameter 750 mm gear width 200 mm max. module 10 min. module 1 min. wheel diameter 30 mm max. number of teeth 300 min. number of teeth 6 tooth helical angle min/max 0 / 60 ° min. ram stroke 0 mm max. ram stroke 225 mm table diameter 500 mm table load 0,8 t no. of strokes 23,5 - 150 Hub/min table hole 90 mm total power requirement 7 kW weight of the machine ca. 3,8 t dimensions of the machine ca. 2,1 x 1,7 x 2,1 m
table diameter:500 mm total power requirement:3 kW weight of the machine ca.:2 t dimensions of the machine ca.:2300 x 1270 x 2200 mm
Planing comb to Maag gear planing machine
Gear slotting 5140, Russia production, with change gears
MAX DIAM 500, MAX MODUL 8 , MAX STROCE 125 , SINUMERIC 840 D
Code 230605 Description Vertical SLOTTER Make CABE Model 150 ST Serial no. Year 19.. Max. stroke 150 mm Table size Ø 250 mm Table longitude 200 mm Table cross 100 mm Table turning 360 degrees Gap 250 mm Distance tablecenter – column : min / max mm Max. height mm Speeds 32 – 50 – 70 – 95 strokes/min Motor 1.5 kW 380 volts Accessories Head swivels left-right 20° Turning table ( with dividing ) Ø 250 mm Machine size L x W x H 1000 x 600 x2000 mm Weight 750 kgs Remarks Machine is in good condition.
max. wheel diameter: 420 mm gear width: 120 mm max. module: 8 min. module: 0,5 control: BWO CNC no. of strokes: 32-800 Hub/min total power requirement: 50 kW weight of the machine ca.: 9 t dimensions of the machine ca.: 5,3 x 3,9 x 3,4 m Machines increase 100 mm intermediate plate automatic Hublageverstellung automatic Hublängeverstellung 5 axis controlled machine BWO last type C, D, X, Z, L axes are CNC The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Key data: 350 mm, 500 mm, 450 mm
CNC-controlled precision vertical slotting machine with four CNC axes and an electronic control of the rotary cutting table with a positioning accuracy of 0.001°. A machine for the efficient production of: - Fitting grooves (also conical grooves) -Splines - Internal and external gears -Racks CNC control with 10" color screen and touch screen software for roughing – finishing – fine finishing (This achieves surfaces of the highest possible grades.) Lifting range of the push carriage can be programmed up to 350 mm Push-slide speeds 0 to 80 strokes/min infinitely variable Push-slide swivel range +/- 20° Largest workpiece height 640 mm Projection 500 mm Round table size 450 mm Bore in the round cutting table Ø 135 mm Maximum table load 1,250 kg Table travels longitudinal and transverse – 340 x 340 mm Power transmission of the X + Y axis by precision ball screw ...
Max. Pitch circle diameter External gearing: 300 mm Max. Pitch circle diameter internal gearing: 300 mm Max. Outer diameter of workpiece (equipment): 450 mm max. module: 6 gear hobbing width -max.: 100 mm Max. Helix angle (with tool Ø 125 mm): +/- 45 ° strokes - infinitely variable: 130 - 1300 Hub/min workpiece weight: 1000 kg Minimum distance table top - tool spindle: -55 / +300 mm Maximum distance table top - tool spindle: 200 mm Maximum distance table top - tool spindle: 350 mm Manual Upright side shift: +/- 25 mm Manual swivelling angle of the tool spindle: +/- 0,5 ° Max. Tool speed: 15 UpM Max. Workpiece speed: 27 UpM Max. Tool diameter: 7 Zoll voltage: 400 V frequency: 50 Hz Max. Line power: 70 A total power requirement: 48 kW weight of the machine ca.: 11 t dimensions of the machine ca.: 4,27 x 3,11 x 2,87 m control: Siemens Sinumerik 840 C table hole: 40 mm taper in main spind ...
max. wheel diameter: 180 mm gear width: 45 mm max. module: 4 min. module: 0,5 stroke length max.: 0 - 52 mm spindle taper: innen MK 4 table diameter: 160 mm table bore diameter: 75 mm no. of strokes: 355 - 630 Hub/min feed range: 0,008 - 0,4 mm/Hub dimensions of the machine ca.: 2,30 x 1,50 x 2,36 m power capacity: 6 kW weight of the machine ca.: 2.500 kg With rack and pinion unit Change gear set Year of construction: Approx. 1981 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 180 mm gear width: 45 mm max. module: 4 min. module: 0,5 stroke length max.: 0 - 52 mm spindle taper: innen MK 4 table diameter: 160 mm table bore diameter: 75 mm no. of strokes: 355 - 630 Hub/min feed range: 0,008 - 0,4 mm/Hub dimensions of the machine ca.: 2,30 x 1,50 x 2,36 m power capacity: 6 kW weight of the machine ca.: 2.500 kg Year of construction: Approx. 1970 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 100 mm gear width: 26 mm max. module: 31 min. module: 0,1 Control: Siemens 840 D SL total power requirement: 45 kW weight of the machine ca.: 7 t dimensions of the machine ca.: 4x3x2,5 m Gleason 100S gear shaping machine for the production of internally and externally toothed cylindrical gears and other cylindrical workpiece circumference regularly occurring profiles and moulds as well as for the production of profiles using the single part process. Technical data: Nominal workpiece diameter 100 mm Largest circumferential diameter 150 mm Machine nominal module approx. 3 mm (Guide value depending on the respective machining task.) Shaping spindle stroke speed range 0 - 3,000 1/min Stroke position adjustment range (manual) 20 mm Largest toothing width 26 mm Smallest pitch height of the hydrostatic inclined guide 400 mm Smallest/largest distance between tool axis - 20/+ ...
Inv. Num. : 8398 Type: OFA 71A Producer: TOS Generated: Parameters: Maximum module: 10 mm Maximum gear diameter: 710 mm Maximum table load: 1000 kg Number of teeth of bevel gear: 8-400 Machine height: 2400 mm Machine length: 3900 mm Machine width: 2600 mm Machine weight: 13500 kg Equipment: Set of interchangeable wheels Conveyor
max. wheel diameter: 500 mm gear width: 125 mm max. module: 8 ram stroke range: 135 mm max.helical angle: 41 ° table diameter: 500 mm no. of teeth: 12 - 300 total power requirement: 7,5 kW weight of the machine ca.: 6 t 2021 completely overhauled and equipped with controls and new motors. suitable for internal & external gear shaping with: - Control unit - chip conveyor - coolant - change gears The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 350 mm gear width: 350 mm max. module: 8 min. module: total power requirement: 7,5 - 22 kW weight of the machine ca.: t dimensions of the machine ca.: m Gear hobber with gear shaping device, 2-cut cycle The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 780 mm gear width: 130 mm max. module: 8 / 10 table diameter: 510 mm table bore diameter: 160 mm number of strokes (double strokes): 30 - 1500 DH/min Control: Siemens Sinumerik 3 distance table - lower edge of ram: 650 mm table-size: 500 mm total power requirement: 36 kVA weight of the machine ca.: 8,5 t dimensions of the machine ca.: 4,9 x 3,65 x 3,8 m The machine is suitable for: - Internal and external gear teeth in small quantities - Internal gear teeth in blind holes (non-through holes) - External gear teeth without run-out, as hobbing would not be possible Examples of components are: Internal gear rings for planetary gears, drive shafts, clutch hubs... - Siemens Sinumerik 3 CNC control - Chip conveyor Machine was only used sporadically The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Key data: 630 mm, 8
A used gear pusher Lorenz S8/630 with interchangeable wheels.
Key data: 630 mm, 8
Max. outer diameter (gear): 630 mm Max. inner diameter (gear): approx. 750 mm Max. tooth width: 180–200 mm Max. module: 8 Shock stroke: up to 220 mm Stroke rate: 47–300 strokes/min Tool holder: MK 4 Drive power: approx. 8 kW Total connected load: approx. 10–12 kW Njbmsww Er Hompw Spjwk Machine weight: approx. 5,500–5,800
max. wheel diameter: 380 mm gear width: 200 mm max. module: 6 min. module: Control: SIEMENS Sinumerik 840D working area: - max. gear diameter: 380 mm max. workpiece diameter: 400/ 600 (800) Außen innen beg max. gear width: 200 mm Center distance between gear head and table center: -50 / 450 mm Travel range of the lifting position: 250 mm Max. module for straight gearing: 6 mm Max. axial travel: 250 mm work table:: - table diameter: 400 mm table hole: 150 mm max. table speed: 30 1/m no. of T-slots: 6 St. Table equipped with hydraulic clamping device: - Multi-interface for pallet loading and zero-point: - clamping system in the working area: Shaping Head and Lift-off Cam:: - Drive power of face milling head: 37 kW Max. stroke rate: 600 DH/min Face milling head axis angle adjustment: +/- 0,5 ° spindle cone: HSK-B100 DIN 69893 taper of shaper cutter: 60 work-spindle diameter: 110 mm Stro ...
gear hobbing diameter - external: 1200 mm gear hobbing diameter - internal: 1200 mm gear hobbing width -max.: 260 mm control: Liebherr PC-NC max. workpiece diameter: 1500 mm table diameter: 900 mm table bore diameter: 320 mm max. table load: 95 kN power capacity: 30 kW coolant pump: 120 l/min Axial distance between thrust spindle - table: 0-820 mm Shaping spindle diameter: 125 mm tool taper: SK 45 DIN weight of the machine ca.: 26 t dimensions of the machine ca.: 8,073 x 6,183 x 4,375 m Strokes: - Stroke length min./max. - 0 mm / 270 mm - Stroke length adjustability - 270 mm - Stroke rate (double strokes) - 10 to 270 DH/min Equipment/accessories: - Chip conveyor - Cutting wheel holder SK 45 DIN - Cooler - Technical documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 420 mm gear width: 120 mm max. module: 8 min. module: 0,5 control: BWO 783 no. of strokes: 32 - 800 Hub/min stroke: 0-137 mm table diameter: 400 mm table bore diameter: 125 mm total power requirement: 50 kW weight of the machine ca.: 9 t dimensions of the machine ca.: 5,3 x 3,9 x 3,5 m CNC control Heckler und Koch BWO 783 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 1000 mm gear width: 180 mm max. module: 7 min. module: 0,5 min. ram stroke: 16 mm max. ram stroke: 180 mm table hole: 160 mm total power requirement: 4 kW weight of the machine ca.: 5,2 t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 1000 mm gear width: 200 mm max. module: 10 min. module: 0,5 max. dia. of teeth cutting: 1000 mm min. dia. of teeth cutting: 75 mm table diameter: 1000 mm boring diameter: 400 mm spindle stroke: 0 - 230 mm stroke position adjustment: 250 mm distance between table / ram: 480 / 730 mm dia. of shaper cutter: 8 Zoll taper: Morse 5 tool taper: 1 3/4 Zoll total power requirement: ca. 20 kW weight of the machine ca.: 11 t Standard version - Chip conveyor - Two additional tables with diameters of 850 mm and 1,500 mm - Several cutting tools - Set of interchangeable gears - Program for cutting in 1-2-3-4 passes/cycles - Program for spiral cutting - Several holders and clamps for workpieces The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Slotting machine, slotting machine, high-speed planer, keyseating machine, keyway broaching machine, keyway broaching machine, keyway tool, broaching machine, slotting machine, horizontal slotting machine, planing machine, power high-speed planer -Manufacturer: Lange & Geilen, horizontal slotting machine Kraft-Schnellhobler -Stroke: 350mm -Stroke rate: 20 - 110 1/min -Clamping table: 380 x 280 mm -Travel: X 410 mm Z 320 mm -T-Slot: 14mm -Propulsion: AEG 3 kW -Dimensions: 1460/1170/H1350 mm -Weight: 1140 kg
gear hobbing diameter - external: 1200 mm gear hobbing diameter - internal: 1200 mm gear hobbing width -max.: 260 mm max. workpiece diameter: 1500 mm Control: Siemens 840 D table diameter: 900 mm Table hole Diameter / depth: 320 / 520 mm max. table load: 95 kN coolant pump: 120 l/min Axial distance between thrust spindle - table: 0-820 mm work-spindle diameter: 125 mm tool taper: SK 45 DIN Table rpm: 12 1/min power requirement: 30 kW weight of the machine ca.: 24 t dimensions of the machine ca.: 11,715 x 5,565 x 4,505 m Strokes: - Stroke length min./max.: 0 mm / 270 mm - Stroke length adjustment range: 270 mm - Stroke rate (double strokes): 10 to 270 strokes/min Sliding head carriage: - Max. travel speed: 5000 mm/min Machine bed: - Axial travel: 600 mm Slotting head: - Max. module for rolling slotting: 16 mm - Slotting spindle diameter: 125 mm - Max. tool diameter: 30 ...
For sale is a used keyway slotting machine of the brand RUWO HAHNDORF, type SEF 32, built in 1977. Technical data : Weight: approx. 103 kg Connection: 380 V, Power: 0.8 kW Stroke: 330 mm Dimensions: length approx. 1200 mm, width approx. 400 mm, height approx. 1200 mm Highlights: Solid machine from 1977 – robust industrial quality. Ideal for machining keyways – suitable for industrial production or special tools, for example. Condition & Notes: The machine is used and fully functional.
Corner rounding machine Gämmerler 105 M; good condition; Knife 36mm; maximum insertion height 80 mm; larger table with the size 80x60cm; can also be used without the larger table; other knives are also available for an extra charge. Corner rounding machine Gämmerler 105 M; good condition; knife 36mm; max pile hight 80mm; bigger table with size 80x60cm; can also used without the bigger table; for option with other knifes.
Vertical Slotting Machine GSP type M 743 3-jaws chuck Ø 360 mm Table travel: X = 500 mm / Y = 450 mm Slide travel: 300 mm Throat depth: 500 mm Rotary table: Ø 690 mm Slide tilting: + 8° Rotative table/slide maxi height: 450 mm Motor power: 8 CV Rapid feeds on X - Y - W axes Strokes/min.: from 3 to 300 strokes/min. Equipped with one tool removal system upon lifting Voltage: 380 V Length: 2000 mm Depth: 2500 mm Total height: 2200 mm Weight: approx 4 T
Double corner round slotting machine Tränklein EK-D 100; cleaned and tested; 2x Knife 16mm (other sizes on request); Insertion height max.100mm; optical sensor; Foot release. Double corner rounding machine Tränklein EK-D 100; cleaned and checked; 2x knife 16mm (other diameters on request); max.pile hight 100mm; optical sensor; foot switch.
Slotting Machine - Vertical VS 600 -Rotary table - diameter 600mm -Lifting range approx. 360mm -Three-jaw chuck - diameter 325mm -Good general condition Dimensions: LxWxH 1.9x1.2x2.2 meters / Weight approx. 1700Kg

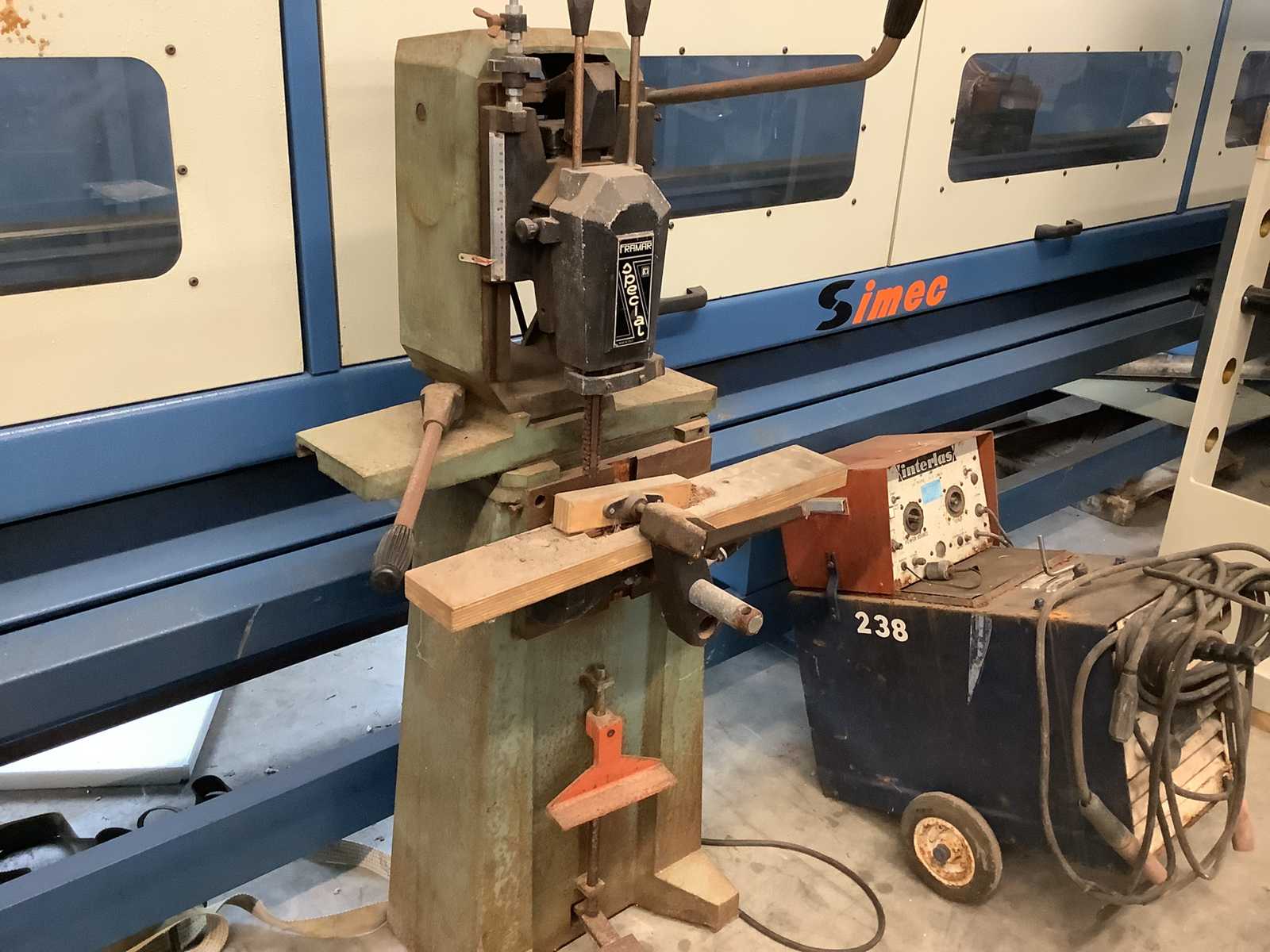

Tenon cutting and slotting slotting PANHANS 1376 -used----------- Technical data ----------length of the base plate: 1,000 mm, sliding travel: 710 mm, size of the sliding plate: 295 x 225 mm, installation height approx.: 56 mm
Slotting Machine MAILLEFER type MAC-350 M Useful travel: 0 - 350 mm Slots width: max 36 mm Motor power: 2,5 CV Feeds: from 0,025 mm to 0,125 mm Bore: from 15 to 160 mm Automatic forward and stop Supplied with many tools (see photo) Dimensions (L x W x H): 1400 x 800 x 800 mm Weight: approx 700 kg
max. ram stroke: 600 mm throat: ca. 400 – 800 mm table diameter: - mm : 320 mm total power requirement: - kW weight of the machine ca.: 8 t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Vertical Slotting Machine GSP M 743 3-jaws chuck Ø 360 mm Table travel: X = 500 mm / Y = 450 mm Slide travel: 300 mm Throat depth: 500 mm Rotary table: Ø 690 mm Slide tilting: + 8° Rotative table/slide maxi height: 450 mm Motor power: 8 CV Strokes/min.: from 3 to 300 strokes/min. Equipped with one tool removal system upon lifting Voltage: 380 V Length: 2000 mm Depth: 2500 mm Total height: 2200 mm Weight: approx 4 T
