slitting rewinder used for sale

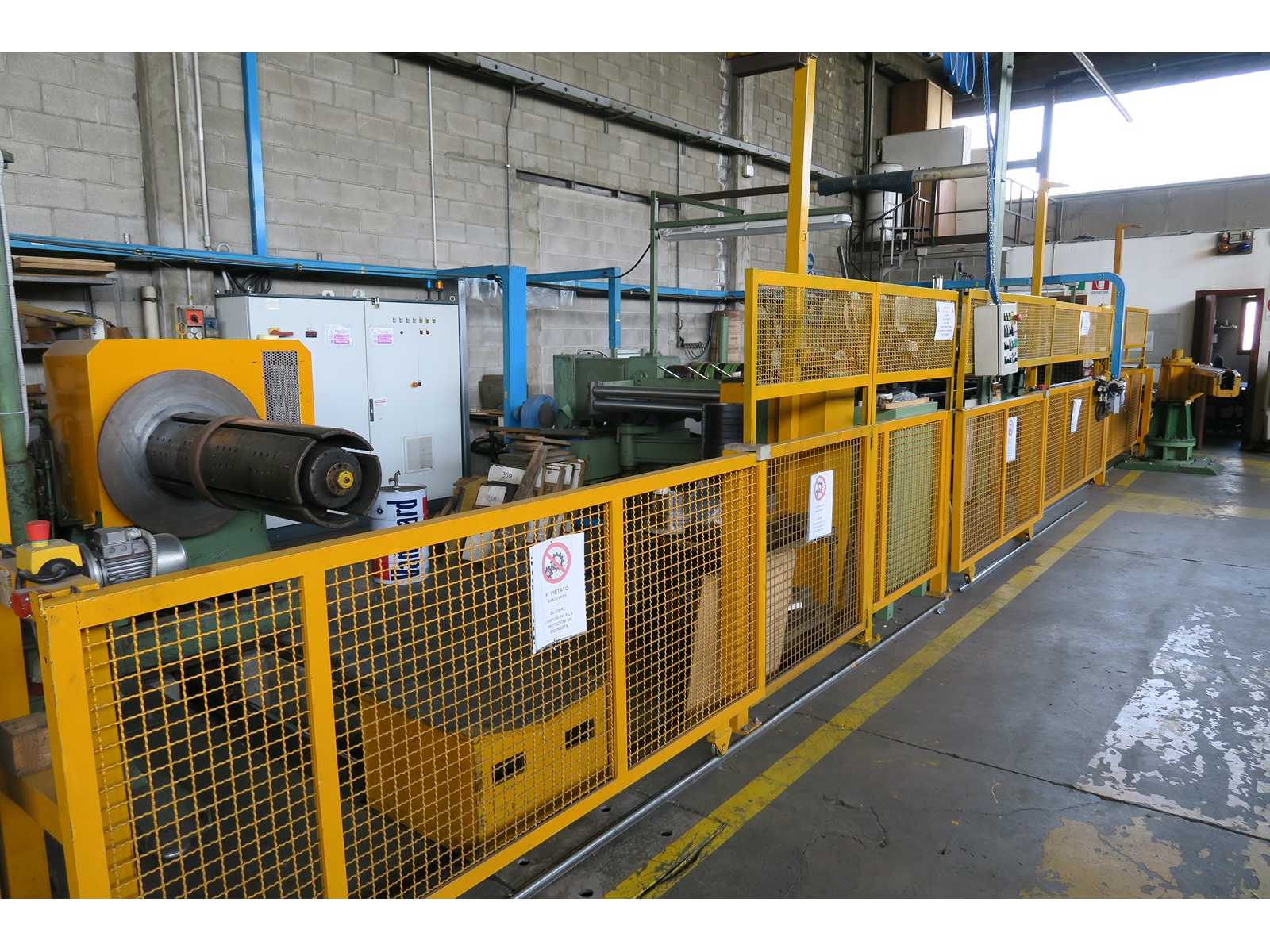

Manufacturer: Winfos Model: YC 180 Year of Manufacture: 2010 Type of Machine : Longitudinal Slitting Line In operation since: 2017 Condition: Operational Technical Specifications: - Line length: 24.5 m - Line width: 7.8 m - Material thickness: 1.5 ~ 5.0 mm - Maximum coil diameter: 1.8 m - Coil inner diameter: 640 – 800 mm - Maximum coil width: 1500 mm - Maximum coil weight: 16 MT - Installed power: 253 kW Line Speed: - At 1.5 mm thickness: 110 m/min - At 4.0 mm thickness: 95 m/min Tooling & Accessories: - Knives – 186 pcs total: - Set 1 – 10 mm, Ø307: 26 pcs - Set 2 – 14 mm, Ø315: 66 pcs - Set 3 – 14 mm, Ø315: 50 pcs - New Ø320: 44 pcs - Rubber rings – 93 pcs total: - Set 1 – 25 mm: 31 pcs - 15 mm: 12 pcs - Set 2 – 25 mm: 31 pcs - 15 mm: 18 pcs - Set 3 – 25 mm: 31 pcs - 15 mm: 18 pcs - Slitter knife spacers: 480 pcs - Separator spacers: - Metal: 252 pcs - ...

<br>DECOIL DURCHMESSER: 1000 MM, AUFWICKLER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DECOIL DIA.: 1000 MM, COILER DIA.: 800 MM, WIDTH: 1000 MM, GRAMMAGE: 180 GSM, Still in operation: No Available: IMMEDIATELY

Slitting amp; cut to length line 1 - Double head decoiler (hydr): gt; 20 ton capacity gt; with coil supply cart amp; lift min coil width: 500 mm both units are movable 2 - Pulling unit 3 - Shear for making the first clean cut 4 - Pre-leveller Ungerer 4 + 5 rolls hydraulically adjustable 5 - Slitting unit with 4 cuts 6 - Supply system for shear 7 - Shear for cut to length 8 - Conveyor table 9 - Broncx fine leveller 10 - Stacking unit gt; featured a mechanical back gauge; once plate make contact then the shear makes the cut max length of cut: 7 meters Total length of the installed line: 50 meters Material thickness x width: 2200 x 4 mm DECOILER(s): 20 ton

Automatic cloth rewinder for offset printing machines - Lidograf printing machines Menu Home About us Offer Gallery We buy Contact en pl Automatic cloth rewinder for offset printing machines Search: Search Technical condition: New Used Categories: Bookbinding machinery Bookletmakers Box production Collators Creasers Die Cutting Machines Folding machines Gluing machines Guillotines Joggers and Lifts Laminators Offset printing machinery Others Packaging machines Paper drills Perfect binders Pile turners Spare parts Stitching machines Automatic cloth rewinder for offset printing machines Price: 1125 EUR Download PDF Automatic cloth rewinder for offset printing machines Manufacturer: Vliesstoff Kasper Very good condition. 380V power supply, foot pedal control Device suitable for B1 and B2 format machines Ask About The Product Name (required) Company name Email (required) Phone Message (requi ...

Offered for sale is a slitter rewinder with rewinding and unwinding units. Roll width: up to 1060mm. Additional technical specifications: Processable grammage: 60-173g/m², maximum unwind width: 1060mm, maximum parent roll diameter: 1200mm, maximum parent roll weight: 600kg, parent roll core inner diameter: 70mm, rewinding width: 530-1060mm, maximum rewind diameter: 250mm, finished roll core inner diameter: 51mm. Control system: Electronic machine control system with operator panel and OMRON F7 frequency inverters. Equipped with roll unwinding unit, deflection and guide rollers, slitting unit, rewinding unit, safety guard and separate electrical cabinet. Inspection possible by arrangement.

R23801/12 JAGENBERG Roller cutter Model: Vari Major Built: 1974 Width: 3,800 mm Materials: - coated paper, glossy and matte, grammage from 50 to 250 g/m2. max. speed: 1,500 m/min. for paper 250 g/m2 (The speed depends on the quality and grammage of the paper.) max. unwinding diameter: 2,500 mm max. winding diameter: 1,525 mm min. cutting width: 100 mm Number of upper knives: 6 Winder: 5 Single Winder max. roll width: 1,730 mm min. roll width: 450 mm max. unwinding diameter: 1,525 mm min. unwinding diameter: 300 mm 600 mm max. roll weight: 35 kN Available: immediately

<br>Machine completely over-recovered and repainted; Slitter Rewinder with pneumatic unwinding and winding gate, shaft, electrical lateral adjustment, working width 1320 mm, discharged diameter 1300 mm, core diameter 76 mm pneumatic brake Ortlinghaus, new upper and lower knives<br><br>Still in operation: Yes<br>

Working width 1000 mm Still in operation: Yes Available: immediately

R23801/12 JAGENBERG slitter rewinder model: Vari Dur age: 1974 Net width : 3.800 mm materials: - coated paper, gloss and matt, grammages from 50 to 250 g/m². max. speed: 1500 m/min. for paper of 250 g/m² (The speed depends on the quality and the grammage of the paper) max. unwinding diameter: 2.500 mm max. winding diameter: 1.525 mm min.cutting width: 100 mm N° of upper blades: 6 Unwinder: 5 singles unwinders max. width of reels: 1.730 mm min. width of reels: 450 mm max. unwinding diameter: 1.525 mm min. unwinding diameter: 300 mm (from 900 to 1700 mm of net width) 600 mm (from 450 to 900 mm of net width) max. weight of reels: 35 kN Available: sofort

roller cutter, overhauled, working width: 110 cm, roller diameter, 100 cm, pneumatic winding shafts 70/76/150 mm, hydraulic lifting/lifting device, side edge control, dancer roller, load control with control brake, surface needle, Siemes S5 Still in operation: Yes Available: immediately

<br><br><br>Still in operation: Yes<br>Verf Gbar: Immediately

Working width 1350 mm

Abrbeitsbreite / working width 1250 mm

Duplex Slitter rewinder Web width: 1400mm Unwind diameter: 800mm Rewind diameter: 500mm Maximum speed: 300m/min Integral unwind station with 76mm and 152mm air shafts Hydraulic roll lift and disc brake on unwind BST CLS Pro web guide unit for edge and line guiding Tension control via load cell mounted we path roller Infeed driven nip unit 3 motor dc drive system with analogue drive control Razor in grooved roller slitting station with several knife holders Edge trim removal fan Duplex cantilevered rewind with differential slip adapters Full width lay on roll assemblies with pneumatic application Side opening door for roll off loading with guard inter locks Off loading roll capstan unit Control panel with digital display and digital counter Electrical diagrams

<br>Working width: 1320 mm, outside diameter 1300 mm, inner diameter 70-155 mm, shaftless discharge discharge with lifting platform for nut rollers, upwinding with pneumatic extension shaft and mechanical device for finished rolling, lifting core inner diameter 76 mm, machine in production<br><br><br>br>

working width 600 mm Still in operation: Yes Available: sofort

SMAG C4R 350 June 1999 Spare parts supplied with the machine: 25 new and used air pressure connectors 5 new control buttons 1 box of 12 used relays 1 box of 12 new relays 4 new aluminum sensor holders plus 7 used ones 6 complete used Keyence for cell adjustment 2 new Keyence cell adjustment 11 bags of screws for adjustments and new cell 1 new INA mandrel holder bearing 4 new mandrel bearing holders 9 boxes of new cell wire 2 used wires 10 different new spare control buttons 7 new J559 belts 5 J864 belts 1 used inverter to be repaired 1 used brake system 1 used joystick Machine equipment: 12 slitting knives 9 slitting blade holders Winding shaft: Ø38-Ø40 -Ø76 Maximum mother reel diameter 650mm Maximum diameter of daughter coil: 350mm

working width 7.400 mm Still in operation: Yes Available: sofort

working width 1000 mm Still in operation: Yes Available: sofort

Technical data: Working Width: 1300 mm Maximum Speed: 550 m/min Unwinder Type: Shaftless Maximum Unwinder Roll Diameter: 1000 mm Rewinder Type: Double shaft center driven Maximum Rewinder Roll Diameter: 650 mm Minimum Slit Width: 35 mm / 25 mm (optional) Processed Materials: PP, PET, LDPE, HDPE, PAPER, and laminated materials Knife Types: Blade slitter and rotary knives Control System: Touchscreen HMI with web monitoring and recipe management Additional Features: • Automatic knife positioning system • Shaftless unwinding with hydraulic tilting arms • Laser core guiding for precise and quick setup • Modular design for easy maintenance and access

Maximum label roll diameter 350 mm Rollenkerndurchmeser 76 mm, incl. adapter for other diameters Stufenos adjustable wrap speed Dimensions 800 x 400 x 300 mm (L x W x H)

High-speed precision sheeter Unwinding position with cantilevered shaft Decurler for paper-based materials Shear cut slitting technique with rotary knives Pneumatic knife holders Partial rewinding for the unused part of the roll (option) Cross cutting blades with scissor action Digital main panel to set cutting parameters (cutting length, speed etc..) Self-lowering delivery table Antistatic bar and air blower Safety photocell over the delivery area Front rewinding (roll-to-rolls process) as option Suitable to cut : cloth, synthetic leather, paper, PVC, polyester, polypropylene, polycarbonate, materials for stationery electronic prepreg, screen printing media Technical specifications : Working width 1500 up to 2500 mm Max roll diameter 400 mm (for standard configuration) Max roll weight 100 Kg Cutting length range 0 - 9999 mm Cutting speed (500 mm) 40 cut ...

R26081/12 Jagenberg rewinder model: VII age: 1963 size: 1600 mm available: immediately material: paper and foil sleeve inner diameter:70 mm speedt: max. 500 m/min about 10 knives Available: sofort

ASHE Age: 2024 Sno. 1223-24 Typ: Onyx Series Model: 135-60 Speed: 350m/min- max unrestricted speed Web width range: 300 mm (min)- 1350 mm (max) Slitting width Range: 25 mm ( min) - 1100 mm (max) Slitting configuration: 10 x Male Rotary Holders & Blades 10 x Female rotary Blades & Backup Spacers 1 x Set Grooved Female Spacers 16 x Square Bar Razor holders & blades Unwind configuration: Integrated Shaftless Unwind Unwind Control Method: Unwind tension control via multi-pad break system Unwind diameter (max): 1000 mm Unwind roll weight: 750 kg Unwind Tension Range: 5-30 kg Unwind core size: 76 mm & 152 mm Rewind configuration: Rewind Tension range: 5-25 kg Rewind diameter (Max): 600 mm Rewind roll weight: 250 kg Rewind configuration: 2 x 76 mm ADS Blank rewind shafts 1 x full set of 76 mm Chucks 1 x Half set of 152 mm Chucks Pneumatic suppl ...

Working width: 1320 mm, unwinding outer diameter 1300 mm, unwinding inner diameter 70 - 155 mm, shaftless unwinding with lifting platform for mother reel, upwinding with pneumatic expansion shaft and mechanical lifting up device for finished reel, core inner diameter 76 mm, machine in producion

M. No.: 454 31178 T15 Equipment / Additional information: Max. master reel width: 1400 mm Max. master reel weight: 1000 kg Max. master reel diameter: 1000 mm Minimum standard slit: 25 mm Rewinding reel maximum diameter: 610mm Maximum production speed: 1000m/min Separated shaftless unwinder Automatic positioning of the web guide camera Razor blades/circular knives/pneumatic knives with automatic slit positioning ASP Automatic tape applicator Linear lay-on rollers 4 differential or pneumatic shafts, mounted on two turrets with automatic reel change Automatic slit reel unloading and positioning Automatic core positioning 6 motors Automatic web tension control through loading cells The machine has chucks for 76 and 152 mm The machine has positioning for top knife AND bottom knife; the Automatic Slit Positioning handles the positioning of both the knife and the counter knif ...

Slitter rewinder, reconditioned, working width, 110 cm, winding diameter: 100 cm, pneumatic winding shafts 70/76/150 mm, hydraulic lifing in and out mechanism, Web guide unit, tension control unit with adjustable brake, overall perforation, Siemens S5 Still in operation: Yes Available: sofort

Machine completely reconditioned and repainted; Slitter rewinder with pneumatic unwinding and rewinding shaft, electrical lateral adjustment, working width 1320 mm, unwinding diameter 1300 mm, core diameter 76 mm, pneumatic brake Ortlinghaus, new upper and lower knives Still in operation: Yes

Qty. 3 Second-hand winders Mfc.: Maxson Built: 1997 Roll width: max. 1,700 mm, min. 450 mm Maximum roll diameter: 1,650 mm The width of the core is: 70, 76, 120, 152, 300 mm

Qty. 1 Second-hand strip rewinding machine Mfc.: IHI Built: 8/1968 Material to be rewonded: aluminium, aluminium alloys Foil thickness max.: 500 ?m Foil width max.: 1,150 mm / min. 800 mm Coil size max.: 1,950 mm (outside dia.) / 300 mm (inside dia.) Max. weight: 9,000 kg Speed: 150m/min.

2014 Smag Label Inspection Machine – Slitter Rewinder 350 mm working width Slitting Rewinding Tube Scan digital Inspection Camera Web Guide Label Inspection with or without slitting Manufacturer: SMAG GRAPHIQUE Type: 825 Year of manufacturing: 2014 Web width: 350 mm Mechanical Speed: 120m/min Rewinding Spindles: 25 / 40 / 50 / 76 mm Machine is located in Western Europe Please contact PP Machinery Team for more information or an inspection

Manufacturer:Jurmet Model: REWER Year of Manufacture: 2014 Condition: Used Technical Specifications - Weight: 2,000 kg - Power Supply: 14 kW - Voltage: 3x400 V - Air Pressure Required: 7 bar - Rewind Material Types: OPP, PET, PVC, OPS, LDPE, 40–50 µm cardboard - Material Width: 500 mm - Winding Speed: 0–400 m/min - Max Winding Diameter: 800 mm (1 shaft, core Ø76 mm) - Max Unwinder Diameter: 800 mm (1 shaft, core Ø76 mm) - Max Roll Weight: 400 kg - Wind Direction: Left to right / right to left (bi-directional) Included Features - Separate lay-on shafts: 2 pcs (rewinder and unwinder) - Ultrasonic web guide system - Splice table with waste rewinder - Rotary knife slitting module - Touchscreen control panel - Adapter diameter: 152 mm (2 pcs) - Stroboscope with tape control sensor Find more here - .ucymachines/ Contact us at - sales@ucymachines

Working width 130 cm, Diameter of mother reel 120 cm, machine in running

Model: Conslit 17 Year of construction 2002 Web width: from 500 to 1750mm 2x web side guides / 2 side edge controls Friction and air shafts: 70, 76, 152 mm

Bielomatic Collator Year : 1991 5 stations, dual-purpose Gluing Unit HHS crimping and Multiflex on both sides Numbering: yes

Technical data: Maximum material width: 1350 mm Web guiding system: Optical sensor (control by print mark) Slitting technology: • 8 rotary knives • 8 razor blades Edge trim extraction: fully functional Knife/blade adjustment: Manual Rewinding System - Friction rings: • Ø 76.2 mm / width 25 mm • Ø 152.4 mm / width 35 mm - Rewinding stand: Standard mechanical design, full working width, including adapters for 152.4 mm core diameter

Technical data Film width: 1350 mm Unwinder: Shaftless, servo-driven, Ø1000 mm Rewinder diameter: Ø610 mm Speed: up to 400 m/min Slitting system: Rotary & razor blades Additional features: Banana roller, trim exhauster

Technical Data: Working width: 1200 mm Materials: BOPP, OPP, CPP, PET, OPA Parent roll diameter: 800 mm Final roll diameter: 600 mm Maximum speed: 300 m/min Web guiding system: Yes Knife type: Razor & rotary blades Trim exhauster: Included

Turret rebobinador con opción de módulo de troquelado rotativo 450 Unidad de troquelado rotativo: -Desbobinador con guiador automático -Sistema de control automático de tensión -Manómetros de presión hidráulico -Unidad de refilado con 6 cuchillas -Desmalle -Ancho de banda 430 mm Turret / Revólver rebobinador: -Alimentador automático desde tolva -Unidad automática de aplicación de cola -Alimentación de mandril desde tolva -Expulsión automática de producto terminado -Encolado automático de mandril -Ejes expansibles por aire -Sistema de etiquetado opcional Funciones: Velocidad: 60-100 m/min Diámetro máx. de rebobinado: 350 mm Ancho máximo: 430 mm Ancho de rebobinado mínimo: 40 mm Potencia total: 12kW Fuente de alimentación: 3PH + N + PE Fuente de aire: 0.8MPa Máquina en stock en nuestro showroom

Technical Data:, • Working width: min. 20 mmmax. 250 mm, • Winding diameter: max. 510 mm, • Core sizes: min. 1”max. 3” (up to 6” with adapter), • Air supply: 6 bar, • Web tension: 1–21 N, Equipment:, • Base frame with two servo motors, • 2 pneumatic winding shafts, • Web tension system via dancer roller, • Splice and defective label detection, • Splicing table, • Measuring roller, • Counter, • Operation via HMI touch screen with digital handwheel, Features:, • Bi-directional winding, • Inside & outside winding, • Winding tension control: diameter-dependent or independent, • Fully reproducible winding results, • Integrated job memory (recipe management), • Counters for labels, linear meters, and diameter, Performance Model Gepard 500, Speed: 500 m/min (depending on material and winding diameter), Web width: 250 mm, Idler rollers: approx. 80 mm ...

Rollenschneider Aufwickler / Slitter Rewinder Kampf Conslit 16/06 ÜK in good working condition. Rollenschneider Aufwickler / Slitter Rewinder Kampf Conslit 16/06 ÜK Baujahr / Year 1999 - Serial-No. 210271 Arbeitsgeschwindigkeit / Speed max. 550m/per Minute Arbeitsbreite / Working width max. 1650mm Schnittbreite min. 50mm bei Hülsen 70 & 76mm /  Cutting width min. 50mm  Cutting width 70 & 76mm Schnittbreite min. 200mm bei Hülsen 152mm /  Cutting width min. 200mm  Cutting width 152mm Zu verarbeitendes Material / Material to be processed: Kunststofffolien aus / plastic films made of: PE, PP, PA, PET, PVC, Papiere und Laminate Hartfolien / hard films ca. 10 - 250 µm Weichfolien / Soft films ca. 20 - 500 µm Aufwicklung / Rewinder Aufwickel-Druchmesser / Rewinder Diameter max. 610mm Aufwickelhülse / Winding Sleeve: Pappe, Kunststoff oder Metall  ...

Rotoflex VLI-330 – Slitter rewinder Year: 2002 Speed: up to 200 m/min Max. unwind roll diameter: 762 mm; max. rewind roll diameter: 610 mm Core diameters: 25 / 40 / 50 / 76 mm Compressed air: 6 bar Slitting with circular knives. Usable working width and further equipment on request. Reference: PP-54976 Further information on request.

1978 - recently modernised TECHNICAL DATA: • Max. web width: 1450 mm • Max. unwind diameter 1000 mm • Max. finished reel diameter 400 mm • Hydraulic reel lifting • Circular slitting system • 4 Rewind shafts on two turrets • Pneumatic brake • Length measuring and control system • Optical edge control Machine is completely overhauled, has got new AC Motors, new cabinet and panels; new PLC Siemens S7; new Montalvo pneumatic brake and controls; new edge control for detecting from top and bottom with.

Technical Specifications: • Working width: 1050 mm • Unwinding diameter: 1250 mm • Rewinding diameter: 800 mm • Shaftless unwinding • Shear cutting system • Pneumatic knife holders • Fully automatic knife positioning • Turret rewinding with automatic roll removal • 3" friction shaft • Generator brake on unwinding • Unwinding tension control via dancer system • Web edge control Equipment & Features: • Labeling device • Vacuum splicing table • Siemens S7 control system • Removal stand with push-off device • Automatic roll removal

Jurmet Rewer – Film slitter rewinder Year: 2014 Working width: 500 mm Winding speed: continuously adjustable, up to 400 m/min Materials: OPP, PET, PVC, OPS, LDPE; film thickness: 40–50 μm Max. unwind/rewind roll diameter: 800 mm Core diameter: 76 mm; 2 adapters for 152 mm Power supply: 3 × 400 V; connected load: 14 kW; weight: approx. 2,000 kg Equipment: Ultrasonic web guide and circular-knife slitting module Splicing table, trim rewinder, touchscreen and stroboscope Winding in both directions Reference: PP-55013 Further information on request.

Max. machine speed: 600m/min, min./max. parent roll width: 600mm/1650mm, max. parent roll diameter: 1000mm, max. roll weight: 2000kg, unwind core diameter: 76mm/152mm, min./max. slitting width: 190mm/1200mm, number of winding stations: 6, number of winding stations for slit widths from 600mm: 2, material thickness range for monofilms: 20µm-170µm, laminates: 40g/m²-190g/m², composite materials: up to 200g/m², rewind core inner diameter: 70mm/76mm/152mm. Equipped with shear slitting with upper and lower knives, contact rewinder with individual lay-on rollers, spreader roller, material infeed device, ionization system at the unwinder and rewinder, adjustable guide rollers at the unwinder and edge trim extraction system. Documentation available. Inspection possible by arrangement.

Sheet thickness aluminium: 1.00 mm Due to the bevel cut, the X-Cut machine can not only cut straight strips in the longitudinal and transverse directions, the automated bevel cut opens up many new possibilities for cutting the different surfaces quickly and accurately. Saves up to 90% of the time Up to 60 degrees angle adjustment in both directions Intuitive operation thanks to touchscreen and calculation aids Thanks to optimized software, cutting trapezoidal surfaces, triangular surfaces and other surfaces for standing seam roofs and wall cladding is no problem Due to the fully automated bevel cutting and the versatility and accuracy of the software, a high level of time savings can be achieved during production in the company and also during installation on the construction site Automatic operation: Enter the desired length and the number of pieces to be cut automatically. Tota ...

M18L - 1 Screw Head Slitting Machine (used) without vibrating conveyor Make: MENN - Type: KS8 and KS5 Diameter range 1.7-10 mm Shank length under head 3-105 mm Power Piece/Min 27-1.850 Weight 800 kg Engine power 1.5 kW

Longitudinal slitting machine for paper. NEW. Cutting to length (columns) paper or foil to approx. 70 cm width-Perforieren paper, labels, cards, forms -6 Circular blades (blades), or alternatively 6 perforating knife holder -Maximum paper width 70 cm Shipping is possible with extra charge.
