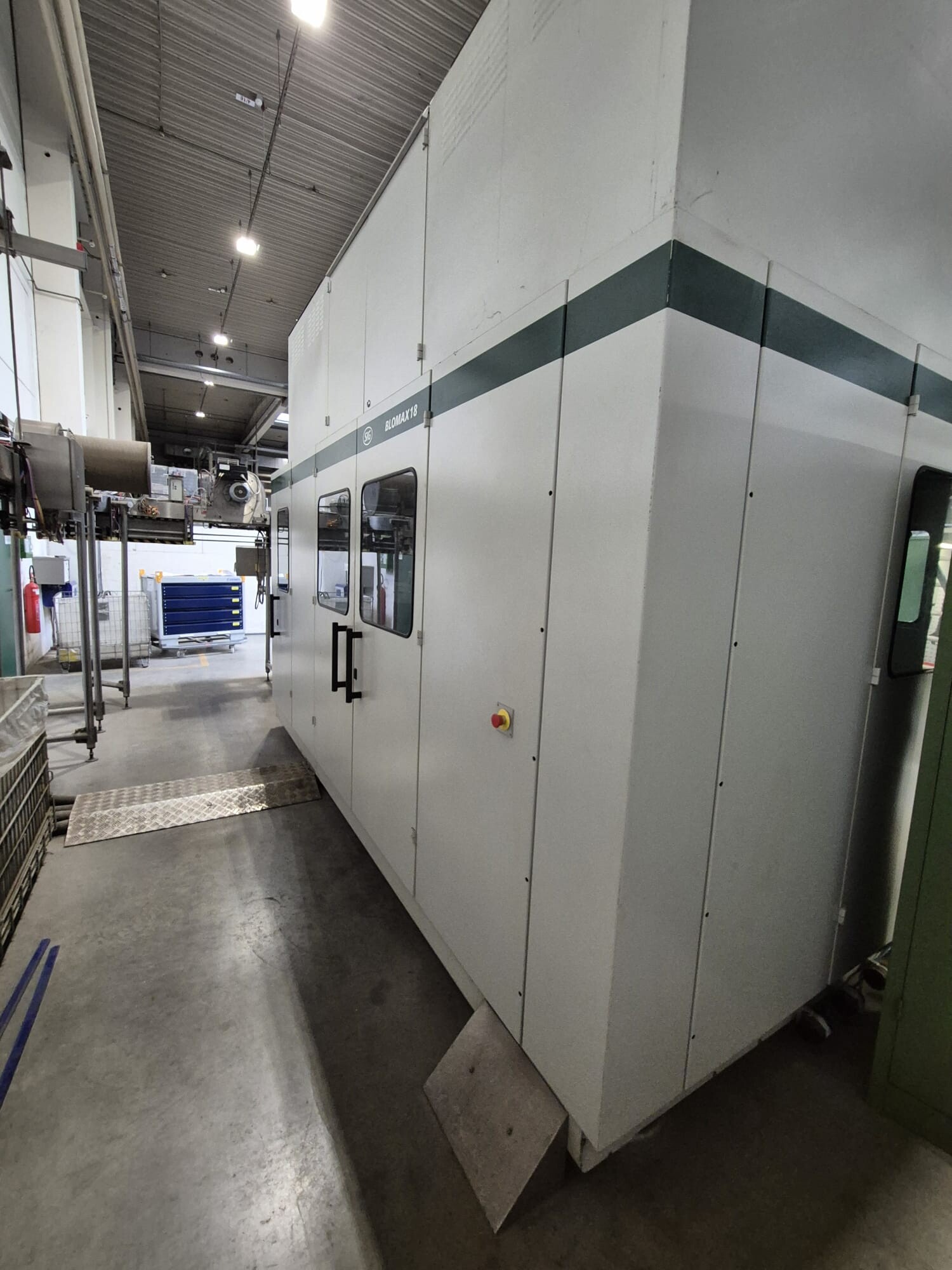

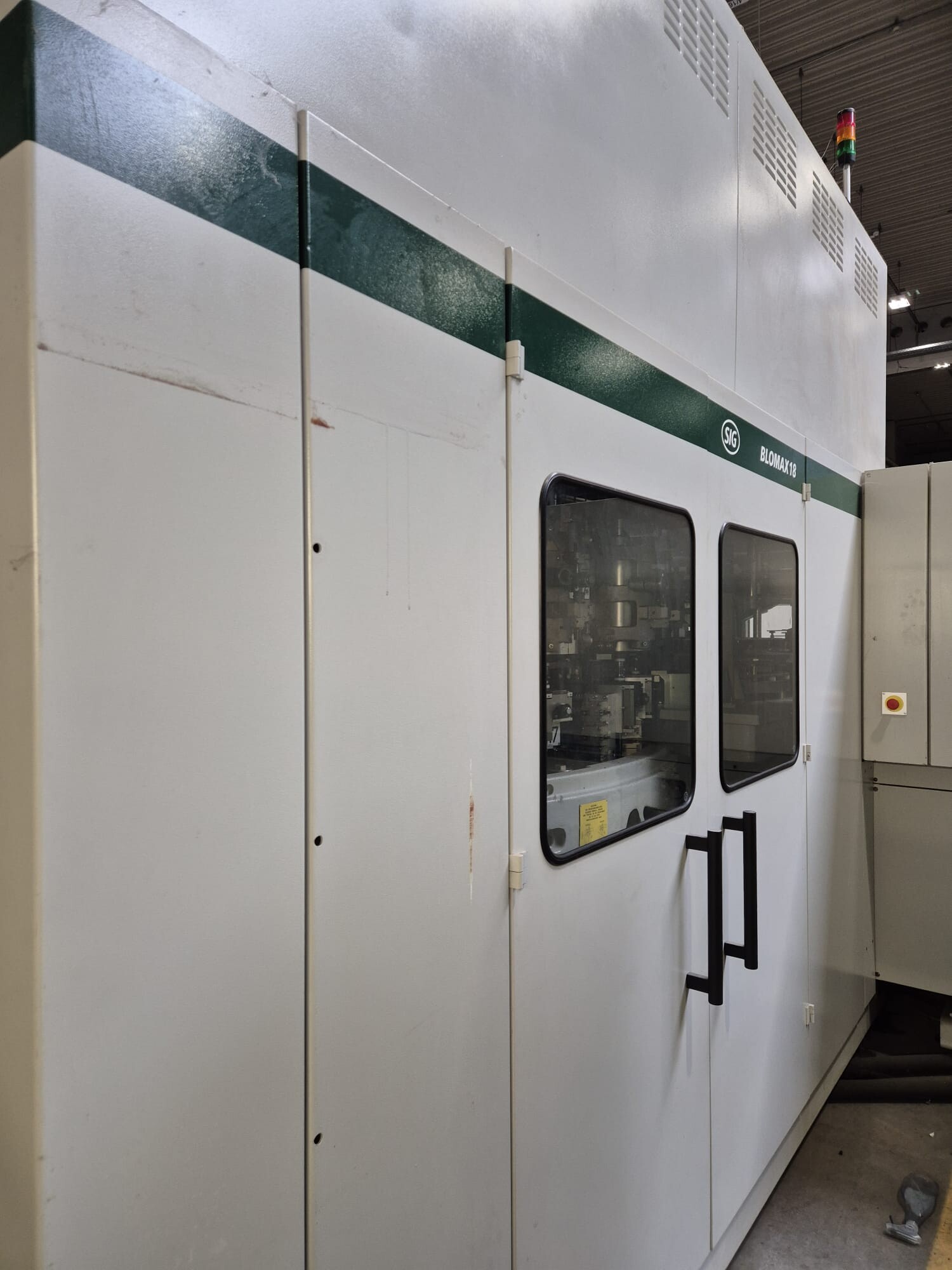

Overview SIG Corpoplast BLOMAX 18 Series III rotary stretch blow
moulder for PET bottles, built in 2003. Rated output is up to 27,000
bottles per hour on 0.5, 1.0 and 1.5 L bottles and up to 24,300
bottles per hour on 2.0 L. The machine last produced 1.0 L bottles for
mineral water and carbonated soft drinks at 27,000 bottles per hour
with a PCO 1881 neck finish. It ran in production until August 2026
and is still installed and under power. The preform feeding (box
tipper, inclined elevator and unscrambler) and the chiller are part of
the sale. Technical data Manufacturer: SIG Corpoplast Model: BLOMAX 18
Series III Year of construction: 2003 Machine type: rotary stretch
blow moulder for PET bottles Rated output: max. 27,000 bottles per
hour on 0.5 / 1.0 / 1.5 L, max. 24,300 bottles per hour on 2.0 L Last
format: 1.0 L bottle, 32 g, 28 mm PCO 1881 neck finish, petaloid base
Blow air pressure: 40 bar Blow air consumption, nominal: 1,072 m³/h
on 0.5 L and 1,724 m³/h on 1.0 L at 27,000 bottles per hour Connected
load: 255 kVA machine, 62 kVA chiller Working voltage: 400 V, 3 phases
+ N, 50/60 Hz Rated current: 480 A, max. fuse 500 A Control voltage:
24 V DC Dimensions (L x W x H): 11.5 x 11.2 x 4.2 m including preform
feeding Weight: 30,550 kg CE marked Scope of delivery BLOMAX 18 blow
moulder with preform heating oven and blow wheel Two operator panels

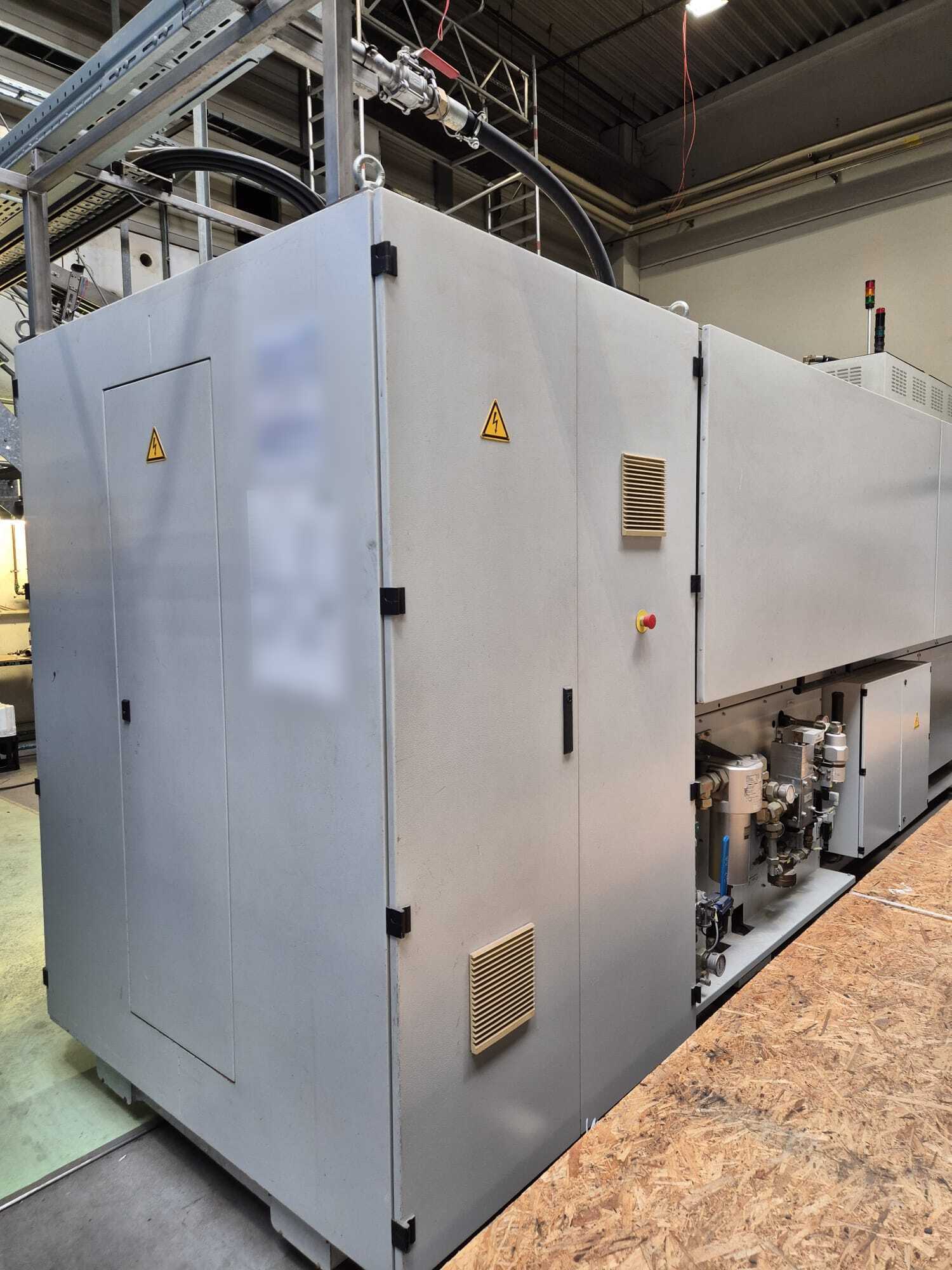

with touchscreen HMI Electrical cabinets and media connections Preform

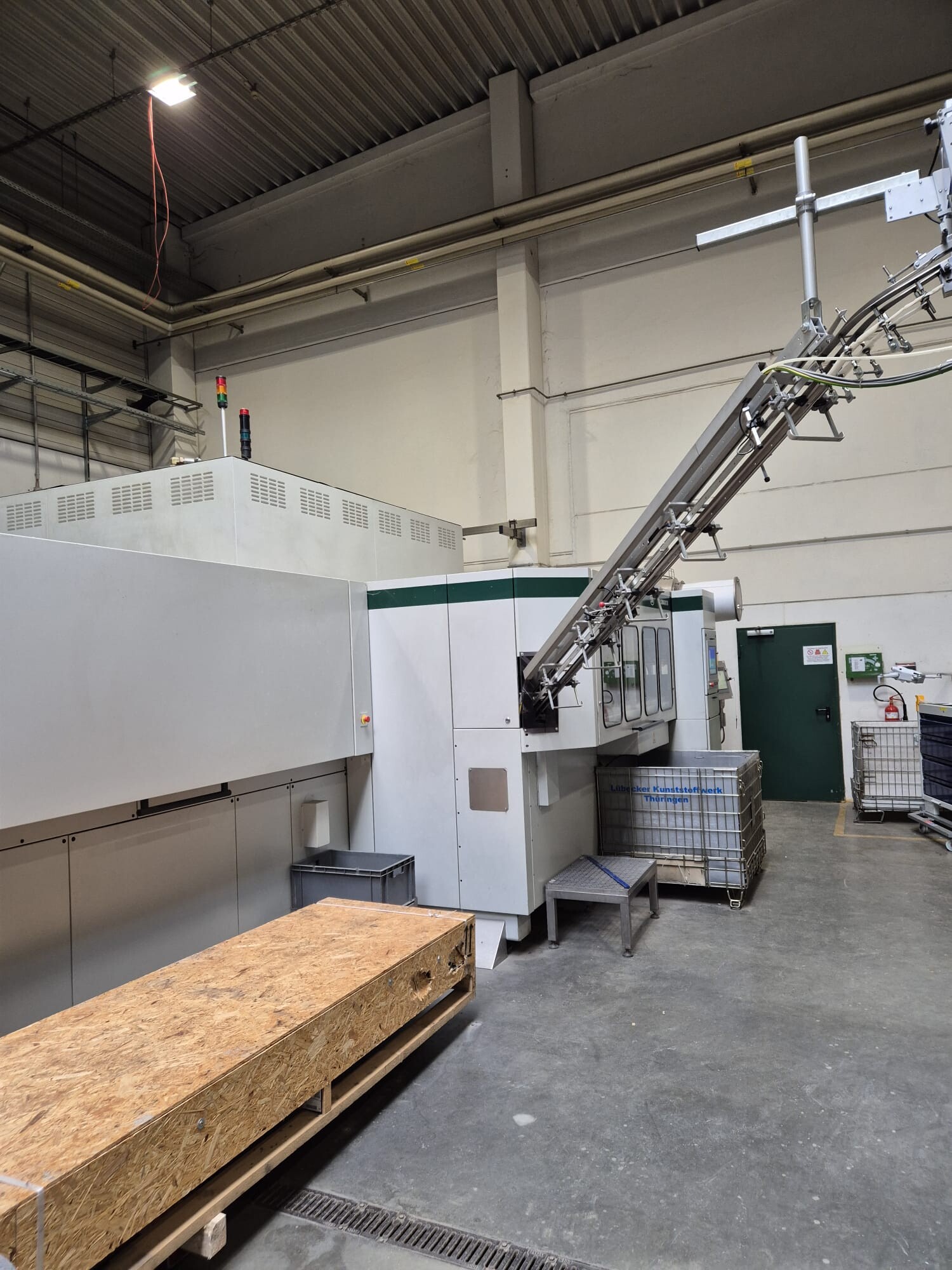

box tipper for octabins and mesh boxes Inclined preform elevator M.
Tanner preform unscrambler with access platform Chiller Spare parts
from stock, list available on request Blow moulds are not included in
the sale. Condition Used in water bottling until August 2026. The
machine is still installed and under power and can be inspected.
Availability Dismantling is possible from week 49 of 2026; the machine
is available from 30 November 2026.
Germany
