sica used for sale

Code: N0004 Brand: SICAR Model: SEGA 315 - Norme CE Professional panel saw SEGA 315 with carriage 3200 mm , blade 315 and scoring unit with separate motor - CE Standard Three-phase main motor 7,5 hp. Parallel guide on round bar with cast iron support and micrometric adjustment, blade lifting and tilting by handwheels, tilting blade unit with integrated scoring unit, aluminium carriage sliding on ball bearings, fence on extendable frame with two reversible stops. TECHNICAL DATA: Main worktable mm 910x550 Additional worktable mm 910x760 Additional lateral worktable mm 500x550 Main blade speed rpm 4000 Scoringunit speed rpm 8000 Blade diameter mm 300x30 Scoring diameter mm 120x20 Cutting height at 45° mm 75 Cutting height at 90° mm 100 Max cutting distance between blade and scale mm 1250 Carriage dimensions mm 3200 Three-phase motor power HP 5,5  ...

Description Single-oven smooth PVC pipe belling machine Possibility to process from 100 to 500mm diameters Tolling for diamters 400 mm and 500mm

Working condition - charging options available

I sell a router for Koperfräsen Sicar, built in 1998. Milling head with motor Swivel + - 45° Spindle holder fi.10mm Electric motor: 1.9kW / 2800 rpm -> 18,000 rpm at the spindle 1.5 KW / 1400 rpm -> 9,000 rpm on the spindle Pneumatic connection the milling cycle, pedal operated. Made in Italy.

SPECIFICATIONS: Combined dresser-thickness planer 2 work tables Length: mm 2000 Working width: mm 400

Without milling - supply at 220 volts - without extraction - charging options available - in working condition

SPECIFICATIONS: Length of work table mm: 2700 Width of work table mm: 500

SPECIFICATIONS: Sliding carriage: 360 x 3200 mm Saw blade: Ø 350 mm Scoring: Ø 100 mm Installed power: 5.5 Kw Cutting width of the parallel guide: 1300 mm

working width: 500 mm; cutter head: strip knive; number of blades: 4; surface table length: 2700 mm; adjustment surface table: Hebel; read out: table height; fence tilting: yes; motorpower: 4 kW; motorbrake: yes, automatic; machine length: 2800 mm; machine width: 1000mm; weight: 1050 kg;

Maximum Diameter: 2000 mm // Number Of Belts: 14

Manufacturer: Sicar, Type: P5N/230, Year: 1989, Control: yes, Planing widht mm: 230, Planing hight mm: ca.130, Number of spindles: 5, Rotations of spindles max. rpm: 6000, Separate engine per spindle: yes, Feeding - kW: 1,5, 1.Bottom spindle kW: 5,5, 2nd spindle on right kW: 5,5, 3.Left spindle kW: 5,5, 4.Top spindle kW: 7,5, 7th universal on left kW: 5,5, Year :1989

Brand: Sicar Type: Wood milling bench + extraction Model: SF70 Chassis number: BO400062003 Construction year: 2003 Weight: 0,28 tons Length mm: 2500 Width mm: 1000 Height mm: 1700 Transport size L x W x H: 2,5 x 1,0 x 1,7 Condition machine : Good

Description: Versatile working unit, numerical control, multi-axis movements, complete with: 1 tenoning unit, 1 cutting unit, 1 profiling unit and 1 unit with 620 mm shaft 5 and 6 units are dedicated to strip recovery and for hardware grooving Approx. Onsite Dimension. (l x w x h): 3,400 x 1,500 x 1,900 mm, weight approx.: 2,200 kg

SICAR MV300 Open Crawler Multirip Saw Track width 300mm Cutting height 100mm Cutting saw diameter 300mm Sleeve diameter 70mm Spindle speed 3000r.p.m Minimum length of the cut element 350mm Feed speed adjustable on inverter 3-30m/min Extraction pipe diameter 200mm 18.5kw main motor Net price

Description: Power 2HP Minimum slot width 25mm , Number of programmes 3 , Max. slot depth 120mm , Head stroke 60mm , Working table height 865mm , Maximum head offset 300mm , Approx. Onsite Dimension. (l x w x h): 0 x 0 x 0 mm, weight approx.: 0 kg

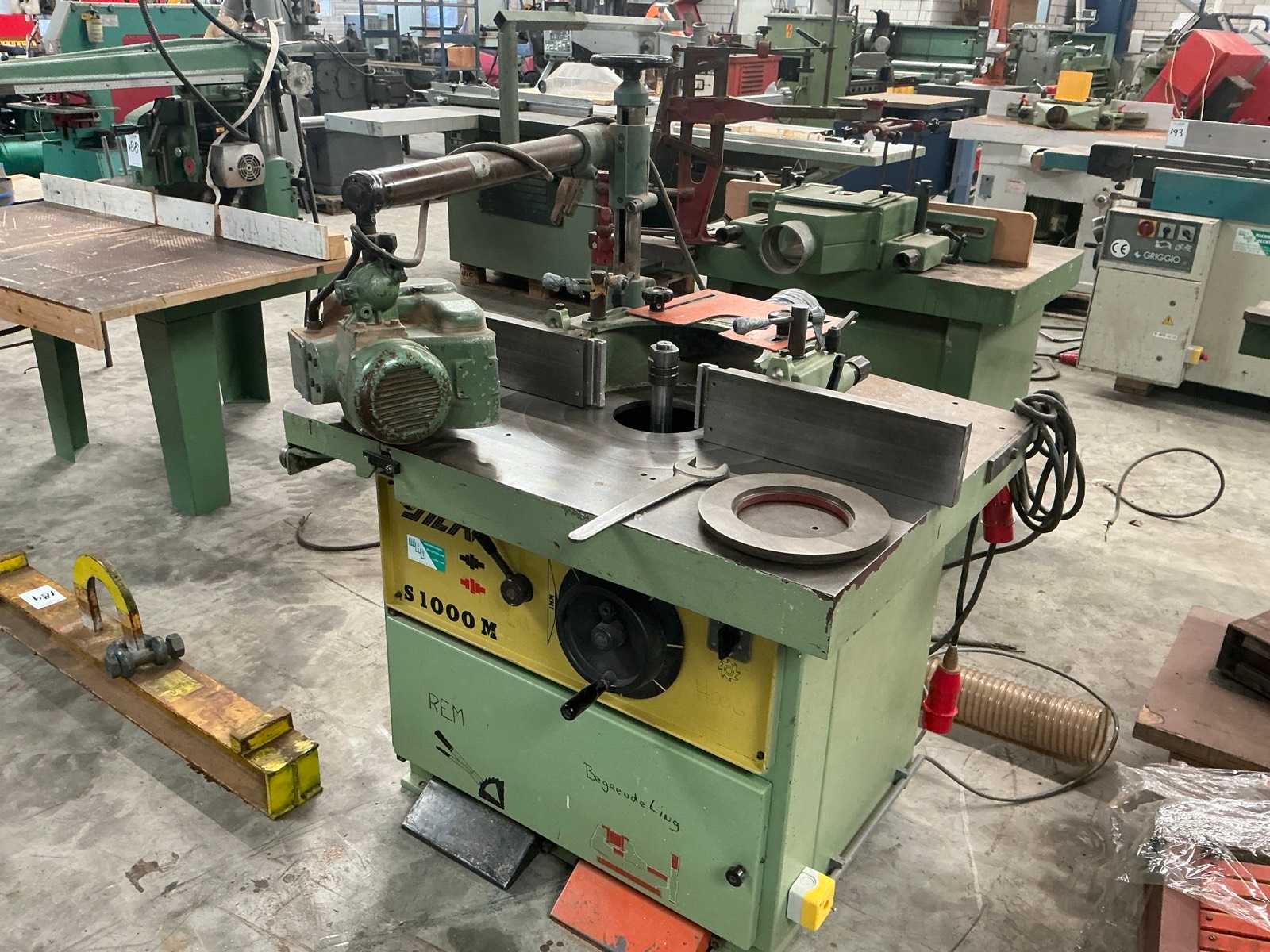

Code: 0223 Brand: SICAR Model: SFL 1000/M - CE Standard Spindle moulder with long tables for milling of wood, plastics, composites and various materials - CE Standard Technical data: Working table size mm 800 x 2500 Working table height from ground mm 910 Spindle diameter mm 35 Useful spindle height mm 200 Rotation speed rpm 3500/6500/8000/10000 Motor power Hp 5,5 Adjustable fence with read-out Electric spindle lifting with mechanical display Rotation reversal Overall dimensions mm 2500 x 1150 x 910 h Weight kg 650

Code: 0224 Brand: SICAR Model: TOP/8 - CE Standard Band saw with covered wheel for cutting wood, plastic, aluminium, composite materials and various - CE Standard Technical data Flywheel diameter mm 800 Blade length mm 5620 Motor power Hp 5,5 Table dimensions mm 1110 x 710 Height cutting capacity mm 360 Suction mouth diameter mm 110 Overall dimensions mm 1360 x 770 x 2400 Weight kg 505

SPECIFICATIONS: Cross-cut saws - saw blade diameter: mm 250 Milling unit - shank diameter: mm 35 Height of trunnion cutting shaft: mm 150 Manual guide carriage with 2 tilting guide rails

PRIMA POWER PLATINO 1530 laser was manufactured in 2001 in Italy. The machine is designed for cutting metal sheets made of structural steel, stainless steel and aluminium. The processed sheet may be up to 15 mm thick (structural steel), 8 mm thick (stainless steel) or 5 mm thick (aluminium). The feed rates in the X/Y/Z axes are 3000 mm (X axis), 1500 mm (Y axis) and 140 mm (Z axis) respectively. The laser cutting machine is equipped with a high performance ROFIN SINAR SLAB DC025 resonator with a power of 2500W, created for fast and precise cutting in metal sheets and guaranteeing the highest quality of cut elements. The installed PRIMACH 20L CNC control allows memorising many different work programmes and controlling every aspect of machining. The machine is offered with a wide range of equipment, including: CAD/CAM software SiCam v14 (license for one workstation) and post-processo ...

MAZAK SUPER TURBO X510 Hi PRO Supercharged laser cutting machine manufactured in 1999 in Japan, is designed for precision cutting of sheet metal made of structural steel, stainless steel and aluminium. The compact design with high stability makes the machine ideal for small factories as well as for series production. The MAZAK SUPER TURBO-X510 Hi-PRO Supercharged laser cutting machine has a large work table with a length of 3050 mm and a width of 1525 mm on which ball supports are used to facilitate the loading and unloading of workpieces. Workpieces with a maximum thickness of 20 mm are machined with the utmost precision using a stable 2 kW laser beam, guaranteeing excellent machining results. The machine is equipped with, among others, a MAZATROL CNC controller and SiCam 14.10 software for programming the cut shapes and generating the necessary files. The total weight of the machine ...

PRIMA POWER PLATINO 1530 laser was produced in 2000 in Italy. The machine is designed for cutting structural steel, stainless steel and aluminum sheet metal. The processed sheet metal can have a maximum thickness of 15 mm (structural steel), 6 mm (stainless steel) or 4 mm (aluminium). The feed rates on the X/Y/Z axes are respectively 3000 mm (X axis), 1500 mm (Y axis) and 140 mm (Z axis). The laser cutting machine is equipped with a high performance PRC PLS2200 resonator with a power of 2200W, created for fast and precise cutting of sheet metal and to guarantee the highest quality of the cut elements. The PRIMACH 20L CNC control installed allows you to memorize many different work programs and to control every aspect of the machining. The machine is offered with a wide range of equipment, including: SiCam v14 CAD/CAM software (license for one workstation + dedicated PC) and P ...
