Technical data:
- min . Drilling diameter 16 mm
- Max. drilling diameter 35 mm
- Boring diameter 65 mm
- Max. drilling depth 1,400 mm in the ELB / BTA method
- Machine space requirement approx. 6100 x 3100 mm
- max. height of the machine 2400 mm
- 2 separate drilling units, built on a basic machine bed spindle
spacing 600 mm
- Flat web guides
- Feed drive via ball screw and feed gear
- Rapid traverse speed 4000 mm/min.
- Feed speed max. 230 mm/min.
- Drive power 2 pieces drilling spindle 11 kw
- Speed infinitely variable max. 6000 rpm

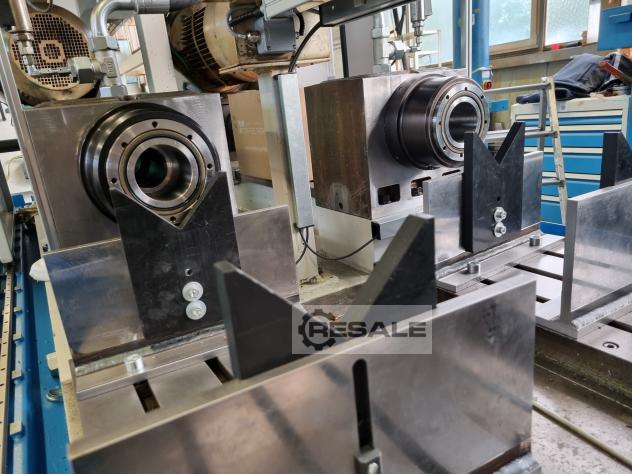

- Hydr. Attachable tailstock with counter-rotation
- Tailstock can be moved manually on base plate with length grooves

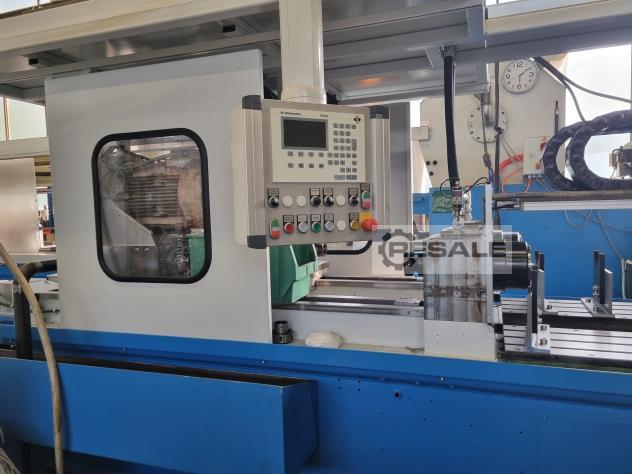

- Cladding with sliding doors
- 1 piece of bezel each
- 1 piece each rotating tension bell holder Basic recording

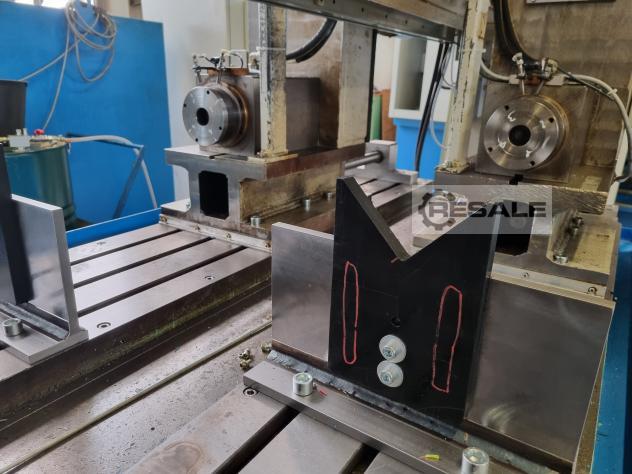

- 2 pieces of pre-centering each
- Drilling depth control via cam and limit switch

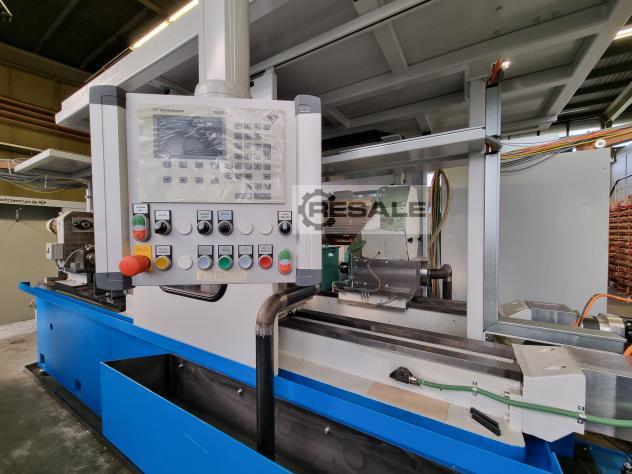

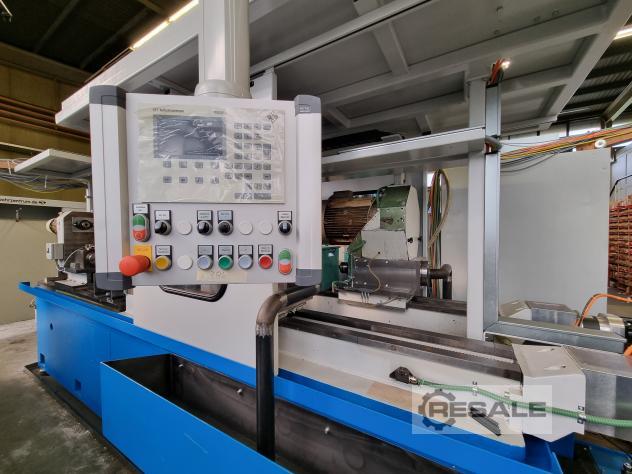

- CNC control SFT and FU, connection 380 V/nominal current 80 Amp.
- Each unit has S5123711 its own control system and feed motor
You actually get 2 single-spindle machines with this machine.
Since each spindle is operated separately with its own control and
feed motor.
We see ourselves as a competent partner in the field of deep hole
drilling.
You are also welcome to send us inquiries in the contract processing
of deep hole drilling work.
Feel free to contact us if you have any questions.
