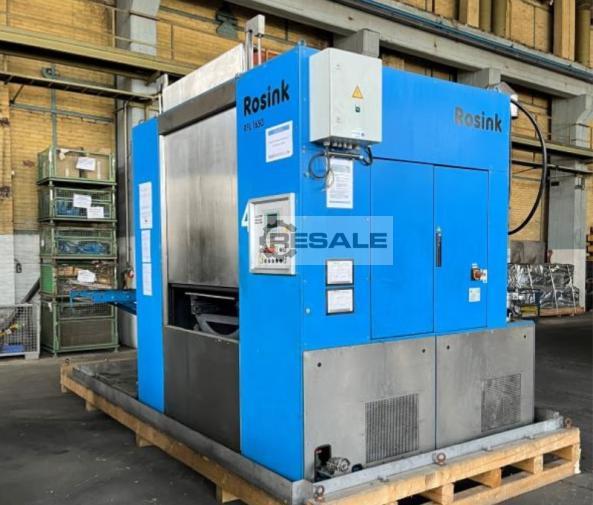

Rosink RFL Front Loader
- Powerful water-based cleansing
-Modular
- Cleaning of tall and long components
- Easy operation, compact design
- Low-maintenance operation
- Basic system in stainless steel design
-Environmentally friendly
Conception
With the Rosink RFL front loader, we offer you an economical and
user-friendly solution - particularly suitable for cleaning tall
components.
The proven Rosink cleaning technology and the highest quality are thus
combined in one system.
The basis is a 1-bath system, standard with a turntable, which can be
expanded to a multi-bath system on request.
Depending on the equipment and needs, different programs can be run
inside the washing chamber, such as washing, rinsing, drying, etc.
Equipment
Basic system in stainless steel version 1.4301
Tank with sloping floor
Tanks and washing chamber incl. cladding and insulation
Slewing ring drive with 4-point bearing

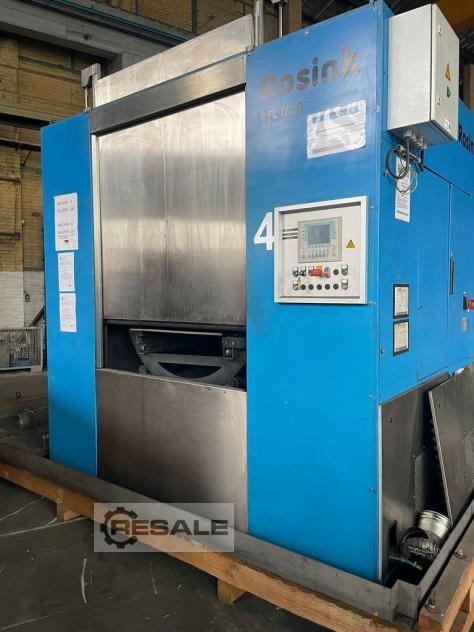

Lifting door pneumatic, by 2-hand safety operation

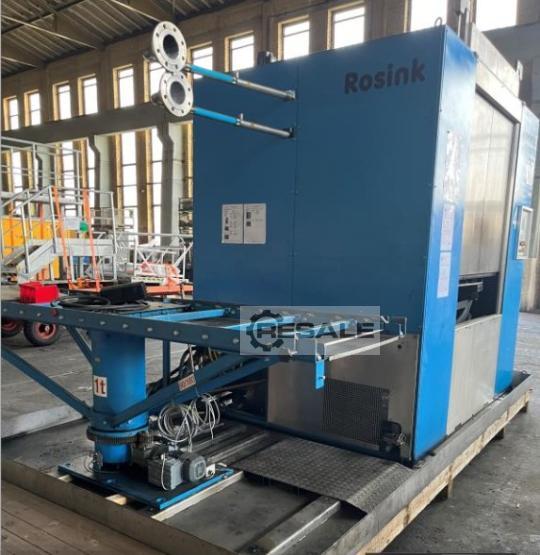

Transport trolley or loading table with drip tray made of stainless
steel 1.4301
Pre-filtration by return filter baskets with usable height
Selectable filter insert 200 μm or 500 μm

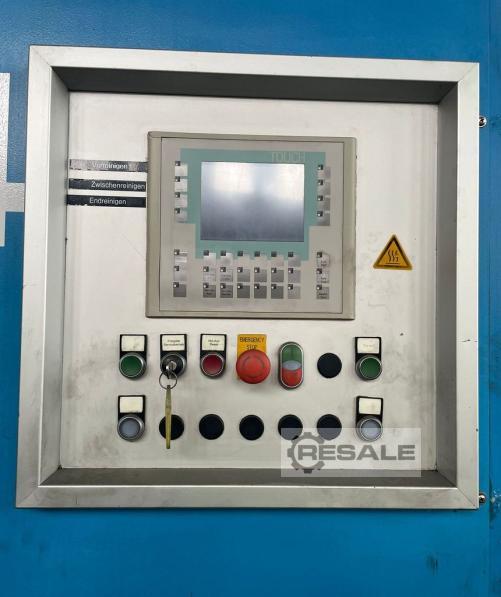

Front control panel with PLC for control (5 programs can be stored)
Flat spray nozzle system completely made of stainless steel 1.4301
Automatic refilling device with level control of the baths
Maintenance and inspection hatches for washing and rinsing tank
Specifications
RFL 1650, variable K51227004 depending on version
Width: 2900 mm
Height closed/open: 2800/4500 mm
Depth without/with transport trolley: 2650/4500 mm
Grid load: 1000 kg
Grid dimensions: 1320 x 1320 mm
Grid diagonal: 1650 mm
Connection voltage: 400 V, 50 Hz, 3Ph/N/PE
Control voltage: 24V/DC
Lye volume (washing): 750 l
Lye volume (rinsing): 500 l
Pump capacity (washing): 7.5 kW with 630 l/min at 4.5 bar
Pump capacity (flushing): 4kW with 250 l/min at 5.5 bar
Drying: 12 kW
Heating power (cleaner): 36 kW
Heating capacity (flushing): 27 kW
Weight: 3600 kg
More items - new and used - can be found in our shop!
International shipping costs on request!
