rolling mill 400 used for sale

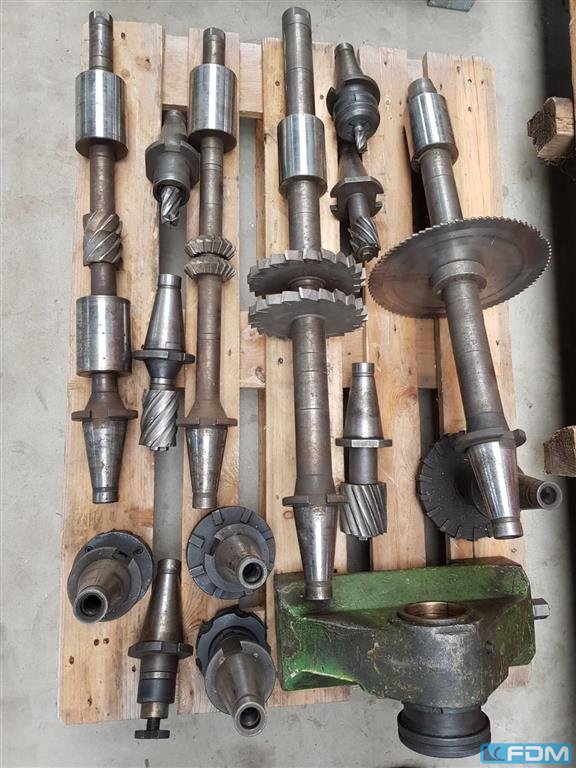

tool holder, milling holder, milling tool, long milling mandrel, attachment holder -Milling holder: SK40 holder -Type: SK40 x 40 x 400 -Shaft: Ø 32 mm -Dimensions: Ø 62 x 590 mm -Weight: 8.6 kg

tool holder, milling holder, milling tool, long milling mandrel, attachment holder -Milling holder: SK50 holder -Type: SK50 x 22 x 400 -Shaft: Ø 22 mm -Dimensions: 600/90/H93 mm -Weight: 5.9 kg

Key data: 1120 mm, 345 mm, 400 mm

Table width 400 mm, table length 1600 mm Tool holder SK 50 Speed range 28-1400 1/min Travel X/Y/Z 1120/345/400 mm Feed range X/Y 16 - 800 mm/min, Z 5 - 250 mm/min Rapid traverse Milling head swivel range +/- 45°, quill stroke 90 mm Connected load approx. 14 kW Incl. coolant device Electric tensioner, bracket cover

This 6-axis Takisawa TS-4000YS was manufactured in 2021. It features a maximum swing diameter of Ø 600 mm and a turning diameter of Ø 370 mm with a length of 750 mm. The machine includes a powerful 22 kW main motor and a counter spindle with a speed of 6000 rpm. If you are looking to get high-quality turning capabilities, consider the Takisawa TS-4000YS turn-mill centre we have for sale. Contact us for further details.

Universal CNC Milling Machine CNC MAHO MH 400 E Travel X: 400 mm Travel Y: 375 mm Travel Z: 250 mm Numerical Command CNC PHILIPS 432 Table: 700 x 270 mm Cone: SA40 Spindle speed: from 80 to 4000 RPM Year of construction: 1987 Central lubrication Manually swivel head Supplied with doc + machine parameters Voltage: 380 V Width: 2200 mm Depth: 2000 mm Total height: 2000 mm Weight: approx 1,5 T

1 CNC turning and milling center Make: Heyligenstaedt Model: Hn35U/4000 Flex Year of construction: 1994 Control: CNC Siemens 840T Technical data: Working Range: - Turning length: 4000 mm - Circumferential diameter over bed: 890 mm Main Drive: - Power at 100% ED: 50 kW - Power at 50% ED: 69 kW Main spindle: - Spindle diameter in the front bearing: 200 mm - Spindle bore: 120 mm - Spindle head shape: Form A DIN55026 Gr15 - Speed range: 1 – 1800 rpm Feed: - Rapid traverse speed max.: 15 m/min Tool carrier system: - Tool interface: Capto C8 - Y-axis linear range of motion: +/- 130 mm - X-axis linear range of motion: 490 mm - Tool magazine: 36 tools Tailstock: - Quill diameter/stroke: 125 mm / 140mm - Axial force min/max: 16000/2500 N - Inner cone quill: MK 5

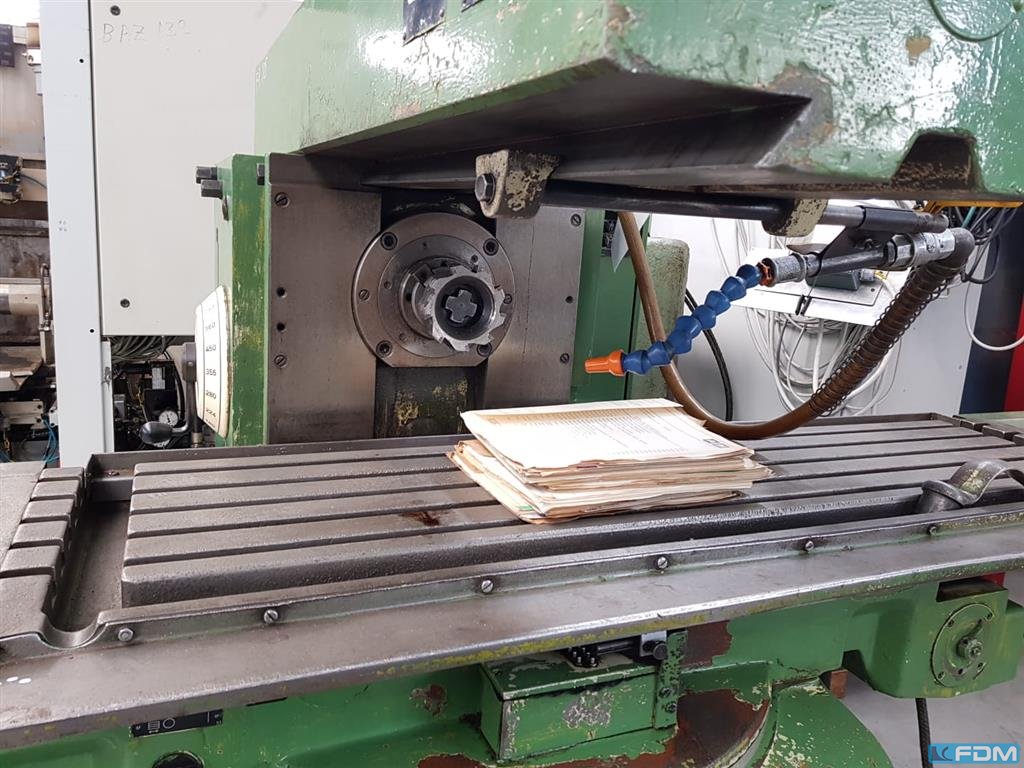

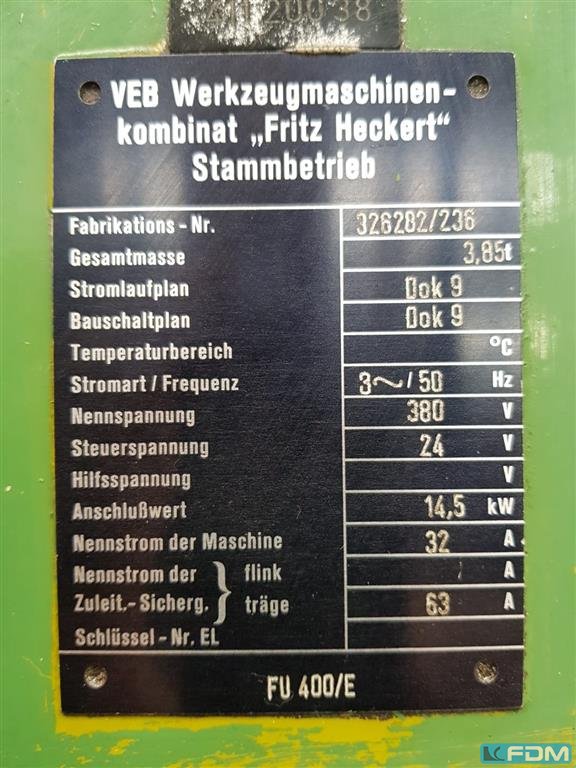

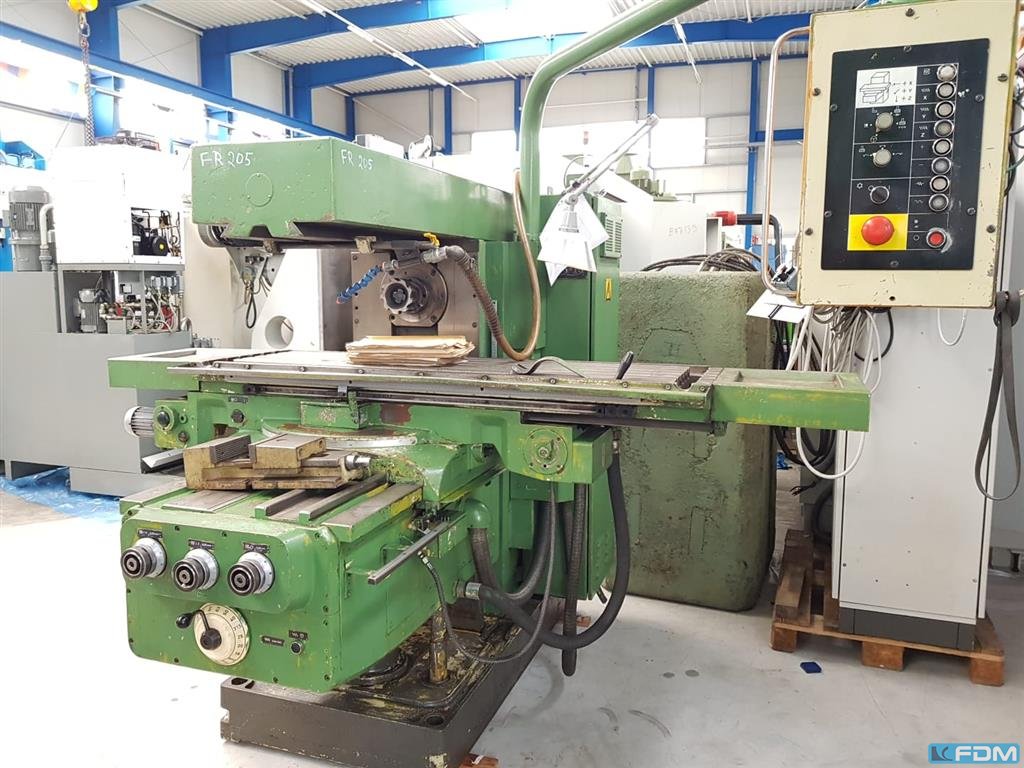

x-travel:1120 mm y-travel:370 mm z-travel:410 mm total power requirement:14,5 kW weight of the machine ca.:3850 kg dimensions of the machine ca.:3,5 x 3,5 x 2,2 m Table dimensions:400 x 1600 mm spindle taper ISO:50

2007 Union Bielefeld BF 400 U2 Bed milling machine. Mechanically it is completely fine, but there is a defect in the control system. no Machine is no longer used at all. All motors are running and mechanically everything is fine. I cant say what exactly is wrong with the control system. Find more here - .ucymachines/ Contact us at - sales@ucymachines

Manufacturer: Butler Model: Elgamill TE 4000 Condition: Used Type of Machine: Horizontal Bed-Type Milling Machine Plate Size: 4340 × 1000 Table Size: 1000 × 1000 Control System: Siemens 810 M Spindle Hub: 480 × 360 Tool Holder Spaces: 130 Travel (X, Y, Z): 4000 × 1600 × 1000 Max Weight: 10500 kg Find more here - .ucymachines/ Contact us at - sales@ucymachines

Inv. Num. : 8265 Type: FU 400/V/2 Producer: Heckert Generated: Parameters: Work table length: 1600 mm Work table width: 400 mm Maximum vertical spindle speed: 1400 1/min X-axis travel: 1150 mm Y-axis travel: 370 mm Z-axis travel: 430 mm Machine height: 1980 mm Machine length: 2490 mm Machine width: 2270 mm Machine weight: 3850 kg

A Gildemeister CNC double-spindle turning and milling center including coolant system and chip conveyor is available. Turning diameter over bed: 640mm, machining diameter: 400mm, center distance: 1930mm, travel X/Z: 550mm/1585mm, travel Y: +/-110mm, B-axis: +/-120° (interpolating), C-axis: 360°. Main spindle: power: 36kW/45kW, speed: 4000rpm, torque: 600Nm-730Nm, bore: 107mm. Milling spindle: Speed: 12000rpm, power: 13.2kW/22kW, torque: 100Nm. Tool places: 60, carrier: turret 12-fold star SW 380, machine dimensions X/Y/Z: approx. 9300mm/4600mm/3100mm, weight: approx. 20000kg, control: Siemens Sinumerik 840D powerline. Documentation available. On-site inspection is possible.

Alpine pin mill A 400 CW. Mining by the buyer is required. 2 x available

Technical data shown on picture. Parts shown by hand not come.

x-travel: 400 mm y-travel: 375 mm z-travel: 250 mm table-size: 600 x 300 mm spindle taper ISO: 40 quill stroke: 50 mm spindle turning speed range: 50-400 , 400 - 3150 U/min CNC-control: TNC 135 voltage: 380 V / 50 Hz feeds: X+Z = 5 -1000 mm/min rapid traverse: X+Z = 2,4 m/min feeds: Y = 5 -670 mm/min rapid traverse feeds: Y = 1,6 m/min measuring system resolution capability: 0,005 mm total power requirement: 3,7 kW weight of the machine ca.: 0,9 t dimensions of the machine ca.: 1,9 x 1,8 x 1,70 m • HEIDENHAIN TNC 135 control, The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Heckert CWK 400 Built in 1995 Control Siemens 840 Travel X/Y/Z 650/650/680 mm Spindle speed up to 10,000 rpm HSK 40 Tool Changer Rotary table 400 x 500 mm, Conveyor Weight 12.5 t.

Spindle speed: 9000rpm, spindle tilt: -5°/45°, spindle stroke: 1000mm, spindle diameter: 30mm, table dimensions X/Y: 750mm/600mm, table height: 880mm, weight: approx. 300kg. An on-site inspection is possible.

Key data: 4230 mm, 2100 mm, 850 mm

X-axis: 4,230 mm Y-axis: 2,100 mm Z-axis: 850 mm CNC control: Heidenhain TNC 530 Spindle mount: ISO 50 Spindle speed: 6,000 rpm Tool changer: 30 places Table dimensions: 4,000 x 1,650 mm Stand spacing: 2,300 mm Equipped with: - Angle milling head - Touch probe button - Inner spindle cooling - Double chip conveyors - Cooling system -Operating instructions Country of origin: Taiwan Machine LxWxH: 9,000 x 3,500 x 4,000 mm +/- Machine weight: 30,000 kg

Dimensions (L/W/H): 2700x1400x1750 mm Weight: 1800 kg Total power requirement: 5 kw Control: The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dimensions (L/W/H): 2700x1400x16502 mm Weight: 1800 kg Total power requirement: 8 kw Control: The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dimensions (L/W/H): 3750x1400x1750 mm Weight: 1600 kg Total power requirement: 8 kw The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC portal milling machine TYPE: LF3550/4000CS Year of manufacture: 1966 / overhauled 2010 Manufacturer: Waldrich Siegen Control: CNC840D-Powerline Routes: X-axis 14,000mm table longitudinal Y-axis 4.480mm slider-transverse Z-axis 3,000mm crossbeam vertical W-Axis 300mm Quill Vertical Max. Passage: transverse 3.200mm high 3.800mm Machine table: Length 14.770mm Width 3,100mm max. table load: 145 to Quill: Tool Taper: ISO60 Power: 100KW Max. torque: max. speed 600 rpm Rapid traverses: X-axis 12m/min Y; Z-axis 6m/min Attachment heads: Voltage: manual Description: Right angle milling head (ISO60) Orthogonal milling head (ISO60) Notes: Table guide hydrostatic

This 7-axis DMG Gildemeister GMX 400 linear was manufactured in 2004, featuring a maximum turning diameter of 640 mm and a turning length of 1,585 mm. It includes a Sinumerik 840D Powerline control, a milling spindle with a max speed of 12,000 rpm, and a tool magazine with up to 120 positions. If you are looking to get high-quality turn-mill capabilities, consider the DMG Gildemeister GMX 400 linear machine we have for sale. Contact us for more information.

Horizontal BAZ DMG MORI NHX 4000 with 2-fold pallet changer Year of Make: 2017 Control: Celos with Sinumerik 840Dsl Operate Program running hours: 21,000h Technical data: Spindle speed: 10 - 20,000 min-1 (motor spindle speedMASTER)® Drive power: 35/25 KW Torque: 130/85 Nm Tool holder: HSK 63 Number of magazine slots: 60 - Ring magazine Travels: X-axis: 560mm Y-axis: 560mm Z-axis: 660mm C-axis: 0.001° Pallet size: 400x400mm Accessories: 2-fold pallet changer Coolant system for IKZ 70bar Chip conveyor Renishaw 3D - Pushbutton

x-travel: 4.000 mm y-travel: 1.700 mm z-travel: 1.500 mm control: HEIDENHAIN iTNC 530 clamping table: - surface area: 4.200 x 1.100 mm max. workpiece weight: 10.000 kg/m² T-slot number x size: 7 x 22 mm Abstand 150 mm feeds: - X-, Y- and Z-axis, stepless: 2 - 10.000 mm/min Orthogonal indexable milling head: - Swiveling area front/back level: 0,02 x 0,02 ° = 162 Pos., Power at S1/S6 ED: 30 kW Speed range, stepless: 60 - 6.000 min-1 max. torque: 1.500 Nm tool taper: SK 50 – DIN 69871 ZF - Gearbox: 2 Getriebestufen automatic tool changer ATC: - Tool places: 60 Plätze diameter of tools max.: 125/200 mm workpiece length: 400 mm weight of tools max.: 25 kg changing positions: Horizontal/Vertikal total power requirement: kW weight of the machine ca.: 50 t dimensions of the machine ca.: 11,0 x 6,0 x 4,6 m Equipment / Accessories Universal milling head UAD, 0.02x0.02°, positioning via inter ...

Various CNC and conventionally controlled milling machines, make Fritz Heckert, are available. 1) Fritz Heckert FU 315/E, weight: approx. 4000kg. 2) Fritz Heckert FU 315 2/PS, weight: approx. 3900kg. 3) Fritz Heckert FU 315 2/PS, weight: approx. 3900kg. 4) Fritz Heckert FU 315 2/PS, weight: approx. 3900kg. 5) Fritz Heckert FU 315/E, weight: approx. 3200kg. 6) Fritz Heckert FW 400/E, weight: approx. 3700kg. 7) Fritz Heckert FU 315 x 12. 8) Fritz Heckert FU 315, weight: approx. 3100kg. An on-site inspection is possible.

x-travel: 600 mm y-travel: 400 mm z-travel: 400 mm table-size: 800 x 400 mm spindle taper ISO: Sk 40 spindle turning speed range: 10 - 3150 U/min quill stroke: mm total power requirement: 12,0 kVA weight of the machine ca.: 2,2 t dimensions: 2,0 x 1,85 x 1,95 m CNC Universal Milling Machine - Heidenhain TNC 310 with handwheel - Hydraulic tool clamp - Central lubrication - Coolant system - Machine light - Machine feet - Enclosure The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Thread milling machine WMW GFL 400x2000 with change gears.

Universal tool milling machine WAGNER FCA 400 -Year of construction 2008 -CE marking -3-axis digital display -Travel X/Y/Z 450x400x400mm -Rigid angle table 740x320mm -Automatic feeds in all three axes -Rapid traverses -Speed range 40-2000 rpm -Tool holder ISO 40 -Vertical / horizontal milling device -Vertical head with drilling quill -Safety handwheels -Coolant device -Horizontal - Counter bearings -Work light -Machine feet Dimensions LxWxH 1.4x1.2x1.9 meters / Weight 1800Kg

This 7-axis Gildemeister GMX 400 Linear was manufactured in 2005. It features a maximum turning diameter of 640 mm and a turning length of 1585 mm. The machine is equipped with a Siemens Sinumerik 840D Powerline CNC control and offers rapid traverse speeds of 40 m/min in the X-axis. If you are looking to get high-quality turning and milling capabilities, consider the Gildemeister GMX 400 Linear turn-mill centre we have for sale. Contact us for further details.

x-travel: 400 mm y-travel: 375 mm z-travel: 250 mm Control: CNC 432 total power requirement: 7 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 3 x 3 x 2 m Nr. 3666 Universal tool milling machine MAHO MH 400 C - in need of repair - unclear defect - Arbeitsbereich: 400 x 375 x 250 Steuerung: Philipps CNC 432 - Bahnsteuerung Spindle SK 40 Speed range 80 - 4000 rpm Dimensions: 2.20 x 1.60 x 1.70 m Weight approx. 1500 kg The machine comes from a trade-in, Screen appears, control cannot be switched on Unknown defects Machine is sold as a spare parts carrier / hobbyist machine The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 700 mm y-travel: 450 mm z-travel: 450 mm Control: Heidenhain type: TNC 355 table surface area: 800x500 mm universal head: : spindle taper ISO: 40 total power requirement: kW weight of the machine ca.: 2,7 t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of Log ...

x-travel: 560 mm y-travel: 560 mm z-travel: 630 mm Control: MSX 701 III MAPPS Main spindle:: Max. rpm: 14.000 min/-1 power capacity - main spindel: 18,5 / 11 kW max. Torque: 120 Nm tool taper: MAS BT 40 distance spindle center to table: 80 - 640 mm distance Spindlenose and center of table: 100 - 730 mm pallet changer:: numbers of pallets: 2 size of pallet: 400 x 400 mm max. workpiece weight: 400 kg max. workpiecediameter: 630 mm max. workpiece height: 900 mm change time of pallets: 6,0 sec b - axis: 0,001 ° Tool-Presetter:: number of toolpositions: 60 pos. tool taper: MAS BT 40 max. tool diameter: 70 / (140) mm max. tool length: 400 mm max. tool weight: 8,0 kg feeds:: rapid traverse ( X / Y / Z ): 50 m/min feed speeds: 0 - 50.000 mm/min Tipp feed: 0 - 1.260 mm/min total power requirement: 35 kVA weight of the machine ca.: 9,8 t dimensions of the machine ca.: 5,5 x 3,5 x 2,8 m Docume ...

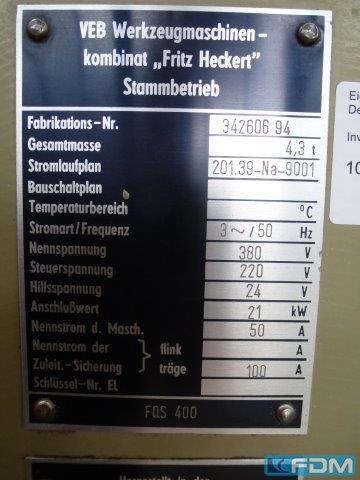

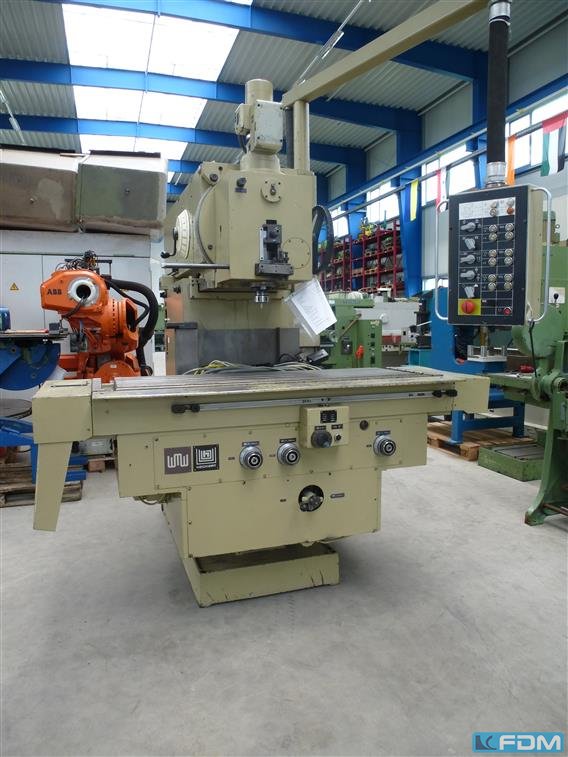

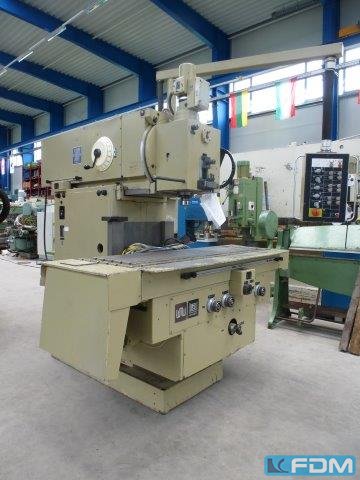

x-travel: 1190 mm y-travel: 530 mm z-travel: 540 mm table-size: 1600 x 400 mm spindle drive: 11 kW tool taper: ISO 50 turning speeds: 28-1400 U/min feeds: 16-800 mm/U total power requirement: 21 kW weight of the machine ca.: 4,8 t dimensions of the machine ca.: m X-axis travel: 1,190 mm Y-axis travel: 530 mm Z-axis travel: 540 mm Table size: 1,600 × 400 mm Spindle motor: 11 kW Tool holder: ISO 50 Spindle speed range: 28 – 1,400 rpm Feed rate: 16 – 800 mm/min Total power requirement: 21 kW Machine weight: approx. 4.8 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 - 1600 mm y-travel: 250 - 800 mm z-travel: 350 - 800 mm Control: CNC weight of the machine ca.: 1,6 - 16 t dimensions of the machine ca.: - m MAHO - Package from stock clearance - Special price for sale 4 x milling machine -MAHO MH 400 C - CNC 432 -MAHO MH 700 C - CNC 432 -MAHO MH 800 T - CNC 332 -MAHO MH 1600 S - CNC 432 EXW - Ex works Bensheim / Lorsch Free lorry The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 mm y-travel: 375 mm z-travel: 250 mm table-size: 205 x 800 mm T-slots: 4 x 45 14 H7 speeds: 50 - 3150 U/min tool taper: 40 ISO quill stroke: 50,0 mm Feeds X + Z Axis: 5.0 - 1000 mm/min Feeds Y Axis: 5.0 - 670 mm/min rapid traverse: 2.4 / 1.6 m/min control: Heidenhain total power requirement: 5.1 kW weight: 950 kg range L-W-H: 1860 x 1790 x 1750 mm Machine from a vocational training center In good condition () Equipment: - MAHO universal tool milling/drilling machine - HEIDENHAIN TNC 135 positioning/path control 3-axis manual data input control Programmable by the machine operator Convenient and easy operation - Electric motor-driven feed rates in all axes (X/Z/Y) X and Z axis: 5.0 - 1000 mm/min with rapid traverse of 2.4 m/min Y axis: 5.0 - 670 mm/min with rapid traverse of 1.6 m/min - Tiltable milling head to both sides - Tiltable T-slot universal table - Vertical c ...

MAHO MH 400 ist eine CNC Fräsmaschine hoher Präzision, für grosse Genauigkeit und Zuverlässigkeit. Rundtisch Ø400 mm; Wege X 400 mm, Y 375 mm, Z 350 mm; max. Werkstückgewicht 160 kg. Spindelaufnahme ISO40; Drehzahlen 20–3150 t/min; Anschluss 3x380 V 50 Hz; Leistung 9 kVA; Gewicht ~1600 kg; Abmessungen 1600×2200×1670 mm. Erreicht enge Toleranzen; geeignet für Automotive, Luftfahrt, Medizintechnik, Uhrenbau, Werkzeugmaschinenbau. Technische Daten ohne Gewähr

Vision Wide VF4000 portal milling machine for sale. 2-axis milling head (1 degree C-axis and 1 degree B-axis) with position determination Encoder SK50 VTEC VF4000 Dimensions X-axis 4200 Y-axis 2300 Z-Axis 1020 Tool magazine 40WZ Control Siemens 840D SL

MIKRON XSM 400 is a CNC Hochgeschwindigkeits Fräsmaschine, ausgelegt für hochpräzise Bearbeitung mit hoher Genauigkeit und Zuverlässigkeit. Verfahrwege X 400 mm, Y 450 mm, Z 350 mm; max. Werkstückgewicht auf dem Tisch 100 kg; Paletten EROWA 320x320 mm, Anzahl Paletten 7; Werkzeugmagazin 68 Plätze. Spindelaufnahme HSK E 40 bis 42000 t/min; Frässpindelmotor 14 kW; Anschluss 50 Hz 3x 400 V; Maschinengewicht ca. 6500 kg; Abmessungen ca. 4000x4000 mm. Zubehör: Späneförderer; Kühlmitteleinrichtung; Kühlnebelsprüheinrichtung; Papierfilteranlage; Beleuchtung; Kühlmittel-/Nebelabsaugung; Palettenwechseleinrichtung; Zustandsleuchte. Geeignet für enge Toleranzen in Branchen wie Automobil, Uhrmacherei, Werkzeugbau, Luft- und Raumfahrt und Medizintechnik. Technische Daten ohne Gewähr

MAKTEK VM 400 CNC vertical machining center was built in 2015 in Poland by MAKTEK Jerzy Zalewski (currently CORMAK). The machine is suitable for both unit and series production, particularly for manufacturing components requiring high precision and repeatability. It enables precise milling, threading and drilling of workpieces using a reliable spindle. The spindle, driven by a high-power motor, reaches a maximum speed of 4000 rpm. It cooperates with an automatic, 10-position tool magazine, streamlining the subsequent machining operations. The rigid design of the MAKTEK VM 400 CNC milling machine ensures stable operation even during intensive use. The machine is equipped with a SIEMENS SINUMERIK 808D MILLING CNC controller with an intuitive interface. The VM400 CNC machining center weighs 1850 kg. Technical specifications of the MAKTEK VM 400 milling center - CNC controller: SIEMENS S ...

Deckel-Maho DMU50 X: 500 - Y: 400 - Z: 400 mm CNC Max longitudinal travel X-axe: 500 mm Max cross-travel Y-axe: 400 mm Max travel Z-axe: 400 mm Power on spindle: 13 kW Admission in boring head (ISO): BT 40 Spindlespeeds: 20 > 9000 rpm Table size: 700 x 500 mm Control: Heidenhain TNC 426 Length: 2700 mm Depth : 2700 mm Height: 2500 mm Weight: 3,5 ton Toolholder: yes Number of tools: 16 positions

GeneralHorizontal machining center; Control: Siemens S840Dsl with CELOS CharacteristicsSpeed max.-20000 rpmDrive power (100% DC)25 kWDimensions (L x W x H)2,68 x 4,19 x 2,54 mMax. tool length450 mmSpindle taperHSK-A 63 Tool Magazine with60 PositionsRapid feed X / Y / Z60/60/60 m/minMovement X / Y / Z560/560/660 mmPalett changer with2 PalletMax. work piece height900 mmMax. work piece diameter630 mmMaximum load (table centre)400 KgSwivelling range360x1 degreeTable size400x400 mmDrive power (40% DC)42 kWWeight approx.8500 KgPreparation for Center Through-spindle coolant systemCenter Through-Spindle Coolant System It can supply coolant through the holes of the spindle and tool. The coolant supply path to the tool tip is a center-through type. Effective for removing chips, cooling a machining point and prolonging a tool life.Spindle Taper HSK-A63Spindle Taper HSK-A63 This specification uses t ...

GeneralHorizontal machining center; Control: Siemens S840Dsl with CELOS CharacteristicsSpeed max.-15000 rpmDimensions (L x W x H)2,68 x 4,19 x 2,54 mMax. tool length450 mmSpindle taperHSK-A 63 Tool Magazine with60 PositionsRapid feed X / Y / Z60/60/60 m/minMovement X / Y / Z560/560/660 mmPalett changer with2 PalletMax. work piece height900 mmMax. work piece diameter630 mmMaximum load (table centre)400 KgSwivelling range360x1 degreeTable size400x400 mmDrive power (40% DC)46 kWDrive power (100% DC)30 kWWeight approx.8500 KgHigh-torque spindle 46 /30 kW, 15,000 min-1High-torque spindle 46 /30 kW, 15,000 min-1 (SIEMENS)Preparation for Center Through-spindle coolant systemCenter Through-Spindle Coolant System It can supply coolant through the holes of the spindle and tool. The coolant supply path to the tool tip is a center-through type. Effective for removing chips, cooling a machining point ...

GeneralHorizontal Machining Centre; Control: Fanuc F31iB CharacteristicsSpeed max.-14000 rpmDimensions (L x W x H)2,36 x 3,92 x 2,72 mMax. tool length400 mmSpindle taperBT 40 Tool Magazine with40 PositionsRapid feed X / Y / Z50/50/50 m/minMovement X / Y / Z560/560/630 mmPalett changer with2 PalletMax. work piece diameter630 mmMax. work piece height900 mmMaximum load (table centre)400 KgSwivelling range360x1 degreeTable size400x400 mmDrive power (40% DC)18,5 kWDrive power (100% DC)11 kWWeight approx.9600 KgSpecial equipmentJ-011462 Tool holder taper for BT-40 tool holders J-011460 Max. spindle speed 14,000 rpm, 18.5/11 kW J-011470 Scraper-type chip conveyor with drum filter, rear discharge J-007252 CTS (DIN Form B) coolant supply through the spindle J-011461 40-station toolSpecial equipmentJ-001212 Coolant gun for the operator side J-003686 Manual pulse generator, handwheel (separate type ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:710 x 410 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 B table load:180 kg no. of flutes:8 groove width:14/25 mm tool taper:SK 40 speeds::20 - 3000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Year:ca. 1984 Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel

x-travel:1190 mm total power requirement:25 kW feeds::3 - 2000 mm/min weight of the machine ca.:4,3 t table-size:1600 x 400, 5 Spannbacken mm dimensions of the machine ca.:4000 x 3600 x 2200 mm speeds:45 - 1800 U/min y-travel:530 mm z-travel:540 mm tool taper:ISO 50 control cabinet:940 kg

x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:400 x 710 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 table load:180 kg no. of flutes:8 groove width:14/45 mm tool taper:ISA 40 speeds::20 - 3000 /28- 4000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Documents:inkl. Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel

Creo Lotem 400 Manufacturer: Creo Model: Lotem 400 Year: 2005 4-page format Plate min.: 381 x 318 mm Plate max.: 750 x 622 mm F Speed: 15 plates/hour fiber head 24 diodes, 830nm Resolution :up to 3556 dpi ,Platewinding 37800 Bacher Control 2000 Punch Workflow ,Creo Prinergy Evo
