rolling mill 400 used for sale

working width: 400 mm; maximum workpiece thickness: 300 mm; min. Workpiece length: 250 mm; aggregate: 2 brushing units separately adjustable; 1. brush: metal brush 220mm; 2. brush: tynex brush, granulation 80, diameter 220mm; height adjustment: handwheel; height adjustment: mechanical counter; feed speed: 4 - 12 m/min; motor power brush: 2 x 3 kW; motor power feed: 0,37 kW; machine length: 1400mm; machine width: 900mm; weight: 500kg;

Surplus/Never Used/Never Installed Enerflex Built Electric Driven Natural Gas Compressors with a 400 H.P. Motor & Ariel JG2/1 Compressor Four (4) Surplus, Never Used, Never Installed, Enerflex built, Natural gas compressors, with a US Electric Motor, 400 H.P. 1800 RPM Motor, an Ariel compressor JG2/1 Single Piston Compressor, Air Gas Cooler, Assembly, Logix PLC on each unit, Automatic Recycle Valve for Capacity Control, Dual Coalescent Filters and Scrubbers.

This 3-axis MAHR Compakt 400 was manufactured in 2001. It features optical and tactile measurement functionality, allowing for precise measurement of rotationally symmetrical components. The machine includes a rotary axis with a Sanyo Denki motor drive, a 6-position probe change rack, and multiple probe configurations. If you are looking to get high-quality measurement capabilities, consider the MAHR Compakt 400 CMM machine we have for sale. Contact us for further details.

Additional technical specifications: • Swivel radius of control panel: 1050 mm • Acceleration X/Y/Z: 10 m/qs

Key data: 1500 kN, 184 g/PS, 40 mm

Arburg 470C-1500-400 Injection moulding machine with Multilift robot, safety cage, 2 conveyor belts and sorting flap (262) Servo motor pump drive = lower energy consumption and more economical operation Availability: in stock Year of production: 2017 Producer: Arburg Condition of Injection Molding Machine: Used Screw diameter [mm]: 40 Injection weight [g]: 184 Injection pressure [bar]: 2000 Clamping force [kN]: 1500 Gap spacing [mm]: 470 x 470 Plate size [mm]: 650 x 650 Minimum mould height [mm]: 250 Control Type: Selogica Tongue: English, German Installed power [kW]: 38 kW (pump drive via 18.5 kW servo motor) Working time [h]: 17809 Weight [kg]: 4850 Dimensions [mm]: 4500×1700 Feed hopper: Yes Core string: 2x Robot connection: 67 Euro

Duplo system 4000, consisting of the following components:, Duplo DC-10/60 collator, Duplo DBM400 bookletmaker (Stitcher+folder, 2xHohner 48/5S), Duplo DBM400t trimmer, Duplo DBM SS1 short stacker, Duplo DC-4000 bridge, Duplo 4000 LUL-HM, Duplo DC12JR vibrating table, this line can collate up to 10.000 sets per hour or 4,200 booklets per hour, Max size: 350x500 mm, Paper weights: 40-300 grams, bin capacity: up to 65 mm, 10 bins, suction feed with built in pump, double sheet and missing sheet control, Collating speed: 10000, Booklet making speed: 420, Bins: 10, Max size: 350x500 mm

Overview This Scaligera ULISSE 4000 is a sleeve labeling machine for cans, built in 2016 by Scaligera Packaging in Italy. It applies sleeves to sleek and standard cans at up to 4,000 cans per hour and comes with its matching Scaligera steam shrink tunnel from the same year. The line ran carbonated soft drinks in cans and was in production until early September 2023. The machine runs left to right. Sleeves are cut from the reel, opened and placed over the can in the sleever; the steam tunnel then shrinks them tight onto the can body. Technical data Manufacturer: Scaligera Model: ULISSE 4000 Year of manufacture: 2016 Machine type: sleeve labeler with steam shrink tunnel Output: up to 4,000 cans/h Containers: sleek and standard cans Machine direction: left to right Power supply: 400 V, 3-phase, 50 Hz Connected load: 8 kW in total (sleever 2 kW, steam tunnel 6 kW) Max. current: sleever 7 A,  ...

; Power [PS]: 544; Gross weight [kg]: 12000; Engine: Battery System: LIFePO4; Accessories: Tanker, Control Panel, Wiring port: L1, L2, L3, N, PE, Power Input:, - AC socket: 3P/5W, 1x400kW, 4x20kW, - AC copper: 3P/4W, 400kW, - DC socket: 110kW, Power Output:, - AC socket: 3P/5W, 1x400kW, - AC socket: 1P, 1x16A; 3P, 1x32A, - AC copper: 3P/4W, 400

turning diameter over bed: 4000 mm turning diameter over slide rest: 3500 mm turning length: 30000 mm centre height: 2000 mm workpiece weight: 160 t bed width: - mm bed height over floor: - spindle turning speed range: 0,5 - 80 U/min main drive motor: - kW faceplate diameter: - mm Control: Siemens 840D total power requirement: - kVA weight of the machine ca.: 160 t 2006 modernized/Overhauled and equipped with: - 4-guides bedway - CNC Control Siemens 840D - Face Plate - Counter Stay The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 385 mm max. turning diameter: 620 mm turning length: 958 mm control: MSD 501 II Mori Seiki greates pass round over bed: 710 mm Swing dia. over traverse guideway: 738 mm centre distance: 1.125 mm Main spindle:: turning speed range - main spindle: 10 - 1.600 min/-1 power capacity - main spindel: 30 / 22 kW spindle bearing diameter: 180 mm spindle bore: 130 mm spindle nose: JIS A2-11 axis stroke:: x-axis: 345 (310+35) mm z-axis: 995 mm turret:: number of toolpositions: 12 pos. Shank height for square tool: 32 mm Drill shank diameter: max. 60 mm turret change time: 0,4 sec. Tailstock:: tailstock adjustment: 850 mm dia. of quill: 110 mm taper of center: MK 5 quill stroke: 150 mm feeds:: rapid traverse: X: 20 / Z: 24 m/min Tipp feed: 0 - 1.260 mm/min total power requirement: 64 kVA weight of the machine ca.: 11,5 t dimensions of the machine ca.: 5,0 x 2,5 x 2,5 m Documen ...

DELTA LC 400 - Rotary Table Grinding Machine -Magnetic clamping plate (rotary table) 300mm -Max. grinding diameter 400mm -Grinding height (distance table - grinding wheel) approx. 230mm -Spindle speed 2850 rpm -Fine adjustment 0.01 mm -Distance column - grinding wheel axle approx. 320mm -Spindle motor 3 KW -Grinding wheel dimensions 200x80x78mm -Machine enclosure -Coolant device -Documentation Dimensions: LxWxH 1.2x0.8x1.8 meters / weight approx. 700Kg

The machine is in good technical condition; inspection is possible by prior arrangement.

Pump Manufacturer: Habermann Model: 150/400 The pump is defective, parts are already missing, is sold as a spare parts carrier. For more details, see pictures. Internal number: 629 061

Duplo System 4000 - 2xcollator with 10bins DC-10/60 - stitching and folding unit DBM 400 - Trimmer DBM 400T - short conveyor DBM ——— 2xDC-10 collator, System 4000 - number of bins: 10 - paper size: min. 120x148mm, max. 350x500mm - paper weight: 0-300g/sqm - loading volume: 60mm - feeding system: belt suction feed system - conveyance system: roller belt conveyance system - power supply: 120 to 240 V 50/60 Hz - power consumption: 9.5A (120 V 60 Hz), 4.5A(220-240V, 50Hz) DBM-400 stitching and folding - paper size: min. 120x170mm, max. 350x500mm - process speed: up to 4200pcs/h - dimensions: 1448 x 686mm x 914mm - ratings: 120V 60Hz 8A - weight: 290kg DBM-400T Trimmer - booklet size: min. 85x120mm, max. 250x356mm - trimmed booklet size: min. 75x120mm - speed: ut to 4200 sets per hour - power consumption: 120V 60Hz 8.5A - dimensions: 1244mm x 700mm x 1067mm - weight: 200kg

Manufacturer: HAAS Model: EC 400 4AX HE Year: 2006 Condition: Used Stock number: 9566 Maximum pallet load: 300 kg Maximum spindle speed: 12000 1/min X-axis travel: 508 mm Y-axis travel: 508 mm Travel Z-axis: 508 mm

ZIPPEL REMA K1 400 3 LB Industrial parts cleaning plant (washing plant) Year of construction 2013 Washing, rinsing Drying in a continuous system with washing basket to remove oils, chips and dirt from workpieces before further processing or assembly. Approval according to WHG. System still under power. Machine description – see PDF. All technical information, illustrations and content are non-binding and without guarantee. Subject to changes and errors. All other accessories visible in the photos are not included in the scope of delivery, therefore not a component for this sale. The scope of delivery only includes the accessories that are expressly listed here, in the order confirmation and invoice. EXW (Ex Works) D-92729 Weiherhammer Exclusively dismantling, spreading and loading Delivery time immediately Subject to prior sale / payment immediately upon completion  ...

Key data: 4040 mm, 1 mm

used Schechtl swivel bending machine, with roller shears on the upper beam, Two foot switches, attachment rail 10 and 20m m Machine is repaired, checked, cleaned by a specialist and is then fully functional. Test run is being carried out Working length: 4040 mm Sheet thickness steel: 1.5 mm Sheet thickness aluminum: 2.0 mm Sheet thickness front: 1.0 mm without backgauge Colour: grey/blue Total power requirement: 16 A Dimensions: 4965 x 720 x 1220 mm Machine weight: 3950 kg Upper beam stroke: 140 mm with roller scissors/ Opening width: 140 mm Bending angle (max.): 160 degrees Underbeam adjustment yes Machine number: MA7675

Used HOESCH chamber filter press. Technical specifications: Manufacturer – Hoesch Germany Type – 40/400806/4 Capacity – approximately 0.5 m3 Filtration area – approximately 40 m2 Operating pressure – up to 0.4 MPa Frame material – polypropylene Number of frames – 41 Year of manufacture – 1988 Plate size – 800 x 800 mm Operating pressure – approximately 6 bar Electrical box with press control.

Prints labels and applies them straight away, This labeller prints the label as the pack arrives and then blows it onto the pack with air (blow applicator). That lets you put current data such as date, weight or lot number directly on the product. Printer and applicator hang from a column above a short conveyor and can be adjusted in height., According to the documentation supplied with the machine, it is an LPX 400 blow labeling system from Van Oers United. We did not find a rating plate with the year of manufacture., Located in Emmeloord, the Netherlands. Immediately available, price on request., More photos and full specifications: stcfoodsolutions.nl/en/machine/van-oers-lpx-400-print-and-apply-labell er/, Type: Print and apply labeller, Print method: Thermal transfer (ribbon), Application: Blow applicator (air), Construction: On column with conveyor, height adjustable

Inclined conveyor for moving product in food processing lines, This Eillert TR-3700-400-425 is an inclined belt conveyor with a stainless steel frame and a blue plastic belt fitted with cleats. It stands on a mobile frame with adjustable feet, allowing the conveyor to be levelled and repositioned on site. The drive runs on 400V three-phase power and is fitted with its own control box with start-stop button. Eillert, based in Ulft in the Netherlands, is known as a manufacturer of processing machinery for the vegetable, fruit and potato sector., Located in Emmeloord, the Netherlands. Immediately available. Asking price: EUR 7,000., More photos and full specifications: stcfoodsolutions.nl/en/machine/eillert-tr-3700-400-425/, Type: Inclined belt conveyor, Belt: Blue plastic belt with cleats, Frame: Stainless steel, mobile, adjustable feet, Power supply: 400 V, three-phase, Controls: Own cont ...

The scope of delivery includes: 01x L - Collision protection corner, new Material colour: hot-dip galvanised Leg design: Corners slanted Total height: approx. 400 mm Total width: approx. 310 mm Total depth: approx. 180 mm Leg length (A): approx. 175 mm Leg length (W): approx. 175 mm Hole spacing: approx. 128 mm Drill hole Ø: approx. 14 mm Weight | Pcs.: approx. 6.01 kg Material thickness: 5 mm General information about the article: This item is only offered for collection. An additional transport requested or a shipment of this item is associated with additional costs, which will be charged separately depending on the delivery location or scope of delivery.

The scope of delivery includes: 01x L - Collision protection corner, new Material colour: RAL 1018 zinc yellow / black according to DIN standard Total height: 400 mm Leg length (A): 170 mm Leg length (W): 170 mm Material thickness: 5 mm Required dowels: 4 pcs. Weight pcs.: 6.10 kg Dkobq Aez Nvp Nsazuasu General information about the article: This item is only offered for collection. An additional transport requested or a shipment of this item is associated with additional costs, which will be charged separately depending on the delivery location or scope of delivery.

The scope of delivery includes: 01x U-shaped collision protection corner, new Material colour: yellow / black (according to DIN standard) Total height: 400 mm Total width: 340 mm Total depth: 205 mm Unit weight: 10.366 kg Opening inner dimensions: 240 mm Base plate: 50 x 200 mm Bore diameter: 15.5 mm Leg length at the bottom: 200 mm Top leg length: 200 mm Material thickness: 5 mm General information about the article: This item is only offered for collection. An additional transport requested or a shipment of this item is associated with additional costs, which will be charged separately depending on the delivery location or scope of delivery.

The scope of delivery includes: 01x U-shaped collision protection corner, new Material colour: yellow / black (according to DIN standard) Total height: 400 mm Total width: 350 mm Total depth: 200 mm Unit weight: 7.92 kg Opening inner dimension: 236 mm Base plate: 60 x 200 mm Bore diameter: 15.5 mm Leg length at the bottom: 200 mm Top leg length: 55 mm Material thickness: 5 mm General information about the article: This item is only offered for collection. An additional transport requested or a shipment of this item is associated with additional costs, which will be charged separately depending on the delivery location or scope of delivery.

Offer 26216 Technical data: - Saw blade diameter up to 400 mm - Mitre adjustable left + right up to 30° - Cutting range at 90° round + square 140 mm - Rectangle 210 x 120 mm - at 45° round + square 120 mm - at 30° round + square 105 mm - Cutting speeds infinitely adjustable 10 to 80 m/min - Feed speed of the saw blade hydr. infinitely variable - Pneumatic vise / vice - Coolant device + micro spray system - Discharge roller conveyor with dimension stop 3000 mm - Roller conveyor feed 3000 mm - Pneumatic connection 6 bar - Drive 400 V / 4.0 kW - Space requirement approx. W 1000 x H 1900 x D 1200 mm - Weight approx. 1000 kg

: neu : ca. 4 Monate ab Auftragse : Italien : 258000 € : 400 to : 500 mm : 5.000 x 3.050 mm : 700 mm : 20 mm/s : 2 mm/s : 4500 mm : 5000 mm : 2600 mm : 24000 kg : horizontal verschiebbar : 3050 mm : 2.200 mm : 3.600 mm Horizontal verschiebbarer Zylinder2.200 mm Hydraulisch beweglicher Ständer: 3.600 mm Bedienung über Handhebel sowie Bedienpanel Tisch mit integriertem Zylinder zum anheben des Werkstücks Ausrüstung gemäß CE Vorschriften Betriebsanleitung in DEUTSCH und ENGLISCH (Symbolfoto) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 4 Monate ab Auftragse : Italien : 218000 € : 400 to : 500 mm : 4.000 x 2.550 mm : 700 mm : 20 mm/s : 2 mm/s : 4000 mm : 4000 mm : 2600 mm : 20500 kg : horizontal verschiebbar : 2550 mm : 1.800 mm : 2.900 mm horizontal movable cylinder hydraulicaly movable stand control by levers as well as control panel according to CE regulations user manual in GERMAN and ENGLISH OPTIONS: Work table, welded to the base frame, with holes on the surface Control panel on the swivel arm (push buttons for press movement, solenoid valves, Siemens CPU) Radio control panel (push buttons for press movement, solenoid valves, Siemens CPU) Siemens control with touchscreen Lifting cylinders in the table (6, 8 or 10 pcs.) No-rotation shaft for the piston 2 speeds for stand movement and cylinder Oil cooler and decompression valve The data for this ad was created with ModulMWS - the software solution of  ...

Key data: 400 V, 500 , 400

New ElectroQuell emergency and continuous generator set – 500 kVA / 400 kW, Iveco CURSOR13TE7W diesel engine, 50 Hz / 400 V. Highlights: This generator has a 30 month warranty · Stamford Alternator & ComAp control module · Alternatively Leroy Somer or Mecc Alte · Also DEIF or DSE. PERFORMANCE DATA • Continuous power (PRP): 500 kVA / 400 kW • Emergency power (ESP): 520 kVA / 416 kW • Output: 400/230V, 50 Hz, 3-phase • Rated speed: 1500 rpm ENGINE • Manufacturer / Type: Iveco CURSOR13TE7W • Displacement (l): 12.9 • Bore × stroke (mm): 135 x 150 • Compression: 16.5:1 • Charging: Turbocharged & Intercooler • Injection: In-line Injection Pump • Speed Control: Mechanical • Cylinders: 6 DIMENSIONS & WEIGHT • L × W × H: 4810 × 1600 × 2560 mm (soundproofed hood) • Weight: 4890 kg • Fuel tank: 798 l • Sound level: 73 dB INC ...

Key data: 320 V, 400 , 400

New IVECO EQ-I400320 emergency and continuous power generator – 400 kVA / 320 kW, Iveco CURSOR13TE3A diesel engine, 50 Hz / 400 V. Highlights: Product from the EU · 30 Months Warranty · In stock - Only one piece available. PERFORMANCE DATA • Type: EQ-I400320 • Continuous power (PRP): 400 kVA / 320 kW • Emergency power (ESP): 440 kVA / 352 kW • Output: 400/230V, 50 Hz, 3-phase • Rated speed: 1500 rpm ENGINE • Manufacturer / Type: Iveco CURSOR13TE3A • Displacement (l): 12.9 • Bore × stroke (mm): 135 x 150 • Compression: 16.5:1 • Charging: Turbocharger with intercooler • Injection: in-line engine • Speed Control: Mechanical • Cylinders: 6 DIMENSIONS & WEIGHT • L × W × H: 4310 × 1600 × 2560 mm (soundproofed hood) • Weight: 4690 kg • Fuel tank: 798 l • Sound level: 70 dB INCLUDED 4-stroke industrial diesel engine, 1 ...

turning diameter: 400 mm turning length: 600 mm control: Turn Plus CNC Pilot 3190 total power requirement: 44 kVA weight of the machine ca.: 5 t dimensions of the machine ca.: 6 2,5 2 m Machine has been in use until now ( 2-axis turning ) Known defects: - Driven tools without function - Tailstock leaking - out of service - Sporadic problems hydraulics / leaking Kurzvideo: https://www.youtube.com/watch?v=OHlzAkbGW_U The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel:560 mm y-travel:560 mm z-travel:660 mm control:Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds:20 - 20.000 1/min spindle drive:25/ 35 kW max. torque on the spindle:86 / 130 tool taper:HSK-A63 Number of tool station:60 diameter of tools max.:70 mm Tool diameter with no neighbouring tools:170 mm tool length - max.:450 mm weight of tools max.:12 kg numbers of pallets:2 Pallet dimension:400 x 400 mm max. workpiece diameter:630 mm workpiece height max.:900 mm table load:400 kg rapid travel x/y/z:60 m/min Feed x/y/z:60 m/min internal coolant system feed:70 bar weight of the machine ca.:8,5 t dimensions:3200 x 4800 x 2900 mm Renishaw probe (spindle):Vorbereitung / preparation only Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar. The machine has just received a new milling spind ...

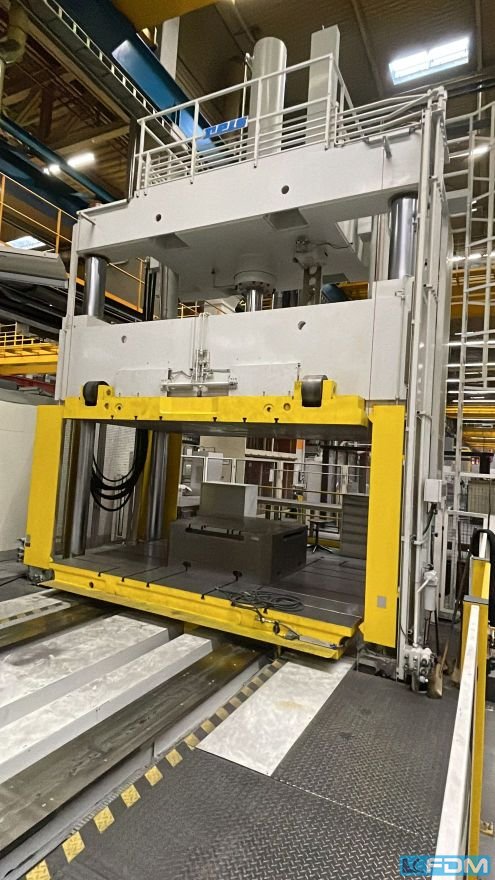

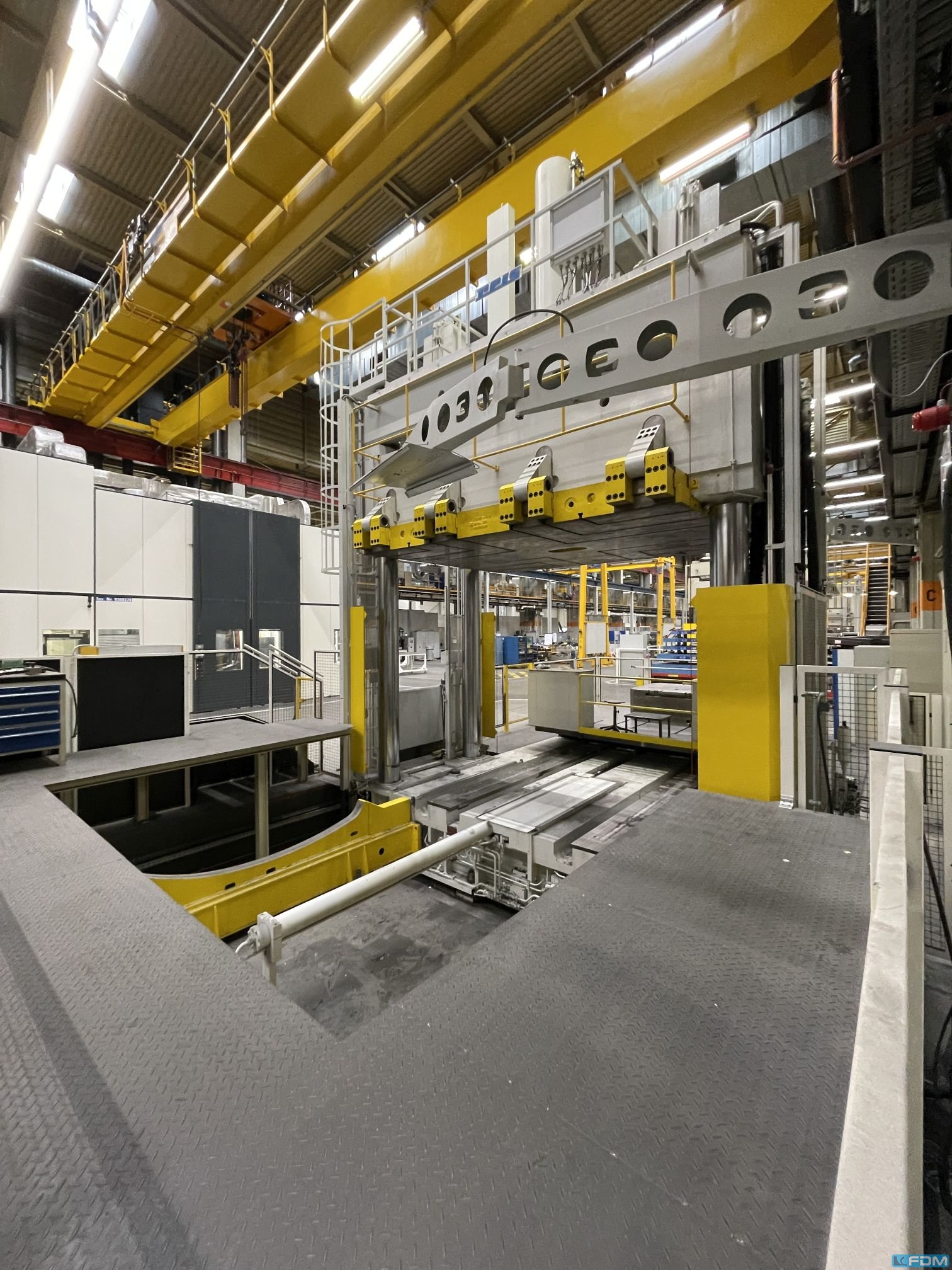

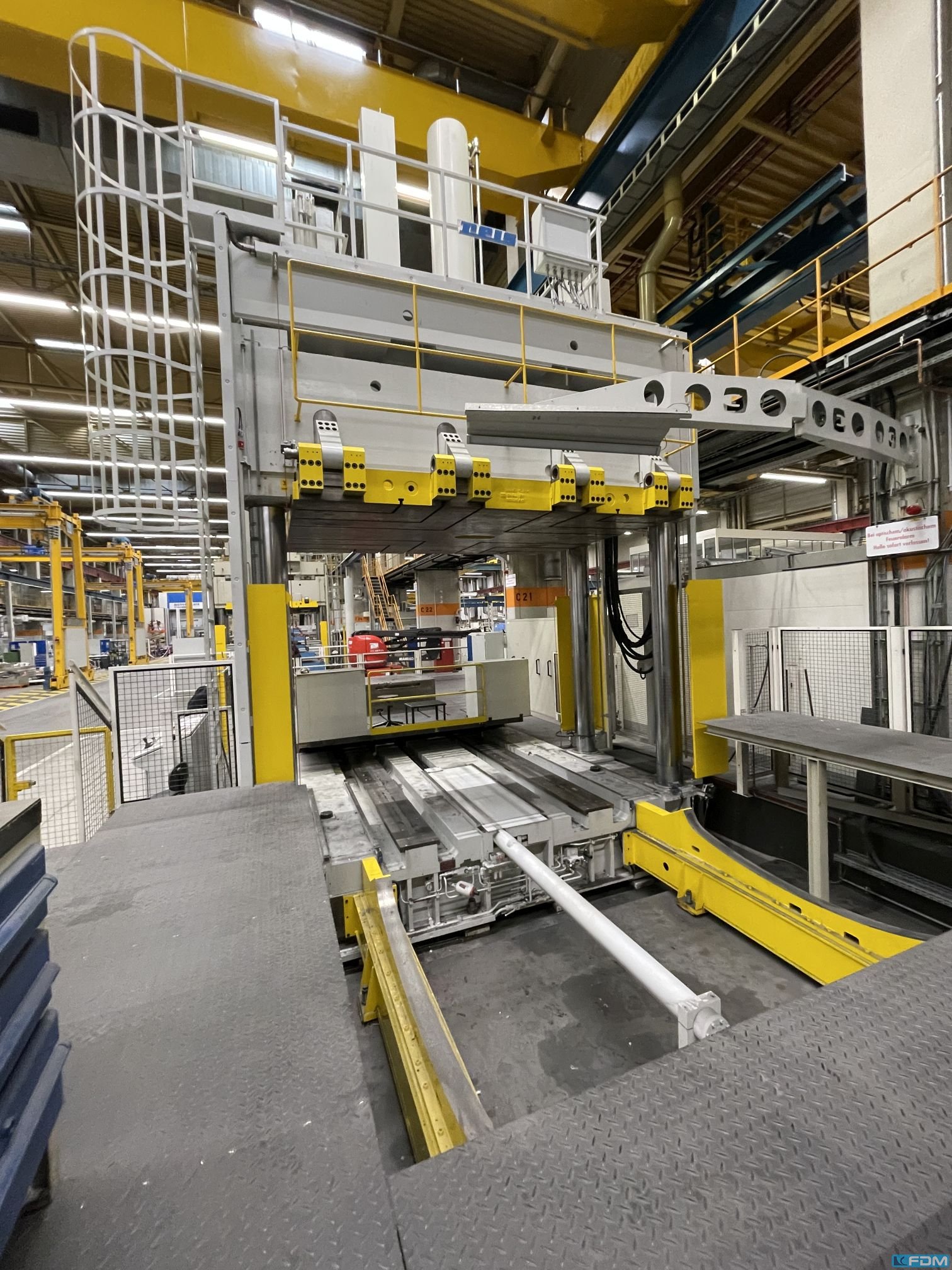

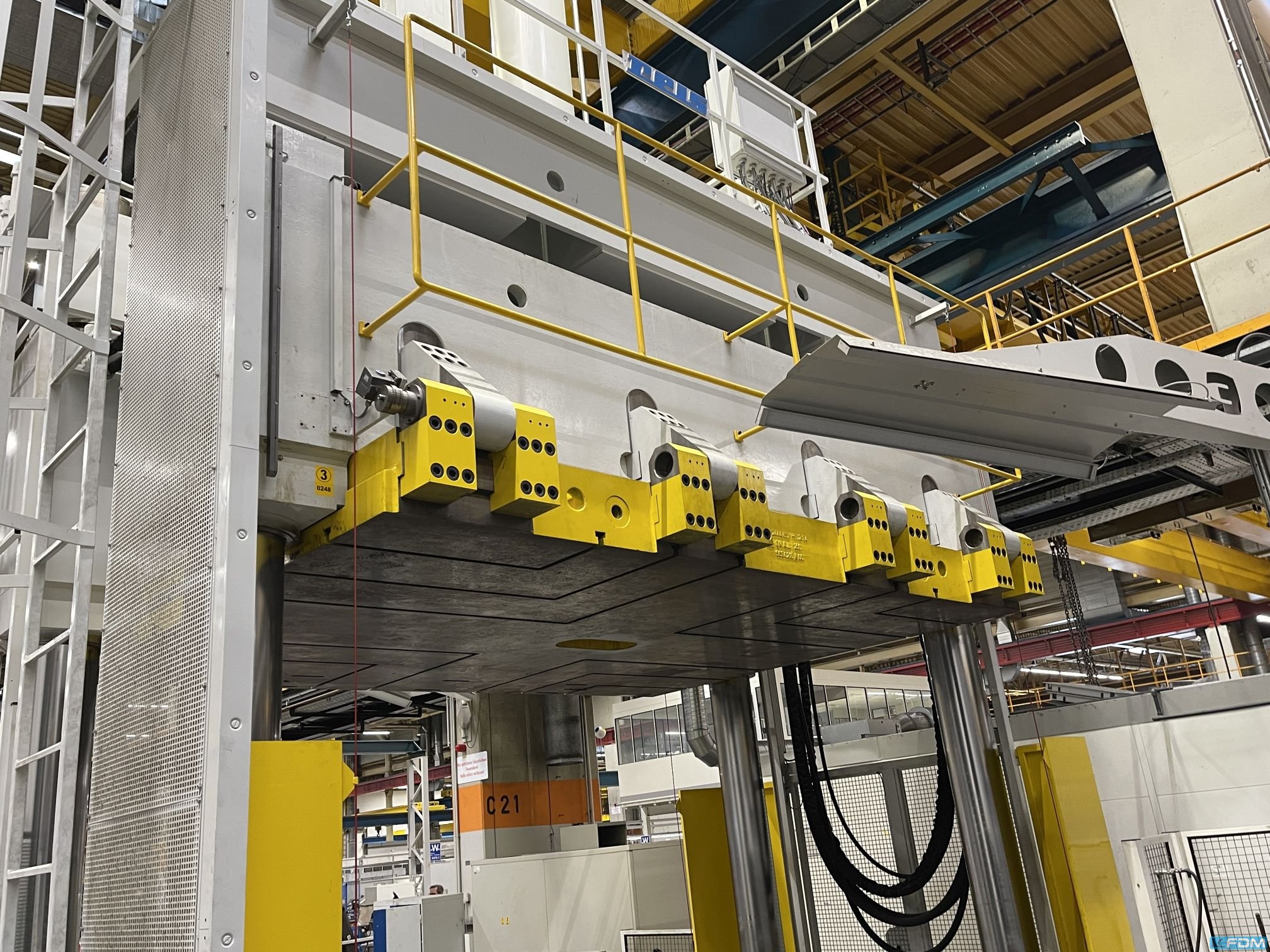

pressure:250 t table length:4000 mm table width:3000 mm Controls:SIEMENS SIMATIC C7 PRESS DESIGN:. - frame design : 4 column :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):250 to PRESS TABLE:. - clamping surface (left-right):4000 mm - clamping surface (front-back):3000 mm - tool weight max.:100000 kg - number of T-slots:12 - distance between T-slots:375 mm - height above floor level:390 mm RAM:. - clamping surface (left-right):4000 mm - clamping surface (front-back):3000 mm - number of T-slots:12 - distance between T-slots:375 mm - stroke:2900 mm - tool weight max.:50000 kg RAM (HYDR. PRESS):. - number of main-cylinders:1 - approximation velocity max.:180 mm/s - working velocity max.:50 mm/s - restoring force of ram:95 to TOOL ASSEMBLY DIMENSIONS:. - distance table - ram max.:2750 mm - distance between columns (H-frame):4100 mm - Free passage be ...

pressure:1000 t table length:4000 mm table width:1600 mm Controls:SIEMENS S7-1500F PRESS DESIGN:. - frame design : Transfer press :. - Drive type : mechnical :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. - number of tables:2 PRESS FORCES:. - total force (nominal):1000 to PRESS TABLE:. - clamping surface (left-right):4000 mm - clamping surface (front-back):1600 mm - height above floor level:600 mm - autom. tool clamping device : yes :. RAM:. - stroke:400 mm RAM (MECHAN. PRESS):. - ram adjustment:300 mm - ram adjustment:100 mm - number of strokes min:8 /min - number of strokes max:50 /min - hydraulic overload protection : yes :. TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):900 mm - shut height (stroke down, adjustment up):766 mm - distance between columns (H-frame):4250 mm - Free passage between side c ...

swing diameter:400 mm turning height:950-1500 mm Turning length:210 mm x-travel:310 mm z-travel:350 mm spindle drive:48 kW spindle turning speed range:20-3500 U/min weight of the machine ca.:11 t dimensions of the machine ca.:4,5 x 3,5 x 2,7 m

swing diameter:400 mm turning height:950-1500 mm Turning length:210 mm x-travel:310 mm z-travel:350 mm spindle drive:48 kW spindle turning speed range:20-3500 U/min weight of the machine ca.:11 t dimensions of the machine ca.:4,5 x 3,5 x 2,7 m

turning diameter:830 mm turning length:4.000 mm turning diameter over bed slide:540 spindle bore:130 mm turning speed range:2 - 1.600 U/min rapid speed:4/5 m/min feed speeds:1 - 2.000 mm/min total power requirement:55 kW dimensions of the machine ca.:7 x 2,2 x 2 m weight of the machine ca.:7,5 t

x-travel:500 mm y-travel:250 mm z-travel:325 mm table-size:400 x 200 mm T-slots:10/ 20 mm T-slots:4 St workpiece height max.:300 mm template table:380 x 380 mm speeds::2500 - 20000 U/min no. of turning speeds:3 total power requirement:0,25 kW weight of the machine ca.:430 kg dimensions of the machine ca.:1000 x 1200 x 1500 mm

saw blade diameter:400 mm cutting diameter:400 mm material:Vollmaterial 20 - 130 mm material:Walzprofile 40 - 120 mm material diameter from - to::Rohr u. Profilfrohr bis 100 x 14 mm sawblade width:4 mm total power requirement:5,1 kW weight of the machine ca.:1850 kg dimensions of the machine ca.:3300 x 1630 x 1960 mm Documents:vorhanden

x-travel:600 mm y-travel:580 mm z-travel:580 mm numbers of pallets:2 pallet size::400 x 400 mm max. workpiece weight:400 kg spindle taper ISO:40 spindle speeds::35 - 12000 feed speeds:1 - 50000 mm/min rapid speed:50 m/min total power requirement:25 kW weight of the machine ca.:12 t dimensions of the machine ca.:3,6 x 3,6 x 2,9 m with CNC SEICOS 16 M ( FANUC base ) autom. toolchanger 61-pockets pallet indexing 1° chip conveyor and coolant attachment exhauster clamping cube and diverse toolholders

turning diameter:830 mm turning length:4000 mm turning diameter over bed slide:540 mm spindle bore:130 mm turning speed range:2 - 1600 U/min rapid speed:4 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:55 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment

turning diameter:480 mm turning length:800 mm total power requirement:30 kW turning diameter over bed slide:240 spindle bore:65 mm disc turret:12 fach rapid travel range:20 / 10 m/min weight of the machine ca.:4,5 t dimensions of the machine ca.:4 x 2,2 x 2,1 m with CNC TRAUB TX 8 H C-axis driven tooling, 6 positions 3,5 kW / 4000 rpm power chuck coolant attachment, chip conveyor diverse toolholders

pressure:400 t distance between columns:3250 mm distance table/ram, max. stroke up, adjustment up:1000 mm stroke:800 mm table surface area:3250 x 1400 mm table height over floor:1250 mm die cushion capacity:170 t die cushion stroke:200 mm die cushion area:1800 x 1000 mm distance between cutting impact cushioning:2610 mm side window:800 mm ram surface:3250 x 1400 mm return capacity:51 t speed down:300 mm/s speed up:300 mm/s working speed:16 - 33 mm/s quantity of oil:2900 l power requirement:100,0 kW weight:70,0 t Dimensions (WxDxH):4,9 x 3,1 x 7,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 cutting impact absorption:hydraulic

pressure:400 t distance between columns:1250 mm stroke:250 fix mm no. of strokes:45 /min distance table/ram, max. stroke up, adjustment up:825 mm table surface area:1000 x 900 mm column travel -side:400 x 700 mm ram surface:1000 x 900 mm ram adjustment:100 mm capacity of ejector in table:40 t ejector stroke:160 mm power capacity:270,0 kW weight:44,0 t Dimensions (WxDxH):2,4 x 3,6 x 7,2 m height over floor:6,4 m

material width:400 mm coil weight:3,0 t material thickness:0,5 - 4,0 mm coil internal diameter:460 - 530 mm coil external diameter:1500 mm no. of straightening rolls:9 straightening roll diameter:50 mm no. of lower support rolls:12 no. of upper support rolls:10 diameter of support rolls:90 mm material cross-cut:1600 mm² speed of coil line:0 - 20 m/min power requirement:35,0 kW weight:10,5 t dimensions (WxDxH):10,0 x 2,5 x 2,9 m straightening machine:KRE 50.400/9 adjustment of straightening rolls :motoric insertion wedge:hydraulic adjustable decoiler:3000.1 snubber roll:hydraulic expansion:hydraulic sideway adjustment:motoric pivoting:manual roll feed:Servo; WVE 160/400 intermittant lifting:hydraulic

Pressure:063 t throat:400 mm stroke:16 - 90 mm no. of strokes:60 /min distance table/ram, max. stroke up, adjustment up:350 mm table surface area:1000 x 750 mm hole in the table:260 x 140 mm table height over floor:710 mm ram surface:600 x 220 mm ram adjustment:50 mm weight:4,3 t dimensions (WxDxH):1,1 x 2,6 x 2,4 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatisch overload protection in ram:mechanisch ram counterbalance:pneumatisch

pressure:400 t throat:520 mm stroke:20 - 200 mm no. of strokes:30 /min distance table/ram, max. stroke up, adjustment up:680 mm table surface area:1600 x 1000 mm table height over floor:715 mm passage to the back:1000 mm ram surface:1300 x 800 mm ram adjustment:130 mm power requirement:38,0 kW weight:41,0 t dimensions (WxDxH):2,1 x 2,6 x 4,2 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch-/ brake combination:pneumatic, Ortlinghaus overload protection in ram:hydraulic ram adjustment:motoric ram counterbalance:pneumatic

pressure:400 t stroke:280 mm no. of strokes:56 Hub/min distance table/ram, max. stroke up, adjustment up:680 mm table surface area:560 x 750 mm allowed max. force:600 t blow die to die:800 t spindle diameter:200 mm ram surface:560 x 560 mm height over floor:4,1 m power requirement:37,0 kW weight:12,0 t dimensions (WxDxH):2,2 x 2,0 x 4,25 m

pressure:400 t distance between columns:1100 mm stroke:250 mm no. of strokes:25 - 75 /min distance table/ram, max. stroke up, adjustment up:900 mm table surface area:1100 x 965 mm capacity of ejector in table:30 t ejector stroke of ejector in table:80 mm capacity of ejector in ram:3 t stroke of ejector in ram:60 / 70 mm ram surface:980 x 800 mm column travel -side:800 mm ram adjustment:20 mm power capacity:80,0 + 5,5 kW weight:47,0 t Dimensions (WxDxH):3,5 x 3,3 x 6,0 m weight of switch cabinet:1,4 t dimensions of electrical cabinet (WxDxH):4,9 x 0,5 x 2,6 m ejector in ram:hydraulic

pressure:160 t throat:400 mm stroke:30 - 200 mm no. of strokes:50 /min distance table/ram, max. stroke up, adjustment up:600 mm table surface area:1000 x 770 mm table height over floor:810 mm hole in the table:360 mm Passage to the back:450 mm ram surface:710 x 450 mm ram adjustment:110 mm power requirement:15,0 kW weight:10,5 t Dimensions (WxDxH):1,7 x 2,0 x 3,2 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:hydraulic overload protection in ram:mechanical ram counterbalance:pneumatic

pressure:400 t distance between columns:1060 mm stroke:450 mm no. of strokes:15 - 30 /min distance table/ram, max. stroke up, adjustment up:1160 mm table surface area:1000 x 700 mm capacity of ejector in table:2 x 16 t ejector stroke of ejector in table:125 mm Die cushion pressure in table:120 t Die cushion stroke in table:2 mm capacity of ejector in ram:2 x 4 t stroke of ejector in ram:100 mm ram surface:1000 x 700 mm column travel -side:630 mm power capacity:55,0 kW weight:50,0 t die cushion in table:2. station
