robland belgio used for sale

5-fold combined joinery machine Connected load 380V 3 x 3kW, weight approx. 550 kg, external dimensions 2700 x 1500 x 850 mm, slewing ring, dressing thickness, planing width 300 mm with three-knife shaft, dimensions tables 310 x 1500 mm, passage height 230 mm, circular saw 0-45° swivel, max. cutting height 100 mm, saw table dimensions 350 x 950 mm travel 1200 mm, saw blade diameter. max. 300 mm, tiller with two speeds 3100 / 6200 rpm, milling mandrel 30 mm, height adjustment max. 110 mm, slotted hole drilling device speed 4500 rpm, table size 180 x 470 mm, two-jaw chuck 0-165 mm, suction nozzle 3x100 mm

technical details of the dressing planer: - Planing width: 310 mm - Total length of the planing tables: 1,400 mm - Diameter of the knife block: 70 mm - TERSA planing knife shaft - Number of knives: 3 - Knife dimensions: 310 x 25 x 3 mm - Rotation speed of the knife shaft: 5,500 rpm - Dimensions of the dressing stop: 1,300 x 150 mm - Swivel range of the dressing stop: 90° - 45° - Maximum cutting depth: 4 mm technical details of the thickness planer: - Dimensions of the thickness planer table: 430 x 310 mm - Capacity height of the thickness planer: 230 mm - Diameter of feed rollers: 30 mm - Maximum cutting depth: 4 mm - Feed speed: 6m/min - Handwheel with analog display for height adjustment - Diameter connection dust extraction: 100 mm - Weight: 280 kg Engine data: - Voltage: 400 V - Engine power: 3.72 kW / 5 hp Transport dimensions (W x D x H): 1,590 x 85 ...

Thickness planers Back to overview - Print version WEIBERT WY-D41 Thickness planer WEIBERT WJ-D41 NEW MACHINE! 400V 4 KW (5,5 HP) n=4500 min Planing width of 406mm Planing shaft diameter 100mm Max.4mm Chip Removal 4-reversible blade shaft Passage height of 4-225mm Feed speed of 6 and 12m/min.with own engine 1.1 KW (1.5 hp) Suction connection of 120mm Machine weight of 370 kg Machine tables Planing shaft bearing block and table guide made of GREY CAST IRON Manual height adjustment with handwheel 2 rolls in the thickness table G&WJ-D41 relka 22 Request information material WEIBERT WY-D53 Thickness planer WEIBERT WJ-D53 NEW MACHINE! 400V 5.5 KW (7.5 HP) n=5000min Planing width of 530mm max.chip removal of 8mm Planing shaft D=125mm 4-reversible blade shaft Passage height of 3-300mm Feed speed of 8 and 16 m/min. Engine for feed 1.5 KW (2 hp) Sucti ...

Key data: 45 °, 3500 mm, 1350 mm

Basic Cutting length 3500 mm Cast iron sawing unit type Z5 Max. saw blade (not incl.) 500 mm, max. 350 mm with scoring saw blade Scoring unit 120 x 20 mm Cutting height 90°: 175 mm, 45°: 120 mm 3 speeds: 3000/4000/5000 t/min 8D9Kjux2Mt Cutting width between saw blade and Z4 rip fence 1350 mm Z5 Cross Table (1505x760 mm) with Telescopic with Z5 Mitre Stop with 2 Folding Stops Comfort Pack on Cross Table with Extendable Workpiece Roll Frame table with extendable support and degree grid index system with length compensation Motorized height adjustment and inclined position of the saw blade incl. special accessories: Motor 9.2 kW Start/stop in the sliding table

Key data: 630 mm, 300 mm, 9 kW

EXHIBITION MACHINE Weight 950 kg Voltage 3 x 400 V Engine power (S6) 9.2 kW / 12 hp Dust extraction connection 160 mm Diameter knife block 120 mm Number of knives 4 Dimensions knife 630 x 30 x 3 mm Max. cutting depth 8 mm Width 630 mm Height capacity thickness planer 3 – 300 mm Dimensions thickness planing table 1160 x 630 mm 8D9Qxjdewy Variable feed speed 5 – 22 m/min. Diameter of feed rollers 70 mm incl. TERSA. Knife shaft Image includes optional accessories

Dimensions (L/W/H): 2300x1150x980 mm Weight: 900 kg Total power requirement: 7,5 kw The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

5-fold Robland X31 combi, good condition, 2.2 kW, 1500 mm table length, 310 mm table width, 3 knivesPrices subject to change, errors, printing and typesetting errors excepted

5-speed station wagon Robland X310, good condition, 2.2 kW, 3 blades, approx. 500 kgPrices subject to change, errors, printing and typesetting errors excepted

This wood mill was manufactured in 1990. Consider the opportunity to buy this ROBLAND Tischfräse wood mill. Contact us for further details.

Key data: 45 °, 3200 mm

Format Saw Robland Type: Z 3200 Year of construction: 90s Swivel format saw with scoring Diameter saw blade 400 x 30 mm Max. cutting height 125 mm Tilt adjustment 0 – 45° Max. cutting height at 45° 100 mm Saw blade speeds: 3000/4000/5000 rpm. Motor 5.5 kW Scoring diameter 100 x 20 mm Cutting height scoring 0 – 4.5 mm Inclined adjustment of scoring 0 – 45° Speed scoring 7000 rpm. Table size 1530 x 700 mm Table height 840 mm Dimensions of rolling table 400 x 3200 mm Cutting length 3200 mm Cutting width to the right of the saw blade 1380 mm Suction nozzle diameter 120 mm Net weight 1150 kg Packaging dimensions 2270 x 1330 x 1020 mm + 3250 x 450 x 200 mm

sliding table length: 3200 mm; cutting width at the fence: 1350 mm; cutting width at the cross cut: 3200 mm; cutting depth: 125 mm; scoring unit: ja; sawblade diameter: electric; tilting adjustment sawblade: electric; adjustment fence: manuell; readout sawblade tilting: Scala; read out sawblade height: -; read out fence: Scala; read out crosscut stop: Scala; sawblade diameter: 400mm; number of speeds: 3000 / 4000 / 5000 U/min; motor power: 7 kW; motor brake: yes, automatic; suction connection: 80mm und 120mm; machine length: 3400mm; machine width: 2000mm; weight: 900kg;

angle: 0° - 90°; max cutting length: 1370 mm; easy handling and quick mounting on the carriage of the saw for fast and stepless production of miter cuts on narrow and short workpieces at any angle from 0° to 90

Shaft : Diameter: Ø 50 mm Working length above table: 150 mm Vertical shaft stroke: 205 mm Rotational speeds: 3,000 / 4,500 / 6,000 / 7,000 rpm Attachment: Machine with drive Dimensions (estimate): approx. 1,800 × 1,300 × 1,350 mm (to be confirmed) Weight (estimate): approx. 780 kg (to be confirmed) Auction-ID: A1-45443-76

The Robland X31 is a wood-fired combination machine made in Belgium. It combines several machines into one, which saves space in a workshop. It generally combines 5 to 7 functions: - Circular saw - Spinning top - Jointer - Planer (planer-jointer) - Mortising machine The idea: to replace several separate machines with a single one. ⚙️ Technical data (approx.) Jointing width: ~310 mm Planing height: ~230 mm Saw blade: ~250 mm (tiltable up to 45°) Motors: often 3 motors of about 2.2 kW Weight: ~600 to 700 kg Benefits Significant space saving Versatility: allows you to do almost everything in carpentry Robust construction (cast iron, Belgian manufacture) Ideal for small workshops or garages Sold as is - see photos Auction-ID: A3-43506-32007

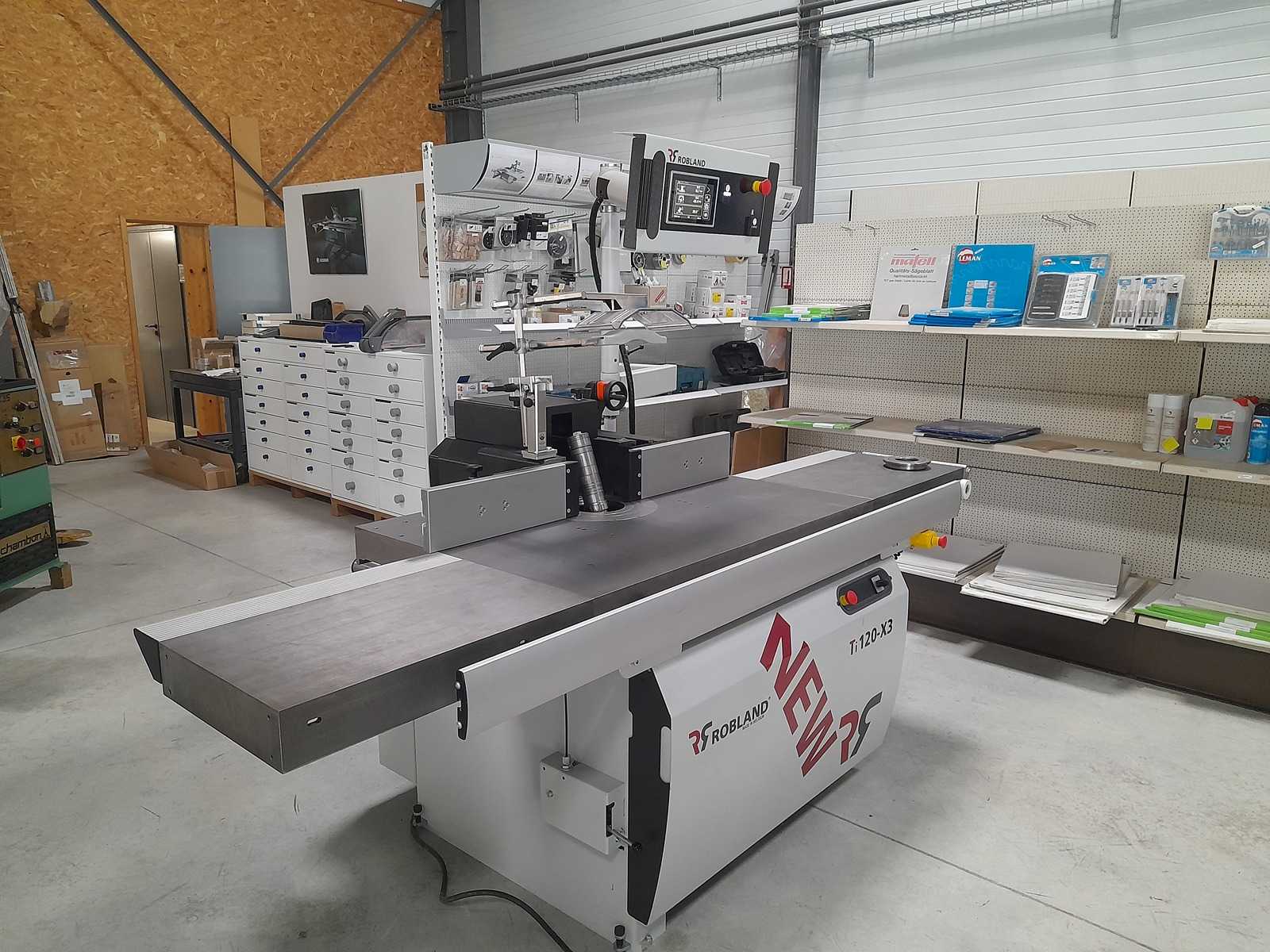

ROBLAND TI 120 X3 digital router with tilting shaft • Year : 2024 • New machine • Motor : 400 V / 7 kW (9.5 hp) – S6 service  • Table wood dimensions: 320 × ,095 mm • Max. tool diameter: 260 mm • Speeds : 3000 / 4500 / 6000 / 7000 / 10000 rpm • Interchangeable shaft: Ø 30, 32, 35, 40, 50 mm or 1\"1/4 • Shaft inclination: from -5° to +45° • Programmable up, down and tilt• Hood on linear guides, aluminium protector• 7\" colour touchscreen mounted on stem • Automatic star/triangle start• Weight : 650 kg • Options : in/out table extensions and front support Auction-ID: A1-45486-21
