rivet used for sale

Universal riener, double riening machine, brake coating riener e.g. for rivets of couplings or brake belhighs Adjustable distance Ideal for faithful restoration and maintenance of classic cars Rest according to photos Special price

Tumbling riveting machine - radial spot riveting machine KUMAG Masch. No. 67/101 Year of construction 1967 Table size 330 x 280 mm Projection 215 mm Tool shank cone 8 - 10 mm Rivet shank diameter 1 - 10 mm Tool stroke 30 - 40 mm Operating air pressure 1 - 6 bar Rivet time adjustable 0.5 sec. - 3 h motor power 0.8 kW Mains connection 380 volts, 50 Hz - Conical tool shank for quick tool change - Rivet head on the column adjustable in height- Fine adjustment of the working stroke, max. 10 mm, with scale ring - Riveting force air pressure infinitely adjustable - Triggering via push-button table model Space requirement L x W x H 670 x 450 x 850 mm Weight 215 kg good condition; used

Radial riveting machine BalTec Type RNE 331 Year of construction: 2009 presumably unused - with rivet mushroom and pressure bowl R=100 - Input voltage 3x400V 50/60Hz - with RC-20 controller with Simod AMS-SSR - With foot switch, pulse contact - with pressure preparation unit - with hand grease press - with standard accessories and operating instructions in German -Color: Light gray Accessories: Rivet stamp 14.0/68 cambered Rivet stamp 16.0/68 cambered Rivet stamp 17.0/68 cambered Rivet stamp 18.0/68 cambered Wooden box 98x70x55cm

Tumbler rivet head BODMER KÜSNACHT Type FMK 3 Year of construction approx. 1980 Rivet shank diameter: max. 10 mm Tool diameter: 12 mm Riveting head stroke: 40 mm Riveting spindle speed: approx. 1400 rpm. Motor power: 0.37 kW Mains connection: 380 volts, 50 Hz - Rivet pressure adjustment via hydraulic pressure infinitely variable - Micrometer stop for stroke limitation - Stroke movement via oil hydraulics (max. 45 bar) - Machined flange surface 115 mm with mounting nut on housing Total length: approx. 800 mm Weight: approx. 40 kg good condition The rivet head has a multi-spindle head to set 2 or 3 rivets at the same time. However, this can be dismantled and used normally again. For normal use, however, the normal tumbling head which holds the tool is missing.; used

Masch. No. 101 987 For medium to large series/runs Suitable for: cardboard, cardboard, etc. Areas of application: ring binders, letter folders, etc. Rivet feeding via pawl-driven, rotating sorting hopper • Riveting tongs • Rivet stroke 55 mm • Standard version for processing hollow rivets 4 mm shaft diameter, lengths up to 19 mm, head diameter 6 - 8 mm or 8 - 10 mm Brake motor Cycle time 0.5 sec. Rivet spacing adjustable from 35 - 440 mm left rivet head can be switched off by means of a sliding clutch

pressure: 250 bar control: Beckhoff turning speeds: 1435 U/min engine output: 5,5 kW rivet time adjustable: 2-3,5 sec compressed air: 6 bar total power requirement: kW weight of the machine ca.: 8 t dimensions of the machine ca.: 10x4x6 m Ingredients: 16x punch riveting tools 16x rivet feed units 6x Beckhoff control 3x HMI Mobile Panel 3x HMI panels 6x hydraulic units Material: Semi-tubular rivet made of stainless steel - flat head, different lengths Connection of 2 layers of aluminum (0.8 mm), no pre-drilling necessary The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tumbler riveting machine in very good condition max. rivet shank diameter 8 mm for solid material St 400 N/mm² The machine is equipped with a pneumatic sliding table. The machine also includes an original multi-spindle rivet head, with which several rivets can be made at the same time. Manuals, programming instructions and other documents are available. The single rivet head also includes various original riveting tools.

Rivet gun : Manufacturer Böllhoff Product no.: 9524-638-803-0 Max. Nietstzdruck: 250 bar Max. Rivet setting force 50 kN All information without guarantee

- Rivet diameter: 1 - 4 / 2 - 6 mm - Riveting force: 3 / 6 kN - Spindle stroke: 5 - 30 mm - Working pressure: 1 - 6 bar - Projection: 170 mm - Clamping surface: 320 x 290 mm - Machine weight: 240 kg - Total power: 0.74 kW - Space requirement (W x D x H): 0.45 x 0.7 x 0.7 m - Condition: very good Details well-maintained machine in top condition, riveting time adjustable, riveting time adjustable the specified rivet diameter applies to material ST 37 Accessories Documentation

- Rivet diameter: 1-4 / 2-6 mm - Riveting force: 3 / 6 kN - Spindle stroke: 5 - 30 mm - Working pressure: 1 - 6 bar - Projection: 170 mm - Clamping surface: 320 x 290 mm - Machine weight: 240 kg - Total power: 0.74 kW - Space requirements (W x D x H): 0.45 x 0.7 x 0.7 m - Condition: very good Details well-maintained machine in top condition, with piece counter, riveting time adjustable, the specified rivet diameter applies to material ST37 Accessories Documentation

- Rivet diameter: 3 - 10 mm - Riveting force: 12 kN - Spindle stroke: 5 - 30 mm - Working pressure: 1 - 6 bar - Clamping surface: 320 x 290 mm - Projection: 170 mm - Condition: good - Total power: 0.74 kW - Machine weight: 240 kg - Space requirements (W x D x H): 0.45 x 0.7 x 0.7 m Details the specified rivet diameter applies to material ST 37 Accessories Documentation

- Rivet diameter: 1-4 / 2-6 mm - Riveting force: 3 / 6 kN - Spindle stroke: 5 - 30 mm - Working pressure: 1 - 6 bar - Projection: 170 mm - Clamping surface: 320 x 290 mm - Machine weight: 240 kg - Total power: 0.74 kW - Space requirements (W x D x H): 0.45 x 0.7 x 0.7 m - Condition: very good Details well-maintained machine in top condition, with piece counter, riveting time adjustable, the specified rivet diameter applies to material ST37 Accessories Documentation

CNC-controlled wobble riveting machine make BODMER KÜSNACHT type BK 160Masch. -No: FM 1603 built in 1997 with only 1069 operating hours Technical specifications:Rivet diameter max. 16 mmProjection 180 mmStroke 130 mmTable size 1000 x 600 mmCompressed air requirement 6.2 barDrive power 1.1 kWDimensions approx 815 x 700 x 1940 mm:Weight approy 404 kgWith- adjustable table- 2-hand release- protective coversecond hand - not ready for use (control)! selling as spare parts dispenser expressly ! EUR 3.900,--Price on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

Pneumatic riveting machine make VTS type 120-4 / 100.10Machine -No: 120.457.08 built in 2008Technical specifications:Max. Rivet diameter: 4.0 mmPressure force: 8 kN at 4 bar / 20 kN at 10 barAir consumption: 0.5 l / stroke at 4 barCycle time: 1.0 sec.Working height: 900 mmDimensions approx.: 500 x 500 x 1500 mmWeight approx: 120 kgWith- Festo pneumatic control- vibratory conveyor- Punch and pliers feed- foot switch- UVV (finger protection)used, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

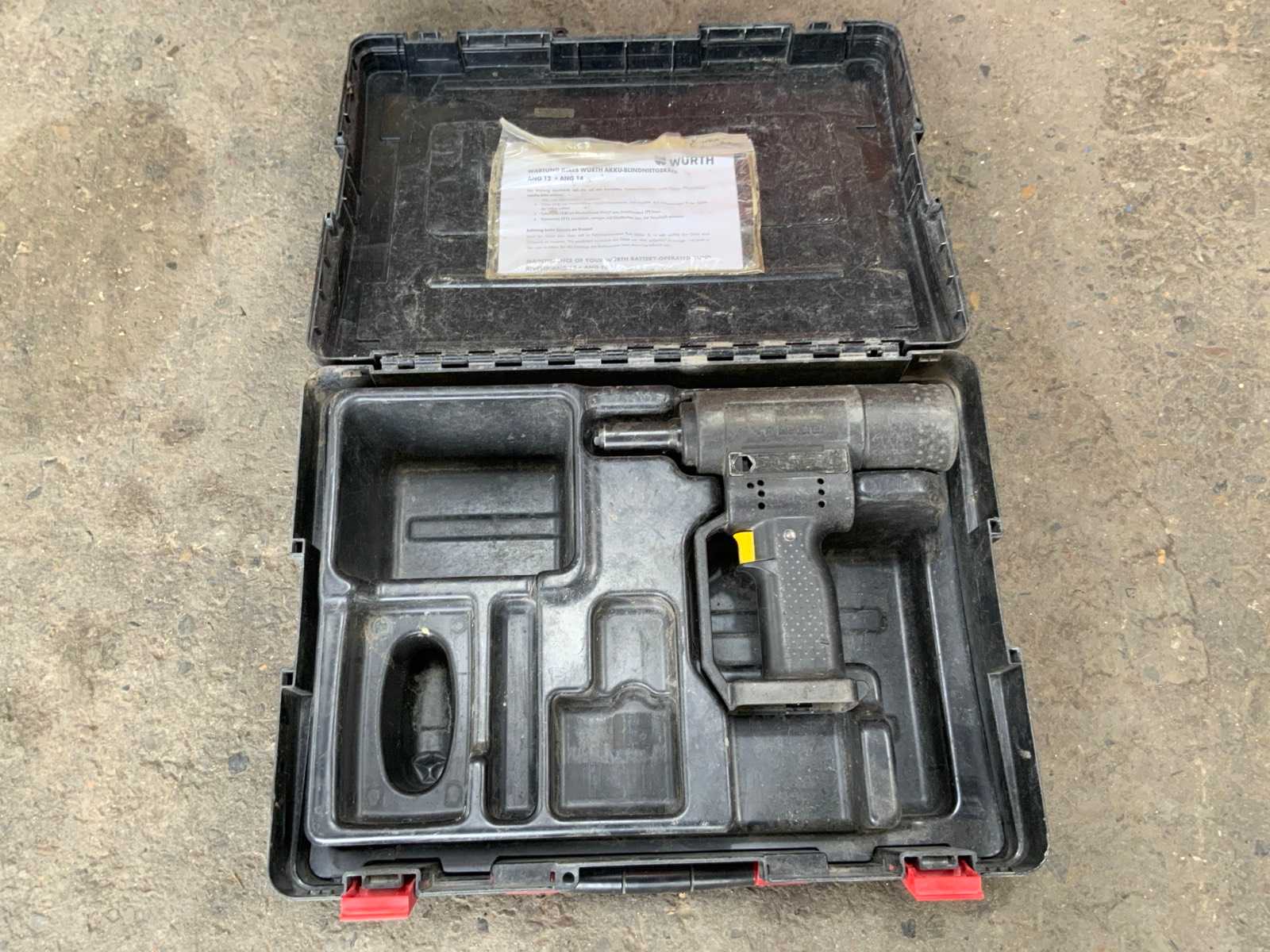

Cordless riveting tool, blind rivet gun, blind rivets -Transfer in current condition as seen -The device works, the batteries are defective -without: batteries -Dimensions: 345/90/H250 mm -Weight: 5.3 kg

- Rivet diameter: 2 - 6 / 2 - 7 mm - Riveting force: 6.5 / 8.2 kN - Spindle stroke: 5 - 30 mm - Working pressure: 1 - 6 bar - Projection: 159 mm - Clamping surface: 240 x 247 mm - Machine weight: 180 kg - Total power: 0.37 kW - Space requirement (W x D x H): 0.4 x 0.6 x 0.8 m - Condition: very good Details very nice well-kept machine, hardly any operating hours, with piece counter, riveting time adjustable Accessories Documentation

Description: Air connection diameter: 1/4' Supported Rivet Diameter: 2.4, 3.2, 4.0, 4.8mm Air Supply Hose Diameter: 3/8' Maximum piston stroke: 14 mm Crushing force: 1050 N Operating pressure: 90 psi (6.3 bar) Required air flow: 0.86 l/min Sound pressure: 73 dB Vibration: 0.6 m/s. Approx. Onsite Dimension. (l x w x h): 300 x 200 x 200 mm, weight approx.: 2 kg

Description: Air connection diameter: 1/4' Supported Rivet Diameter: 2.4, 3.2, 4.0, 4.8mm Air Supply Hose Diameter: 3/8' Maximum piston stroke: 14 mm Crushing force: 1050 N Operating pressure: 90 psi (6.3 bar) Required air flow: 0.86 l/min Sound pressure: 73 dB Vibration: 0.6 m/s. Approx. Onsite Dimension. (l x w x h): 300 x 200 x 200 mm, weight approx.: 2 kg

Description: Air connection diameter: 1/4' Supported Rivet Diameter: 2.4, 3.2, 4.0, 4.8mm Air Supply Hose Diameter: 3/8' Maximum piston stroke: 14 mm Crushing force: 1050 N Operating pressure: 90 psi (6.3 bar) Required air flow: 0.86 l/min Sound pressure: 73 dB Vibration: 0.6 m/s. Approx. Onsite Dimension. (l x w x h): 300 x 200 x 200 mm, weight approx.: 2 kg

Description: Air connection diameter: 1/4' Supported Rivet Diameter: 2.4, 3.2, 4.0, 4.8mm Air Supply Hose Diameter: 3/8' Maximum piston stroke: 14 mm Crushing force: 1050 N Operating pressure: 90 psi (6.3 bar) Required air flow: 0.86 l/min Sound pressure: 73 dB Vibration: 0.6 m/s. Approx. Onsite Dimension. (l x w x h): 300 x 200 x 200 mm, weight approx.: 2 kg

Masch. Ref. 23649

Riveting machine (2 heads) Arno Model 105 Year 1980 Head distance 30 - 450 mm Available direct

- Pneumatic Nietzange Model CP 0351 ESVEL Compression Riveter by Chicago Pneumatic Used

0312: 1 gebr. Riprize machine Fabr. HANG, Type 105 VDS, Bauj. 1959 Arb.-Ber.: Riceodiameter 3 mm, Drive power: 0 kW

Tumbling riveting machine make THIELICKE type WN 4Machine -No: 7291Max. Stroke: 40 mmCompressive force at 6 bar: 4 kNAir consumed up to 10 mm stroke: 0.4 lTable size: 175 x 245 mmDischarge: 160 mmMotor power: 0.55 kWDimensions L x W x H: 500 x 270 x 820 mmused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

Wobble riveting machine make THIELECKE type WN 4Mash. -No: 144369Technical specifications:Max. Stroke 40 mmCompressive force at 6 bar 4 kNAir consumed up to 10 mm stroke 0.4 lTable size 175 x 245 mmDischarge 160 mmMotor power 0.55 kWDimensions L x W x H 500 x 270 x 820 mmused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

InduPac 1000 is a mobile pneumo-hydraulic pressure intensifier with a gear ratio of 1:100. This means that with a primary air pressure of 10 bar, a hydraulic secondary pressure of 1000 bar is generated for the connected tool (XTend). The XTend tool and many others are included. The entire tool is in very good condition as it has hardly been used. It was used for about 5 hours of operation and then stored.

Dunkes DNA 2 Pneumatic riveting units Dunkes DNA 2 Pneumatic riveting units 20 kN 0.55 kW More items - new and used - can be found in our shop! International shipping costs on request!

semi tubular rivets diameter range 5 mm shaft length under head 40 mm max. cut-off length 60 mm output pieces/min 470

diameter range 0,8-3,0 mm cutting length 30 mm shaft length under head 25 mm output - pieces/min 600

Nietmaschine - Riveter Stocko WP 100 b Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Available Immediately - Can be inspect On Stock Emskirchen / Nuernberg - Can be test

Pneumatic Blind Riveter, Blind Riveter AVDEL LTD. Type 727 3/15 - 4.76 mm used, tested ! Dimensions: 530 x 230 x 80 mm

Description: In the original metal case Approx. Onsite Dimension. (l x w x h): 350 x 320 x 100 mm, weight approx.: 15 kg

diameter range 0,8 - 3 mm shaft length under head 32 mm cutting length 45 mm output- piece/min 650

Description: Premium lever riveter for blind rivets 2.4-6.4 mm Set of five tips in the following sizes: 2.4 mm, 3.2mm, 4.0mm, 4.8mm, 6.4mm. Approx. Onsite Dimension. (l x w x h): 250 x 200 x 100 mm, weight approx.: 1 kg

Description: Premium lever riveter for blind rivets 2.4-6.4 mm Set of five tips in the following sizes: 2.4 mm, 3.2mm, 4.0mm, 4.8mm, 6.4mm. Approx. Onsite Dimension. (l x w x h): 250 x 200 x 100 mm, weight approx.: 1 kg

Description: Premium lever riveter for blind rivets 2.4-6.4 mm Set of five tips in the following sizes: 2.4 mm, 3.2mm, 4.0mm, 4.8mm, 6.4mm. Approx. Onsite Dimension. (l x w x h): 250 x 200 x 100 mm, weight approx.: 1 kg

pressure:40 t throat:350 mm material thickness: - 12 mm stamping power-diameter at 12 mm material thickness:24 mm stamping power-diameter at 6 mm material thickness:50 mm power requirement:2,2 kW weight:1,5 t dimensions (WxDxH):0,8 x 1,5 x 1,9 m

Hot riveting installation consists out of: - 1 = orange riveting clamp mounted on a green chassis + induction heater with 2 positions - 2 = mobile induction heater with 3 positions - 3 = mobile induction heater with 2 positions - 4 = mobile induction heater with 3 positions - 5 = separate green riveting clamp - 6 = blue riveting clamp mounted on a green jib crane + induction heater with 2 positions - 7 = tooling dies

Pneumatic rivet gun, rivet nut pliers, blind rivet nut clamp, pneumatic riveting tool, blind rivet gun, blind rivet -Compressed air rivet gun -Application range: 2.0 to 4.0 mm -Dimensions: 275/80/H220 mm -Weight: 1.3 kg

useable stroke: 30 mm rivet shank max: max. Ø 6 mm throat: 130 mm spindle turning speed range: 1400 U/min quill stroke: 45 mm table surface area: 284 x 235 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Roll riveting machine with safety device for low-noise rolling riveting of all types of rivet heads. The rivet stopper is mounted at an angle in the roll rivet head on roller bearings so that it can tumble freely regardless of the rotation of the head. Fast and powerful movement of the roller rivet head thanks to a directly pressurized compressed air cylinder. Force requirements can be adjusted steplessly. Manual availbale The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

hydraulic lockbolt rivet gun, rivet gun, blind rivet gun -hydraulic lockbolt rivet gun -without: storage container -incl.: hydraulic unit and control -Dimensions: 1230/800/H1300 mm -Weight: 450 kg

Torque assembly station, torque module, assembly device, torque wrench, torque wrench, torque wrench, rivet gun, rivet gun, blind rivet gun, -Drive: torque module for Hilok assembly -Torque: adjustable via touch screen -Number of press-in cylinders: 1 piece -Number of helical gears: 1 piece -Working platform: 800 x 500 mm -Travel: Y 400 mm, X 955 mm -Dimensions: 1555/1470/H2110 mm -Weight: 794 kg

Riveting machine (1 head) Make Hang Model 84 HS 350 Year 1992 Distance till frame 300 mm Rivet transport Automatic rivet transport

Machine reamers, reamer, reaming tool, fitting knife blade set, rivet reamer, rivet reamer -different manufacturers: TITEX PLUS, UNISTO... -Recordings: MK2/MK3/MK4 -different sizes: 13-40 mm as shown in the photos -Sale: only complete -Weight: 11 kg

PEMSERTER SERIES 4 rivet / fastener inserter press. (6t) In operation Equipped with a pneumatic system that allows it to exert a force of up to 53.4 kN (6t) and has a throat depth of 457mm, enabling it to work with a wide variety of chassis configurations. Designed for inserting self-clinching inserts from M2 to M10 in steel and up to M12 in aluminum. Features: – Adjustable insertion force from 1.8 to 53.4 kN / 400 to 12,000 lbs. – Pneumatic system enables high insertion speed and simplifies operation. – Requires only compressed air. – Integral point of operation safety. – Quick and easy change of tooling, suitable for short productions. – Air supply pressure of 6 to 7 BAR. A manually operated machine in production that allows the placement of various inserts, nuts, bolts, spacers, positioners, etc. Option to install Revolee Qx.

Due to stock closure I ask to sell the following: 1x NC rotary table 3x rotary jaws 1x refrigeration compressor 2x Oil mist separator 3x current constant 1x power cabinet 1x rotary cycle machine 8x rivet feeder 1x Large water pump 8x measuring feet 1x torque tester 1x car climate refill unit 1 x Double honing machine 1x paint mixer, new 1x exhaust gas suction unit 1x hydraulic tank with pump 1x coolant system The price is net. Viewing possible by appointment.

Packaging machine Beck Fitpacker Junior FJ 1040 U - Used equipment built in 1995 - small repairs necessary The Fitpacker Junior has a high packing performance and can process products of different lengths in disorder. A programmable logic controller is located at the top of the control cabinet and is easy to handle via a logical user interface. The packer also has a feeding system, which is especially suitable for line operation. Machine changeover times are kept short by a digital operating concept and an adjustable shape shoulder. The control cabinet can be opened and swivelled so that optimal access is guaranteed in the event of maintenance and downtimes are reduced. The film roll holder is mounted at an ergonomically reasonable working height. Working speed: Actual production speed and effective net output depend on format, Type and composition of products and can ...

Specifications: Passage width: 400 mm Passage height: 150 mm standard, the passage height can be changed by using additional strips Hood length: 1,700 mm Transport length: 2100 mm Transport rod spacing: every 4th rivet occupied Teflon net coating for products with a small footprint Current type: 230/400 Volt three-phase current N-PE Heating power: controlled by solid stat. relay Power: 19 kW Throughput speed: infinitely variable Color: Hammer blow aluminum No guarantee is assumed for the technical data given in the description.
