rig drilling used for sale

Lot comprising an ISCAR of individually boxed ISCAR cutting heads/inserts. Auction-ID: A7-50717-230

Assorted lot of heavy-duty indexable insert drills (U-drills) in various diameters and lengths. Predominantly straight-shank machine tools with replaceable carbide cutting inserts. lot weight: 42 kg. Auction-ID: A7-50717-244

Used and unchecked; viewing desired Auction-ID: A1-50737-132

Used and unchecked; viewing desired Auction-ID: A1-50737-137

Technical details Manufacturer: Csepel Type: Radial drilling machine Configuration: - Heavy-duty radial arm - Rotating column - Vertically adjustable drilling head - Geared spindle drive - Manual and power spindle feed - Large T-slotted box table - T-slotted base plate - Speed and feed selector gearbox - Integrated work light - Coolant system Application: - Drilling - Boring - Tapping - Reaming - Countersinking - Machining of large steel workpieces Construction: - Heavy-duty cast-iron frame - Conventional mechanical operation - Industrial radial drilling machine Estimated drilling capacity: Approx. 60–75 mm in steel Estimated arm reach: Approx. 1600–2000 mm Dimensions: - Length: Approx. 3000 mm - Width: Approx. 1300 mm - Height: Approx. 3300 mm Weight: Approx. 6500 kg Condition: Used Observed condition: - Machine appears substantially complete - Or ...

IXION TL 500 SVA Deep Hole Drilling Machine Manufacturer: IXION Model: TL 500 SVA Year of Manufacture: 1985 Serial Number: 113178 Origin: Germany Drilling Capabilities: Drilling diameter: 1.5 – 18 mm Advertised drilling depth: 600 mm Table and movements: Fixed table: 700 × 1,350 mm Circular tabletop: 1,000 × 500 mm Longitudinal stroke: 600 mm Stroke in the direction of drilling: 400 mm Swivel table: 180° Drilling unit: Vertical carriage stroke: 250 mm Unit orientation: ±15° Spindle Taper: CM3 Spindle and control: Number of speeds: 8 Speed range: 240 – 2,400 rpm CNC Control: Bosch Alpha Digital display: Heidenhain 3-axis Power and Size: Engine power: 1.0 / 1.6 kW Installed power: 10 kVA Dimensions (L × W × H): 2,000 × 1,500 × 1,800 mm Weight: approx. 1,350 kg Auction-ID: A1-50714-4070

Used and unchecked; viewing desired Auction-ID: A1-50737-66

Used and unchecked; viewing desired Auction-ID: A1-50737-96

Used and unchecked; viewing desired Auction-ID: A1-50737-5

Used and unchecked; viewing desired Auction-ID: A1-50737-63

Technical details Manufacturer: Csepel Type: Radial drilling machine Configuration: - Heavy-duty radial arm - Rotating column - Vertically adjustable drilling head - Geared spindle drive - Manual and power spindle feed - Drill chuck installed - Large T-slotted box table - T-slotted base plate - Speed and feed selector gearbox - Mechanical control system Application: - Drilling - Boring - Tapping - Reaming - Machining of large steel workpieces Construction: - Heavy-duty cast-iron frame - Conventional mechanical operation Estimated drilling capacity: Approx. 75 mm in steel Estimated arm reach: Approx. 1750–2000 mm Dimensions: - Length: Approx. 2500 mm - Width: Approx. 1200 mm - Height: Approx. 2900 mm Weight: Approx. 4500 kg Condition: Used Observed condition: - Machine appears substantially complete - Original gearbox and controls installed - Drill chu ...

Used and unchecked; viewing desired Auction-ID: A1-50737-154

Used and unchecked; viewing desired Auction-ID: A1-50737-68

200 drill pipes available Maximum drilling depth 500 M 28 Bar Auction-ID: A1-40403-8

x-travel: 600 mm y-travel: 410 mm z-travel: 500 mm Control: HEIDENHAIN TNC 530 HSCI table surface area: 800x400 mm T-slots: 3 T - slots distance: 125 mm table weight: 450 Kg rapid traverse: 30.000 mm/min taper ISO: ISO 40 DIN 69871 number of spindle speeds: 12.000 U/min/rpm Spindle power: 10/17 magazine: 20 Internal cooling system: 20 bar Chip coveyor: inkl. handwheel: HEIDENHAIN HR-410 total power requirement: 25 kW weight of the machine ca.: 4.150 kg dimensions of the machine ca.: m -T-slots (width, spacing) 18, 125 mm -Distance from table to floor 885 mm -Distance from table to spindle nose (min./max.) 140 / 650 mm -Type Chain -Tool selection Random -Max. tool diameter with adjacent pockets empty 135 mm -Max. tool diameter without adjacent pockets empty 85 mm -Max. tool length 250 mm Max. tool weight 6 kg -Workpiece cleaning gun Included -Optical measuring systems (glass sc ...

CNC Control: BROTHER CNC-A00 X/ Y/Z Axis Travels: 480 × 360 × 410 mm Table Dimensions: 600 × 300 mm Number of Tools: 14 Spindle Taper: BT30 Max. Spindle Speed: 16,000 RPM Spindle Motor Power: 7 kVA Drilling Capacities: Steel Ø 32 mm, Aluminum Ø 25 mm, Cast Iron Ø 25 mm Tapping Capacities: steel up to M16 Included equipment: 4 BT30 tool holders, lubrication tank with pump Weight (kg): 1800 Year & Manufacturer: 2007 – BROTHER Auction-ID: A1-50714-4014

Technical details Type: Radial drilling machine Configuration: - Heavy-duty radial arm - Rotating column - Vertically adjustable drilling head - Manual and power spindle feed - Large T-slotted box table - T-slotted base table - Mechanical feed gearbox - Coolant and lubrication system - Electrical control panel Application: - Drilling - Boring - Tapping - Reaming - Countersinking - Machining of large workpieces Construction: - Heavy-duty cast-iron machine frame - Conventional mechanical operation - Industrial radial drilling machine Dimensions: - Length: Approx. 3200 mm - Width: Approx. 1400 mm - Height: Approx. 3400 mm Weight: Approx. 7000 kg Condition: Used Observed condition: - Machine appears substantially complete - Radial arm and drilling head installed - Large T-slotted worktable and base table present - Mechanical controls intact - Cosmetic wear  ...

Offer 26250 Technical data: Drilling capacity in steel ST 60 32 mm Drilling capacity in steel ST 60 40 mm Long spindle MK 3 Drilling spindle speeds infinitely variable 160 - 2250 rpm Drilling spindle stroke 120 mm Projection 293 mm Column diameter 115 mm Machined base plate with T-grooves 400 x 400 mm Max. distance from base plate to spindle 600 mm Emergency stop button Space requirement approx. W 450 x H 1250 x D 900 mm Weight approx. 250 kg Keyless chuck Table base

Core drilling machine / diamond drill Brand: Daewoo Type: DADK-D230BE Peak power: 4580 watts Speed: 100-530 RPM (infinitely adjustable) Max. Drilling Diameter: 230 mm Max. Drilling Depth: 550 mm Drill connection: 1/2 inch internal, 5/4 inch external Equipped with: digital display Equipped with: connection for water cooling Equipped with: 30 milliamp residual current device (PRCD) Tripod: Adjustable aluminum tripod Condition: unused, in the original packaging Attention: diamond drill bit not included Auction-ID: A3-46133-1219

Auction-ID: A1-50699-49

Auction-ID: A1-50393-193

Auction-ID: A3-46133-5695

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm Dist. spindle nose & working surface base:350 - 1260 Spindle travel:315 max. boring diameter:40 mm Distance between spindle axis and column:350 - 1260 spindle taper:4 MK Range of spindle speeds:22,4 - 2800 Number of spindle speeds:16 Number of spindle feeds:16 Table:500 x 630 Travel of spindle head:900 mm total power requirement:3,5 kW dimensions of the machine ca.:2150x1070x2840 m feed:0,09 - 1,5 m/min weight of the machine ca.:3 t

bore capacity in steel (diameter):45 mm WORKING RANGE -BORING-:. - drilling capacity full bore (steel):45 mm - drilling capacity full bore (cast iron):55 mm - horizontal travel:1050 mm - vertical travel:450 mm - sleeve stroke:200 mm WORKING SPINDLE / HEAD:. - spindle revolutions (min):15 /min - spindle revolutions (max):2800 /min - number of gears:2 - taper fixture : MK 4 :. - spindle power (continuous):5.5 kW - torque (max.):250 Nm - max. distance spindle ... clamping surface:710 mm - thread cutting attachment : yes :. TABLE:. - clamping surface (left-right):1200 mm - clamping surface (front-back):750 mm ELECTRICAL SPECIFICATIONS:. - total power consumption:7 kW - mains power supply:9.3 kVA - mains voltage:400 V - mains frequency:50 Hz DIMENSIONS / WEIGHTS:. - space requirements length:3000 mm - space requirements width:3000 mm - total height:3000 mm - total weigh ...

bore capacity in steel (diameter):1-13 mm arm length:100 mm workpiece height max.:400 mm total power requirement:3 kW dimensions of the machine ca.:2.0 x 1,2 x 2,2 m bore spindle turning speed range:0-3000 U/min boring spindle drive:2,2 kW max. Y-axis travel:550 mm max. Z-axis travel:300 mm The machine has a 2.2 kW spindle motor with a 2-stage gearbox for drilling and tapping. Table size is 100 x 50 cm Stroke length approx. 200 mm

bore capacity in steel (diameter):12 mm throat:300 mm bore stroke:80 mm total power requirement:1,5 kW weight of the machine ca.:1,2 t dimensions of the machine ca.:0,6 x 0,7 x 2,1 m Appr. 100 year old column boring machine, complete overhould and ready to operate - swivel table, base table - taper tool chuck - base motor with drive belt to overhead spindle

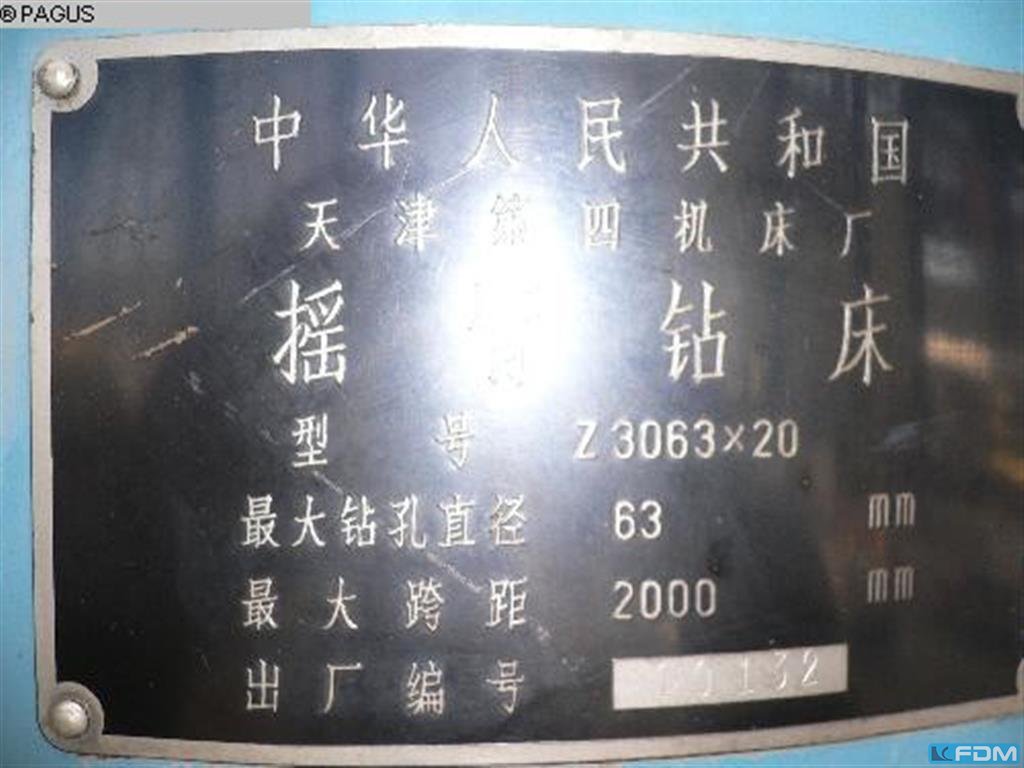

bore capacity in steel (diameter):63 mm arm length:2000 mm workpiece height max.:135 mm spindle stroke:400 mm reus:16 Stufen table-size:630 x 800 mm tool taper:MK 5 speeds:20 - 1600 U/min spindle feeds::0,04- 32 mm/U work table::800 x 630 x 550 mm total power requirement:5,5 kW weight of the machine ca.:6200 kg dimensions of the machine ca.:3100 x 1250 x 2500 mm Year:ca. 1990

bore capacity in steel (diameter):63 mm arm length:2000 mm workpiece height max.:135 mm spindle stroke:400 mm reus:16 Stufen table-size:630 x 800 mm tool taper:MK 5 speeds:20 - 1600 U/min spindle feeds::0,04- 32 mm/U work table::800 x 630 x 550 mm total power requirement:5,5 kW weight of the machine ca.:6200 kg dimensions of the machine ca.:3100 x 1250 x 2500 mm Year:ca. 1990

bore capacity in steel (diameter):40 mm arm length:1200 mm workpiece height max.:1227 mm surface area:1475 x 900 mm no. of flutes:3 groove width:25/ 50 mm spindle cone:MORSE 4 number of spindle speeds:45- 2800 U/min spindle headstock:Bew.Arm : 945 mm with vertical adjustment:Arm 710 mm spindle diameter:35 mm bore depth:300 mm total power requirement:3,0 kW weight of the machine ca.:2800 kg dimensions of the machine ca.:2290 x 910 x 2860 mm

bore capacity in steel (diameter):40 mm arm length:1200 mm workpiece height max.:1227 mm surface area:1475 x 900 mm no. of flutes:3 groove width:25/ 50 mm spindle cone:MORSE 4 number of spindle speeds:45- 2800 U/min spindle headstock:Bew.Arm : 945 mm with vertical adjustment:Arm 710 mm spindle diameter:35 mm bore depth:300 mm total power requirement:3,0 kW weight of the machine ca.:2800 kg dimensions of the machine ca.:2290 x 910 x 2860 mm

workpiece thickness max.:80 mm workpiece thickness min.:5 mm plate size without being adjusted:2000x1000 mm size of plate min.:100x100 mm control:CNC Mubea Matic100 hole diameter:min/max:10/40 mm workpiece weight:750 kg deburring device max.:d=40 mm traversing speed:80 m/min work height max.:1050 mm positioning accuracy:+/- 0,5 mm opening of gripping pliers min/max.:Typ I: 5/45 mm opening of gripping pliers min/max.:Typ II: 45/85 mm feed length:max. 150 mm rapid traverse::8 m/min spindle turning speed range:112-180-224-280-355-560 U/min work table::L:2500;B:950 mm arm gripping device:4 Stück tool taper:Kegel DIN 6327 longitudinal travel:x=2800 mm cross travel:y=1000 mm bore spindle stroke:max. 150 mm total power requirement:25,0 kW weight of the machine ca.:5,5 t space requirements approx. LxWxH:5,0x5,5x2,7 m plate size with beeing adjusted also 1000x4000 mm possible with roller conveyo ...

bore capacity in steel (diameter):5 - 30 mm x-travel:450 mm y-travel:380 mm total power requirement:1,4 / 2,2 kW weight of the machine ca.:1.100 kg dimensions of the machine ca.:1.000 x 1.400 x 2.900 mm gear box:85 - 2.000 U/min spindle diameter:72 mm bore depth:700 mm throat:300 mm spindle taper MT:3 T-slots:3 x 16/25 mm table-size:700 x 300 mm spindle turning speed range:85/170/250/355/475/710/1000/2000 U/min motor speeds::705/1425 Year:ca. 1975

bore capacity in steel (diameter):10 mm throat:210 mm bore stroke:80 mm total power requirement:1,1 kW weight of the machine ca.:195 kg dimensions of the machine ca.:530 x 650 x 1850 mm spindle speeds::355, 710, 1400, 2800 U/min Table dimensions:340 x 280 mm

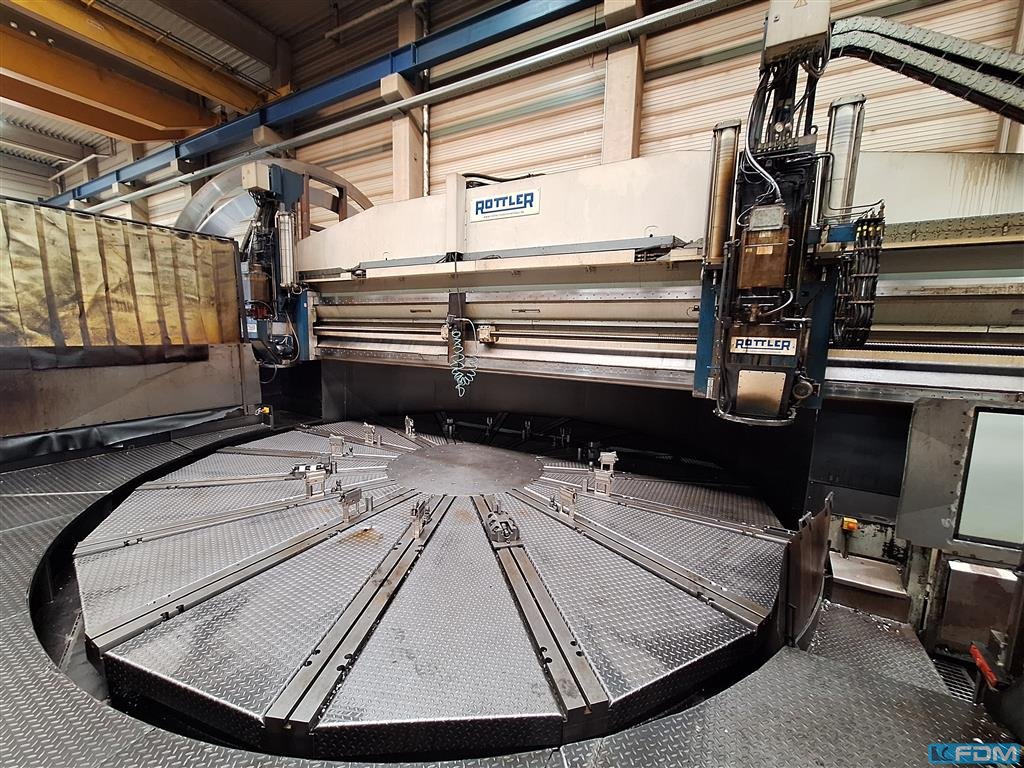

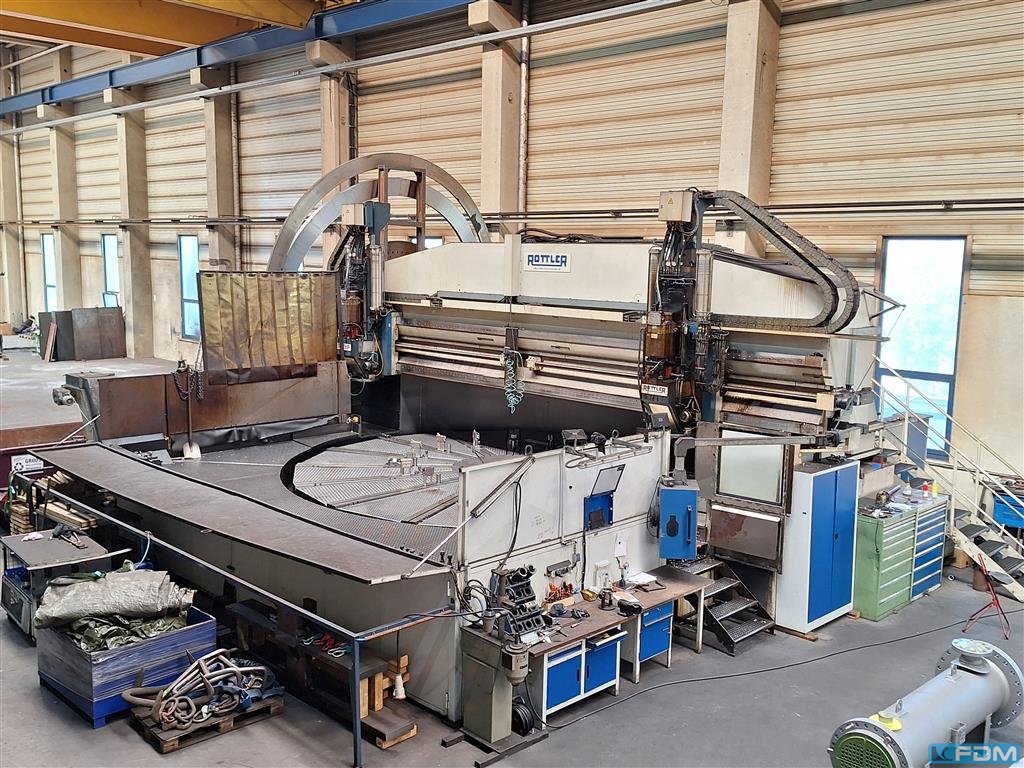

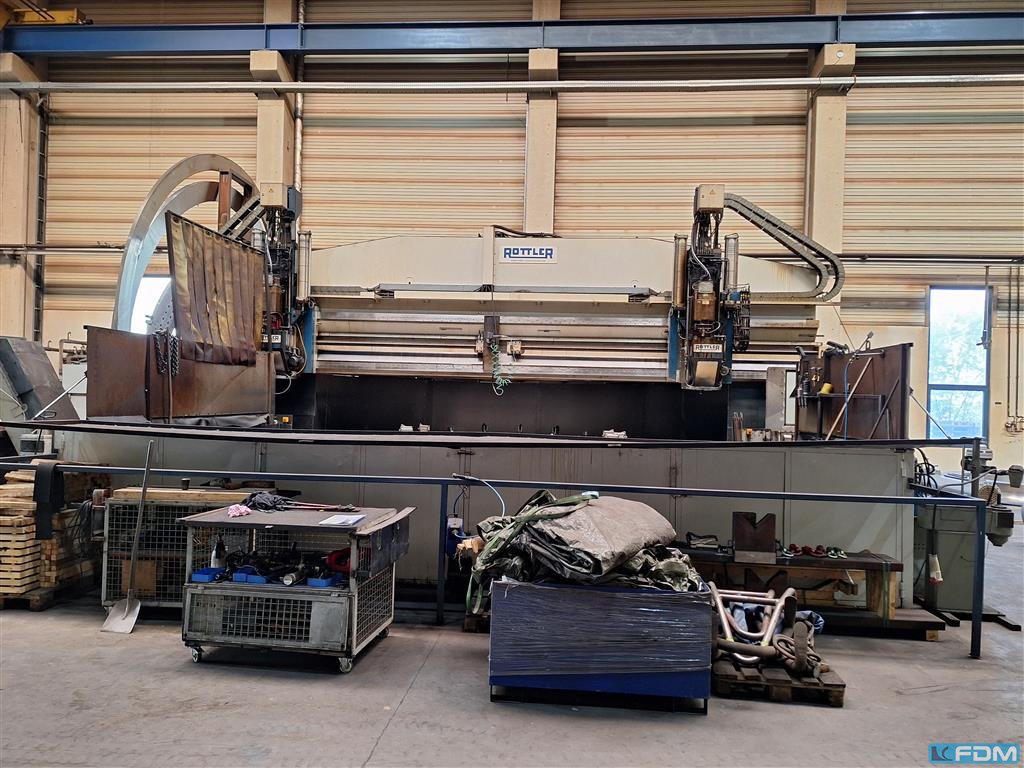

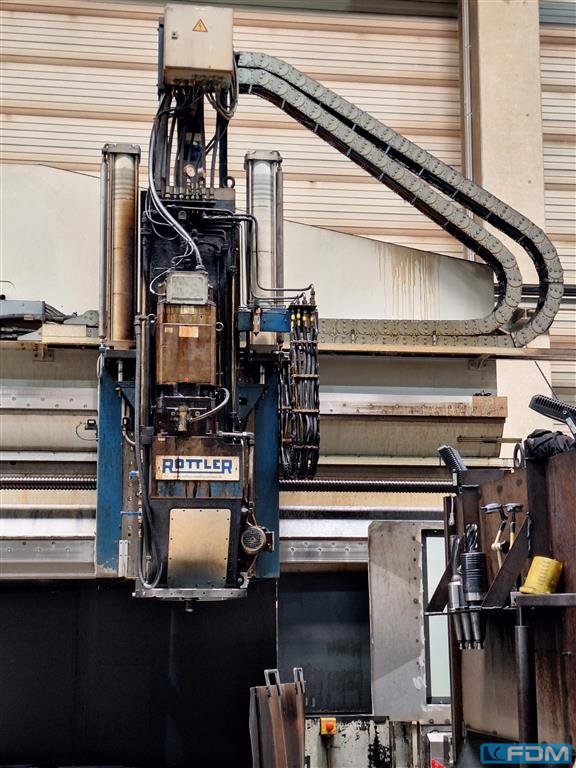

bore capacity in steel (diameter):100 mm max. pitch circle:7000 mm number of spindles:2 bore spindle turning speed range:1 - 3000 U/min high speed spindle taper ISO:50 bore slide stroke:900 mm feed speeds:1 - 6000 mm/min max. workpiece weight:18000 kg total power requirement:125 kW dimensions of the machine ca.:13 x 11 x 5,1 m with CNC SIEMENS 840 D Workpiece clamping up to dia. 7000 mm The machine is equipped with 2 drilling spindle supports and through spindle coolant (50 bar)both supports can drill simultaneously. Spindle taper SK 50, 2 stages 1 -600 rpm 1650 Nm and 1 - 3000 rpm. 300 Nm Chip conveyor and coolant device

Drilling capacity in St 60: 55 mm threading in St 60: M 30 : M 36 Short spindle: MK 4 spindle stroke: 140 mm throat: 300 mm column diameter: 145 mm Machine table - usable table surface: 615x430 mm T-Slots Amount - Width - Distance: 2x14x224 mm distance spindle - column min./max.: 150/735 mm feed: 0,1 + 0,3 mm/U 0: stufenlos Spindle Speed: 70-2.400 U/min. engine: 3,0 kW machine weight ab.: 380 kg Standard equipment: - 7 TFT LCD display with touch function: Manual input of spindle speed set value Actual speed display Integrated drilling depth display with touch zero point transfer Virtual drilling depth scale in the display Machine status indicators and warnings on the display Service information Selectable operating language: DE/EN/FR/ES/IT/NL/RU - Thread cutting device, for thread cutting with stop, max. 6 threads/min (thread cutting capacity depending on spindle speed), thread de ...

T-slot clamping surface: 600x450 mm, max. speed: 3000 rpm
