ramisch kleinewefers used for sale

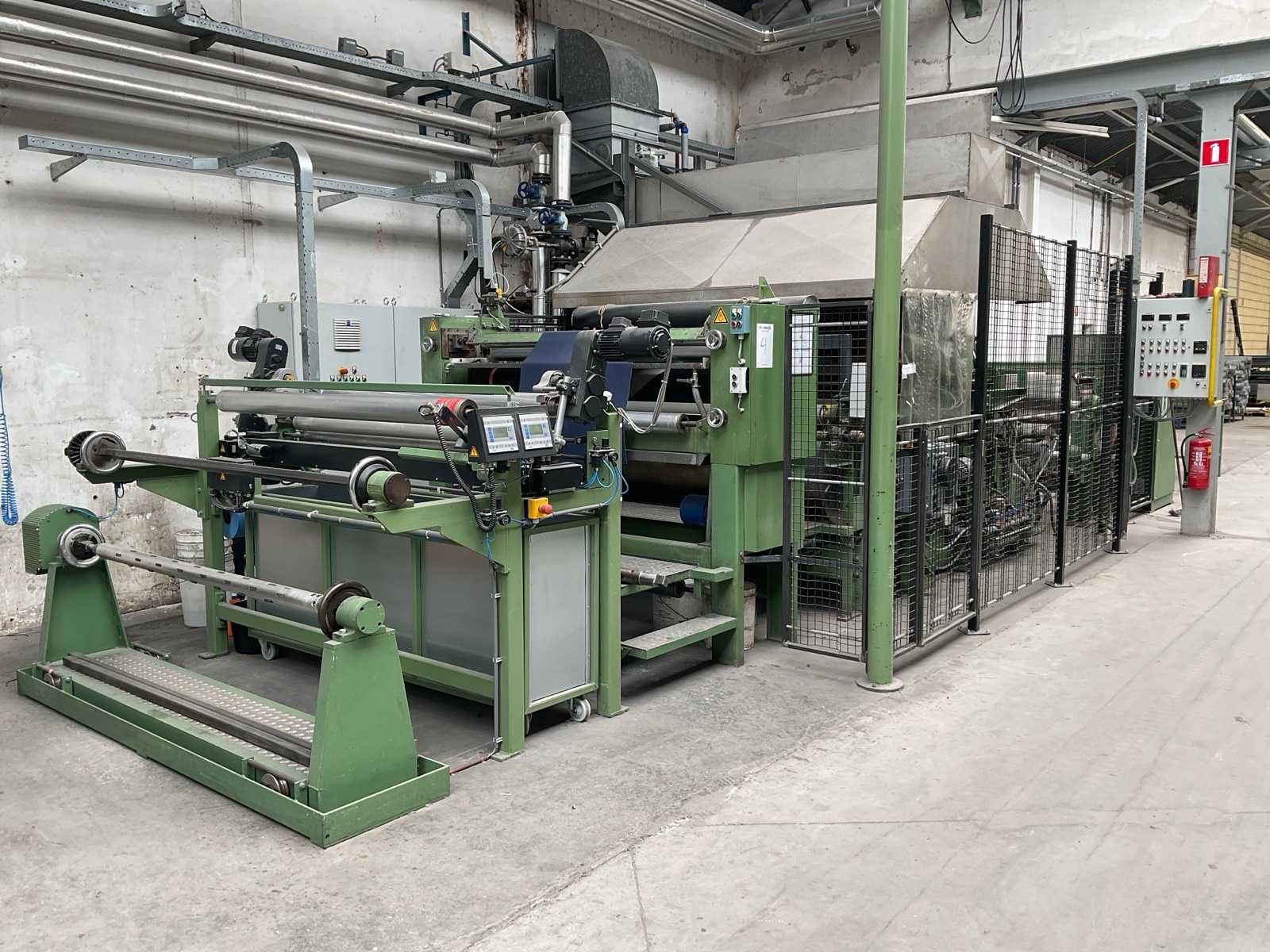

Working width: 2000 mm Roller width: 2200 mm pressure: 50 t Pressure line: 230 N / mm Number of rollers: 3 Stück Upper roll: 280 dia Roller covering: Stahl, verchromt Heating - upper roll: Thermoöl Middle roll: NIPCO-Walze , 500 mm dia Roller covering: Polyamidmantel Lower roll: Stahl dia diameter of lower rolls: 280 mm Roller covering: Schreiner-Gravur Clouth speed: max.100 m/min Weight: 26 to dimensions of the machine ca.: 6,0 x 8,0 x 3,3 m 3-roll calender with 2 steel rolls, upper steel roll smooth - chrome-plated, lower steel roll with carpenter engraving, heating with thermal oil (via heat exchanger), middle roll as NIPCO roll, this can be rotated by 180°, for use in the upper or lower roll nip, infeed with working platform, triple profile spreader holders + metal detector E&L, outfeed with hydraulic MENZEL Sochor winder, The data for this ad was created with ModulMWS - the sof ...

1 RAMISCH KLEINEWEFERS 2-bowl rolling smoothing and high glaze calander type NIPCO-I model RKK 2100, 3400 mm face roller width, 3300 mm working width,   year 1990, top bowl steel chromed (electro hot water heated), lower bowl Racolan (NIPCO-roll original ESCHER WYSS)

1 RAMISCH laboratory 4-roll calander type RK 46P, face roller width 300 mm, working width 250 mm, calander indicated for following processes: rolling, glaze, friction, mate, Schreiner and embossing,  4 rollers with the following distribution (top to bottom):  steel diameter 120 mm, cotton diameter 240 mm, cotton diameter 240 mm, steel diameter 120 mm, both the steel rollers are electrically heated, linear speed adjustable up to 20 m/min., pressure adjustable up to 195 N/mm = 6 tons, unwinding from roller max. 300 mm diameter, winding to roller max. 300 mm diameter, double fabric spreader, central lubrication system to the 8 roller plain bearings, all rollers are connected through tooth wheels, friction possible and adjustable between 0 and 200%, weight of the machine 2300 Kg, dimensions width 1780 mm, depth 1250 mm, height 1600 mm
